Part no. 58736A
This product has been discontinued.
Contact usPlease Note:
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

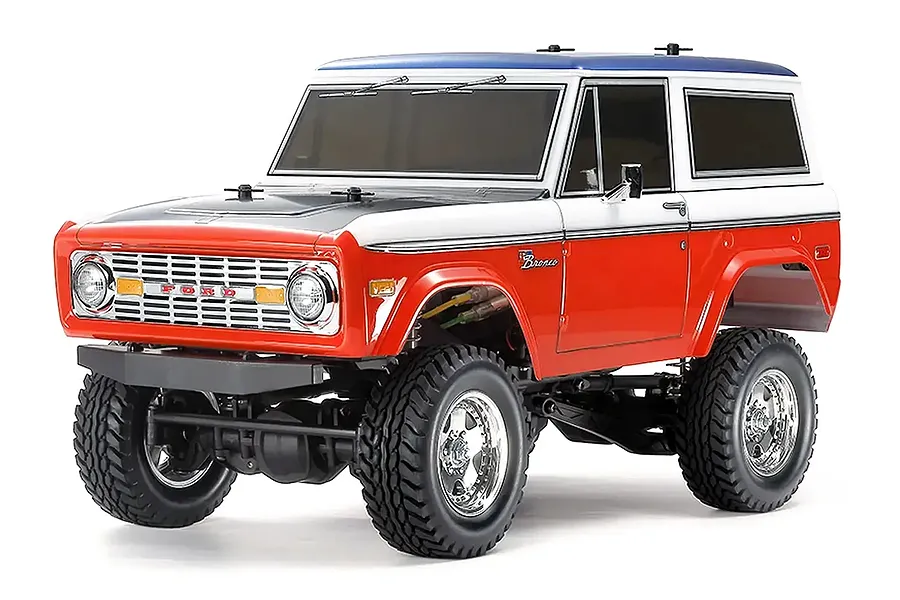

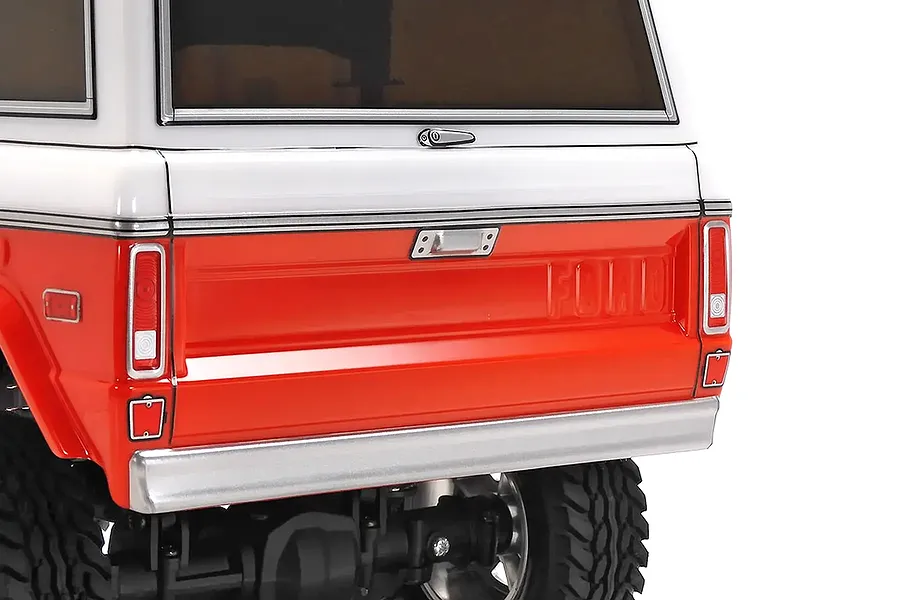

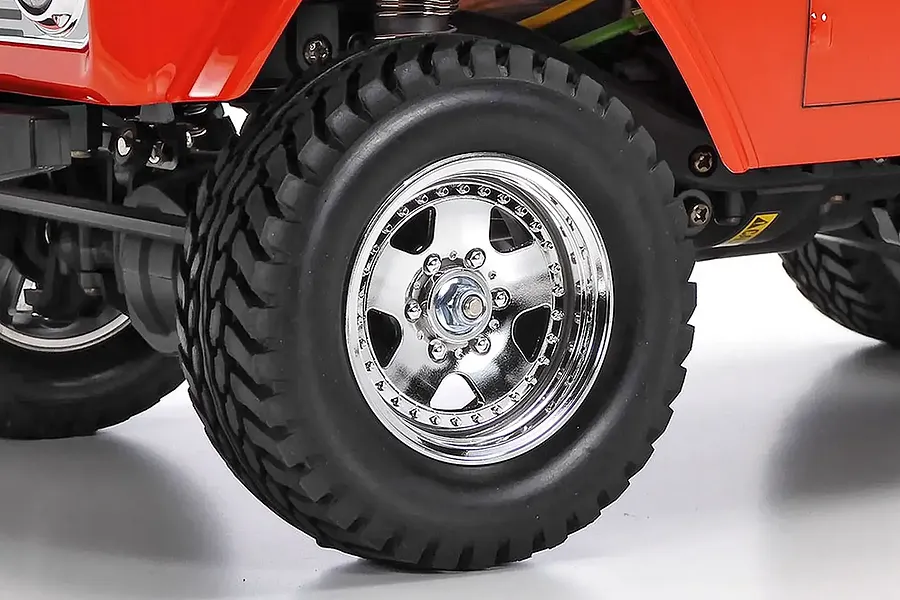

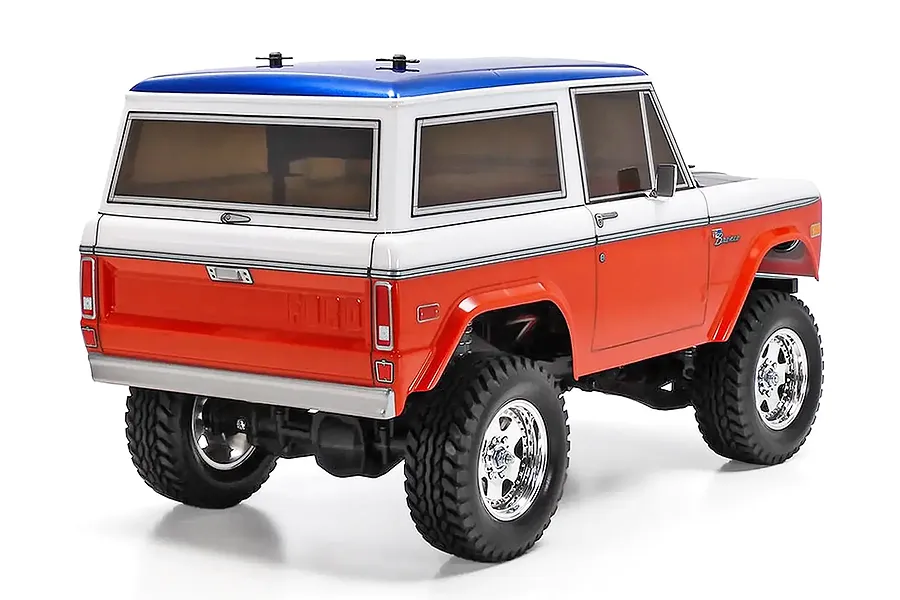

The original Ford Bronco, a compact powerhouse renowned for its off-road prowess, carved its name in numerous races, including a dominant desert victory. To celebrate this achievement, Ford released the Baja Bronco from 1971 to 1975, instantly capturing the hearts of off-road enthusiasts. Sporting a distinctive white and red body with a contrasting blue roof and black hood, the Baja Bronco packed reinforced suspension and other rugged upgrades, solidifying its reputation as a true trailblazer. The CC-02 chassis is built for various off-road terrains, including rocky surfaces. Its ladder frame takes inspiration from real-life vehicles and provides excellent durability. The 4WD setup features a longitudinal motor placed behind the front axle, a separate gearbox and transfer case, and propeller shafts that transmit power to the differential gears at the front and rear. Its four-link rigid suspension comes with CVA oil shocks, and the model includes matte plated seven-spoke wheels and block pattern tyres for better grip.
Note
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.

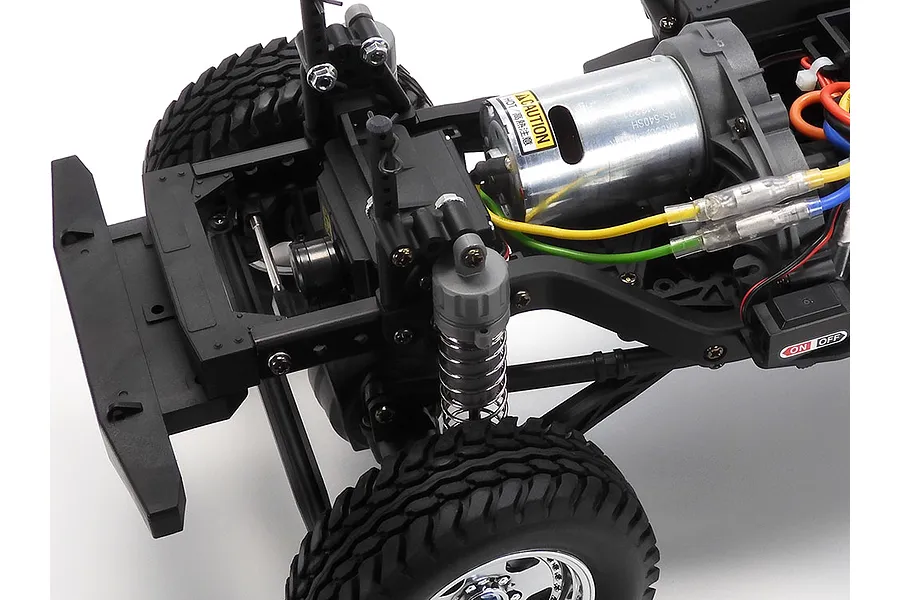

The CC-02 delivers an authentic driving experience thanks to its scale drivetrain configuration. The motor is positioned in the front midsection, and power is transferred through a central gearbox and propeller shafts to both the front and rear axles, just like a real car.
The CC-02 chassis features a realistic ladder frame, inspired by full-size off-road vehicles, providing exceptional rigidity and durability for tackling challenging terrain.

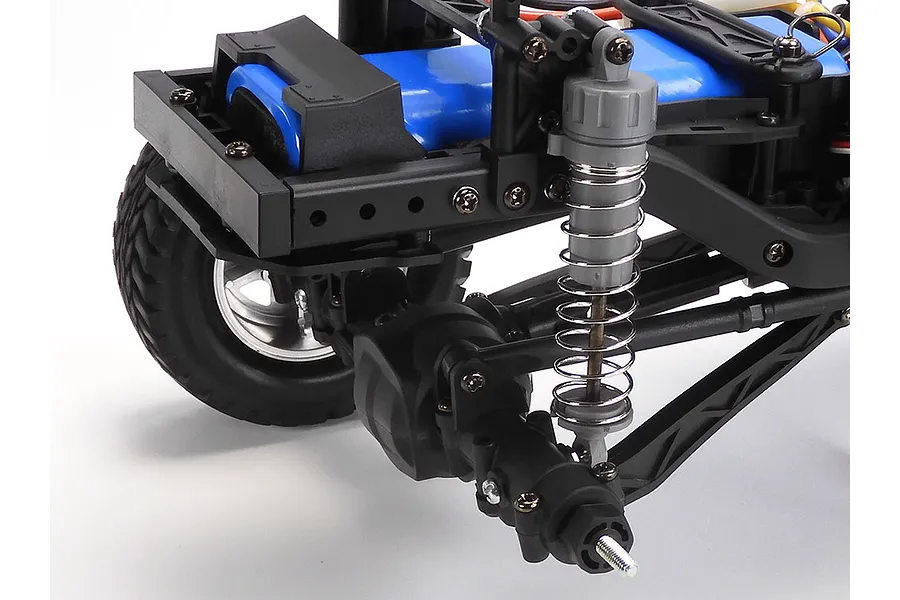

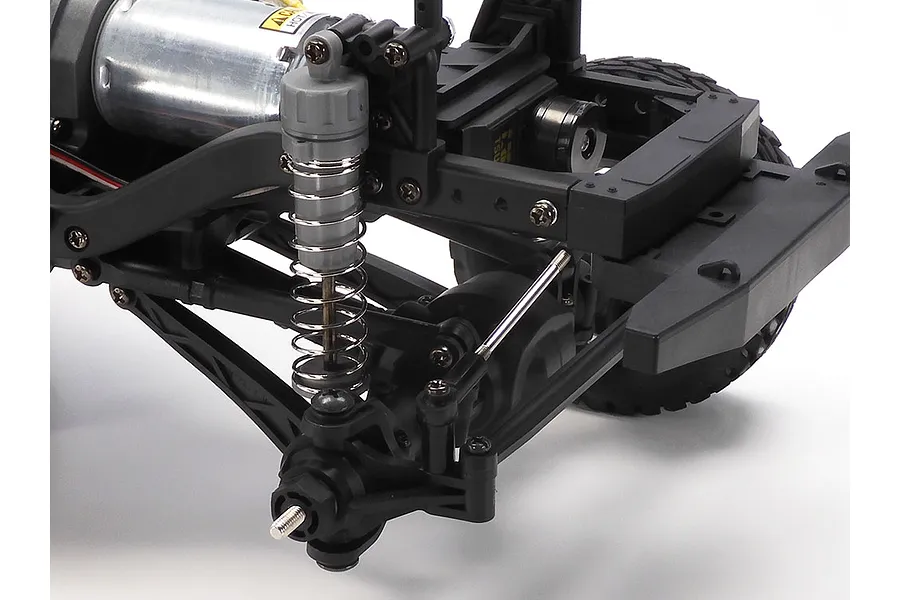

The CC-02's four-link suspension delivers outstanding performance and scale realism. Robust link arms connect the axles, while oil shocks provide smooth damping action and exceptional articulation for conquering challenging obstacles.
Fine-tune the CC-02's performance to match your driving style and terrain with a wide range of gear ratios. Twenty different ratios, from 11.09 to 29.28:1, are achievable by adjusting the gear layout and utilising your choice of separately-sold pinions.
The CC-02 chassis is designed for tough off-road action. Metal frame sections provide exceptional durability, while CVA oil shocks ensure smooth damping and maximum performance on challenging terrain.
The CC-02 comes with robust axle housings that can handle extreme off-road conditions. Inside, 3-bevel differentials provide smooth operation, and they can be assembled in a locked position for increased traction when needed, ensuring you maintain control on any surface.
Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.
| Length | 395mm (15.55") |
|---|---|
| Width | 196mm (7.72") |
| Height | 215mm (8.46") |
| Wheelbase | 242mm (9.53") |
| Weight | Varies |
| Tyre Diameter | 90mm (3.54") |
| Chassis | Rock Crawler (CC-02) |
| Drivetrain | 4WD |
| Gear Ratio | 17.33:1 (default) |
| Suspension | Oil-Filled Coil Over Shock Absorbers |
| Motor | 540 Sized Brushed Motor |
| ESC | Not Included |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Kit |
| Skill Level | Intermediate |
| Power Source | Electric |
| Chassis Type | Rock Crawler |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
| Battery Connector | Not Included |
|---|---|
| Front Shock Oil | 200cSt |
| Rear Shock Oil | 200cSt |
| Pinion Gear | 16T |
| Spur Gear | 83T |
| Wheel Hex Size | 12mm |
