Tamiya CC-02 1990 Land Rover Defender 90 RC Rock Crawler Electric 4WD 1/10 Scale Kit (No ESC) - Blue

1/10
4WD
Kit
Brushed

Part no. 47478A

1 in stockNo reviews yet

1 / 10

Videos

$403.14

or 4 fortnightly payments of $100.78 with afterpay or PayPal, or zip

Tamiya CC-02 1/10 Land Rover Defender 90 assembly kit — limited-edition pre-painted light blue body with four-link rigid suspension and 540 brushed motor.

Limited-edition pre-painted light blue polycarbonate body

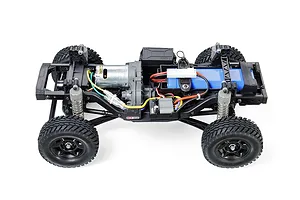

CC-02 ladder frame chassis with four-link rigid suspension and CVA oil dampers
Shaft-driven 4WD with front and rear differential gears
LED-compatible headlight and tail light positions (LEDs sold separately)
Wide range of Hop-Up Option Parts available

Want more than 1? and we'll email you when they're here.

1 in stock · Ships Thursday · order by 1:00pm Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

You'll need

Not included: 1x 7.2V NiMH Battery & Compatible Charger, 4x AA Batteries, 1x Standard Sized Servo, 1x 2-Channel Transmitter & Receiver, 1x Brushed ESC.

BatteryTornado 7.2V 5000mAh NiMH Battery
$53.84
ESCRGT 40A Waterproof Brushed Crawler ESC
$44.99
Steering ServoPower HD Standard LF-13MG 13kg Metal Geared Servo
$39.99
Transmitter & ReceiverFlySky FS-GT2F 2.4Ghz 2ch Radio w/ FS-A3 Receiver
$51.92
Curved ScissorsTraxxas Curved Hobby Scissors
$24.00
ChargerSkyRC S100 Neo AC/DC Smart Charger
$89.99
LiPo Safe Charging BagAtrek 180x80x60mm LiPo Safe/Protection Bag
$19.95
Transmitter BatteriesFujitsu 1.5v AA Alkaline Batteries 4Pcs
$6.99

This item + 5 required$545.99

Not added until you choose its options: Battery, ESC, Charger.

Videos

Overview

Please Note:

This kit comes without an, ESC, Servo, Battery, Charger, or Transmitter and will come with a painted body that may require cutting and drilling.

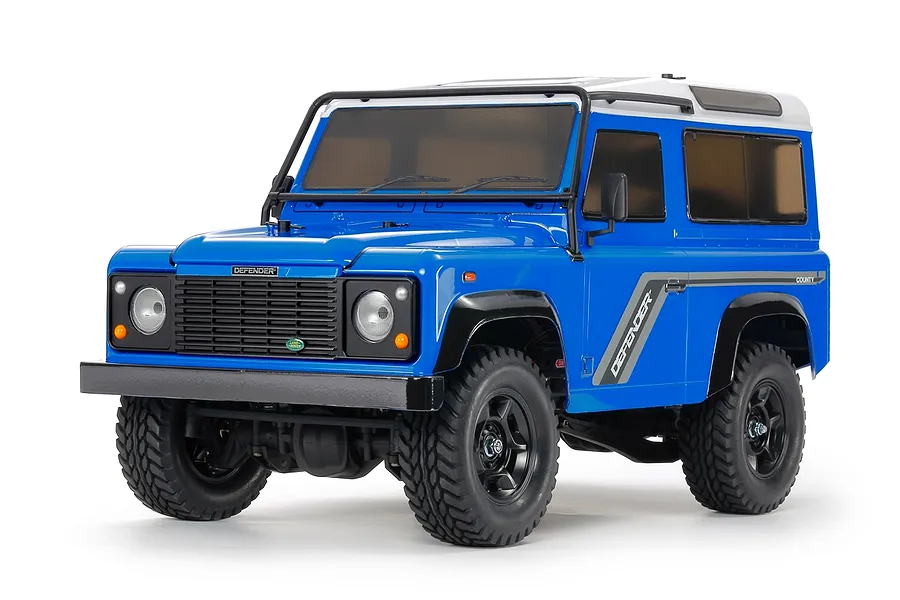

This is a limited-edition radio control kit of the 1990 Land Rover Defender 90. Unlike item 58700, this version includes a pre-painted body in light blue. The Defender 90 is a legendary Land Rover off-road car, with roots going back to 1948. Based on differences in wheelbases, this car has three types — the Defender 90/110/130. This model depicts a 3-door model with 93-inch wheelbase.

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections.

Features

1/10 scale R/C model assembly kit. Length: 429mm, width: 200mm, height: 215mm, wheelbase (short): 242mm

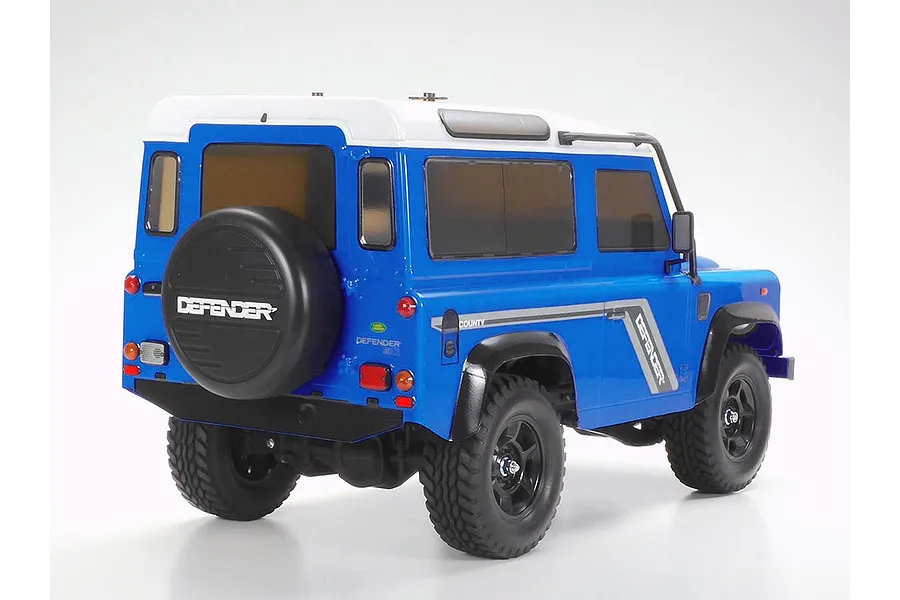

Polycarbonate body pre-painted in light blue

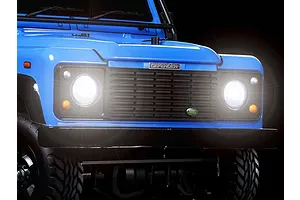

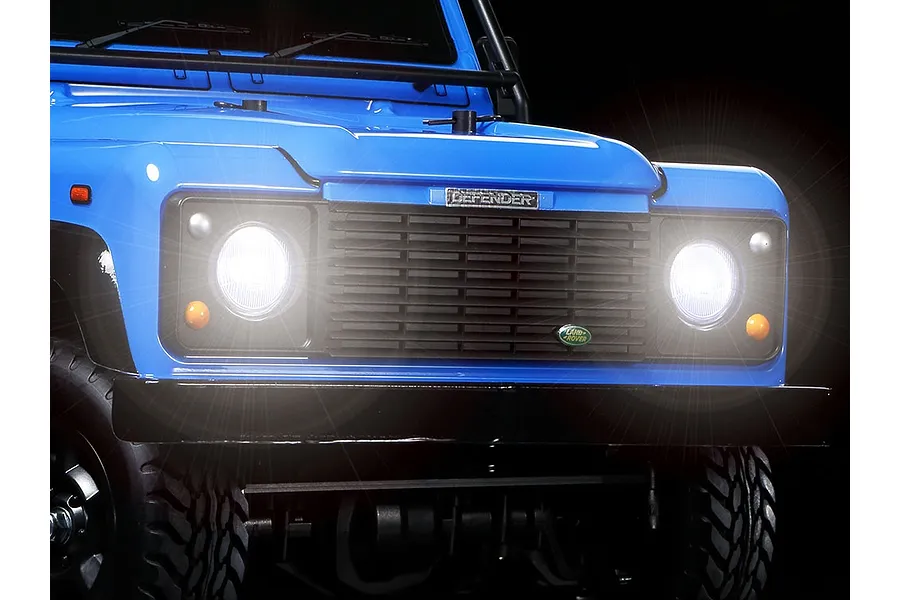

Compatible with 5mm-diameter LEDs x2 for headlights and 5mm-diameter LEDs x6 for the rear (LEDs sold separately)

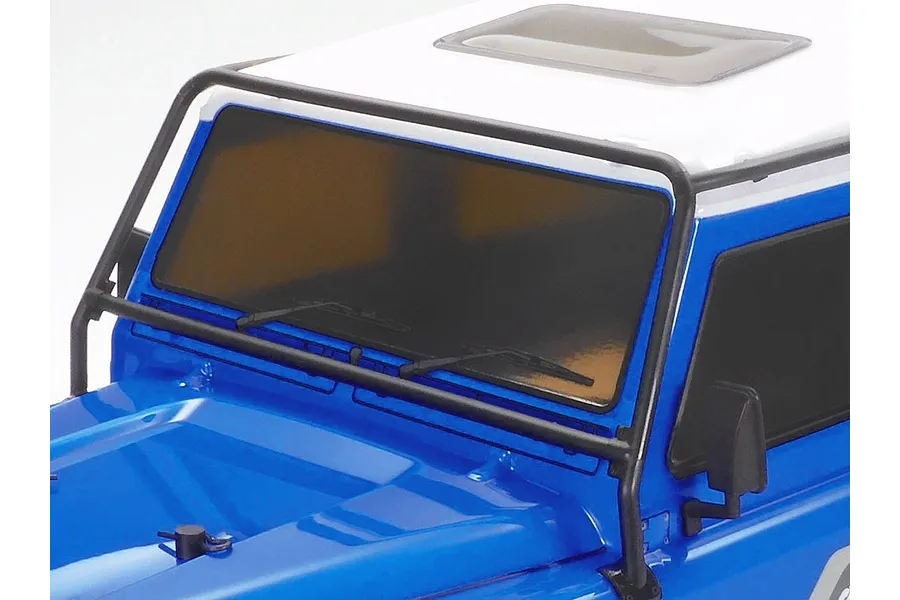

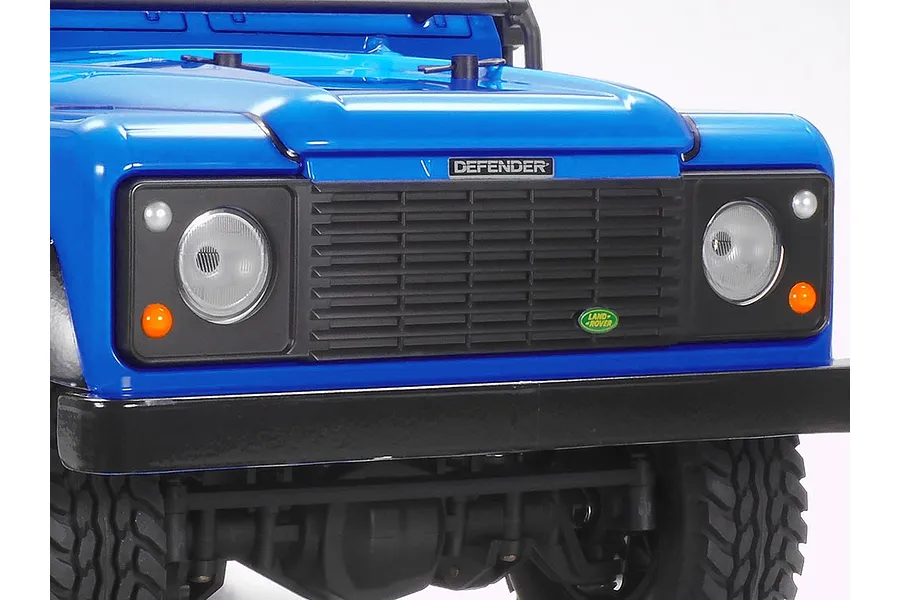

Includes separately moulded parts for grille, side mirrors, light cases and outer roll cages

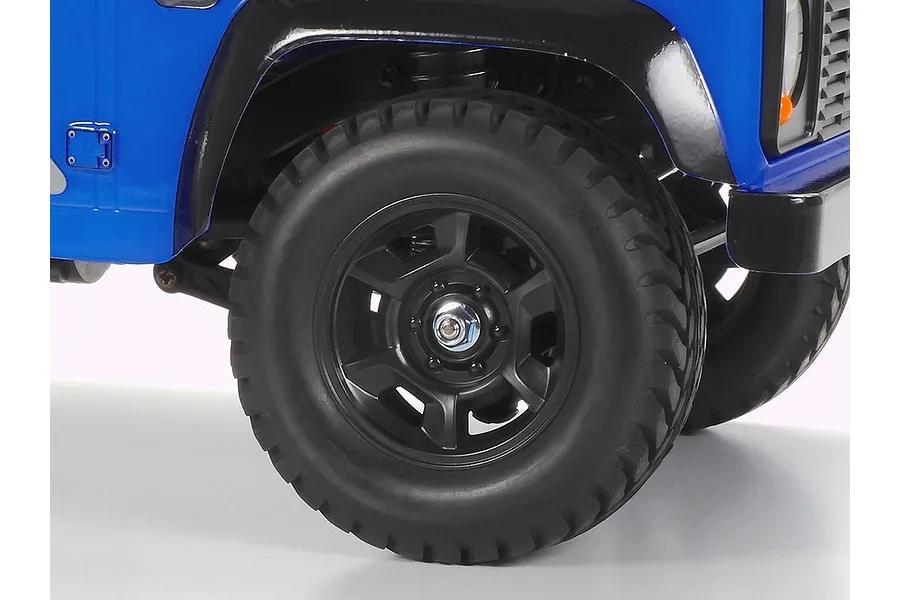

Black ABS resin wheels paired with semi-pneumatic all-terrain rubber tyres
CC-02 ladder frame chassis with superior durability and front/rear coil spring suspension for off-road surfaces including rocky terrain
Includes 540 Type brushed motor
A wide range of Hop-Up Option Parts available to customise the CC-02 chassis
Genuine Tamiya product

In the box

1x 1/10 CC-02 RC Rock Crawler Chassis Kit
1x 540 Sized Brushed Motor
1x 1/10 Painted Land Rover Defender 90 Body Shell — Blue

You'll need

1x 7.2V NiMH Battery & Compatible Charger
4x AA Batteries
1x Standard Sized Servo
1x 2-Channel Transmitter & Receiver
1x Brushed ESC

Add them from the buy box

Highlights

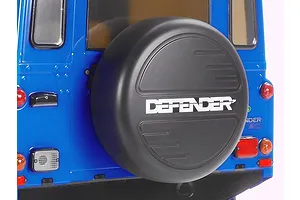

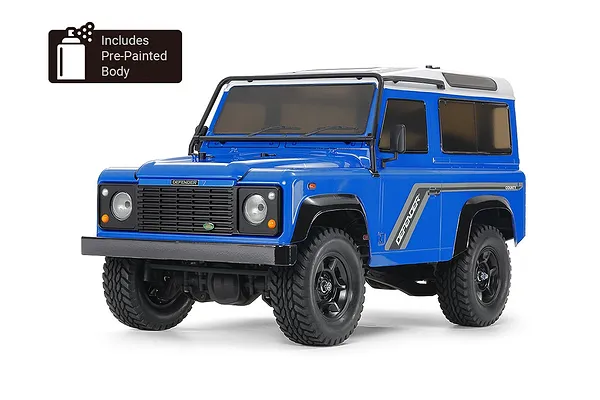

Limited Edition Painted Shell

This CC-02 features a special, limited edition factory painted Land Rover Defender 90 shell. Featuring incredible scale details, this CC-02 is a must-have for Tamiya collectors and Land Rover enthusiasts.

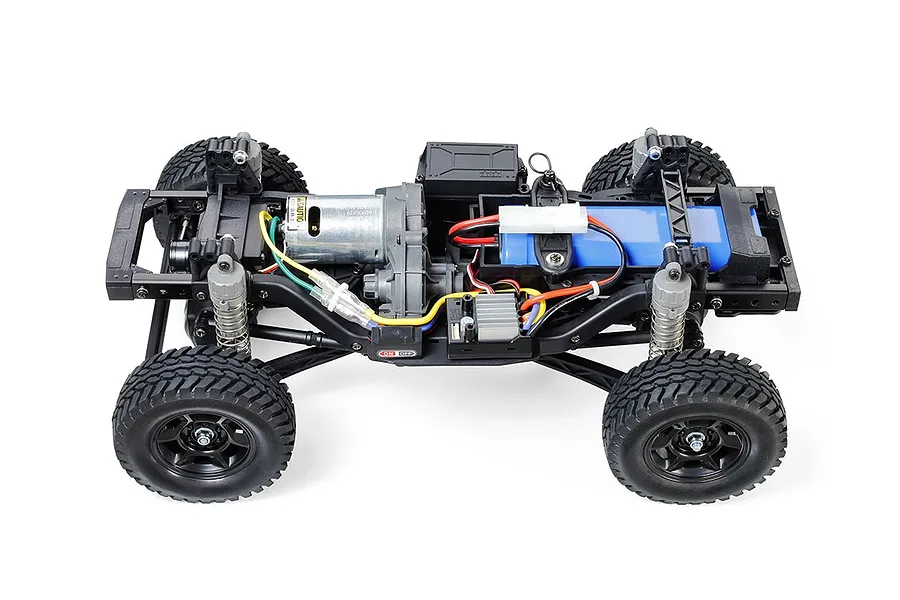

Ladder Frame Chassis

The CC-02 chassis features a realistic ladder frame, inspired by full-size off-road vehicles, providing exceptional rigidity and durability for tackling challenging terrain.

Adjustable Gear Ratio

Fine-tune the CC-02's performance to match your driving style and terrain with a wide range of gear ratios. Twenty different ratios, from 11.09 to 29.28:1, are achievable by adjusting the gear layout and utilising your choice of separately-sold pinions.

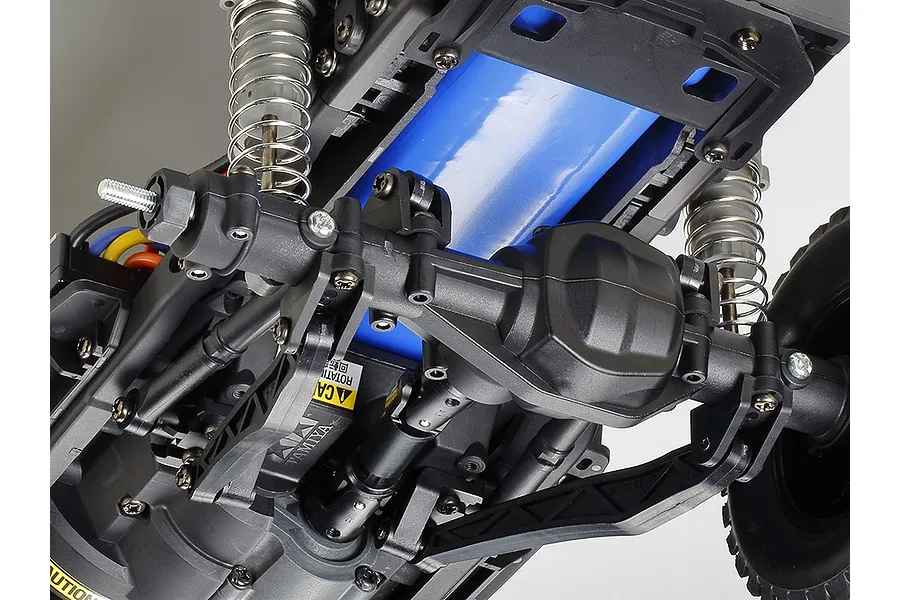

Four Link Suspension

The CC-02's four-link suspension delivers outstanding performance and scale realism. Robust link arms connect the axles, while oil shocks provide smooth damping action and exceptional articulation for conquering challenging obstacles.

Durable Metal Chassis

The CC-02 chassis is designed for tough off-road action. Metal frame sections provide exceptional durability, while CVA oil shocks ensure smooth damping and maximum performance on challenging terrain.

Lockable Differentials

The CC-02 comes with robust axle housings that can handle extreme off-road conditions. Inside, 3-bevel differentials provide smooth operation, and they can be assembled in a locked position for increased traction when needed, ensuring you maintain control on any surface.

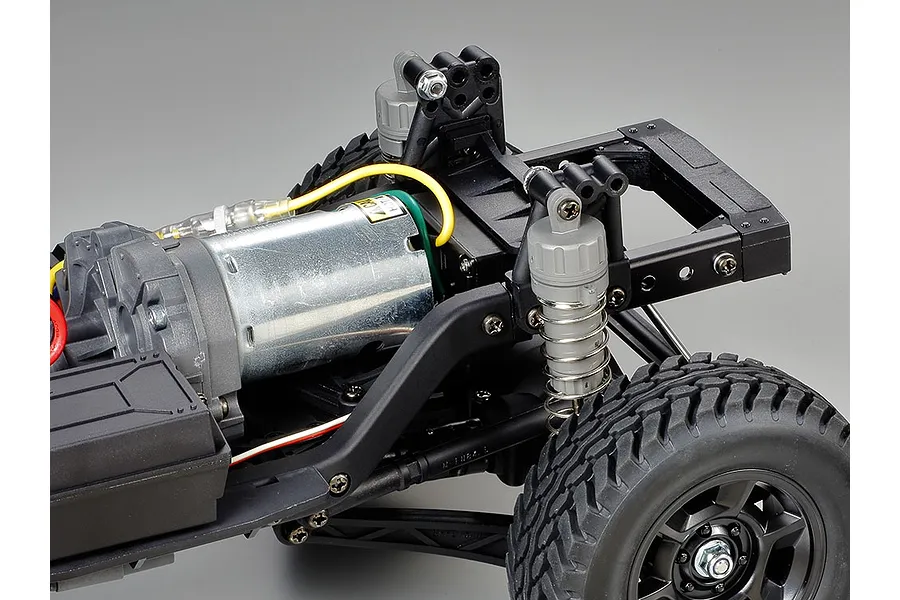

Front Mount Mid Motor

The CC-02 delivers an authentic driving experience thanks to its scale drivetrain configuration. The motor is positioned in the front midsection, and power is transferred through a central gearbox and propeller shafts to both the front and rear axles, just like a real car.

Specifications

Adjustable Gear Ratio	Yes
Bearings	Plastic Bushing
Body Material	Polycarbonate Pre-Painted
Body Stickers	Included
Chassis Material	FRP Fiberglass Reinforced Plastic
Chassis Type	CC-02
Construction Type	Assembly Kit
Differential Type	Gear
Drive Type	4WD
Motor	540 Brushed Type
Scale	1/10
Shock Damper	CVA Oil Filled
Suspension	4-link
Terrain Use	Multi-Purpose
