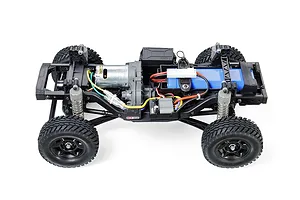

Ladder Frame Chassis
The CC-02 chassis features a realistic ladder frame, inspired by full-size off-road vehicles, providing exceptional rigidity and durability for tackling challenging terrain.

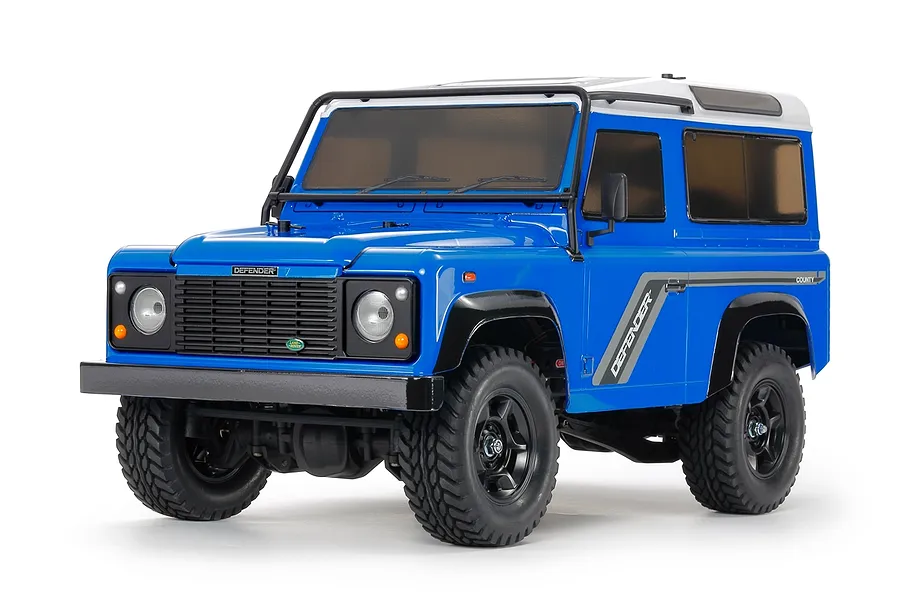

Tamiya CC-02 1990 Land Rover Defender 90 RC Rock Crawler Electric 4WD 1/10 Scale Kit (No ESC)
- 1/10
- 4WD
- Kit
- Brushed
Part no. 58700A
1 in stockNo reviews yet
Videos
Tamiya CC-02 1/10 scale assembly kit of the 1990 Land Rover Defender 90 with 4WD ladder frame chassis and CVA oil dampers.
- 1/10 scale R/C model of the legendary Land Rover Defender 90 (3-door, 93-inch wheelbase)
- CC-02 ladder frame chassis designed for a wide range of off-road scenes including rocky terrain
- Shaft-driven 4WD with separated gearbox and transfer case
- Four-link rigid suspension front and rear with CVA oil dampers
- Includes 540 Type brushed motor; wide range of Hop-Up Option Parts available
Want more than 1? and we'll email you when they're here.
1 in stock · Ships Thursday · order by Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
You'll need
Not included: 2-channel radio, Steering servo, 7.2–7.4V battery, Compatible charger, Electronic Speed Control (ESC) — HobbyWing THW 1060 Brushed Motor ESC (2–3S), Tamiya PS Paint.
This item + 6 required$370.85
Not added until you choose its options: Battery, ESC, Charger.
Videos
Overview
Please Note:
This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

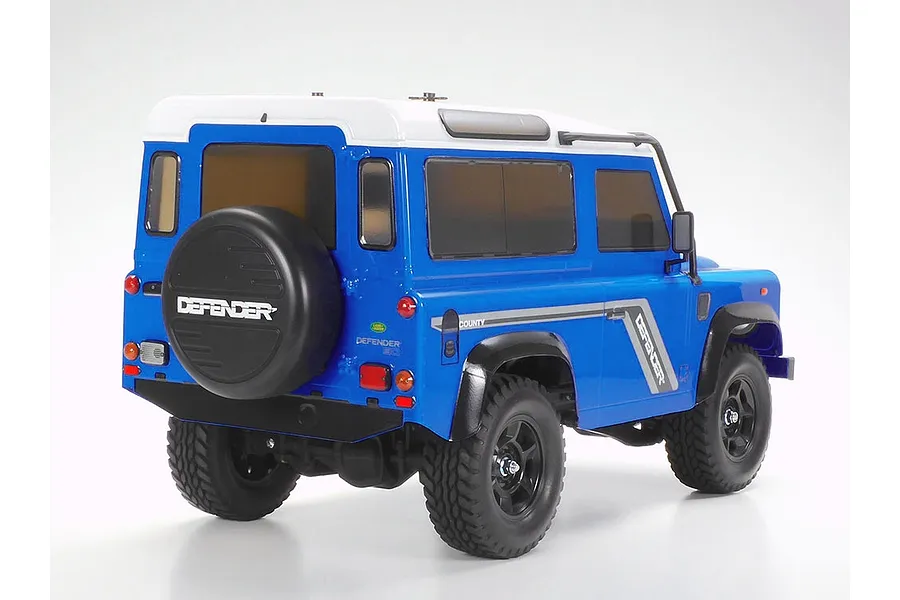

The Defender 90 is a legendary Land Rover off-road car, and its roots go back to 1948. Based on differences in wheelbases, this car has three types — the Defender 90/110/130. This R/C model depicts a 3-door model with 93-inch wheelbase. Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black wheels and grippy block pattern tires.
Features
- 1/10 scale R/C model assembly kit. Length: 429mm, width: 200mm, height: 215mm, wheelbase (short): 242mm (CC-01S chassis).
- Polycarbonate body.
- Compatible with 5mm-diameter LEDs x2 for headlights and 5mm-diameter LEDs x6 for the rear.

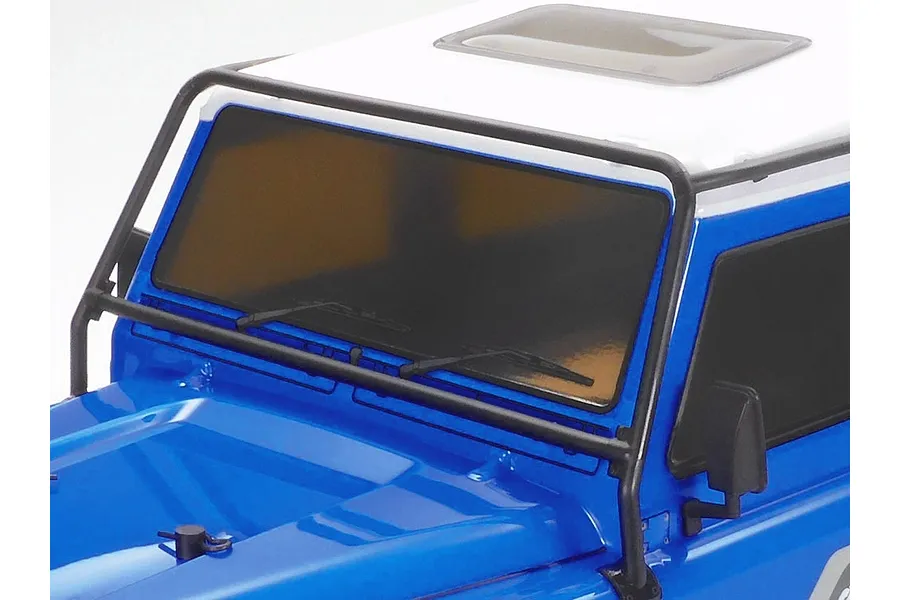

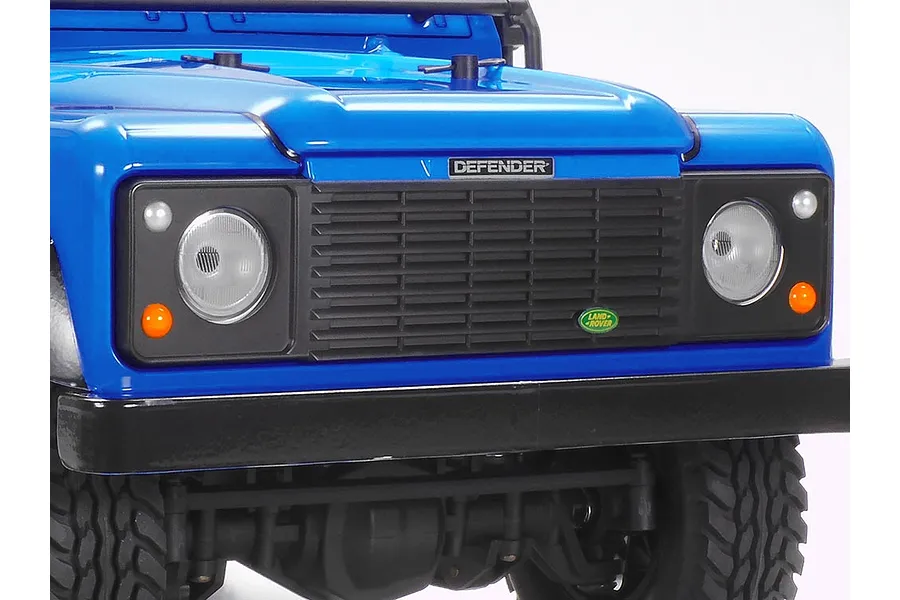

- Includes separately moulded parts for grille, side mirrors, light cases, and outer roll cages.

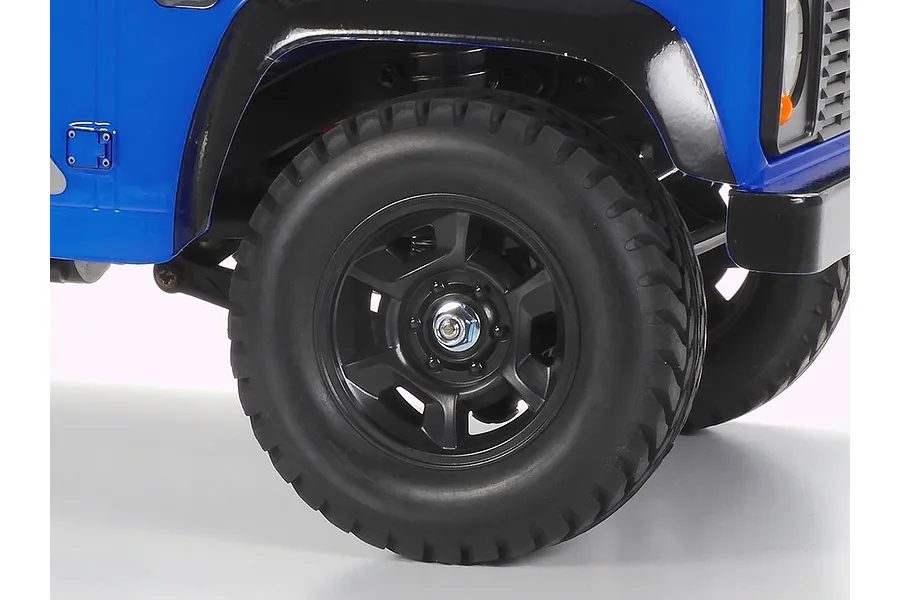

- Black ABS resin wheels paired with semi-pneumatic all-terrain rubber tires.
- The ladder frame CC-02 chassis features superior durability and employs front/rear coil spring suspension, great for off-road surfaces including rocky terrain.
- Includes 540 Type brushed motor.
- A wide range of Hop-Up Option Parts is available to customise the CC-02 chassis.
In the box
- 1x 1/10 CC-02 Electric On Road RC Car Kit - Blue & Motor
- 1x Decal Sheet Set
You'll need
- 2-channel radio
- Steering servo
- 7.2–7.4V battery
- Compatible charger
- Electronic Speed Control (ESC) — HobbyWing THW 1060 Brushed Motor ESC (2–3S)
- Tamiya PS Paint
Highlights
Four Link Suspension
The CC-02's four-link suspension delivers outstanding performance and scale realism. Robust link arms connect the axles, while oil shocks provide smooth damping action and exceptional articulation for conquering challenging obstacles.
Adjustable Gear Ratio
Fine-tune the CC-02's performance to match your driving style and terrain with a wide range of gear ratios. Twenty different ratios, from 11.09 to 29.28:1, are achievable by adjusting the gear layout and utilising your choice of separately-sold pinions.
Durable Metal Chassis
The CC-02 chassis is designed for tough off-road action. Metal frame sections provide exceptional durability, while CVA oil shocks ensure smooth damping and maximum performance on challenging terrain.

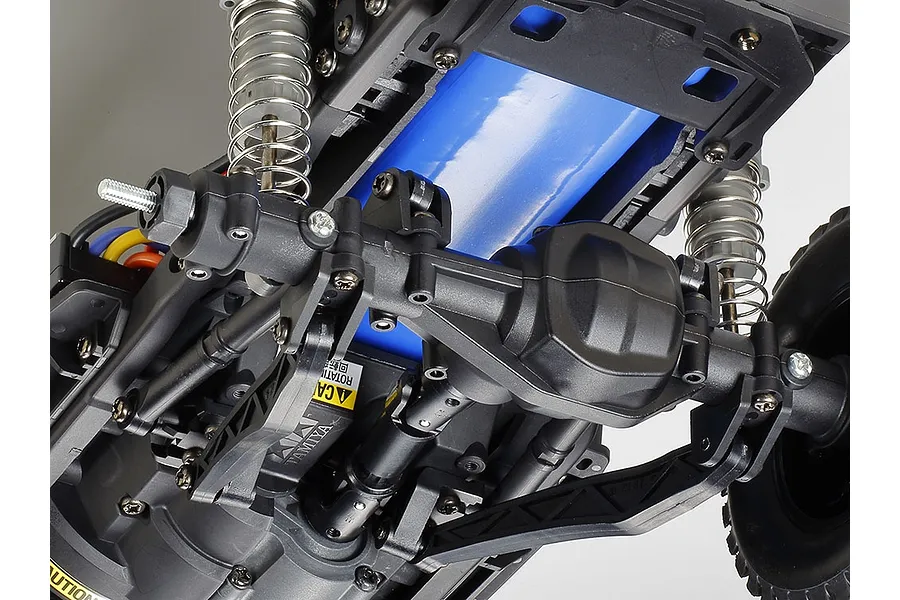

Lockable Differentials
The CC-02 comes with robust axle housings that can handle extreme off-road conditions. Inside, 3-bevel differentials provide smooth operation, and they can be assembled in a locked position for increased traction when needed, ensuring you maintain control on any surface.

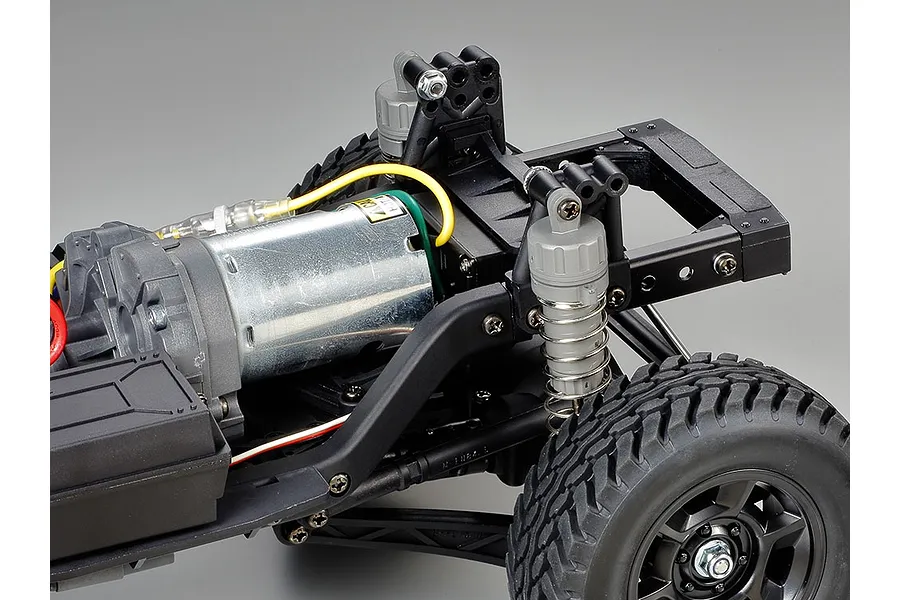

Front Mount Mid Motor

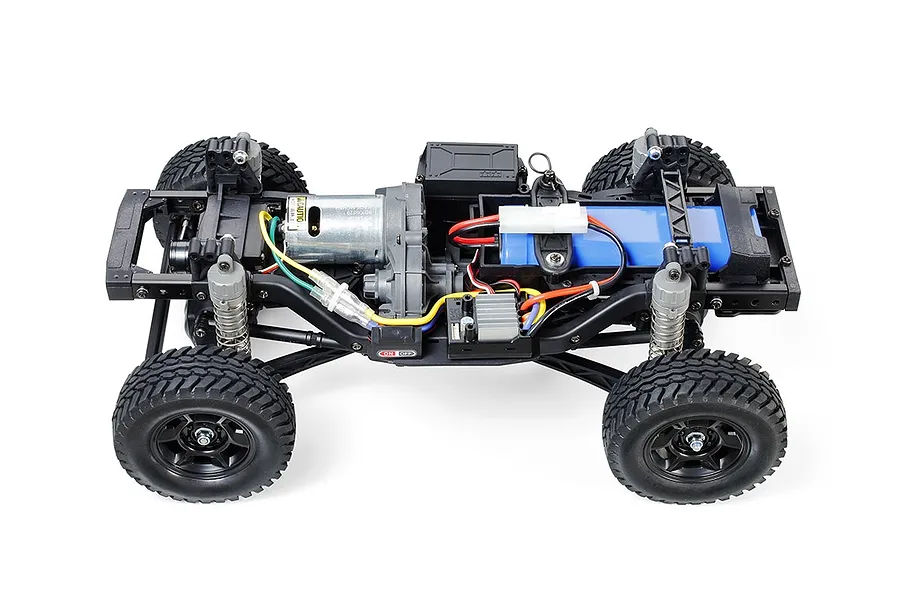

The CC-02 delivers an authentic driving experience thanks to its scale drivetrain configuration. The motor is positioned in the front midsection, and power is transferred through a central gearbox and propeller shafts to both the front and rear axles, just like a real car.
Specifications
| Adjustable Gear Ratio | Yes |
|---|---|
| Bearings | Plastic bushing |
| Body Material | Polycarbonate |
| Body Stickers | Included |
| Chassis Material | FRP Fiberglass Reinforced Plastic |
| Chassis Type | CC-02 |
| Construction Type | Assembly Kit |
| Differential Type | Gear |
| Drive Type | 4WD |
| Motor | 540 brushed type |
| Scale | 1/10 |
| Shock Damper | CVA Oil Filled |
| Suspension | 4-link |
| Terrain Use | Multi-Purpose |
RC Car
| Scale | 1/10 |
|---|---|
| Completion | Kit |
| Skill Level | Intermediate |
| Power Source | Electric Brushed |
| Chassis Type | Rock Crawler |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
Factory Specs
| Max LiPo Power | 2S (7.4v) |
|---|---|
| Battery Connector | Not Included |
| Front Shock Oil | 200cSt |
| Pinion Gear | 16T |
| Spur Gear | 83T |
