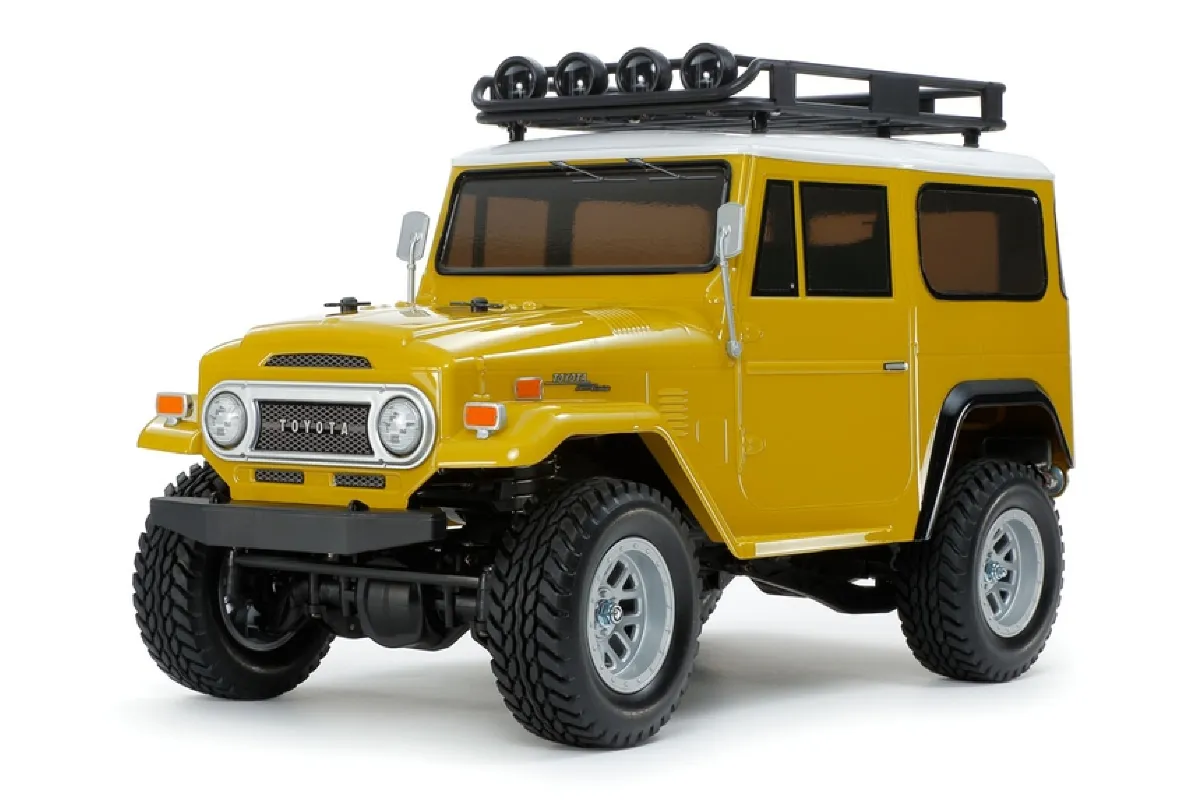

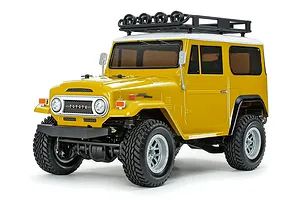

Name: Tamiya CC-02 Toyota Land Cruiser 40 RC Rock Crawler Electric 4WD 1/10 Scale Kit (no ESC) - Yellow
Brand: Tamiya
SKU: TAM-47490A
Price: 379.90 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an, ESC, Servo, Battery, Charger, or Transmitter and will come with a painted body that may require cutting and drilling.

The Toyota Land Cruiser 40 has been a staple Tamiya vehicle since 2008, first on the CR-01 crawler chassis and later the CC-01. Now it moves to Tamiya's newest cross-country platform, the CC-02, with detail tweaks for the scale enthusiast. The CC-02 chassis is built for various off-road terrains including rocky surfaces. Its ladder frame takes inspiration from real-life vehicles and provides excellent durability. The 4WD setup features a longitudinal motor placed behind the front axle, a separate gearbox and transfer case, and propeller shafts transmitting power to differential gears at the front and rear. Four-link rigid suspension comes with CVA oil shocks for control on rocky sections. This model includes matte plated seven-spoke wheels and block pattern tyres for better grip. New features include a roof rack with light pods, silver 12-spoke deep-rim wheels, and integrated tinted window sections on the sticker sheet.

Note

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter. The body is a painted polycarbonate shell that may require cutting and drilling.

Features

Show off a factory-finished look with a high-quality, eye-catching paint job
Conquer any terrain with the CC-02 chassis, specially designed for off-road adventures
Ladder frame chassis inspired by full-size off-road vehicles, providing exceptional durability and strength

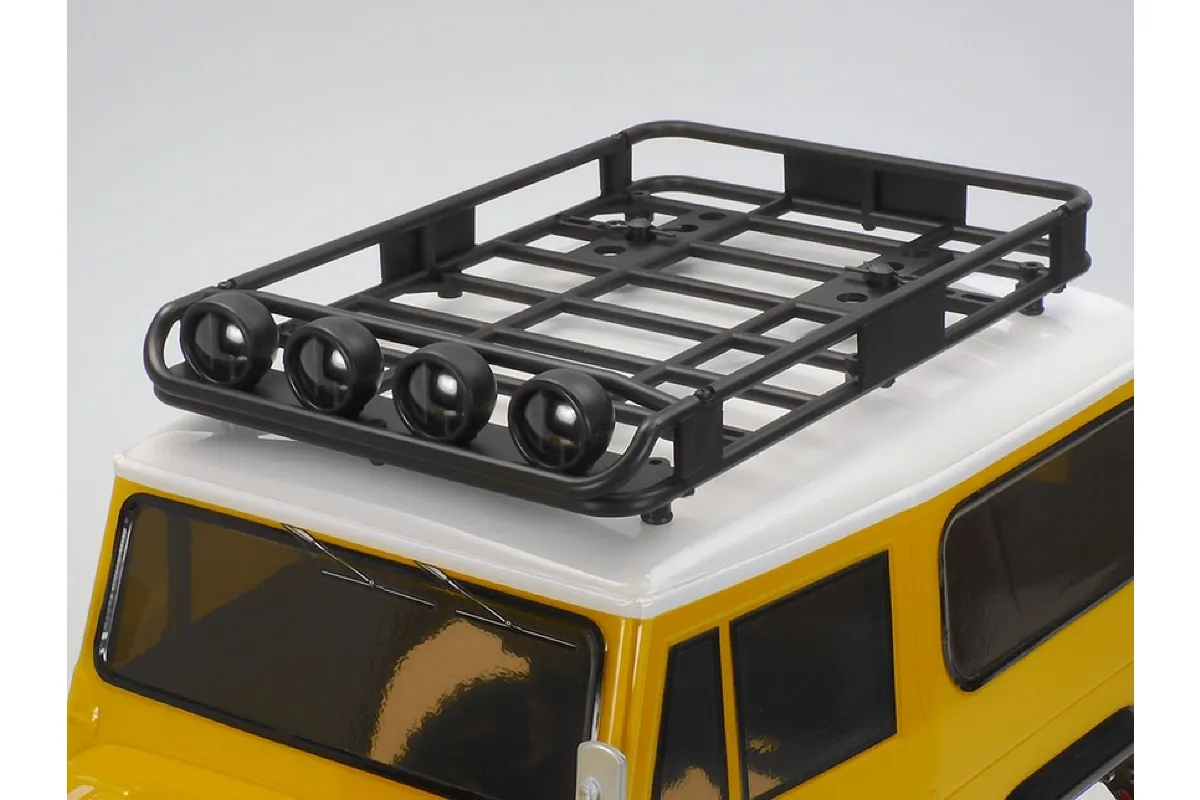

Included roof rack and light pods, crafted with separately moulded parts for a detailed finish
Grippy block pattern tyres and stylish silver 12-spoke wheels
Included wide wheel set for a bold and aggressive stance
All-new sticker set featuring integrated tinted windows and window frame sections
Reliable 4WD shaft-driven transmission
Genuine Tamiya Product

In the box

1x Tamiya 1/10 CC-02 Toyota Land Cruiser 40 4WD Electric RC Rock Crawler Kit - Yellow

You'll need

Compatible 7.4V LiPo Battery or 7.2V NiMH Battery
Compatible Charger
Compatible 1/10 Scale ESC
Compatible 1/10 Scale Servo
2+ Channel Transmitter & Receiver
AA Batteries for Transmitter

Highlights

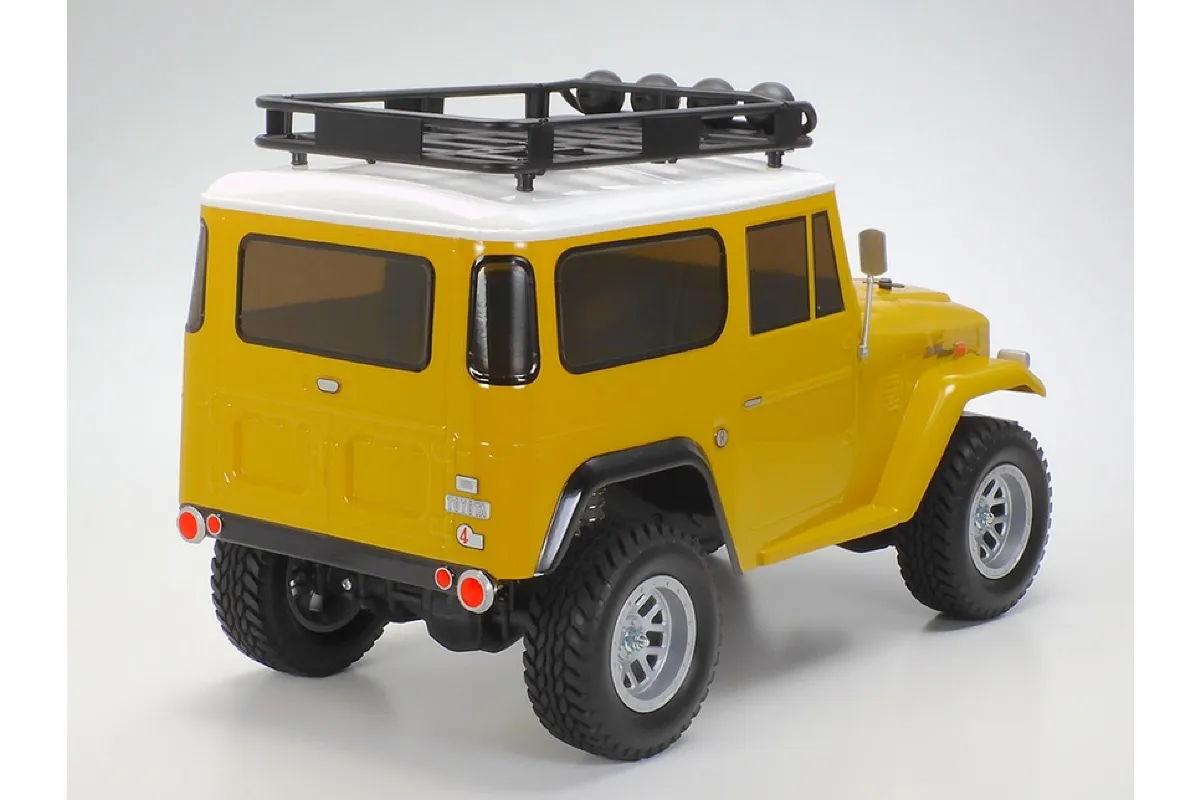

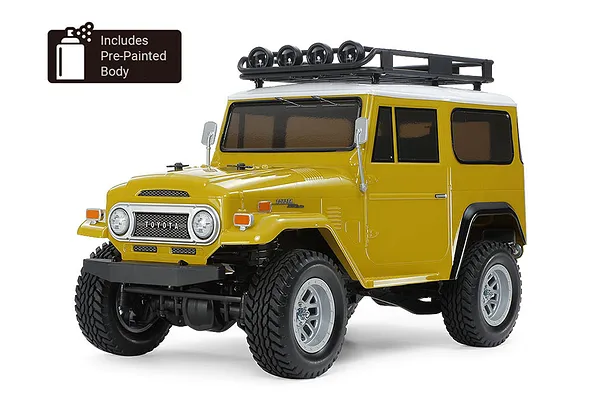

Limited Edition Painted Shell

This CC-02 features a special, limited edition factory painted Toyota Landcruiser 40 Series shell. Featuring incredible scale details, this CC-02 is a must-have for Tamiya collectors and Toyota Landcruiser enthusiasts.

Ladder Frame Chassis

The CC-02 chassis features a realistic ladder frame, inspired by full-size off-road vehicles, providing exceptional rigidity and durability for tackling challenging terrain.

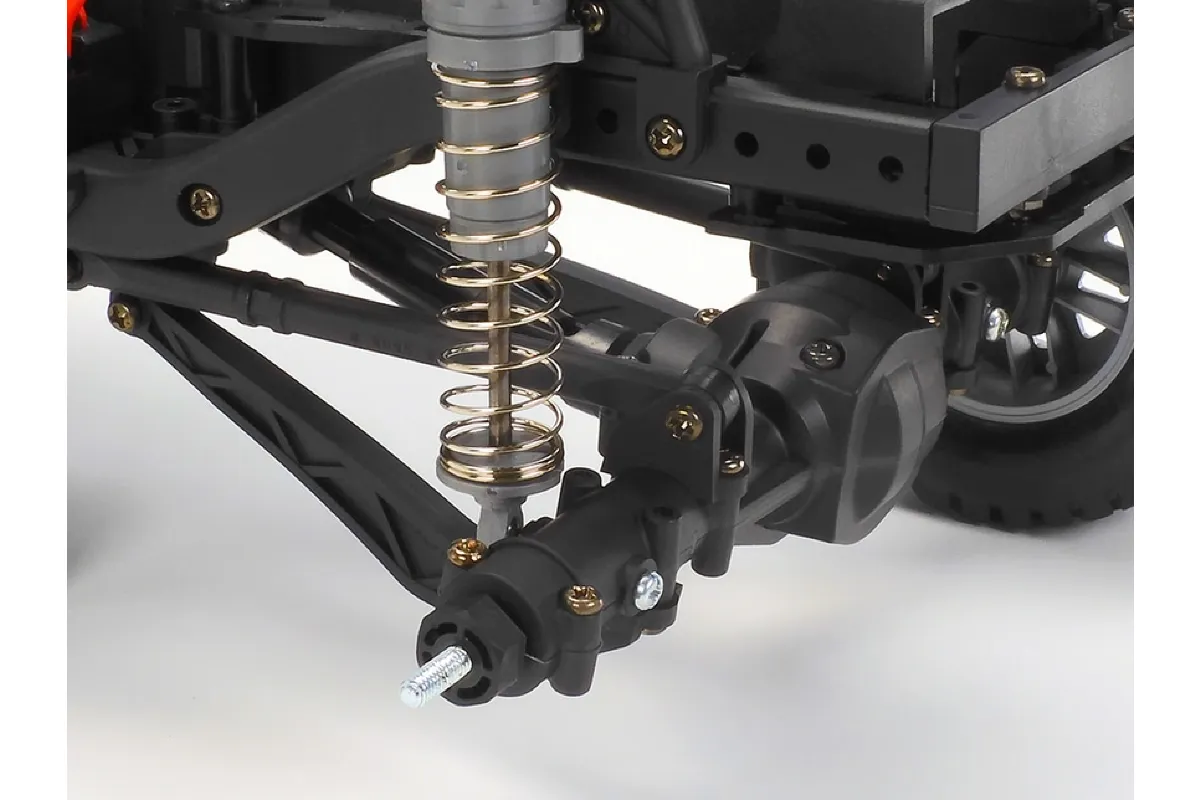

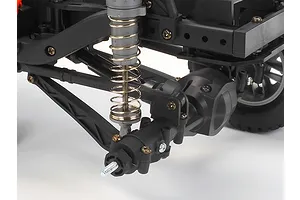

Four Link Suspension

The CC-02's four-link suspension delivers outstanding performance and scale realism. Robust link arms connect the axles, while oil shocks provide smooth damping action and exceptional articulation for conquering challenging obstacles.

Adjustable Gear Ratio

Fine-tune the CC-02's performance to match your driving style and terrain with a wide range of gear ratios. Twenty different ratios, from 11.09 to 29.28:1, are achievable by adjusting the gear layout and utilising your choice of separately-sold pinions.

Durable Metal Chassis

The CC-02 chassis is designed for tough off-road action. Metal frame sections provide exceptional durability, while CVA oil shocks ensure smooth damping and maximum performance on challenging terrain.

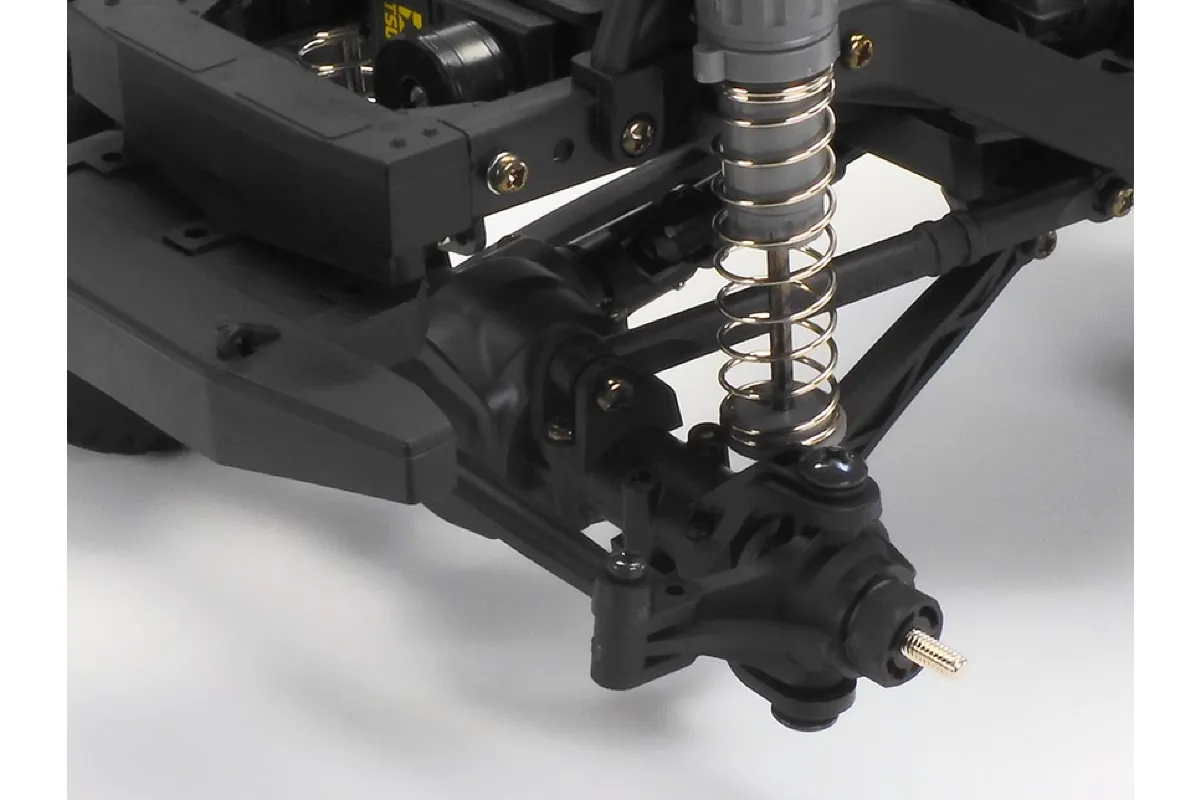

Lockable Differentials

The CC-02 comes with robust axle housings that can handle extreme off-road conditions. Inside, 3-bevel differentials provide smooth operation, and they can be assembled in a locked position for increased traction when needed, ensuring you maintain control on any surface.

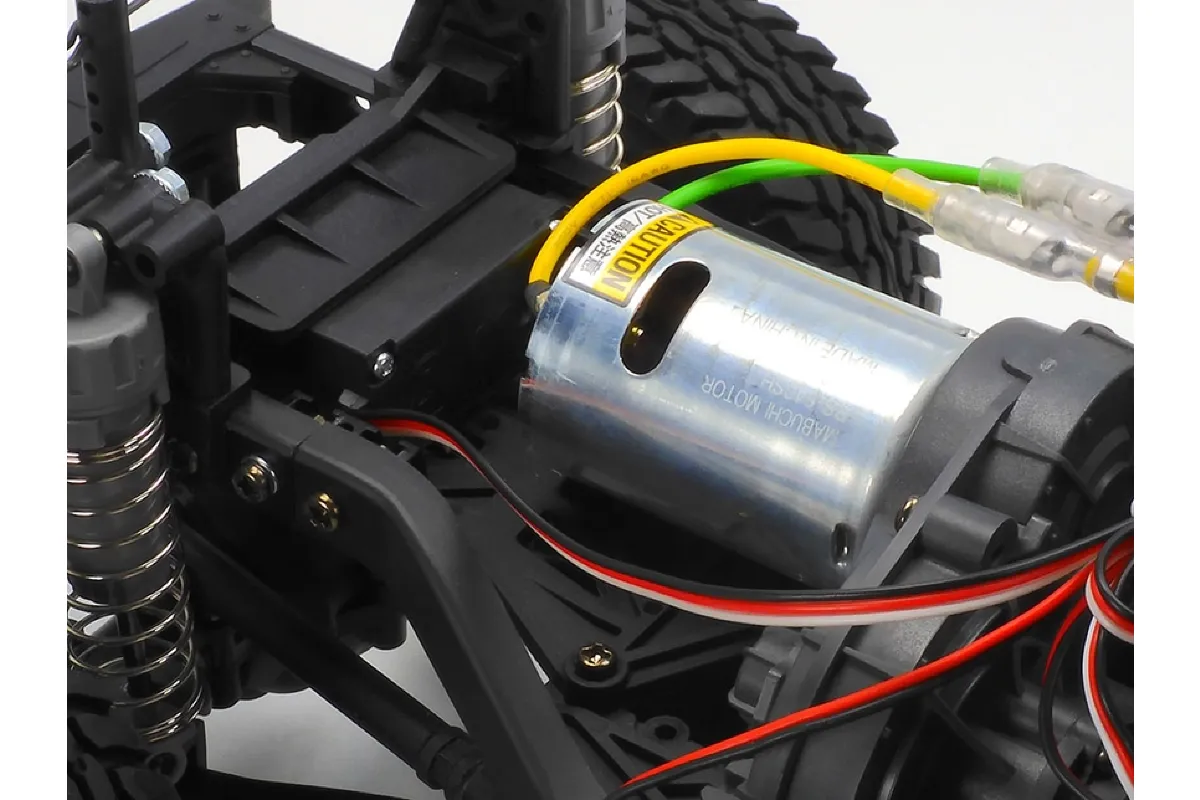

Front Mount Mid Motor

The CC-02 delivers an authentic driving experience thanks to its scale drivetrain configuration. The motor is positioned in the front midsection, and power is transferred through a central gearbox and propeller shafts to both the front and rear axles, just like a real car.

Specifications

Length	390mm (15.35")
Width	198mm (7.79")
Height	237mm (9.33")
Wheelbase	252mm (9.92")
Tyre Diameter	90mm (3.5")
Weight	N/A
Chassis	Off Road Crawler
Drivetrain	4WD
Gear Ratio	17.33:1 (default); 11.09–29.28:1 range available
Suspension	Rigid 4-Link, CVA Oil Shocks
Motor	Tamiya 540 Sized Brushed Motor
ESC	Not Included

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Kit
Skill Level	Intermediate
Power Source	Electric Brushed
Chassis Type	Rock Crawler
On/Off Road	Off Road
Drivetrain	4WD
