TamiyaSKU BDL22

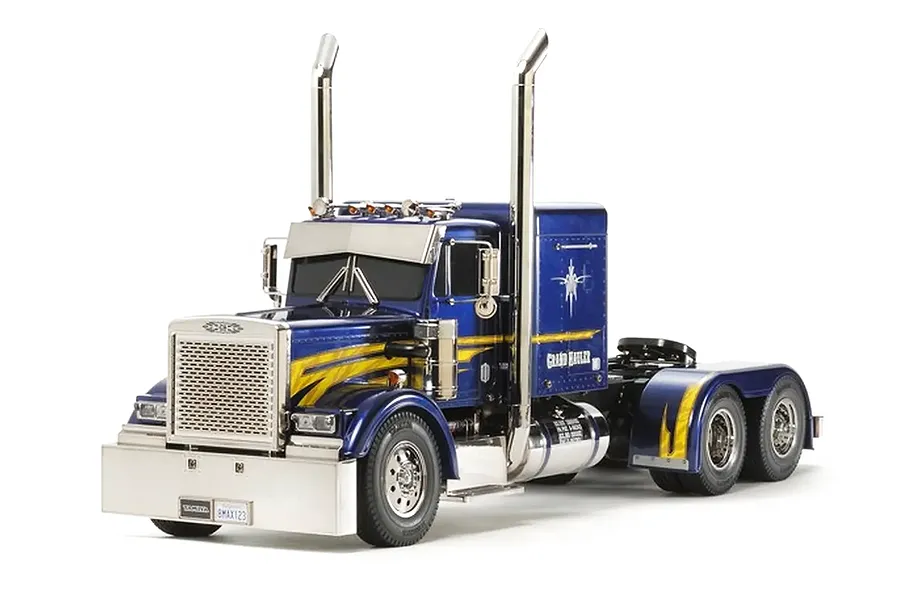

Tamiya Grand Hauler RC Truck Kit - Builders Bundle

Sold out
1 / 20
1 / 20

Videos

$1,477.05

The Tamiya Grand Hauler RC Truck 1/14 bundle includes the kit and the MFC-01 unit for real lights, sound, and vibration.

Videos

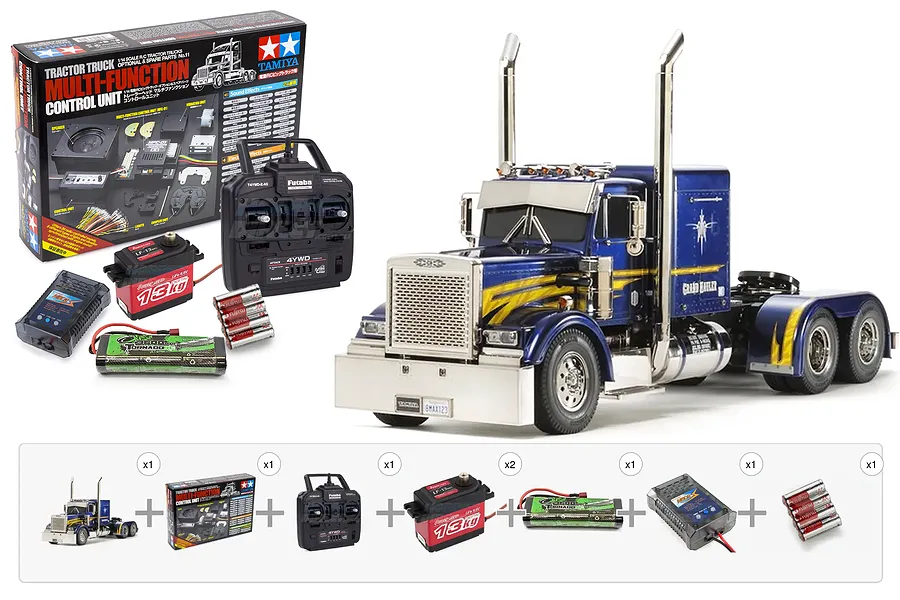

What's in the bundle

Overview

ABS Body Shell

This body shell can be painted using The Tamiya TS series of lacquer paints. Polycarbonate paints such as the Tamiya PS series will not adhere and/or cause damage to the body shell's surface. To view our range of compatible paints, please CLICK HERE.

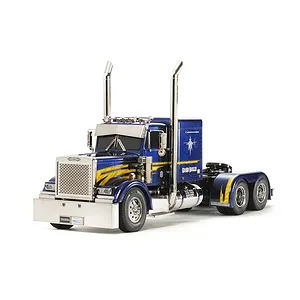

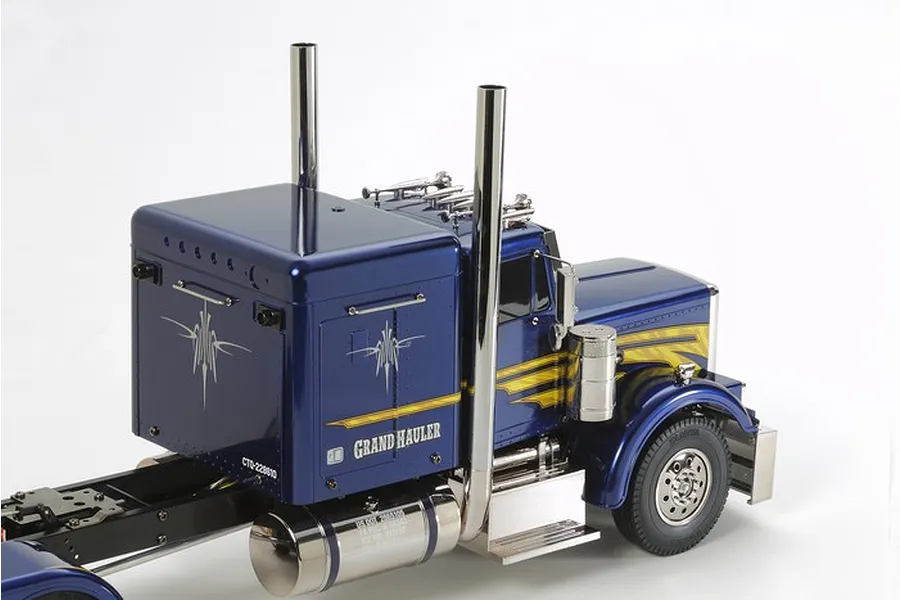

The Tamiya Grand Hauler is a 1/14 scale semi-truck kit that captures the spirit of classic American big rigs. This is a true builder's kit, featuring a realistic ladder frame chassis with metal leaf spring suspension and a 3-speed transmission that you can shift from the radio. The highly detailed hard-plastic body is a blank canvas, ready for you to assemble and paint in your own custom livery. With its plated bumper, grille, and exhaust stacks, the Grand Hauler is a statement piece that commands attention whether it's on display or on the move.

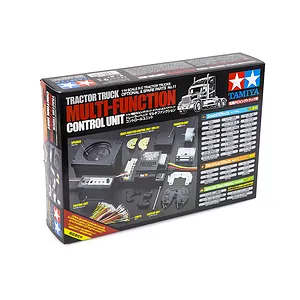

The heart of this bundle is the included Tamiya MFC-01 Multi-Function Control Unit. This sophisticated module brings your truck to life. It provides over 24 digitally-recorded sounds, including the L6 diesel engine start-up, idle, horn, and air brakes. It also controls more than 30 separate LEDs for headlights, indicators, brake lights, and fog lamps, all synchronised with your driving. A built-in vibration unit simulates engine rumble, and the MFC-01 also acts as the truck's Electronic Speed Control, so no separate ESC is needed.

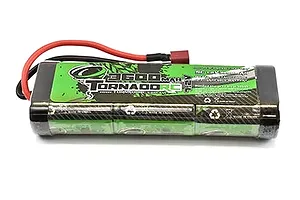

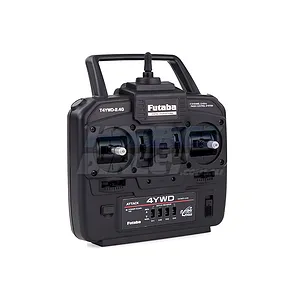

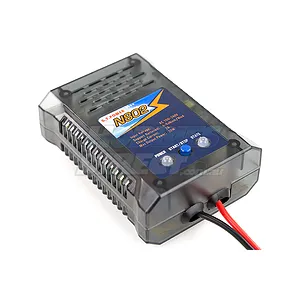

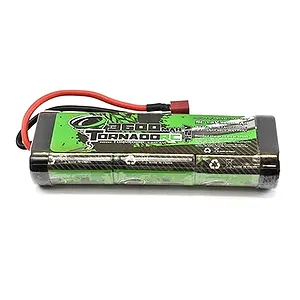

This "Builders Bundle" provides the complex electronics needed to complete this project. It includes a Futaba 4-channel radio system, which is required to operate the MFC-01 many features. It also provides two strong 13kg servos: one for steering and one to shift the 3-speed gearbox. For power, you get a Tornado 7.2V NiMH battery, a G.T. N802 charger, and all the AA batteries for the transmitter. All that's left is the satisfying build, some tools, and your choice of paint to create your own custom rig.

Note

Please refer to the instruction manual for specific waterproof standards, safety precautions, and operating instructions.

This is a complex kit that requires assembly. The included body shell is hard plastic (ABS) and requires gluing, preparation, and painting.

The included MFC-01 unit provides the ESC (Electronic Speed Control) function for the truck.

Features

  • Includes MFC-01, 4-ch radio, 2 servos, NiMH battery, and charger
  • Tamiya MFC-01 provides 24+ sounds, 9 types of lights, and vibration

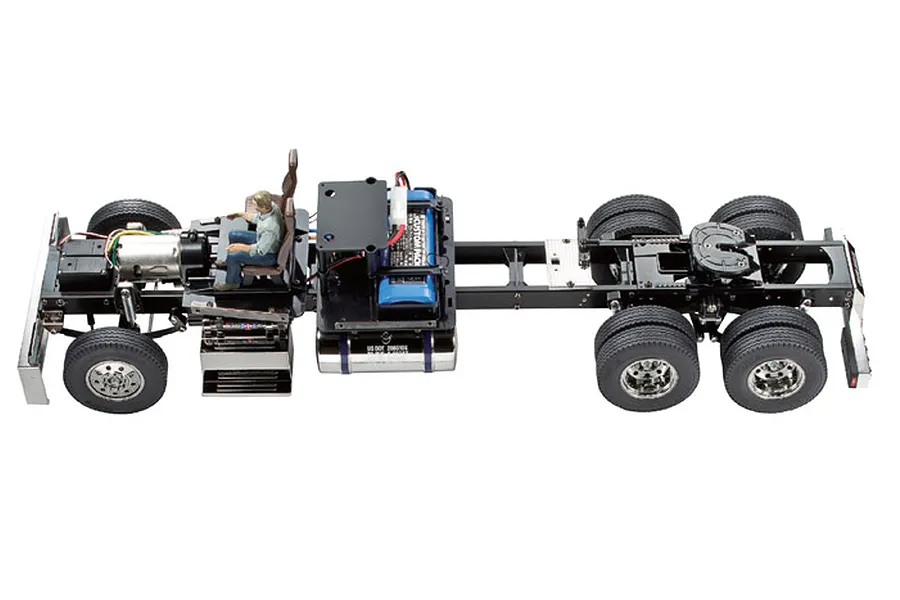

  • Aluminium and polycarbonate resin ladder frame chassis
  • Front and rear suspension with metal leaf springs and friction Shocks
  • Propeller shaft driven rear axles from a front-mounted motor
  • Functional 3-speed transmission operated via the transmitter
  • Detailed hard plastic cab interior with dashboard and seats

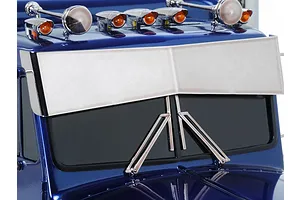

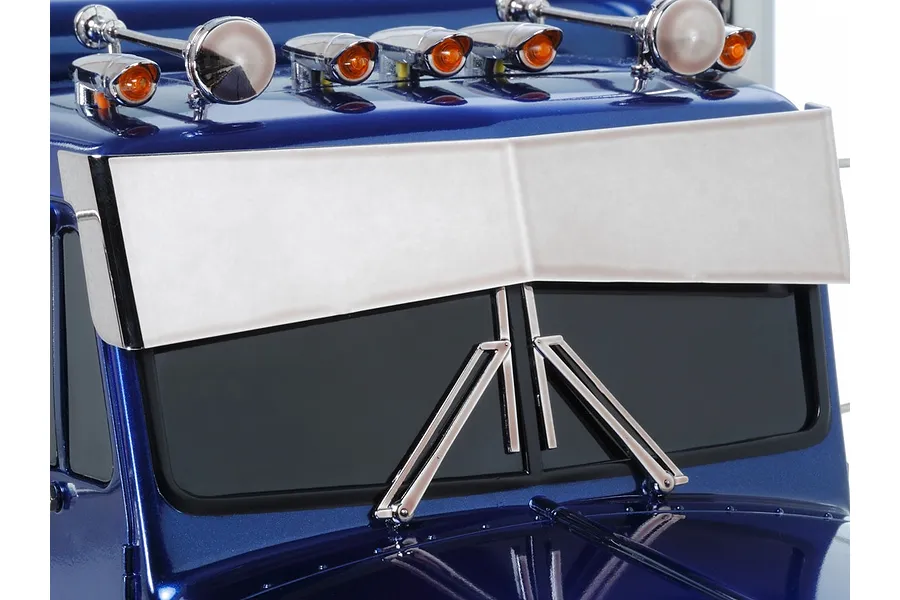

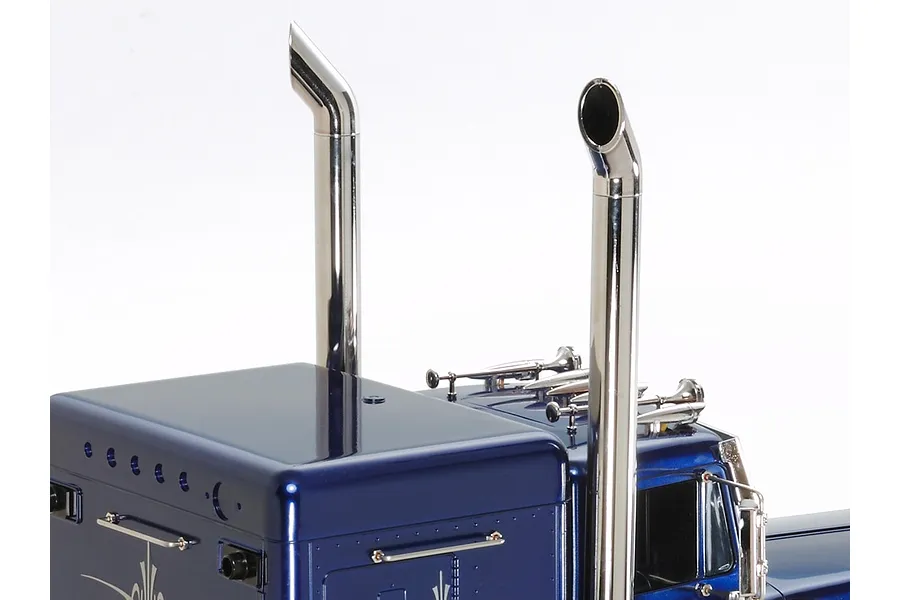

  • Plated front bumper, radiator grille, exhaust, and sun visor

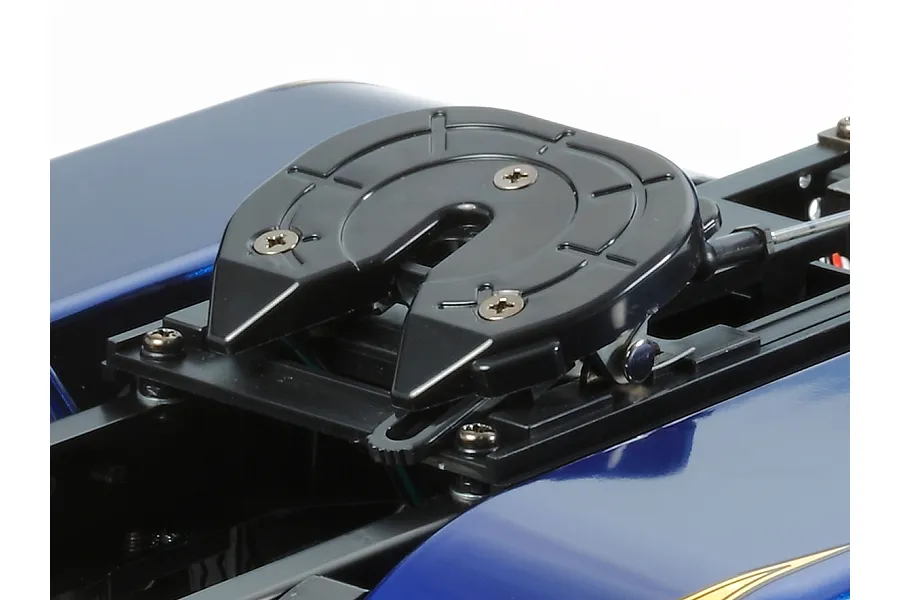

  • Functional fifth-wheel coupler for optional Tamiya semi-trailers
  • Genuine Tamiya Product

You'll need

  • 1x Assembly Tool Set (e.g., screwdrivers, side cutters)
  • 1x ABS-Safe Body Paint (e.g., Tamiya TS sprays)
  • 1x Model Cement / Glue
  • 1x Hobby Knife
  • 1x Sandpaper / Sanding Sticks

Highlights

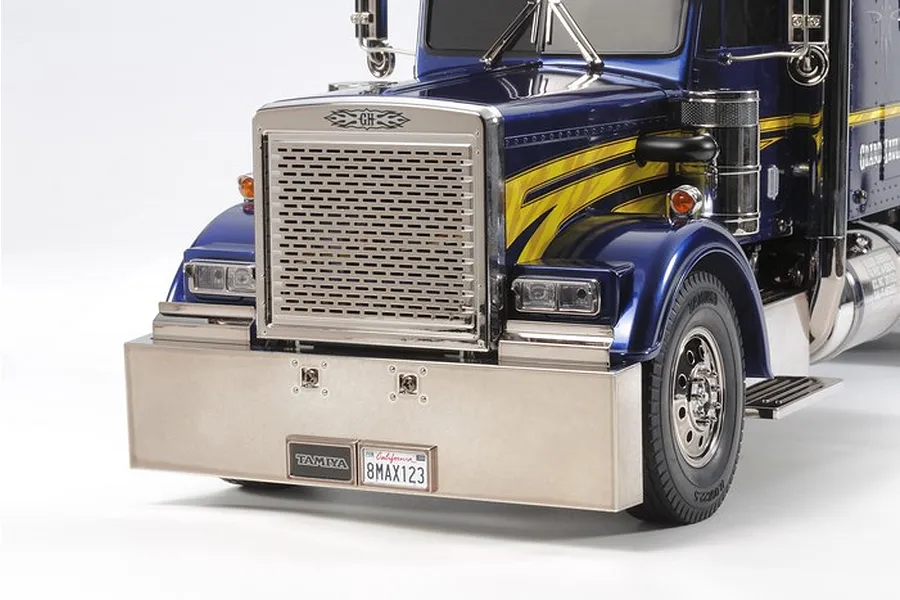

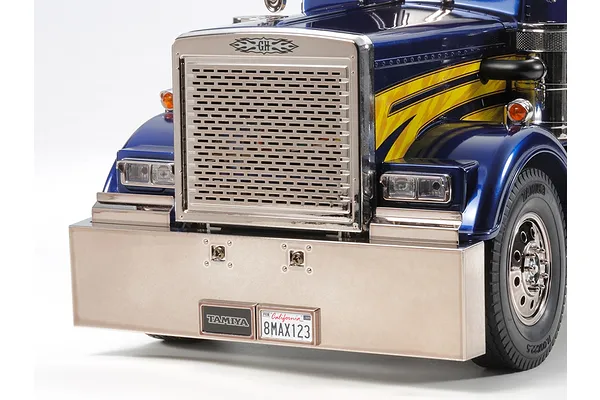

Chrome Look

Chrome Look

An eye catching chrome finish adorns the iconic front bumper and radiator grille, giving this big rig a truly authentic custom look.

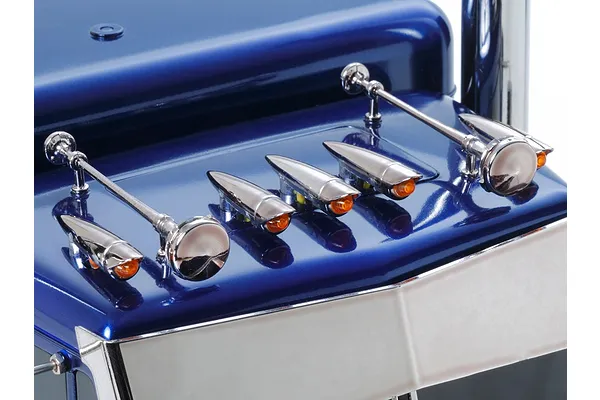

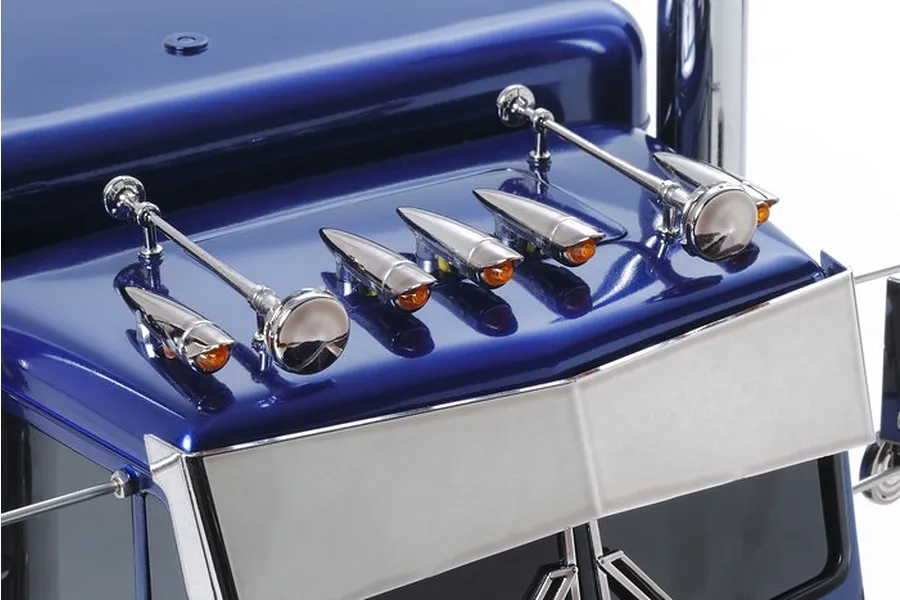

LED Ready

LED Ready

Every detail shines with the addition of plated bezels for the horns and lights. The LED lights add a functional and realistic touch.

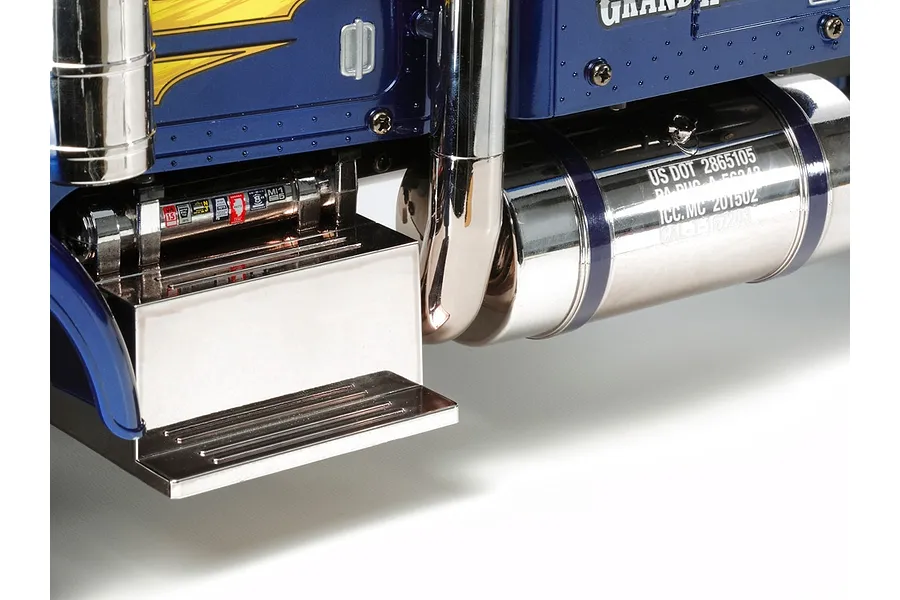

Functional Design

Functional Design

Clever design elements enhance both form and function. The low step doubles as the MFC switch box, while the low-mounted fuel tank contributes to a realistic appearance and improved centre of gravity.

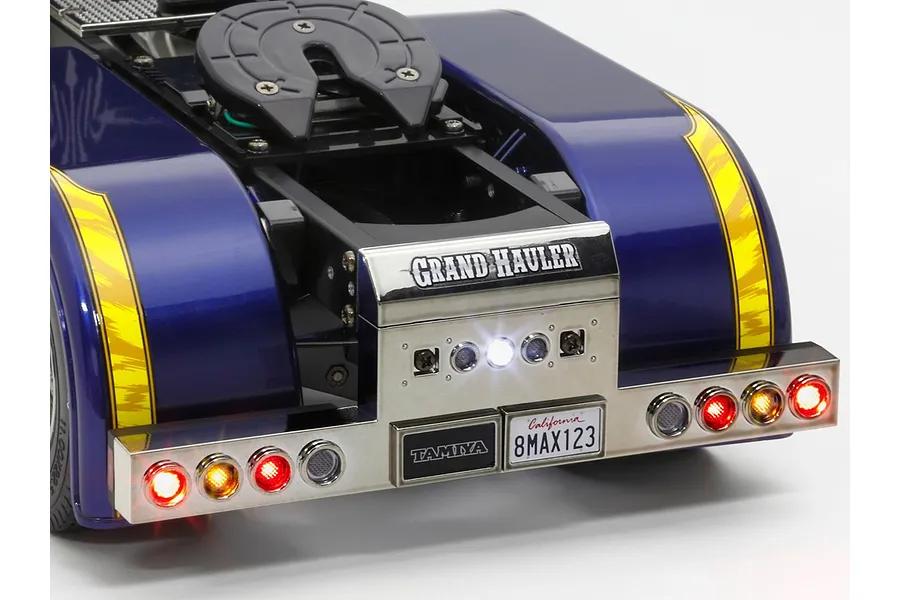

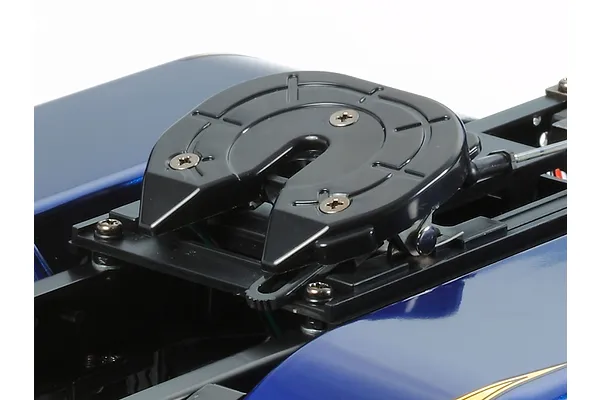

Realistic Coupling Action

Realistic Coupling Action

Enjoy the realistic coupling sounds and a change in engine tone when a trailer is attached, adding another layer of immersion to your driving experience.

Specifications

Length692mm (27.24")
Width190mm (7.48")
Height300mm (11.81")
Weight3.9kg (8.60 lbs)
ChassisAluminium + Polycarbonate Resin Ladder Frame
SuspensionFront/Rear Leaf Rigid w/ Aluminium Friction Shocks
Drivetrain4WD (Shaft-driven dual rear axle)
MotorTamiya 540 Sized Brushed Motor
ESCIncluded within Tamiya MFC-01 Unit

RC Car

Scale1/14
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelExperienced
Power SourceElectric Brushed
Chassis TypeTruck
On/Off RoadOn Road
Drivetrain4WD

Receiver

Suited Vehicle TypeSurface
TelemetryNo
Operating Frequency2.4Ghz
FailsafeWhen connection is lost with the remote the fail safe will stop the vehicle.No

Transmitter

Channels4Ch
LayoutStick
ModeN/A
Operating Frequency2.4Ghz
Telemetry CapableNo
Programmable FailsafeNo

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingNo
Height (A)43.5mm
Body Length (B)40.01mm
Bottom to Under Mount (C)26.6mm
Top to Under Mount (D)15.6mm
Length (E)54.4mm
Width (F)20.2mm
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline13
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.12
Signal TypeDigital

Battery

Cell VoltageVoltage produced by each individual cell in the battery1.2V, 1.5V
Total Voltage7.2V, 1.5V
CapacityHow much energy is stored; higher mAh gives longer run times3600mAh
ChemistryBattery type that affects power, performance, and feelNiMH, Alkaline
ConnectorPlug style that determines what the battery connects toDeans
Length129mm, 50mm
Width45mm, 14mm
Height24mm, 14mm
WeightInfluences handling, balance, and runtime300g, 22g
ConfigurationShape of the battery that determines how it fitsFlat
Standard Size NameCommon battery sizes like AA, AAA, C or D CellAA
Main Connector Wire GaugeAmerican Wire Gauge - Wire thickness that affects how much current it carries14AWG
Stick SizeWhether the battery fits Tamiya-style stick‑pack traysYes

Charger

Output Connector TypeDeans
Compatible WithNiMH, NiCd
Maximum Amps2A

ESC (Electronic Speed Controller)

For Motor TypeBrushed
Max Voltage7.4V
Waterproof DesignNo
Motor ConnectorsBasic Bullet
Battery ConnectorTamiya
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodAir
Dual MotorYes

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorNot Included
Pinion Gear10T
Spur Gear36T
Wheel Hex Size12mm
