Tamiya King Hauler RC Truck Electric 4WD 1/14 Scale Kit

Brand: Tamiya | SKU: 56301

sold out

write a review

$612.68

Tamiya King Hauler RC Truck: 3-speed transmission with realistic details & compatible with MFC Unit for lights & sounds and 1/14 trailers.

3-speed transmission for realistic gear changes
Front motor powers dual rear axles via propeller shaft
Metal ladder frame chassis with leaf spring suspension
Detailed ABS plastic body for realistic appearance
Compatible with separately sold MFC Unit & 1/14 scale trailers

Add to Wishlist

Save Time & Add These Now

Complete your setup with these required items.

Team Orion Ranger Crawler 7.6V HV 4000mAh 55C Short Soft Case LiPo Battery

$67.86

Battery

Flysky FS-i6 AFHDS 2A 2.4GHz 6CH RC Radio Transmitter & FS-iA6B

$130.60

Transmitter & Receiver

Power HD Standard 1812MG 18kg Metal Geared Waterproof Servo

$33.64

Servos

Tamiya 1/14 MFC-03 Multi Function Control Unit Kit

$509.38

Multi Function Unit

Yeah Racing 185x75mm LiPo Safe/Protection Bag

$19.95

LiPo Safe Charging Bag

SkyRC T200 Dual Port AC/DC Smart Charger

$175.14

Charger

Traxxas Power Cell 1.5v AA Batteries 4Pcs

$11.10

Batteries for Controller

Shop replacement & upgrade parts for this model

Shop Parts

Description

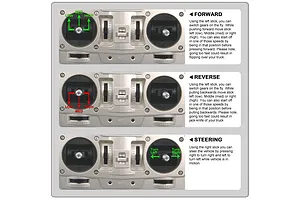

Important: When you're choosing your remote controller for your Tamiya semi truck, you need to figure if you want to use a MFU (Multi Function Unit). Your choice is between an analogue or digital trimmed 4ch radio. If you plan on using your Tamiya semi without an MFU, you can use either analogue or digital. If you plan on using your Tamiya semi with an MFU, you can only use an analogue remote controller like the Tamiya Attack 4YWD.

ABS Body Shell

This body shell can be painted using The Tamiya TS series of lacquer paints. Polycarbonate paints such as the Tamiya PS series will not adhere and/or cause damage to the body shell's surface. To view our range of compatible paints, please CLICK HERE.

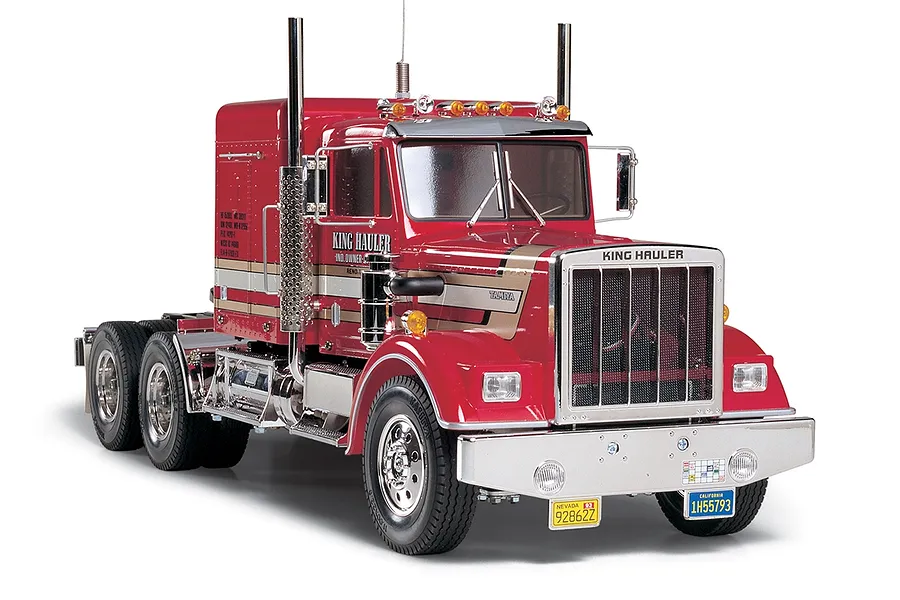

The Tamiya King RC Truck delivers a classic big rig experience in 1/14 scale. This kit features a front-mounted motor driving dual rear axles, a 3-speed transmission, and a robust metal ladder frame chassis. The detailed ABS plastic body captures the iconic truck design, and the model is compatible with Tamiya's 1/14 scale trailers for extended hauling fun.

This kit is designed for RC truck enthusiasts who appreciate traditional truck designs and reliable performance. The 3-speed transmission and durable chassis provide an authentic driving experience, while the compatibility with trailers expands the model's playability.

MFC Unit - Multi Function Control Unit (Sold Separately)

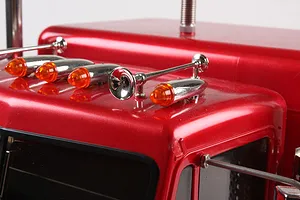

Transform your Tamiya 1/14 semi-truck into a true-to-life masterpiece with the must-have Multi-Function Control Unit (MFC Unit). This incredible unit adds a symphony of realistic sounds, synchronised vibrations that react to the truck's movement, and dazzling LED lights that illuminate every manoeuvre. With 24 different sounds, 9 types of lights, and vibrations that mimic engine idle and acceleration, the MFC Unit brings an unparalleled level of realism to your RC experience.

3 Speed Transmission

The 3-speed transmission provides excellent low-speed performance and realistic gear changes. A slipper clutch protects the gears from shocks to ensure smooth operation and extended durability.

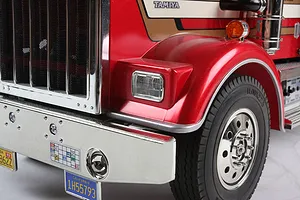

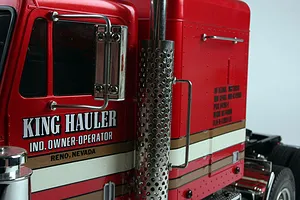

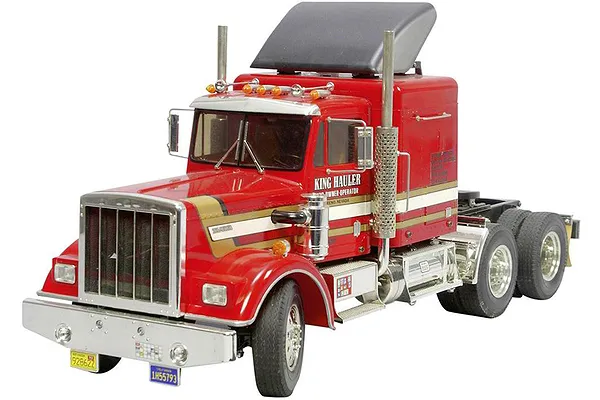

Detailed ABS Big Rig Body

Achieve a realistic appearance with the King Hauler's expertly crafted ABS big rig body.

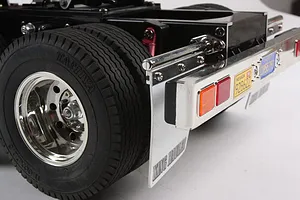

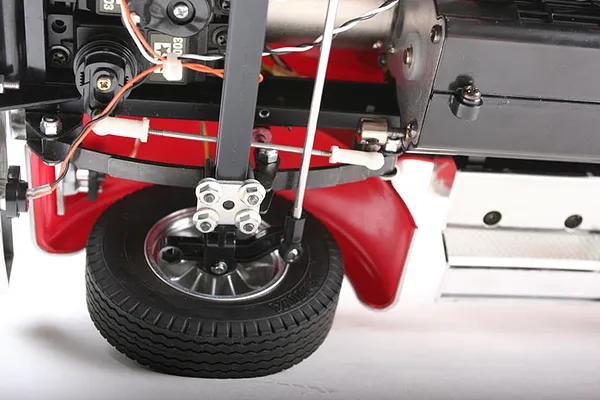

Metal Ladder Frame Chassis with Leaf Spring Suspension

Experience authentic truck performance with a robust metal ladder frame chassis and leaf spring suspension.

Features

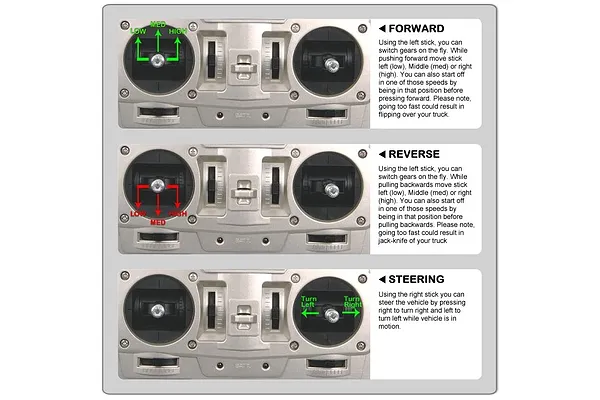

3-gear transmission controllable via transmitter

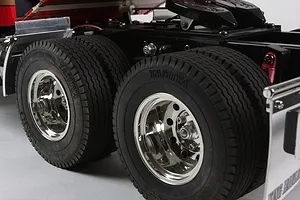

Front motor, rear dual-axle drive
Metal ladder frame chassis
Leaf spring rigid suspension
3-bevel differential gears
Type 540 motor included
22mm/83mm tyre width/diameter
Compatible with Tamiya 1/14 scale trailers
Metal and plastic bushings
Genuine Tamiya Product

Specifications

Width: 183mm (7.2")
Height: 255mm (10.04")
Wheelbase: 447mm (17.6")
Weight: Approx. 3.1kg (6.83 lb)
Chassis: Aluminium & Polycarbonate Ladder Frame
Suspension: Leaf Spring Rigid
Drivetrain: Rear Dual-Axle Drive
Motor: Type 540 Brushed
ESC: N/A

Included Items

1x Tamiya King Hauler RC Truck Electric 2WD 1/14 Scale Kit

Required Items

1x 4-Channel Transmitter
2x Servos
1x Electronic Speed Control (ESC)
1x 7.2V Battery with Compatible Charger
AA Batteries (for Transmitter)
Tamiya TS Paints
MFC Unit (Optional)
LEDs (Optional)

Note

Assembly required. Trailers & MFC Unit sold separately.
Consult manual for maintenance and setup options.

Specifications

RC Kit

Suited Motor/ESC Type: Electric

Factory Specs

Spur Gear: 36T
Max LiPo Power: 2S (7.4v)
Wheel Hex Size: 12mm
Pinion Gear: 10T
Battery Connector: Not Included

RC Car

Completion: Kit
Drivetrain: 4WD
Max LiPo Power: 2S (7.4v)
On/Off Road: On Road
Chassis Type: Truck
Power Source: Electric
Skill Level: Expert
Scale: 1/14

Parts

Standard

Same as the original part from the manufacturer.

Tamiya King Hauler Hitch Parts (Parts Bag E)

1 review

$20.77

Upgrade

An optional part from the manufacturer.

Tamiya 1/14 1.7" Truck White Rims 2Pcs

0 reviews

$8.77

Upgrade

An optional part from the manufacturer.

Tamiya Craft Design Knife Replacement Blades 30Pcs

0 reviews

$8.93

Upgrade

An optional part from the manufacturer.

Tamiya 4ch Transmitter Stick Guide B For Model Trucks

0 reviews

$10.40

Upgrade

An optional part from the manufacturer.

Tamiya 1/14 1.7" Truck Metal Plated Matte Silver Rims 2Pcs

0 reviews

$16.34

Upgrade

An optional part from the manufacturer.

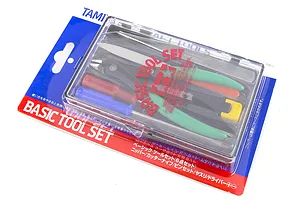

Tamiya Basic Craft Tool Set 6Pcs

0 reviews

$52.33

Upgrade

An optional part from the manufacturer.

Tamiya Matte Black Plastic Differential Case Set

0 reviews

$15.49

Upgrade

An optional part from the manufacturer.

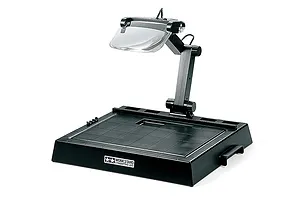

Tamiya Modelers 430x360x70mm Work Stand w/ Magnifying Lens

0 reviews

$180.53

Upgrade

An optional part from the manufacturer.

Tamiya 1/14 1.7" Truck White Rims 2Pc

0 reviews

$8.84

Upgrade

An optional part from the manufacturer.

Tamiya Modeling Curved Scissors For Plastic Parts

1 review

$33.88

Alternatives

Upgrade

An optional part from the manufacturer.

Tamiya 1/14 Truck Blue Aluminium Shock Kit 2Pcs w/ Shock Oil

0 reviews

$46.15

Upgrade

An optional part from the manufacturer.

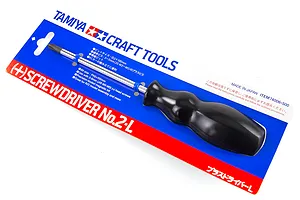

Tamiya Large No 2 Phillips Head Screwdriver Craft Tool
