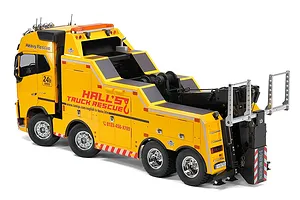

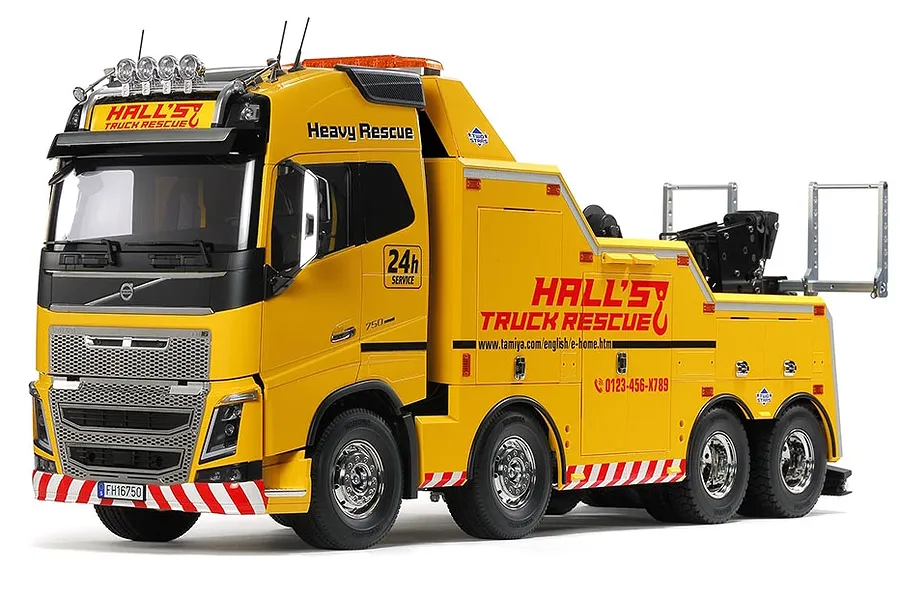

Tamiya FH16 Volvo Globetrotter RC Tow Truck Electric 8X4 1/14 Scale Kit

  • 1/14
  • 4WD
  • Kit

Part no. 56362

Sold outNo reviews yet
1 / 14
1 / 14

Videos

$1,532.58

or 4 fortnightly payments of $383.14 with afterpay or PayPal, or zip

Tamiya's 1/14 scale FH16 Volvo Globetrotter tow truck kit — the first in the series with twin steering.

  • 1/14 scale ultra-realistic tow truck assembly kit
  • First twin steering system in Tamiya's 1/14 truck series
  • Three-speed transmission with R/C transmitter gear shifting
  • Metal leaf spring suspension with friction dampers
  • Compatible with optional LEDs and MFC-03 sound/light unit

In stock now: similar

Ready to send today if you order before 1pm.

Part Support

Replacement & upgrade parts that fit this model

Videos

$1,532.58

Overview

ABS Body Shell

This body shell can be painted using The Tamiya TS series of lacquer paints. Polycarbonate paints such as the Tamiya PS series will not adhere and/or cause damage to the body shell's surface. To view our range of compatible paints, please CLICK HERE.

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

Tamiya's series of ultra-realistic 1/14 scale R/C trucks has offered fun and realistic driving for the past several decades. This new kit takes that driving fun to the next level with a tow truck, which makes its living towing heavy duty vehicles such as semi-tractor trucks. It promises a completely different element of enjoyment to predecessors in the series. The kit recreates the FH16 marketed by Volvo, a renowned manufacturer in the global commercial vehicle market. The FH Series includes a 750hp 16.1-litre turbocharged inline-6 engine FH16 Globetrotter 750 8x4 tow truck.

Note

Consult manual for maintenance information and setup options.

Features

  • 1/14 scale R/C model assembly kit. Length: 750mm, width: 195mm, height: 300mm

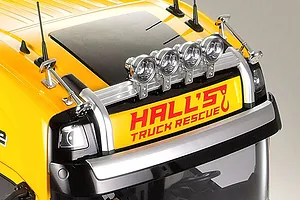

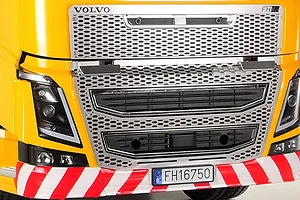

  • Detailed moulded plastic cab with photo-etched front grille and interior detail features

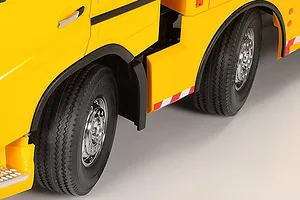

  • First twin steering system seen in the Tamiya 1/14 Truck series (front axles)
  • Metal components included for excellent durability

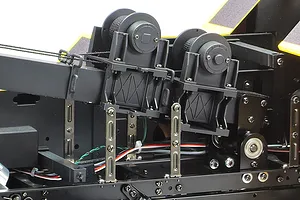

  • Optional Actuator Set (Item 56553) to control actions via R/C transmitter (sold separately)
  • Ladder frame with aluminium side channels and resin cross members; front motor power delivered to two rear axles via propeller shaft
  • Built-in differential gear on each axle for smooth cornering

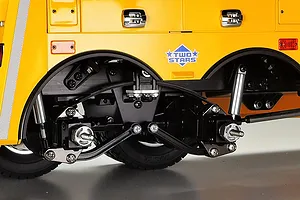

  • Highly realistic suspension with metal leaf springs and friction dampers
  • Float-mounted die-cast front and reinforced resin rear axles
  • Three-speed transmission with R/C transmitter shifting (note: only one gear usable when towing)

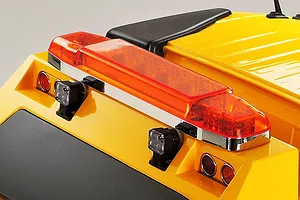

  • Compatible with separately sold LEDs and Item 56523 MFC-03 Euro-Style Multi-Function Control Unit
  • Compatible TROP truck option parts: 56523, 56531, 56538, 56548, 56549, 56550, 56551, 56553

In the box

  • Tamiya FH16 Volvo Globetrotter RC Tow Truck Electric 8X4 1/14 Scale Kit

You'll need

  • Tamiya 4-channel R/C system
  • 2x Servo
  • ESC
  • 7.2V battery and compatible charger
  • Tamiya TS and acrylic paints

Highlights

3 Speed Gearbox

3 Speed Gearbox

Experience the versatility of a 3-speed gearbox! Shift between low, medium, and high gears on the fly to create realistic big rig performance for different terrains and driving styles. Enjoy the flexibility of forward and reverse in each gear, giving you complete control over your RC adventures.

MFC Unit - Multi Function Control Unit (Sold Separately)

MFC Unit - Multi Function Control Unit (Sold Separately)

Transform your Tamiya 1/14 semi-truck into a true-to-life masterpiece with the must-have Multi-Function Control Unit (MFC Unit). This incredible unit adds a symphony of realistic sounds, synchronised vibrations that react to the truck's movement, and dazzling LED lights that illuminate every manoeuvre. With 24 different sounds, 9 types of lights, and vibrations that mimic engine idle and acceleration, the MFC Unit brings an unparalleled level of realism to your RC experience.

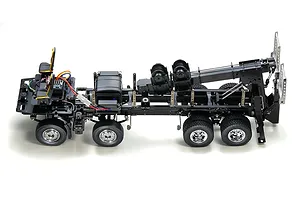

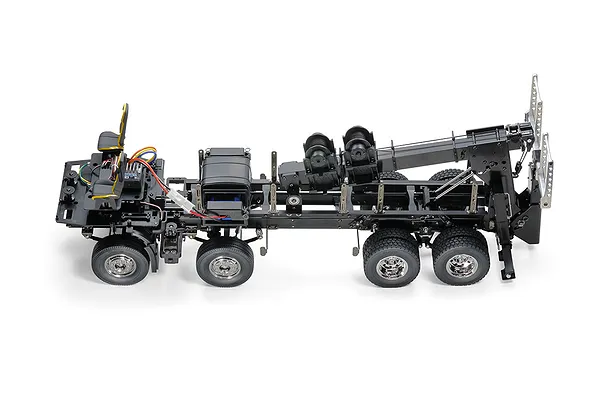

Ladder Frame Chassis

Ladder Frame Chassis

The ladder frame chassis provides a strong and stable foundation for the truck, combining lightweight aluminium channel side rails with durable plastic cross members for a balance of strength and performance.

Specifications

Wheelbase403mm (15.87")
Weight5.9kg (13.01 lbs)
ChassisTruck
Drivetrain4WD
SuspensionFront and Rear Leaf Springs and Internal Spring Shock Absorbers
MotorTamiya 35T TR Mighty Tune Brushed Motor
ESCN/A

Dimensions

Length732mm (28.82")
Width199mm (7.83")
Height309mm (12.17")

RC Car

Scale1/14
Power SourceElectric
Drivetrain6WD
Chassis TypeSemi Truck
CompletionKit
On/Off RoadOn Road
Skill LevelExperienced
Max LiPo Power2S (7.4v)

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery ConnectorNot Included
Pinion Gear10T
Spur Gear44T
