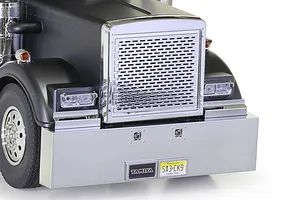

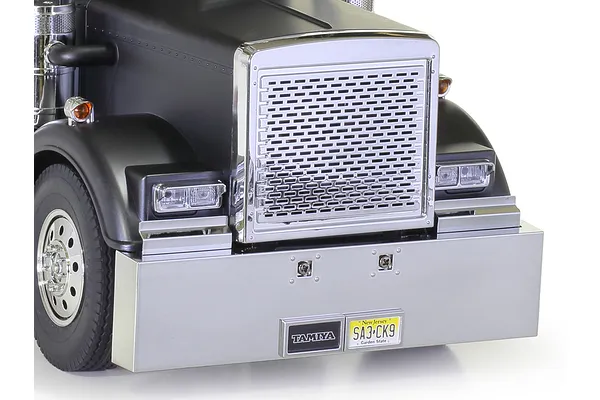

Enhanced Customisation with Metal-Plated Parts
Enjoy a customised look with metal-plated parts, including the front bumper and radiator grille.

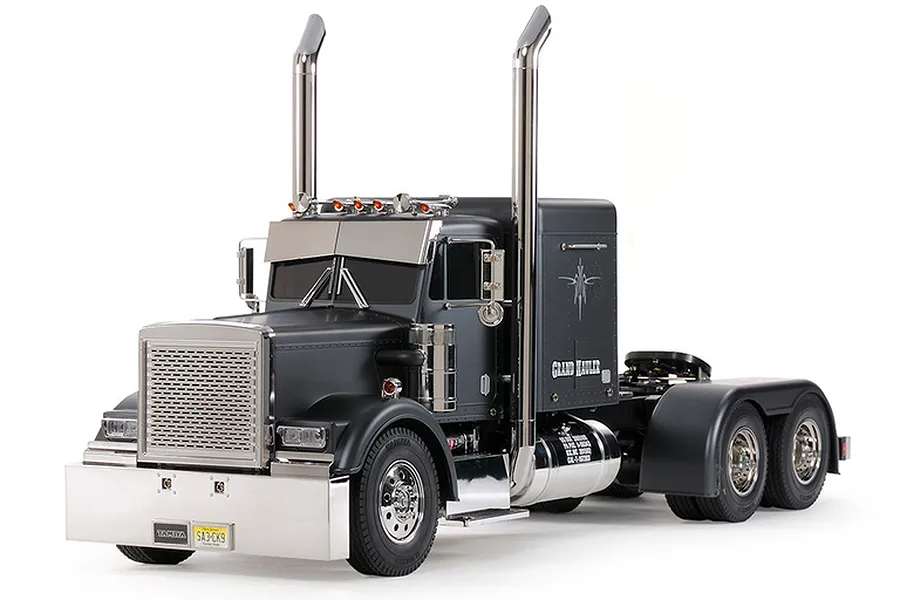

Tamiya Grand Hauler RC Truck Electric 4WD 1/14 Scale Kit - Black Edition
- 1/10
- 4WD
- Kit
- Brushed
Part no. 56356
Sold out5.0
3 reviews
Videos
Tamiya Grand Hauler Black Edition — 1/14 scale R/C kit with pre-painted metallic black body, 3-speed transmission, and Tamiya trailer compatibility.
- Special Black Edition with pre-painted Metallic black (TS-40) body and matte urethane top coat — no painting required
- 3-speed transmission with Low/Medium/High shifting via separately-sold 4-channel transmitter
- Metal leaf spring dampers with built-in coil springs for durable suspension
- Numerous metal-plated parts: bumpers, grille, mirrors, air cleaners, mufflers and more
- Coupler included; compatible with any Tamiya 1/14 scale trailer and optional MFC-01/MFC-03 for lights and sounds
Ordered 10 Nov · we're waiting on our supplier
Checking delivery dates…
Free 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
In stock now: similar
Ready to send today if you order before 1pm.
- Tamiya Scania 770 S 4x2 RC Semi Truck Electric 2WD 1/14 Scale Kit
Now $676.27
was $756.98Save $80 - Team Associated RC10 American Custom RC Semi Truck Electric 6WD 1/10 Scale Kit
Now $549.99
was $601.46Save $51
Videos
Overview
Important: When you're choosing your remote controller for your Tamiya semi truck, you need to figure if you want to use a MFU (Multi Function Unit). Your choice is between an analog or digital trimmed 4ch radio.If you plan on using your Tamiya semi without an MFU, you can use either analog or digital.If you plan on using your Tamiya semi with an MFU, you can only use an analog remote controller like the Tamiya Attack 4YWD.
ABS Body Shell
This body shell can be painted using The Tamiya TS series of lacquer paints. Polycarbonate paints such as the Tamiya PS series will not adhere and/or cause damage to the body shell's surface. To view our range of compatible paints, please CLICK HERE.
Whether you're a (real) truck driver or model enthusiast this build will be one to remember! The Grand Hauler from Tamiya is a highly detailed, scaled remote controlled 1/14 truck that you build up yourself and you get the joy of actually using it once you've finished! This is a special edition of the Grand Hauler. The R/C model assembly kit recreates a massive boxy, customised truck like those seen in North America. The special edition version is a great option for those without the time or confidence to apply a paint job to their kit, as the body and other key body parts are pre-painted Metallic black (Tamiya Color TS-40). Additionally, a matte coating is applied over the metallic black which provides a cool look as seen in current trends in the automotive scene.
The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilising metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations. (Both sold separately)
Note
When choosing your remote controller for your Tamiya semi truck, you need to determine whether you want to use a MFU (Multi Function Unit). Your choice is between an analog or digital trimmed 4ch radio. If you plan on using your Tamiya semi without an MFU, you can use either analog or digital. If you plan on using your Tamiya semi with an MFU, you can only use an analog remote controller like the Tamiya Attack 4YWD.
How can I tell if my remote has analog or digital trim?
Analog remote trims slide from one end to the other
Digital remote trims are switches and click in either direction (no sliding)
Features
- 1/14 scale R/C model assembly kit
- Body parts are moulded in black, pre-painted in Metallic black (TS-40), and given a matte urethane top coat
- Metal plated parts include: bumpers, radiator grille, roof-top horn and light bezel parts, side and curb mirrors, air cleaners, mufflers and more
- 3-axle chassis utilises a tough ladder frame with aluminum side channels and resin cross members; front-mounted motor powers twin rear axles
- 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter; Item 7255252 Attack 2.4GHz Radio System recommended for 100% function compatibility
- Metal leaf spring dampers with built-in coil springs provide durable suspension
- Coupler included to enable connection with any currently available Tamiya 1/14 scale trailer
- Compatible with separately-sold Multi-Function Control Unit MFC-01 (Item 56511) or MFC-03 (Item 56523) for realistic LED lights and sounds
- 3-speed gearbox — Low, Medium and High (forwards and backwards)
- MFU: 24 different sounds, 9 different types of lights, vibrations synchronised with motor output
In the box
- 1x Tamiya Grand Hauler RC Truck Electric 4WD 1/14 Scale Kit - Black Edition
You'll need
- Steering servo
- Shift servo (for changing gears)
- Remote controller (analog or digital 4ch radio — see note)
- Battery
- Charger
- ESC (or the optional Multi Function Unit)
- Optional: Tamiya semi truck multi function unit #56511
- Recommended Tools: Large Philips head screw driver, Small Philips head screw driver, Modelling knife, Long nose pliers, Side cutters, Scissors, Tweezers, Plastic cement, Instant cement, Synthetic rubber cement, File
Highlights

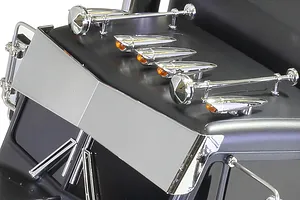

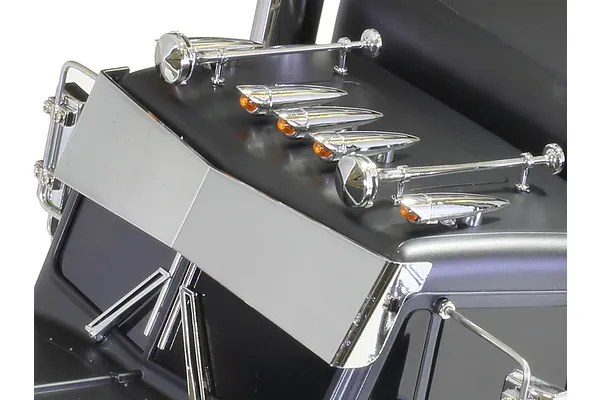

Plated Roof Details
The roof features plated horn and light bezel parts, along with a plated sun visor for added realism.

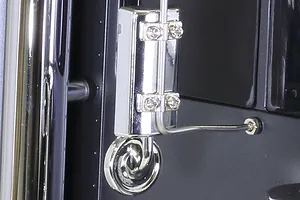

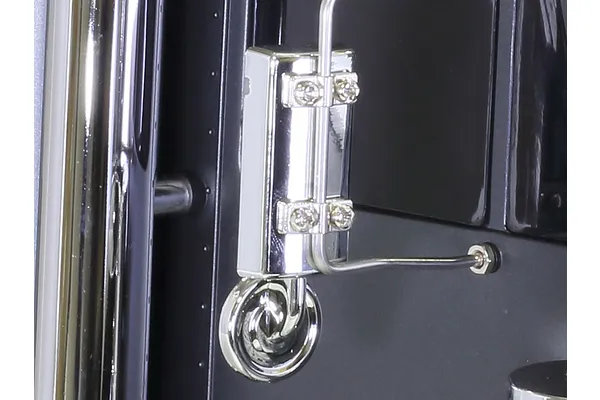

Adjustable Plated Side Mirrors
Plated side mirror parts include kerb mirrors and adjustable metal stays for precise positioning.

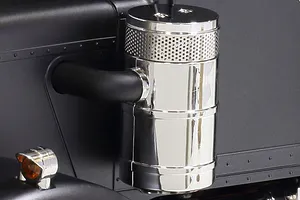

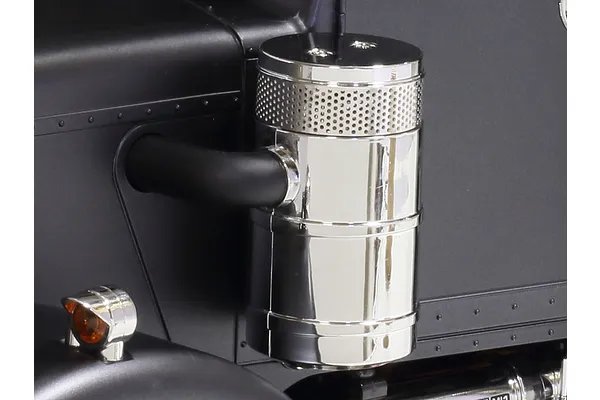

Detailed Air Cleaners with Photo-Etched Parts
Oversized air cleaners feature photo-etched parts depicting air intakes for enhanced detail.

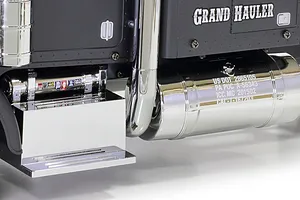

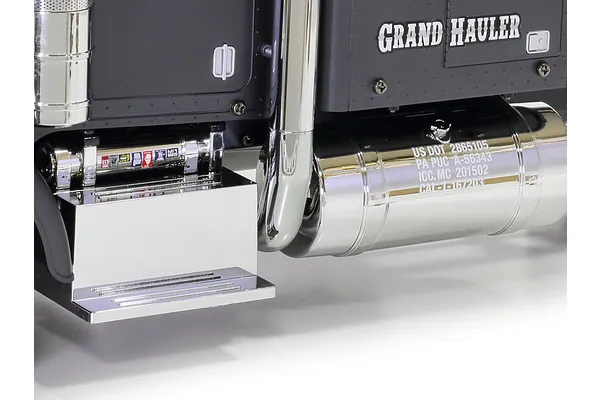

Low-Mounted MFC Unit Storage and Fuel Tanks
A lowered step provides storage for the MFC unit, and fuel tanks are mounted low under the body.

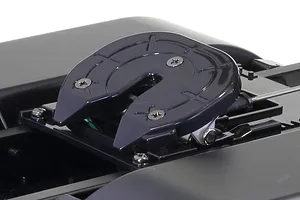

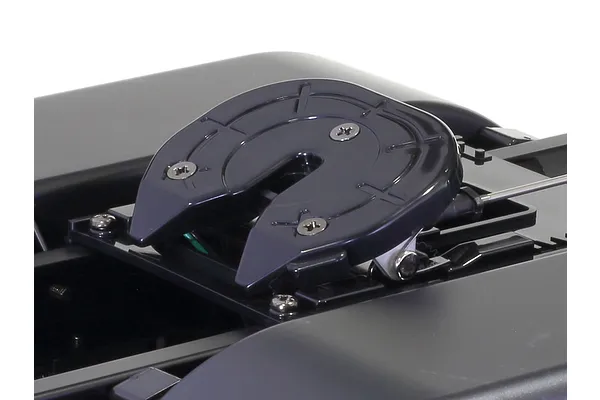

Trailer Compatibility and Realistic Sound
Use the coupler to attach Tamiya 1/14 scale trailers and experience different engine sounds (MFC Unit & Trailers sold separately).

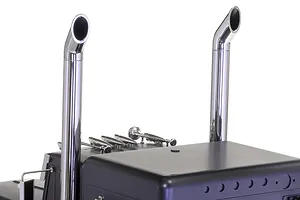

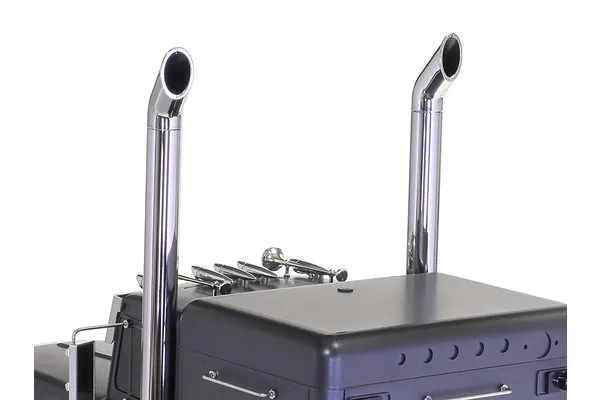

Metal Mufflers with Optional Plated Covers
Metal pipes depict mufflers, with optional metal-plated resin covers for a premium finish.

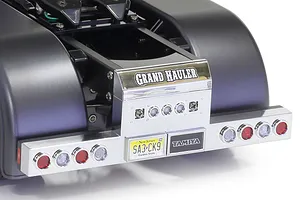

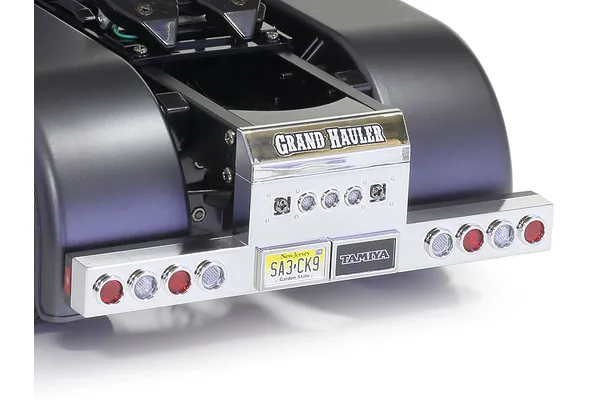

Low-Down Rear Bumper with LED Compatibility
The low-down rear bumper offers multiple lamp positions compatible with LEDs, and fender parts are included.
3 Speed Gearbox
Experience the versatility of a 3-speed gearbox! Shift between low, medium, and high gears on the fly to create realistic big rig performance for different terrains and driving styles. Enjoy the flexibility of forward and reverse in each gear, giving you complete control over your RC adventures.
MFC Unit - Multi Function Control Unit (Sold Separately)
Transform your Tamiya 1/14 semi-truck into a true-to-life masterpiece with the must-have Multi-Function Control Unit (MFC Unit). This incredible unit adds a symphony of realistic sounds, synchronised vibrations that react to the truck's movement, and dazzling LED lights that illuminate every manoeuvre. With 24 different sounds, 9 types of lights, and vibrations that mimic engine idle and acceleration, the MFC Unit brings an unparalleled level of realism to your RC experience.
Specifications
| Length | 630mm (24.8") |
|---|---|
| Width | 186mm (7.32") |
| Wheel Base | 447mm (17.6") |
| Length (from kit specs) | 692mm |
| Width (from kit specs) | 192mm |
| Height (from kit specs) | 330mm |
RC Car
| Scale | 1/10 |
|---|---|
| Completion | Kit |
| Skill Level | Experienced |
| Power Source | Electric Brushed |
| Chassis Type | Semi Truck |
| On/Off Road | On Road |
Factory Specs
| Max LiPo Power | 2S (7.4v) |
|---|
Parts
Top parts for this Tamiya Grand Hauler RC Truck Electric 4WD 1/14 Scale Kit - Black Edition

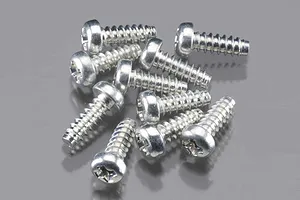

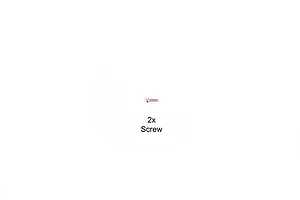

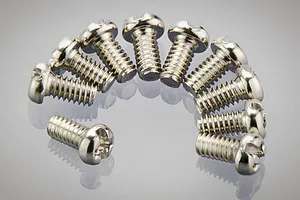

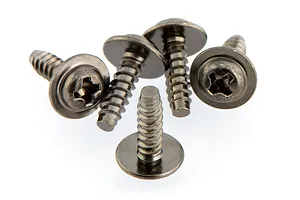

Shop all parts- Tamiya 3x6mm Fine Thread Binder Head Screws 2Pcs
