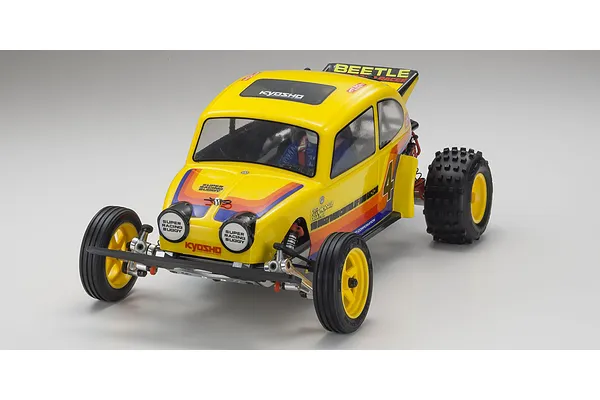

Timeless Body
The Beetle's timeless design is back, featuring a sleek and stylish classoc beetle body that's sure to turn heads on the track and on the jumps.

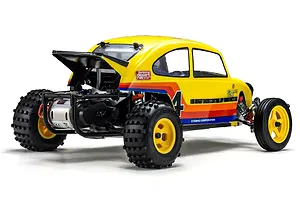

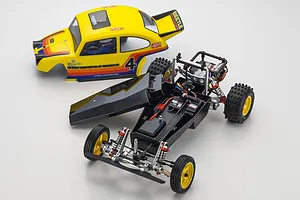

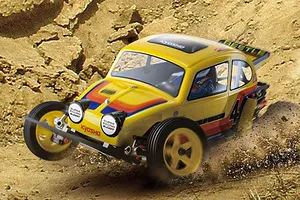

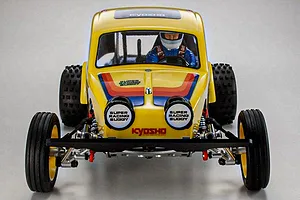

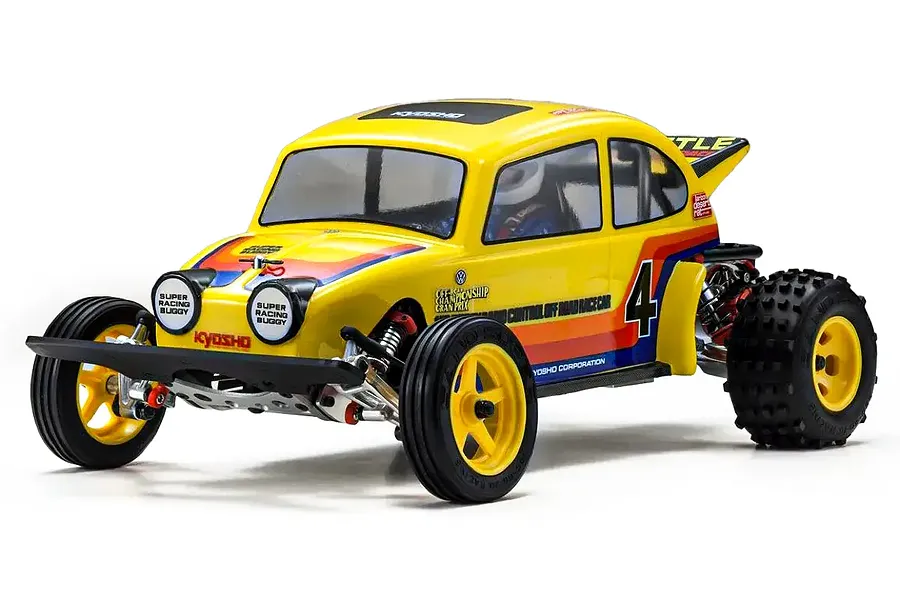

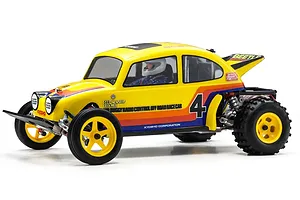

Kyosho Beetle EP RC Buggy Electric 2WD 1/10 Scale Kit
- 1/10
- 2WD
- Kit
Part no. 30614
1 in stockNo reviews yet
Videos
Kyosho Beetle 2014 — the classic Baja Beetle revived with 6061T6 aluminium chassis, pre-assembled gearbox, and modern performance upgrades. Kit format.
- Revival of the legendary Kyosho Baja Beetle with 2014 modern performance upgrades
- 6061T6 forged aluminium suspension arms, mainframe, and shock stays
- Pre-assembled gearbox and oil shocks included in the kit
- Two gear ratios included (H 6.9:1 / L 8.3:1); optional ball diff upgrade available
- Unassembled kit — requires motor, ESC, battery, and R/C system
Want more than 1? and we'll email you when they're here.
1 in stock · Ships Thursday · order by Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
You'll need
Not included: 2-channel, 1-servo R/C system for cars, 540-class motor (30–27 turns recommended), ESC compatible with motor, Battery pack for chassis, Battery charger, Paint for polycarbonate body, Batteries for transmitter, Tools (1.5, 2, 2.5mm hex wrench driver).
This item + 6 required$736.18
Not added until you choose its options: Charger, Battery, ESC/Motor.
Videos
Overview
Please Note:
This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.
The famous Kyosho Scorpion and Baja Beetle combined into one legendary off-road machine that became synonymous with electric buggy racing in the 1980s — a name still known around the world today. Now, in honour of the original Scorpion and its many fans, the Beetle makes a triumphant return with the advanced Scorpion 2014 chassis featuring the same basic ladder frame 2WD structure as the original, but with the latest technology and components.
Like the original, the Beetle is packaged as an unassembled kit, with nearly all tapping screws and nuts replaced by lightweight and secure hex screws, making assembly easier and the finished chassis lighter and more rigid.
Features
- Revival of the off-road BEETLE — 2014 version upgraded throughout
- Kit includes pre-assembled gearbox and oil shocks (shock oil sold separately)
- Front and rear suspension arms made from 6061T6 aluminium for improved rigidity, durability and lightness; wide front tread delivers superior driving stability
- Two-piece diecast aluminium gearbox with built-in diff gears; slipper clutch adjustable for various surface types and conditions
- Sintered alloy and nylon 48-pitch gears for superior efficiency; two gears included for high-speed and low-speed settings
- Mainframe, front & rear shock stays and subframe plate made from 6061T6 aluminium; countersunk chassis for flat finish
- Aluminium cylinders and stainless shafts in oil shocks produce effective damping through the entire stroke range
- Unique Baja style with advanced high-grip compound tyres and new tread pattern; rear tyres with inner sponges; one-piece wheel structure for lighter weight
- Radio box accommodates cable management and fits most current battery shapes and sizes
- Tubular front bumper and newly designed rear body mounts included
- Near-complete use of hex screws for secure assembly
- High-efficiency full ball bearing specification (14 included)
- Ball diff from Ultima RB can be installed as an optional upgrade
In the box
- Pre-assembled kit (gearbox and oil shocks are pre-assembled)
- Pre-cut clear polycarbonate body
- Decals
- L-shape hex wrench
- Cross wrench
- Shock wrench
- Shock oil
- Grease
You'll need
- 2-channel, 1-servo R/C system for cars
- 540-class motor (30–27 turns recommended)
- ESC compatible with motor
- Battery pack for chassis
- Battery charger
- Paint for polycarbonate body
- Batteries for transmitter
- Tools (1.5, 2, 2.5mm hex wrench driver)
Highlights

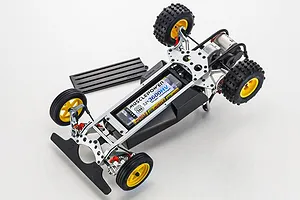

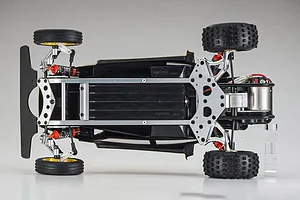

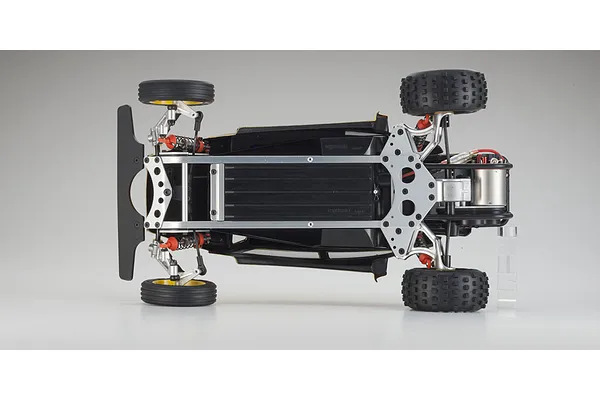

Aluminium Chassis
Experience the benefits of a lightweight and durable chassis. The aluminium construction, including the main frame, shock stays, and subframe plate, ensures a rigid platform for optimal handling, while the countersunk underside enhances the car's aesthetics.
Aluminium Arms
The Kyosho 2WD buggy range suspension arms are crafted from high-quality 6061-T6 forged aluminium, providing the ultimate combination of precision, rigidity, durability, and lightness. The wide front tread improves stability and control, allowing you to push the limits with confidence.
Die-Cast Gearbox
The Scorpion's two-piece die-cast aluminium gearbox houses durable diff gears and an adjustable slipper clutch for smooth and efficient power transfer. Fine-tune the slipper clutch to optimise performance on different surfaces.
High Efficiency Gearing
Kyosho 2WD buggy range drivetrain features high-efficiency 48-pitch gears made from a combination of sintered alloy and nylon. Two gears are included for high-speed and low-speed settings, while an optional ball differential is available for further customisation.
Aluminium Shock Absorbers
The oil shocks, with their aluminium cylinders and stainless steel shafts, deliver smooth and effective damping. The signature colour caps pay homage to the original, adding a touch of nostalgia.
Specifications
| Length | 398mm (15.6") |
|---|---|
| Width | 236mm (9.29") |
| Height | 165mm (6.49") |
| Wheelbase | 263mm (10.3") |
| Tread (F/R) | 198mm / 195mm (7.79" / 7.67") |
| Tyre (F/R) | 75×20mm / 85×41mm (2.95x.787" / 3.35x1.61") |
| Gear Ratio | H setting 6.9:1 / L setting 8.3:1 (2 combinations included) |
| Weight | 1,040g (2.29 lbs) approx. |
| Motor | 540-class (sold separately) |
RC Car
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 2S (7.4v) |
| Completion | Kit |
| Skill Level | Intermediate |
| Power Source | Electric |
| Chassis Type | Buggy |
| On/Off Road | Off Road |
| Drivetrain | 2WD |
RC Kit
| Suited Motor/ESC Type | Electric |
|---|
Factory Specs
| Battery Connector | Not Included |
|---|---|
| Front Shock Oil | 300cSt |
| Rear Shock Oil | 300cSt |
| Pinion Gear | 28T 48dp/0.5mod, 31T 48dp/0.5mod |
| Spur Gear | 38T 48dp/0.5mod, 41T 48dp/0.5mod |
| Wheel Hex Size | 12mm |
