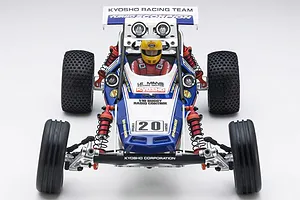

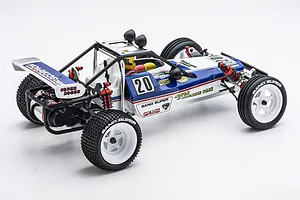

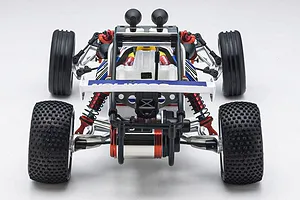

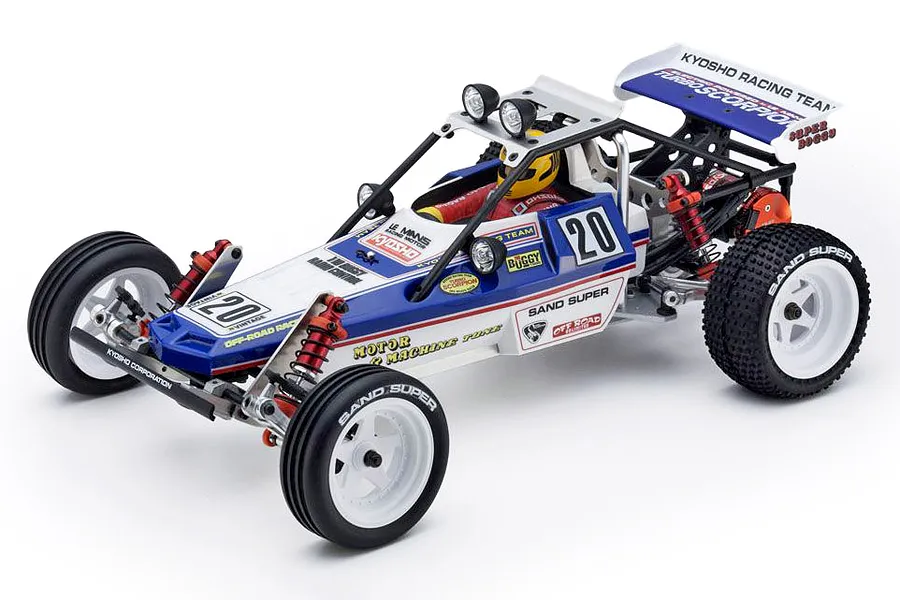

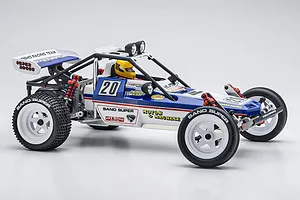

Kyosho Turbo Scorpion RC Buggy Electric 2WD 1/10 Scale Kit

  • 1/10
  • 2WD
  • Kit
  • Brushed

Part no. 30616

Sold outNo reviews yet
1 / 11
1 / 11

Videos

$490.88

or 4 fortnightly payments of $122.72 with afterpay or PayPal, or zip

Kyosho Turbo Scorpion 1/10 2WD electric buggy kit — vintage icon updated with modern 2.2" wheels, oil shocks and A6061T6 chassis.

  • 5th model in the Kyosho vintage series — updated Turbo Scorpion with modern performance
  • Modern standard 2.2-inch wheels with 20mm wider front tread and 10mm longer wheelbase than the original
  • 12mm oil shocks based on the Optima for rock-solid stability and damping
  • Forged A6061T6 suspension arms and A6061T6 ladder frame
  • Kit includes pre-assembled gearbox and die-cut decals

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

The Kyosho Turbo Scorpion is more than just a reproduction — it is the 5th model to return as part of the vintage series. The ever-popular Scorpion originally released in 1982 has undergone a detailed overhaul to match modern performance with retro styling. The new Turbo Scorpion remains true to the essence of the unique Scorpion design throughout, but features Scorpion-style wheels in the larger 2.2-inch modern standard size for improved off-road performance.

12mm oil shocks based on the Optima deliver rock-solid running stability and excellent damping characteristics. A 20mm wider front tread and 10mm longer wheelbase than the original Scorpion realise improved control and handling performance. The standard Turbo Scorpion is a fully optioned chassis configuration ready to accept modern-day power sources and compete on modern race circuits.

Features

  • Recreation of the original body design; roll bar position moved back 6mm and compatible with the original light buckets from the first Scorpion
  • Modern standard 2.2-inch wheels with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion
  • Ladder frame made from strong and lightweight A6061T6 aluminium; radio box compatible with various battery types and in the same white colour as the original
  • Forged A6061T6 suspension arms combined with 12mm oil shocks based on the Optima for high-level performance
  • 48-pitch gears using optimal nylon and sintered alloy for low noise and high efficiency; optional ball diff for the Ultima RB can be installed
  • Gear cover enclosing two-piece aluminium diecast gearbox with built-in gear diff features a slipper clutch to protect gears from damage
  • Soft compound ribbed front tires remove understeer; block-pattern rear tires maintain grip and traction
  • Modern standard 2.2-inch wheels in the 5-spoke style of the original Scorpion era
  • White rear wing matches vintage colour scheme with reinforced nylon resin wing stay; resin parts allow wing angle adjustment
  • Kit includes pre-assembled gearbox
  • Features the same racy-style mini bumper as the original
  • Rear section reinforced with Rear Sus Post L, strengthened by added flange
  • Accurate recreation of the original loop-mount light buckets; optional LED lights can be simply bolted on
  • Countersunk screwed surfaces for flat finish
  • Die-cut decals included; stretch for easy application and beautiful body finish
  • Genuine Kyosho product

In the box

  • 1x Pre-assembled kit (gearbox pre-assembled)
  • 1x Polycarbonate clear body
  • 1x Decal sheet
  • 1x Chassis parts
  • 1x Shock wrench, cross wrench and L-type hexagonal wrench
  • 1x Shock oil and grease

You'll need

  • 1x 7.2V Battery and Compatible Charger
  • 1x Standard Sized Servo
  • 1x 2-Channel Transmitter and Receiver
  • 1x Tamiya PS Paint
  • 1x Kyosho 540 Motor
  • 1x Kyosho ESC

Highlights

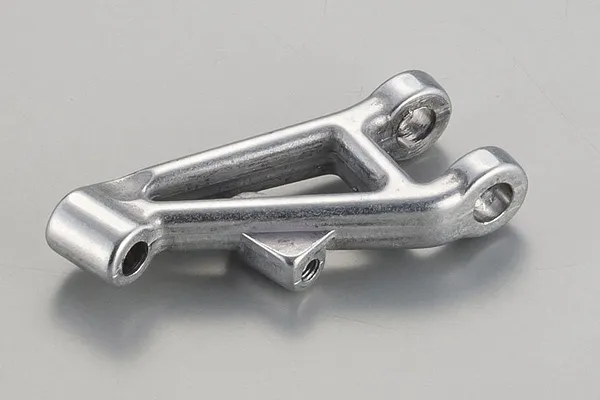

Aluminium Arms

Aluminium Arms

The Kyosho 2WD buggy range suspension arms are crafted from high-quality 6061-T6 forged aluminium, providing the ultimate combination of precision, rigidity, durability, and lightness. The wide front tread improves stability and control, allowing you to push the limits with confidence.

High Efficiency Gearing

High Efficiency Gearing

Kyosho 2WD buggy range drivetrain features high-efficiency 48-pitch gears made from a combination of sintered alloy and nylon. Two gears are included for high-speed and low-speed settings, while an optional ball differential is available for further customisation.

Aluminium Shock Absorbers

Aluminium Shock Absorbers

The oil shocks, with their aluminium cylinders and stainless steel shafts, deliver smooth and effective damping. The signature colour caps pay homage to the original, adding a touch of nostalgia.

Diecast Gearbox

Diecast Gearbox

The two-piece aluminium diecast gearbox, with its built-in gear differential and protective gear cover, delivers smooth and reliable performance. The integrated slipper clutch protects the gears from damage, ensuring long-lasting durability.

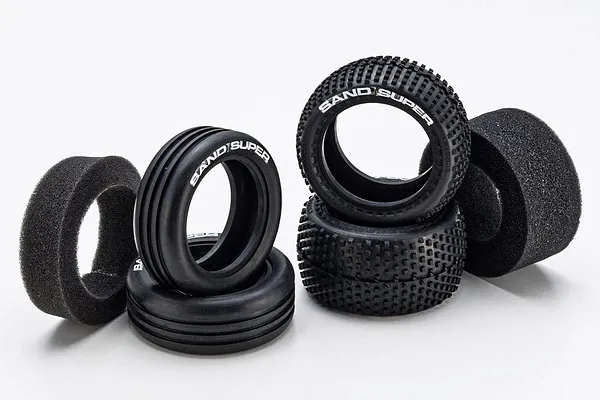

Soft Compound Tyres

Soft Compound Tyres

The combination of soft compound ribbed front tyres and block-pattern rear tyres provides a balanced handling experience. The front tyres minimise understeer, while the rear tyres deliver sure-footed grip and traction for confident cornering and acceleration.

2.2" Rims

2.2" Rims

Experience a blend of classic style and modern performance with the Scorpion's 2.2-inch 5-spoke wheels. These wheels, inspired by the original Scorpion, provide a vintage aesthetic and enhanced handling.

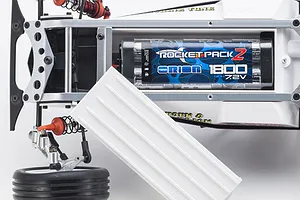

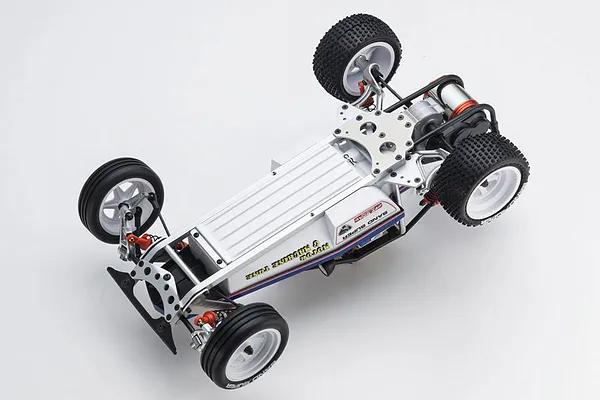

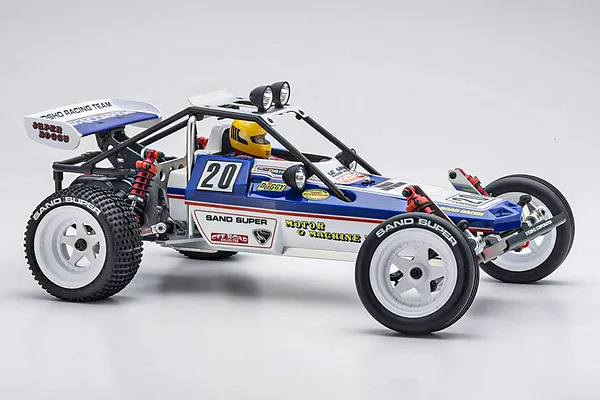

Turbo Scorpion chassis detail

Turbo Scorpion chassis detail

The Turbo Scorpion features a ladder frame made from strong and lightweight A6061T6 with a radio box compatible with various battery types.

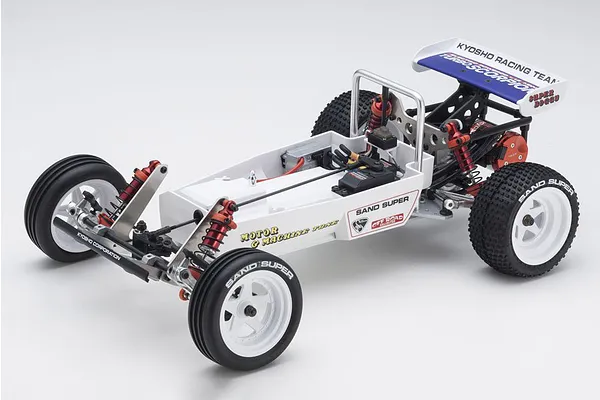

Turbo Scorpion suspension and shocks

Turbo Scorpion suspension and shocks

Forged A6061T6 suspension arms deliver superior strength, rigidity and durability and combine with 12mm oil shocks based on the Optima.

Turbo Scorpion pre-assembled gearbox

Turbo Scorpion pre-assembled gearbox

Gear cover enclosing two-piece aluminum diecast gearbox with built-in gear diff features a slipper clutch to protect gears from damage.

Turbo Scorpion 2.2-inch wheels and tyres

Turbo Scorpion 2.2-inch wheels and tyres

Equipped with modern standard 2.2 inch wheels in the 5-spoke style of the original Scorpion era, with soft compound front and block-pattern rear tyres.

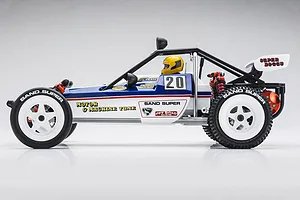

Turbo Scorpion body and roll bar

Turbo Scorpion body and roll bar

Recreation of the original body design with roll bar position moved back 6mm, compatible with the original light buckets from the first Scorpion.

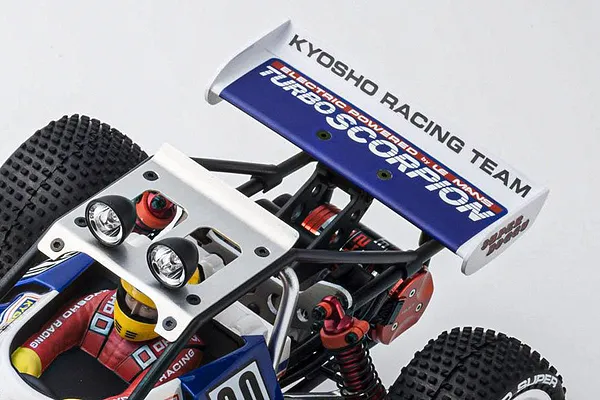

Turbo Scorpion adjustable rear wing

Turbo Scorpion adjustable rear wing

White rear wing included matches vintage colour scheme with reinforced nylon resin wing stay and resin parts that allow the wing angle to be adjusted.

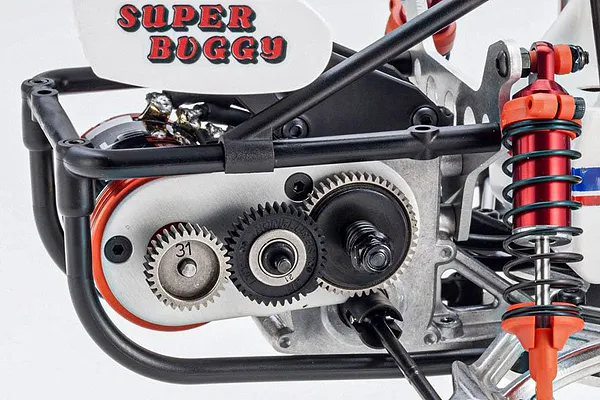

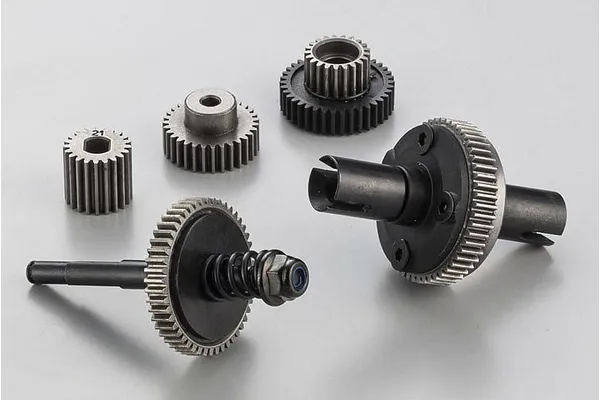

Turbo Scorpion 48-pitch gear set

Turbo Scorpion 48-pitch gear set

Optimal use of nylon and sintered alloy in the 48 pitch gears realises low noise and high efficiency; optional ball diff for the Ultima RB can be installed.

Turbo Scorpion loop-mount light buckets

Turbo Scorpion loop-mount light buckets

Features accurate recreation of the original loop-mount light buckets; optional LED lights can be simply bolted on.

Turbo Scorpion diecut decal sheet

Turbo Scorpion diecut decal sheet

Decals included in the kit are diecut, designed to stretch for easy application and a beautiful body finish.

Specifications

Length408mm
Width256mm
Height145mm
Wheelbase273mm
Tread (F/R)218mm / 215mm
Tire (F/R)82x27mm / 86x42mm
Gear Ratio6.9:1 / 8.3:1 (select from 2 types)
Weightapprox. 1,500g
Motor540-type (sold separately)
Scale1/10
Drivetrain2WD

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeBuggy
On/Off RoadOn Road, Off Road
Drivetrain2WD

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery ConnectorNot Included
Front Shock Oil300cSt
Rear Shock Oil300cSt
Pinion Gear28T, 31T
Spur Gear38T, 41T
Wheel Hex Size12mm

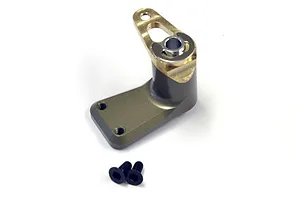

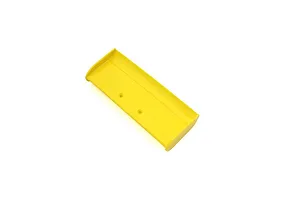

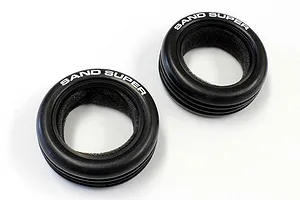

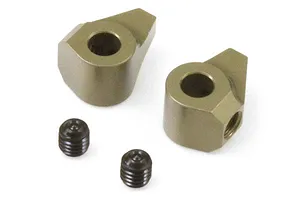

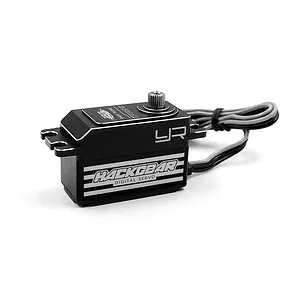

Parts
