Tamiya DF-01 Manta Ray RC Buggy Electric 4WD 1/10 Scale Kit (no ESC)

  • 1/10
  • 4WD
  • Kit

Part no. 47367A

DiscontinuedNo reviews yet
1 / 2
1 / 2

Videos

This product has been discontinued.

Contact us

Videos

Overview

Note: This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

The Manta Ray R/C car carved its niche in 1990 by effortlessly catering to both novice and seasoned hobbyists. Its iconic Manta Ray-inspired body, crafted from lightweight yet durable polycarbonate, offered a sleek and appealing aesthetic. This versatile car excelled on various terrains thanks to its downforce-generating rear wing, all-terrain spike tyres mounted on dish wheels, and exceptional handling.

Ensuring optimal balance, the honeycomb bathtub frame housed all radio components, including the battery and R/C mechanisms, in its central cavity. This robust chassis was further complemented by a 4-wheel double wishbone suspension and CVA oil dampers for unwavering stability off-road. The 4WD drivetrain boasted sealed gearboxes with internal differential gears for smooth cornering, while the quick-access hatch on the gearbox facilitated effortless maintenance. This combination of thoughtful design and robust engineering solidified the Manta Ray's reputation as a timeless R/C icon.

Note

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

Features

  • Features a sturdy bathtub frame with a honeycomb rib pattern on the inside for excellent rigidity
  • 4-wheel independent double wishbone suspension system is paired with CVA oil dampers
  • Shaft-driven 4WD drivetrain employs differentials in sealed gearboxes, each with a quick-access maintenance hatch
  • 3-piece steering tie rod gives sharp response with the ball adjusters allowing easy altering of toe angle
  • Aero dish wheels are paired with grippy stud spike tyres, pairing functionality with nostalgia
  • High quality Polycarbonate body and wing
  • Original decal designs included
  • Compatible with a large range of aftermarket and OEM option parts
  • Includes 540 sized brushed motor

In the box

  • 1x Tamiya 1/10 Manta Ray Electric Off Road RC Buggy Kit
  • 1x 540 Sized Brushed Motor

You'll need

  • 7.2V NiMH Battery & Compatible Charger
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver
  • Tamiya PS Paint

Highlights

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

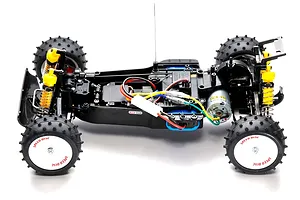

DF-01 Chassis

DF-01 Chassis

The DF01 chassis, introduced by Tamiya, wasn't just a new and innovative 4WD design; it marked a pivotal moment, paving the way for the renowned TA-series of chassis. This sleek bathtub chassis, equipped with independent suspension and CVA shocks, offered unparalleled versatility and performance.The DF01's adaptability is evident in its diverse applications. It served as the foundation for not just this beginner-friendly Manta Ray, but also the highly developed Top Force Evo, showcasing its ability to cater to various skill levels and driving styles.

Aero Dish Wheels

Aero Dish Wheels

The Manta Ray seamlessly blends nostalgic charm with cutting-edge functionality. Its iconic aero dish wheels, reminiscent of a bygone era, are wrapped with grippy stud spoke tyres. This innovative combination delivers exceptional performance, ensuring the Manta Ray maintains a high level of grip on virtually any terrain.Whether navigating smooth pavement or tackling challenging off-road obstacles, the Manta Ray's wheels and tyres work in unison to provide you with the control and confidence you need to conquer any path.

Advanced Drivetrain

Advanced Drivetrain

The Manta Ray's sports an advanced drivetrain, specifically tailored to deliver exceptional control across diverse surfaces. The 4-wheel independent wishbone suspension works in harmony with the shaft-driven 4WD system, granting you precise handling and confident manoeuvring.Furthermore, the sealed gearboxes housing the differentials provide an extra layer of protection, ensuring your drivetrain remains well-guarded against dirt, debris, and challenging terrain. This combination of robust engineering and thoughtful design empowers you to conquer any path with confidence, making the Manta Ray a true off-road champion.

Specifications

Length395mm (15.55")
Width250mm (9.84")
Height145mm (5.71")
Wheelbase270mm (10.63")
Weight1100g (38.80 oz) — varies with electronic choice
Tyre Diameter/Width F/R84 x 40mm (3.31 x 1.57")
ChassisOff Road Buggy
Drivetrain4WD
Gears8.59:1
SuspensionOil Filled Coil Over Shock Absorbers
Motor540 Sized Brushed Motor
ESCNot Included

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionKit
Skill LevelBeginner
Power SourceElectric
Chassis TypeBuggy
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorNot Included
Front Shock Oil300cSt
Rear Shock Oil300cSt
Pinion Gear21T
Spur Gear64T
Wheel Hex Size12mm
