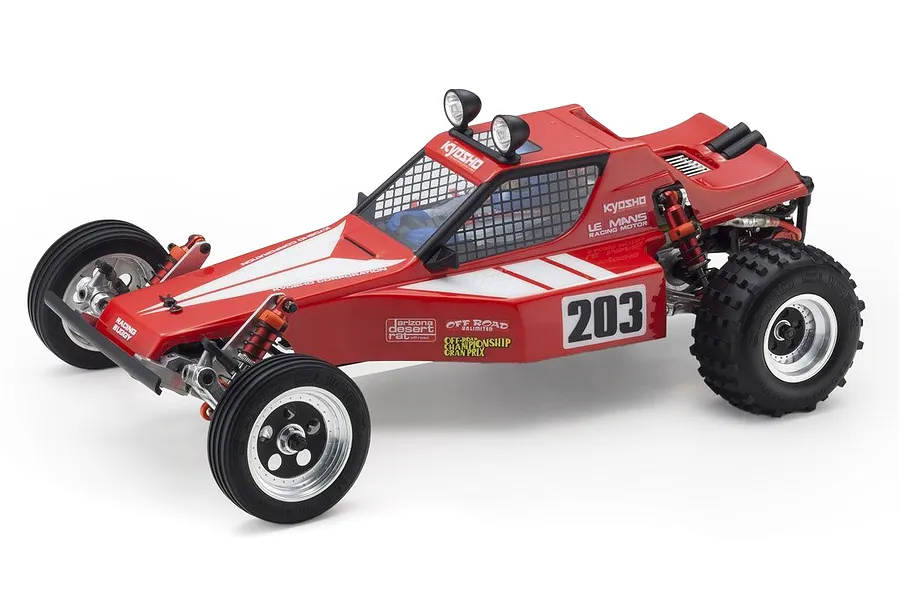

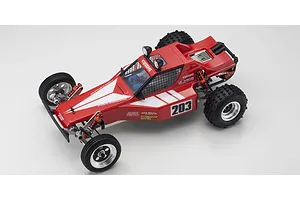

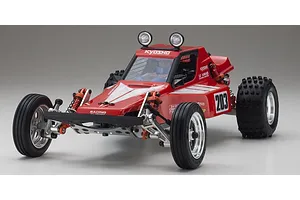

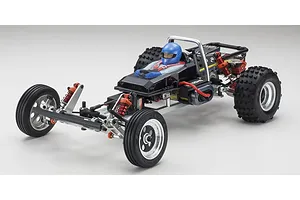

Kyosho Tomahawk EP RC Buggy Electric 2WD 1/10 Scale Kit

1/10
2WD
Kit

Part no. 30615

Sold outNo reviews yet

1 / 9

Videos

$490.88

or 4 fortnightly payments of $122.72 with afterpay or PayPal, or zip

Add it to My Garage

Kyosho Tomahawk — the iconic 1980s racing legend revived as the 3rd Vintage Series model, updated to 2015 specs with 6061T6 aluminium chassis. Kit format.

Reproduction of the legendary Tomahawk updated to 2015 specifications
6061T6 aluminium chassis, forged suspension arms, and 2-piece diecast aluminium gearbox
Pre-assembled gearbox and oil shocks included
Radio box removed — 80g lighter than the Scorpion; battery side-mounted for optimal weight distribution
Unassembled kit — requires motor, ESC, battery, and R/C system

Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

In stock now: similar

Kyosho Beetle EP RC Buggy Electric 2WD 1/10 Scale Kit
$475.81
Team Associated RC10 Classic RC Buggy Electric 2WD 1/10 Scale Kit - Green 40th Anniversary Edition
Now $550.98~~was $623.30~~ Save $72
RC10 Classic RC Buggy Electric 2WD 1/10 Scale Kit - Retro '80s Ultra Champ
$537.82

Part Support

Replacement & upgrade parts that fit this model

Spare parts Upgrades All parts

Videos

Overview

Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

Based on the solid foundation of the Scorpion, the Tomahawk was modified and launched as a pure racing vehicle. On its release, the Tomahawk swept challengers away from Japan and around the world to create a legend that is still remembered by many R/C racers today. In response to many requests from R/C fans, Kyosho is proud to add the Tomahawk as the 3rd Immortal model in the Vintage Series.

Incorporating metal parts from the 2014 Scorpion — including the 6061T6 aluminium main frame chassis, forged suspension arms, and 2-piece aluminium diecast gearbox with built-in diff gears — the Tomahawk retains its characteristic Spartan double deck. The new Tomahawk is not simply a reproduction of the original machine: each key component has been updated with modern R/C racing technology. Eliminating the radio box reduces weight, and side mounting of the battery provides optimal weight distribution.

Features

Reproduction of the Tomahawk that swept races throughout the 1980s — each part updated to 2015 specifications
Gearbox and oil shocks are pre-assembled (requires filling with included oil)
Decals included create a vivid colour scheme; side window meshes recreated with decals
New rear body stay provides secure mounting of body
Front/rear tyres recreate the look of original but with optimised block pattern and high-grip material
Slipper clutch protects the drive system from rough treatment and can be adjusted to suit various surface conditions
Countersunk mainframe and tapping screws create a flat surface and reduce the number of nuts
Hex type screws on chassis (except some parts) add security and work efficiency
Features pre-cut polycarbonate body made from the original Tomahawk body mould
Kit includes driver figure with dust cover
Removal of radio box reduces weight by 80g versus the Scorpion
Servo mounting secured with a screw system for more accuracy and control
Roof light bucket creates scale look, including the light guard not included in the original model
Red anodised aluminium cylinders with oil shocks and strong stainless steel suspension shafts
48-pitch gears in nylon and sintered alloy for high efficiency and low noise
Compatible with optional parts for Scorpion for customised chassis tuning
Ball diff for RB can be installed as an option
Blister packaging recreates the original image of the Tomahawk

In the box

Polycarbonate clear body
Decals
L-type hex wrench
Cross wrench
Shock wrench
Shock oil
Grease

You'll need

2-channel, 1-servo R/C system for cars
540 class motor (30–27 turn recommended)
ESC compatible with motor
7.2V Ni-MH battery for chassis
Battery charger
Paint for polycarbonate body
Batteries for transmitter

Highlights

Aluminium Arms

The Kyosho 2WD buggy range suspension arms are crafted from high-quality 6061-T6 forged aluminium, providing the ultimate combination of precision, rigidity, durability, and lightness. The wide front tread improves stability and control, allowing you to push the limits with confidence.

High Efficiency Gearing

Kyosho 2WD buggy range drivetrain features high-efficiency 48-pitch gears made from a combination of sintered alloy and nylon. Two gears are included for high-speed and low-speed settings, while an optional ball differential is available for further customisation.

Aluminium Shock Absorbers

The oil shocks, with their aluminium cylinders and stainless steel shafts, deliver smooth and effective damping. The signature colour caps pay homage to the original, adding a touch of nostalgia.

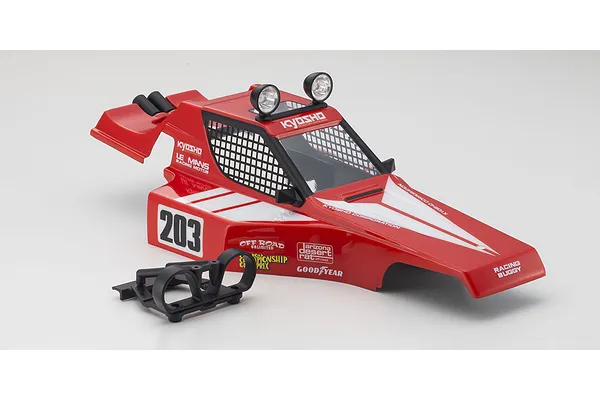

Iconic Body Shell

Relive the glory days of RC racing with the Tomahawk's iconic body design, faithfully recreated from the original mould. The included driver figure and dust cover add a touch of realism and nostalgia. The realistic look roof light buckets have been added for additional scale detail.

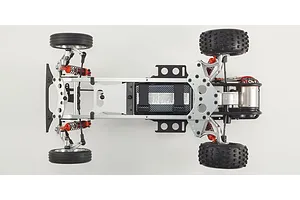

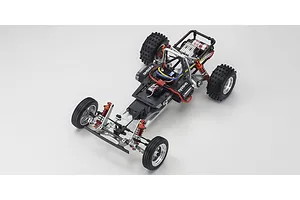

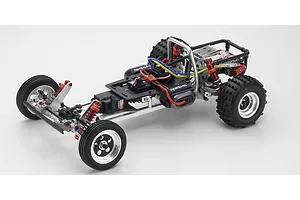

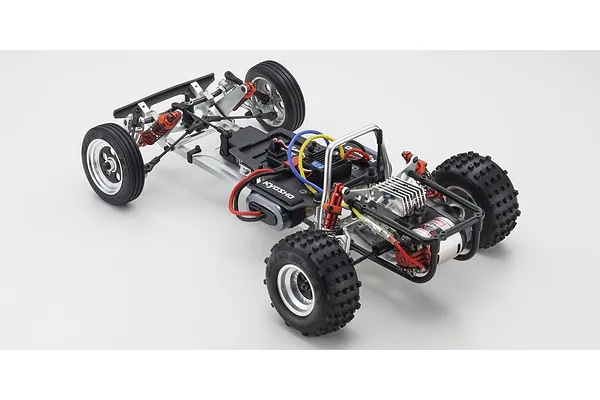

Lightweight Chassis

The Tomahawk shares the Scorpion's robust chassis structure and materials, but with a key difference: the removal of the radio box reduces weight by 80g, enhancing agility and performance.

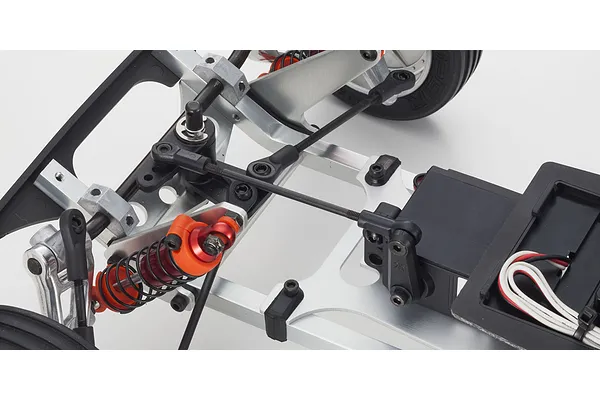

Improved Rigidity

The Tomahawk's chassis features enhanced rigidity, thanks to the resin clamp that secures the front of the lower deck. This upgrade improves handling and provides a more stable platform for the electronics.

Specifications

Length	380mm (14.9")
Width	236mm (9.29")
Height	145mm (5.70")
Wheelbase	263mm (10.3")
Tread (F/R)	198mm / 195mm (7.79" / 7.76")
Tyre (F/R)	F75×20mm / F85×41mm (2.95×.787" / 3.34×1.61")
Gear Ratio	H 6.9:1 / L 8.3:1
Weight	905g (1.99 lbs) approx.
Motor	540 class (sold separately)
