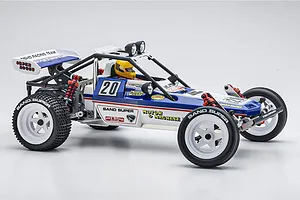

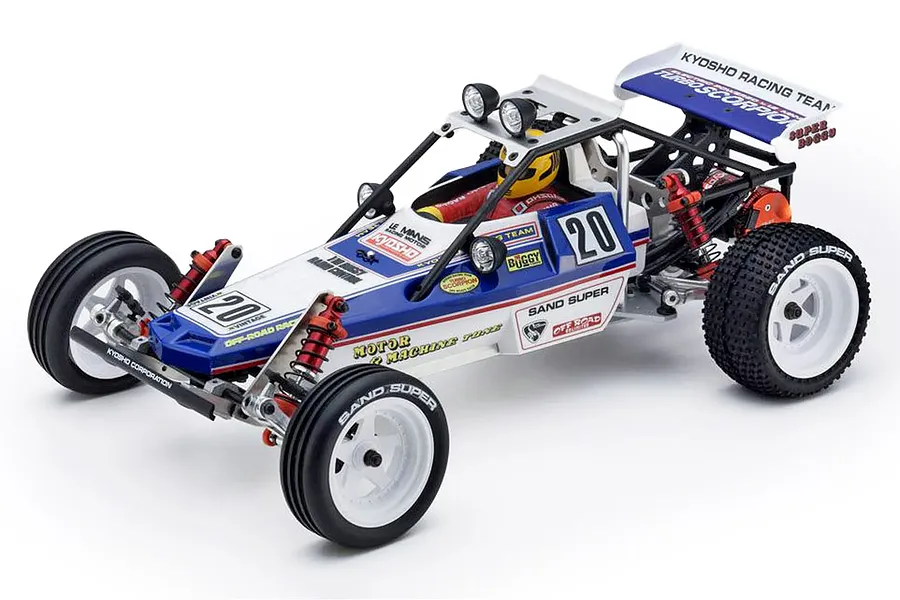

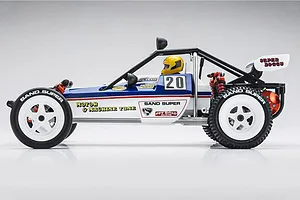

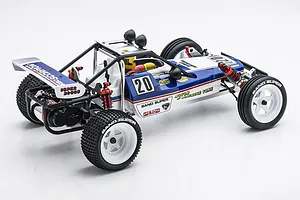

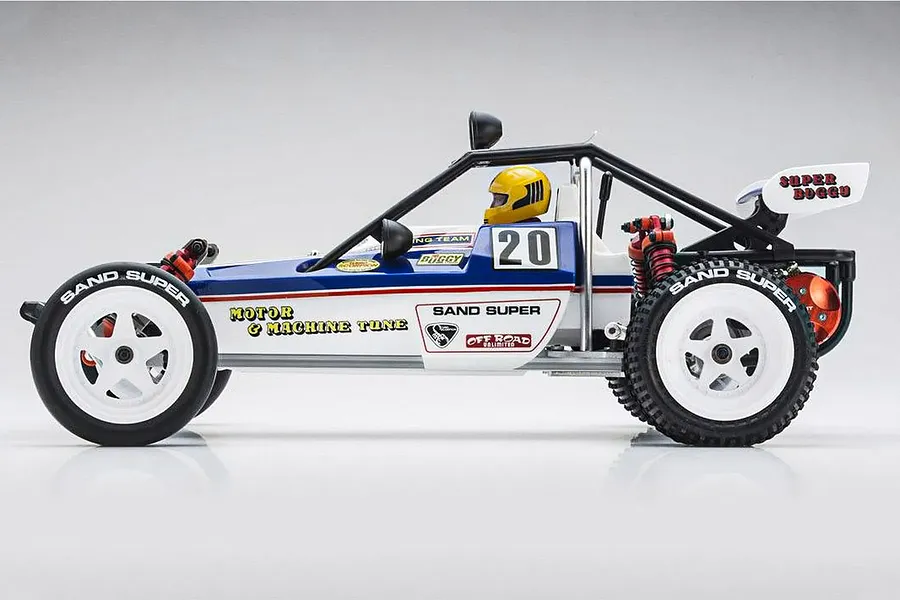

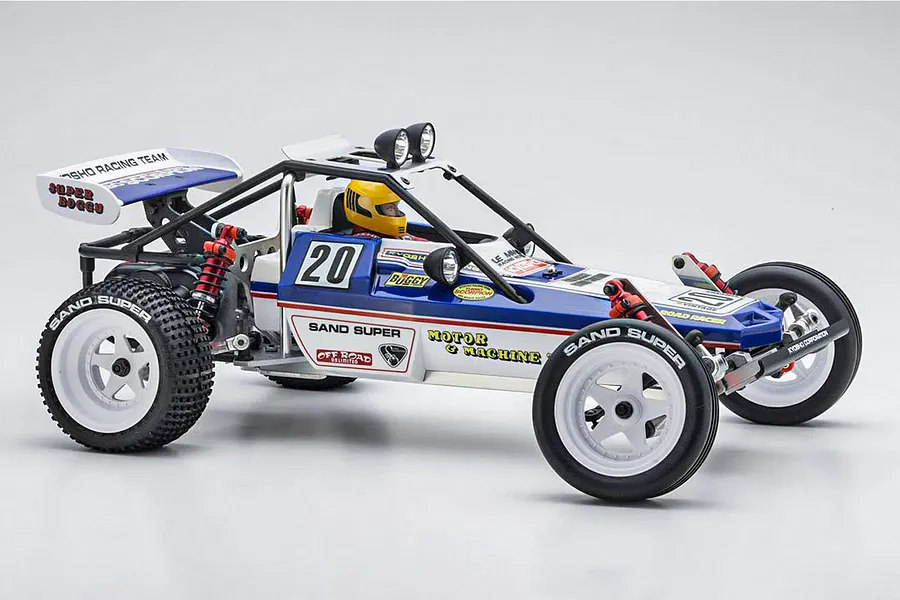

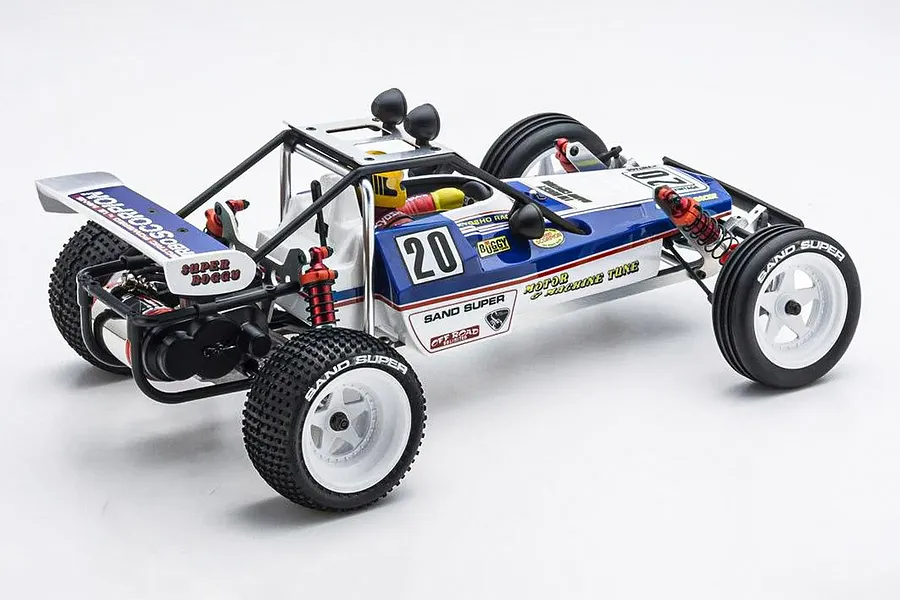

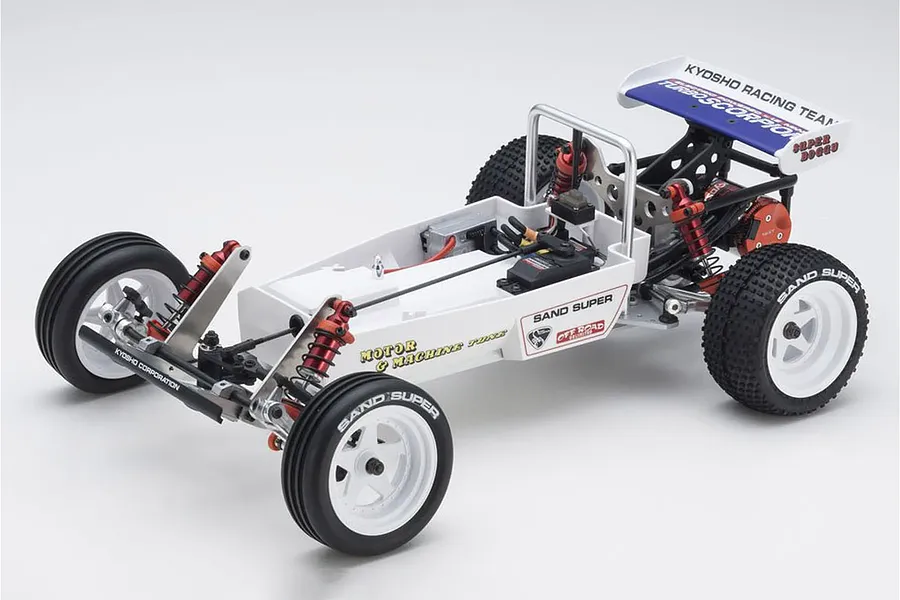

Kyosho Turbo Scorpion RC Buggy Electric 2WD 1/10 Scale Kit

Kyosho Turbo Scorpion RC Buggy Electric 2WD 1/10 Scale Kit

Kyosho Turbo Scorpion RC Buggy Electric 2WD 1/10 Scale Kit

Brand: Kyosho | SKU: 30616D
1 in stock
$490.88

This Kyosho RC Buggy & Turbo Scorpion 1/10 Scale Kit includes 12mm oil shocks and a reinforced ladder frame for superior off-road driving performance.

  • Kyosho Turbo Scorpion Utilises A Lightweight A6061T6 Ladder Frame

  • Large 2.2 Inch Wheels Improve Overall Off-Road Handling Performance

  • Features A Slipper Clutch To Protect Sintered Alloy Drive Gears

  • High Durability Build Includes Full Support From Spare Parts Sets

  • Ideal For Experienced Builders & Racers

Add to Wishlist
Pay later with
Afterpay Zip Paypal

Want more than 1?
and we'll notify you when the stock is here.
Description

The Kyosho RC Buggy Turbo Scorpion returns as a modernised vintage legend ready to dominate dirt tracks once again. This 1/10 scale kit blends classic 1982 styling with current racing technology to satisfy both nostalgic collectors and competitive racers. Engineers updated the chassis to accommodate modern power sources, ensuring it competes effectively on contemporary circuits. The wider front tread and longer wheelbase provide significantly improved stability compared to the original design. This buggy captures the high-energy spirit of eighties RC while delivering the reliability expected by today's hobbyists.

The backbone consists of an A6061T6 aluminium ladder frame paired with forged suspension arms to deliver extreme strength. Twelve-millimetre oil-filled shocks, derived from the Optima, provide excellent damping across rough terrain and high-grip surfaces. The drivetrain uses a mix of nylon and sintered alloy 48-pitch gears to maintain high efficiency and quiet operation throughout every race. A built-in slipper clutch safeguards the gearbox against sudden impacts or high-torque brushless motor demands. Customising the setup remains simple with a radio box designed to accommodate various battery dimensions and brands. Clear polycarbonate body parts allow builders to apply custom paint schemes using the included die-cut decals to recreate the classic look.

Assemble this legendary machine and hit the track with eighties flair. This kit provides a rewarding build experience and blistering performance. Grab the transmitter and carve the corners!

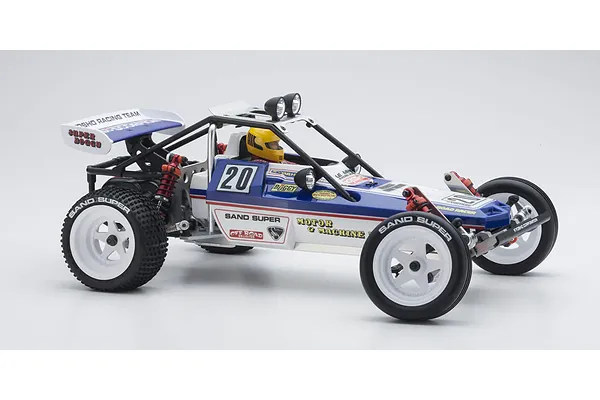

Authentic Body Design with Improved Scale Features
Authentic Body Design with Improved Scale Features

This model is a faithful recreation of the original body design, but with smart updates like the roll bar being moved back 6mm (0.24"). It remains compatible with the original light buckets from the first Scorpion, allowing for easy scale customisation. These subtle refinements maintain the iconic silhouette while improving the overall proportions and fitment for modern electronics.

Modern 5-Spoke 55.8mm (2.2") Vintage Style Wheels
Modern 5-Spoke 55.8mm (2.2") Vintage Style Wheels

This kit is equipped with modern standard 55.8mm (2.2") wheels that mirror the 5-spoke style of the original Scorpion era. These wheels are normally sold as an optional upgrade but come included here to provide a premium look and better tyre compatibility. They deliver a perfect blend of vintage aesthetics and modern performance, ensuring your buggy looks authentic while handling current track conditions.

Forged A6061T6 Arms and 12mm Oil-Filled Shocks
Forged A6061T6 Arms and 12mm Oil-Filled Shocks

Forged A6061T6 aluminium suspension arms deliver superior strength, rigidity, and durability for intense off-road racing. These are paired with 12mm (0.47") oil shocks based on the legendary Optima design to realise high-level damping performance. This robust suspension system allows the Turbo Scorpion to soak up bumps and jumps with the precision of a modern competition buggy.

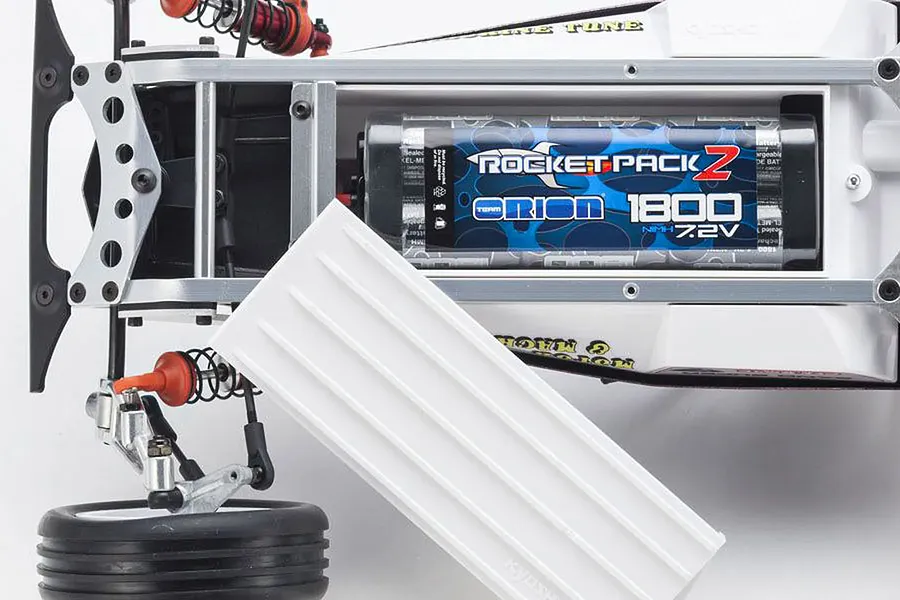

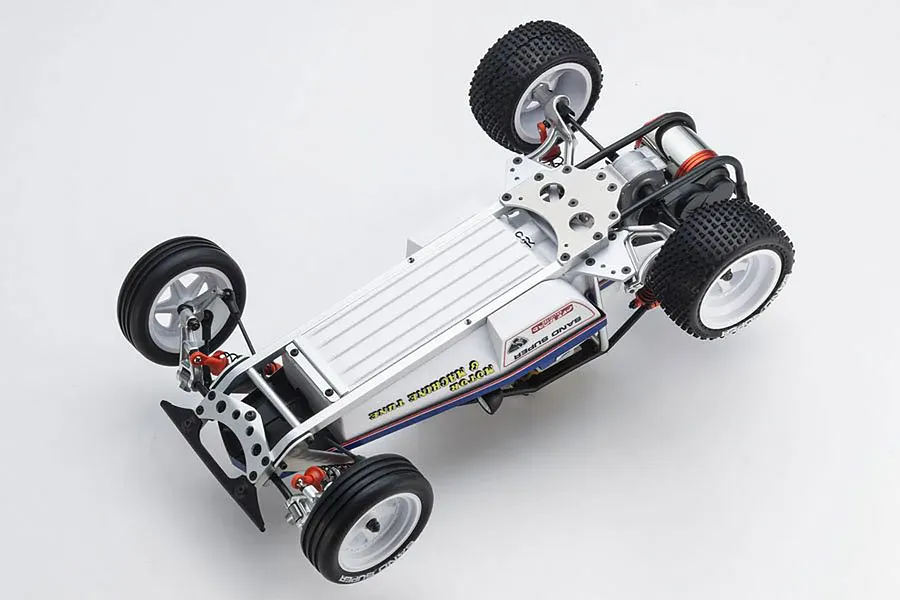

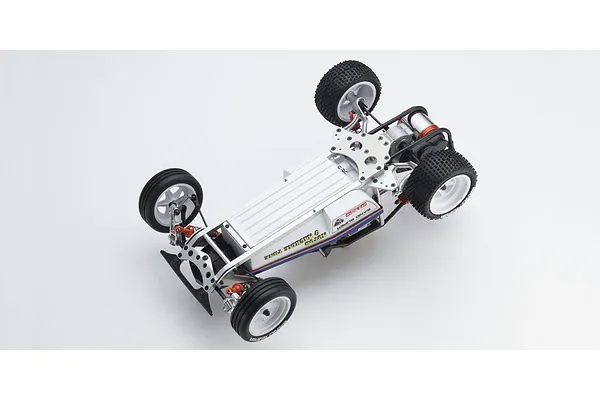

Strong and Lightweight A6061T6 Alloy Ladder Frame
Strong and Lightweight A6061T6 Alloy Ladder Frame

The backbone of this buggy is a ladder frame made from high-strength A6061T6 aluminium. The integrated radio box is finished in the same classic white as the original, recreating that racy vintage style while remaining compatible with various modern battery types. This lightweight yet rigid construction provides the structural integrity needed for high-speed brushless power systems.

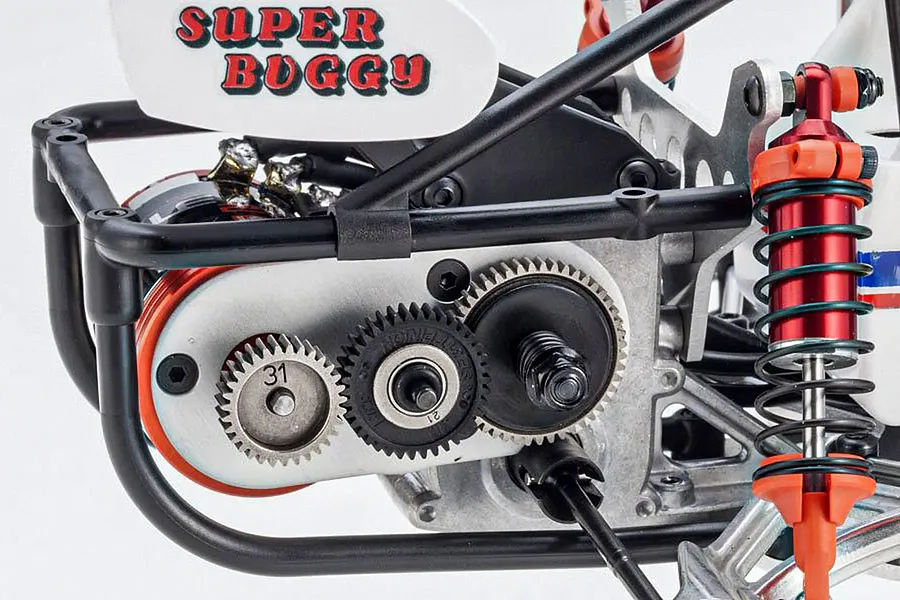

Precision 48-Pitch Gears with Sintered Alloy
Precision 48-Pitch Gears with Sintered Alloy

Optimal use of nylon and sintered alloy in the 48-pitch gears results in low noise and high drivetrain efficiency. This setup provides smooth power delivery and can be upgraded with the optional ball differential from the Ultima RB. These high-quality internals ensure your gearbox remains reliable under the stress of high-torque motors, providing trouble-free performance on the track.

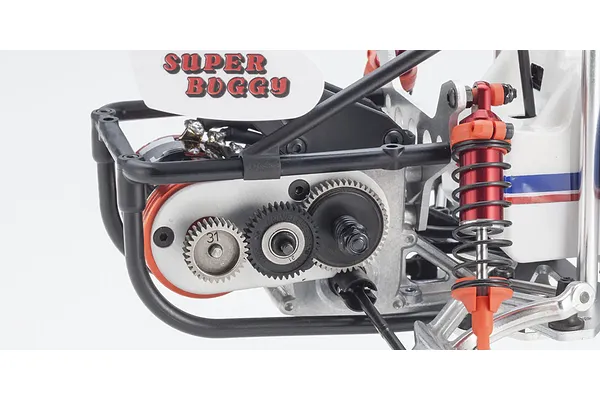

Two-Piece Diecast Gearbox with Sintered Slipper Clutch
Two-Piece Diecast Gearbox with Sintered Slipper Clutch

The two-piece aluminium diecast gearbox features an enclosed design to protect the built-in gear differential from debris. An integrated slipper clutch is included to protect the gears from damage during hard landings or high-grip starts. This protective feature is essential for maintaining drivetrain longevity and allows you to fine-tune your acceleration on different racing surfaces.

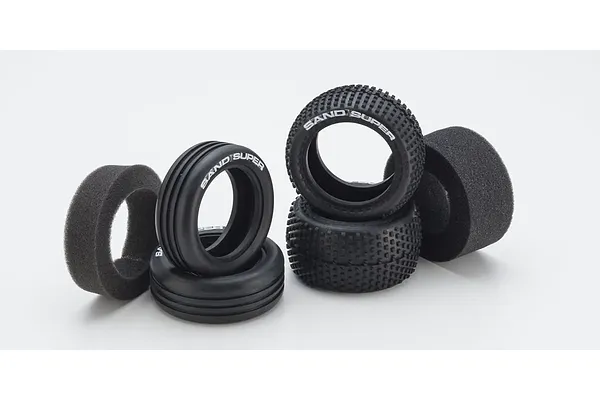

High-Grip Block Pattern Rear and Ribbed Front Tyres
High-Grip Block Pattern Rear and Ribbed Front Tyres

Maintain sure-footed traction with block-pattern rear tyres designed for maximum forward bite. The front end is equipped with soft-compound ribbed tyres that effectively remove understeer, providing sharp and predictable steering response. This tyre combination ensures the 2WD Turbo Scorpion remains easy to drive and highly responsive, even for those new to vintage off-road racing.

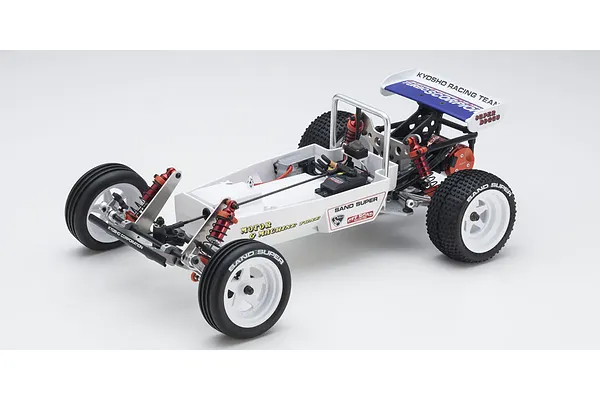

Enhanced Stability with Wide Tread and Long Wheelbase
Enhanced Stability with Wide Tread and Long Wheelbase

The Turbo Scorpion features a 20mm (0.79") wider front tread and a 10mm (0.39") longer wheelbase compared to the original 1980s version. These geometry changes significantly improve high-speed stability and cornering control. By increasing the footprint of the buggy, Kyosho has made this vintage legend much more forgiving and easier to handle on modern off-road circuits.

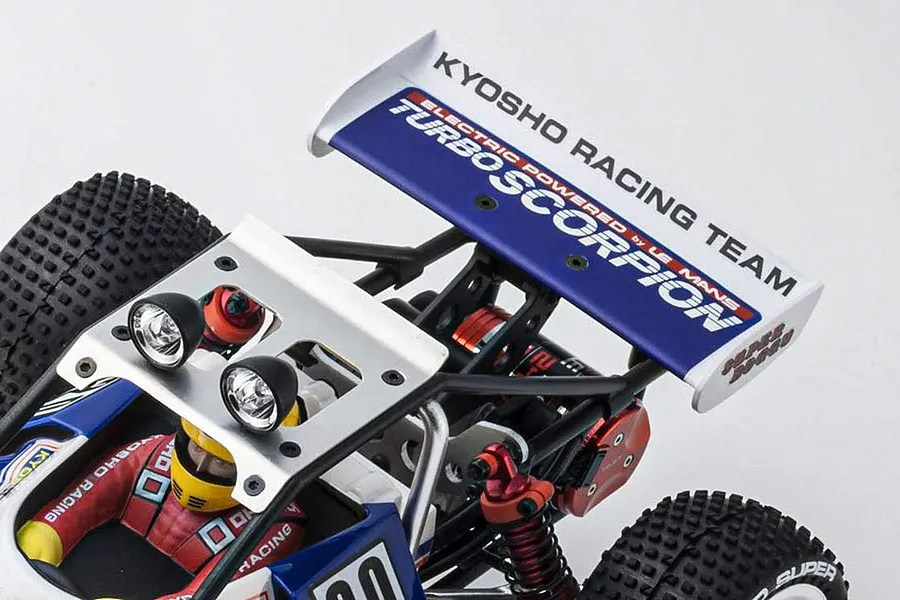

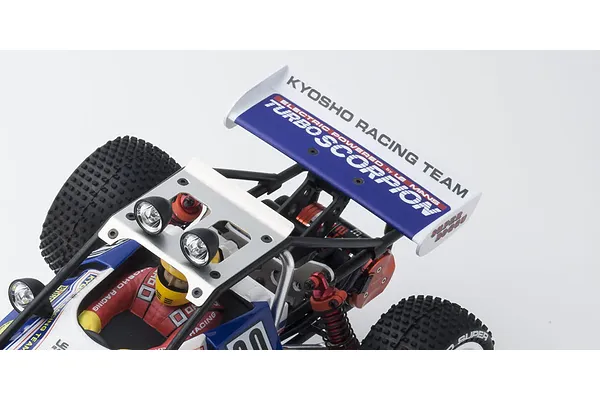

Adjustable Nylon Rear Wing and Reinforced Stays
Adjustable Nylon Rear Wing and Reinforced Stays

A white rear wing is included to match the vintage colour scheme, supported by a reinforced nylon resin wing stay. The kit also includes specific resin parts that allow the wing angle to be adjusted to suit different track layouts. This allows you to fine-tune the downforce of your buggy, providing better rear-end stability during high-speed jumps and technical cornering.

Features
  • Modernised 1/10 Scale Buggy Kit Based On The Classic 1982 Scorpion Design

  • Strong A6061T6 Aluminium Ladder Frame Provides A Lightweight Chassis Base

  • Includes Large 2.2 Inch Five Spoke Wheels To Enhance Off-Road Performance

  • Forged A6061T6 Suspension Arms Deliver Superior Strength And Rigid Detail

  • Large 12mm Oil Shocks Provide Rock-Solid Stability On Modern Race Circuits

  • Gearbox Arrives Pre-Assembled With Integrated Gear Differential Components

  • Built-In Slipper Clutch Protects Internal Gears From High Torque Damage

  • Wider Front Tread And Longer Wheelbase Improve High Speed Handling Skills

  • Includes Clear Polycarbonate Body With Die-Cut Decals For Custom Painting

  • Radio Box Accommodates Most Modern Battery Types Including LiPo Packs

  • Sintered Alloy And Nylon Gears Realise Quiet Operation And High Efficiency

  • Genuine Kyosho Product

Specifications
  • Length: 408mm (16.06")

  • Width: 256mm (10.08")

  • Height: 145mm (5.71")

  • Wheelbase: 273mm (10.75")

  • Weight: 1.5kg (3.3lbs)

  • Chassis: A6061T6 Ladder Frame

  • Drivetrain: 2WD

  • Suspension: Four Wheel Independent

  • Motor: 540-Type (Sold Separately)

  • ESC: N/A (Sold Separately)

Included Items
  • 1x Pre-Assembled Gearbox And Chassis Parts

  • 1x Polycarbonate Clear Body

  • 1x Die-Cut Decal Sheet

  • 1x L Type Hexagonal Wrench

  • 1x Cross Wrench

  • 1x Shock Wrench

  • 1x Shock Oil

  • 1x Grease

  • 1x Screw Locking Agent

Required Items
  • 1x 2-Channel Radio System

  • 1x Steering Servo

  • 1x 540-Class Motor

  • 1x ESC

  • 1x 7.4V LiPo Battery

  • 1x Compatible Battery Charger

  • 1x Polycarbonate Paint

  • 4x AA Batteries For Transmitter

  • 1x LiPo Safe Charging/Storage Bag

Note
  • Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.

Specifications
RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate, Expert
Power Source
Electric
Chassis Type
Buggy
On/Off Road
Off Road
Drivetrain
2WD
RC Kit
Suited Motor/ESC Type
Brushless
Factory Specs
Max LiPo Power
2S (7.4v)
Front Shock Oil
300cSt, 25wt
Rear Shock Oil
300cSt, 25wt
Pinion Gear
28T, 31T
Spur Gear
38T, 41T
