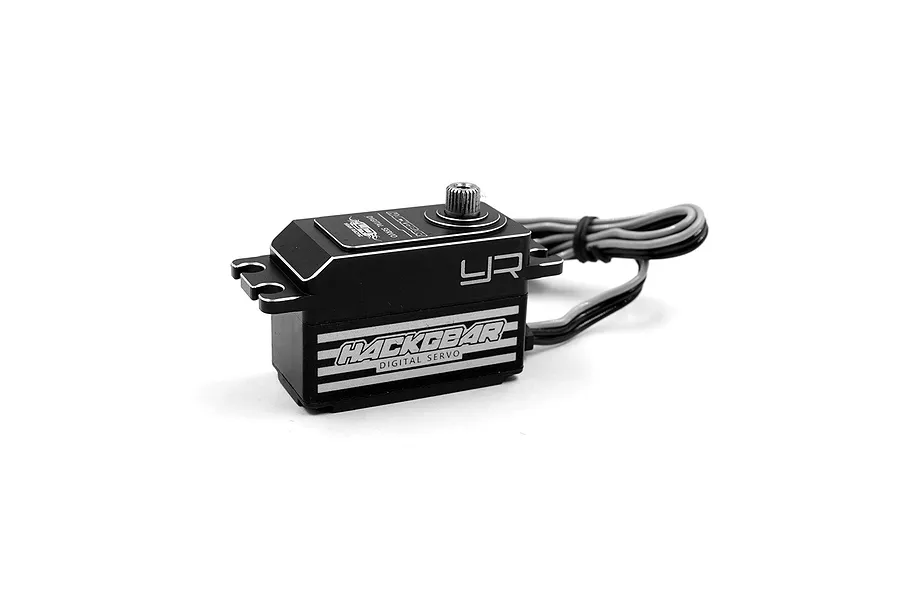

Yeah Racing Black Aluminium Hackgear 10kg Low Profile Metal Gear Servo
Videos
Yeah Racing Black Aluminium Hackgear 10kg Low Profile Metal Gear Servo
Brand:
Yeah Racing
|
MPN: YE-0045BK
$57.56
or 4 fortnightly payments of $14.39 with
Pay later with
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
Experience the power and precision of the Yeah Racing Black Aluminium Hackgear 10kg Low Profile Metal Gear Servo. Designed for demanding RC applications, this servo delivers impressive torque, responsive speed, and a durable aluminium case for long-lasting performance.
Features
- Powerful torque (up to 12kg-cm / 166.6 oz-in)
- Fast speeds and responsive control make this perfect for racing applications
- Low profile design for versatile fitment
- Durable aluminium case with vibrant Black finish
- Robust steel gears for longevity
- Genuine Yeah Racing Product
Specifications
- Torque (4.8V): 10kg-cm (138.8 oz-in)
- Torque (6.0V): 11kg-cm (152.7 oz-in)
- Torque (7.4V): 12kg-cm (166.6 oz-in)
- Speed: 0.090 sec (4.8V) / 0.085 sec (6.0V) / 0.08 sec (7.4V)
- Weight: 58g (2.05 oz)
- Operating Voltage: 4.8V–7.4V
- Bearing Type: Dual Ball Bearings
- Motor Type: Brushed
- Gear Type: Steel Gears
- Frequency: 330Hz
Servo Dimensions:
- Total Height (A): 33.71mm
- Body Width (B): 40.3mm
- Below Mount (C): 18.89mm
- Above Mount (D): 11.63mm
- Total Length (E): 54.58mm
- Total Width (F): 20.34mm
Included Items

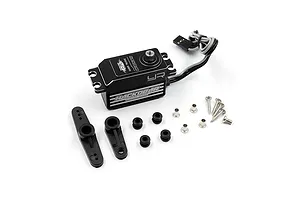

- 1x Yeah Racing Black Aluminium Hackgear 10kg Low Profile Metal Gear Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver, smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
Servo
-
Height (A)
- 33.71mm
-
Body Length (B)
- 40.9mm
-
Bottom to Under Mount (C)
- 18.89mm
-
Top to Under Mount (D)
- 11.63mm
-
Length (E)
- 54.58mm
-
Width (F)
- 20.34mm
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Aluminium
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 4.8V, 6V, 7.4V
-
4.8V Torque kg/cm
- 10
-
4.8V Sec/60 Degrees
- 0.090
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 11
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.085
-
7.4V Torque kg/cm
- 12
-
7.4V Sec/60 Degrees
- 0.08
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Aluminium
-
Rotational Degrees
- 180°
