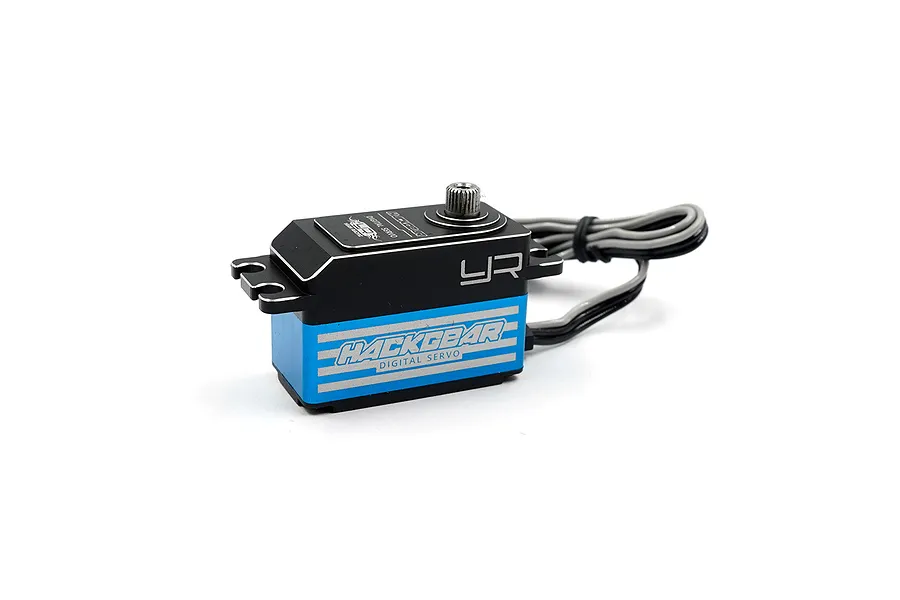

Yeah Racing Blue Aluminium Hackgear 10kg Low Profile Metal Gear Servo

Yeah Racing Blue Aluminium Hackgear 10kg Low Profile Metal Gear Servo

Videos

Yeah Racing Blue Aluminium Hackgear 10kg Low Profile Metal Gear Servo

Brand: Yeah Racing | SKU: YE-0045BU
2 in stock
$55.58
Add to Wishlist
Pay later with
Afterpay Zip Paypal
Description

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Experience the power and precision of the Yeah Racing Blue Aluminium Hackgear 10kg Low Profile Metal Gear Servo. Designed for demanding RC applications, this servo delivers impressive torque, responsive speed, and a durable aluminium case for long-lasting performance.

Features
  • Powerful torque (up to 12kg-cm - 166.6 oz-in)

  • Fast speeds and responsive control make this perfect for racing applications

  • Low profile design for versatile fitment

  • Durable aluminium case with vibrant blue finish

  • Robust steel gears for longevity

  • Genuine Yeah Racing Product

Specifications
  • Torque (4.8V): 10kg-cm (138.8 oz-in)

  • Torque (6.0V): 11kg-cm (152.7 oz-in)

  • Torque (7.4V): 12kg-cm (166.6 oz-in)

  • Speed: 0.090 sec (4.8V) - 0.085 sec (6.0V) - 0.08 sec (7.4V)

  • Weight: 58g (2.05 oz)

  • Operating Voltage: 4.8V -7.4V

  • Bearing Type: Dual Ball Bearings

  • Motor Type: Brushed

  • Gear Type: Steel Gears

  • Frequency: 330Hz

Servo Dimensions
  • Total Height (A) = 33.71mm

  • Body Width (B) = 40.3mm

  • Below Mount (C) = 18.89mm

  • Above Mount (D) = 11.63mm

  • Total Length (E) = 54.58mm

  • Total Width (F) = 20.34mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

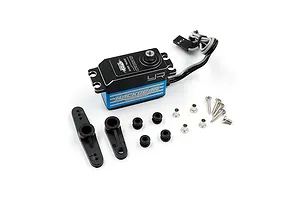

Included items
DescriptionQTY
Yeah Racing Blue Aluminium Hackgear 10kg Low Profile Metal Gear Servo1
Specifications
Servo
Servo
Height (A)
33.71mm
Body Length (B)
40.9mm
Bottom to Under Mount (C)
18.89mm
Top to Under Mount (D)
11.63mm
Length (E)
54.58mm
Width (F)
20.34mm
Size
Conventionally sized servo names
Low Profile
Gear Material
Steel
Waterproof Casing
Yes
Servo Spline Count
25Tooth
Input Voltage Range
4.8VV, 6VV, 7.4VV
4.8V Torque kg/cm
10
4.8V Sec/60 Degrees
0.090
6V Torque kg/cm
Kilograms of torque at 25mm away from the center of the spline
11
6V Sec/60 Degrees
Seconds per 60 degrees of rotation
0.085
7.4V Torque kg/cm
12
7.4V Sec/60 Degrees
0.08
Signal Type
Digital
Drive Motor Type
Brushed
Case Material
Aluminium
Rotational Degrees
180°
