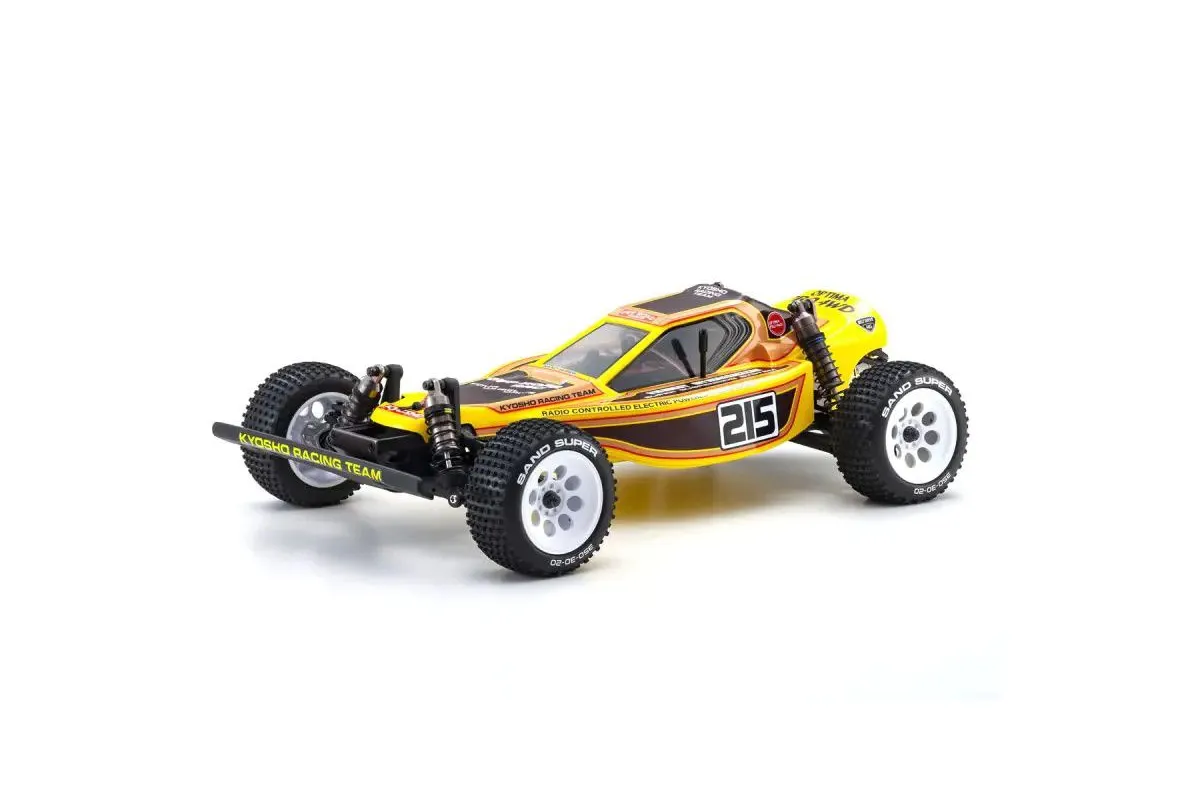

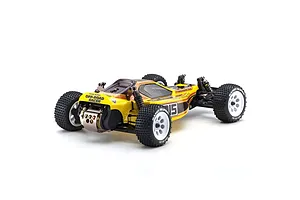

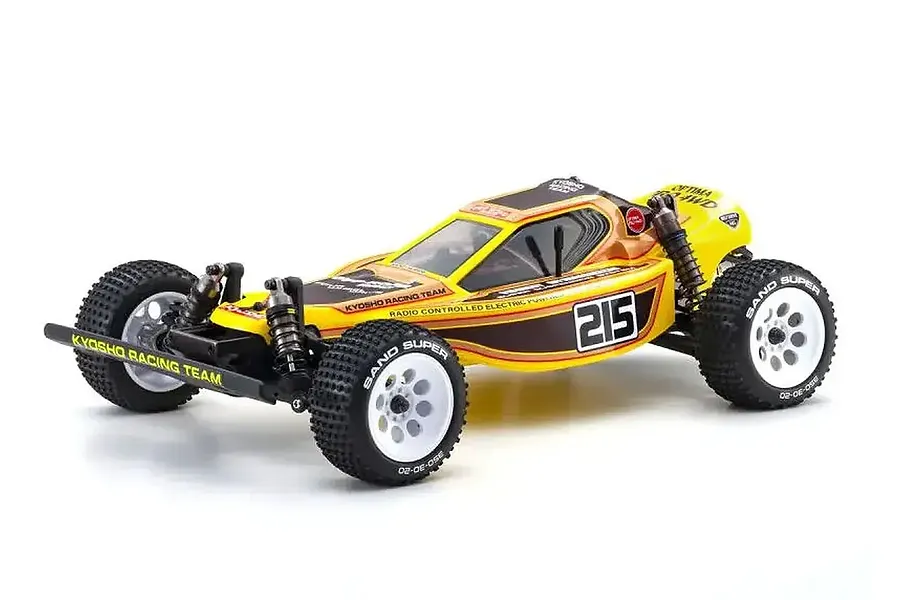

Kyosho Optima Pro RC Buggy Electric 4WD 1/10 Scale Kit

Brand: Kyosho | SKU: 30620
sold out
On order since: Nov 25, 2024

$567.13
Price may change when stock arrives

Kyosho Optima Pro RC Buggy: The Legend Returns, Reimagined with Modern RC Design!

Key Points
  • Perfect for experienced kit builders
  • Easy to drive 4WD belt driven drivetrain
  • Build as a brushless or brushed vehicle
  • 1980s nostalgia, 2020s technology
Required to Complete
LiPo Safe Charging Bag
Yeah Racing 185x75mm LiPo Safe/Protection Bag
$15.86 10+ in stock
Required QTY: 1
Battery
Charger
SkyRC S65 Smart Charger
$84.59 4 in stock
Required QTY: 1
Servo
ESC/Motor
Batteries for Controller
Fujitsu 1.5v AA Alkaline Batteries 4Pcs
$5.90 10+ in stock
Required QTY: 1
Transmitter


Please Note:

This kit comes as an approximately 80% pre-assembled kit and will require some assembly at home. The Rampage also comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.

Description

Relive the glory days of RC racing with the iconic Kyosho Optima Pro! This 1/10 scale 4WD buggy dominated the competition scene in the 80s, and now it's back as the 15th model in Kyosho's Vintage Series. Blending classic design with modern upgrades, the Optima Pro features improved weight distribution, a durable gearbox, and compatibility with today's RC brushless systems. Experience the thrill of this legendary machine, complete with Kyosho's signature gunmetal finish and sleek, aerodynamic body. The Optima Pro is ready to reignite your passion for vintage RC!

Features
  • Reproduction of this legendary rear-motor 4WD buggy is enhanced with the latest technology to become the 15th model of the Kyosho Vintage series
  • Stylish and aerodynamic body and underbody faithfully capture the look and spirit of the original
  • Cut lines for attaching the Javelin wing are moulded into the body
  • Belt-type 4WD system produces excellent drive efficiency and reliability. Can be changed to chain-drive by switching to (OT226) chain (sold separately)
  • Uses current standard 48-pitch pinion & spur gear, different to the original
  • Equipped with a slipper clutch to support high output motors and prevent gear damage

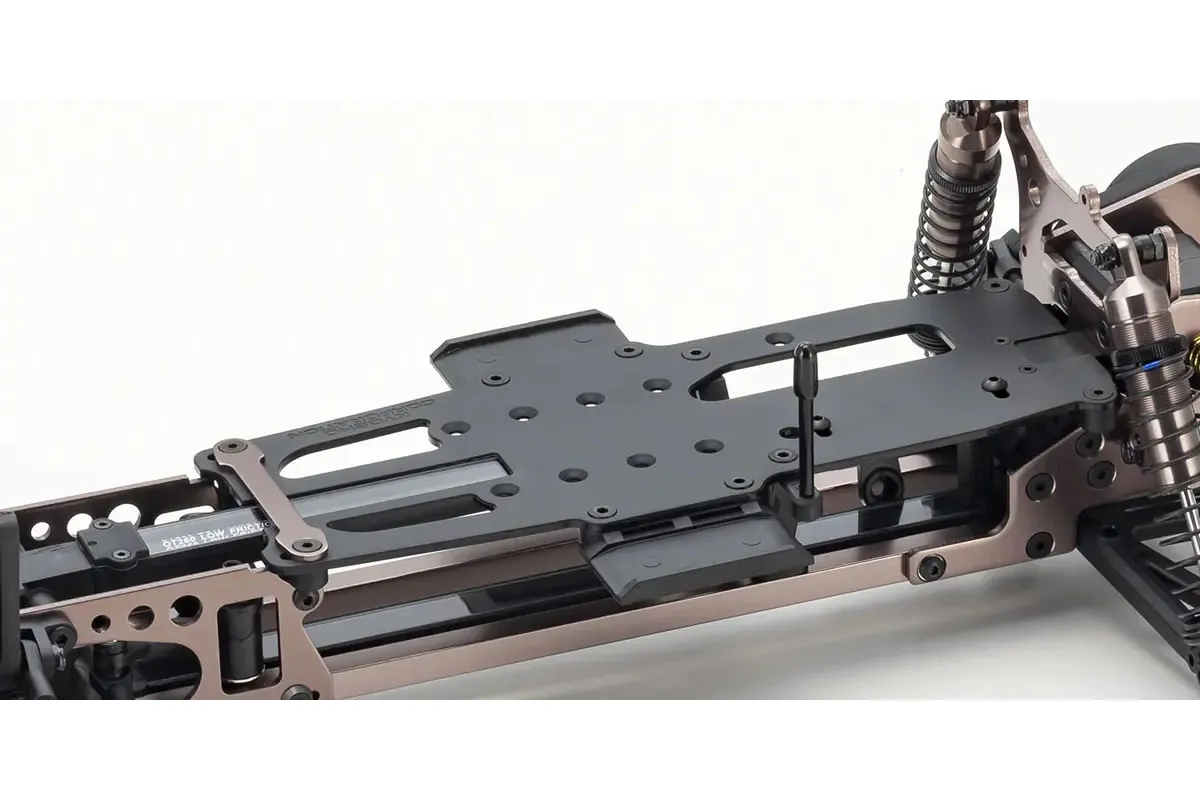

  • Moulded resin radio plate recreates the form of the original
  • Battery is secured using a hook-and-loop fastener and is suitable for modern battery sizes
  • Drive system includes ball bearings throughout
  • Hex screws deliver improved efficiency and appearance
  • Compatible with various optional parts for the Vintage Series
  • Each part is compatible with the original model and spare parts from the original model can also be used
  • Genuine Kyosho Product
Belt Drive
Belt Drive

Originally an optional part on the original, this Optima comes with a low friction belt drive that provides greater efficiency to the drivetrain compared to the original metal chain. However if you like the old school feel of the metal chain this kit is compatible with the OT226 Chain.

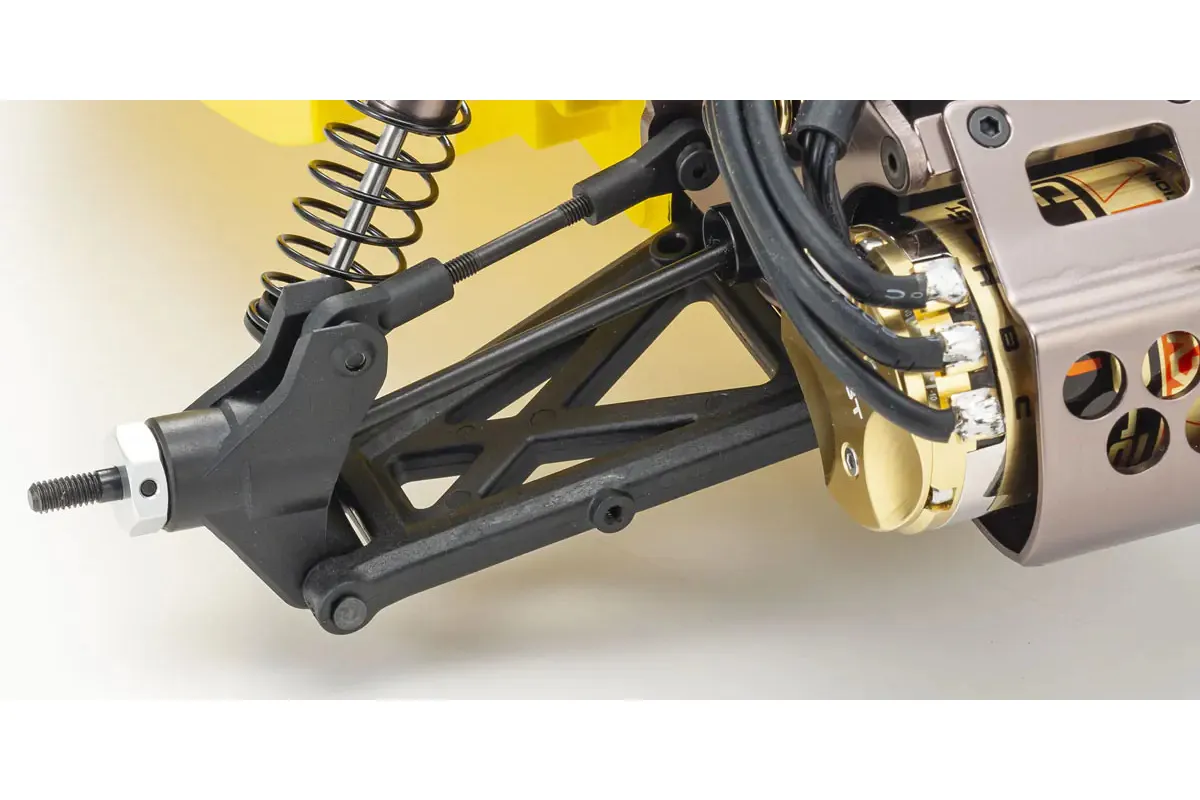

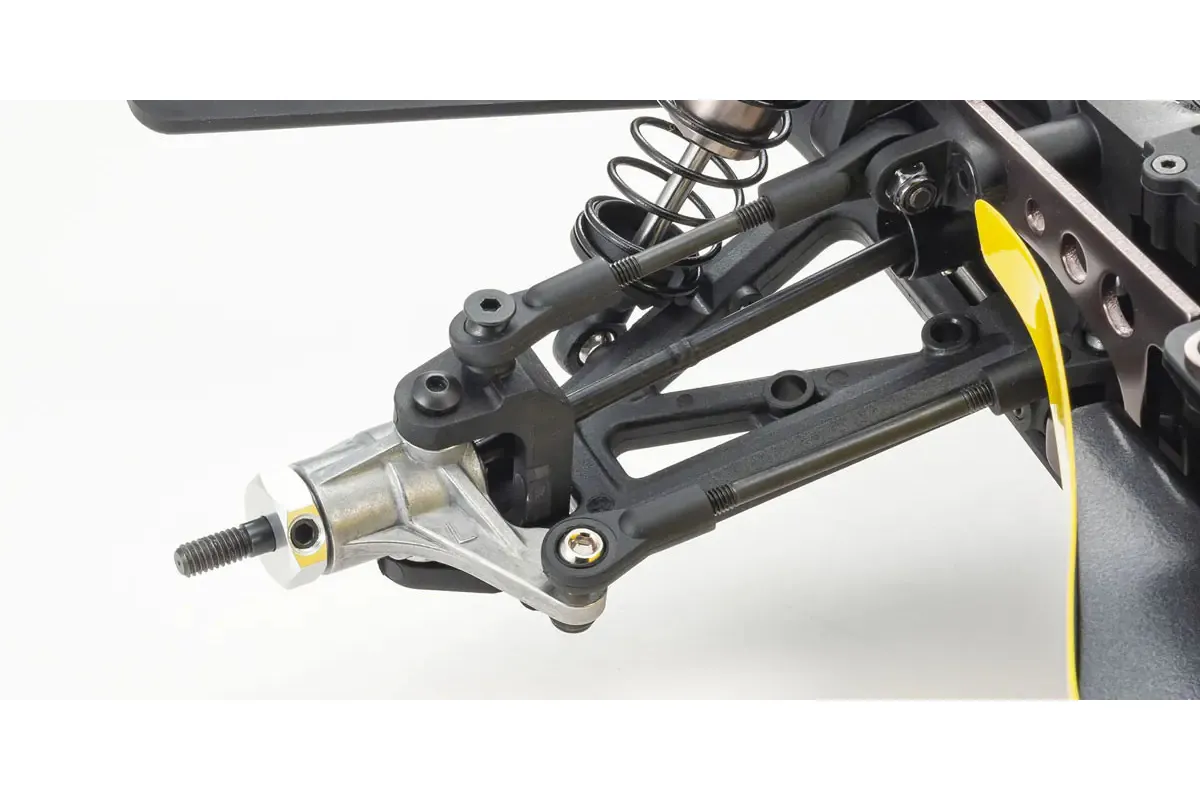

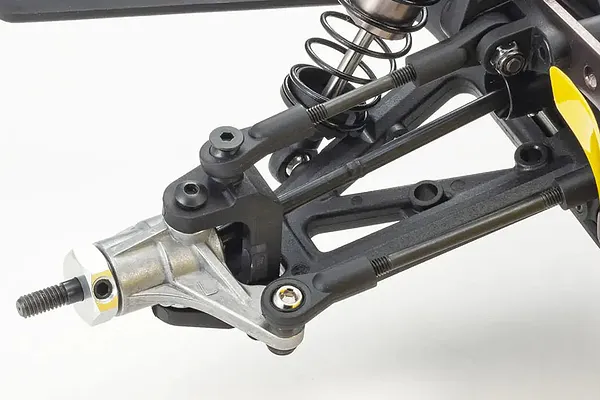

Race Spec Suspension
Race Spec Suspension
Proven in the Turbo Optima, high-rigidity suspension arms deliver superior driving stability and welcome the intensity of hard driving. Long front swing shafts remain secure even at full suspension stroke and enhance reliability when combined with the robust suspension arms.

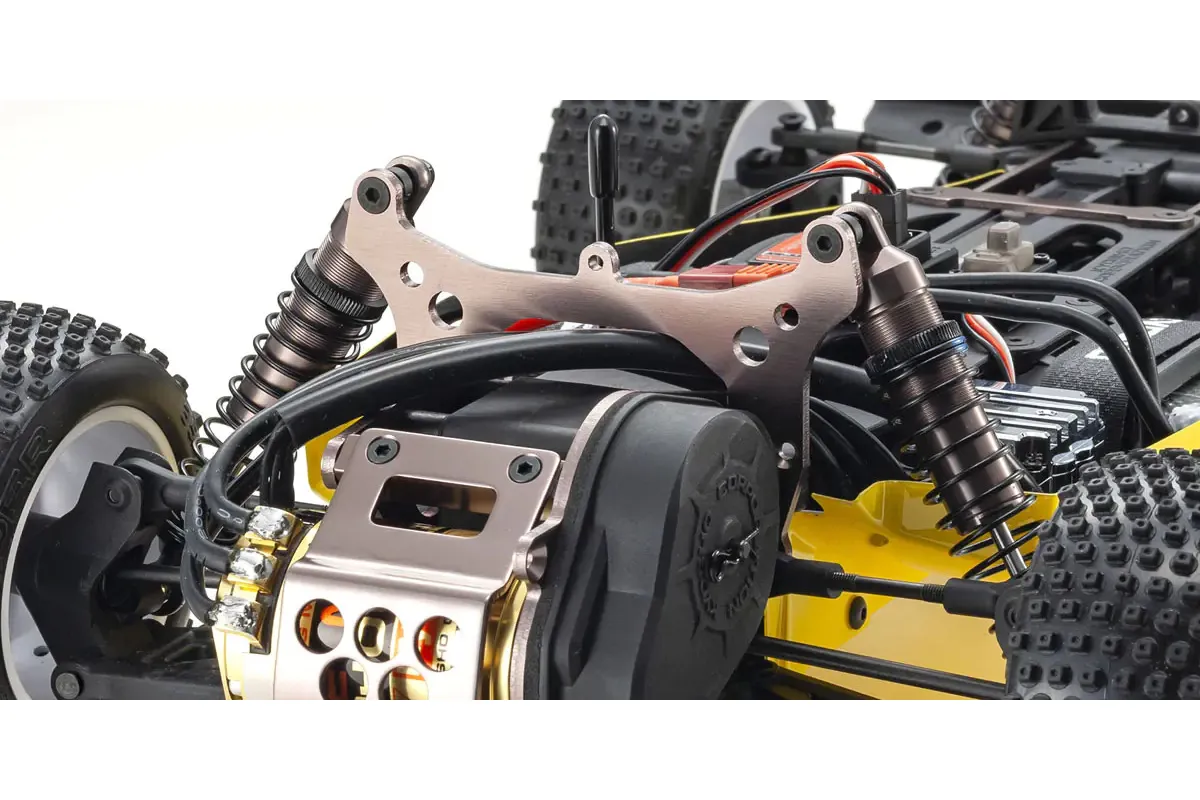

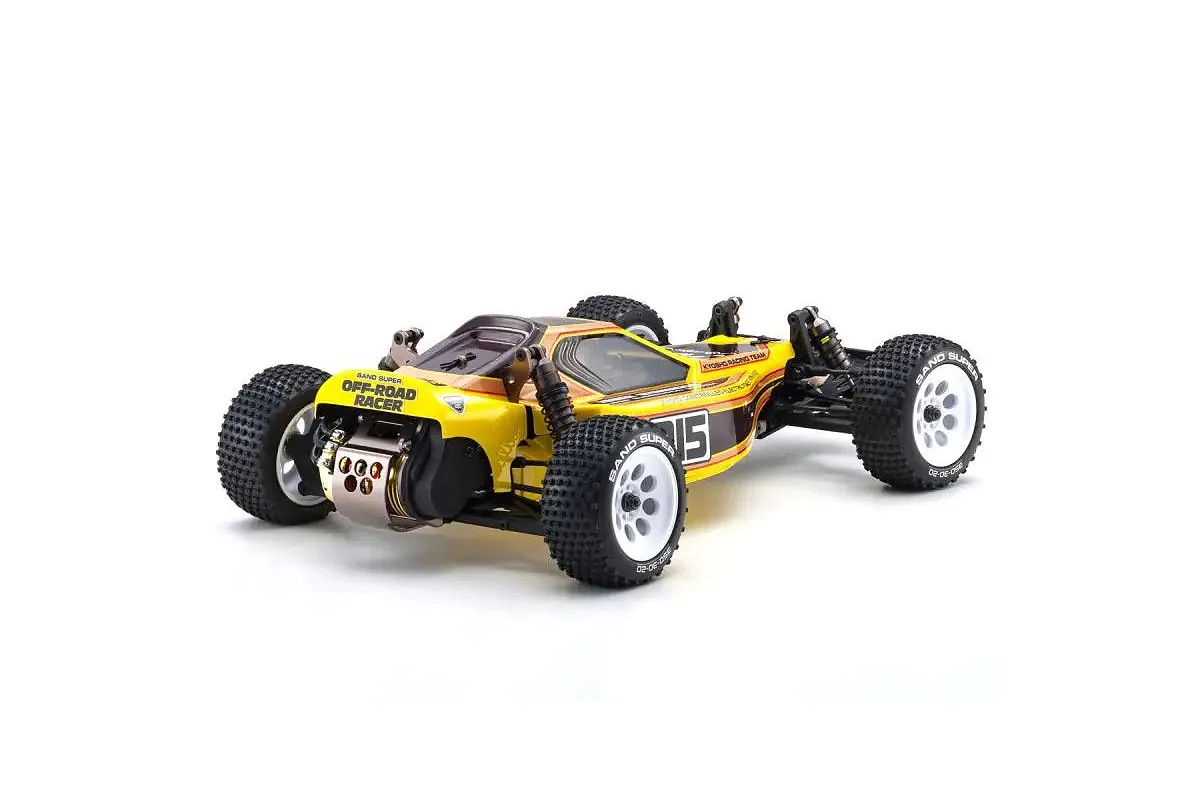

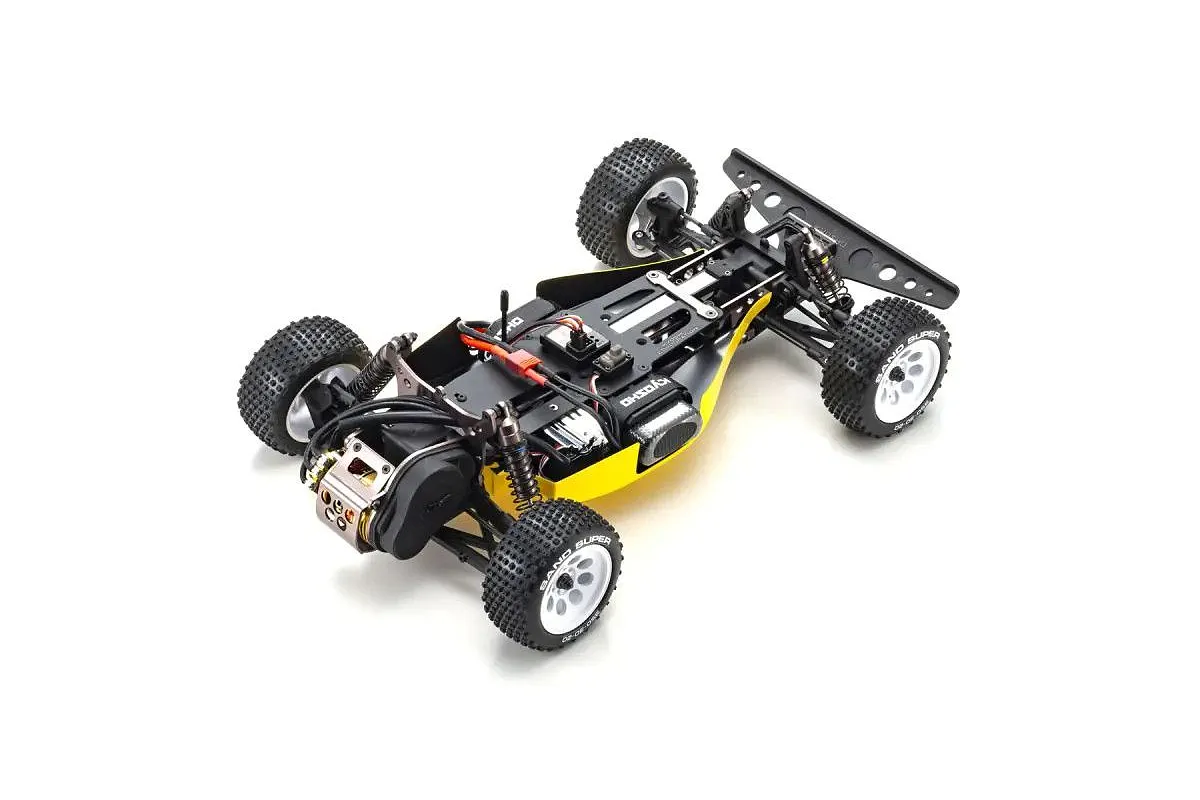

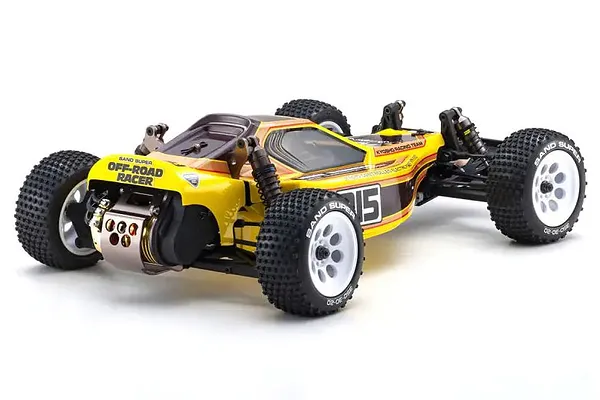

Rear Motor Layout
Rear Motor Layout

Replicating the original Optima Pro, This version has made careful upgrades to the design to ensure that it can handle the power of today's advanced electronics. With a tactically placed rear mount motor design and subtle changes to the chassis itself, this reborn hero can be built to be an absolute monster.

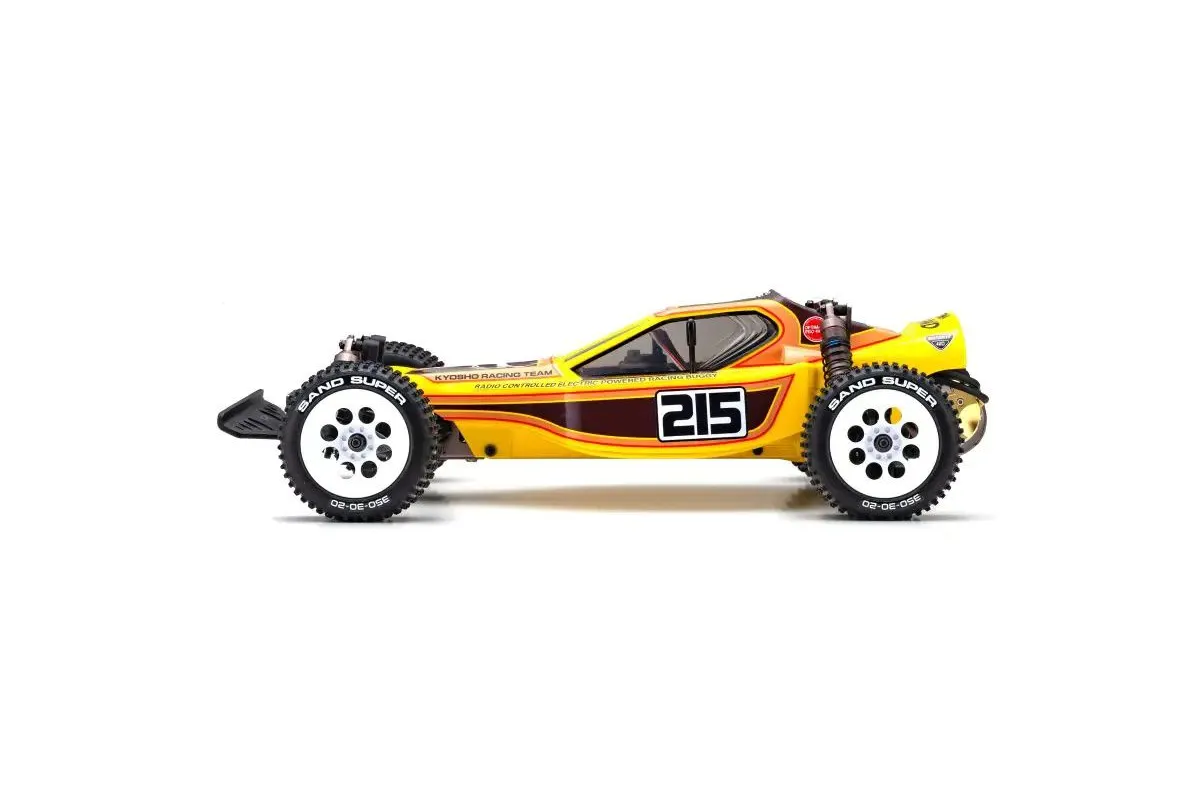

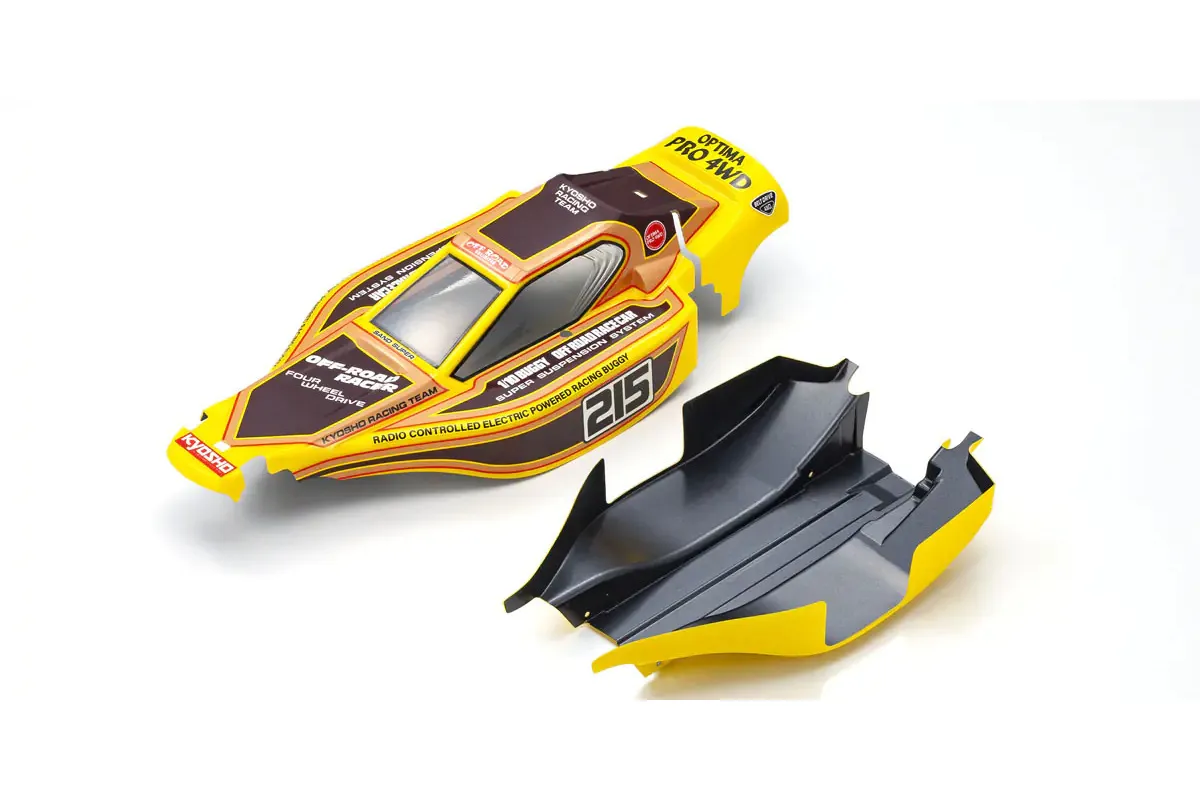

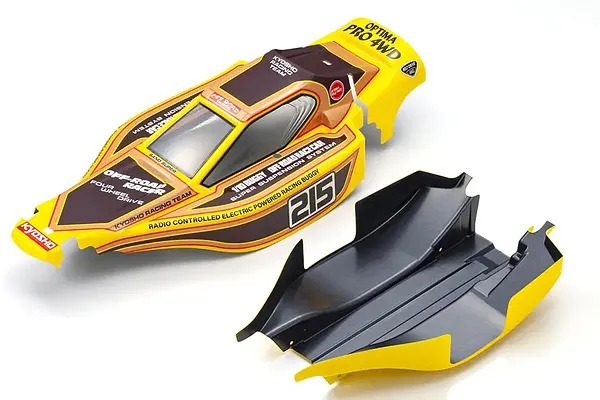

Top & Bottom Shell
Top & Bottom Shell

The Optima Pro features a unique top and bottom polycarbonate shell. Creating a highly aerodynamic profile, this top and bottom combination also helps protect the electronics and chassis from dirt, debris, and damage.

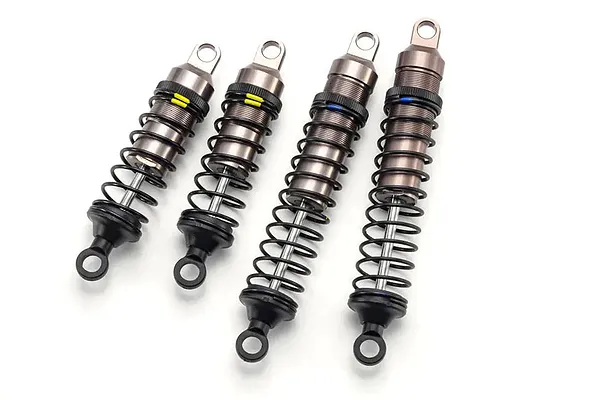

Aluminium Shock Absorbers
Aluminium Shock Absorbers
Anodised in a stunning Gunmetal grey, the Optima Pro is equipped with high quality, height adjustable coil over shock absorbers that provide a race spec level of dampening and a high level of tuning.

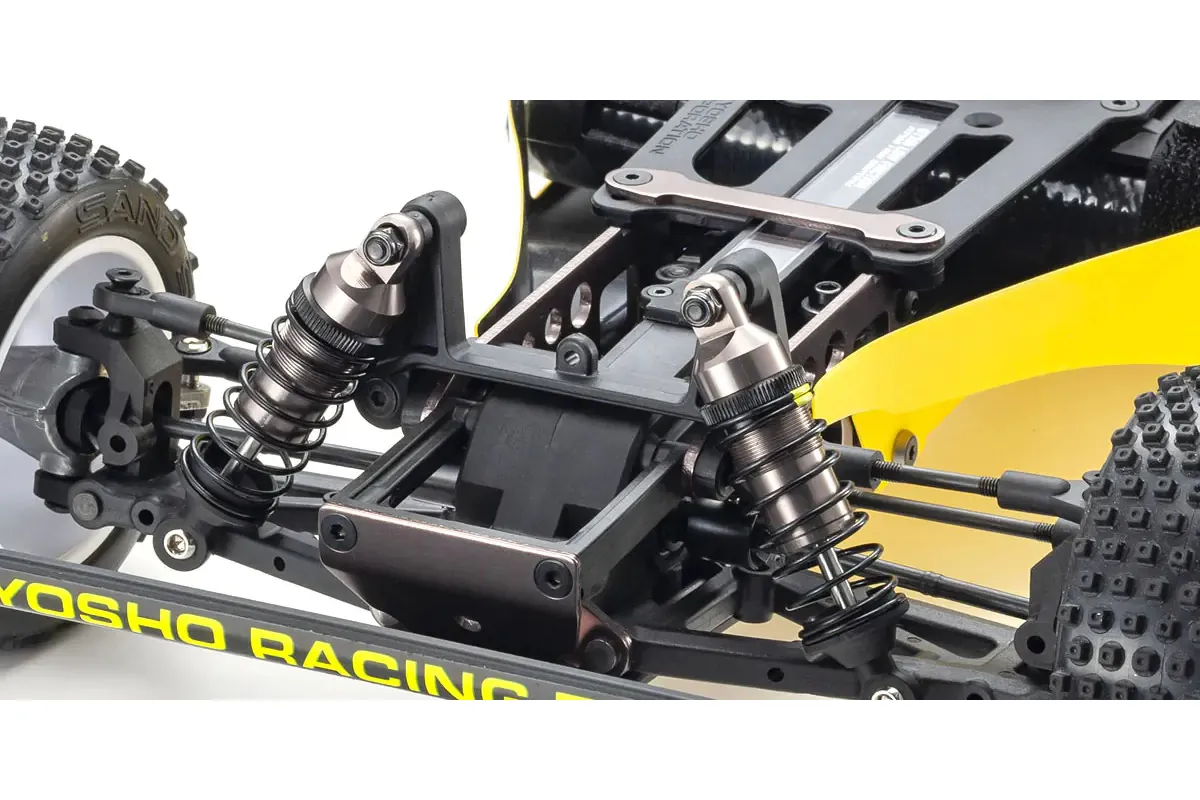

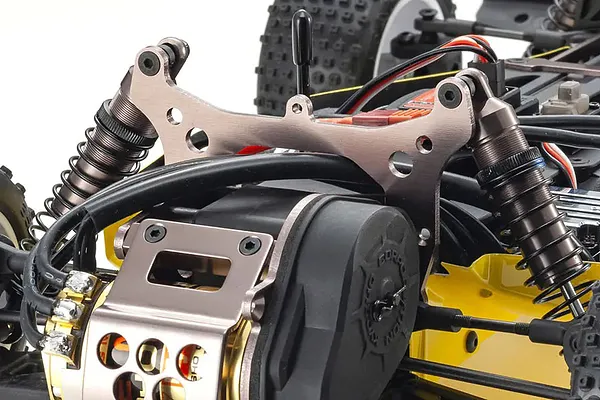

High Performance Shock Towers
High Performance Shock Towers

Featuring a resin moulded front shock tower and a super tough gunmetal grey aluminium rear shock tower, the Optima Pro provides a quality steering experience.

Specifications
  • Length: 395mm (15.55")
  • Width: 244mm (9.61")
  • Height: 120mm (4.72")
  • Wheelbase: 260mm (10.24")
  • Weight: 1600g (3.53lbs)
  • Chassis: Buggy
  • Drivetrain: 4WD
  • Suspension: Oil Filled Coil Over Shock Absorbers
  • Motor: Not Included
  • ESC: Not Included
Included Items
  • 1x Kyosho 1/10 Optima Pro 4WD Electric RC Off Road Buggy Kit
  • 1x Clear Body and Underbody
  • 1x Decals
  • 1x Hex Wrench
  • 1x Cross Wrench
  • 1x Shock Wrench
  • 1x Grease
  • 1x Shock Oil
  • 1x Threadlocker
Required Items
Videos
Specifications
RC Car
Suited Motor Type: Electric
Max LiPo Power: 3S (11.1v)
Completion: Kit
Scale: 1/10
Skill Level: Intermediate
Power Source: Electric
Chassis Type: Buggy
On/Off Road: Off Road
Drivetrain: 4WD
Factory Specs
Battery connector: Not Included
Max LiPo power: 3S (11.1v)
Front shock oil: 100cSt
Rear shock oil: 100cSt
Pinion gear: 25T 48dp/0.5Mod
Spur gear: 51T 48T48dp/0.5mod
Wheel hex size: 12
