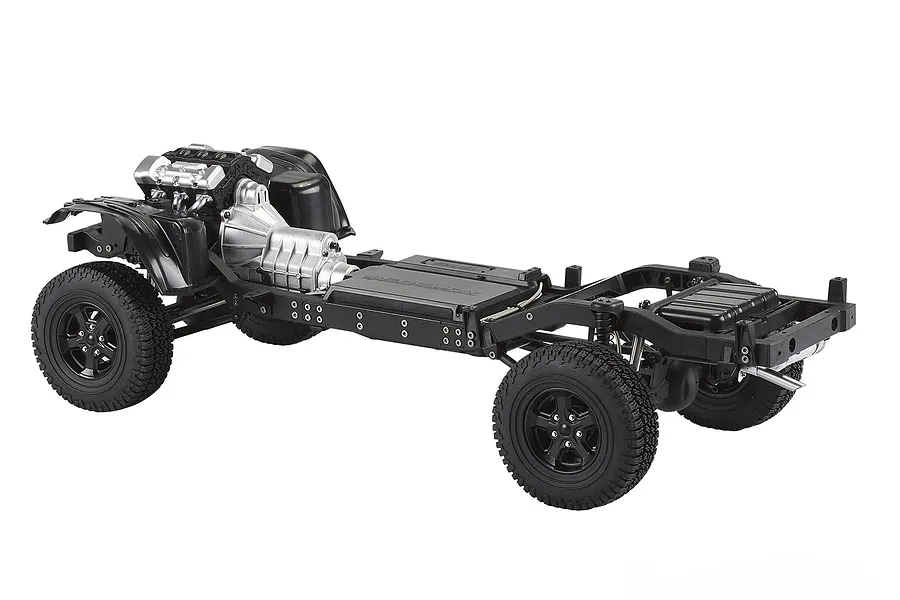

Killerbody Mercury RC Rock Crawler Electric 4WD 1/10 Scale Kit

Brand: Killerbody | SKU: 48760
5 in stock

$367.41

Killerbody Mercury Chassis RC Crawler: Build Your Ultimate Scale Rock Crawler

Key Points
  • One of the most scale detailed chassis on the market
  • Compatible with 313mm Body shells
  • Realistic drivetrain layout
  • Perfect for experienced kit builders
Required to Complete
LiPo Safe Charging Bag
Hobbies Direct 240x180mm Small LiPo Safe Bag
$9.99 sold out
Required QTY: 1
Batteries for Controller
Fujitsu 1.5v AA Alkaline Batteries 4Pcs
$6.24 10+ in stock
Required QTY: 1
Transmitter

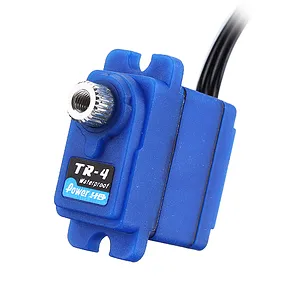

Steering Servo
Diff Locker Servo

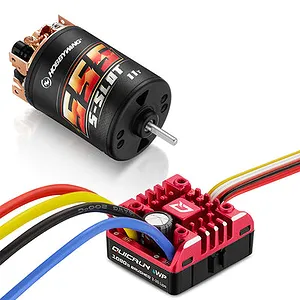

Motor & ESC

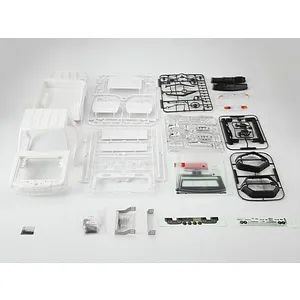

Body Shell
Charger
SkyRC S65 Smart Charger
$84.59 9 in stock
Required QTY: 1
Battery


Looking for spare parts or upgrades?
Please Note:

 This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

Description

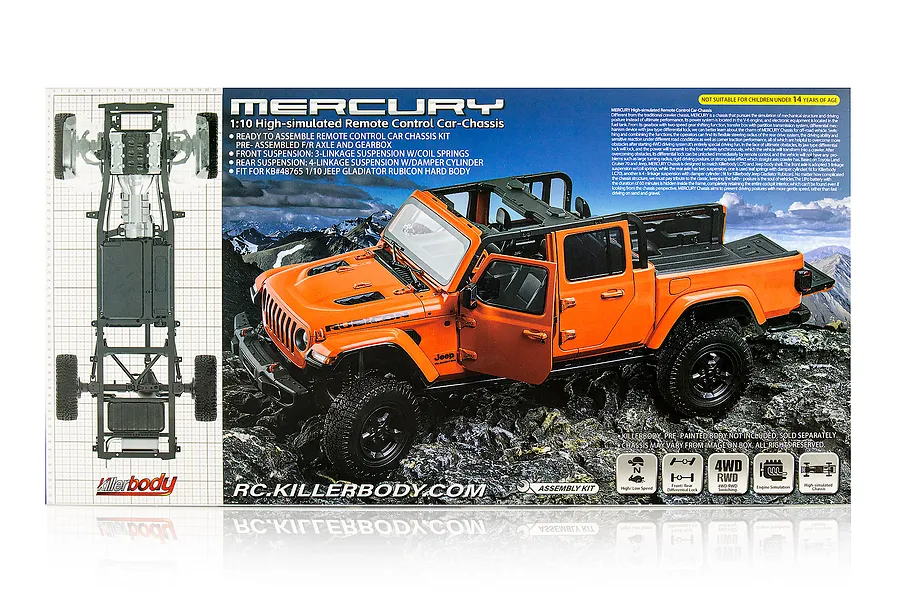

The Killerbody Mercury Chassis is the perfect foundation for building your dream rock crawler. Designed to complement the Killerbody Jeep Rubicon body shell, this 1/10 scale kit offers a range of customisation options to suit your preferences.

Choose between a leaf spring or 4-linkage rear suspension, depending on your chosen body style, and enjoy the realistic details of the V-6 engine cover and hidden battery compartment. The chassis's versatile design and high-quality components provide a platform for creating a truly unique and capable rock crawler. Experience the thrill of building and customising your own off-road machine with the Killerbody Mercury Chassis.

Features

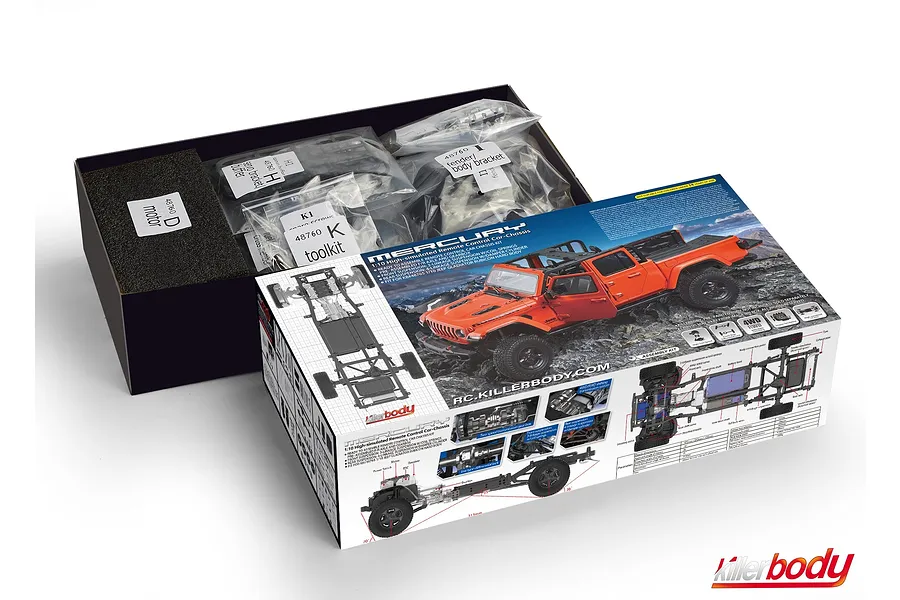

  • Ready to assemble chassis kit features pre-assembled F/R axle & gearbox
  • Prioritises mechanical realism and operation
  • Power system located in realistic engine cover
  • Electronic equipment located in the fuel tank compartment
  • Gearbox with two-speed gear shifting
  • Partition 4WD/RWD transmission system in transfer box
  • Planetary differential gears
  • Jaw-type differential lock
  • Automatic engagement of differential lock
  • Immediate disengagement of lock by remote
  • Designed for the Killerbody Jeep Rubicon body shells
  • Genuine Killerbody Product
Incredible Scale Detail
Incredible Scale Detail

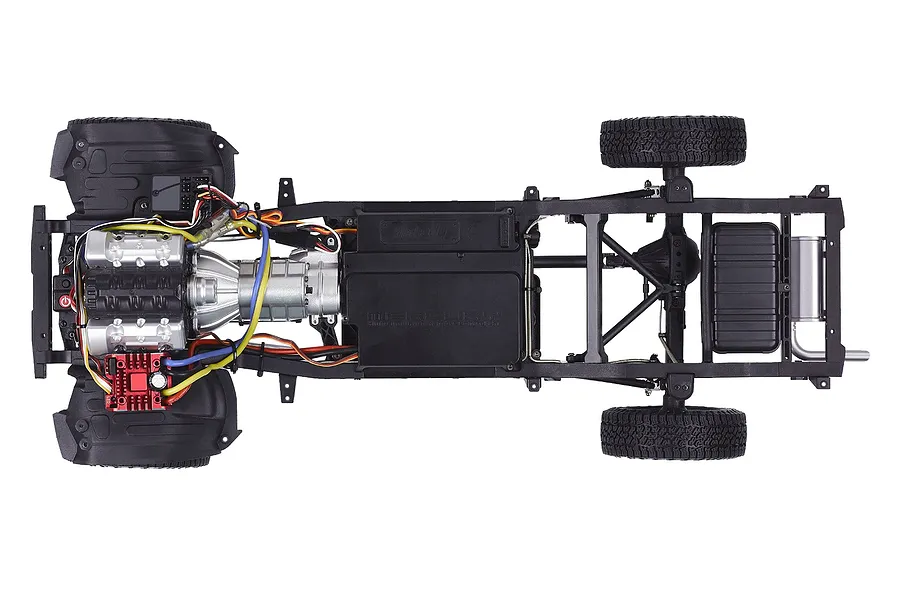

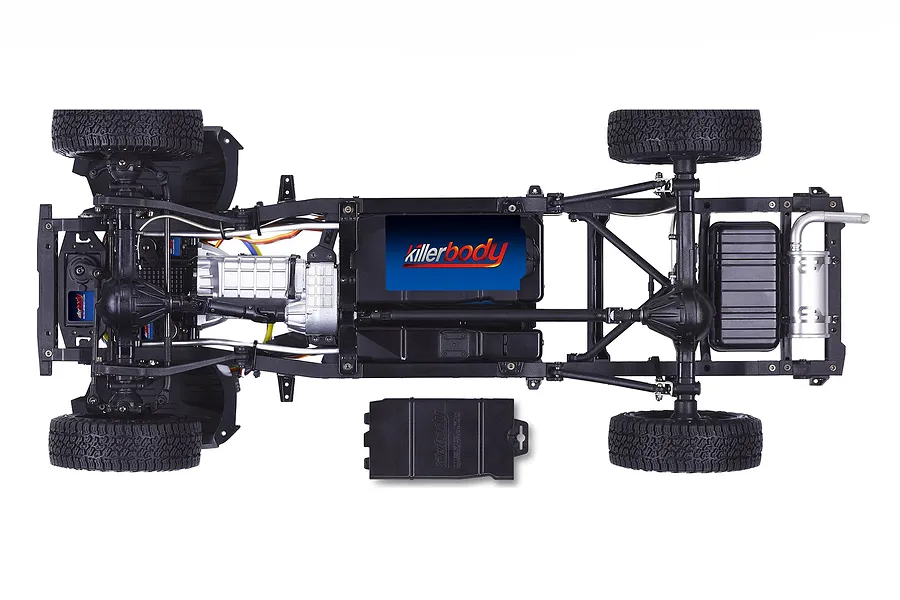

The Mercury chassis is one of the most scale detailed chassis on the market. With a realistic drivetrain layout, a huge amount of assembly options and details like a realistic V6 engine motor cover and transmission, The Killerbody Mercury sets a new standard!

2WD/4WD Transmission
2WD/4WD Transmission

The Mercury features a unique two speed transmission that not only lets you select the speed, but also allows you to switch the car from a 4WD to a 2WD with the flick of a switch.

Multi Link Suspension System
Multi Link Suspension System

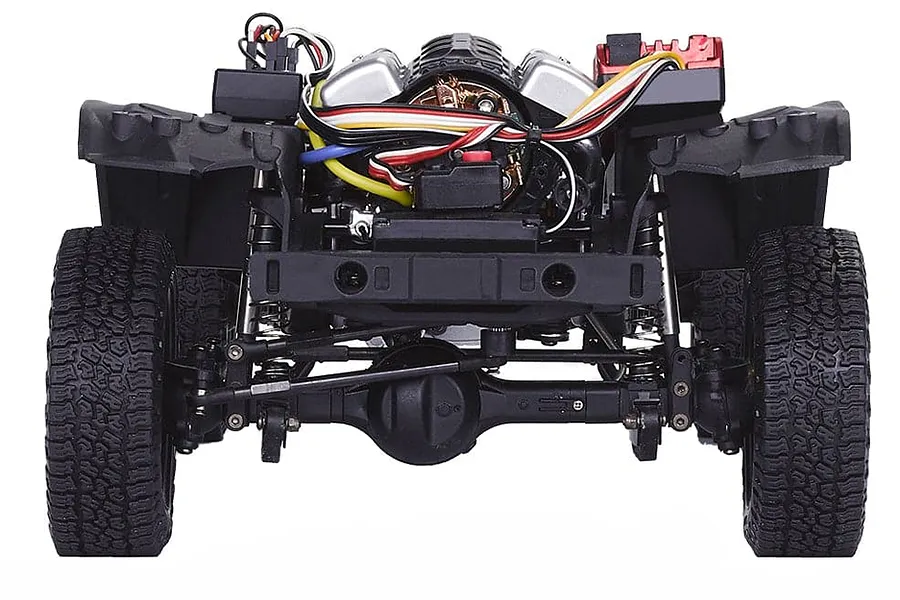

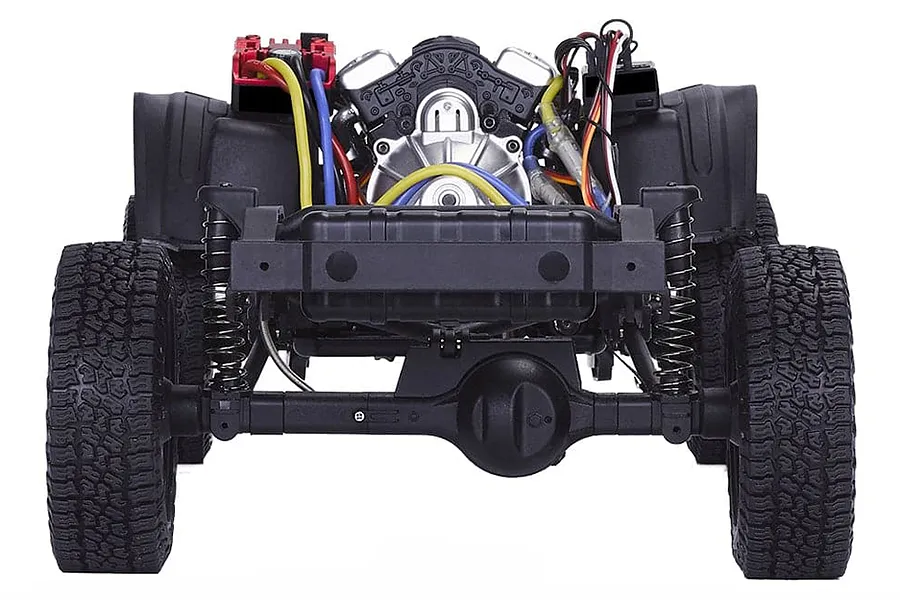

Featuring a 3 link front and 4 link rear suspension system that has been paired with a high performance Damper cylinder, the Mercury is ready to tackle almost any terrain. For those looking for an even more scale set up you can equip the Mercury with realistic rear steel leaf springs.

Specifications
  • Length: 502mm (19.8")
  • Width: 215mm (8.5")
  • Height: 188mm (7.4")
  • Wheelbase: 313mm (12.3")
  • Weight: 1400g (3.08 lbs)
  • Chassis: Steel C Rail Chassis (Rock Crawler)
  • Drivetrain: 4WD/RWD
  • Suspension: Leaf Spring & Coil Over Shock Absorbers
  • Motor: Not Included
  • ESC: Not Included
Included Items
  • 1x Killerbody 1/10 Mercury 4WD Electric RC Rock Crawler Chassis Kit
Required Items
  • 1x Compatible 7.4V LiPo Battery or 7.2V NiMH
  • 1x Compatible Charger
  • 1x Compatible 1/10 Scale ESC
  • 1x Compatible 1/10 Scale Motor
  • 1x Compatible 1/10 Scale Servo
  • 1x 2+ Channel Transmitter & Receiver
  • PS Series Polycarbonate Safe Paint
  • 1x Compatible Body Shell (Designed for Killerbody Jeep Rubicon Shell #48765)
  • 1x Compatible  Servo For Differential Lockers, Gear Shift & 4wd/2wd shifting
Videos
Specifications
RC Car
Suited Motor Type: Electric
Max LiPo Power: 3S (11.1v)
Completion: Kit
Scale: 1/10
Skill Level: Intermediate
Power Source: Electric
Chassis Type: Rock Crawler
On/Off Road: Off Road
Drivetrain: 4WD
Factory specs
Battery connector: Not Included
Max LiPo power: 3S (11.1v)
Front shock oil:
Rear shock oil:
Front differential oil:
Rear differential oil:
Pinion gear: 18T
Spur gear: 56T
Wheel hex size: 12
