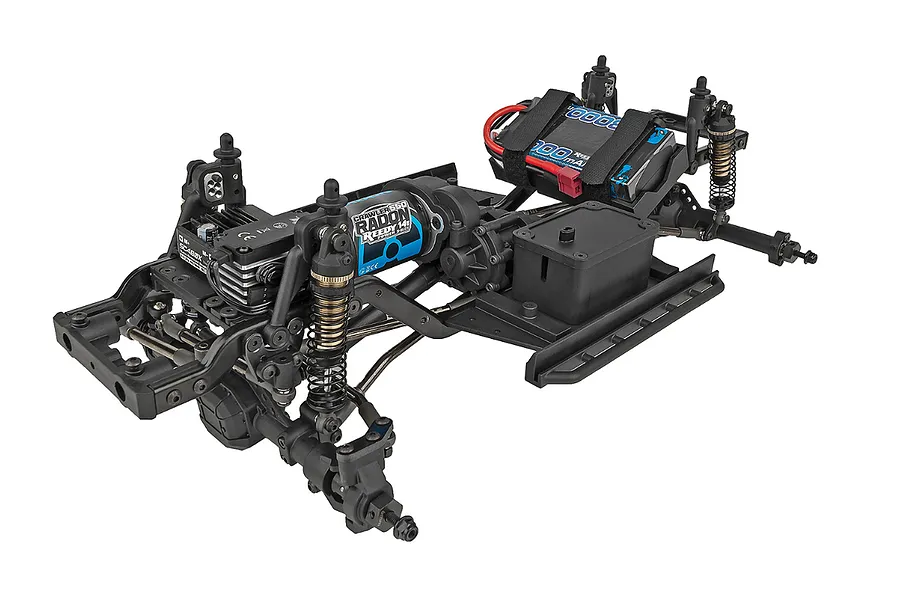

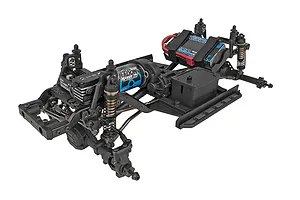

Element RC Enduro Builders Kit 3 RC Rock Crawler Electric 4WD 1/10 Scale Kit

1/10
4WD
Kit

Part no. 40135

1 in stockNo reviews yet

1 / 8

$431.52

or 4 fortnightly payments of $107.88 with afterpay or PayPal, or zip

Element RC Enduro RC Rock Crawler Kit: The Perfect Platform for Your Dream Rock Crawler Build!

Designed for experienced kit builders
Compatible with brushed or brushless technology
Compatible with a huge range of aftermarket and OEM upgrade parts

Want more than 1? and we'll email you when they're here.

1 in stock · Ships Tuesday · order by 1:00pm Tuesday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

You'll need

Not included: 1x 2+ Channel Surface Transmitter & Receiver, 1x Compatible 7.4V or 11.1V LiPo Battery, 1x Compatible LiPo Charger, 1x Compatible 540 Sized Motor, 1x Compatible ESC, 1x Steering Servo, 1x Compatible 313mm Body Shell, 48dp/0.5Mod Pinion Gear to Suit Chosen Motor, 4x Wheels with 12mm Hex, 4x Tyres to Fit Wheels.

LiPo Safe Charging BagAtrek 180x80x60mm LiPo Safe/Protection Bag
$19.95
BatteryNXE 7.4v 5000mAh 100C Hard Case Shorty LiPo Battery
$91.28

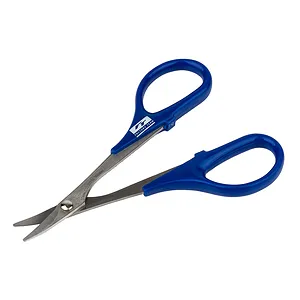

Body Shell ScissorsHSP Curved Hobby Scissors
$7.03
Body Shell ReamersYeah Racing Orange Aluminium 0-14mm Body Reamer
$29.00
TransmitterFlySky FS-GT5 2.4Ghz 6ch Radio with FS-BS6 Receiver
$140.12
Steering ServoPower HD Standard LW-13MG 13kg Metal Geared Waterproof Servo
$49.98
Motor & ESCHobbywing 1080 80A ESC & 13T 555 Brushed Motor Combo
$124.47

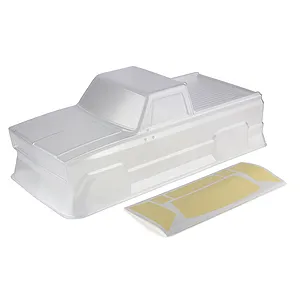

Body ShellElement RC 1/10 Trailwalker Clear Unpainted Body Shell
$81.98

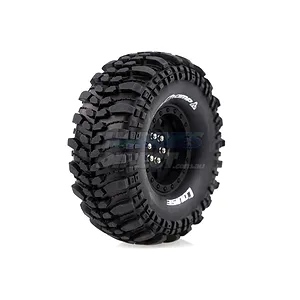

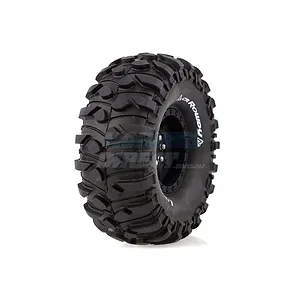

WheelsLouise 1.9" CR Champ Tyres on Black 9 Spoke Rims - Glued Wheels 2Pcs
$47.85

This item + 7 required$807.43

Not added until you choose its options: Battery, Motor & ESC.

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

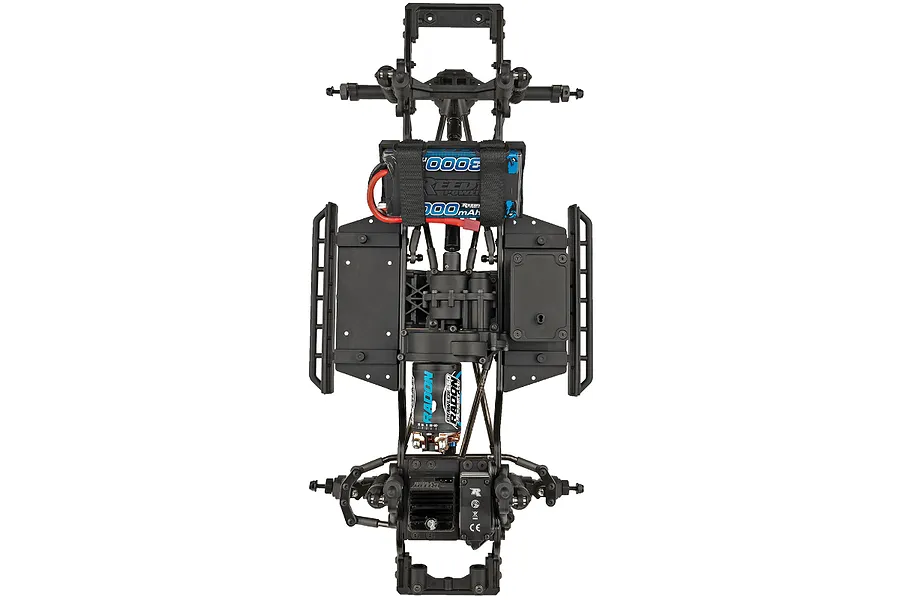

The Element RC Enduro Builder's Kit 3 is the perfect foundation for your ultimate trail machine. This kit provides a versatile and high-performance platform for building a custom rock crawler that's ready to tackle any terrain. With updated features and materials, the Enduro Builder's Kit 3 is better than ever, offering endless possibilities for customisation and personalisation.

This kit includes the GKS™ shock towers, shock mount inserts, and race-proven Factory Team bronze shocks for superior suspension performance and tuning options. The GKS aluminium track bar mount provides increased rigidity and precise steering, while the updated Factory Team high-clearance links and steel pivot balls ensure smooth articulation and durability. The Stealth® XF transmission allows you to adjust the front and rear drive ratios independently for optimal performance on any terrain. The behind-the-axle (BTA) steering improves approach angle and front-end clearance, making it easier to handle rough obstacles.

With the Element RC Enduro Builder's Kit 3, you have the freedom to create a rock crawler that's truly your own. Unleash your creativity and engineering skills to build a machine that's ready for any adventure.

Features

Solid axle front suspension for increased durability and off-road capability
Universal front drive axles for improved steering angle and smooth operation
One-piece rear axle design for increased strength and simplified maintenance
Behind-the-axle (BTA) steering for improved approach angles and clearance
Aluminium steering plates for added strength and adjustability
Integrated servo winch mount for convenient winch installation and balanced weight distribution
Chassis Mounted Servo (CMS) for improved steering geometry and scale realism
Stamped steel frame rails provide a strong and durable foundation for the chassis
Adjustable bumper mounts allow for customisation and clearance adjustments
Enclosed water-resistant receiver box protects the electronics from the elements
Injection-moulded adjustable width rock sliders offer added protection and enhance the scale look
Threaded aluminium shock bodies provide durable and adjustable suspension performance
Aluminium motor plate ensures secure motor mounting and efficient heat dissipation
Optimised ball cups allow for smoother axle articulation and improved suspension performance
Telescopic driveshafts (front and rear) accommodate suspension movement and articulation
Extruded aluminium driveshaft splines provide strength and resist twisting under load
5mm heavy-duty FT high-clearance links enhance durability and increase ground clearance
Machined input pinion gear and metal ring gear ensure precise gear mesh and long-lasting performance
Machined steel top shaft contributes to a robust and efficient drivetrain
Metal ball bearings included for smooth operation and reduced friction
Steel 25T servo horn provides a strong and reliable connection for the steering servo
Genuine Element RC Product

In the box

1x Element RC Builders Kit 3 RC Rock Crawler Electric 4WD 1/10 Scale Kit

You'll need

1x 2+ Channel Surface Transmitter & Receiver
1x Compatible 7.4V or 11.1V LiPo Battery
1x Compatible LiPo Charger
1x Compatible 540 Sized Motor
1x Compatible ESC
1x Steering Servo
1x Compatible 313mm Body Shell
48dp/0.5Mod Pinion Gear to Suit Chosen Motor
4x Wheels with 12mm Hex
4x Tyres to Fit Wheels

Add them from the buy box

Highlights

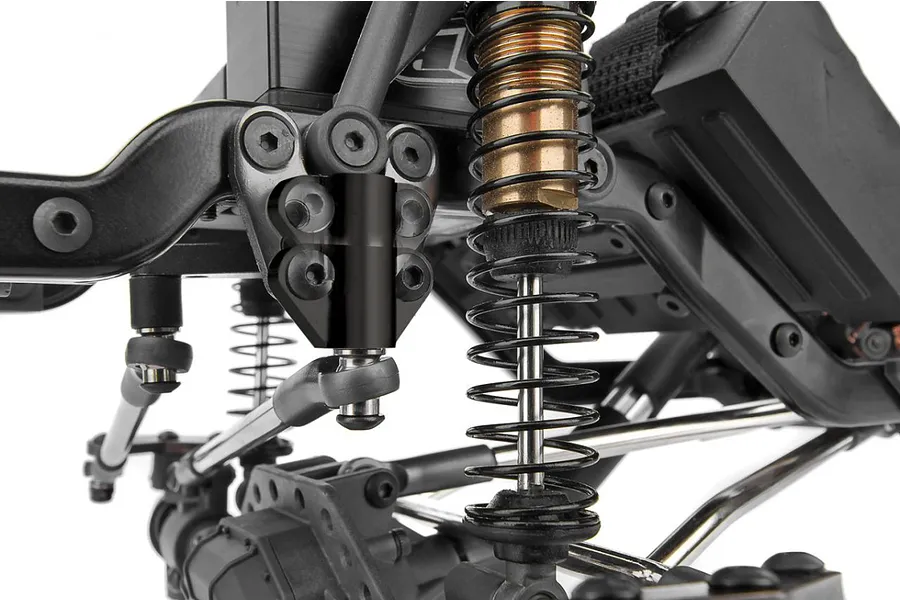

Aluminium Track Bar Mount

The GKS™ aluminium track bar mount, bolted directly to the steel frame rail, improves steering precision and reduces flex for a more responsive and controlled driving experience.

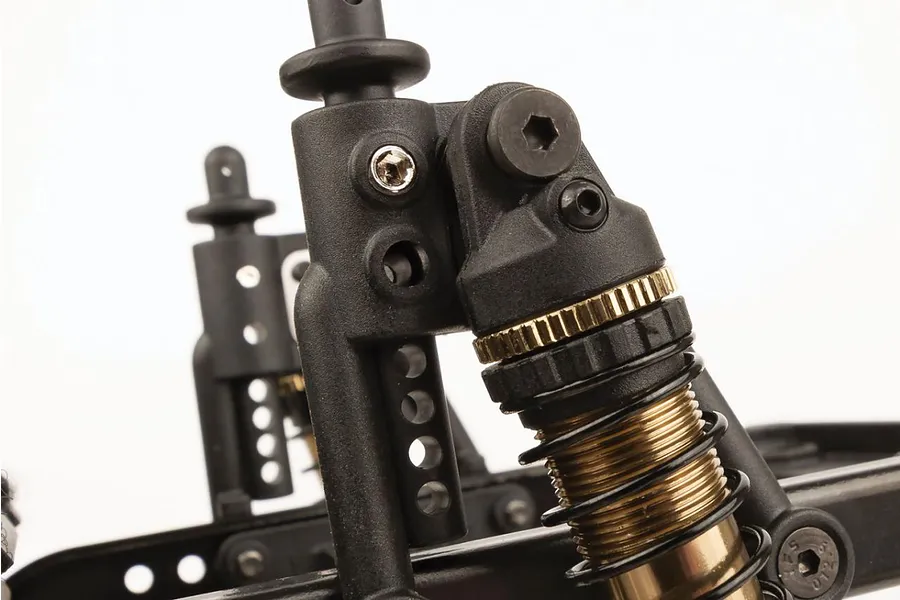

Shock Mount Inserts

GKS™ shock mount inserts allow for precise tuning of shock angle, droop, and ride height without affecting spring preload, giving you greater control over your suspension setup.

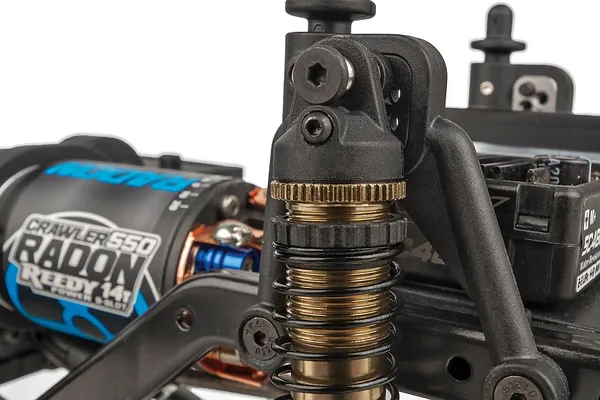

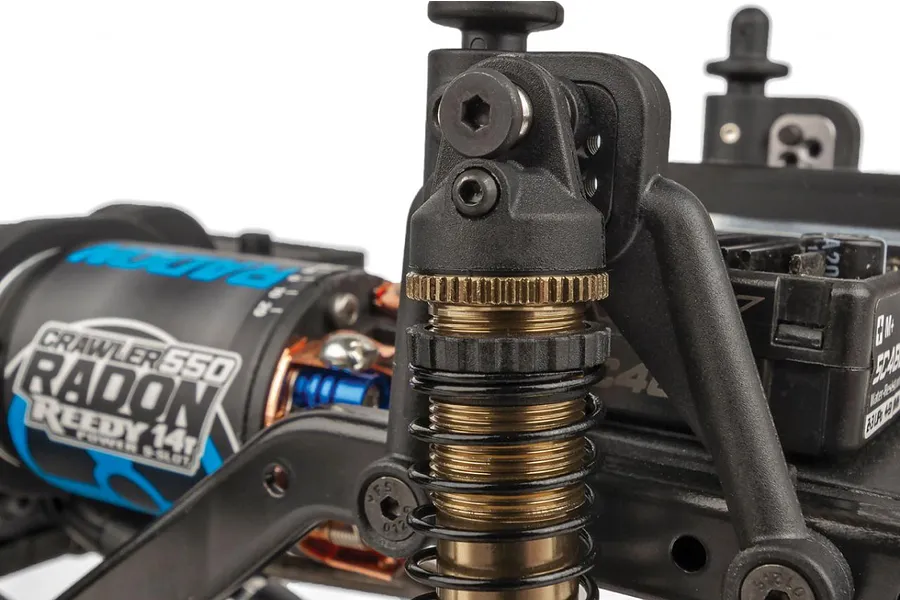

Factory Team Shocks

The included Factory Team shocks are engineered for performance and style. Machined from aluminium with a threaded body and bronze anodised finish, these shocks provide smooth damping and work to improve the vehicle's overall aesthetic.

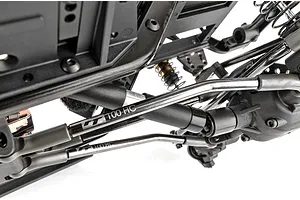

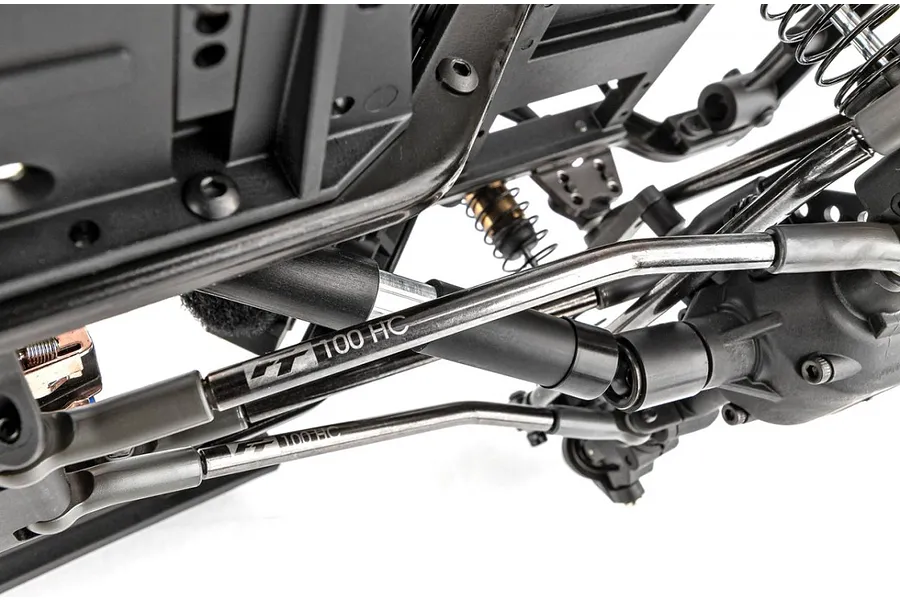

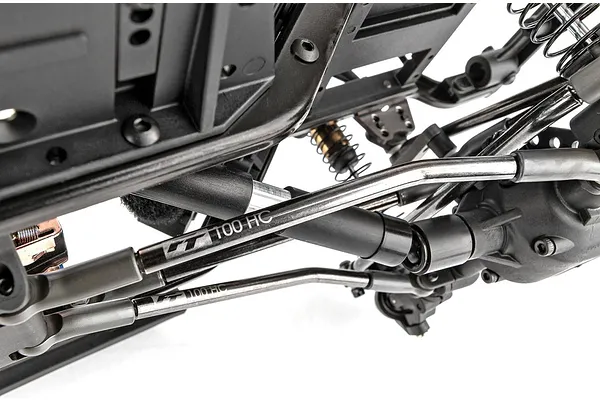

High Clearance Linkages

The included high-clearance links are built for durability and convenience. The 5mm steel links feature a black nitrate coating and etched markings for easy identification, while the 12.3" (312mm) and 12.8" (325mm) wheelbase options allow for customised handling.

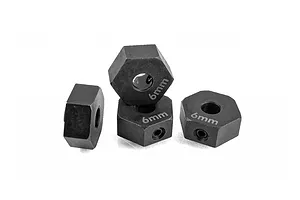

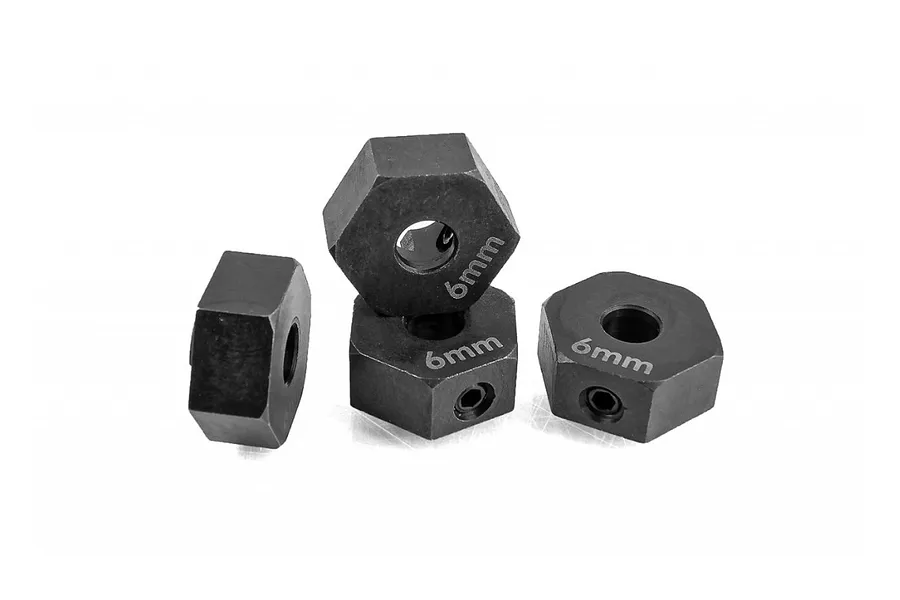

Factory Team Wheel Hexes

The included Factory Team steel wheel hexes are designed for strength and performance. They provide a solid and secure mounting point for your wheels, while also adding weight down low for improved stability.

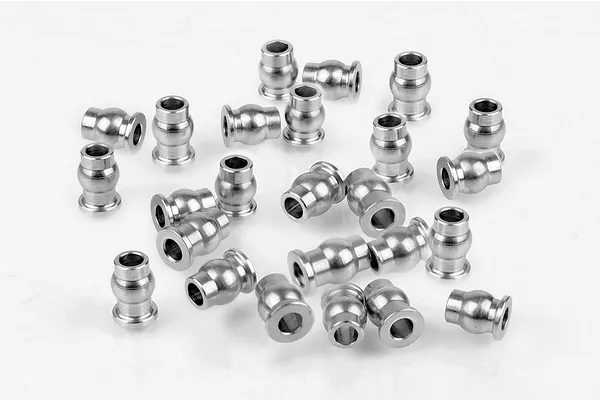

Steel Pivot Balls

The Enduro Builders kit is equipped with 30 Factory Team machined steel pivot balls for improved durability and smoother suspension movement. These upgraded pivot balls contribute to a more consistent and responsive suspension system.

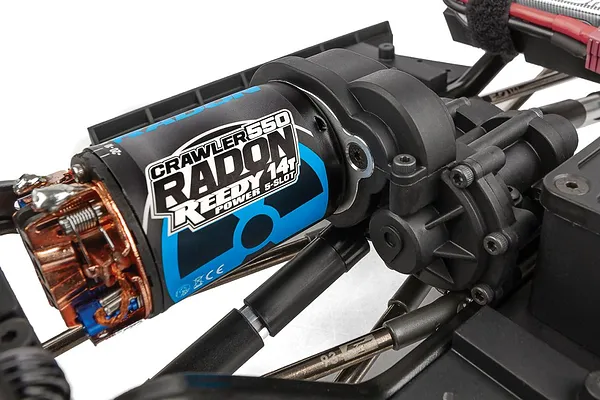

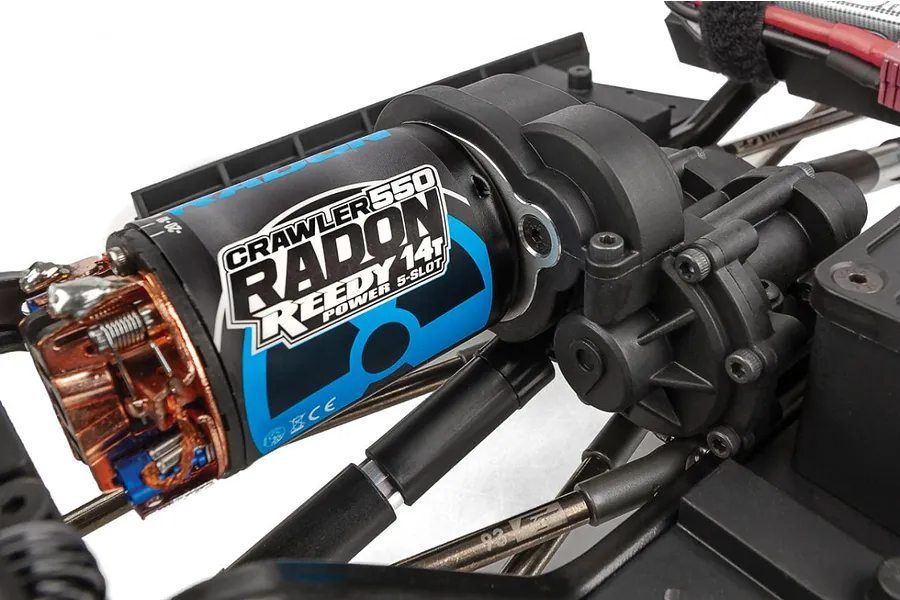

Stealth XF Gearbox

The low-profile Stealth® XF gearbox features a forward motor mount for improved weight distribution and climbing performance. This design keeps the weight over the front wheels for enhanced traction and stability on inclines. The Stealth® XF also offers adjustable rear drive ratios for customised performance.

Specifications

Length	462mm (18.19")
Width	236mm (9.29")
Height	N/A
Wheelbase	313mm (12.32")
Weight	Varies
Chassis	C Channel Steel Rail Chassis (Rock Crawler)
Drivetrain	4WD
Suspension	Oil Filled Coil Over Shock Absorbers
Motor	Not Included
ESC	Not Included
