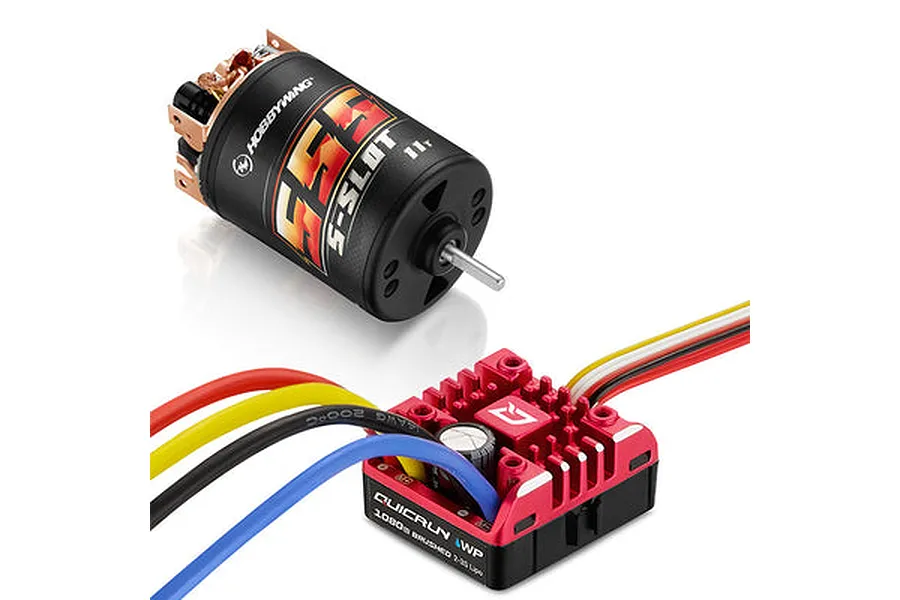

Hobbywing 1080 80A ESC & 13T 555 Brushed Motor Combo
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Specifications
Motor
-
Turns
- 13
-
LengthLength of the motor can
- 53.2mm
-
DiameterDiameter of the motor can
- 36mm
-
Type
- Brushed
-
Shaft Diameter (mm)
- 3.175 (1/8")
ESC (Electronic Speed Controller)
-
Motor Connectors
- Basic Bullet
-
Battery Connector
- XT60
-
Dual Motor
- No
-
BEC Voltage
- 6V, 7.2V, 8.4V
-
Waterproof Design
- Yes
-
Cooling Method
- Fan
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 13V
-
Continuous Amps
- 80A
-
For Motor Type
- Brushed
