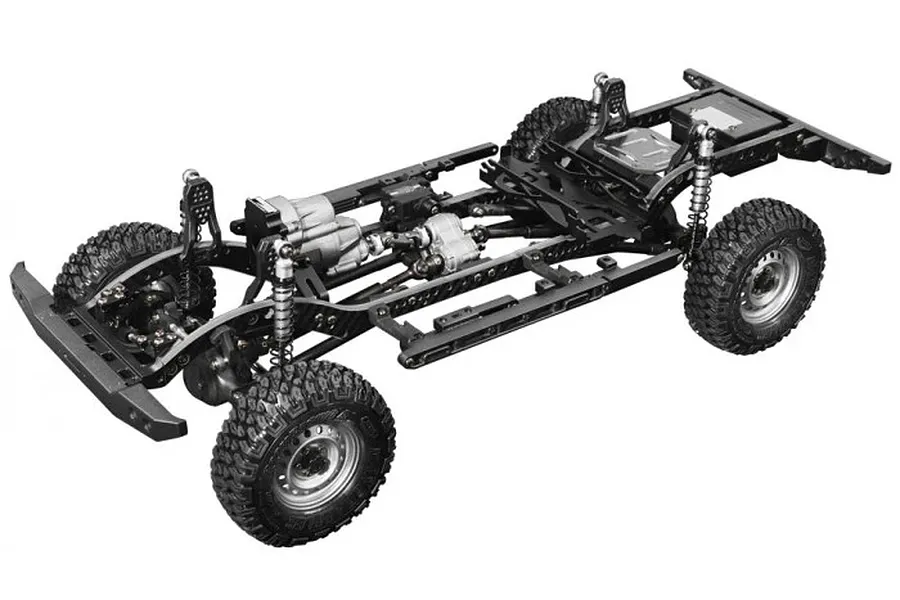

Name: Boom Racing BRX02 RC Rock Crawler Electric 4WD 1/10 Scale Kit
Brand: Boom Racing
SKU: BOO-BR8004
Price: 935.48 AUD
Availability: Discontinued

Overview

Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

The BRX02 is Boom Racing's latest top-of-the-line scale performance off-road chassis. It is the result of continuous development and improvement of the highly-rated BRX01, developed in close collaboration with many scale hobbyists around the world. With the BRX02, you can expect to build an ultra-realistic R/C model vehicle that gives you great performance straight out of the box. This chassis fits the Team Raffee Co. D110 Station Wagon and Pick-Up hard bodies.

All BRX02 come with a pair of unique UK license plates that are numbered and match the chassis number, on a first-come-first-served basis.

Features

Transmission: BCF2™ 2-speed Hi-Lo with remote shifting
Transfer case: SRD™ Anti-Torque Twist with Selective Rotational Drive (SRD)

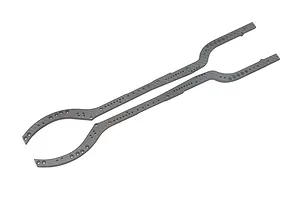

Carbon fibre 6mm chassis rails for superior strength, chassis rigidity, and low centre of gravity
BRX90 High Pinion PHAT™ Axle with AR44 keyed helical cut HD gears
KUDU™ 90mm scale coil-over shock absorbers
KUDU™ heavy-duty 110–130mm steel CVD drive shafts
Body shell quick-release system
1.9" MAXGRAPPLER™ GEKKO Compound tyres on Steelie Beadlock Rims
High clearance aluminium links to clear bigger obstacles & skid plate
Centralised chassis layout with winch mount
Adjustable Chassis-Mounted-Servo (CMS) mount
Complete high performance rubber sealed bearings
High grade 12.9 alloy steel nickel plated screws
Full-time shaft driven 4WD
Innovative pinion-spur gear mesh guide for precision setup
SRD™ Anti-Torque Twist T-Case reduces chassis torque twist under acceleration; choose between counter-rotational and standard setup

In the box

1x BRX02 1/10 4WD Scale Performance Chassis Kit Link Version (BR8004)
1x JX Waterproof Mini Servo with Metal Gears
1x 32 Pitch 12T Steel Pinion Gear
1x 25T Low Profile Aluminium Servo Horn
1x Maintenance Kit (Shock Oil, Black Grease, Silicone Grease, Thread Lock)
1x Cable Wiring Retainer Set (18pcs)
1x BRX02 Custom Unique License Plates (Numbered) with Chassis VIN# Plate
1x Basic Tool Kit

You'll need

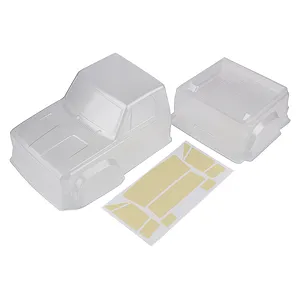

1x Body — Team Raffee Co. D110 Pick-Up (#TRC/302215) or Station Wagon (#TRC/302214)
1x 3-Channel Radio System
1x ESC (electronic speed control)
1x Steering Servo
1x 540 or 550 Motor (27T for off-road / 35T for crawling, matched with provided 12T pinion gear)
1x Battery
1x Charger
1x Tools

Specifications

Length	528mm (20.79")
Width	220mm (8.66")
Height	148mm (5.83")
Wheelbase	334mm (13.15")
Track Width	185mm (7.28")
Axle Clearance	28mm (1.10")
Skid Clearance	66mm (2.60")
Weight	2373g (5.23 lbs)
Shock Length	90mm (3.54")
Drive System	Full-time shaft driven 4WD
Steering	Chassis mounted servo
Suspension Front/Rear	3-link pan-hard / Triangulated 4-link
