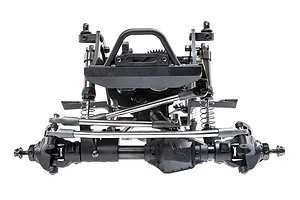

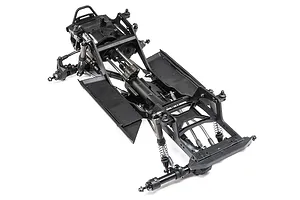

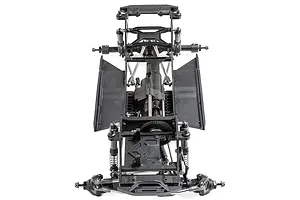

Axial SCX10 Pro Scaler RC Rock Crawler Electric 4WD 1/10 Scale Kit
Videos

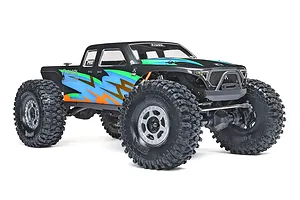

Axial SCX10 Pro Scaler RC Rock Crawler Electric 4WD 1/10 Scale Kit
- Perfect for experienced kit builders
- Competition spec build
- Highly customisable
This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.

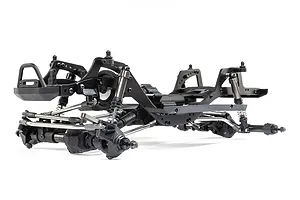

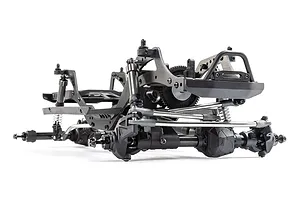

The Axial SCX10 Pro 4WD is the ultimate weapon for serious RC rock crawling competitors. Engineered for top-level performance, this 1/10 scale kit is packed with innovative features designed to help you conquer the toughest courses. The lightweight and adjustable chassis is optimised for climbing, side hilling, and break-overs, while the multi-piece steel tube axles and low-forward motor position provide incredible weight distribution and balance.
Conquer challenging lines with the SCX10 Pro's 3-link/4-link suspension, aluminium oil-filled shocks, and complete ball bearings. The kit also includes a shiftable underdrive transmission, allowing you to underdrive the rear axle via servo or manually lock it for maximum traction. With its competition-focused design and high-performance components, the SCX10 Pro 4WD is the key to take your crawling skills to the next level.

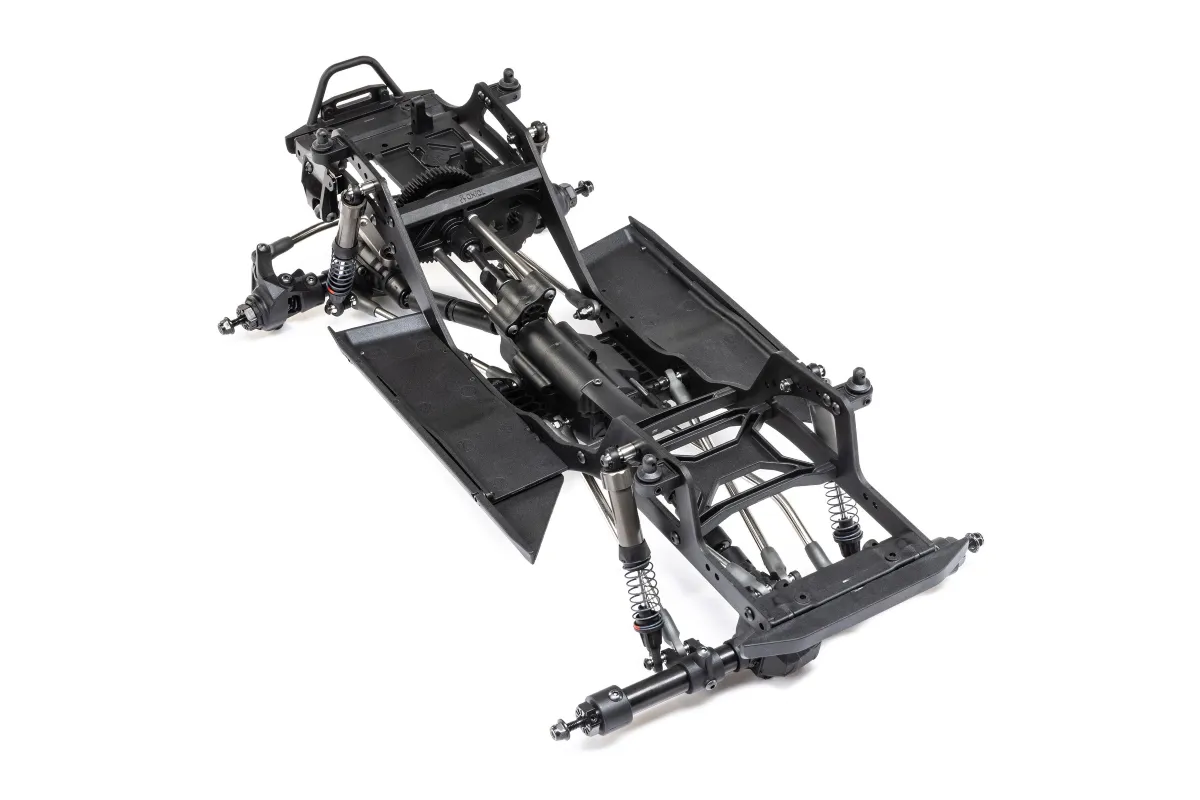

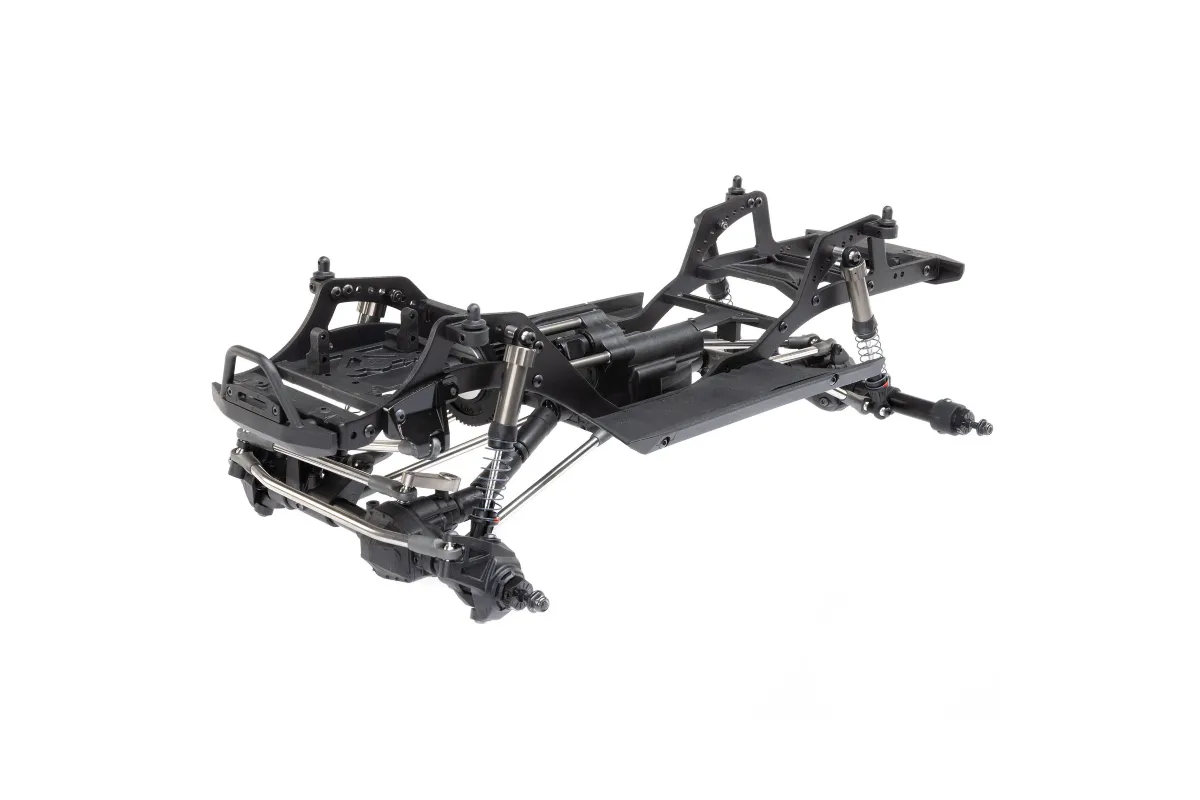

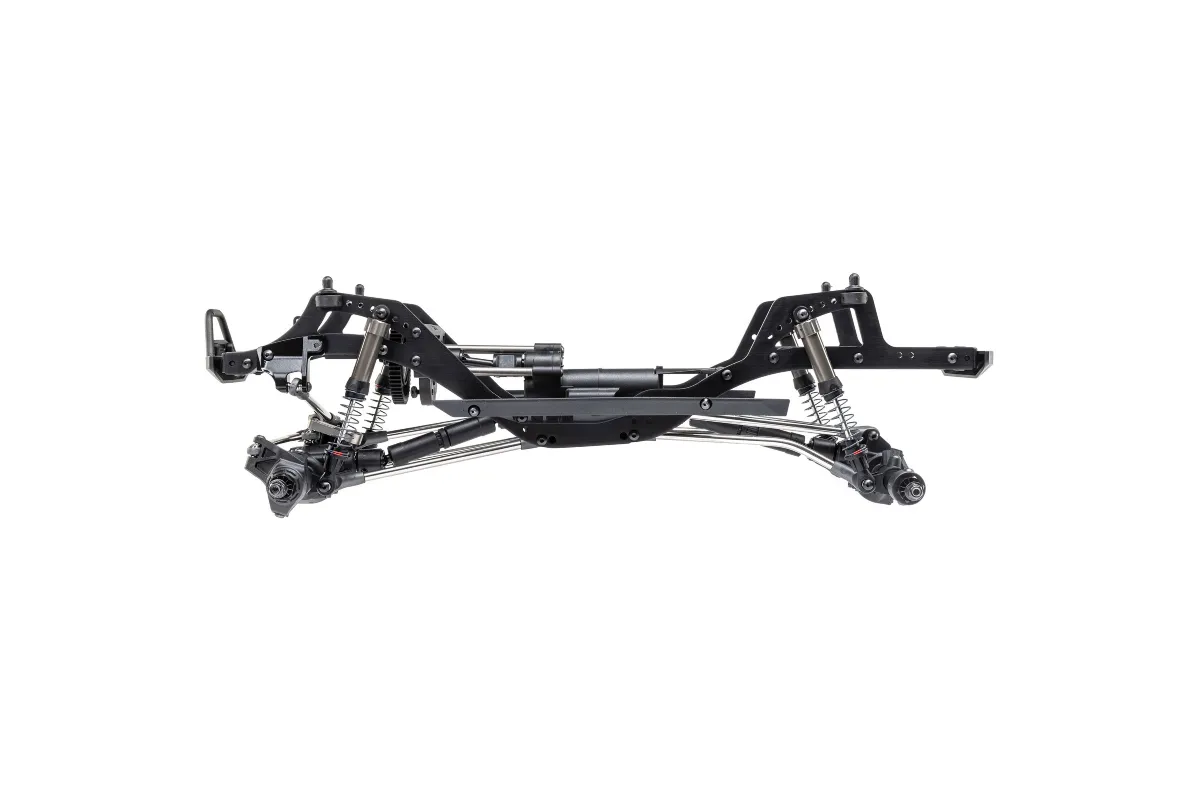

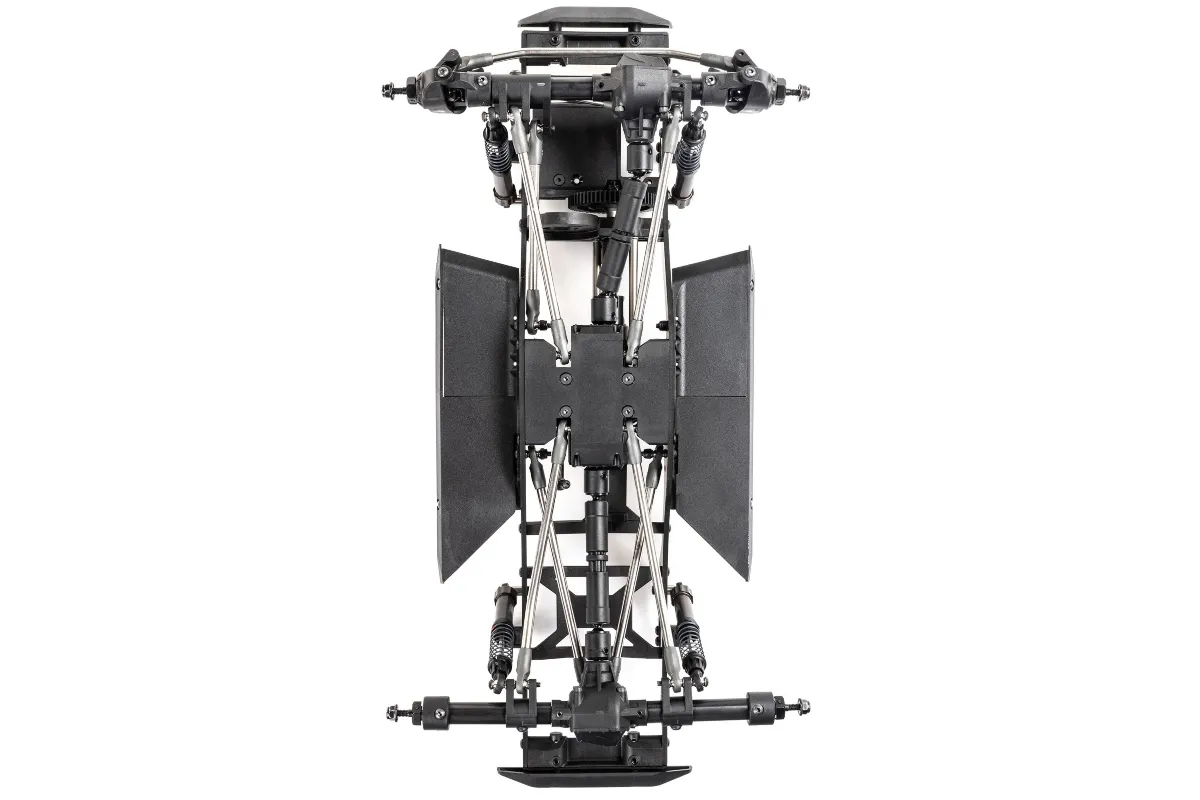

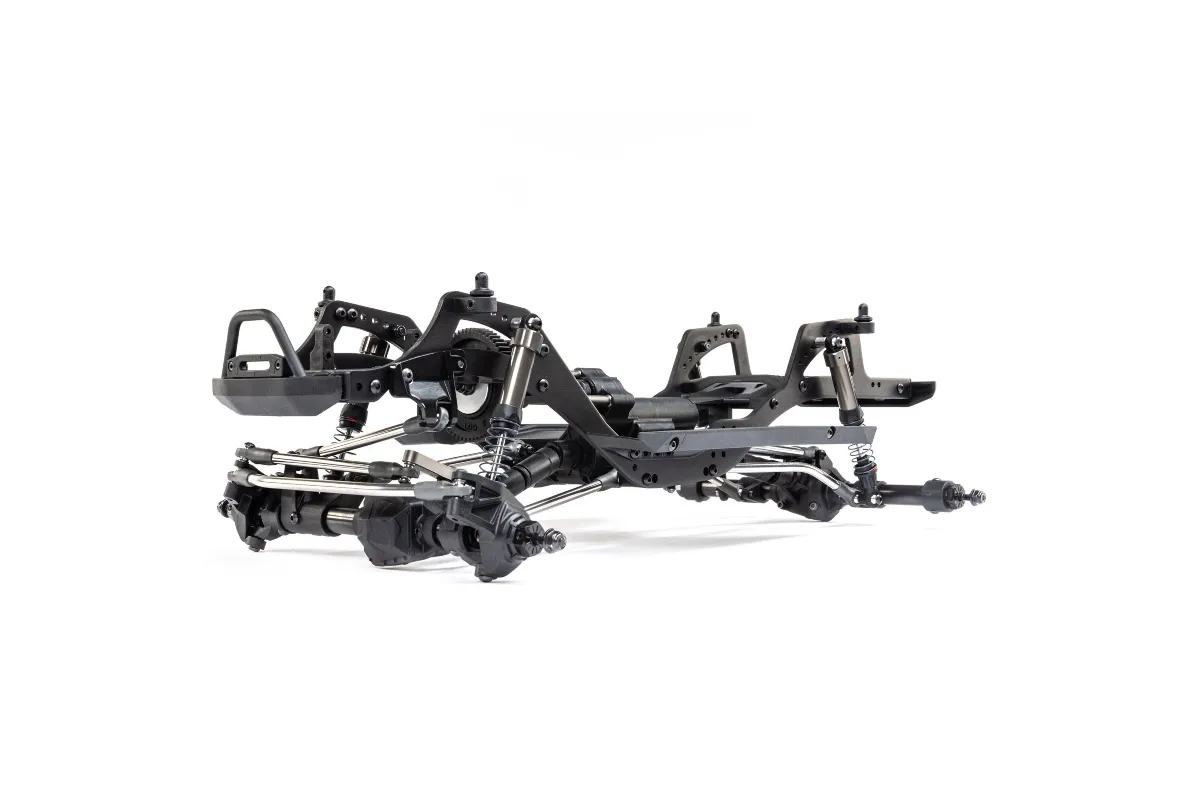

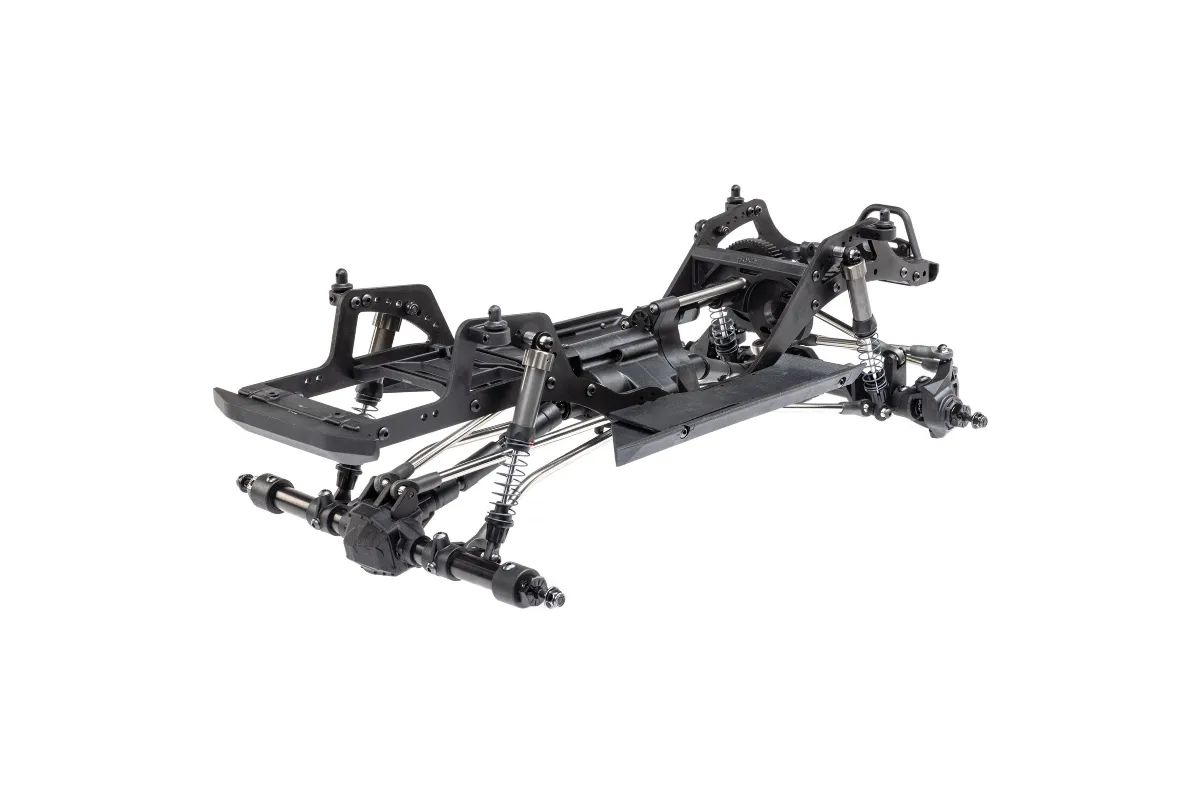

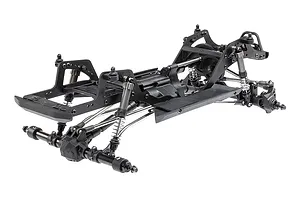

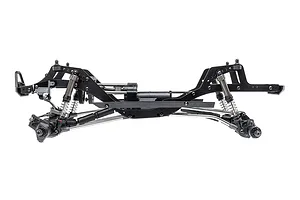

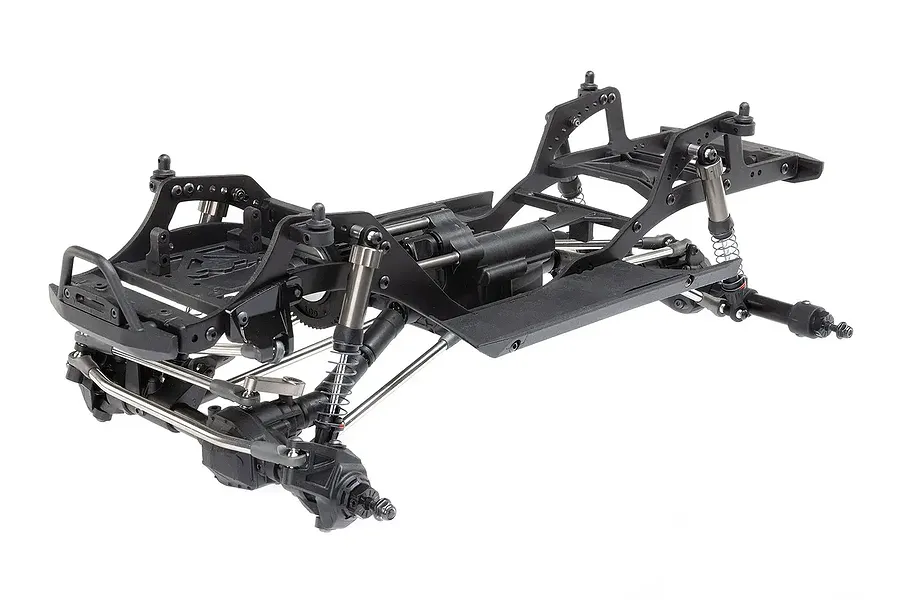

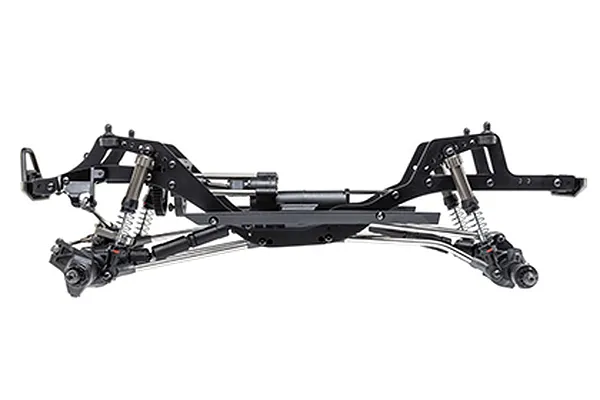

Lighter, lower, and highly adjustable, the aluminium plate SCX10 Pro 4WD chassis is optimised for comp-worthy crawling in climbs, side hilling, and break over. The 3-link/4-link suspension, new aluminium oil-filled shocks, and complete ball bearings keep performance smooth and steady.

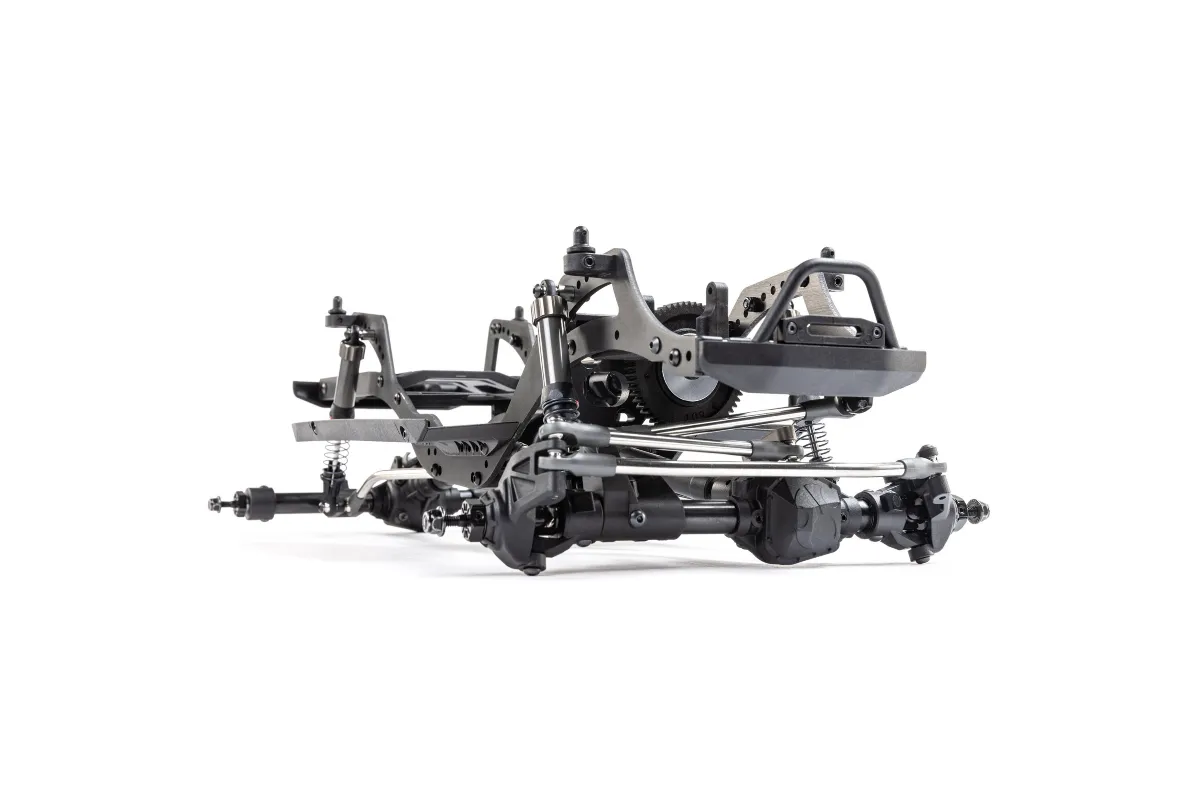

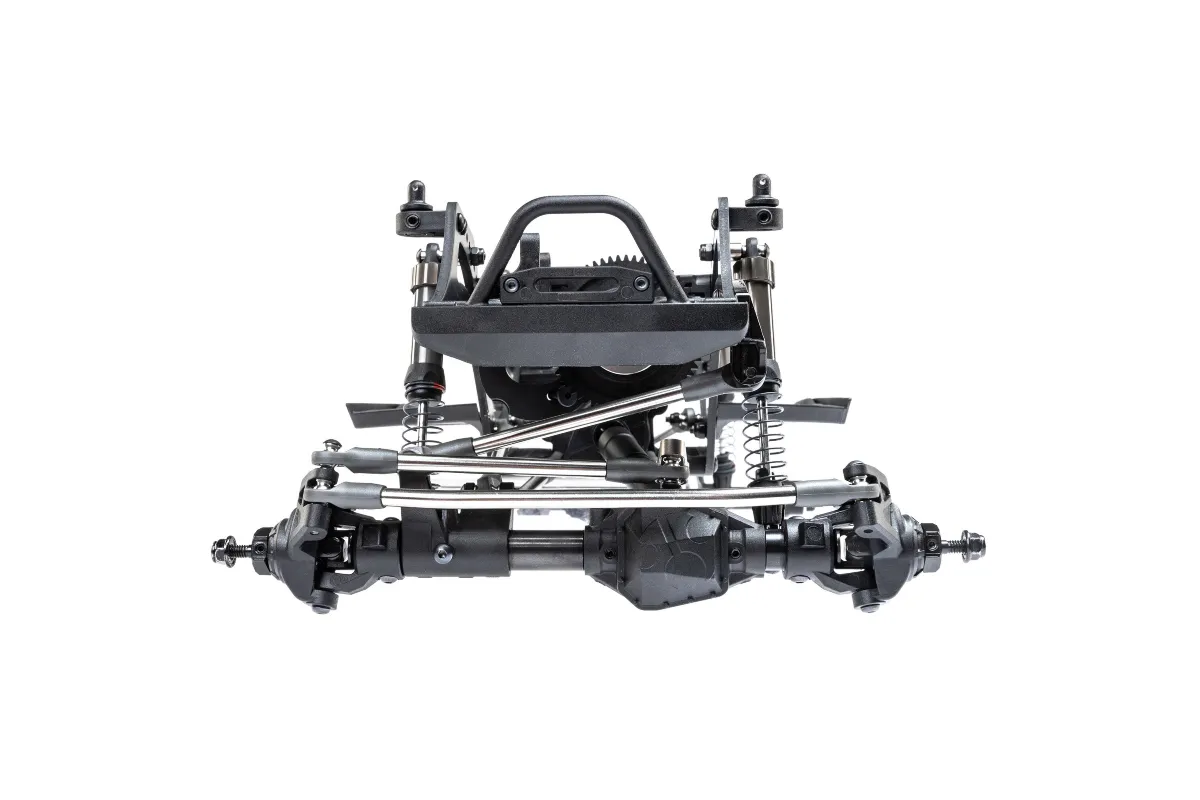

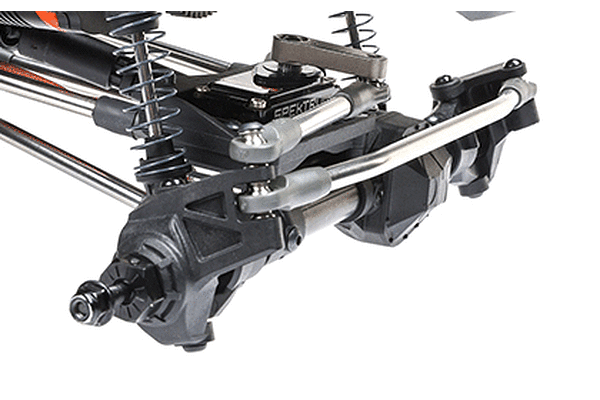

Multi-piece axles with steel tubes can accommodate an axle-mounted servo (AMS) or a chassis-mounted servo (CMS) to increase the scale looks.

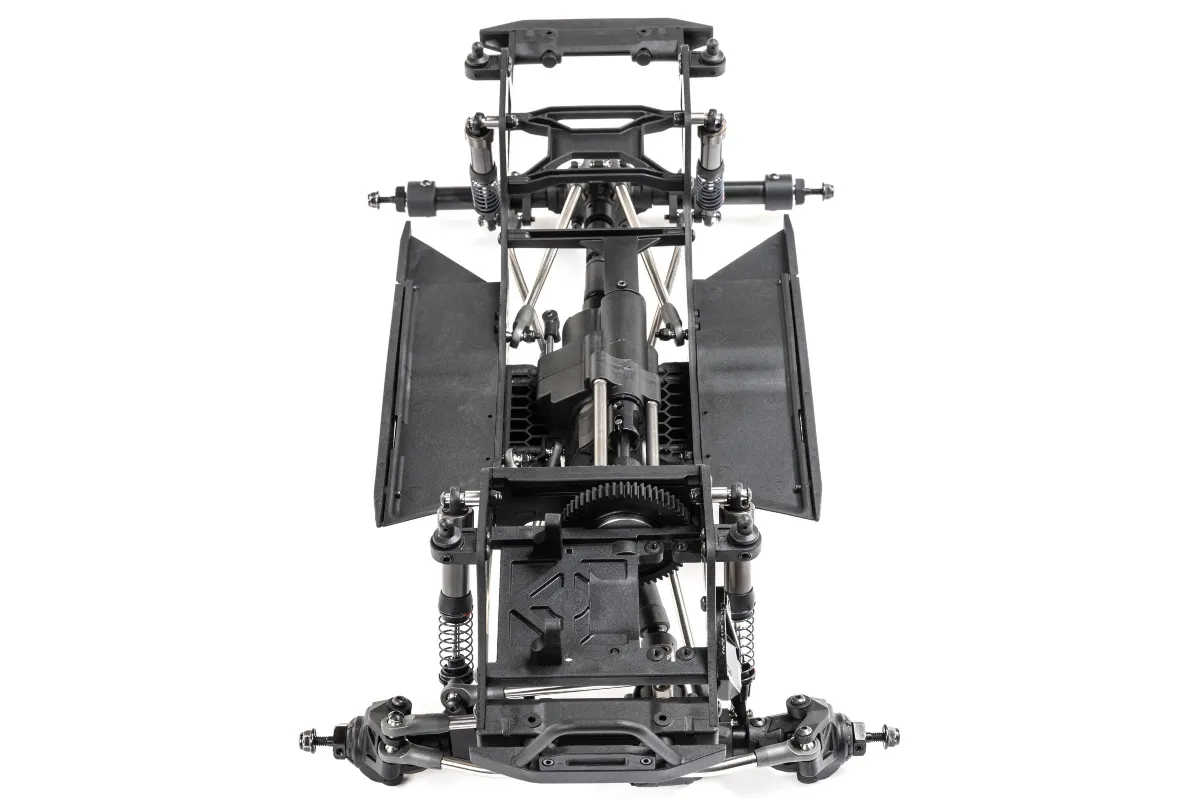

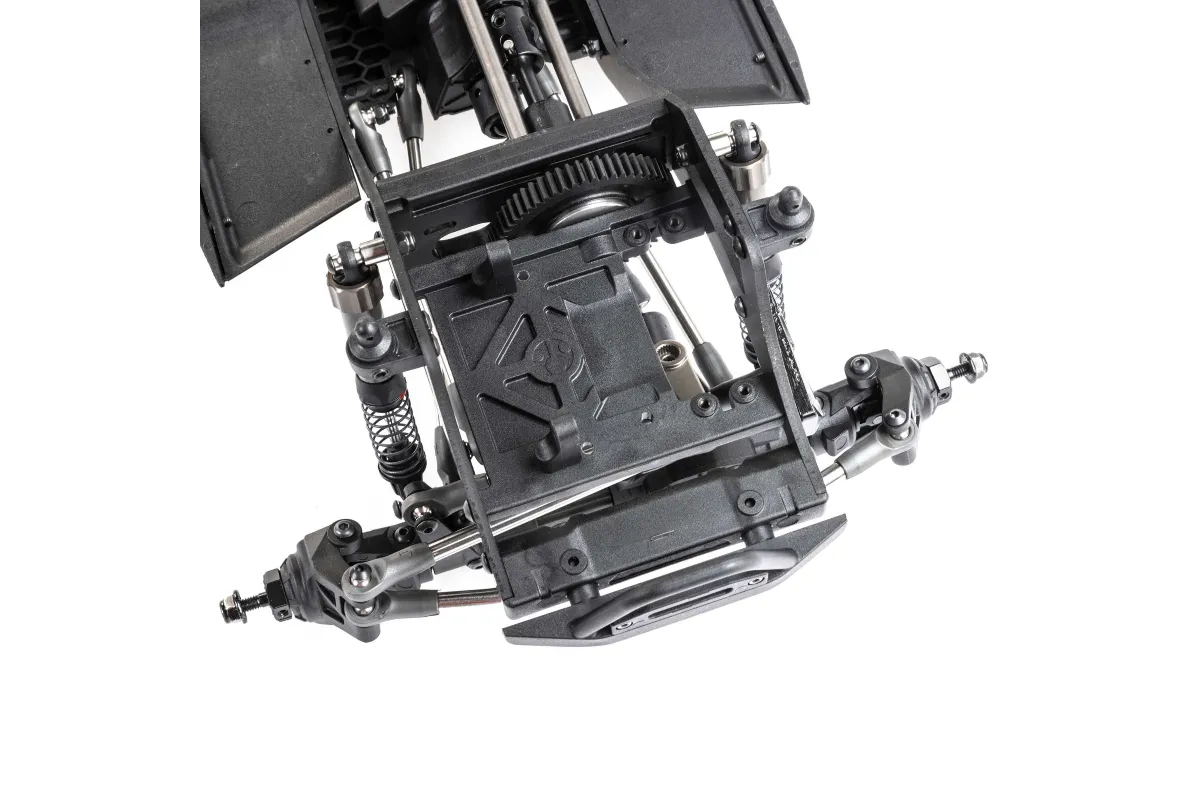

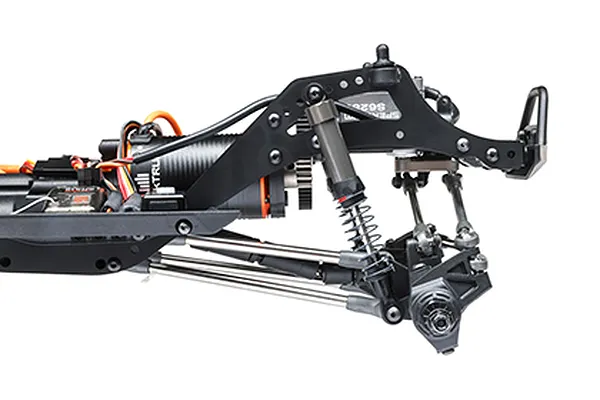

The motor mount positions your choice of motor low and forward in the chassis for superior weight distribution, providing the balance needed to keep from flipping while you conquer tough lines.

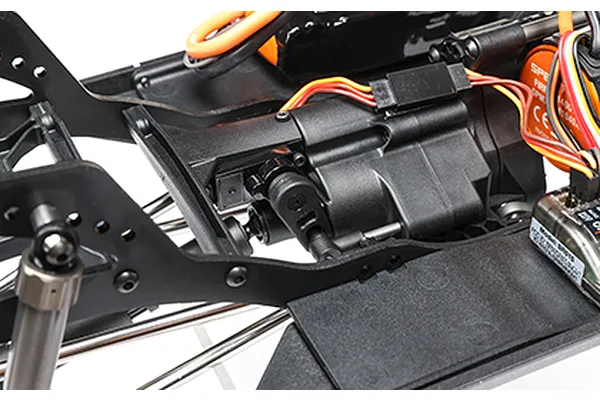

The transmission allows you to underdrive the rear axle by 40% manually or with a servo. Under driving the rear axle allows for a tighter turning radius and reduces "torque twist" on climbs.

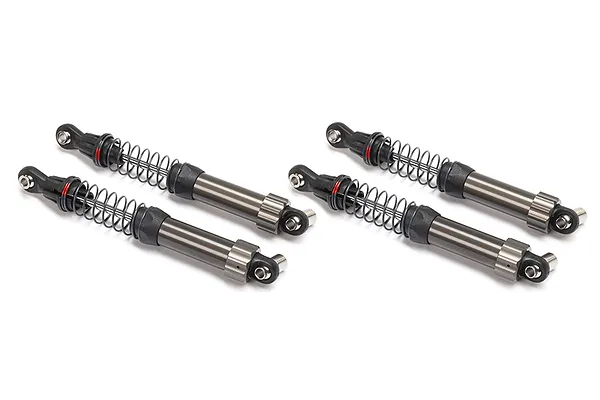

By eliminating the shock spring and collar from outside the shock body, the aluminium smooth body, oil-filled shocks provide higher clearance when taking advantage of the SCX10 Pro's increased steering angle. The shocks' eye-to-eye length is 96mm and uses 12mm diameter springs. The dual O-ring lower shock cap acts as the upper spring retainer, while the lower shock cup features a built-in bump stop that can be trimmed for fine-tuning your suspension.
- The easiest, most convenient way to build a scale crawler for competition, with numerous innovations never before offered in a single comp-ready kit
- Pro kit saves significant time and money compared to buying components separately
- Comp-ready chassis is lighter, lower, and more adjustable, optimising performance for climbing, side hilling, and break over
- Multi-piece steel tube axles can accommodate a servo on the axle (AMS) or chassis-mounted (CMS)
- Low and forward motor position provides superior weight distribution and improves balance
- Underdrive the rear axle via servo or manually lock the rear axle in 1:1 or underdrive
- New aluminium smooth body, oil-filled shocks provide higher clearance
- The Pro has already won and placed at multiple events with designer Wyatt Mellon at the wheel
- Genuine Axial Product
- Length: 423mm (16.65")
- Width: 235mm (9.25")
- Height: 178mm (7")
- Wheelbase: 318mm (12.5")
- Weight: 1.4kg (3 lbs) approx.
- Chassis: Aluminium Chassis Rail (Crawler)
- Drivetrain: 4WD
- Suspension: Oil Filled Coil Over Shock Absorbers
- Motor: Not Included
- ESC: Not Included
- 1x SCX10 Pro Kit
- 1x Product Instruction Manual
- 1x 2+ Channel Surface Transmitter & Receiver
- 1x Compatible 7.4V or 11.1V LiPo Battery
- 1x Compatible LiPo Charger
- 1x Compatible 540 Sized Motor
- 1x Compatible ESC
- 1x Steering Servo
- 1x Compatible Body Shell
- 4x Wheels with 12mm Hex
- 4x Tyres to Fit Wheels
- 1x Micro servo for optional use of shift-able underdrive
-
Spur Gear
- 62T 32dp/0.8Mod
-
Max LiPo Power
- 3S (11.1v)
-
Wheel Hex Size
- 12mm
-
Pinion Gear
- 13T 32dp/0.8Mod
-
Front Shock Oil
- 35wt
-
Rear Shock Oil
- 35wt
-
Battery Connector
- Not Included
-
Completion
- Kit
-
Drivetrain
- 4WD
-
Max LiPo Power
- 3S (11.1v)
-
On/Off Road
- Off Road
-
Chassis Type
- Rock Crawler
-
Power Source
- Electric
-
Skill Level
- Intermediate
-
Scale
- 1/10
