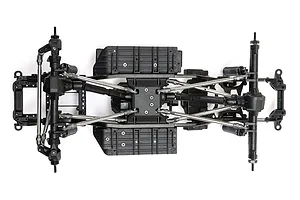

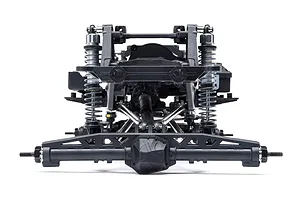

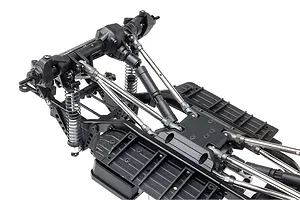

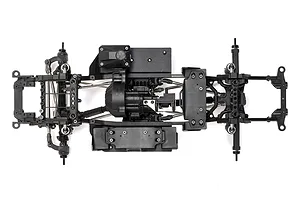

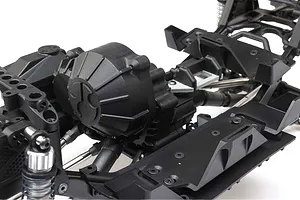

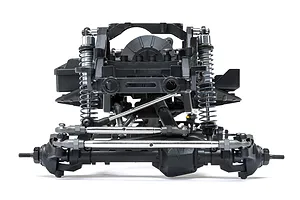

Axial SCX10 III Base Camp RC Rock Crawler Electric 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. AXI03011

Discontinued5.0
1 review
1 / 16
1 / 16

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

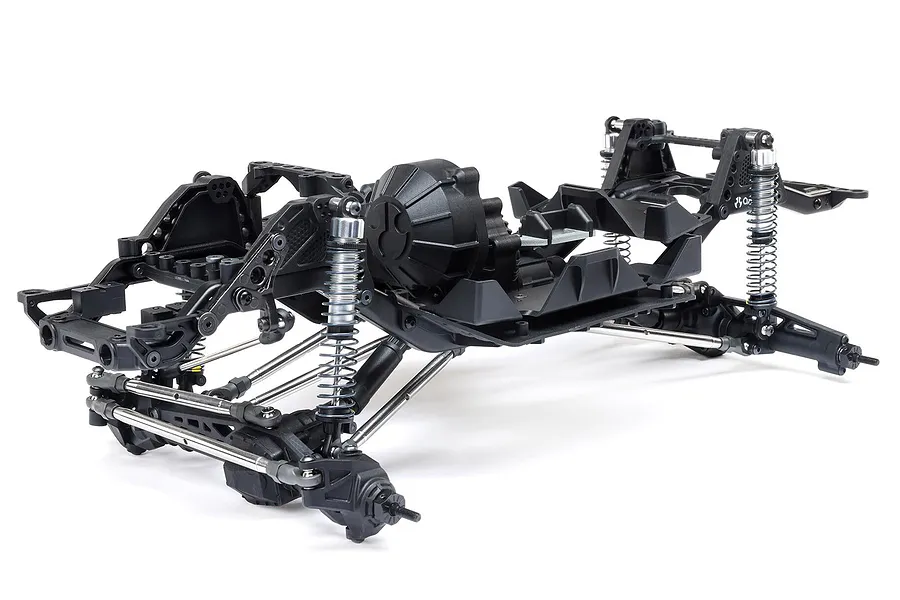

The SCX10 III Base Camp Builder's Kit is a new way to experience SCX10-based adventure. It's a classic crawling platform with proven Axial quality and innovation. The assembly process makes you an expert on its engineering and allows you to express your individuality by choosing a body style, tyres, wheels, and electronics. The Base Camp Kit is an improved version of the Axial RTR rig with an optional servo-actuated dig feature, robust 6mm stainless steel links, and Standard AR45 straight axles. The LCXU transmission makes it easy to switch to portal axles. The kit gives you the perfect foundation for your adventuring with an optimised suspension, steering, and a trail-tough drivetrain.

Note

This kit does not include an ESC, Motor, Servo, Battery, Charger, Wheels, Body Shell, or Transmitter.

Features

  • The SCX10 III steel C-channel chassis provides a strong, rigid foundation for the vehicle
  • Standard AR45 straight axles deliver proven off-road performance
  • The LCXU transmission offers versatile driving options with its optional dig feature
  • Durable 6mm stainless steel links ensure reliable suspension articulation
  • All-metal pivot balls provide smooth, precise movement for the suspension system
  • Black differential covers add a touch of style to the drivetrain
  • Tunable oil-filled shocks allow for customisable suspension performance
  • Full ball bearings throughout the drivetrain reduce friction and improve efficiency
  • The chassis design accommodates a wide range of body styles for personalised customisation
  • Metal Panhard Mount included as standard (normally considered an upgrade)
  • Genuine Axial product

In the box

  • 1x 1/10 SCX10 III Base Camp 4WD Rock Crawler Builders Kit
  • 1x 1/10 SCX10 III Base Camp Builders Kit Instruction Manual

You'll need

  • 1x Compatible 7.4V or 11.1V LiPo Battery
  • 1x Compatible Charger
  • 1x Compatible 1/10 Scale ESC
  • 1x Compatible 1/10 Scale Motor
  • 1x Compatible 1/10 Scale Servo
  • 1x 2+ Channel Transmitter & Receiver
  • 1x Compatible Body Shell
  • 1x Compatible Rock Crawler Wheels Set
  • PS Series Polycarbonate Safe Paint
  • AA Batteries for Transmitter

Highlights

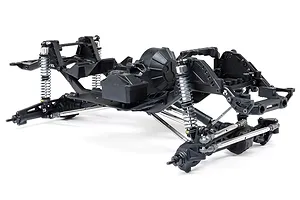

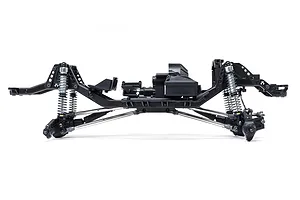

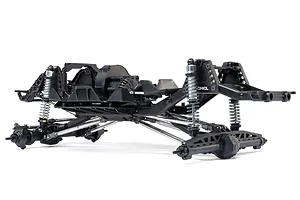

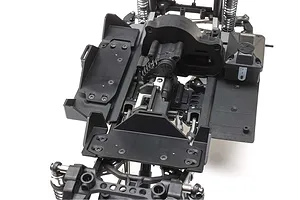

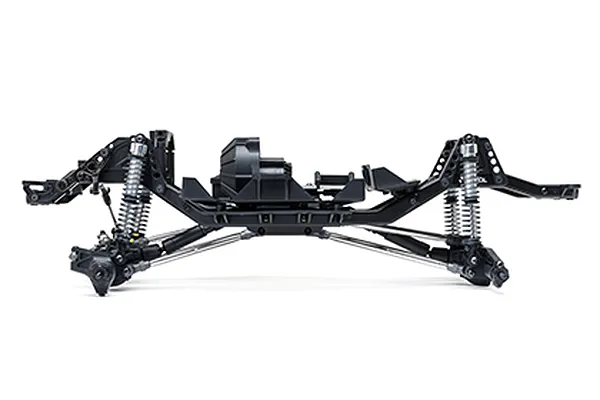

SCX10 III Steel C-Channel Chassis

SCX10 III Steel C-Channel Chassis

The Base Camp Kit's strong, realistic SCX10 III steel C-channel chassis reduces frame flexing and increases the precision of suspension movement. It also adjusts to accommodate a wide variety of body styles (optional links req.).

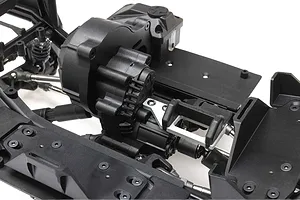

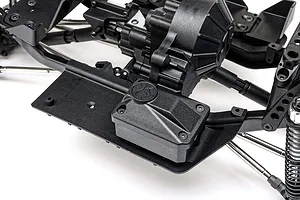

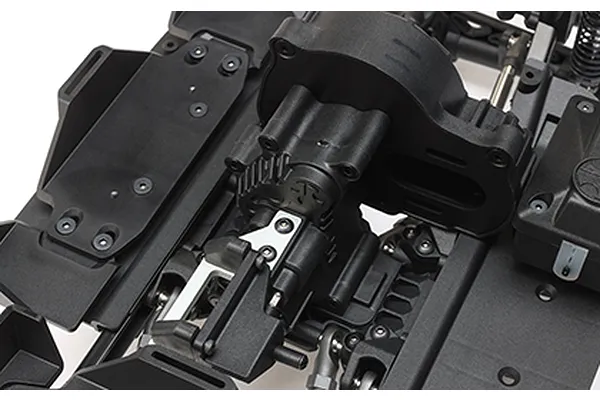

LCXU Dig Transmission

LCXU Dig Transmission

The kit's LCXU transmission can be externally locked in standard 4WD, but also has an optional, servo-actuated dig feature for improved turning and control.

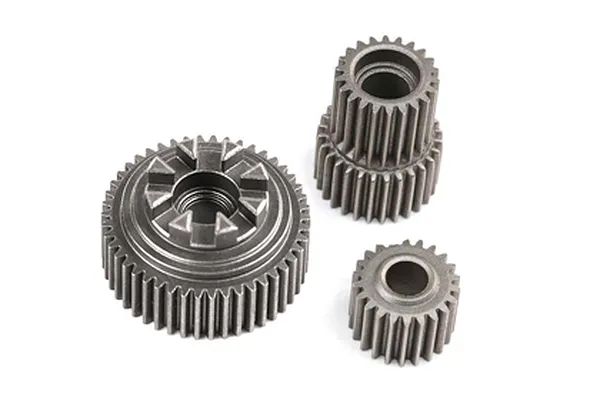

All-Metal Gears

All-Metal Gears

In addition to all-metal internal gears for strength and durability, the LCXU transmission also features a full set of ball bearings for a smooth, efficient ride.

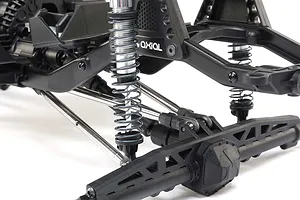

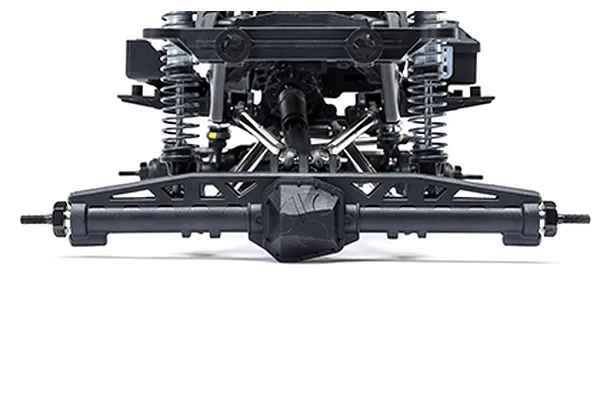

AR45 Standard Axles

AR45 Standard Axles

The kit includes Standard AR45 straight axles that mirror what's found under most full-size off-road vehicles. The LCXU transmission design also makes it easy to switch from standard axles to portals if desired.

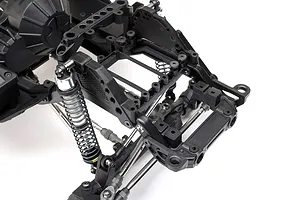

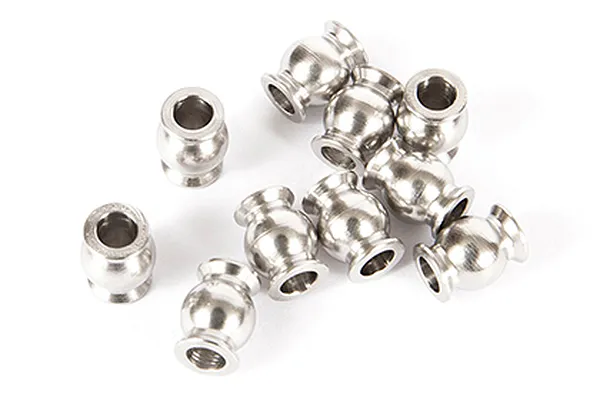

All-Metal Pivot Balls

All-Metal Pivot Balls

All pivot points are on stainless steel balls that provide durable, long-lasting performance.

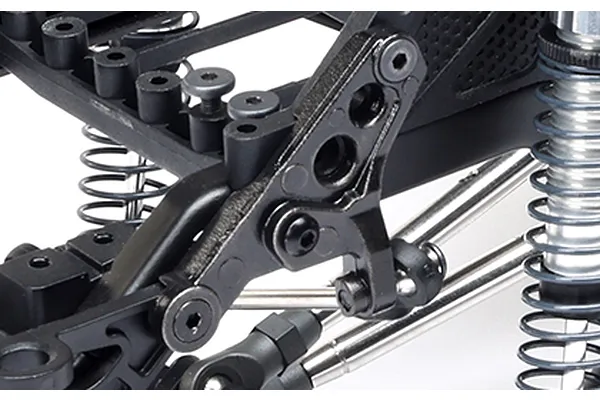

Metal Panhard Mount

Metal Panhard Mount

Normally considered an upgrade, the metal panhard mount is included in the SCX10 III Base Camp Builder's Kit as a standard part.

Specifications

Wheelbase312mm (12.3")
WeightVaries
ChassisRock Crawler (SCX10 III Adjustable Steel C-channel)
Drivetrain4WD
Gear Ratio45.6:1
SuspensionOil Filled Coil Over Shock Absorbers
GearsMetal (All-Metal)
MotorNot Included
ESCNot Included

Dimensions

Length422mm (16.6")
WidthVaries
HeightVaries

RC Car

Scale1/10
Power SourceElectric
Drivetrain4WD
Chassis TypeRock Crawler
CompletionKit
On/Off RoadOff Road
Skill LevelExperienced
Max LiPo Power3S (11.1v)

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery ConnectorNot Included
Front Shock Oil35wt
Rear Shock Oil35wt
Pinion Gear14T 32dp/0.8Mod
Spur Gear56T 32dp/0.8Mod
Wheel Hex Size12mm
