Tamiya XM-01 Pro RC Rally Car Electric 4WD 1/10 Scale Kit
Tamiya XM-01 Pro RC Rally Car Electric 4WD 1/10 Scale Kit
The Tamiya XM-01 Pro is a 1/10 4WD off-road rally chassis with adjustable wheelbase, aluminium shocks, and full ball bearings.
- Compact 1/10 4WD off-road rally chassis with front-mid motor layout
- Adjustable wheelbase: 210mm, 225mm, and 239mm options included
- Aluminium shock absorbers and full ball bearing set included as standard
- Multiple differential rings and input gears for extensive tuning capability
- Polycarbonate chassis protector shields components from dirt and debris
This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

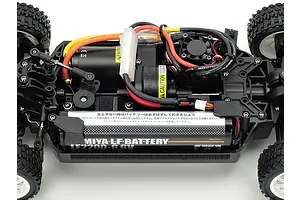

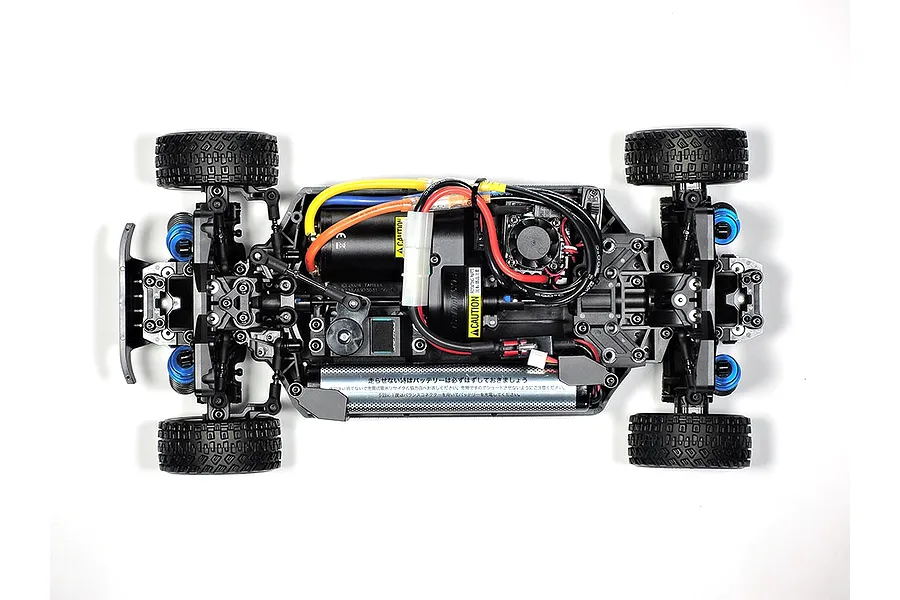

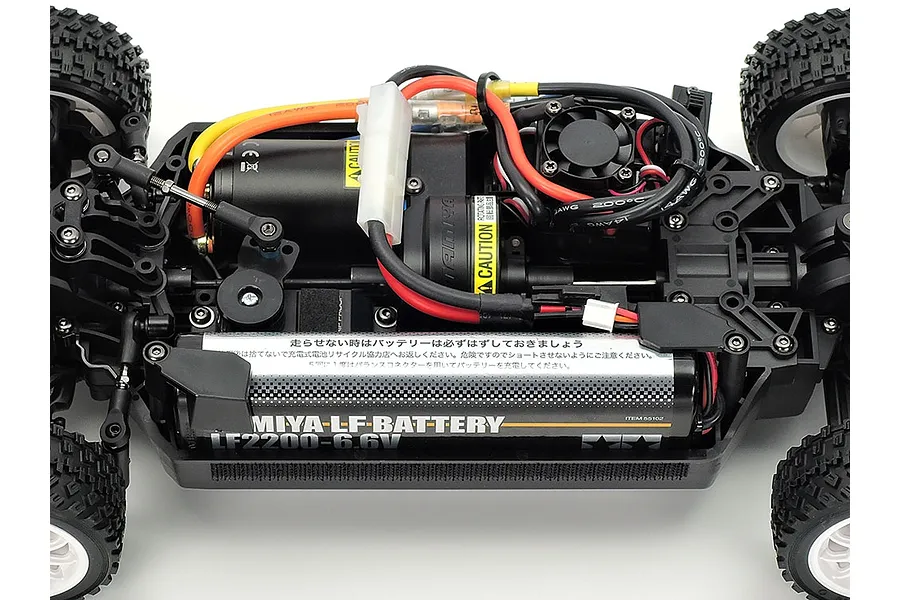

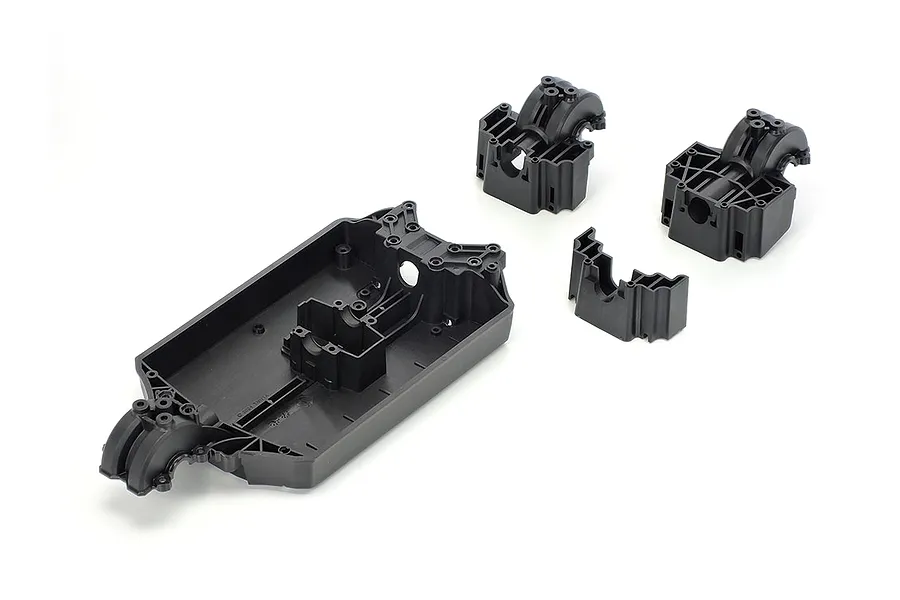

The XM-01 Pro is a compact 4WD chassis with a perfectly balanced design featuring a front-mid motor and longitudinally positioned battery, giving lightning-fast response and exceptional stability. Switch between three wheelbase options to tailor the car for the handling experience needed on any track.
The car features independent double wishbone suspension with precision aluminium dampers. Adjust the caster angle for optimal steering control, and choose between two ground clearance settings to match the course conditions. The integrated front bumper skid plate ensures smooth, drag-free performance.

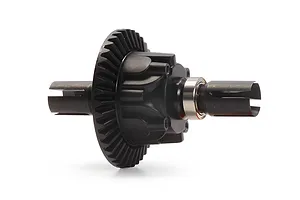

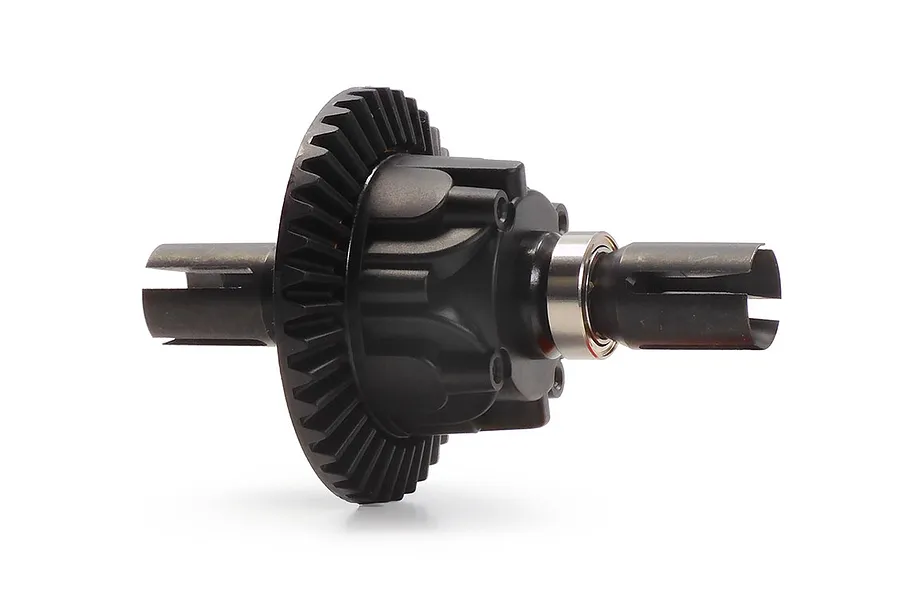

Tamiya's 1/10 XM-01 Pro comes equipped with oil-filled gear differentials (both 39T and 40T included) for smoother handling and precise power distribution between wheels. This translates into more consistent performance, particularly through corners and on varying terrain. The ability to switch between gear sizes lets experienced drivers fine-tune the handling characteristics to match their preferences and track conditions.

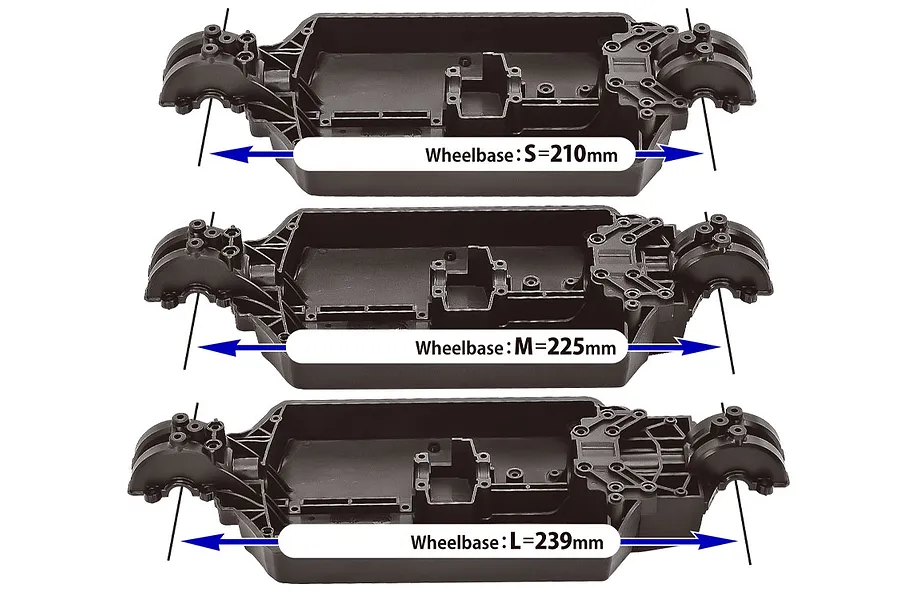

The XM-01 Pro features an adjustable wheelbase designed to accommodate various M-chassis bodies, giving users a multitude of customisation options to achieve their perfect rally car aesthetic. Additionally, varying wheelbase lengths offer subtle handling differences – a shorter wheelbase provides nimbler cornering, while a longer wheelbase offers enhanced stability on straights and rougher surfaces.

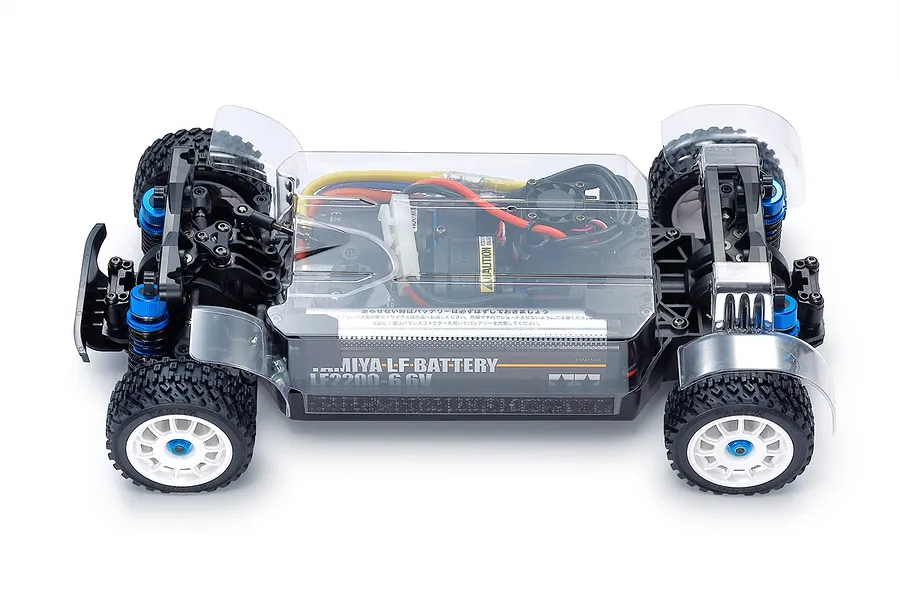

This protective cover shields the XM-01 Pro's chassis components from dirt, moisture, and debris, extending the lifespan of those vital parts and reducing the need for frequent cleaning. Its inclusion of wheel well covers further contributes to a clean, aerodynamic design, while adding an additional layer of protection for the chassis.

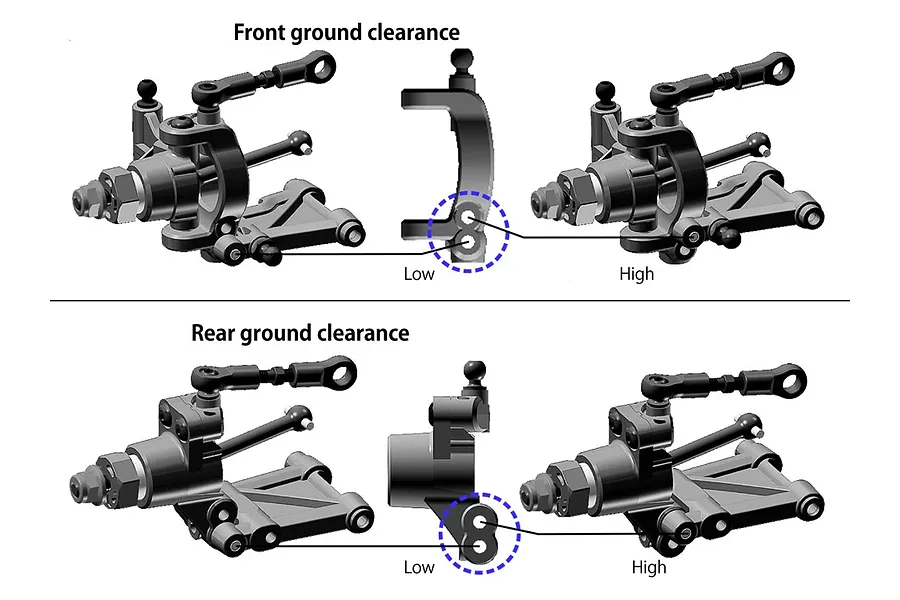

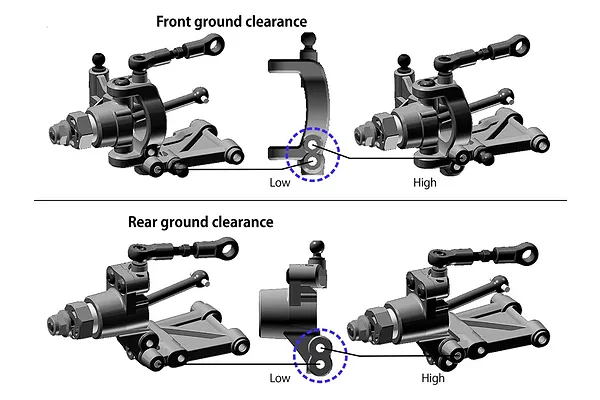

The new hub carriers and rear uprights on the XM-01 Pro allow adjustment of the car's ground clearance. This feature is essential for adapting to different racing conditions – a higher ground clearance setting suits rough terrain, while lowering the ride height can provide an advantage on smoother, high-grip tracks.

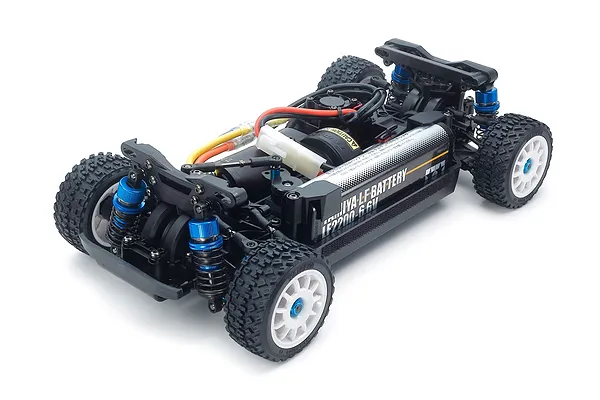

The inclusion of aluminium shock absorbers offers improved durability compared to their plastic counterparts, crucial for withstanding the rigours of off-road racing. Additionally, these high-quality shocks allow for precise adjustments to ride height, spring tension, and oil viscosity – key factors in fine-tuning the car's suspension behaviour to your liking.
The XM-01 Pro comes equipped with ball bearings throughout its drivetrain, significantly reducing rolling resistance compared to basic bushings. This efficiency translates into increased speed, improved acceleration, and longer battery run times. Additionally, ball bearings minimise friction and heat buildup, contributing to the overall longevity of the drivetrain components.

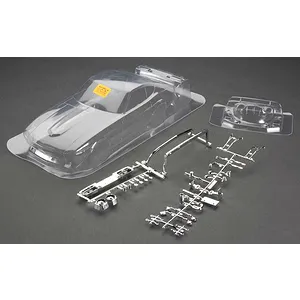

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.
- Designed and engineered for experienced Tamiya collectors
- Includes upgraded aluminium shock absorbers
- Features multiple differential rings and input gears for a high level of tuning capability
- Adjustable wheelbase settings for multiple tuning and aesthetic customisation

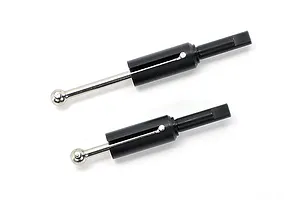

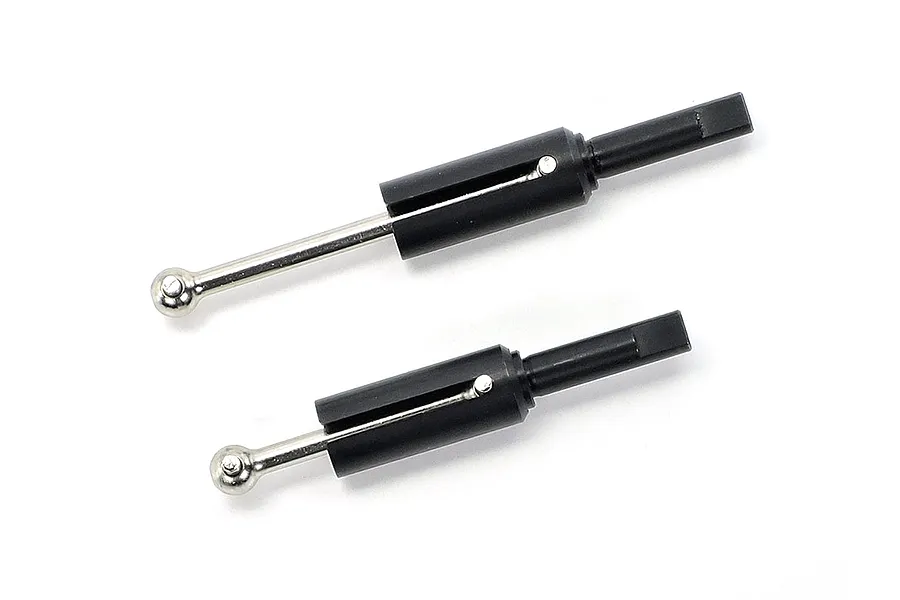

- Short and long wheelbase centre shafts included
- Full ball bearing set included
- Polycarbonate chassis protector included to help keep dirt and dust out of the chassis
- Genuine Tamiya product
- 1x Tamiya XM-01 Pro RC Rally Car Electric 4WD 1/10 Scale Kit
- 1x Compatible 7.4V LiPo Battery or 7.2V NiMH
- 1x Compatible Charger
- 1x Compatible 1/10 Scale ESC
- 1x Compatible 1/10 Scale Motor
- 1x Compatible 1/10 Scale Low Profile Servo
- 1x 2+ Channel Transmitter & Receiver
- PS Series Polycarbonate Safe Paint
- AA Batteries for Transmitter
- 210mm to 239mm wheelbase RC body shell
This kit comes without an ESC, Servo, Battery, Charger, Transmitter, Motor, or Body Shell.
-
Length
- 308mm (12.1") with 225mm wheelbase
-
Width
- 165mm (6.5")
-
Height
- Varies
-
Wheelbase
- Adjustable — 210mm (8.3"), 225mm (8.9"), or 239mm (9.4")
-
Weight
- Varies
-
Chassis
- Off Road Rally (XM-01 Pro)
-
Drivetrain
- 4WD
-
Gear Ratio
- 8.27:1
-
Suspension
- Oil-Filled Coil Over Shock Absorbers
-
Motor
- Not Included
-
ESC
- Not Included
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
-
Completion
- Kit
-
Skill Level
- Experienced
-
Power Source
- Electric
-
Chassis Type
- Rally
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Front Shock Oil
- 400cSt
-
Rear Shock Oil
- 400cSt
-
Front Differential Oil
- 3000cSt
-
Rear Differential Oil
- 3000cSt
-
Pinion Gear
- 22T
-
Spur Gear
- 70T
-
Wheel Hex Size
- 12mm
