Tamiya TT-02 Raikiri GT RC Touring Car Electric 4WD 1/10 Scale Kit (no ESC)

Tamiya TT-02 Raikiri GT RC Touring Car Electric 4WD 1/10 Scale Kit (no ESC)

Videos

Tamiya TT-02 Raikiri GT RC Touring Car Electric 4WD 1/10 Scale Kit (no ESC)

Brand: Tamiya | MPN: 58626A
discontinued
Description
Please Note:

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

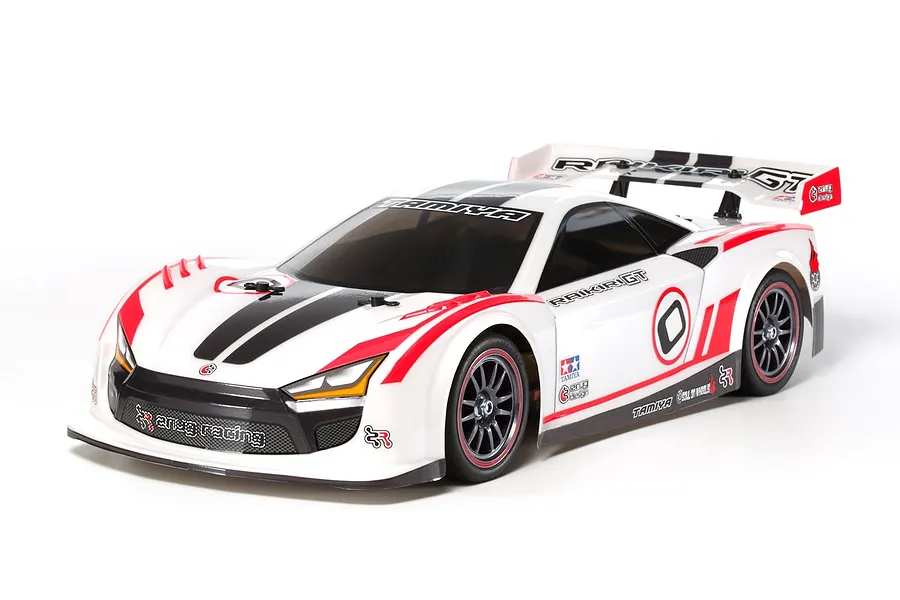

The Raikiri GT body shell is the brainchild of Japanese designer Kota Nezu of znug design, who has contributed to a number of popular Tamiya products. The wide and low-down form of the Raikiri GT has been adapted for use on electric R/C cars and is equipped with a stylish wing at the rear. Markings are also included to decorate the body.

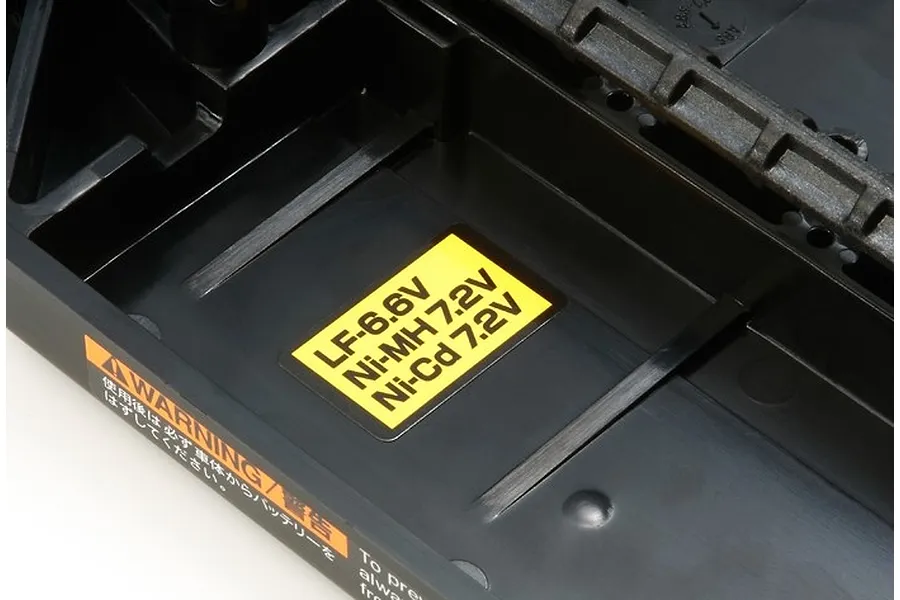

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. It features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes, and offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. Gun Metal colour 12-spoke rims are paired with slick tyres.

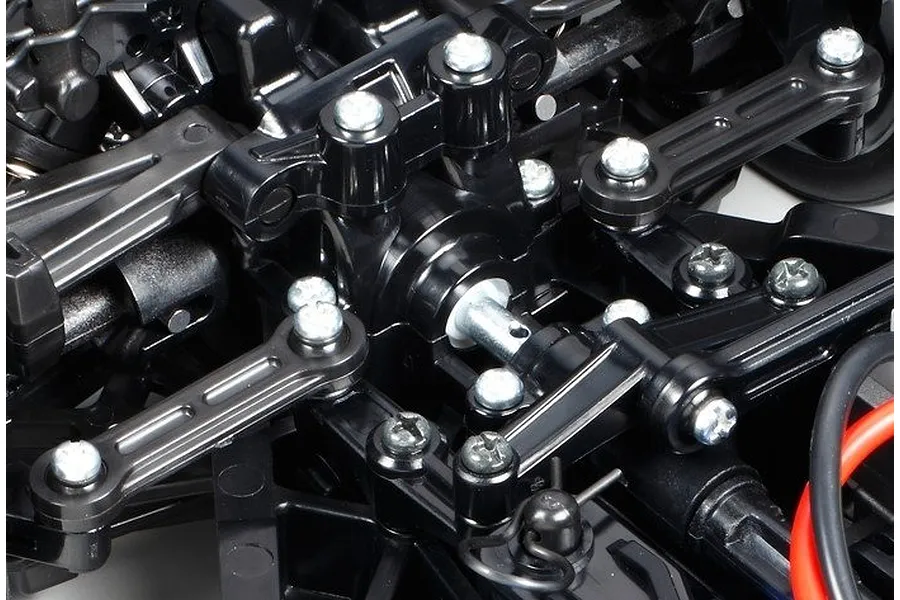

Smooth Precision Steering Linkages
Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

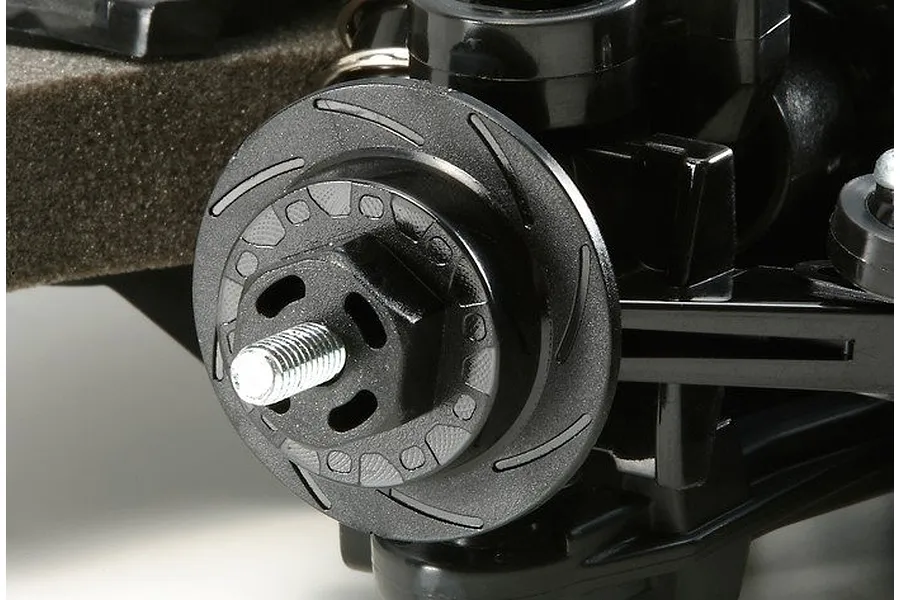

Stylish Brake Disc Wheel Hubs
Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

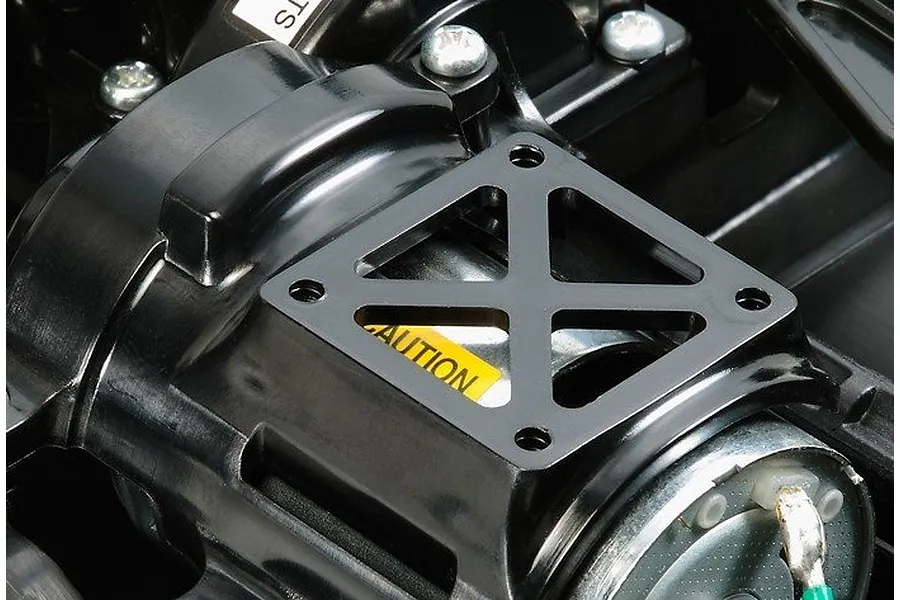

Efficient Motor Cooling Cover
Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Rear Double-Wishbone Suspension
Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

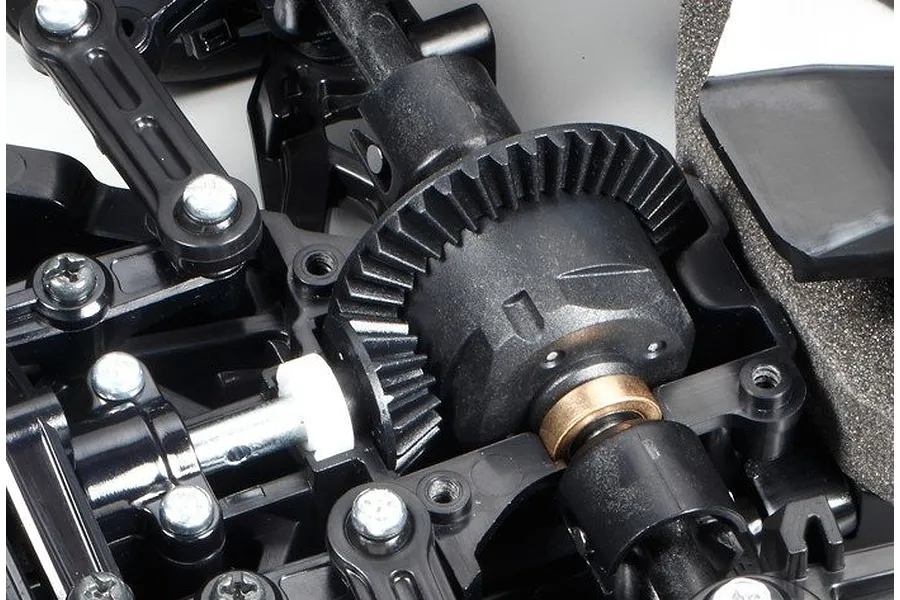

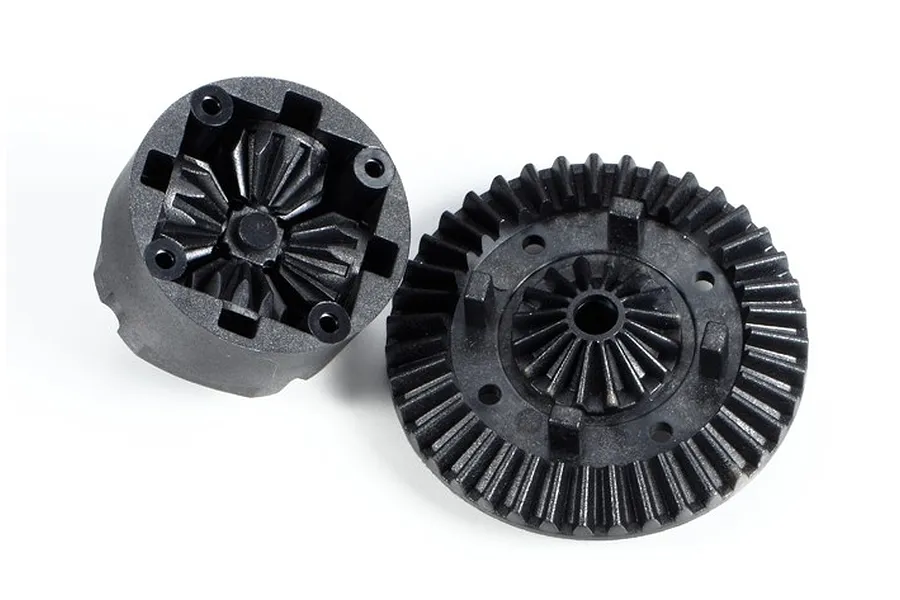

Smooth Planetary Gear Diffs
Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

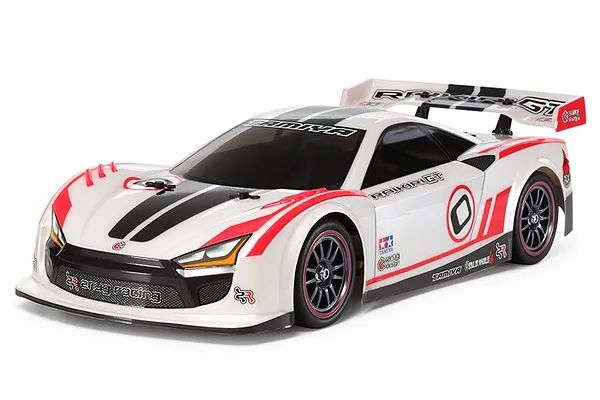

Sword Like Aerodynamics
Sword Like Aerodynamics

The Raikiri GT is a fusion of sharp lines and aerodynamic efficiency, inspired by the legendary sword, Raikiri. Its low profile, aggressive stance, and unique wing design create an electrifying look ready to dominate the track.

Wide Low Raikiri GT Body
Wide Low Raikiri GT Body

The wide and lowdown form of the Raikiri GT has been adapted for use on electric R/C cars, and is bound to turn heads at the local racetrack.

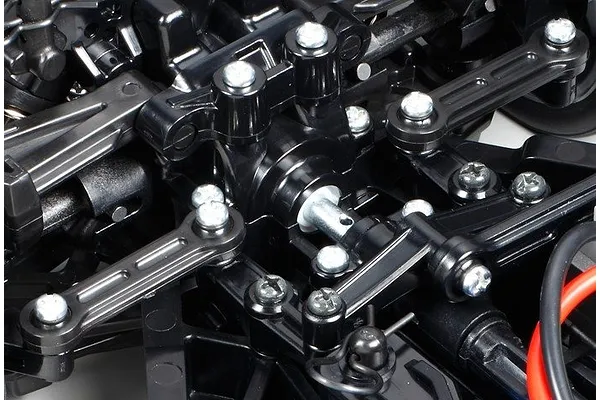

Tamiya TT-02 Raikiri GT chassis detail
Tamiya TT-02 Raikiri GT chassis detail

The gearbox cover can be removed by simply loosening screws on the frame.

Tamiya TT-02 Raikiri GT body shell detail
Tamiya TT-02 Raikiri GT body shell detail

Markings are also included to decorate the body.

Tamiya TT-02 Raikiri GT wheel hub detail
Tamiya TT-02 Raikiri GT wheel hub detail

The wheel hubs are designed to look like brake discs.

Tamiya TT-02 Raikiri GT assembly/parts detail
Tamiya TT-02 Raikiri GT assembly/parts detail

Gun Metal colour 12-spoke rims are paired with slick tyres for a racey finish.

Features
  • Highly detailed 1/10 Raikiri GT clear polycarbonate body shell
  • Super tough bathtub type chassis
  • Balanced longitudinal chassis layout
  • Adjustable wheelbase
  • Shaft-driven 4WD system
  • Front/rear 4-bevel resin differentials
  • 3-piece steering tie-rod system for superior handling
  • 4-wheel double wishbone suspension
  • Front/rear friction dampers
  • Powerful brushed 540 motor
  • Racing Wing set A (Item 54457) included, with wing stay mounts allowing different aero setups
Included Items
  • 1x 1/10 TT-02 Raikiri GT Electric On Road RC Car Kit
  • 1x Set of Decals
  • 1x Product Manual
Required Items
  • 7.2V NiMH Battery & Compatible Charger
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver
  • Tamiya PS Paint
Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Videos
Specifications
Scale
1/10
Length
432mm (17.0")
Width
188mm (7.40")
Height
114mm (4.48")
Wheelbase
257mm (10.1")
Body Shell
Clear Polycarbonate
Chassis Type
TT-02
Construction Type
Kit
Motor
540-Brushed Type
Electronic Speed Control (ESC)
Not Included
Wheel Drive
4WD
Gear Ratio
8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Shocks
Friction Front & Rear
Suspension
Fully independent double wishbone
Terrain Use
On-Road

RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Beginner
Power Source
Electric
Chassis Type
Car
On/Off Road
On Road
Drivetrain
4WD
Factory Specs
Max LiPo Power
3S (11.1v)
Battery Connector
Not Included
Pinion Gear
22T
Spur Gear
70T
Wheel Hex Size
12mm
