Kyosho Ultima RB7.5 RC Buggy Electric 2WD 1/10 Scale Kit
Kyosho Ultima RB7.5 RC Buggy Electric 2WD 1/10 Scale Kit
- Updated RB7.5 for high-performance racing
- Easy conversion for dirt or carpet tracks
- Carbon fibre stays & aluminium updates
- Big-bore oil shocks & extensive tuning
- Engineered for pros who demand top performance!
This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.
Experience the evolution of a champion with the Kyosho Ultima RB7.5 RC Buggy Kit! This high-performance 2WD racer builds on a rich history of speed and world championship titles. The RB7.5 incorporates numerous refinements for even greater speed and performance, making it a top-tier choice for competitive drivers. Enjoy the rewarding fun and challenge of building this advanced racing machine yourself!
This kit is packed with high-performance updates. Build it with new big-bore oil shocks featuring X-ring seals and lightweight, durable carbon fibre shock stays with a front guard. Aluminium rear bulkheads and hub carriers enhance rigidity and setup options. New aerodynamics with a front wing, cabin spoiler, and improved rear wing optimise performance. Ready for dirt or carpet tracks, this Ultima model is built to meet the demands of high-level competition!

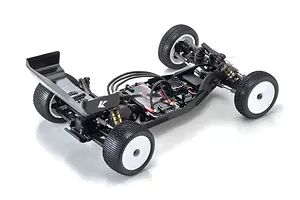

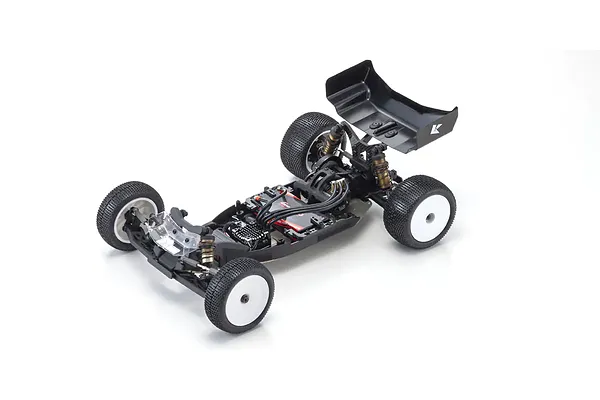

This rear-wheel-drive off-road buggy boasts a midship layout, placing the motor just ahead of the rear wheels for optimal weight distribution and agility. The high-rigidity duralumin main chassis has been subtly modified, carrying over the proven low-profile gearbox and other key components from the Ultima RB7 for a refined driving experience.

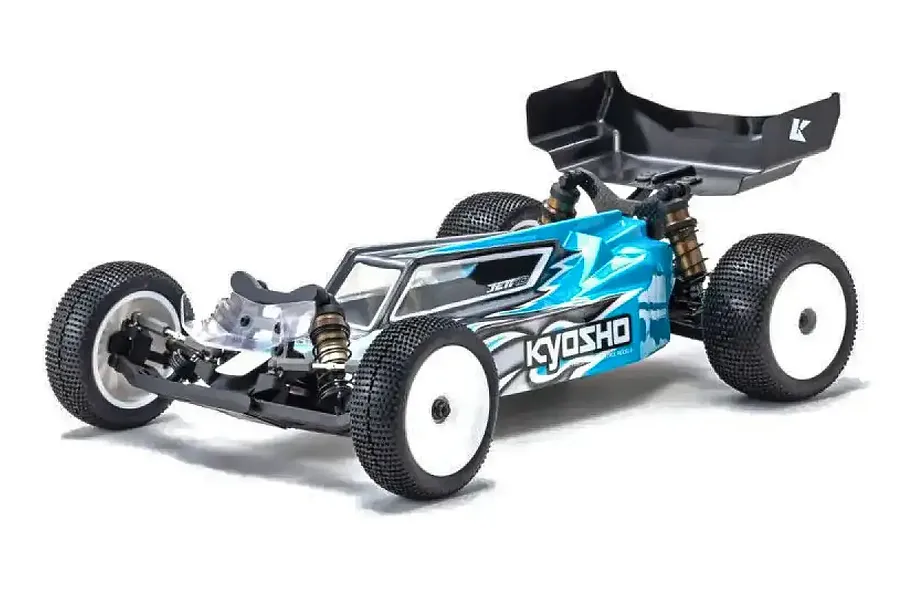

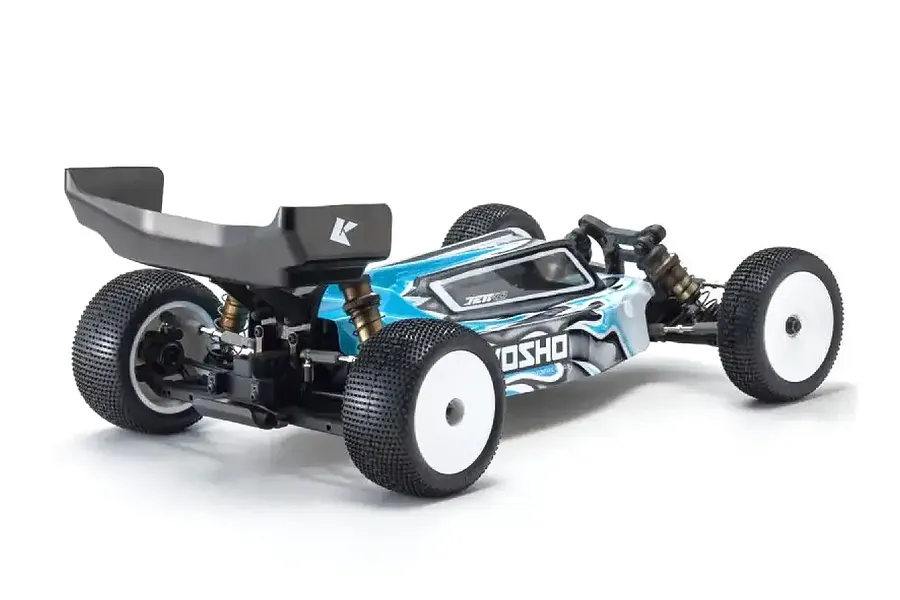

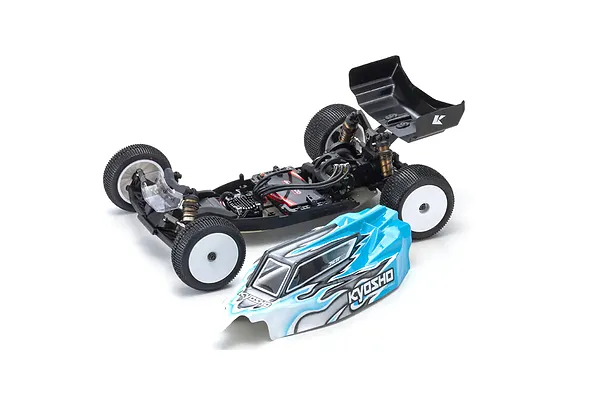

The new body, based on the superb aerodynamics of the RB7, features design modifications to the rear cabin for even greater efficiency. The rear wing has also been completely redesigned for increased strength, generating powerful and stable downforce for enhanced high-speed stability and control.

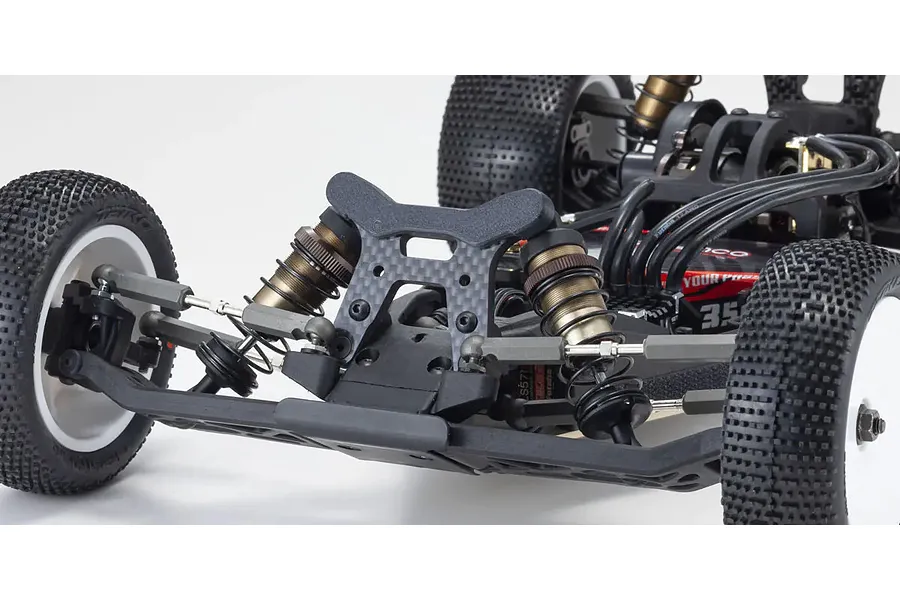

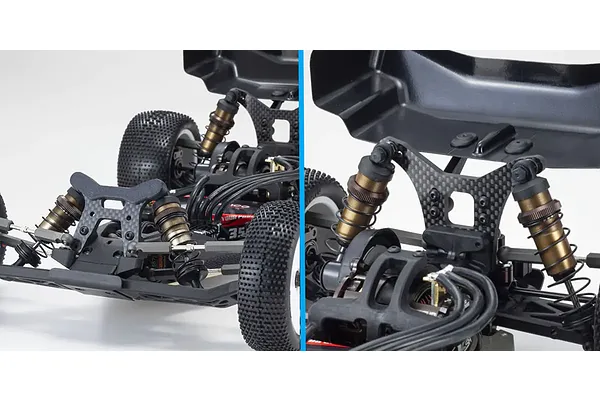

The front and rear shock towers have been upgraded from plastic to 4mm thick carbon fibre, significantly increasing strength and rigidity. These new towers offer better protection during rollovers. New aluminium oil shocks with 13mm pistons further enhance stability at high speeds and over uneven surfaces, effectively absorbing landing impacts, with improved springs for superior performance.

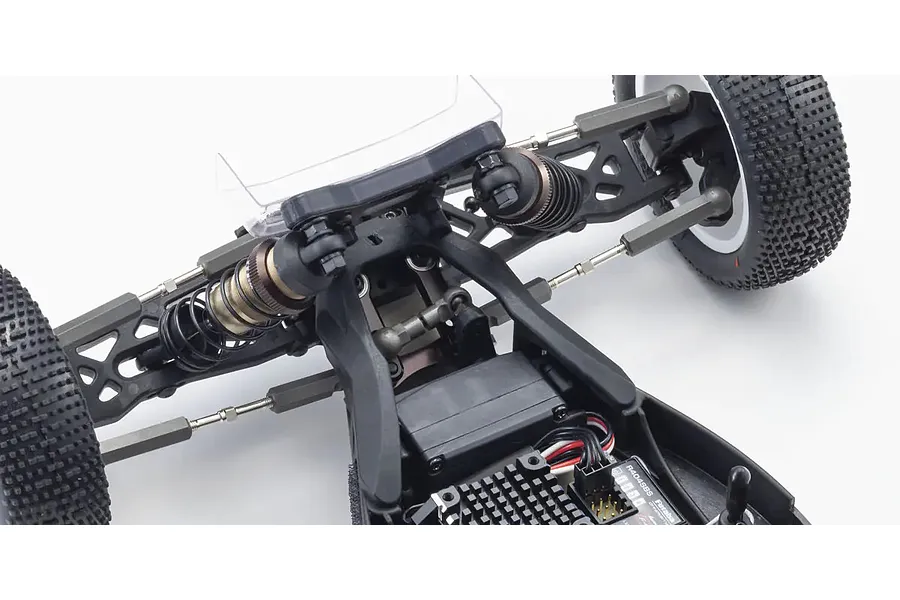

For a direct and responsive connection to the track, the Ultima RB7.5 utilises an aluminium steering crank and plate. This setup offers high rigidity and smooth operation, translating your inputs into precise wheel movement. The redesigned upper bulkhead ensures trouble-free servo horn operation.

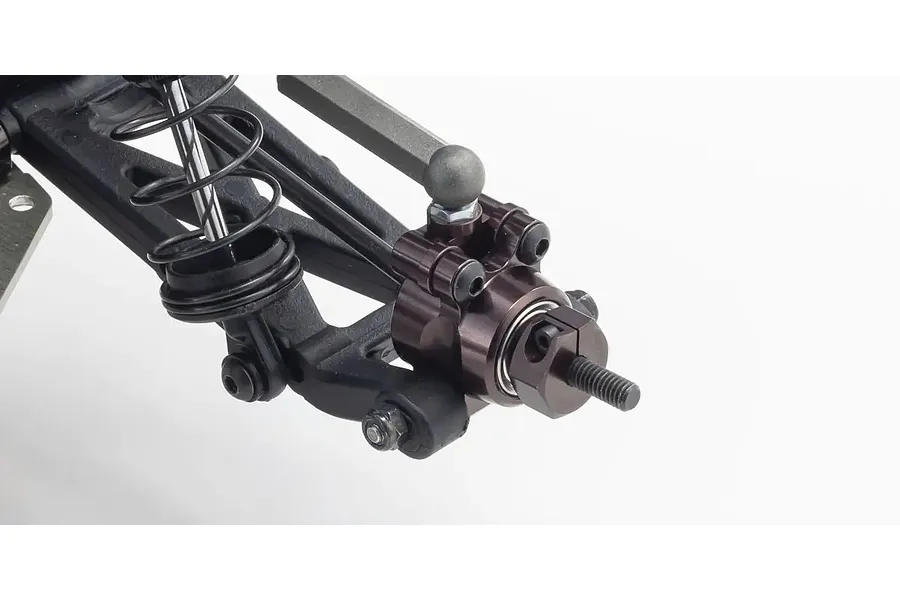

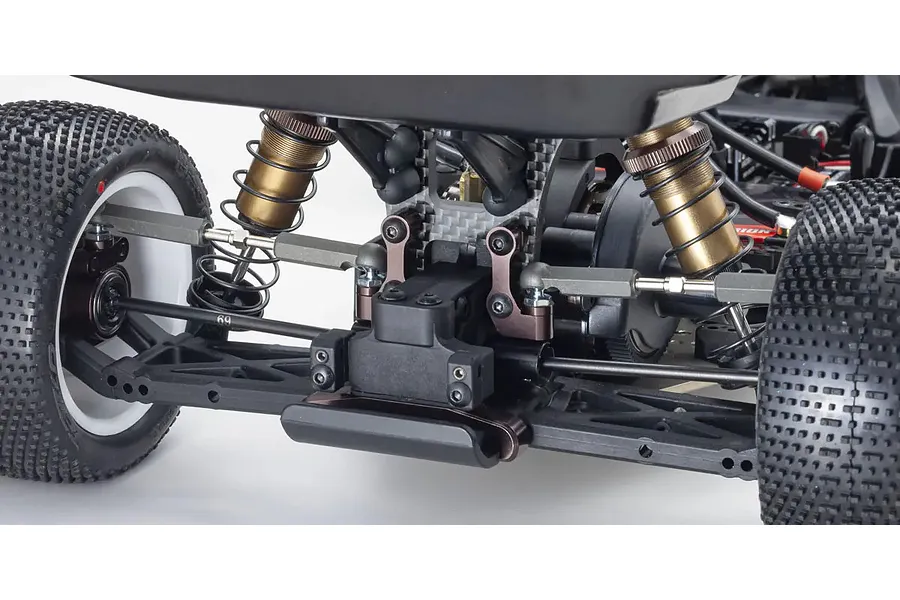

The Ultima RB7.5 offers a highly tunable rear suspension. The redesigned aluminium hub carriers allow for upper rod length adjustments and increased bearing support, while the new rear bulkhead with a separate upper rod mount enables precise changes to the suspension geometry for maximum grip and stability.

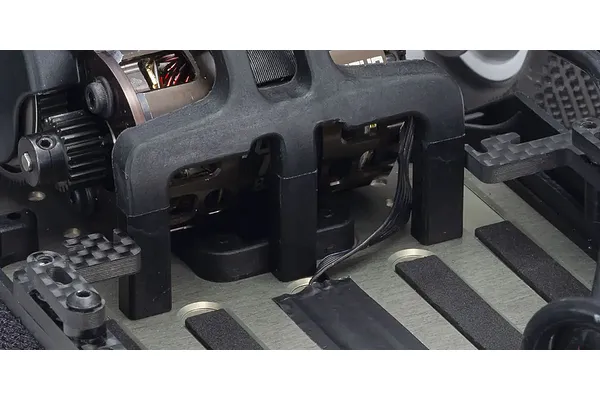

The addition of the centre bulk support significantly increases the rigidity of the chassis, resulting in improved traction and more consistent handling, particularly when accelerating out of corners. This enhanced stiffness provides a more planted and predictable feel, allowing you to carry more speed through turns.

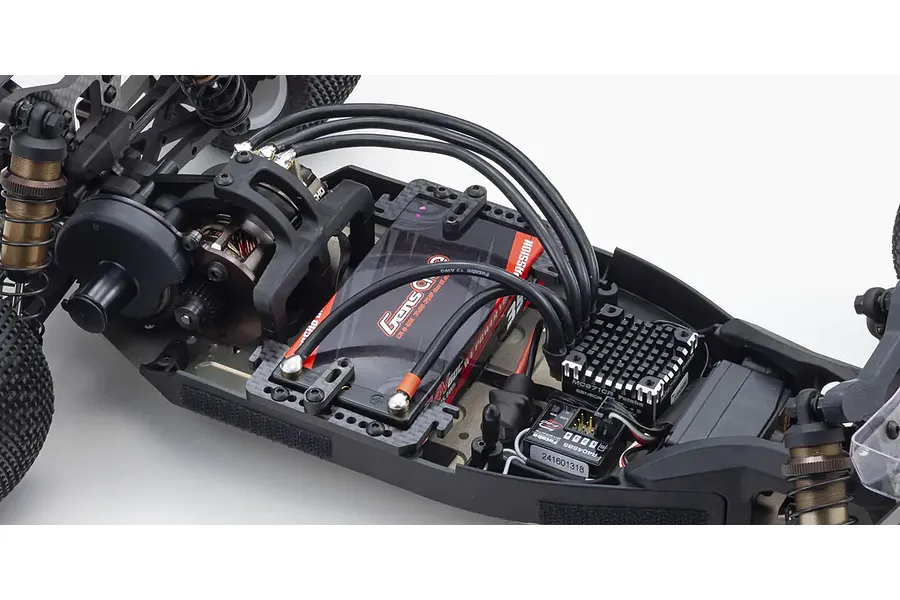

The LCG battery mount allows for convenient forward-back weight distribution adjustments, featuring a tool-free, one-touch system for quick battery installation and removal. This makes it easy to fine-tune the buggy's handling characteristics to suit different track conditions and driving styles.

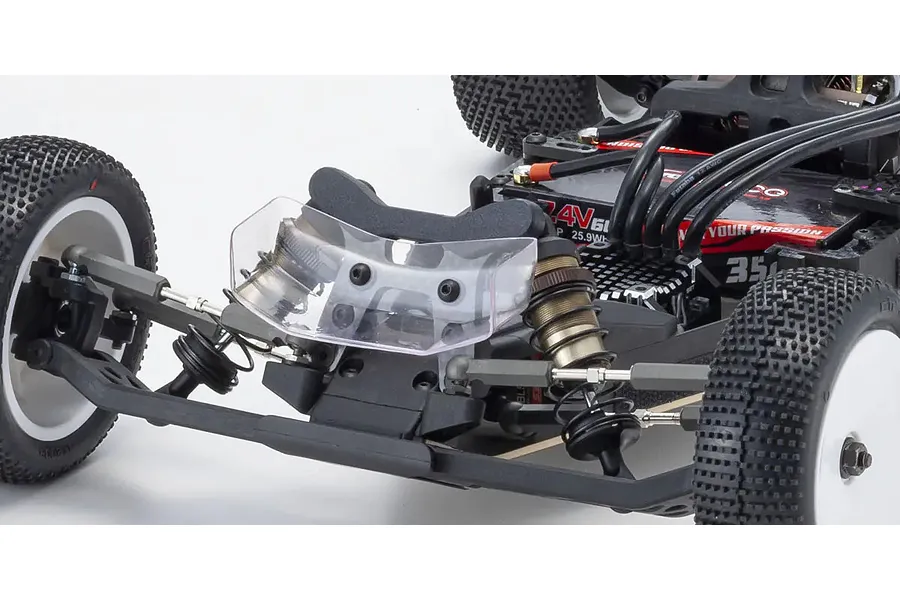

The previously optional front wing is now included as standard, providing an effective tuning part to adjust the buggy's aerial posture during jumps. It also influences cornering characteristics, allowing you to fine-tune the front-end grip and overall handling to your preference.
The addition of the centre bulk support significantly increases the rigidity of the chassis, resulting in improved traction and more consistent handling, particularly when accelerating out of corners. This enhanced stiffness provides a more planted and predictable feel, allowing you to carry more speed through turns.
- High-performance 2WD racing buggy kit (RB7.5 evolution)
- Build the durable duralumin main chassis & laydown gearbox
- New big-bore oil shocks & lightweight carbon fibre shock stays
- Aluminium rear bulkheads, hub carriers & updated steering cranks
- Includes ball differential, slipper clutch & chrome-moly turnbuckles
- New body design with front wing, cabin spoiler & improved rear wing
- LCG battery mount with tool-free quick change
- Engineered for easy assembly, maintenance & extensive tuning
- Kit requires assembly; requires separate electronics, battery, charger & tyres
- Genuine Kyosho Product
- Length: 395mm (15.55")
- Width: 249mm (9.80")
- Height: 148mm (5.83")
- Wheelbase: 277mm (10.91")
- Weight: N/A
- Chassis: High-Rigidity Duralumin Tub / Modular Composite
- Suspension: Double Wishbone Front/Rear, Oil-Filled Adjustable Shocks
- Drivetrain: 2WD Midship Motor with Slipper Clutch
- Motor: N/A
- ESC: N/A
- 1x Kyosho Ultima RB7.5 Unassembled Kit
- 1x Clear Bodyshell (Requires Painting)
- 1x Rear Wing
- 1x Ball Differential Grease
- 1x Grease
- 1x Set Of Hex Wrenches (1.5/2.0/2.5mm)
- 1x Cross Wrench
- 1x 2-Channel Or 3-Channel Transmitter
- 1x Compatible Receiver
- 1x Steering Servo
- 1x Electronic Speed Control (ESC)
- 1x Compatible Electric Motor (540 Size)
- 1x Compatible Pinion Gear
- 1x Set Of Tyres (Front And Rear)
- 1x Set Of Tyre Inserts (Front And Rear)
- 1x Battery Pack (For Chassis)
- 1x Compatible Battery Charger
- 1x Lexan/Polycarbonate Body Paint
- This product is a high-performance racing kit that requires full assembly.
-
Suited Motor/ESC Type
- Electric
-
Spur Gear
- 76T 48dp/0.5Mod
-
Max LiPo Power
- 2S (7.4v)
-
Wheel Hex Size
- 12mm
-
Pinion Gear
- Not Included
-
Front Shock Oil
- 400cSt
-
Rear Shock Oil
- 400cSt
-
Battery Connector
- Not Included
-
Completion
- Kit
-
Drivetrain
- 2WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- Off Road
-
Chassis Type
- Buggy
-
Power Source
- Electric
-
Skill Level
- Expert
-
Scale
- 1/10
