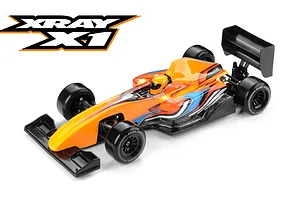

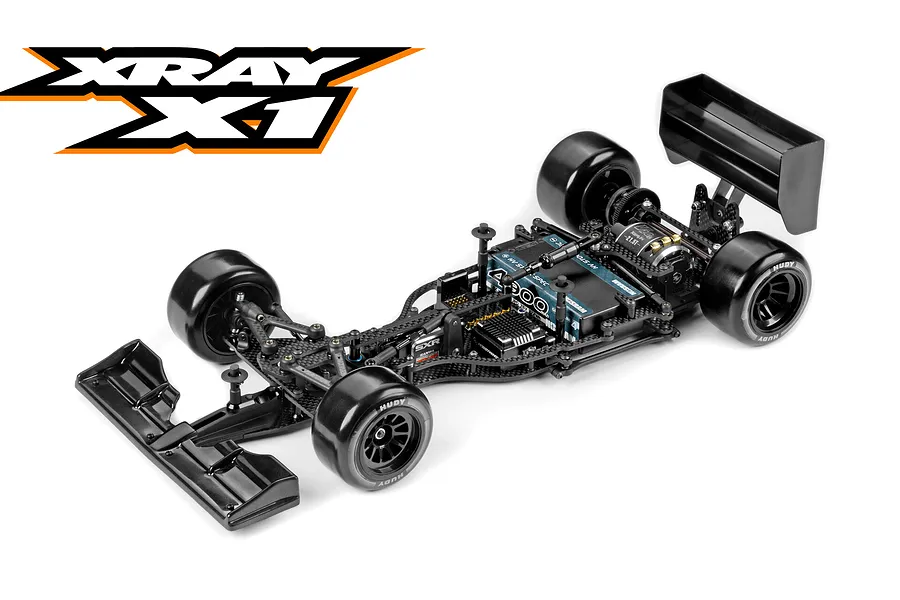

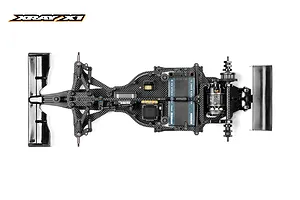

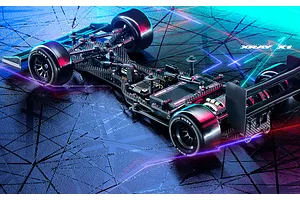

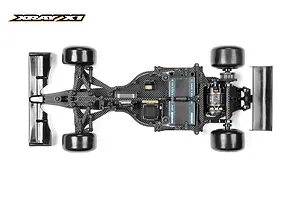

XRAY X1'25 Luxury RC Formula One Car Electric 2WD 1/10 Scale Kit
XRAY X1'25 Luxury RC Formula One Car Electric 2WD 1/10 Scale Kit
This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell or Radio System.
The XRAY X1'25 is the latest evolution of the high-performance X1 platform, meticulously crafted to elevate your 1/10 scale Formula One racing experience. This pro-level kit incorporates a host of innovative features, including a new one-piece chassis design that provides consistent handling and improved tweak resistance. The re-designed rear POD concept and suspension provide less drag, greater adjustability, and a lower CG. With improvements to the front suspension, steering, and chassis, the X1'25 is designed for unparalleled precision and speed. This 2WD electric F1 RC car is built for victory, incorporating feedback from top racers and XRAY's renowned engineering expertise.
The X1'25 isn't just about cutting-edge design; it's about dominating the track. The chassis and suspension are optimised for a variety of track conditions, ensuring you can fine-tune the car to your exact racing style. Innovative features, such as the Snap Lockâ„¢ Bushings and redesigned lower arms, make assembly, maintenance, and durability a breeze. The adjustable battery positioning and wing mounting system allow for perfect weight distribution and aerodynamic balance. With its adjustable features, this RC car is engineered for those who demand the best and are not afraid to push the boundaries of speed and control on the track.
The X1'25 represents a significant leap forward in RC Formula One car design, offering an unmatched level of adjustability and performance. From the adjustable rear wing and battery mounting system to the versatile side link and POD adjustments, every aspect of this car can be tailored to your preferences and the specific demands of each race. This meticulous attention to detail ensures that the X1'25 isn't just fast, but consistently fast, allowing you to fine-tune your setup for optimal performance lap after lap. Whether you're a seasoned pro or an aspiring champion, the X1'25 provides the tools and technology to help you achieve your racing goals.

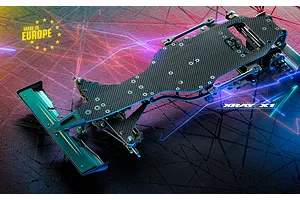

All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance
Narrower chassis shape reduces chassis drag during cornering
Rear POD concept on top of chassis for less drag and improved tweak resistance
Adjustable POD angle controlled by a set screw at the rear of the chassis for fine-tuning
Rear spring location improves forward traction with increased adjustability and lower CG
Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster
Universal rear spring nut holder works for both conical and linear springs
Ultra-light, lower CG bulkheads are the foundation of the new POD system
Lowered pivot holder and small diameter pivot ball offer lower roll centre positions and greater adjustment range
Carbon fibre top plate for centre shock and side damper mountings
New spring-free centre shock absorber with 1-hole piston provides exceptional bump handling and helps lower CG
Side braces with a narrower design save weight and leave more space for electronics
New wing mounting system saves weight and provides a cleaner design with improved durability and track width adjustment
New adjustable wing angle for greater adjustment possibilities
New redesigned lower arms with more material around the holes for improved durability
New battery mounting system works with rear brace and front backstop for convenient installation
Aluminium side spring retainers for more precise and consistent side spring mounting
Genuine XRAY product
Length: N/A
Width: N/A
Height: N/A
Wheelbase: N/A
Weight: N/A
Chassis: Carbon Fibre
Suspension: Front - Independent, Rear - POD
Drivetrain: 2WD
Motor: Not Included
ESC: Not Included
1x XRAY X1'25 Luxury 1/10 Scale Electric Formula One Car Kit
1x Set of XRAY Snap Lockâ„¢ Bushings
1x Rear POD Spring (Soft, Conical/Progressive)
1x Instruction Manual
1x 540 Size Sensored Brushless Motor
1x Electronic Speed Controller (ESC) for 1/10 Scale
1x 2S LiPo Battery (Shorty Pack Recommended)
1x Battery Charger for LiPo Battery
1x 2-Channel Radio System
1x Steering Servo
1x 1/10 Scale Formula One Car Body
1x Set of 1/10 Scale Formula One Car Tyres
1x Pinion Gear
This is an unassembled kit that requires building and additional items for completion. The vehicle is designed for use on prepared, high-grip surfaces such as carpet or asphalt tracks.
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
-
Completion
- Kit
-
Skill Level
- Expert
-
Power Source
- Electric
-
Chassis Type
- Car
-
On/Off Road
- On Road
-
Drivetrain
- 2WD
-
Suited Motor/ESC Type
- Electric
-
Max LiPo Power
- 2S (7.4v)
-
Battery Connector
- Not Included
-
Front Shock Oil
- 550cSt
-
Rear Shock Oil
- 15000cSt
-
Rear Differential Oil
- 8000cSt
-
Pinion Gear
- Not Included
-

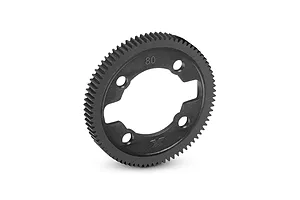

Spur Gear
- 80T 64dp
-
Wheel Hex Size
- 12mm
