Futaba 10PX 2.4Ghz 10ch Radio with 2x R404SBSE Receivers

Name: Futaba 10PX 2.4Ghz 10ch Radio with 2x R404SBSE Receivers
Brand: Futaba
SKU: FUT-10PXR404SBSE
Price: 1091.98 AUD
Availability: InStock
Rating: 5 (1 reviews)

Part no. 10PXR404SBSE

1 in stock5.0

1 review

1 / 6

$1,091.98

or 4 fortnightly payments of $273.00 with afterpay or PayPal, or zip

Get Race-Ready With the Futaba 10PX 2.4Ghz 10ch Radio, a Precision System Bundled With Two High-Speed F-4G Telemetry Receivers

Pro-Level System for Surface RC Cars and Boats

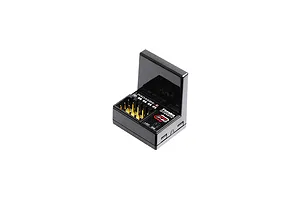

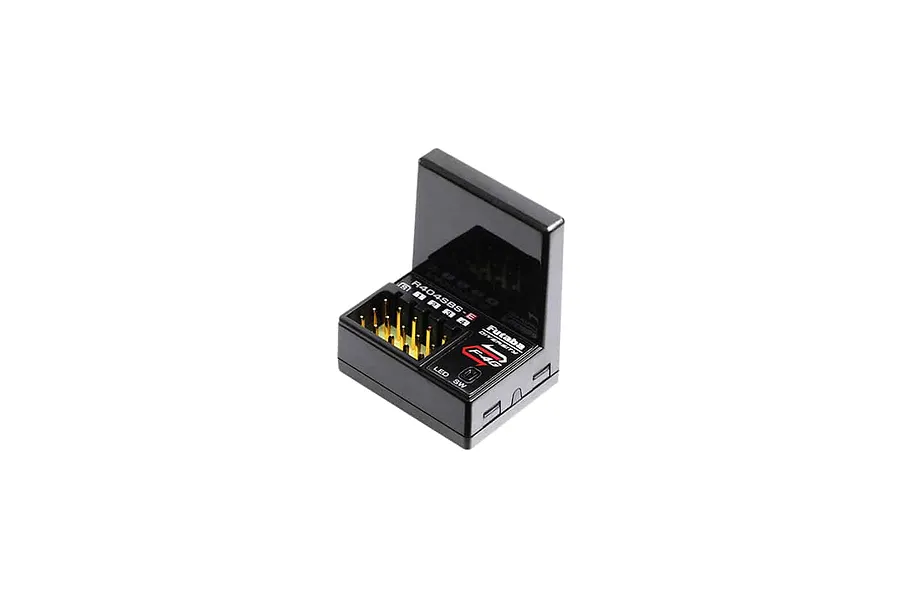

Includes Two R404SBS-E F-4G Telemetry Receivers
Large 4.3 Inch Full-Colour HVGA Touch Screen
Extensive Mixing Options for Crawlers and 1/5 Scale
Complete Package for Advanced Control Out of the Box

Want more than 1? and we'll email you when they're here.

1 in stock · Ships Thursday · order by 1:00pm Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

You'll need

Not included: 1x Transmitter Battery.

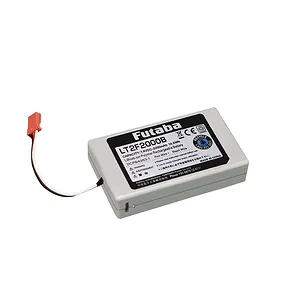

LiPo BatteryFutaba 7.4V 2000mAh Li-Ion Hard Case Transmitter Battery
$142.90
Sold out · notify me

Will it fit?

Check fit: add your vehicle to My Garage Fits 5 vehicles

Overview

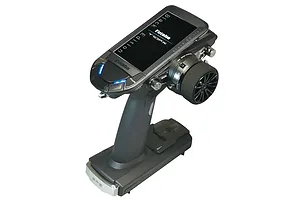

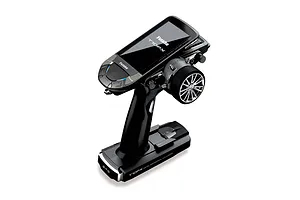

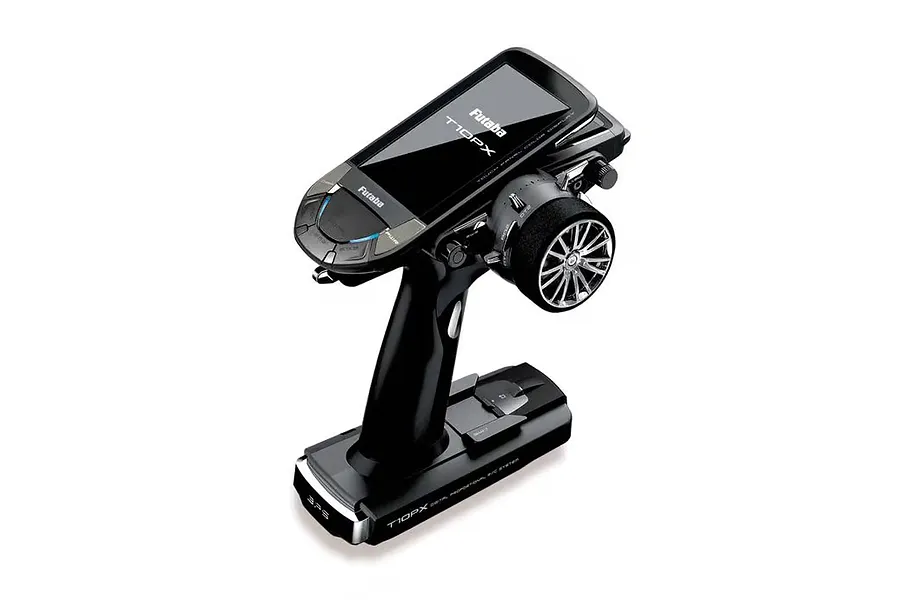

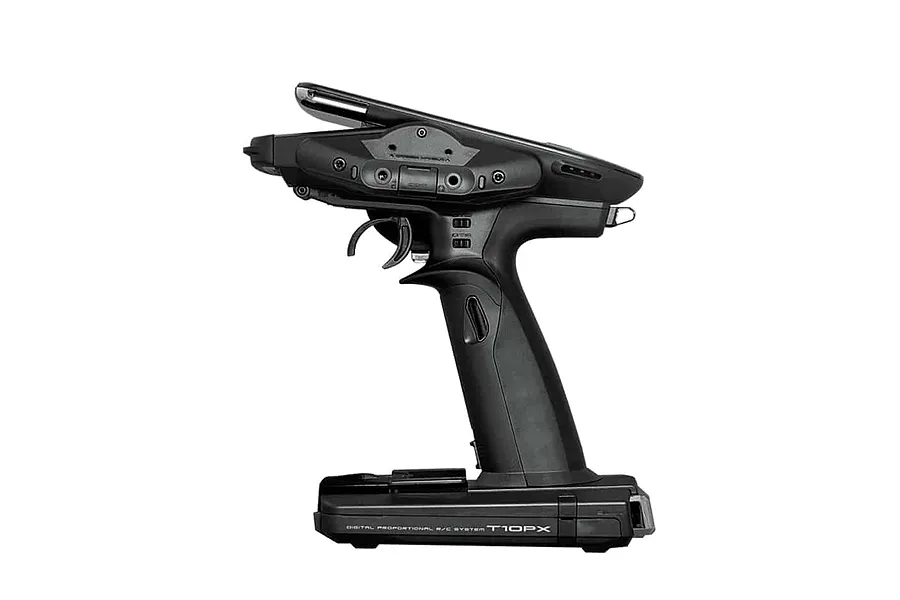

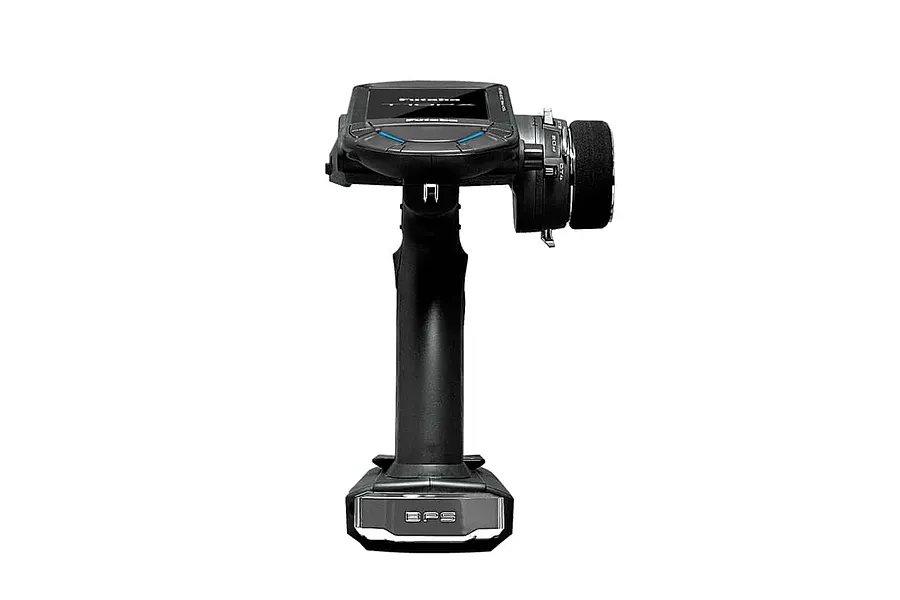

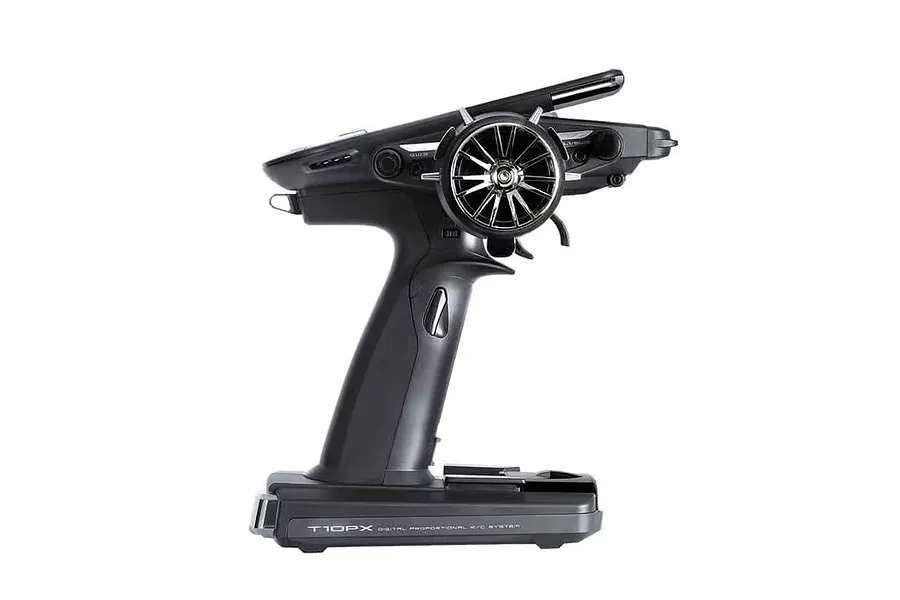

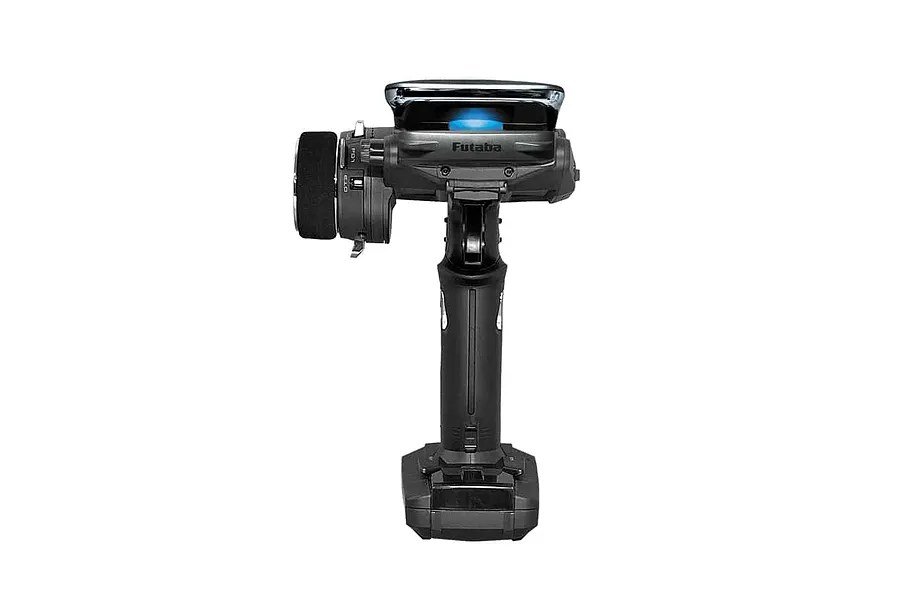

The Futaba 10PX is a 10-channel, 2.4GHz digital proportional RC system designed for surface vehicles. It features the F-4G communication system for telemetry with faster response than the T-FHSS SR system, a 4.3-inch full-colour backlit LCD touch screen, and support for up to 10 channels via the S.BUS2 system. This bundle includes two R404SBSE receivers.

Note

A microSD card (not included) is required for software updates and saving model data.

The optional LT2F2000B LiPo battery can be used as the transmitter power supply.

The Kyosho Mini-Z Evo dedicated receiver RA-42 requires separate purchase.

Features

Full-colour touch screen: HVGA 4.3-inch, full-colour, backlit LCD touch screen; transflective for both indoor and outdoor visibility
F-4G system and telemetry: enables telemetry with faster response than the T-FHSS SR system
10 channels: up to 10 channels can be operated using the S.BUS2 system
T-FHSS MINIZ system: supports Kyosho Mini-Z Evo dedicated receiver RA-42 (purchased separately)
Updateable software: software can be updated by microSD card; model data and telemetry log data can also be saved to microSD
Model memory for 40 models: model names support up to 15 letters, numbers, and symbols; model copy function available
Paddle switch, bottom switch, and 3-position switch for multiple channel and function support
Optional LT2F2000B LiPo battery can be used as transmitter power supply
Brake mixing for large cars: front and rear wheel brake mixing for 1/5 GP and other large cars adjustable independently
Steering mixing: independent left and right steering servo setting
4WS mixing for crawlers and other 4-wheel steering types
Dual ESC mixing for crawlers: front and rear ESC controlled independently
Gyro mixing: sensitivity of Futaba car rate gyros adjustable from the T10PX
Tank mixing for vehicles such as tanks
CPS mixing: LED lighting and flashing control using CPS-1 channel power switch, matched to steering and throttle operation by switch only

In the box

1x T10PX Transmitter
2x R404SBS Receiver
1x Dry Battery Holder
1x Wheel Offset Adapter (two sizes, APA) with mounting screws
1x Wheel Adapter 32 deg
1x Wheel Angle Spacer 5 deg
1x Large Diameter Steering Wheel
1x Trigger Guard (L x1 / R x1)
1x Grip Rubber
2x Blind Paddle
1x Hex Wrench
1x Short Manual

You'll need

1x Transmitter Battery

Add them from the buy box

Specifications

System	Wheel type, 10 channels (F-4G system), 4 channels with T-FHSS-SR / T-FHSS system
Transmitting frequency	2.4GHz band
Transmitting RF power output	100mW EIRP
Protocols	T-FHSS-SR / T-FHSS / S-FHSS / F-4G
Power requirement	LiPo NLF2F2000B (7.4V) or LiFe FT2F1700BV2 (6.6V)
Current drain	350mA or less (T-FHSS, vibration off, backlighting on)
Transmitting antenna	1/2 dipole
Display	4.3-inch backlit colour TFT touch panel
Receiver size	25.5 x 20.7 x 10.6mm (1.00 x 0.81 x 0.42")
Receiver weight	5.7g (0.2oz)
Receiver operating voltage	DC 3.7–7.4V

Transmitter

Channels	10Ch
Layout	Pistol
Operating Frequency	2.4Ghz
Telemetry Capable	Yes
Programmable Failsafe	Yes

Receiver

Channels	4Ch
Suited Vehicle Type	Surface
Telemetry	Yes
Operating Frequency	2.4Ghz
FailsafeWhen connection is lost with the remote the fail safe will stop the vehicle.	Yes
