Australia's Ultimate Hobby & RC Shop.

Tamiya

Tamiya TT-02 1992 Audi V8 Touring RC On Road Car Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit
  • Brushed

Part no. 58699

DiscontinuedWrite a review
1 / 2
1 / 2

Overview

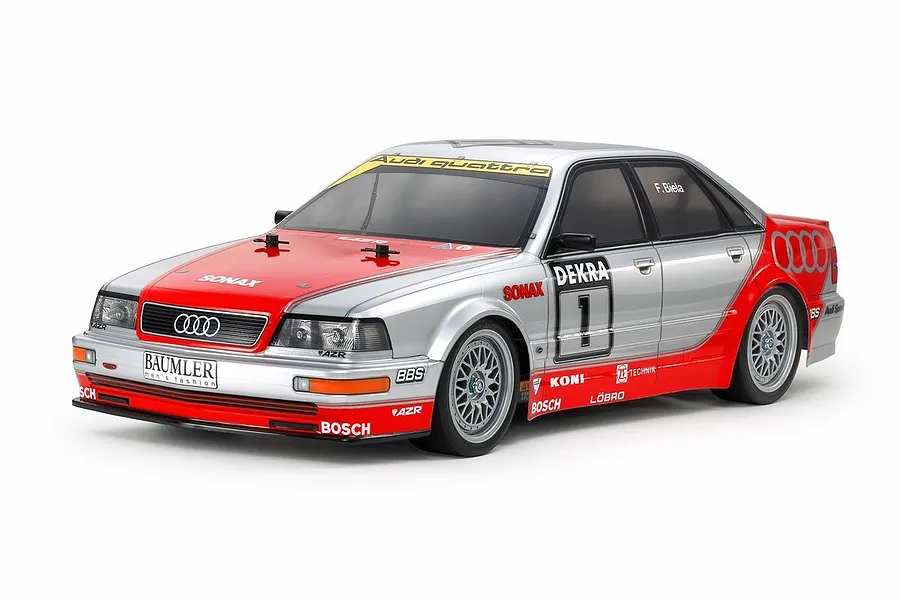

The 1992 Audi V8 Touring employed an improved 3.6-litre V8 engine, Audi's famed Quattro four-wheel drive, and an imposing body — showing off overwhelming strength, including a podium sweep at the 1st race of the 2nd meet at the Nürburgring. This 1/10 scale assembly kit reproduces that car on the adaptable shaft-driven 4WD TT-02 chassis. The TT-02 employs a longitudinal layout with the battery on the left and the motor on the right for excellent stability, and features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. Two different wheelbases, two ground clearance settings, two tread set-ups, and a range of 10 possible gear ratios make it a highly adaptable platform.

Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish this body — standard paints will not adhere and/or may cause damage to the body shell's surface.

Features

  • Includes Polycarbonate (clear unpainted) body shell
  • Window masking stickers included to aid in the paint job process
  • Stickers included to recreate the markings for the 1992 Audi V8 Touring
  • Two-piece mesh wheels with silver rims and spokes, paired with racing slick tyres
  • Separate parts included to depict side mirrors
  • A wealth of Hop-Up Option parts is available to tune the TT-02 chassis to your performance needs

You'll need

  • 7.2V NiMH Battery & Compatible Charger
  • 4 x AA Batteries
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver
  • Tamiya PS Paint

Highlights

Shaft-Driven 4WD TT-02 Chassis

Shaft-Driven 4WD TT-02 Chassis

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout offering excellent stability with brake disc-shaped wheel hubs.

Tamiya TT-02 Audi V8 kit product overview

Tamiya TT-02 Audi V8 kit product overview

Includes polycarbonate clear unpainted body shell with window masking stickers and 1992 Audi V8 Touring markings.

Specifications

Scale1/10
Construction TypeAssembly Kit
Length463mm (18.2")
Width188mm (7.40")
Height138mm (5.43")
Wheelbase257mm (10.1")
Adjustable Gear RatioYes
BearingsPlastic bushing
Body MaterialPolycarbonate
Body StickersIncluded
Chassis MaterialABS Plastic
Chassis TypeTT-02
Differential TypeGear
Drive Type4WD
Motor540-brushed type
Shock DamperFriction type
SuspensionFully Independent Double Wishbone
Terrain UseOn-Road

RC Car

Scale1/10
CompletionKit
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD

Factory Specs

Pinion Gear22T, 23T
Spur Gear70T
Wheel Hex Size12mm
