Name: Tamiya TT-02 Lamborghini Countach 5000S RC Car 4WD 1/10 Scale Kit - Limited Edition
Brand: Tamiya
SKU: TAM-47527
Price: 214.98 AUD
Availability: OutOfStock
Rating: 5 (2 reviews)

Overview

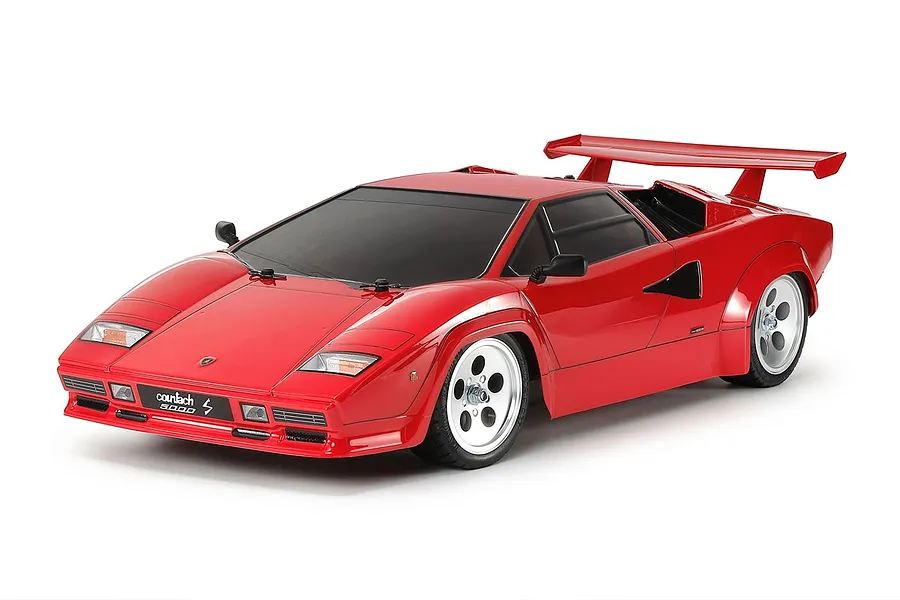

The Tamiya TT-02 Lamborghini Countach 5000S RC Car brings back a highly celebrated 1982 supercar design in a brand new limited-edition release. Sporting a distinctive wedge-shaped silhouette, the 1/10 scale unassembled kit features a detailed 1.0mm (0.04") thick clear polycarbonate body ready for custom painting. The exterior captures the racing spirit perfectly with separate white plastic parts depicting side mirrors and a rear wing, alongside metal-plated light cases compatible with aftermarket LED systems. The vehicle sits atop five-hole dish wheels wrapped in treaded racing radial tyres, ensuring the aggressive stance of the original V12 machine translates accurately to the local circuit.

Mechanical grip and reliability drive the engineering behind the versatile TT-02 chassis architecture. The bathtub frame employs a longitudinal layout, positioning the battery on the left and the motor on the right to deliver excellent cornering balance. Power is generated by a Torque Tuned 540 brushed motor managed by an included HobbyWing THW 1060 electronic speed control, feeding torque through an efficient shaft-driven 4WD system. The sealed gearboxes ensure the internal components remain protected from dust during fast runs.

Assembling a famous supercar offers a highly rewarding hobby experience. Complete the entire build process, apply the window masking stickers, and carve up the streets with a classic today!

Note

* Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.

Features

Classic 1982 supercar design returns in a limited edition unassembled car kit
Clear 1.0mm thick polycarbonate body arrives ready for custom paint applications
Separate plastic parts accurately depict the side mirrors and aerodynamic wing
Metal plated light cases arrive ready for optional aftermarket LED installation
Tuned 540 brushed motor provides excellent torque for street driving
Includes the Waterproof HobbyWing THW 1060 electronic speed controller
TT-02 chassis layout positions the battery and motor for high balance
Efficient shaft driven 4WD system ensures maximum traction on smooth surfaces
Fully independent double wishbone suspension absorbs harsh bumps on the track
Five hole dish wheels come wrapped in grippy tread pattern racing radial tyres
Sealed front and rear gear differentials prevent dust from entering the gears
Genuine Tamiya Product

In the box

1x Tamiya TT-02 Lamborghini Countach 1/10 Scale RC Car Kit
1x Tamiya 540 Brushed Motor
1x HobbyWing THW 1060 Brushed Electronic Speed Control
1x Clear Polycarbonate Bodyshell
1x Decal And Window Mask Sheet
1x Product Assembly Manual

You'll need

1x 2-Channel Radio System
1x Standard Steering Servo
1x 7.2V NiMH Or 7.4V LiPo Stick Battery w/ Charging/Storage Bag
1x Compatible Battery Charger
1x Tamiya PS Spray Paint
1x Assembly Tool Set

Highlights

Stylish Brake Disc Wheel Hubs

Add a touch of authentic realism to your TT-02 with its stylish wheel hubs, designed to mimic brake discs. This attention to detail elevates the model's appearance, making it look even more like a real racing machine.

Smooth Precision Steering Linkages

Experience incredibly smooth and precise control thanks to the steering linkage joints featuring resin ball links. This design ensures accurate command over your TT-02 chassis, enhancing your driving experience on any surface.

Smooth Planetary Gear Diffs

Equipped with reliable front and rear 4-bevel type planetary gears, the TT-02 ensures smooth and consistent power delivery to all four wheels. This design provides dependable traction and control, essential for dynamic driving.

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Efficient Motor Cooling Cover

The motor cover includes a clever, removable cooling duct engineered to significantly improve motor performance. This design helps keep your motor running at optimal temperatures, ensuring consistent power and reliability during extended use (duct not shown).

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

Dust and dirt-proof receiver case

To make sure the receiver keeps free of dust and dirt, the TT-02 is equipped with a cover that keeps it all out and ensures your receiver lasts longer.

Specifications

Length	445mm (17.52")
Width	203mm (7.99")
Height	117mm (4.61")
Wheelbase	257mm (10.12")
Weight	Adjustable
Chassis	TT-02 ABS Bathtub
Drivetrain	4WD
Suspension	Independent Double Wishbone
Motor	Tamiya 540 Brushed
ESC	HobbyWing THW 1060 Brushed

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Kit
Skill Level	Beginner, Intermediate, Experienced
Power Source	Electric
Chassis Type	Car
On/Off Road	On Road
Drivetrain	4WD

Factory Specs

Battery IncludedIncluded battery type or if sold separately.	Not Included
Pinion Gear	22T
Spur Gear	70T
Wheel Hex Size	12mm

Manuals

Tamiya TT-02 Lamborghini Countach 5000S RC Car ManualPDF, 12.17 MB, opens in a new tab
