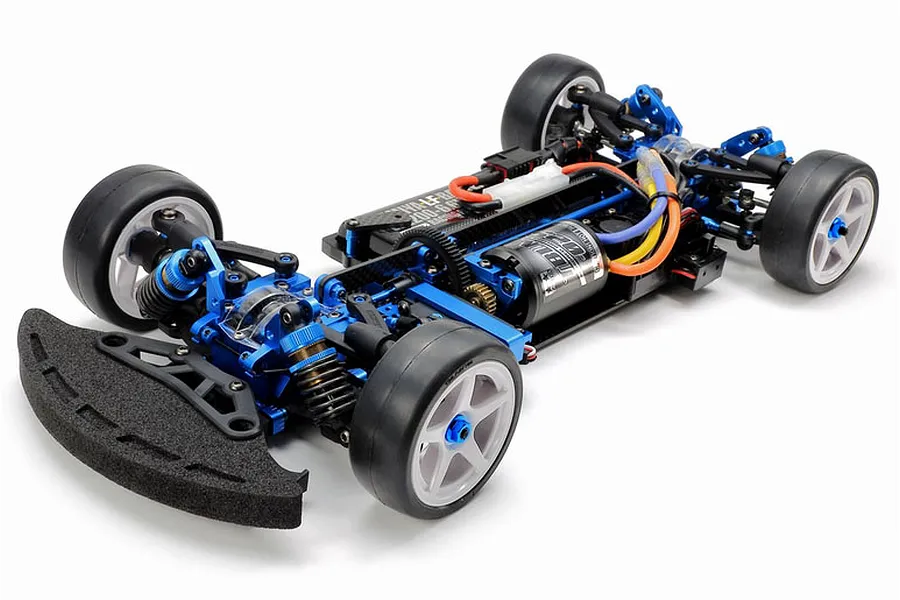

Tamiya TB-08 Evo RC On Road Car Electric 4WD 1/10 Scale Kit
Recommended Products
Description
Tamiya welcomes a new variant to the TB Evo. series — the fastest shaft-driven chassis produced by Tamiya — which started in the year 2000. With an updated chassis layout from the TB Evo. 7, its suspension features popular A-shaped suspension arms which was used for the Tamiya TA08 PRO Chassis kit. Additionally, the motor can be positioned in two locations.
Features
- 1/10 scale R/C shaft driven 4WD chassis assembly kit.
- Choose from two types of motor layout — front mid motor layout or rear mid motor layout.
- Lower deck and vertical upper decks are crafted in carbon fiber, and ensure pitch rigidity.
- Aluminium bulkhead and damper stay are one-piece component.
- 7mm suspension balls and king-pins are combined for smooth motion. (Item 22016)
- The front A-shaped arm suspension employs Super Short Big Bore dampers and uses 5.8mm balls to connect top and bottom sections for superior responsiveness.
- The rear suspension utilizes tie rods for easy adjustment of toe angle on upright side.
- The steering linkage is affixed directly to bulkhead to limit any impact upon chassis roll.
- Features efficient, fuss-free adjustment of motor backlash via two screws on chassis upside.
- Highly-efficient shaft-driven 4WD is achieved with a front direct coupling and double cardan drive shafts, plus a rear gear differential unit and aluminum drive shafts.
- Uses urethane front bumper (from Item 58693: TA08 PRO chassis) for great aerodynamics.
- Carbon fiber, floating R/C equipment deck attached by screws removes use of double-sided tape for maintenance.
Included Items
- Carrying case
Specifications
RC Car
-
Scale
- 1/10
-
Completion
- Kit
-
Skill Level
- Intermediate
-
Power Source
- Electric Brushed
-
Chassis Type
- Car
-
On/Off Road
- On Road
-
Drivetrain
- 4WD
Factory Specs
-
Max LiPo Power
- 2S (7.4v)
