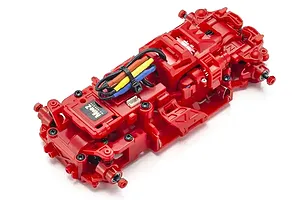

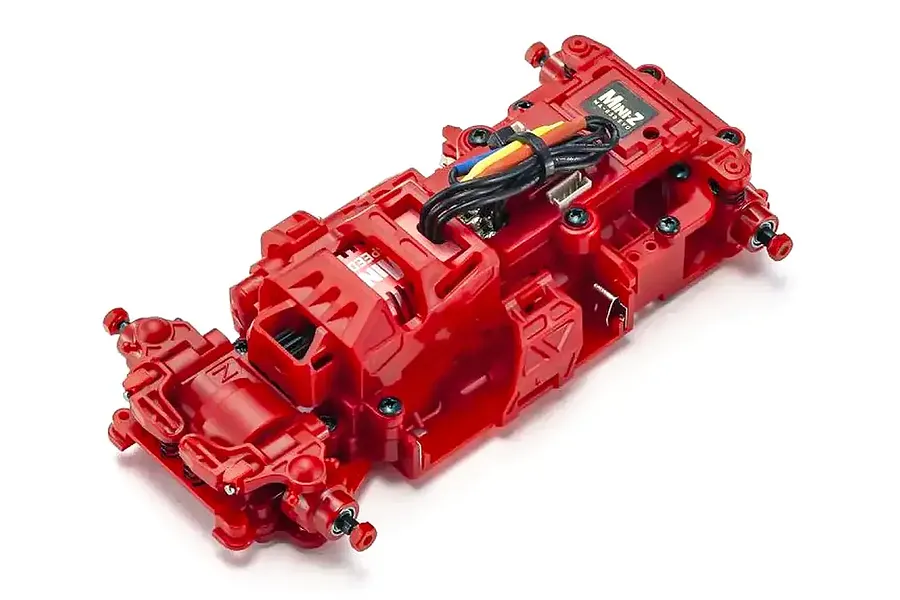

Kyosho MA-030EVO Mini-Z Touring Car Electric Brushless AWD Mini-Z Scale Car Kit - Red Limited Edition

The Kyosho Mini-Z MA-030 EVO Red Limited is a special edition chassis that takes AWD Mini-Z performance to the next level. This upgraded chassis features a striking red colour scheme and incorporates a range of innovative features for an unparalleled driving experience. The MA-030 EVO Red Limited allows you to use transmitters from various brands, giving you the freedom to customise your setup and control. The high-spec 5-stage gear type servo and special CPU deliver precise and responsive steering, while the KYOSHO SPEED HOUSE XSPEED 85 brushless motor provides optimal power and efficiency. With the I.C.S. manager, you can fine-tune settings and even switch to a brushed motor for added versatility. Whether you prefer drift driving or grip racing, the Kyosho Mini-Z MA-030 EVO Red Limited offers the ultimate in AWD performance and customisation.

• MA-030 AWD chassis is based on (Mini-Z) FWD MA-03F chassis
• Chassis set comes with separate ESC and receiver unit
• Includes KYOSHO SPEED HOUSE 85 brushless motor (KV8500)
• I.C.S manager enables precise setting control and use of either brushless or brushed motor
• Independent CPU control with increased processing speed delivers even more precise control
• Full ball bearing specifications reduces drive loss
• Includes rear double wishbone suspension.(Standard black colour)
• Compatible with L (94mm) and LL (98mm) wheelbases
• Only LL (98mm) can be used with rear double wishbone suspension set
• Compatible with optional parts for the various MR-03F chassis models
• Genuine Kyosho Product

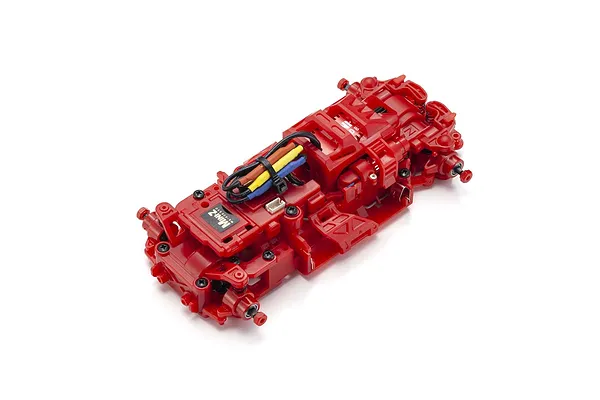

AWD MA-030 Chassis: Superior Handling with Front Midship Layout

AWD MA-030 chassis is based on the FWD (Mini-Z) MA-03F chassis. Front midship layout of the motor produces superior lateral and vertical weight distribution to realize excellent handling.

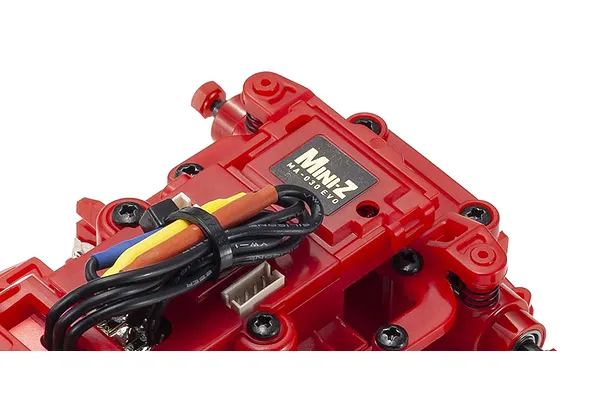

Various transmitters on the MA-030EVO chassis

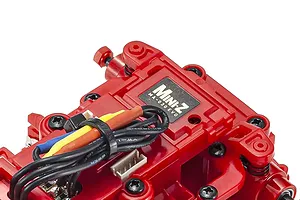

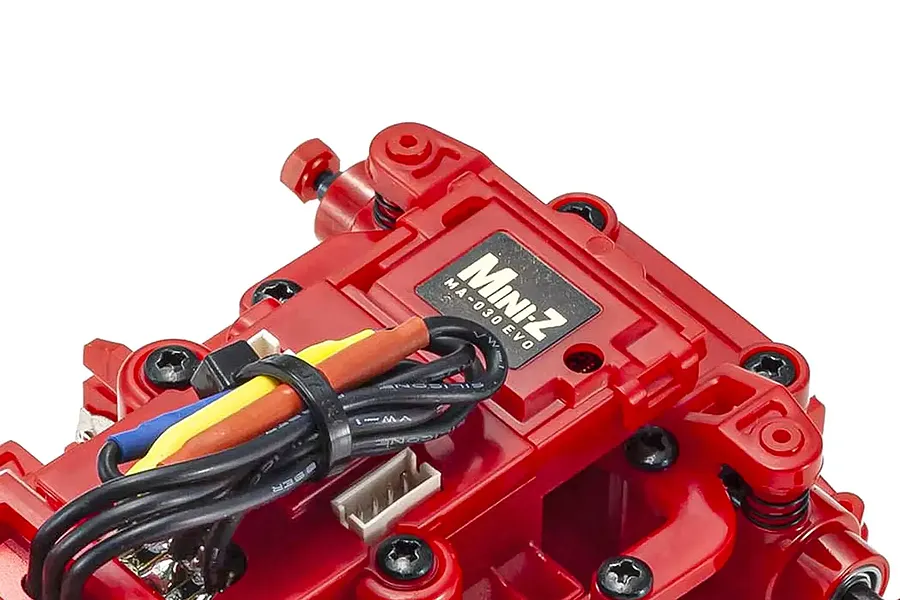

Remove the upper cover of the receiver on top of the chassis to install the receiver units compatible with KYOSHO, KO, FUTABA and Flysky transmitters.

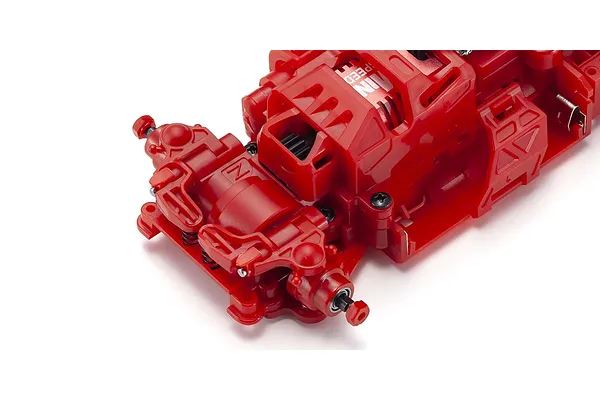

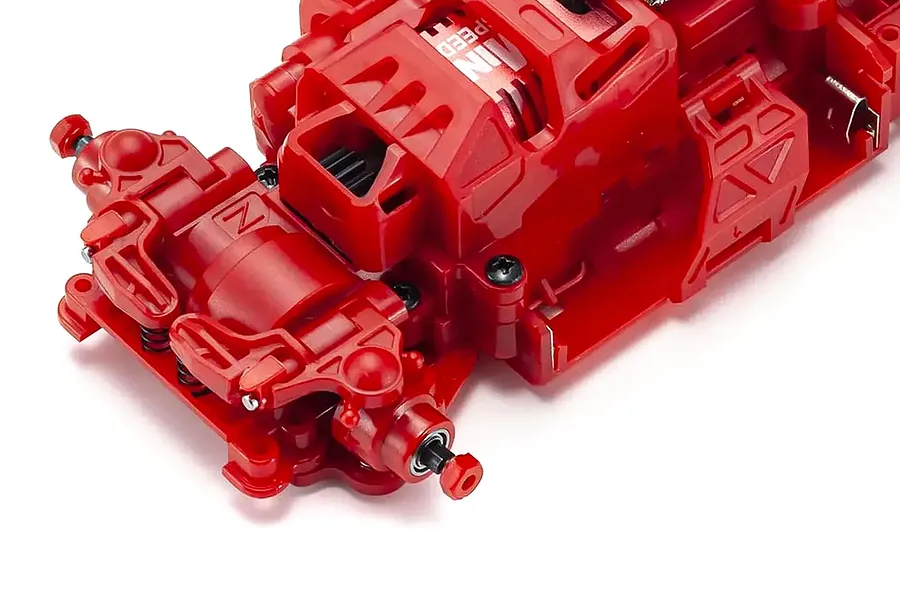

Tool-free VCS Front Suspension with Adjustable Coil Springs

Featuring high-performance VCS front suspension adopted from the previous models. Settings can be adjusted with using any tools just by replacing coil springs.

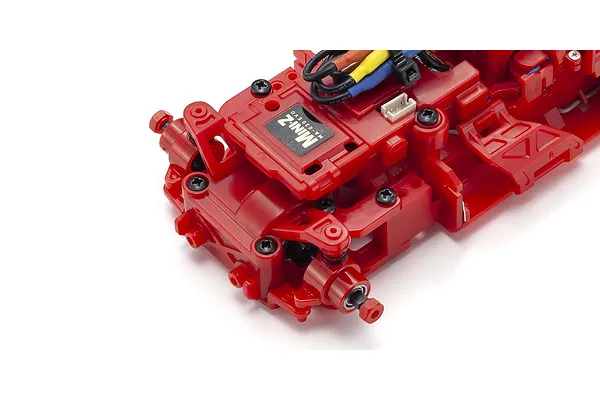

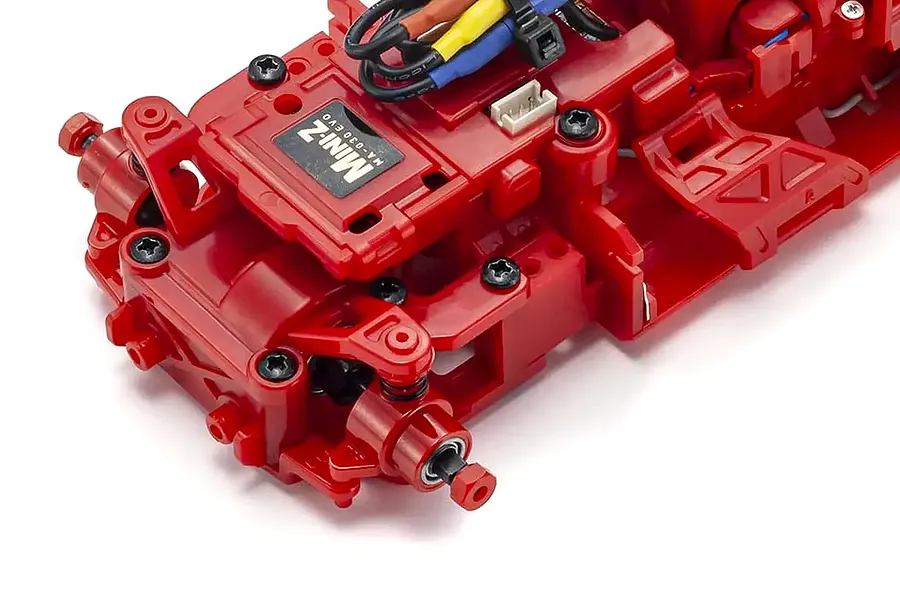

Advanced Rear Suspension System

Rear suspension is equipped with the same strut unit as the MA-03F chassis (default setting at time of shipment). Not only is maintenance easy, settings can be changed with toe control rods and camber knuckles according to conditions.

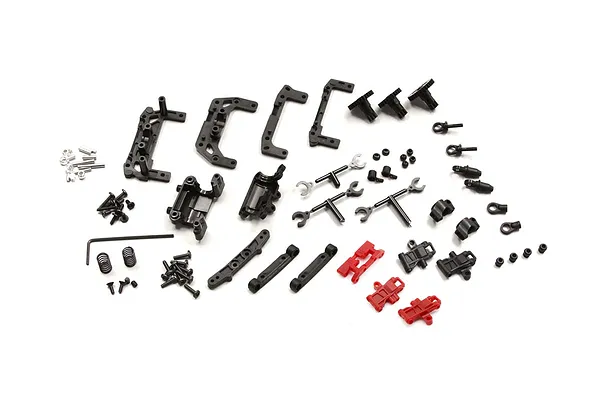

Rear Double Wishbone Suspension Set

Precision rear double wishbone suspension set enables setting changes through toe angle adjustment. Can be used in place of normal strut type suspension depending on requirements. (*Only LL size wheelbase can be used with rear double wishbone suspension set.)

Efficient Heat Dissipation

KYOSHO SPEED HOUSE brushless motor XSPEED 85 (8500KV) features a one-piece aluminium case that realizes efficient heat dissipation.

• Length: 126mm (4.96")
• Width: 65 - 76mm (2.55 - 2.99") adjustable by wheel offset
• Height: 36mm (1.41")
• Wheelbase: 98mm (3.85")
• Weight: 135g (0.30 lbs)
• Chassis: MA-030 (On Road Drift or Touring)
• Drivetrain: 4WD
• Suspension: N/A
• Motor: Brushless 8500KV Motor
• ESC: N/A

• 1x Factory-Assembled Chassis Equipped w/ Evo Main Unit
• 4x Pinion Gears (15T, 17T, 19T, 21T)
• 1 set of DWS conversion parts *Front tread conversion parts
• 1x Pinion gear removal tool
• 1 set of Spare wheel nuts
• 1x Wheel wrench
• 1 set of Centre shaft for L wheelbase
• 1 set of Wide rear suspension arms for DWS
• 4x swing shafts (4 x long)
• 3x Spur gears (27T, 29T, 31T)

• 8 x AAA Batteries
• 1x Auto Scale Collection (body, wheels and tyres)
• 1x Compatible Transmitter
• 1x MINI-Z EVO receiver unit compatible with the transmitter used
