Tamiya TT-01E Porsche 911 GT3 Cup 08 RC On Road Car Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit

Part no. 47429

DiscontinuedNo reviews yet
1 / 10
1 / 10

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

The 911 GT3 Cup car was developed for the Porsche Super Cup, a single-make racing series gracing circuits worldwide. The VIP car recreated by this assembly kit was run by Porsche themselves and was driven upon invitation by a different driver according to the race. Its powerful form and rear wing are recreated expertly in durable and lightweight polycarbonate, with separately moulded side mirror parts, plus metal-plated light cases that allow the installation of separately sold LEDs front and rear. Stickers are included in the kit to recreate numerous sponsor logos and other markings.

The evolved shaft-driven 4WD TT-01 Type-E bathtub frame has its motor and battery close to the ground for a lower centre of gravity and optimum balance. Mounted on the bathtub frame is a fibreglass reinforced nylon upper deck and gear covers improving rigidity and a three-piece tie rod providing smooth steering action. The low centre of gravity, highly balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce an excellent drive.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

  • Polycarbonate body. Front and rear light cases are compatible with separately sold LEDs for a lit-up model.
  • Separate moulded parts recreate side mirrors and racing rear wing.
  • Stickers are included to recreate a range of markings and logos.
  • Wheels are moulded in Silver, and paired with slick tyres.
  • This model runs on the short wheelbase (251mm) version of the TT-01 Type-E chassis, which features shaft-driven 4WD for easy handling.

In the box

  • 1x TT-01E Porsche 911 GT3 Cup 08 Electric On Road RC Car Kit

You'll need

  • 7.2V NiMH Battery & Compatible Charger
  • 4 x AA Batteries
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver
  • Tamiya PS Paint

Highlights

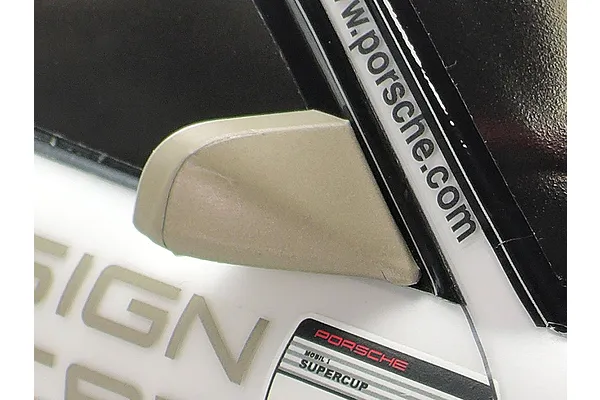

Metal-Plated LED Light Cases

Metal-Plated LED Light Cases

Separate moulded side mirror parts, plus metal-plated light cases that allow the installation of separately sold LEDs front and rear.

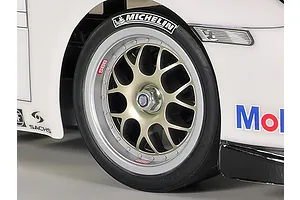

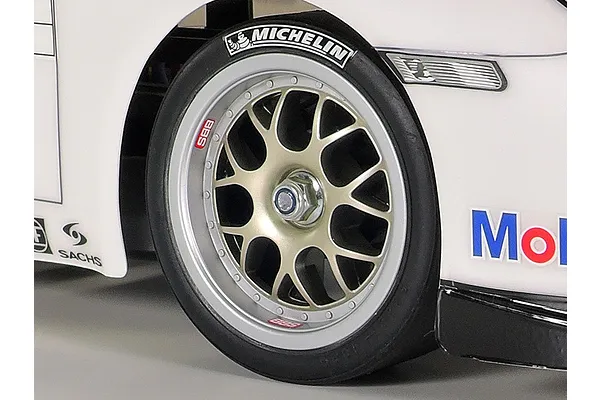

Mesh Wheels With Slick Tyres

Mesh Wheels With Slick Tyres

Mesh type wheels are paired with high performance slick tyres.

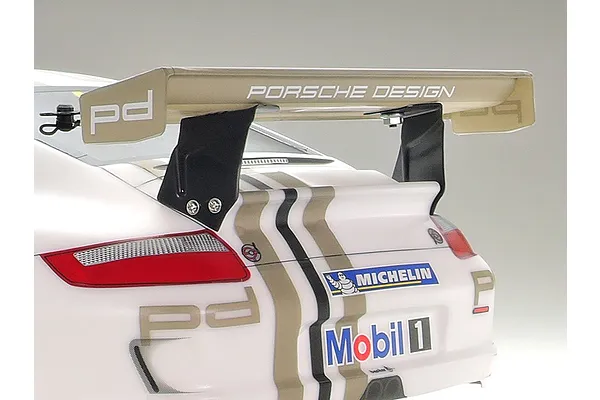

Porsche 911 GT3 Cup RC car — rear wing detail

Porsche 911 GT3 Cup RC car — rear wing detail

At the rear, the car's duck tail design is accurately captured, and the rear wing is also polycarbonate.

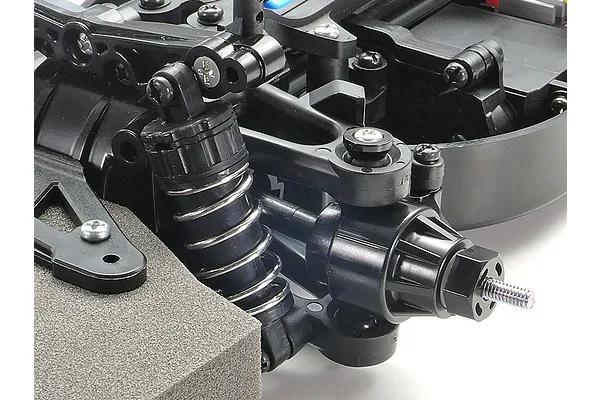

TT-01 Type-E chassis detail

TT-01 Type-E chassis detail

The evolved shaft-driven 4WD TT-01 Type-E bathtub frame has its motor and battery close to the ground for a lower centre of gravity and optimum balance.

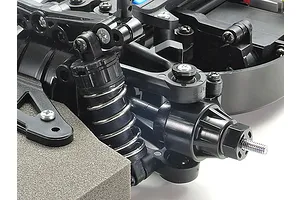

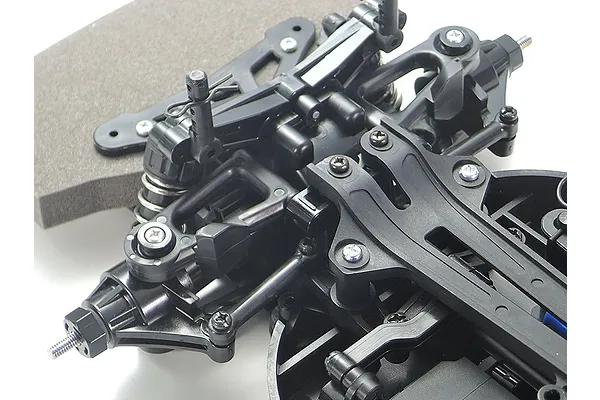

TT-01 Type-E upright and steering detail

TT-01 Type-E upright and steering detail

Dedicated TT-01 Type-E upright designs offer excellent reliability and fit that translates into a great, long-lasting drive.

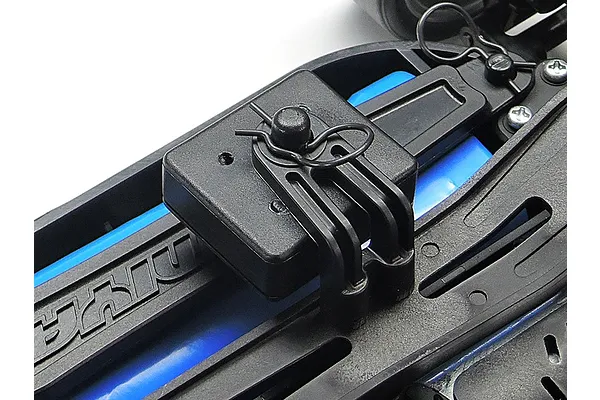

Transponder stay setup example

Transponder stay setup example

This image shows an example of how drivers in R/C races can use the included transponder stay when setting up their car.

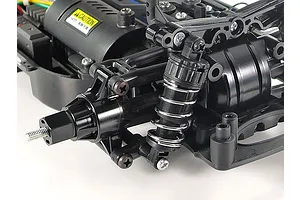

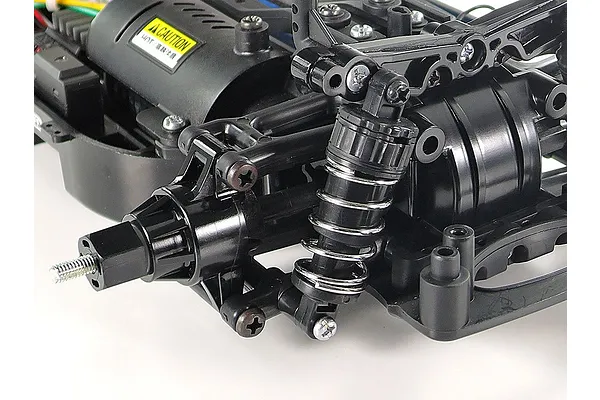

Damper stay and gear cover detail

Damper stay and gear cover detail

Damper stay and gear cover are separate parts; the stay features two different damper attachment holes to choose from.

Specifications

Wheel-base251mm (9.88") short wheelbase specification
TreadFront 157mm (6.18"), Rear 165mm (6.49") rear wide tread specification
Tyre Width / DiameterFront and Rear 27 / 67mm (1.06 / 2.63")
Framebathtub type
Drive systemvertical motor / shaft drive full-time 4WD
Diff gear3 bevels for both front and rear
Steering3-split tie rod type
Suspension4-wheel double wishbone
Damperfriction for both front and rear
Gear ratio8.35:1
Motor540 type
Speed controllerNot included

Dimensions

Length465mm (18.3")
Width195mm (7.67")
Height134mm (5.27")

RC Car

Scale1/10
Power SourceElectric
Drivetrain4WD
Chassis TypeCar
CompletionKit
On/Off RoadOn Road
Skill LevelIntermediate
Max LiPo Power2S (7.4v)
