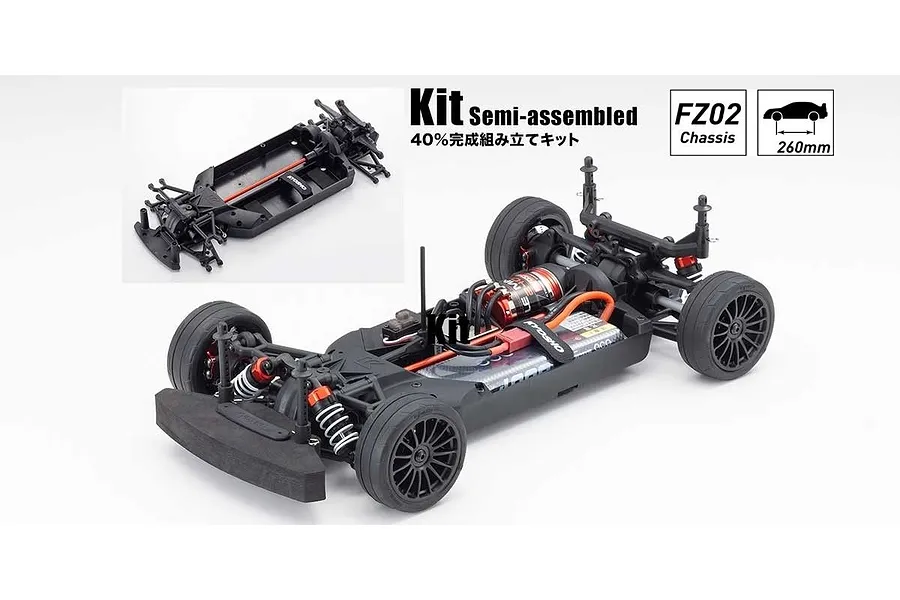

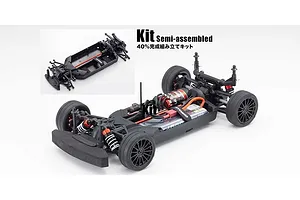

Kyosho Fazer Mk2 FZ02 Electric 4WD 1/10 Scale Semi Assembled Kit

Kyosho Fazer Mk2 FZ02 Electric 4WD 1/10 Scale Semi Assembled Kit

Videos

Kyosho Fazer Mk2 FZ02 Electric 4WD 1/10 Scale Semi Assembled Kit

Brand: Kyosho | SKU: 34461C
sold out
$261.76
Kyosho Fazer Mk2 FZ02 RC Car Kit: The Ultimate Foundation to Build an RC Legend
  • Perfect for any skill level
  • Compatible with brushless electronics
  • Equipped with upgrade parts as standard
  • HIghly customisable
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Shock Oil
Shock Oil
Transmitter
Transmitter
Batteries for Controller
Batteries for Controller
Curved Scissors
Curved Scissors
Battery
Battery
Diff Oil
Diff Oil
Shop replacement & upgrade parts for this model
Shop Parts
Description
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Pinion Gear, Body Shell or Transmitter.

Unleash the full potential of the Kyosho Fazer with the FZ02 Chassis Kit. This isn't just any chassis; it's a blank canvas for your racing aspirations, a foundation for building the ultimate RC touring car. Kyosho has taken its acclaimed Fazer platform and infused it with performance-enhancing upgrades, resulting in a machine that's ready to dominate the track. The FZ02 is a testament to precision engineering. Its new, lightweight design, features a reduced number of components, optimises torsional rigidity and improves maintenance efficiency. The incorporation of nylon material further reduces weight and enhances impact resistance, ensuring durability for aggressive driving. This chassis kit comes 40% pre-assembled and equipped with popular optional parts that take its performance up a notch. The duralumin HD TC centre shaft S increases rigidity and delivers smoother drive transmission, while the TC universal swing shafts provide consistent power delivery even at extreme steering angles. Customisable Oil shocks and springs optimise the front-rear balance, offering both agile handling and precise control.
Whether you're a seasoned racer or a passionate enthusiast, the Kyosho Fazer Mk2 FZ02 Chassis Kit empowers you to build and personalise your dream RC machine.

High Grip Semi Slick Wheels

The Fazer's 15-spoke black wheels are wrapped in low-profile semi-slick tyres with inner sponge for incredible grip and performance. This combination not only looks the part but also delivers the traction and responsiveness needed for competitive racing.

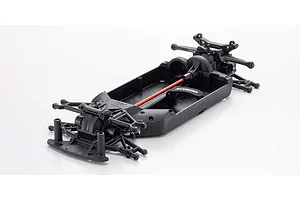

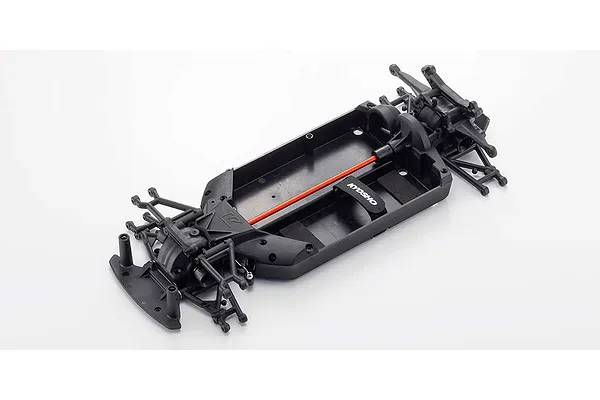

Semi Assembled Kit

 Unleash your inner builder and create a truly unique Fazer with this partially assembled kit. Kyosho provides a head start with 40% of the assembly complete, leaving the diffs and shocks open for your own personalised tuning. Additionally, you can add your own electronics and create a custom Fazer that reflects your individual style and performance preferences.


Upgraded Parts As Standard

The Fazer Mk2 Chassis Kit features a reinforced drivetrain for improved performance and reliability. The Duralumin HD TC centre shaft enhances rigidity and adds a visual flair with its red anodised finish. Additionally, the TC Universal swing shafts on the front provide secure and consistent power delivery, even during aggressive cornering.

Intuitive Suspension Design

The Fazer's suspension system is engineered for performance, with carefully tuned geometry that translates to exceptional handling and control. The ball-connected steering knuckle provides smooth and precise steering, while interchangeable hub carriers offer added convenience and variable setup options.

Scale Disc Brake Hubs

The Fazer comes with two sets of offset brake disc wheel hubs, complete with scale look dummy calipers, allowing you to not only customise the car's appearance but adjust the width of the car to accommodate body widths from 190mm to 200mm. Mix and match for a unique look and perfect fit.

Oil Filled Shock Absorbers

Fine-tune your Fazer's performance with ease, thanks to the simple and adjustable oil shocks. Add in the included spacers to quickly adjust ride height and optimise handling for any track or terrain. For even more fine-tuning options, the shocks can be disassembled to change the pistons and oil, providing an even more custom driving experience.

Low CG Design

The Fazer is built for performance, with a low centre of gravity, streamlined body, and a rigid chassis that delivers exceptional handling. Lightweight construction improves the Fazers agility, while strategically reinforced components ensure high levels of durability, allowing you to push the limits with confidence.

Hassle-Free Maintenance

The Fazer Mk2 simplifies maintenance with fewer screws and parts, and many common screws share the same size. Most are countersunk (flat-head) screws easily removed with a 2.0mm hex wrench, making disassembly and upkeep a breeze.

Tunable Gear Ratios & Motor Mount

Dial in your Fazer's performance with a variety of pinion gear options. Choose from nine different sizes (29T-37T) to fine-tune the gear ratio and achieve the perfect balance of speed and acceleration for your driving style. The direct-mount motor design simplifies gear changes, making it easy to experiment and optimise your setup.

Features
  • Featuring an "Ultra Scale Body" which replicates the fine details of the real life vehicle
  • Equipped with modern high grip wheels
  • Comes with upgraded aluminium driveshafts
  • Features a special resin transponder mounting point
  • Comes with a range of different body mounts to suit a wider range of shells
  • Comes 40% pre-assembled so you can focus on fine-tuning and installing your custom electronics
  • Full ball bearings that reduce drive loss are equipped throughout the drive system
  • Features KS202W waterproof steering servo
  • Compatible with a wide range of official Kyosho and Aftermarket upgrade parts
  • Sealed differential and transmission deliver reliable performance, and keeps out unwanted dirt and dust
  • Easy to drive with a shaft driven full-time 4WD touring chassis
  • Equipped with a plated dummy brake disc and a painted brake calipers to improve the sense of scale
  • The Fazer embraces simplicity with button screws featuring hexagonal holes throughout. Designed for use with a single tool, streamlining maintenance and keeping you focused on the fun
  • Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary. Supports pinions from 29T to 37T
  • Genuine Kyosho Product
Specifications
  • Length: 375mm (14.7")
  • Width: 190mm / 200mm (7.48" / 7.87") (Adjustable)
  • Height: Varies
  • Wheelbase: 260mm (10.2")
  • Weight: 1490g (3.28 lbs)
  • Chassis: On Road Touring
  • Drivetrain: 4WD
  • Suspension: Oil Filled Coil Over Shock Absorbers
  • Motor: Not Included
  • ESC: Not Included
Included Items
  • 40% Pre-assembled Chassis
Required Items
  • 1x Compatible 7.4V LiPo
  • 1x Compatible Charger
  • 1x Compatible 1/10 Scale ESC
  • 1x Compatible 1/10 Scale Low Profile Servo
  • 1x 2+ Channel Transmitter & Receiver
  • 1x 260mm Body Shell
  • Polycarbonate Compatible Paint
  • Compatible Pinion Gear
  • AA Batteries For Transmitter
Videos
Specifications
Factory Specs
Max LiPo Power
2S (7.4v)
Wheel Hex Size
12mm
Spur Gear
86T
Battery Connector
Not Included
RC Car
Completion
Kit
Drivetrain
4WD
Max LiPo Power
3S (11.1v)
On/Off Road
On Road
Chassis Type
Car
Power Source
Electric
Skill Level
Intermediate
Scale
1/10
