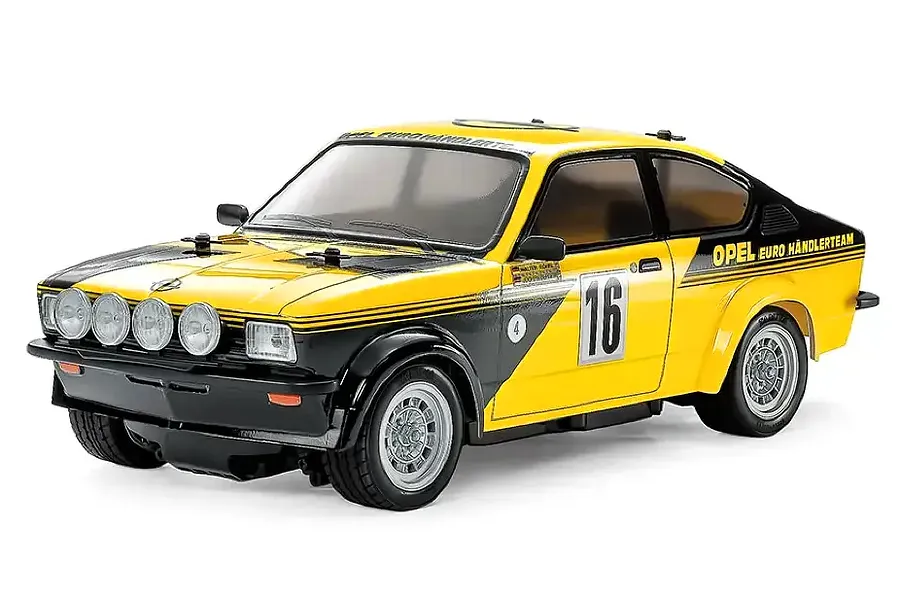

Tamiya MB-01 Opel Kadett GT/E RC Rally Car Electric 2WD 1/10 Scale Kit (no ESC)

  • 1/10
  • 2WD
  • Kit

Part no. 58729A

DiscontinuedNo reviews yet
1 / 12
1 / 12

Videos

Videos

Overview

The MB-01 is the latest addition to the M-chassis series, which has been popular among users of all levels since its inception in December 1994. The series is known for its cost-effective kits, a wide variety of bodies to choose from, and ease of maintenance and control.

The all-new MB-01 chassis offers a continuation of the popular M-chassis series by providing cost-effective kits with easy maintenance and control for users of all levels. With the ability to choose from three types of wheelbases and a front or rear-wheel drive system, the MB-01 allows for six unique setups. Additionally, it comes with the option to recreate the Opel Kadett, a compact 2-door coupe that was developed with high-level tune-ups.

Note

This kit comes without an ESC, Servo, Battery, Charger, or Transmitter. It will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

Features

  • The MB-01 chassis is 2WD and offers three options for wheelbases and front- or rear-wheel drive system
  • The attachment directions of final gears and steering linkage can be changed to switch between front- and rear-wheel drive
  • The rear-wheel drive cars can choose a low or high motor position
  • Motor mount and final gears sections are designed to facilitate assembly and maintenance
  • Fully Licensed by Opel
  • The 4-wheel double wishbone suspension has a symmetrical structure and friction shocks
  • Multi-link suspension is compatible with tyres featuring the same compound and rear tyre with toe-in as 4WD models, despite being a 2WD model
  • It features a gear ratio of 5.83:1 (when using kit-standard 29T pinion gear)
  • The model has 55mm diameter front tyres and 60mm diameter rear tyres, creating an authentic car stance
  • Genuine Tamiya Product

In the box

  • 1x Tamiya 1/10 MB-01 Opel Kadett GT/E Rally 2WD Electric RC Rally Car Kit

You'll need

  • Compatible 7.4V LiPo or 7.2V NiMH Battery
  • Compatible Charger
  • Compatible 1/10 Scale ESC
  • Compatible 1/10 Scale Motor
  • Compatible 1/10 Scale Servo
  • 2+ Channel Transmitter & Receiver
  • PS Series Polycarbonate Safe Paint
  • AA Batteries For Transmitter

Highlights

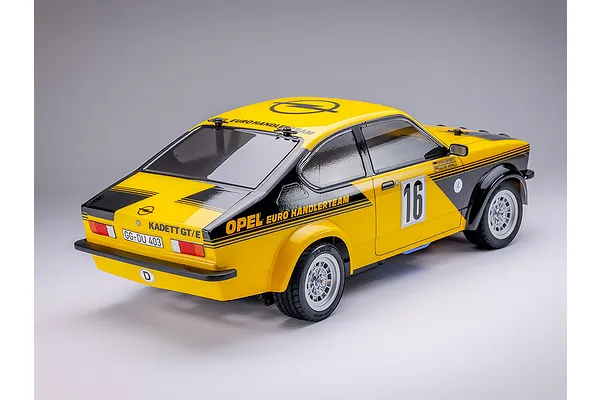

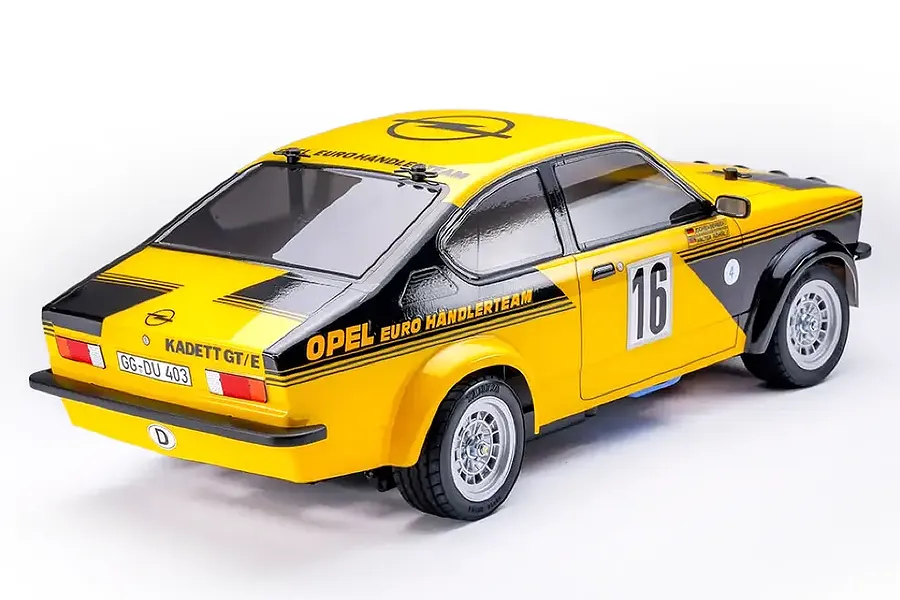

Opel Kadett GT/E Shell

Opel Kadett GT/E Shell

The included decals allow you to replicate the authentic Opel Kadett GT/E Rallye Spec livery, or you can personalise your model with your own unique paint scheme and decals.

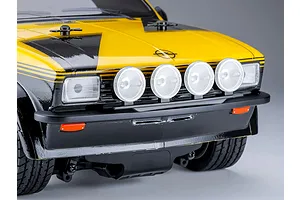

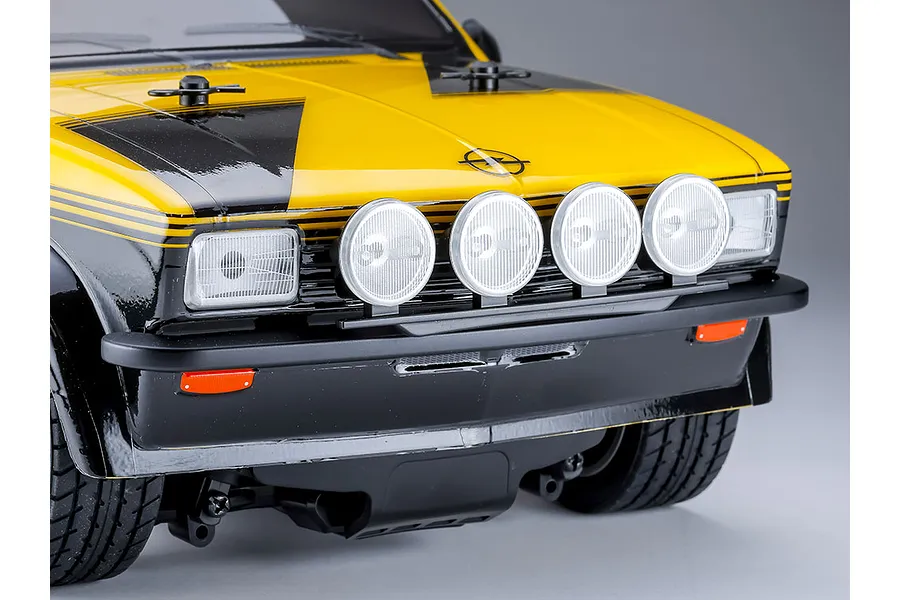

Fog Lamps

Fog Lamps

The Opel Kadett comes with four fog lamps that are moulded as separate plastic components, adding a touch of realism and sophistication to the Kadett's front end.

Additionally, You can add LEDs to them for added scale realism.

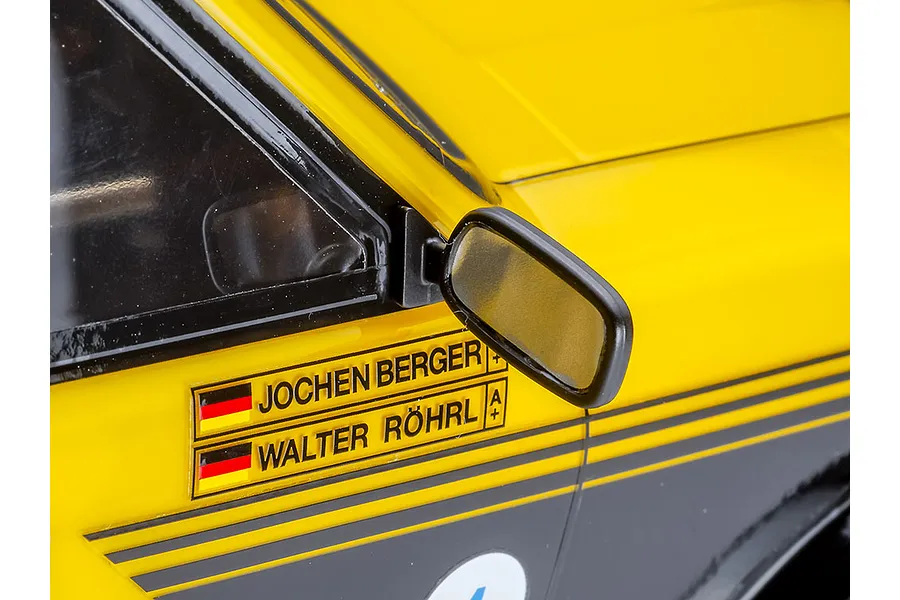

Side Mirrors

Side Mirrors

The Kadett features distinctive flat door mirrors, enhanced with realistic stickers to complete the scale appearance.

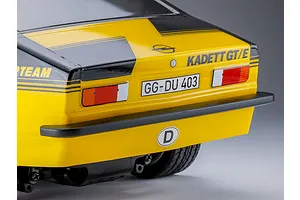

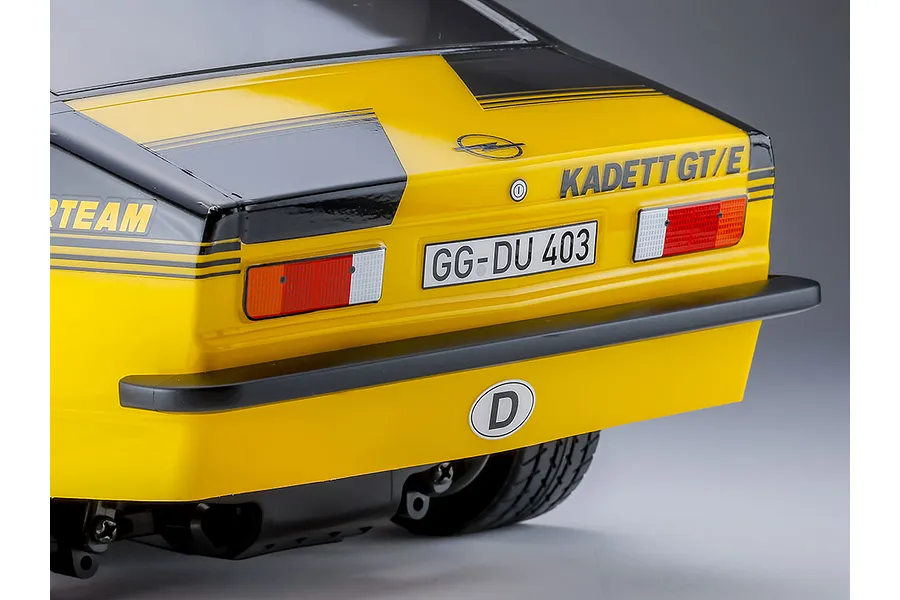

Rear Bumper

Rear Bumper

The Kadett's attention to detail extends to the rear, with a separate bumper and authentic rear combination lamps. These lamps feature polycarbonate ABS resin cases and can be illuminated with separately sold LEDs for a truly scale appearance.

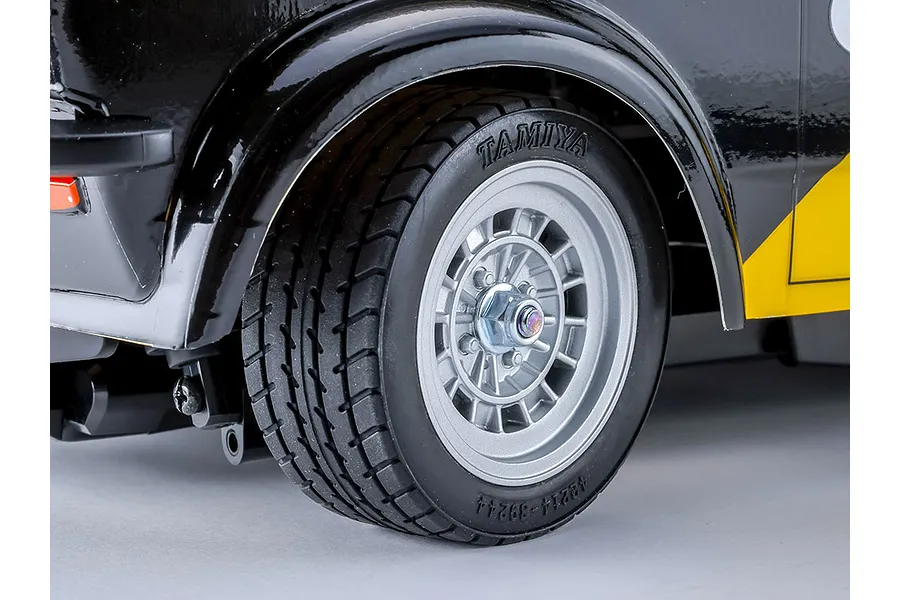

Timeless Dish Rims & Radial Tyres

Timeless Dish Rims & Radial Tyres

Experience a balance of style and grip with the Kadett's classic dish wheels and 60D radial tyres. The engraved tread pattern provides excellent traction on a variety of surfaces.

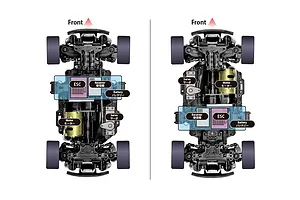

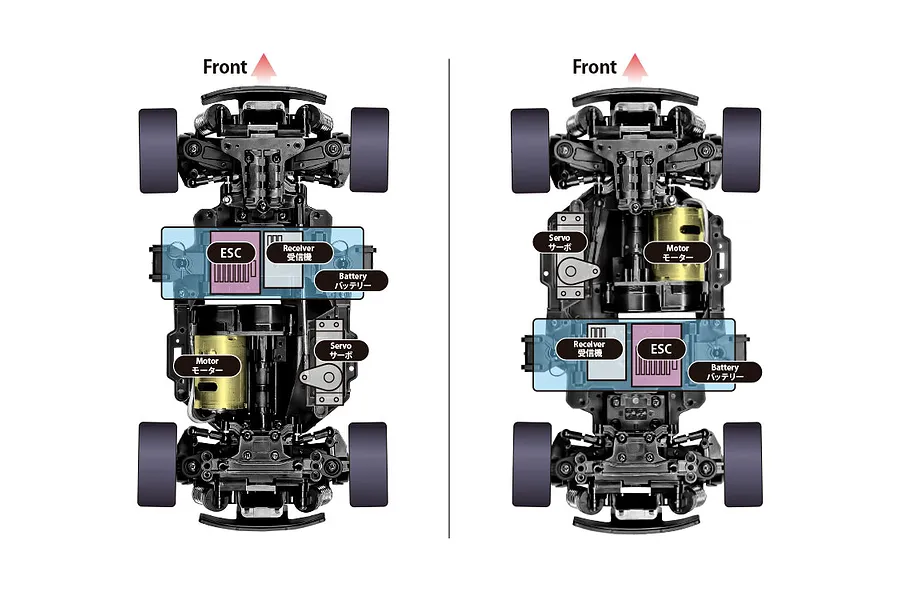

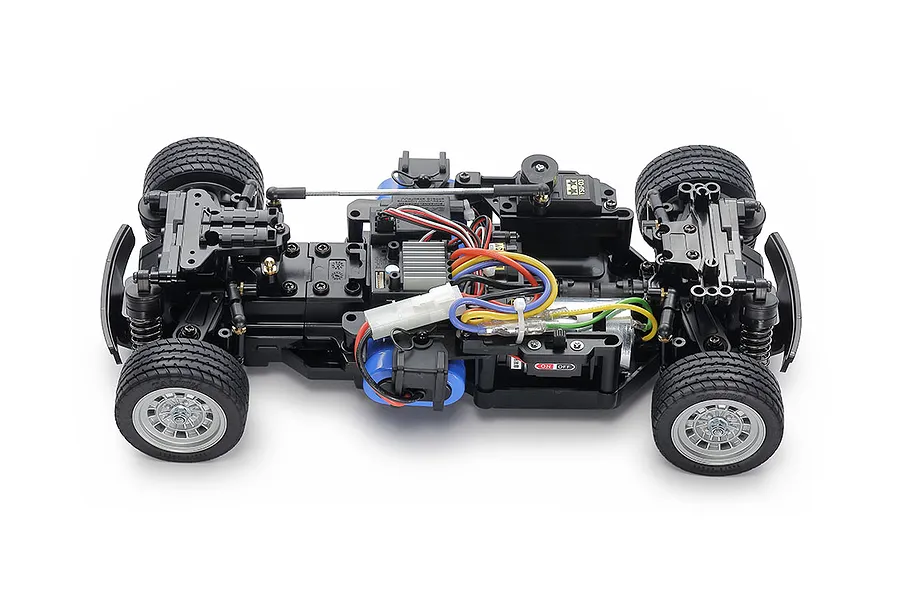

Compact Design

Compact Design

The MB-01 chassis is built with performance and customisability in mind. The MB-01 has a highly adjustable platform that's perfect for a variety of driving styles and can be adjusted to a wide range of wheelbase options, 209mm for short, 224mm for medium, and 239mm for long.
Additionally, you can set this versatile chassis up in a front wheel drive or rear wheel drive setting, making the MB-01 one of the most customisable machines!

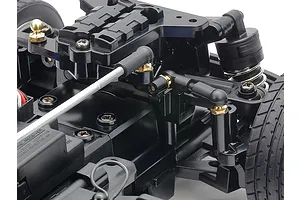

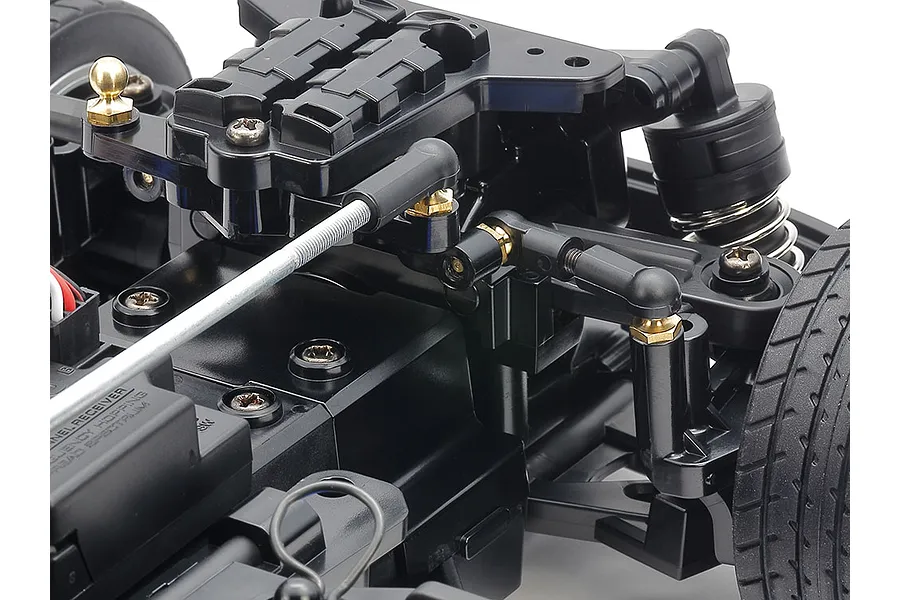

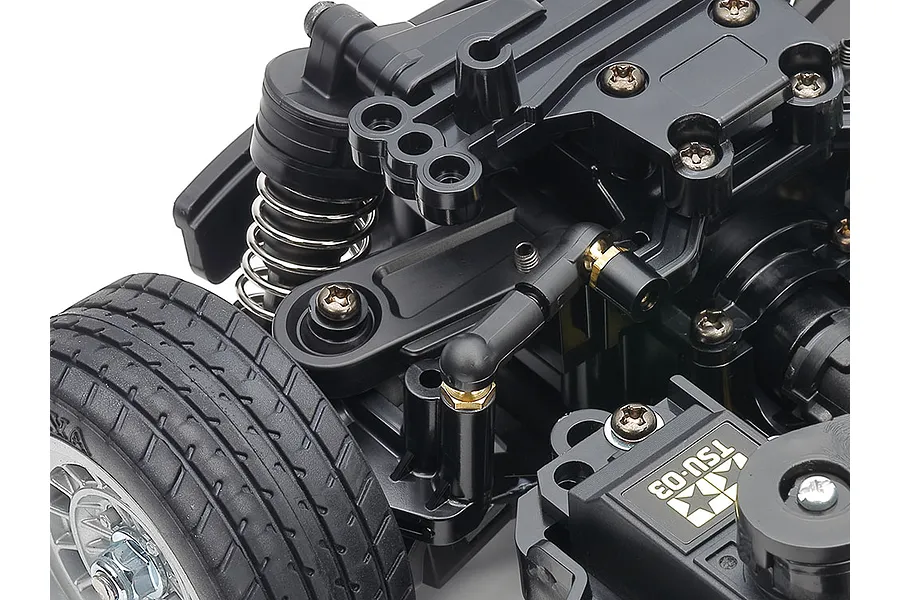

Three Section Steering System

Three Section Steering System

The three-section steering system, operated by a long link rod connected to a rear-mounted servo, provides precise and responsive steering control for confident handling on a wide range of terrains.

Double Wishbone Suspension

Double Wishbone Suspension

The double wishbone suspension, with its symmetrical suspension arms, provides balanced handling and predictable performance. This design ensures consistent response and control, allowing you to hit the apex everything time.

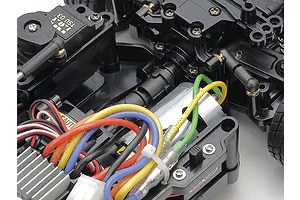

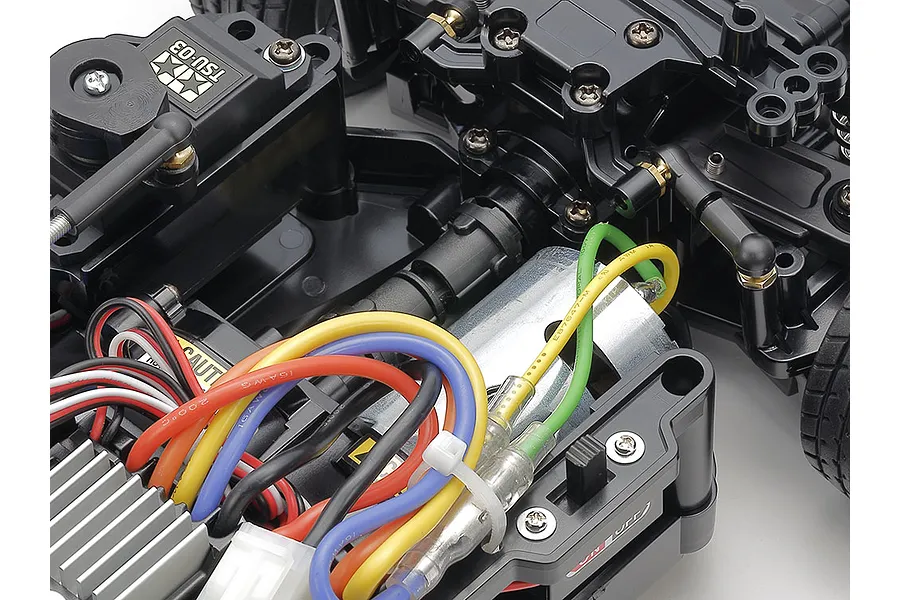

Easy Maintenance

Easy Maintenance

Maintenance is a breeze thanks to the MB-01's unitised motor mount. Secured with just two screws, it allows for quick and easy access to the motor for adjustments or upgrades.

Centre Motor Mounting

Centre Motor Mounting

The rear left mounted motor delivers power directly to the rear wheels via a driveshaft, providing a classic rear-wheel-drive driving experience with fast and responsive acceleration and exciting handling.
Additionally, this central motor mounting position creates better weight bias.

TT-02 Differentials

TT-02 Differentials

The MB-01 chassis utilises the same durable 4-bevel differential gear as the TT-02 chassis, making access to replacement parts much easier. For those seeking further customisation, the differential can be upgraded with optional TT-02 ball differentials or oil-filled gear differentials.

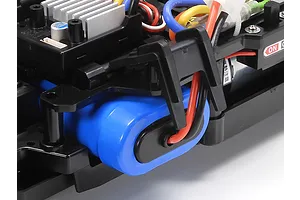

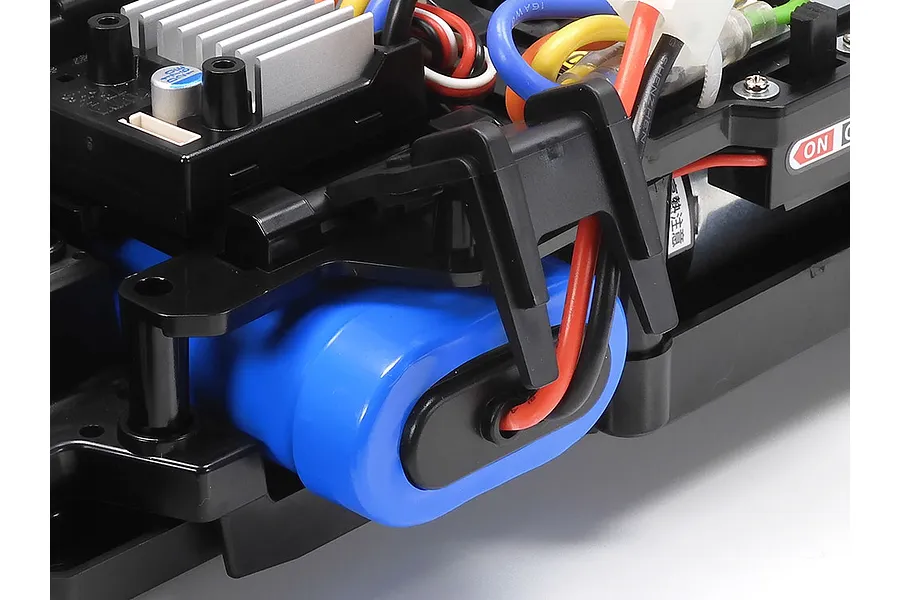

Quick Battery Swaps

Quick Battery Swaps

Designed for hassle-free battery replacement, the MB-01 features an innovative flip-up battery holder. This clever design allows you to quickly swap out batteries without any fuss, keeping the action going.

Specifications

Length417mm (16.42 in)
Width174mm (6.85 in)
Height138mm (5.43 in)
Wheelbase209mm (S) / 224mm (M) / 239mm (L) (8.23/8.82/9.41 in)
WeightVaries
Tyre Diameter59mm (2.32 in)
ChassisBathtub ABS Plastic
Drivetrain2WD
SuspensionCoil Over Shock Absorbers
Gear Ratio5.83:1
Motor540 Brushed Type
ESCNot Included

RC Car

Scale1/10
Power SourceElectric
Drivetrain2WD
Chassis TypeCar
CompletionKit
On/Off RoadOn Road
Skill LevelIntermediate
Max LiPo Power2S (7.4v)

RC Kit

Suited Motor/ESC TypeElectric

Factory Specs

Battery ConnectorNot Included
Pinion Gear29T
Spur Gear65T
Wheel Hex Size12mm
