Tamiya TT-02 Toyota GR Supra RC On Road Car Electric 4WD 1/10 Scale Kit
Tamiya TT-02 Toyota GR Supra RC On Road Car Electric 4WD 1/10 Scale Kit

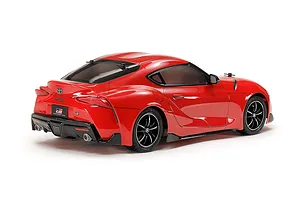

This Tamiya R/C model recreates the all-new 2019 Toyota Supra. The Supra has not been in production since 2002 and Toyota brought it back thanks to a collaborative effort with BMW. The chassis, drivetrain, and engine are based on the BMW Z4. The body and suspension tuning were developed by Toyota to give the Supra a distinctive and classic Toyota sporty feel. Tamiya has faithfully recreated the Supra for radio control enthusiasts with a polycarbonate body that captures the sleek lines, sitting on top of the easy-to-build and easy-to-drive TT-02 chassis.
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. It features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, offering 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios.

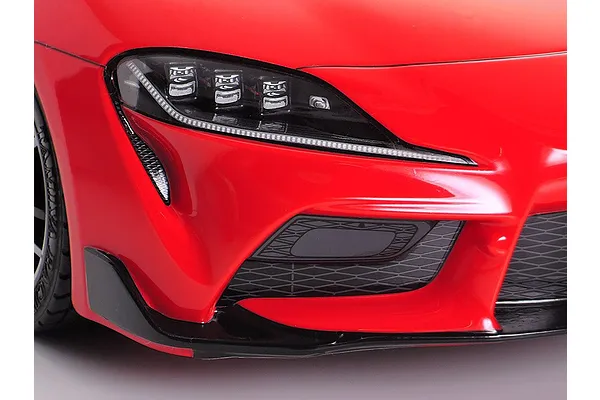

Separate polycarbonate light cases are combined with stickers to give the headlights a truly authentic look.

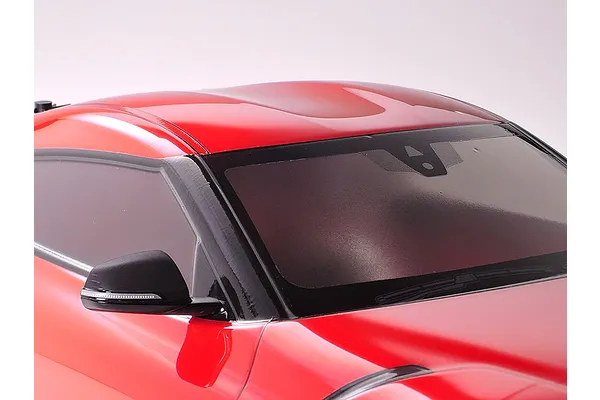

The double bubble roof is perhaps the most striking design feature, and is of course depicted in style.

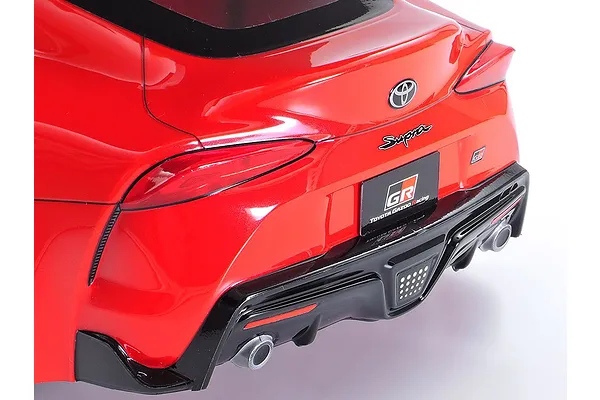

Clear red sections allow inspection of taillight detail; the rear duck tail, diffuser and more are captured.
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability.

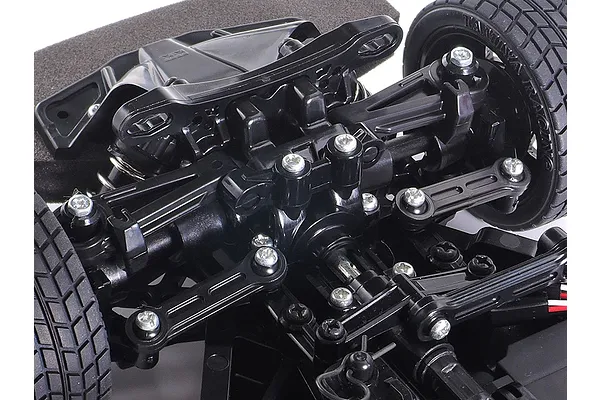

Resin ball links in the steering linkage joints make for smooth, comfortable motion.

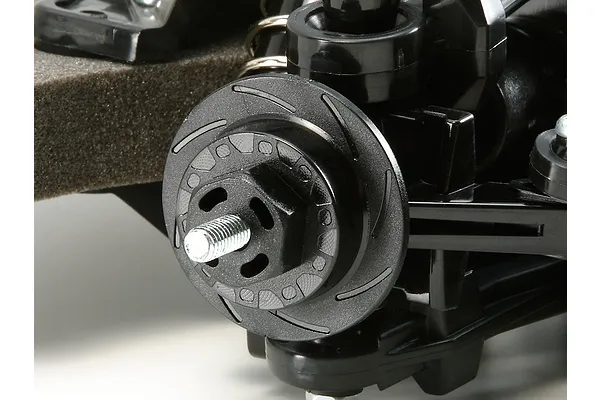

Stylish wheel hubs are designed to look like brake discs, giving your car another layer of realism.

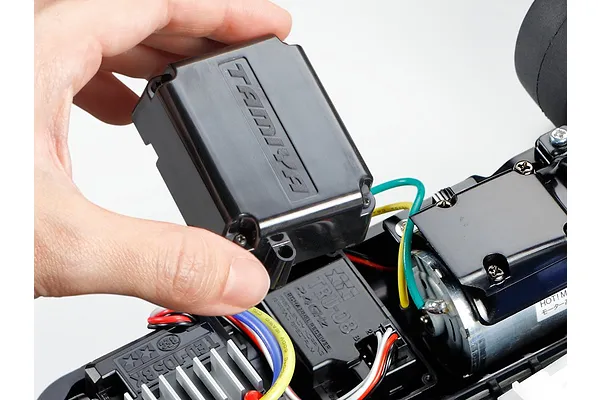

A case is included to keep the all-important receiver protected from dust and dirt.

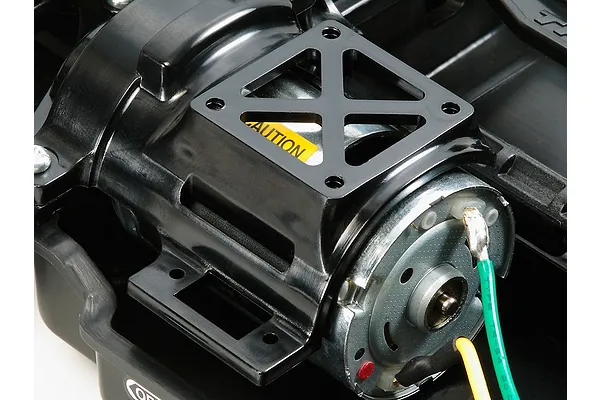

The motor cover includes a removable cooling duct.
The TT-02 chassis is an adaptable and balanced design with excellent stability.
- Highly detailed 1/10 Toyota GR Supra clear polycarbonate body, with separate light cases front and rear. (Note: Not LED light compatible)

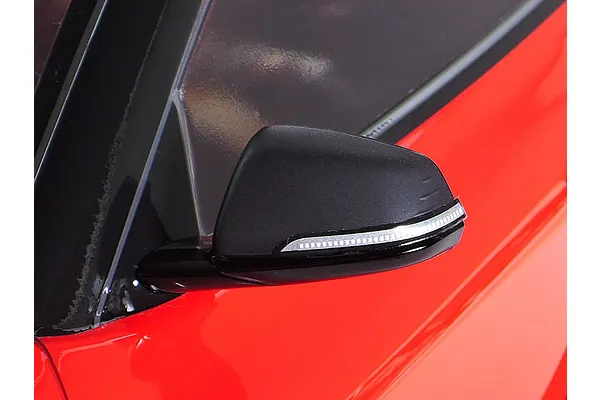

- Features separate moulded parts for side mirrors.
- Twin 5-spoke wheels are moulded in black, and paired with racing radial tyres.
- Balanced longitudinal chassis layout.
- Shaft-driven 4WD system.
- 3-piece steering tie-rod system for superior handling.
- The TT-02 chassis is an adaptable and balanced design with excellent stability, plus features such as identical suspension arm and upright components for ease of assembly.

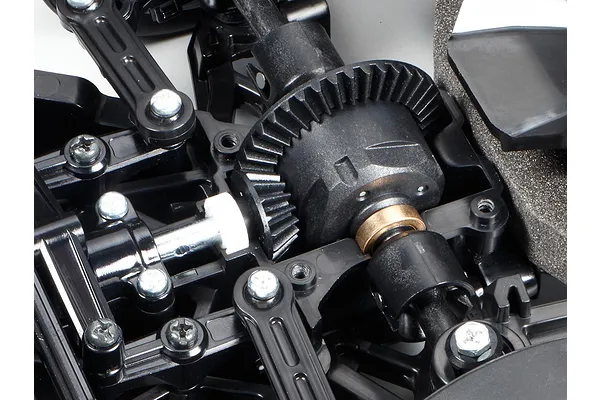

- 4-bevel differential gears and 4-wheel double wishbone suspension make for a smooth ride.
- Front/rear friction shocks.
- Includes Tamiya TBLE-02S ESC (electronic speed control) capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
- 1x TT-02 Toyota Supra GR Kit
- 2-Channel Radio System
- Steering Servo
- 7.2V Battery & Compatible Charger
- Tamiya PS Paint
This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.
-
Scale
- 1/10
-
Length
- 457mm, Width: 188mm, Height: 133mm
-
Wheel Base
- 257mm
-
Adjustable Gear Ratio
- Yes
-
Bearings
- Plastic Bushing
-
Body Shell
- Clear Polycarbonate
-
Chassis Material
- ABS Plastic
-
Chassis Type
- TT-02
-
Construction Type
- Assembly Kit
-
Differential Type
- Gear
-
Drive Type
- 4WD
-
Electronic Speed Control (ESC)
- Tamiya TBLE-02S ESC
-
Motor
- 540-brushed type
-
Shocks
- Friction type
-
Suspension
- Fully Independent Double Wishbone
-
Terrain Use
- On-Road
-
LED Lights
- No
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
-
Completion
- Kit
-
Skill Level
- Intermediate
-
Power Source
- Electric Brushed
-
Chassis Type
- Car
-
On/Off Road
- On Road
-
Drivetrain
- 4WD
