ARRMA Typhon TLR Tuned RC Buggy Electric 4WD 1/8 Scale Roller - Pink/Purple

ARRMA Typhon TLR Tuned RC Buggy Electric 4WD 1/8 Scale Roller - Pink/Purple

Videos

ARRMA Typhon TLR Tuned RC Buggy Electric 4WD 1/8 Scale Roller - Pink/Purple

Brand: ARRMA | SKU: ARA8306
sold out
5.0
1 reviews
$751.05
or 4 fortnightly payments of $187.76 with Afterpay

TLR Tuned TYPHON TLR Tuned RC Buggy: The Ultimate Basher-to-Racer Upgrade!

  • Perfect for Experienced RC enthusiasts

  • Add your own personalised electronics

  • TLR tuned upgrades are factory fitted

Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
Charger
Charger
LiPo Battery
LiPo Battery
Servo Horn
Servo Horn
Transmitter and Receiver
Transmitter and Receiver
Pinion Gear
Pinion Gear
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Description
Please Note:

This RC is a Partially Assembled "Roller". This kit does not come with a Motor, ESC, Transmitter, Receiver, Servo, LiPo Battery, or Pinion Gear.

Ready to take your bashing skills to the track? The Team Associated TLR Tuned TYPHON 4WD Race Buggy Roller is your ticket to a podium finish. This 1/8 scale powerhouse is packed with high-end aluminium upgrades like a 7075 T6 hard anodised chassis, shock towers, and suspension hangers, all laser-etched with the TLR Tuned logo. The precision-tuned suspension, featuring machined tapered pistons and silicone x-rings, delivers exceptional handling on any terrain. Race-compound dBoots® Exabyte tyres provide maximum grip, while a tunable rear wing lets you fine-tune downforce for optimal performance. Whether you're a seasoned pro or an aspiring racer, the TLR Tuned TYPHON delivers the performance and durability to help you dominate the competition. Just add your choice of 4S or 6S brushless power system and get ready for victory!

TLR® Tuned Aluminium Chassis Plate
TLR® Tuned Aluminium Chassis Plate

Equipped from factory with unmatched durability and precision thanks to the lightweight 7075-T6 aluminium chassis, strategically machined for optimal performance.

TLR® Tuned Aluminium Shock Towers & Steering Rack
TLR® Tuned Aluminium Shock Towers & Steering Rack

Laser-etched aluminium shock towers and steering rack deliver enhanced strength and precise handling, with multiple mounting positions for customisable steering response.

High-Performance Shocks
High-Performance Shocks

Designed for even the toughest terrain with TLR® Tuned oil-filled shocks featuring machined tapered pistons and EXB stand-offs for smooth damping and superior control.

Race-Spec Wing & Mount
Race-Spec Wing & Mount

Designed for maximum downforce and stability at high speeds, the adjustable rear wing mount and tunable rear wing with Gurney flaps helps keep you flat and your speed up.

dBoots® Exabyte Tyres
dBoots® Exabyte Tyres

Providing unmatched grip and traction in all conditions with high-quality, this Typhon comes equipped with race compound dBoots® Exabyte tyres, pre-glued for extra , race ready convenience.

Customisable Set Up
Customisable Set Up

The Typhon allows you to fine-tune your suspension geometry with precision using the adjustable aluminium upper and lower suspension hangers, optimising performance for any track condition.

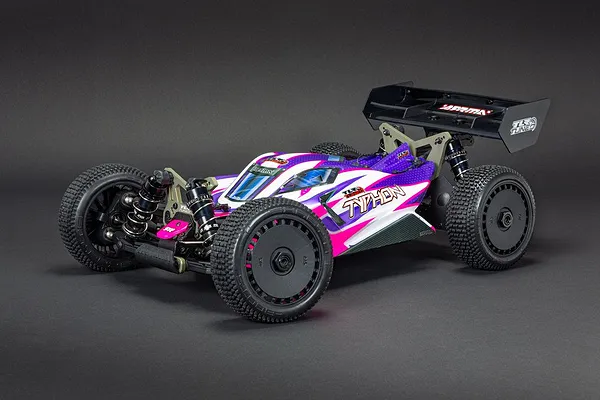

Highest Specification 1/8 Buggy
Highest Specification 1/8 Buggy

The 1/8 scale TLR Tuned TYPHON 4WD Race Buggy Roller is the highest specification ARRMA 1/8 scale buggy straight out of the box.

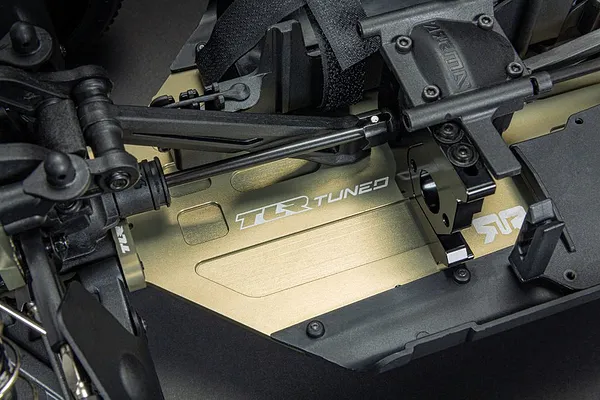

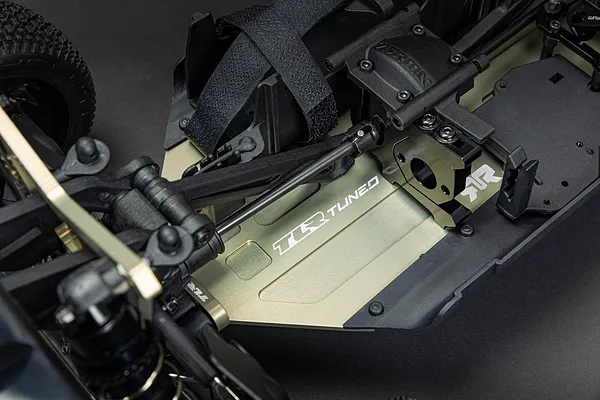

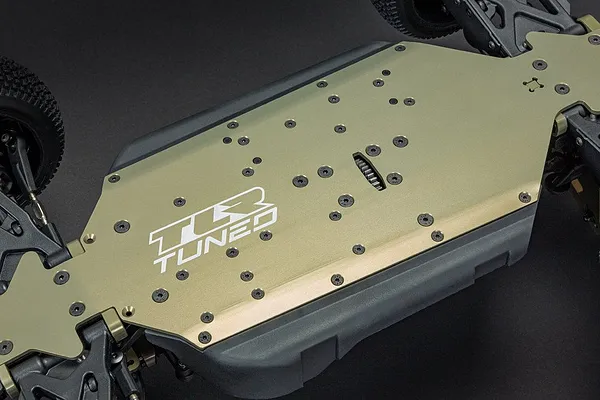

7075-T6 aluminium chassis plate detail
7075-T6 aluminium chassis plate detail

It is built around a stunning 7075 T6 hard anodised aluminium chassis plate that provides a tough, light and durable backbone for this race spec buggy.

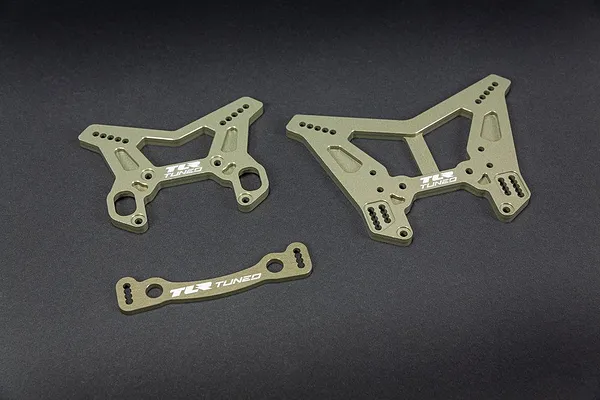

TLR Tuned laser-etched aluminium components
TLR Tuned laser-etched aluminium components

Other durable TLR Tuned 7075 T6 hard anodised aluminium parts include the front and rear shock towers and the steering rack, all laser-etched with the TLR Tuned logo.

TLR Tuned steering rack with Ackermann adjustment
TLR Tuned steering rack with Ackermann adjustment

TLR Tuned steering rack features multiple mounting positions for the steering links, allowing you to tune the level of Ackermann in the steering system.

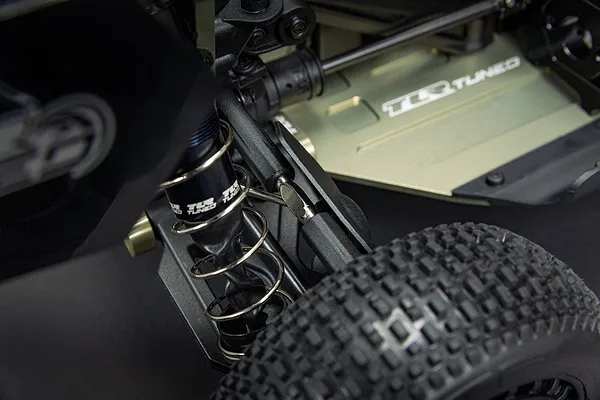

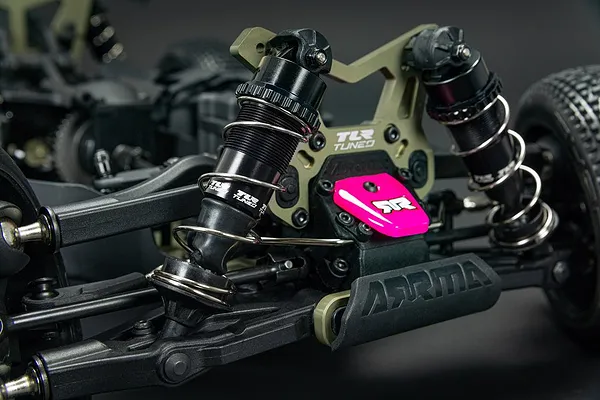

TLR Tuned front shock absorbers
TLR Tuned front shock absorbers

The front shock absorbers feature black anodised bodies with laser etched TLR Tuned logo and longer shock shafts to increase droop and aid off-road handling.

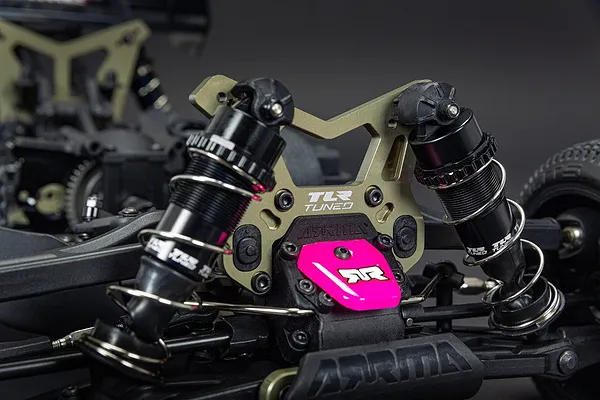

TLR Tuned rear shock absorbers
TLR Tuned rear shock absorbers

The rear shock absorbers feature the same TLR Tuned treatment with black anodised shock bodies, laser etched logos, and longer shock shafts to increase droop.

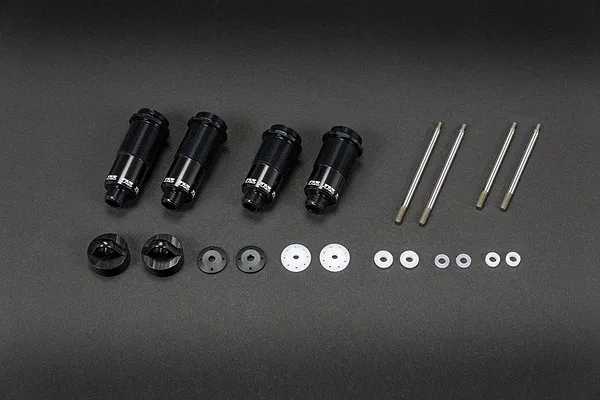

Machined tapered shock pistons and x-ring seals
Machined tapered shock pistons and x-ring seals

The shock absorbers have been enhanced with all-new machined tapered pistons, machined shock seal guides, and silicone x-rings for extremely plush suspension action.

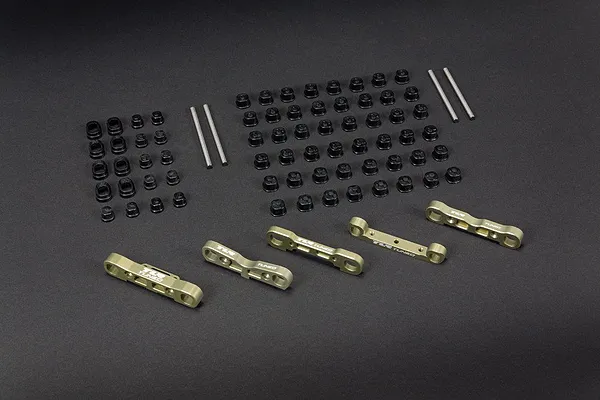

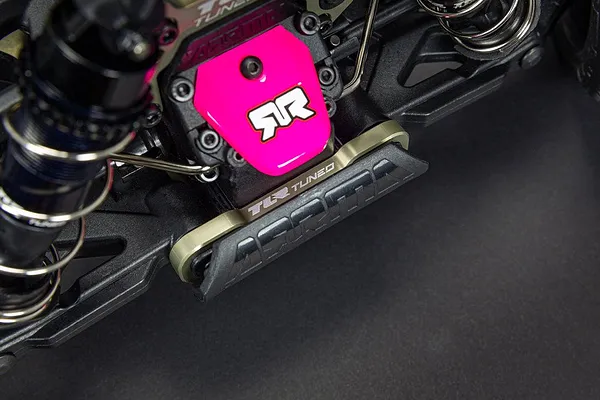

Adjustable suspension hangers
Adjustable suspension hangers

The aluminium suspension hangers are anodised and laser etched in the TLR Tuned style, using adjustment blocks to tune the geometry of the suspension.

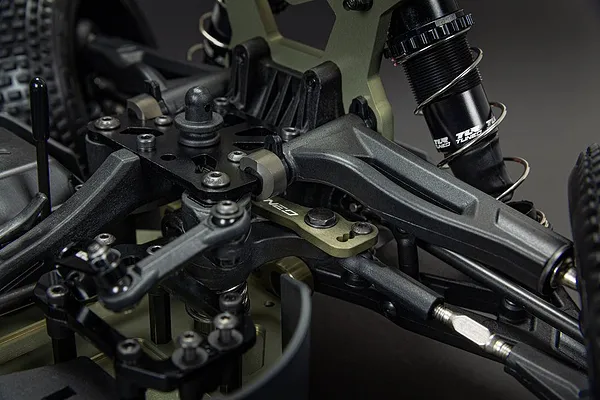

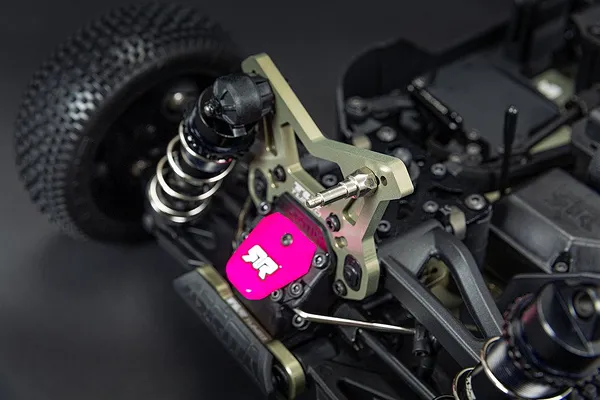

Front upper suspension mount caster adjustment
Front upper suspension mount caster adjustment

The TLR Tuned front shock tower and aluminium upper suspension mount use adjustment block inserts to allow upper suspension arm active caster and roll centre geometry to be tuned.

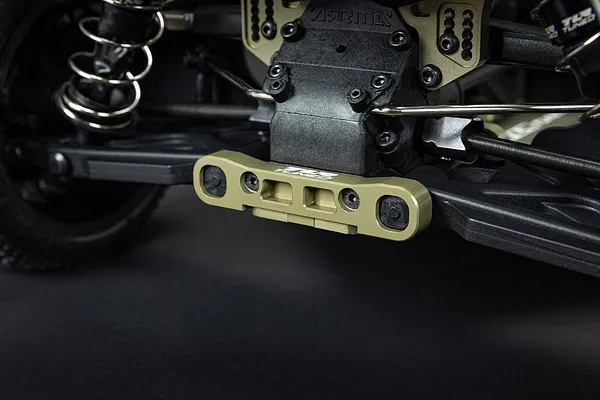

Front lower suspension geometry adjustment blocks
Front lower suspension geometry adjustment blocks

The TLR Tuned front lower aluminium suspension mounts use adjustment blocks to tune the suspension arm geometry, allowing front kick-up, width, and roll centre of the lower arms to be adjusted.

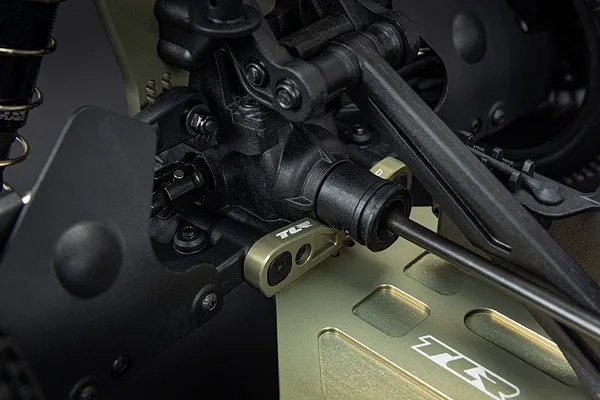

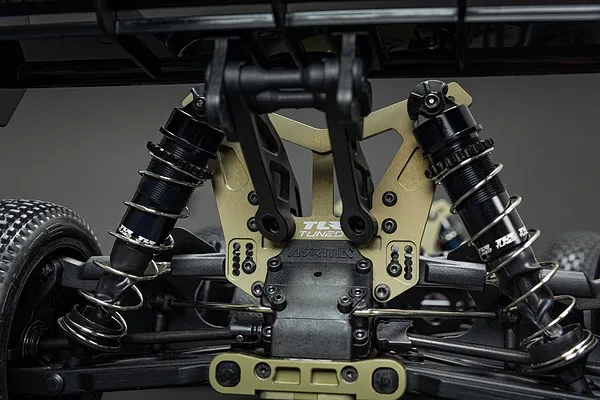

Rear lower suspension arm geometry adjustment
Rear lower suspension arm geometry adjustment

The TLR Tuned rear lower suspension arm geometry can be tuned using adjustment blocks allowing anti-squat, width, roll centre, and toe angle to be adjusted.

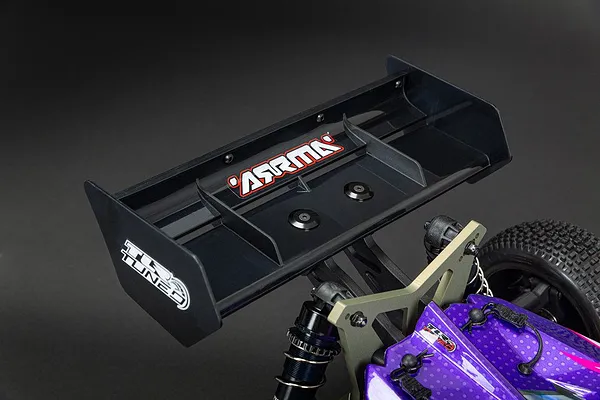

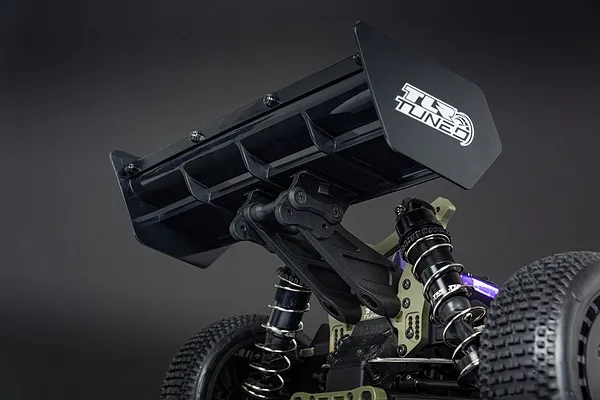

Race Spec tunable rear wing with Gurney flaps
Race Spec tunable rear wing with Gurney flaps

A Race Spec tunable rear wing helps keep the tyres and buggy grounded; it is tunable using 5mm or 10mm Gurney flaps that alter the downforce.

High wing mount position
High wing mount position

The wing is attached with a high wing mount that puts the wing in the optimum position, adjustable for both height and fore-and-aft position.

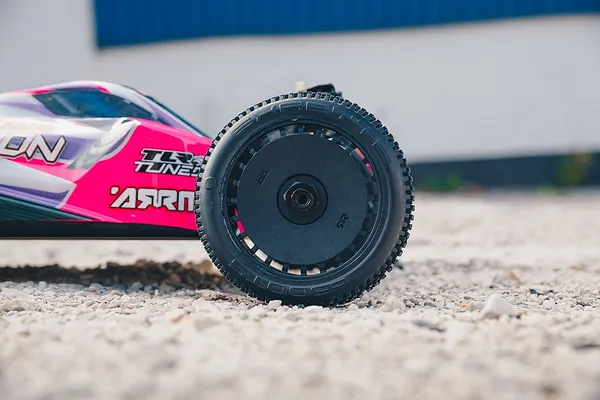

dBoots Exabyte race compound tyres on low-drag wheels
dBoots Exabyte race compound tyres on low-drag wheels

The dBoots Exabyte tyres are made of high-quality race compound rubber with a multi-surface tread pattern and are pre-glued to low-drag 1/8 buggy nylon wheels.

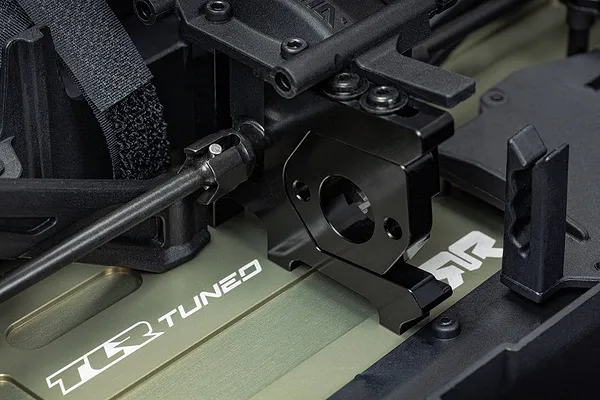

Black anodised sliding motor mount
Black anodised sliding motor mount

The black anodised sliding motor mount allows quick and easy installation and removal of the motor.

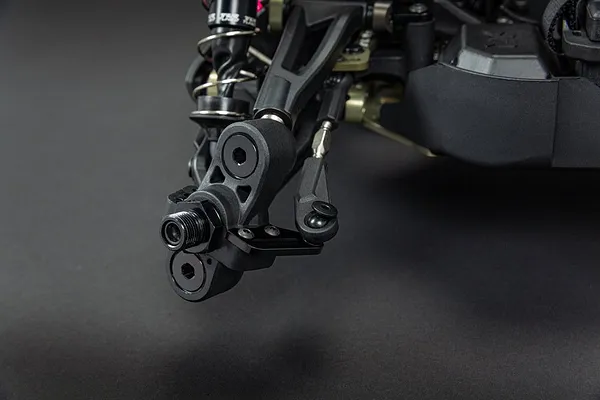

Black anodised front hub nuts and steering plates
Black anodised front hub nuts and steering plates

The front hub nuts, 17mm aluminium wheel hexes, and steering plates have received black anodising for the stealth race aesthetic.

Heavy-duty drivetrain internals
Heavy-duty drivetrain internals

The TLR Tuned TYPHON features a proven 6S heavy-duty drivetrain with all-metal diff outdrives and gearbox internals plus durable steel driveshafts throughout.

Black anodised aluminium servo mount
Black anodised aluminium servo mount

A black anodised aluminium servo mount increases the structural stiffness between the servo and the chassis, increasing the steering response of the model.

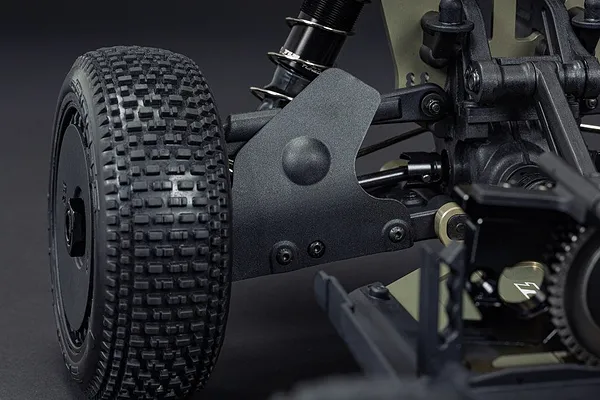

Rear suspension dirt guards
Rear suspension dirt guards

Dirt guards mount to the front of the rear suspension arms to protect the rear driveshafts from dirt and debris, increasing durability.

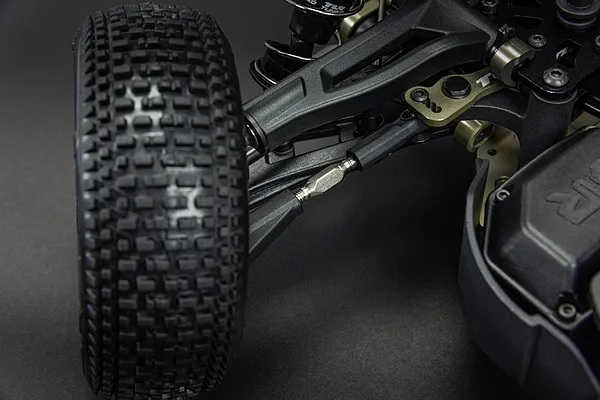

Heavy-duty M4 steel steering turnbuckles
Heavy-duty M4 steel steering turnbuckles

Heavy-duty steel M4 steering turnbuckles are fitted to the front of the TLR Tuned TYPHON.

M5 steel rear upper suspension turnbuckles
M5 steel rear upper suspension turnbuckles

The rear upper suspension links feature strong M5 steel turnbuckles, enhancing durability in this area.

EXB shock stand-offs on aluminium shock towers
EXB shock stand-offs on aluminium shock towers

The TLR Tuned shock absorbers are mounted to the 7075 T6 aluminium shock towers using heavy-duty steel ARRMA EXB shock stand-offs.

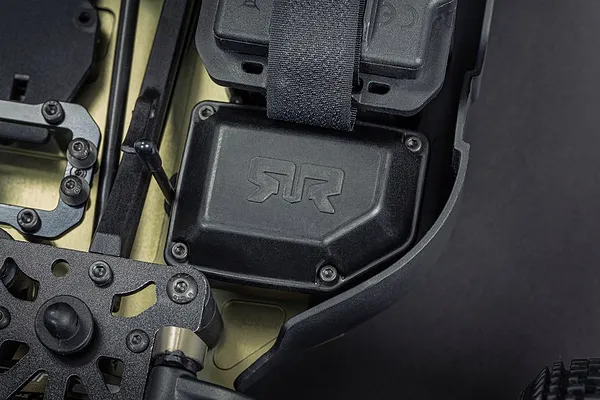

Large volume sealed radio box
Large volume sealed radio box

A large volume radio box with rubber and foam seals provides maximum dirt and moisture resistance and an integrated aerial wire mount for a secure fit.

Gearbox input gear and drive cup key-together design
Gearbox input gear and drive cup key-together design

The gearbox input gears and drive cups key together, ensuring you still have drive in the event of the attachment screw loosening.

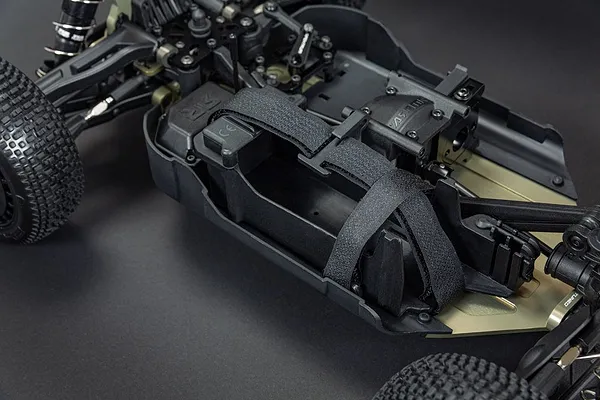

Dual hook-and-loop perpendicular battery mount
Dual hook-and-loop perpendicular battery mount

The battery mount system features two hook-and-loop straps fitted perpendicular to each other to provide a secure fit for a wide range of battery packs.

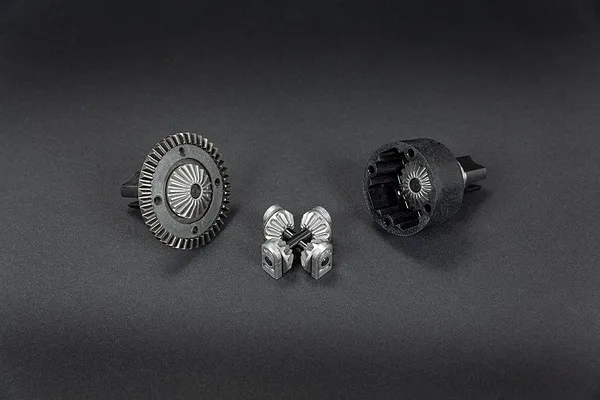

Three metal-geared differential units
Three metal-geared differential units

Equipped with three proven metal-geared differential units, ARRMA's easy-access front and rear diff units allow diff oil tuning or maintenance in minutes.

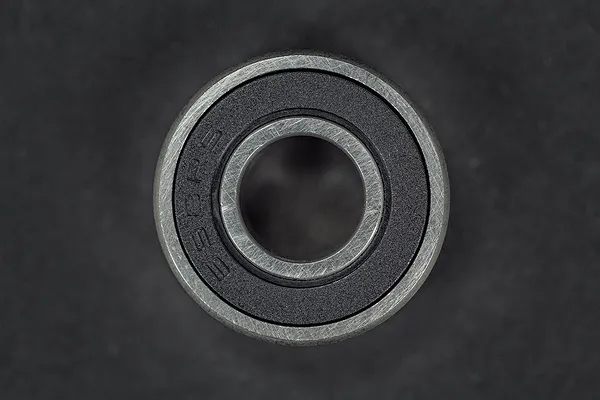

Rubber shielded bearings
Rubber shielded bearings

A full complement of high-quality rubber shielded bearings provides enhanced protection against the elements, keeping dirt, water, and dust out.

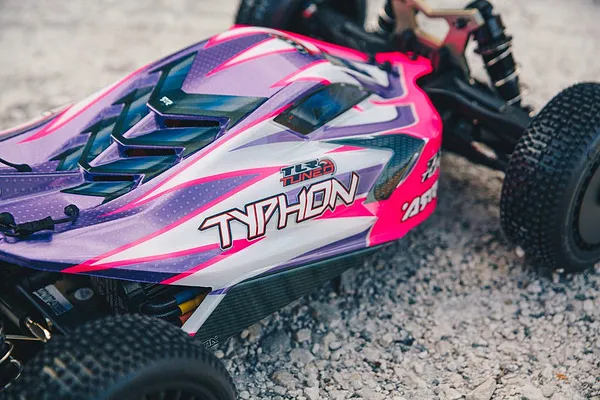

Factory-finished Race Spec body with Pink/Purple colour scheme
Factory-finished Race Spec body with Pink/Purple colour scheme

The TLR Tuned factory-finished body with bold racing colour scheme immediately sets this model apart from its ready-to-run TYPHON brother.

Chassis weight-saving pockets detail
Chassis weight-saving pockets detail

The chassis plate has machined-in pockets where material has been strategically removed to reduce weight without sacrificing strength.

Composite side pods and front/rear chassis braces
Composite side pods and front/rear chassis braces

The chassis features strong composite side pods and front and rear braces for structural rigidity.

17mm aluminium wheel hex fitting
17mm aluminium wheel hex fitting

The 17mm hex fitting provides strength during extreme action and allows easy maintenance on this 1/8 buggy standard wheel.

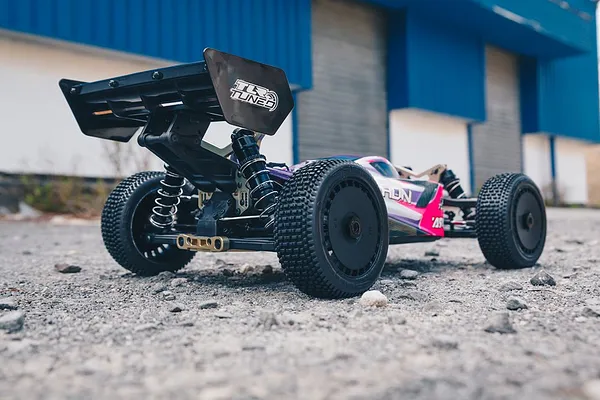

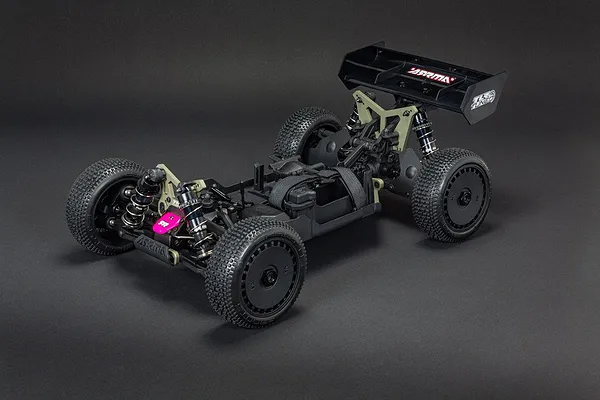

Race and Bash Ready Buggy
Race and Bash Ready Buggy

The TLR Tuned TYPHON 4WD Race Buggy Roller is primed and ready to hit the racetrack and still tough enough to handle off-road bashing.

Features
  • Strong front and rear composite chassis braces

  • Strong composite chassis side pods

  • Rear suspension dirt guards

  • Heavy-duty drivetrain

  • All-metal diff outdrives and gearbox internals

  • Durable steel driveshafts throughout

  • Galvanised turnbuckles

  • X-Hard servo saver spring

  • Black anodised aluminium easy-access sliding motor mount

  • Black aluminium servo mount

  • Genuine ARRMA product

Specifications
  • Length: 515mm (20.28")

  • Width: 312mm (12.28")

  • Height: 189mm (7.44")

  • Wheelbase: 328mm (12.91")

  • Weight: 2.86kg (6.5lbs )

  • Chassis: Buggy

  • Drivetrain: 4WD

  • Suspension: Oil Filled Coil Over Shock Absorbers

  • Motor: Not Included

  • ESC: Not Included

Included Items
  • 1x 1/8 Typhon TLR Tuned 4WD Roller RC Buggy - Pink/Purple

  • 1x Wheel Wrench

  • 1x Instruction Manual

Required Items
  • 1x 2+ Channel Transmitter and Receiver

  • 1x Compatible Servo

  • 1x Compatible ESC

  • 1x Compatible Motor

  • 1x 4/6S or 2x 2/3S LiPo Batteries

  • 1x Compatible LiPo Battery Charger

  • 1x Compatible Pinion Gear

Videos
Specifications
RC Car
Scale
1/8
Max LiPo Power
6S (22.2v)
Completion
Roller
Skill Level
Experienced
Chassis Type
Buggy
On/Off Road
Off Road
Drivetrain
4WD
Factory Specs
Max LiPo Power
6S (22.2v)
Front Shock Oil
550cSt
Rear Shock Oil
550cSt
Front Differential Oil
7000cSt
Centre Differential Oil
10,000cSt
Rear Differential Oil
7000cSt
Spur Gear
50T 1.0Mod
Wheel Hex Size
17mm
