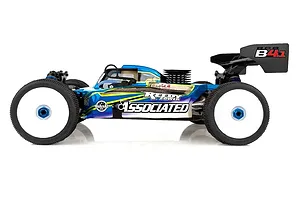

Name: Team Associated RC8B4.1 Team Kit RC Buggy Nitro 4WD 1/8 Scale Kit
Brand: Team Associated
SKU: ASS-80949
Price: 837.83 AUD
Availability: OutOfStock
Rating: 5 (2 reviews)

Overview

Note: This kit comes without a Motor, Servos, Receiver Battery, Charger, Wheels or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

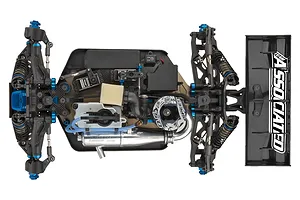

The RC8B4.1 Team Kit is the next chapter in the legacy of the 2022 IFMAR World Champion-winning RC8B4. Team Associated engineers focused on lowering the centre of gravity (CG), reducing weight, and enhancing handling on un-groomed outdoor tracks.

A new, stiffer tapered chassis profile forms the core of the buggy, delivering predictable high-speed handling while allowing for a softer overall shock package. The suspension features new low-CG shock towers (front and rear) and shorter shocks, working in conjunction with innovative 3-hole rear suspension arms. The wide base rear hubs offer three fixed axle heights and utilise 3mm carbon fibre hub towers, providing a multitude of geometry options. The RC8B4.1 also features 92mm universal joints, 44/13 bevel gears, and a 47T spur gear.

Note: This kit comes without a Motor, Servos, Receiver Battery, Charger, Wheels or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

Note

This kit comes without a Motor, Servos, Receiver Battery, Charger, Wheels or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

Features

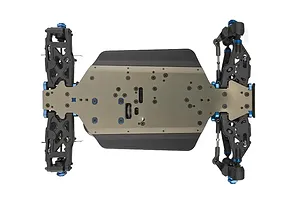

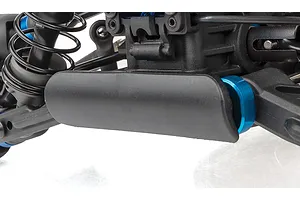

New RC8B4.1 chassis and side guards with tapered chassis design to increase stiffness and predictability
New shorter 16mm front and rear shock bodies for lower CG and lighter weight
New 6-hole 1.4mm front and 1.5mm taper rear machined shock pistons with emulsion shock cap seals
92mm universal driveshafts with 17mm outdrives

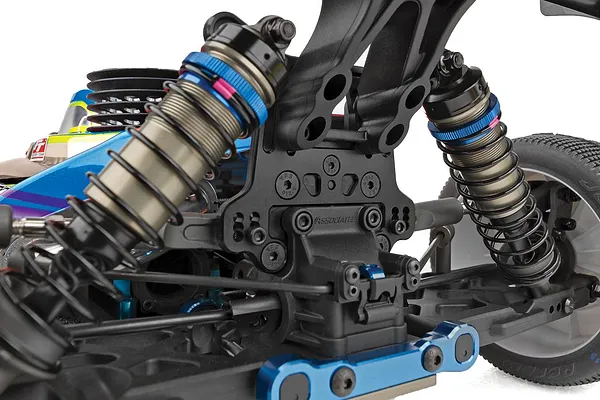

New 3-hole rear suspension arms with updated rear anti-roll bar geometry for both smooth and bumpy tracks

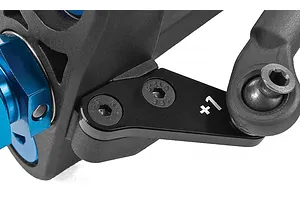

New durable rear hub design with wide footprint base and tuneable 3mm carbon fibre hub towers
New blue aluminium front upper arm mount for added durability
New moulded RC8B4.1 front bumper with optimised profile for bumpy transitions

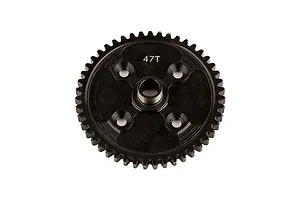

New 47T machined spur gear
44/13 Ring and Pinion Bevel Gear Set
Genuine Team Associated Product

In the box

1x Team Associated 1/8 RC8B4.1 Nitro 4WD Off Road RC Buggy Kit

You'll need

Compatible Transmitter & Receiver
Compatible 1/8 Steering & Throttle Servo
Polycarbonate Safe Paint
Compatible Nitro Engine & Exhaust
Compatible Receiver Battery & Charger
1/8 Buggy Tyres & Rims

Highlights

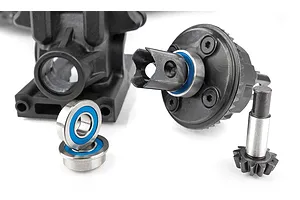

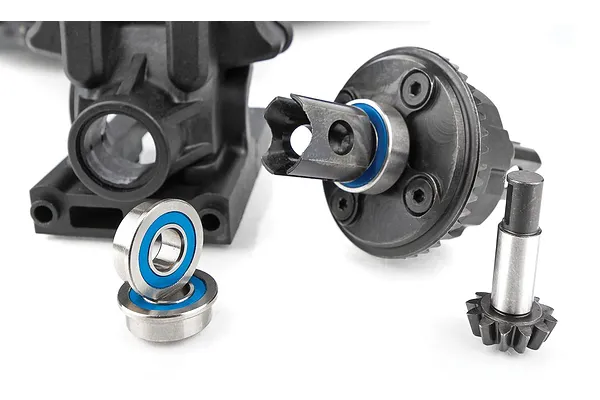

Enhanced Drivetrain Efficiency

Experience improved drivetrain efficiency with the redesigned front and rear gearboxes, ensuring smoother operation and better power transfer.

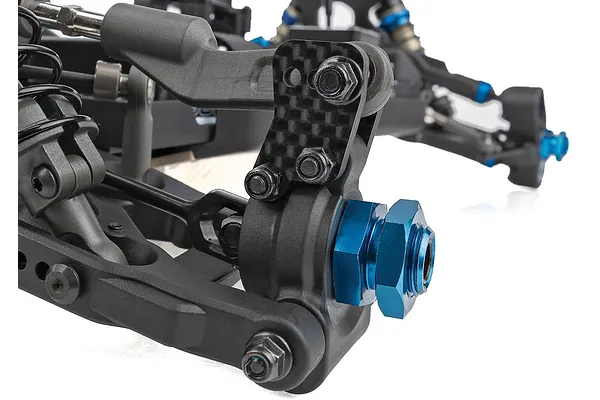

Upgraded Dog Bones and Pins

The RC8B4.1 Team Kit features 93.5mm front and 104mm rear centre driveshafts with 3x14mm pins, further enhancing drivetrain efficiency and durability.

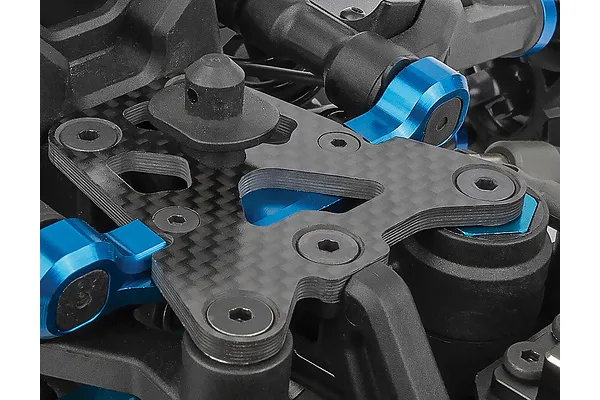

Durable Front Upper Arm Mount

The new blue aluminium front upper arm mount and carbon fibre top mount provide increased strength and durability, ensuring reliable performance on the track.

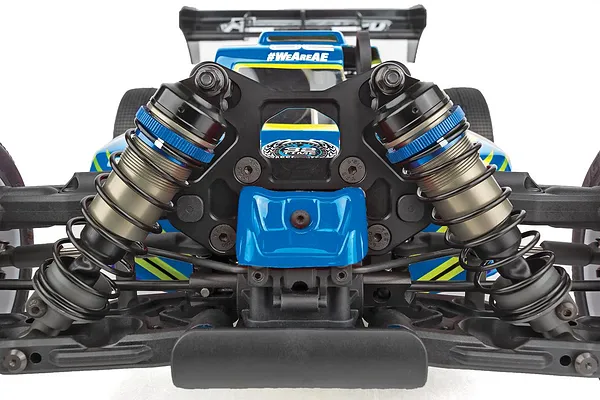

Lightweight and Low CG Shock Towers

The RC8B4.1 Team Kit includes new low centre of gravity (CG) and lightweight aluminium front and rear shock towers, improving handling and stability.

Adjustable Wing Mount

Fine-tune your wing angle with the adjustable wing mount, complete with shims for precise customisation. The wing mount also features strength and aerodynamic improvements for increased durability and efficiency.

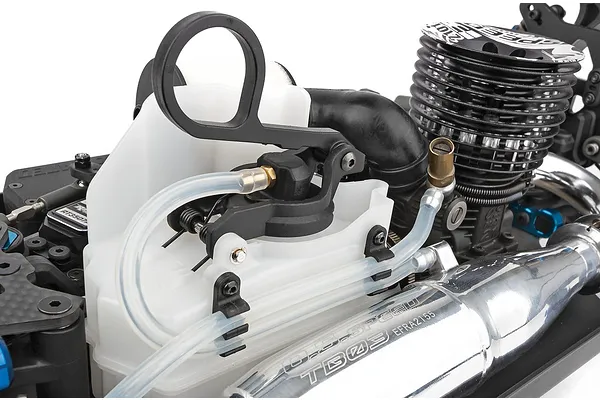

Upgraded Fuel Tank

The RC8B4.1 Team Kit includes the latest version RC8B4 fuel tank with a flexible rubber lip puller and an updated spring for a tighter seal, ensuring convenient refuelling and preventing leaks.

Specifications

Length	486mm (19.13")
Width	304.5mm (11.99")
Height	N/A
Wheelbase	323mm (12.72")
Weight	Varies
Chassis	Off Road Buggy
Drivetrain	4WD
Gears	3.38:1
Suspension	Oil Filled Coil Over Shock Absorbers
Motor	Not Included
ESC	Not Included
Tyre Diameter	Not included

RC Car

Scale	1/8
Completion	Kit
Skill Level	Experienced
Power Source	Nitro
Chassis Type	Buggy
On/Off Road	Off Road
Drivetrain	4WD

Factory Specs

Front Shock Oil	45wt
Rear Shock Oil	30wt
Front Differential Oil	15000cSt
Centre Differential Oil	10000cSt
Rear Differential Oil	10000cSt
Spur Gear	47T
Wheel Hex Size	17mm
