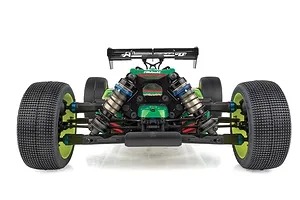

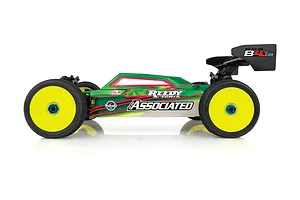

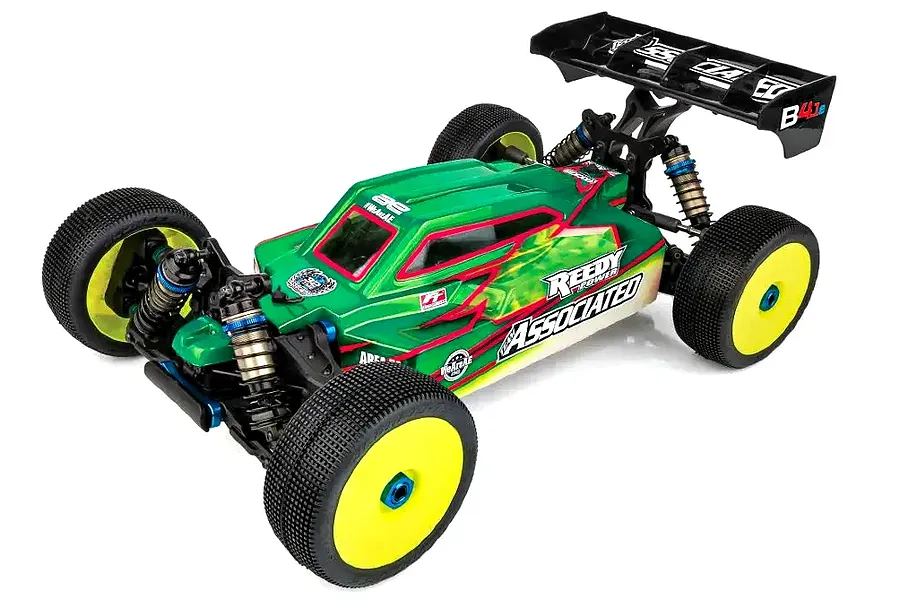

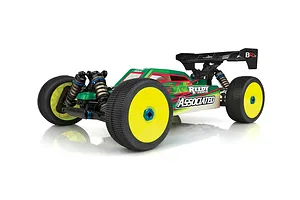

Team Associated RC8B4.1 Team Kit RC Buggy Electric 4WD 1/8 Scale Kit
Team Associated RC8B4.1 Team Kit RC Buggy Electric 4WD 1/8 Scale Kit
- Innovative RWB/FWB adjustable chassis design for fine-tuning rear grip and steering
- Low centre of gravity (CG) shock towers and shorter shocks for improved handling
- Wide-base rear hubs with adjustable geometry for maximum tuning options
- 92mm universal joints and 44/13 bevel gears for smoother power delivery
- Ideal for experienced 1/8 electric buggy racers

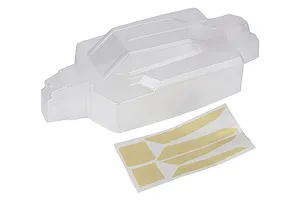

Note: This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.

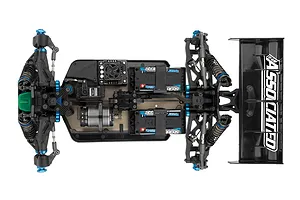

The Team Associated RC8B4.1e Team Kit builds upon the success of the RC8B4e with key refinements to enhance its performance on the track. This 1/8 scale 4WD electric buggy features a new RWB/FWB (Rearward/Forward Weight Bias) adjustable chassis design, allowing racers to fine-tune the buggy's balance and handling characteristics. The innovative system enables quick changes between a rearward motor position for increased traction and a forward motor position for enhanced steering.
The RC8B4.1e Team Kit also boasts a lower centre of gravity, thanks to the new low-CG shock towers and shorter shocks. The 3-hole rear suspension arms allow for softer shock and spring setups while maintaining support in high-speed corners. The wide-base rear hubs offer three fixed axle heights and utilise 3mm carbon fibre hub towers for a wide range of geometry adjustments. With its focus on performance, adjustability, and cutting-edge technology, the Team Associated RC8B4.1e Team Kit is ready to dominate the competition.

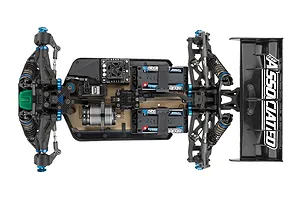

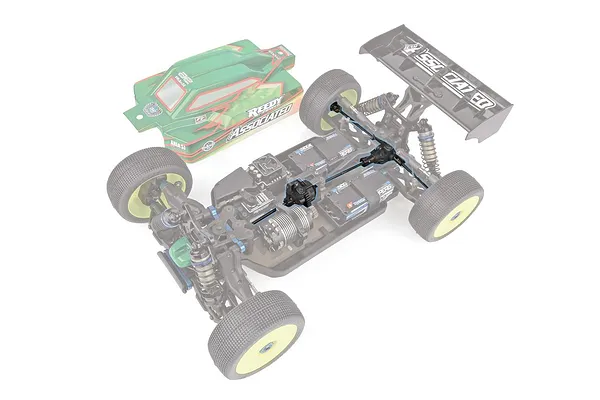

Master the terrain with the game-changing RWB/FWB chassis. Choose rear motor power for unstoppable traction on rough tracks, or switch to forward motor agility for razor-sharp cornering, easily done with a simple adjustment. Embrace the freedom and control of allowed by the easily changeable drivetrain.

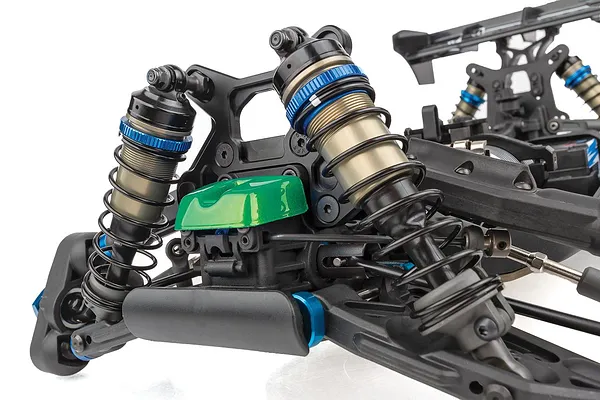

The RC8B4 buggies suspension undergoes a complete transformation, unlocking new levels of handling and control. Lower CG shock towers, both front and rear, paired with shorter shocks, drop the centre of gravity for increased stability. New 3-hole rear suspension arms enable softer shock and spring settings, maximising grip without compromising support in high-speed turns. Wide base rear hubs, offered in three fixed axle heights, provide multiple geometry options, fine-tuned by 3mm carbon fibre hub towers.

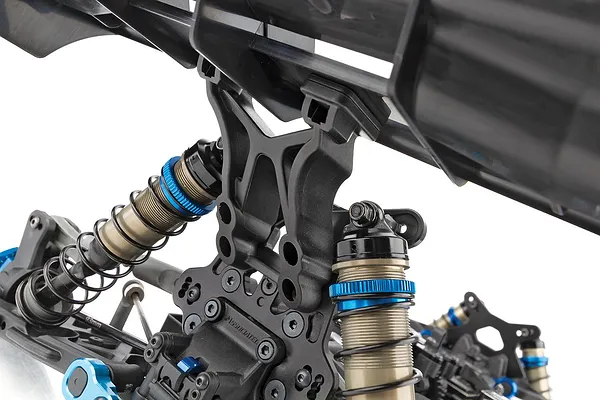

The RC8B4 now features cutting-edge shock pistons for enhanced control and performance. New 6-hole pistons, 1.4mm in the front and 1.5mm taper in the rear, deliver precise damping for a smoother, more controlled ride. These machined pistons, paired with emulsion shock cap seals, work in perfect harmony to optimise the shock performance.

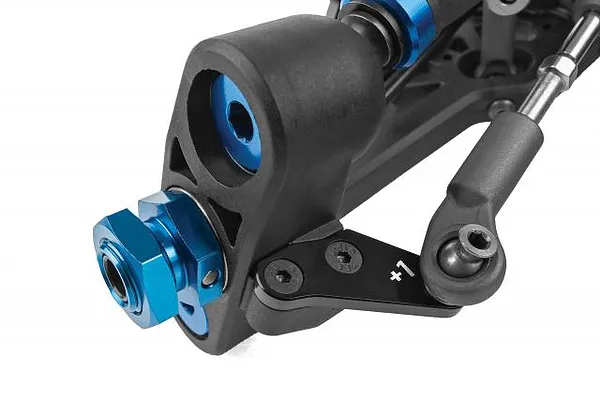

New +1 aluminium steering block arms provide sharper turn-in, allowing you to carve through corners with precision and control, especially on low grip surfaces. These robust aluminium arms offer the strength and durability you need to dominate the race, while their enhanced geometry delivers the responsiveness you crave for a truly thrilling driving experience.

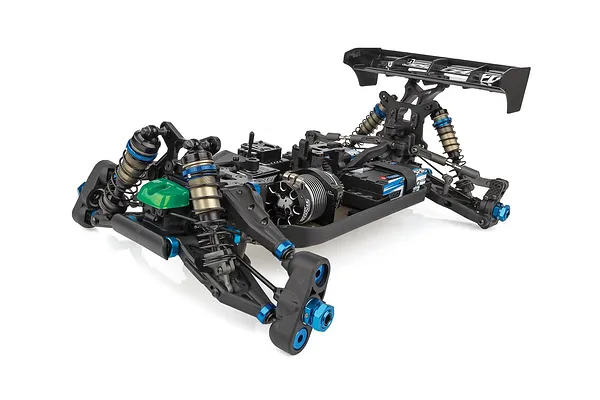

The RC8B4.1E boasts a groundbreaking new moulded front bumper designed with bumpy transitions in mind. This optimised profile absorbs impacts and glides over obstacles, ensuring a smoother, more controlled ride. Say goodbye to jarring landings and hello to a seamless transition from smooth to rough terrain. This innovative bumper enhances the buggies handling and performance.

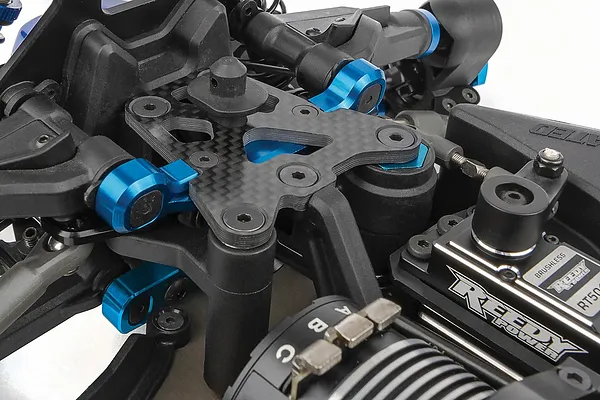

The RC8B4.1e now features a striking yet functional upgrade - a new blue aluminium front upper arm mount. This robust component adds an extra layer of durability to the buggy's suspension, ensuring unwavering performance even under the most demanding conditions. The vibrant blue finish not only adds a touch of style but also serves as a visual reminder of the enhanced strength and resilience this mount provides.
- 1/8 scale 4WD electric buggy kit
- RWB/FWB adjustable chassis design
- Low-CG aluminium shock towers
- Shorter 16mm shock bodies
- 6-hole 1.4mm front and 1.5mm taper rear shock pistons
- Emulsion shock cap seals
- 3-hole rear suspension arms
- Wide-base rear hubs with 3mm carbon fibre hub towers
- Blue aluminium front upper arm mount
- Moulded RC8B4.1 front bumper
- 46T moulded spur gear

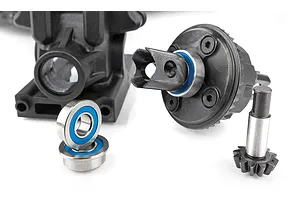

- 44/13 ring and pinion bevel gear set
- 92mm universal driveshafts
- Soft blend suspension arms
- +1 aluminium steering block arms
- Centralised drivetrain and chassis configuration
- Two battery trays with adjustable stops
- ESC tray with protective shield
- Receiver box with integrated servo mounts
- Genuine Team Associated Product
- Length: 486mm (19.13")
- Width: 304.5mm (11.99")
- Height: N/A
- Wheelbase: Varies
- Weight: Varies

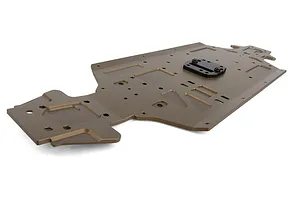

- Chassis: RC8B4.1 RWB/FWB
- Suspension: Independent Double Wishbone
- Drivetrain: 4WD
- Motor: N/A
- ESC: N/A
- 1x Team Associated RC8B4.1e Team Kit
- 1x Instruction Manual

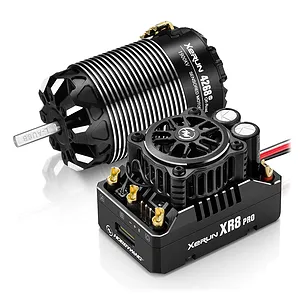

- 1x 1/8 Scale Electric Motor
- 1x Electronic Speed Control

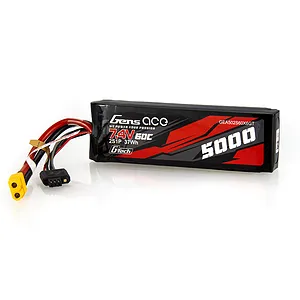

- 2x 2S Shorty LiPo Battery Packs
- 1x Battery Charger
- 1x 2- or 3-Channel Radio System
- 1x Steering Servo
- 1x Body Paint

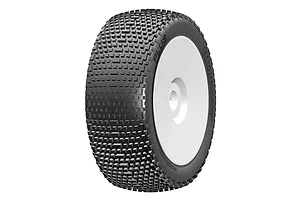

- 1x 1/8 Scale Buggy Wheels and Tyres
- This is a kit and requires assembly and additional electronics. Consult the manual for detailed information about assembly and setup.Â
-
Centre Differential Oil
- 10000cSt
-
Spur Gear
- 46T
-
Max LiPo Power
- 4S (14.8v)
-
Rear Differential Oil
- 10000cSt
-
Wheel Hex Size
- 17mm
-
Rear Shock Oil
- 30wt
-
Front Differential Oil
- 15000cSt
-
Front Shock Oil
- 45wt
-
Completion
- Kit
-
Drivetrain
- 4WD
-
Max LiPo Power
- 4S (14.8v)
-
On/Off Road
- Off Road
-
Chassis Type
- Buggy
-
Power Source
- Electric Brushless
-
Skill Level
- Expert
-
Scale
- 1/8
