Team Associated RC8B4 Team Kit RC Buggy Nitro 4WD 1/8 Scale Kit

Name: Team Associated RC8B4 Team Kit RC Buggy Nitro 4WD 1/8 Scale Kit
Brand: Team Associated RC Racing Cars
SKU: 80945
Price: 1040.27 AUD
Availability: OutOfStock

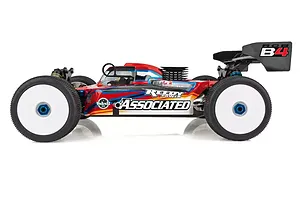

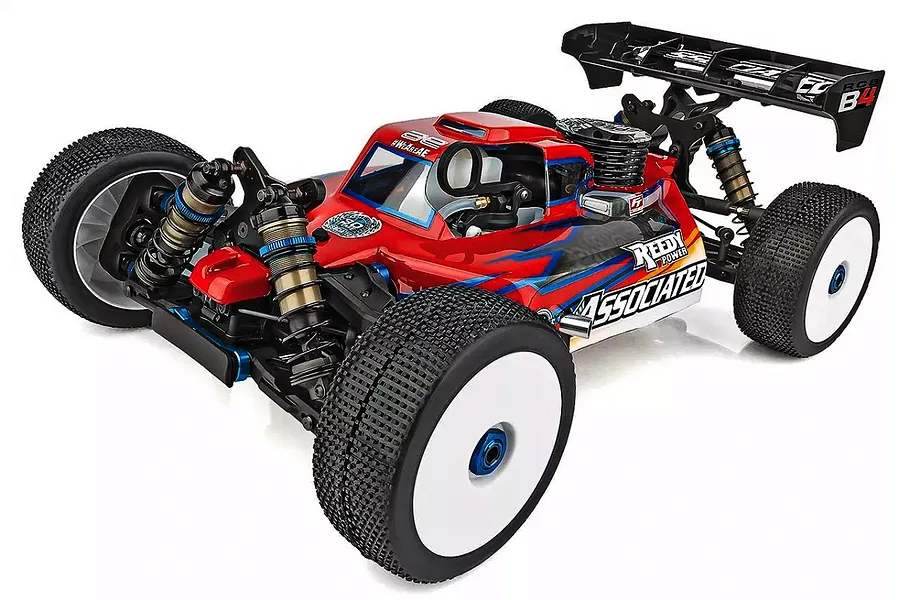

Team Associated RC8B4 1/8 scale nitro 4WD RC buggy with red body, white wheels, and rear wing on a white background.

Team Associated RC8B4 Team Kit RC Buggy Nitro 4WD 1/8 Scale Kit image 3

Videos

Team Associated RC8B4 Team Kit RC Buggy Nitro 4WD 1/8 Scale Kit

Brand: Team Associated | MPN: 80945

sold out

write a review

$1,040.27

or 4 fortnightly payments of $260.07 with

Team Associated RC8B4 Team Kit: 1/8 scale 4WD nitro buggy kit with innovative geometry, new gearboxes, and extensive tuning options.

Innovative front-end geometry with reduced kingpin inclination for increased stability and consistent steering
New front and rear specific gearboxes with larger bearing sizes
New rear wing mount with adjustable wing angle and two height options
Redesigned rear chassis brace with three chassis flex options
New fuel tank with optimized capacity and three stackable volume-adjustment inserts

Add to Wishlist

Save Time & Add These Now

Complete your setup with these required items.

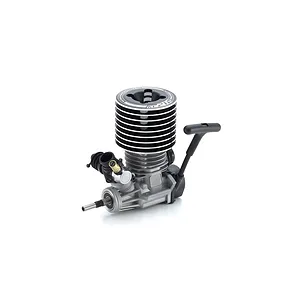

Kyosho KE21SP .21 Big Block Engine w/ Pull Start

$330.02

1/8 Nitro Motor

GPM Steel Body Reamer - Silver

$13.40

Body Shell Reamers

Factory Team Curved Hobby Scissors

$17.73

Curved Scissors

Pro-Line 3.3" Gladiator M2 Medium Compound Tyres on Black Mach 10 Rims - Glued Wheels 2Pcs

$87.98

Wheels

MKS Black Aluminium HBL550LX Low Profile 16kg 7.4V Brushless Metal Geared Servo

$185.99

Servo

FlySky FS-G11P 2.4Ghz 11Ch Radio with R11P Receiver

$290.31

Transmitter and Receiver

SkyRC T200 Dual Port AC/DC Smart Charger

$175.14

Charger

NXE 7.4V 2500mah Soft Case LiPo Receiver Battery

$44.29

Receiver Battery

Enter your suburb or postcode for delivery options

Enter your country for international delivery options

Shop replacement & upgrade parts for this model

Shop Parts

Description

This is the body shell only (wheels/chassis not included) and may require trimming & body post holes to be drilled.

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

1:8 scale off road racing is one of the hobby's most challenging disciplines; it requires a high standard and demands attention to detail. The latest development to come from Associated Electrics' Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series.

Features

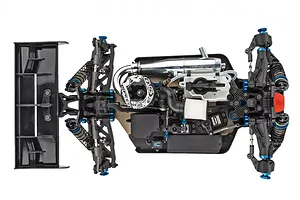

Innovative front-end geometry with reduced kingpin inclination steering blocks places the wheel pivot in the center of the front tire for increased stability and consistent steering through the entire steering throw
Paired with a new wider upper suspension arm pivot
New gearboxes are specific to front and rear; front features a 3.5 deg. inclined pinion gear angle; rear features a 0 deg. pinion gear angle and center mounted rear chassis brace mount
Both gearboxes feature larger bearing sizes over RC8B3: 6x13x5mm flanged bearing (from 6x12x4mm non-flanged) for longer life of bearings and ring and pinion gears
Reduced hardware on anti-roll bar cap for easy assembly and maintenance
Increased strength in common areas of part fatigue; particularly around the pinion gear and outer cap
New front upper suspension arm: accommodates wide range of flex and stiffness options; optional inserts for top or bottom; includes molded "wing" insert for increased front-end downforce; uses replaceable molded hinge pin bushing
New front lower suspension arm: accommodates wide range of flex and stiffness options; new one-piece anti-roll bar link mounts in-line with BHCS; optional inserts top or bottom
New rear suspension arm designed for optimal flex and stiffness; optional inserts available; new angled one-piece anti-roll bar link mounted in-line with BHCS
New rear wing mount with adjustable wing angle shims, significant strength improvements, aerodynamic shape, and extra clearance for shock position adjustment; two wing height options; three wing angle positions: 0, -2, and -4 degrees
New rear wing with more vertical fins, taller rear wickerbill, increased strength, and dimples for cutout template; two wing buttons included
New rear chassis brace mounted centrally to gearbox with three chassis flex options and two upper brace joint flex tuning options; removable insert to customize flex
New +1mm offset rear hub: symmetrical left and right design with axle height inserts for adjustable roll center tuning; accepts 8x16x5mm flanged or 15x21x4mm bearing
New fuel tank with new footprint, optimized capacity, ergonomic lid puller, dash marks for fuel level checking, increased splash guard height, longer lid pivot, and three stackable inserts for volume adjustment at sanctioned events

Specifications
