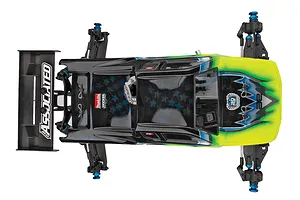

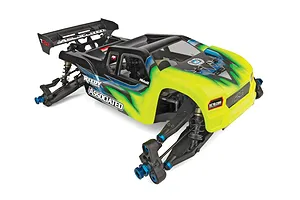

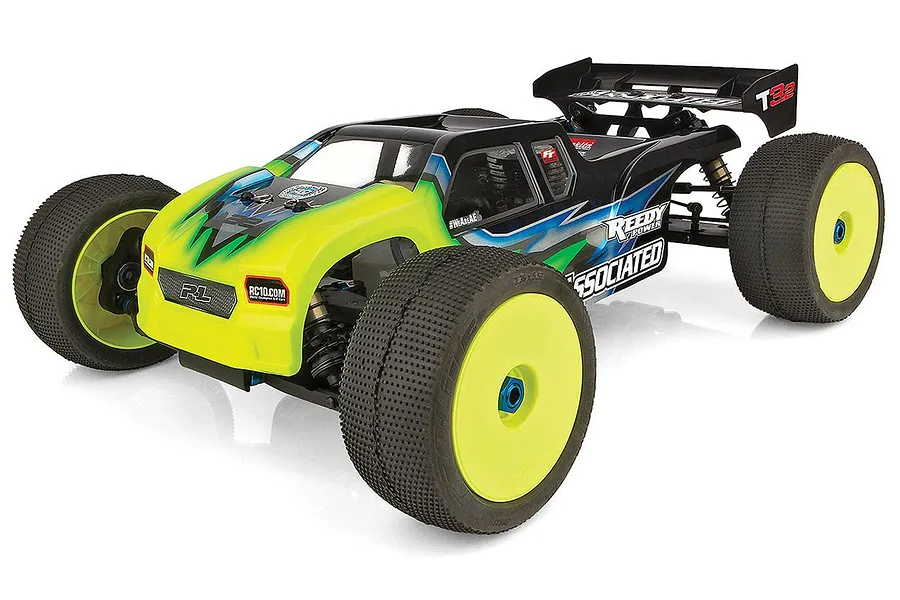

Team Associated RC8T3.2 RC Truggy Nitro 4WD 1/8 Scale Kit
Team Associated RC8T3.2 RC Truggy Nitro 4WD 1/8 Scale Kit
This kit comes without a Motor, Throttle or Steering Servos, Receiver Battery, Charger, Wheels, Starter Box or Transmitter, and will come with an unpainted body shell that may require cutting and drilling.

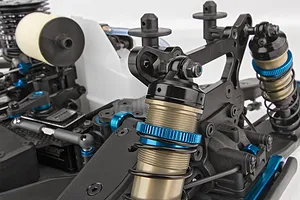

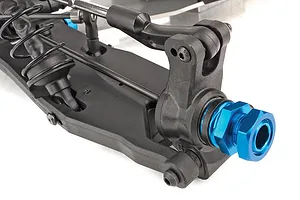

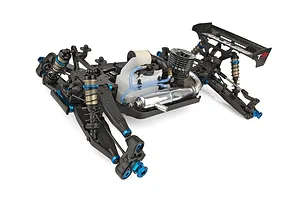

After a successful release of the RC8B3.2, the Area 51 engineers took the RC8 vehicle platforms to the next level with the RC8T3.2. The rear suspension arms have been lengthened to use the narrow pivot design. Bottom-loaded suspension arm inserts provide adjustable flex and keep the arms debris-free and easy to clean. A 4-piece center bulkhead allows for easier access to the center differential. A new rear shock tower has been developed to work with the new suspension arm geometry.

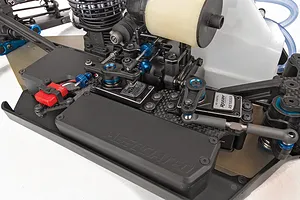

The all-new radio tray design has an enclosed battery box, a larger receiver box, integrated switch and transponder mounting, and adjustable flex configurations. Updated shock caps allow the RC8T3.2 to be run with the included new stiff bladders, standard bladders, or as emulsion with no bladders — all with the same cap.
Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

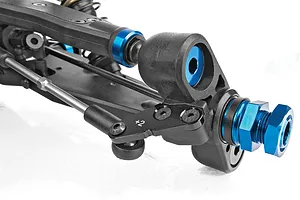

- New suspension arm design with inserts for flex adjustments
- Longer rear suspension arm length with narrow rear arm mounts

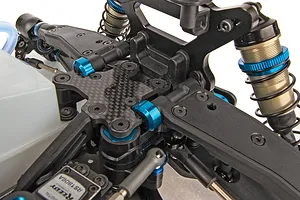

- New center bulkhead splits into unique front and rear top halves to prevent brake misalignment
- Enclosed battery box for quick and easy battery removal
- Larger receiver box for better wire management
- One-piece carbon fiber transponder and electronic switch mount
- Flex Control radio tray has three different configurations for chassis flex adjustment

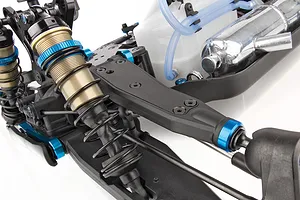

- New stiff shock bladder design improves jumping and handling performance
- Updated shock cap works for bladder or emulsion type shock setups

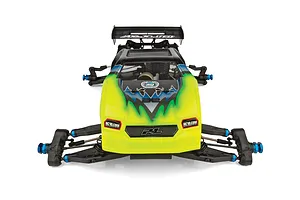

- Shorter and lower front bumper reduces drag and allows easier access to anti-roll bar screws
- I.F.M.A.R.-approved rear wing
- Updated chassis with chamfered front edges to reduce drag
- Side guards are now threaded into the chassis from the top side of the car
- 90% parts compatibility with the current generation of RC8.2 vehicles

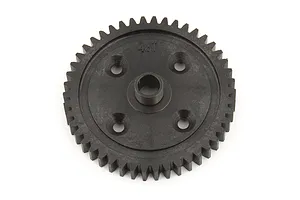

- 46T ring and 10T pinion gears on front and rear V3 differentials for consistent performance
- Power Source: Nitro Fuel
- Terrain: Off-Road
- Body Style: Truck
- Scale Size: 1:8 Scale
- Assembly Level: Kit
- Length: 650mm (25.59in)
- Width: Varies
- Wheelbase: 376.5mm (14.82in)
- Weight: Varies
- Gear Ratio: 4.6:1
- Drive: 4WD
- 1x Team Associated RC8T3.2 RC Truggy Nitro 4WD 1/8 Scale Kit
- .21 class rear exhaust engine

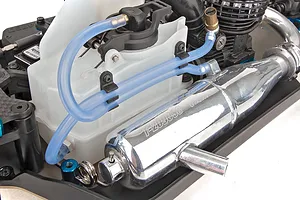

- Exhaust system: muffler and header joining pack, or muffler spring
- 2 or 3 channel radio/transmitter set with switch (FM/PCM/2.4GHz recommended)
- Transmitter batteries
- 4.8–7.4v receiver battery (flat style NiMH or flat style LiPo)
- Model car fuel (20–30% nitro recommended)
- Fuel bottle
- Glow igniter
- Starter box
- 1:8 scale buggy tyres
- 1:8 scale buggy wheels
- CA (cyanoacrylate) glue
- Polycarbonate-specific spray paint or bottled paint and airbrush
- Thread-locking compound (#1596)
- Steering servo
- Throttle servo
- Tools: Needle-nose pliers, Hobby knife, Reamer or hole punch, Ride height gauge, Body Scissors, Hex wrenches, Nut drivers, Wire Cutters, Calipers or a Precision Ruler
- Silicone Shock Fluid, Silicone Diff Fluid, Shock Shaft Pliers, 5pc Hex/Nut Driver Tool Set, Dual Turnbuckle Wrench, Tyre Adhesive
This is a kit and requires assembly. The body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint (such as Tamiya PS series) to finish the body shell.
-
Scale
- 1/8
-
Completion
- Kit
-
Skill Level
- Experienced
-
Power Source
- Nitro
-
Chassis Type
- Truggy
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Battery Connector
- Not Included
