TLR 8IGHT-XT/XTE RC Truggy Nitro/Electric 4WD 1/8 Scale Race Kit
TLR 8IGHT-XT/XTE RC Truggy Nitro/Electric 4WD 1/8 Scale Race Kit

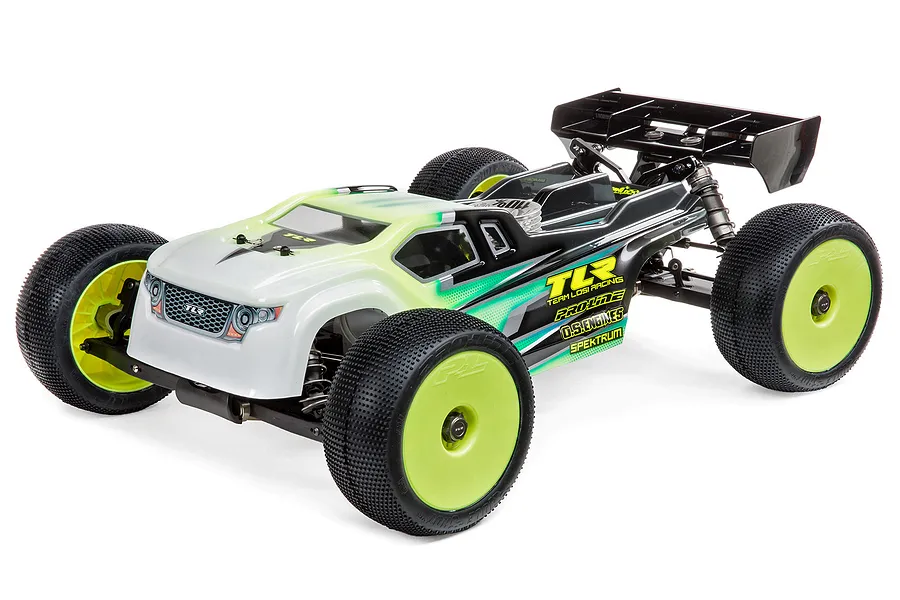

Championship-winning TLR 8IGHT-XT/XTE Next Generation Truggy kit — Nitro and Electric compatible in one box, 4WD, 1/8 scale race kit.
- Nitro/Electric compatible — chassis parts can be easily swapped to suit your preferred power source
- Equalised driveline — centre driveshaft angles matched front and rear for a smoother, more balanced 4WD experience
- Balanced Chassis — weight moved forward in the chassis to provide a better driving balance to the vehicle and less parts needed to carry
- Reworked suspension geometry — wider front pivot, narrower rear pivot, longer arms, and updated hub offset
- Ackerman adjustable steering rack with improved servo saver to eliminate bellcrank bind

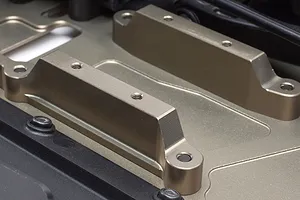

- Machined 7075-T6 aluminium shock towers with updated camber link holes
This kit comes without an ESC, Servo, Battery, Charger, Motor, Wheels, Pinion Gear or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.

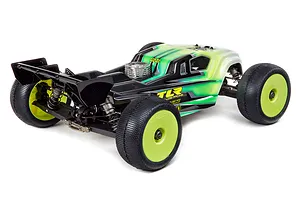

The new Team Losi Racing® 8IGHT-XT/XTE, Next Generation Truggy, builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain and the chassis layout that make it both easier to drive and tougher to beat. Plus, it includes Nitro and Electric in one box! The 8IGHT-XT/XTE has a combination of features second-to-none, including a large footprint engine mount, 3mm chassis, cab-forward body, machined aluminium shock caps, and so much more. Designed to win straight out of the box, the 8IGHT-XT/XTE expands performance and is ready for the winner's circle.

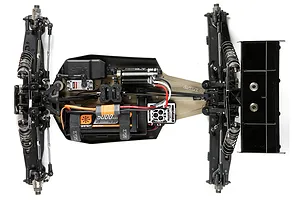

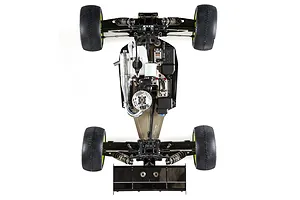

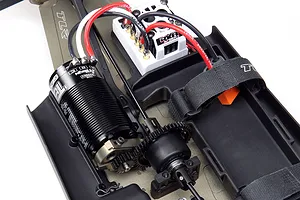

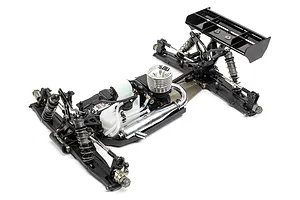

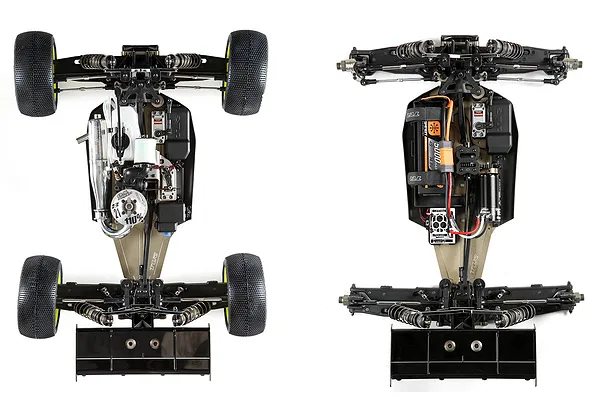

The 8ight-XT is designed to be compatible with both electronic and Nitro parts, with chassis parts that can be easily swapped to suit your preferred power source.

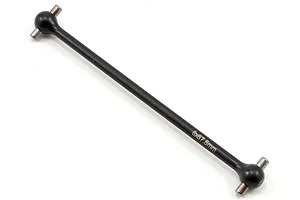

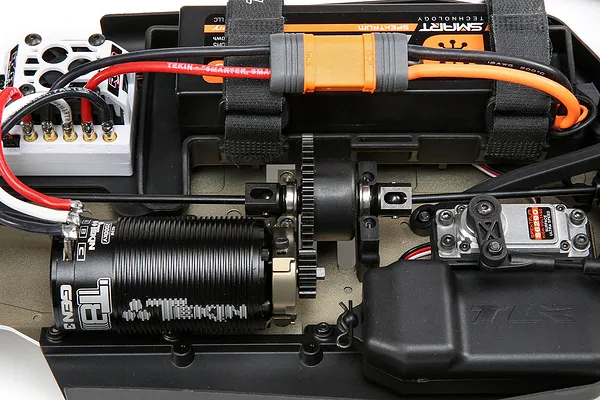

The centre driveshaft angles have been carefully adjusted to match front and rear, providing a smoother, more balanced 4WD driving experience.

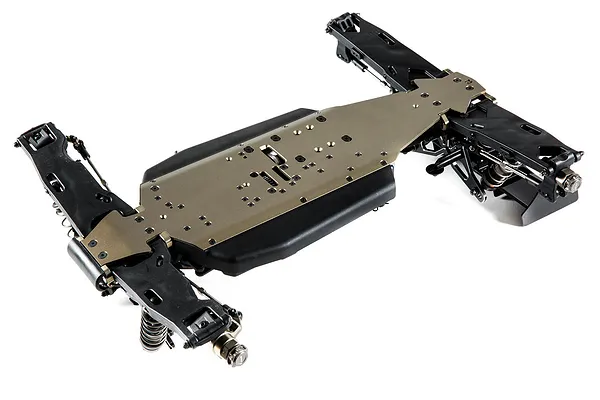

The weight has been moved forward in the chassis to provide a better driving balance to the vehicle and less parts needed to carry

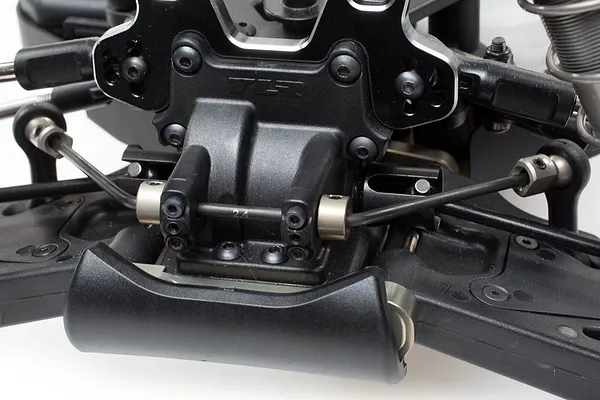

The 8IGHT-XT/XTE Next Gen suspension geometry has been completely revamped, making a truck that is fast, nimble, and easy to drive. This includes a myriad of updates, including wider front pivot with less scrub radius, narrower rear pivot, longer front and rear arms, and updated hub offset.

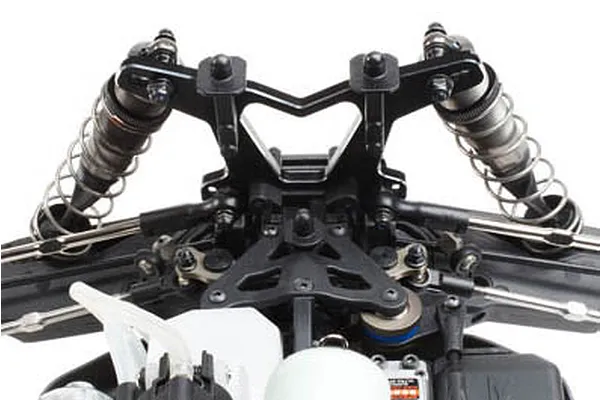

The 8ight features a redesigned steering rack which allows more ackerman adjustments and an improved servo saver to eliminate bellcrank bind during high loads.

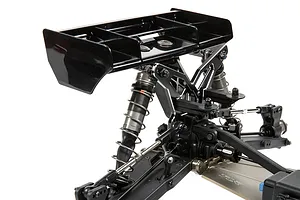

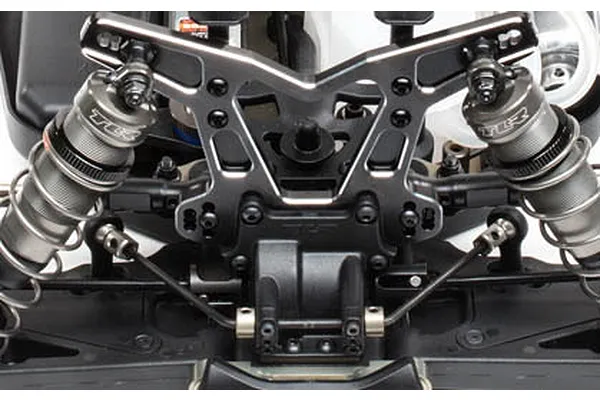

The 8ight has been upgraded and fitted with newly redesigned machined 7075-T6 aluminium shock towers with updated camber link holes.
- Improved Suspension Geometry — completely revamped making a car that is fast, nimble, and easy to drive, including longer front and rear arms, wider front pivot with less scrub radius, narrower rear pivot, and updated hub offset
- Suspension Arms — all new suspension arms designed to accept stiffener plates to allow racers to tune the flex of the suspension

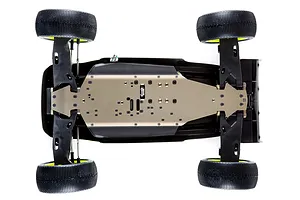

- Wide 3mm Chassis — chassis width increased to aid in stability and give the truggy a more neutral feel, equalised side to side for equal torsional flex and thinned down to 3mm for weight savings
- Larger Pinion Bearing — internal pinion bearing size in the front and rear increased for added durability

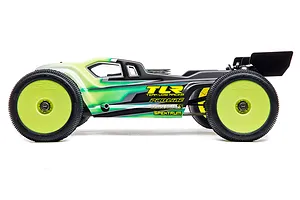

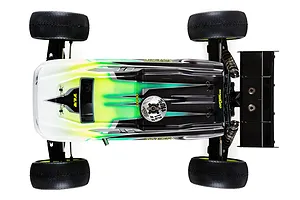

- Cab Forward Style Body — cab forward design helps with overall downforce, which improves steering and overall stability
- Chassis Side Guards — new chassis side guards with an improved fit onto the chassis

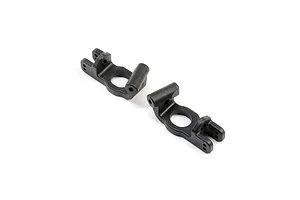

- Adjustable Castor Blocks — 17.5 deg castor blocks that allow the height of the spindle to be adjusted

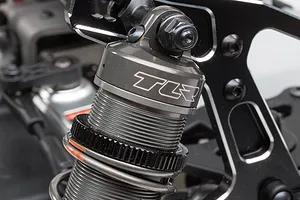

- Bleeder Shock Caps — machined aluminium shock caps with threaded bleeder holes for easy and consistent bleeding of oil
- Steering Rack — redesigned steering rack which will allow more Ackerman adjustments and an improved servo saver to eliminate bell-crank bind during high loads
- Shock Towers — redesigned machined 7075-T6 aluminium shock towers with updated camber link holes
- Better Diff Access — front and rear diff case altered to allow easier access to the differentials without removing the bulkheads from the vehicle

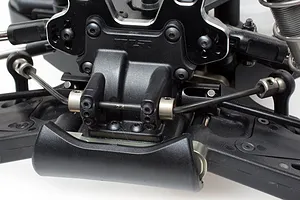

- Sway Bar System — new sway bar system with adjustable length links to allow better equalisation of each side of sway bar, and collars that keep the sway bars centred

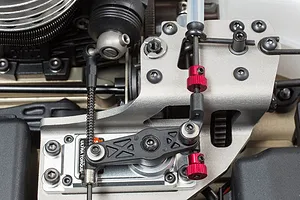

- Updated Radio Tray — puts the throttle servo near the engine to eliminate additional linkage; ensures the throttle servo is rigidly mounted to avoid any flex by floating the servo off of the centre differential
- Optimised Shocks — shocks are optimised and lightened to decrease the centre of gravity and lower the weight of the car

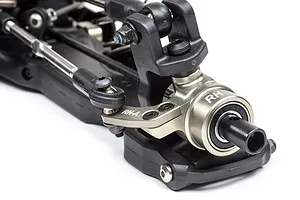

- Large Bearing Spindles and Carriers — all four corners updated to use large ball bearings and the same bearings
- Shorter Wheelbase — wheelbase shortened to aid in grip and provide more agile handling
- LiPo/Li-Ion Compatible Battery Box — battery box designed to fit either common LiPo receiver packs or Li-Ion receiver packs
- 1x 1/8 8IGHT-XT/XTE 4WD Nitro/Electric RC Truggy Race Kit
- For Electric:
- Compatible 14.8V LiPo Battery
- Compatible Charger
- Compatible 1/8 Scale ESC
- Compatible 1/8 Scale Motor
- 2+ Channel Transmitter & Receiver
- PS Series Polycarbonate Safe Paint
- AA Batteries For Transmitter
- Compatible Tyres
- For Nitro:
- Compatible Nitro Engine
- Compatible Receiver Battery
- Receiver Battery Charger
- Compatible 1/8 Scale Servo For Steering & Throttle
- 2+ Channel Transmitter & Receiver
- PS Series Polycarbonate Safe Paint
- AA Batteries For Transmitter
- Compatible Tyres
This kit comes without an ESC, Servo, Battery, Charger, Motor or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.
-
Length
- 536mm (21.1 in)
-
Width
- 422mm (16.6 in)
-
Height
- 185mm (7.3 in)
-
Wheelbase
- 373mm (14.7 in)
-
Weight
- 4082g (9 lbs)
-
Tyre Diameter/Width F/R
- Not Included
-
Chassis
- Off Road Truggy
-
Drivetrain
- 4WD
-
Gears
- 4.5:1
-
Suspension
- Oil Filled Coil Over Shock Absorbers
-
Motor
- Not Included
-
ESC
- Not Included
-
Scale
- 1/8
-
Max LiPo Power
- 3S (11.1v)
-
Completion
- Kit
-
Skill Level
- Experienced
-
Power Source
- Electric Brushless, Nitro
-
Chassis Type
- Truggy
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Max LiPo Power
- 4S (14.8v)
-
Battery Connector
- Not Included
-
Front Shock Oil
- 32w
-
Rear Shock Oil
- 32w
-
Front Differential Oil
- 7000w
-
Centre Differential Oil
- 12500w
-
Rear Differential Oil
- 5000w
-
Pinion Gear
- 13T 1Mod
-
Spur Gear
- 48T 1Mod
-
Wheel Hex Size
- 17mm
