TLR 22X-4 2.0 DC Dirt/Clay RC Buggy Electric 4WD 1/10 Scale Race Kit

TLR 22X-4 2.0 DC Dirt/Clay RC Buggy Electric 4WD 1/10 Scale Race Kit

Videos

TLR 22X-4 2.0 DC Dirt/Clay RC Buggy Electric 4WD 1/10 Scale Race Kit

Brand: TLR | SKU: TLR-1264
coming soon
TBA

The TLR 22X-4 2.0 DC Is Fast! Features G3 Big Bore Shocks, Carbon Towers, Adjustable Inner Pivots & Lightweight Design! Build It To Win!!

  • Optimised flex provided by the 2mm 7075-T6 Aluminium Chassis

  • Soak up massive jumps with 13mm G3 Big Bore Shocks

  • Adjustable Differential Heights allow for precise tuning

  • Reduce drivetrain friction with Centre Dogbone Drive

  • Competition Level Racing for Experienced Builders

Add to Wishlist
Ordered
4 days ago
The date we ordered this product from our supplier.
Description

Take your place at the front of the grid with the Team Losi Racing 22X-4 2.0 DC 4WD Race Buggy Kit. Building on the championship-winning heritage of the 22 series, this 2.0 evolution is specifically engineered to excel on today's high-grip dirt and clay surfaces. The platform has been refined with a focus on adjustability and durability, featuring a precision-milled 2mm 7075-T6 aluminium chassis that provides the perfect flex characteristics for consistent traction. With a layout designed to be lighter and easier to work on, the 22X-4 2.0 is a purebred racer designed to shave tenths off your lap times.

The suspension geometry has been significantly updated with massive 13mm G3 Big Bore shocks, providing superior damping and support for aggressive cornering and heavy landings. The drivetrain now features a centre dogbone setup for reduced friction, along with high-volume gear differentials that can be adjusted in height to tune the handling balance. Premium materials are used throughout, including 4mm carbon fibre shock towers and a floating servo mount to prevent chassis tweak. Topped with a lightweight Pro-Line Sector body and Air Force wing, this buggy is aerodynamic and agile.

The TLR 22X-4 2.0 DC is a podium contender waiting to be unleashed—build it right and lead the pack!

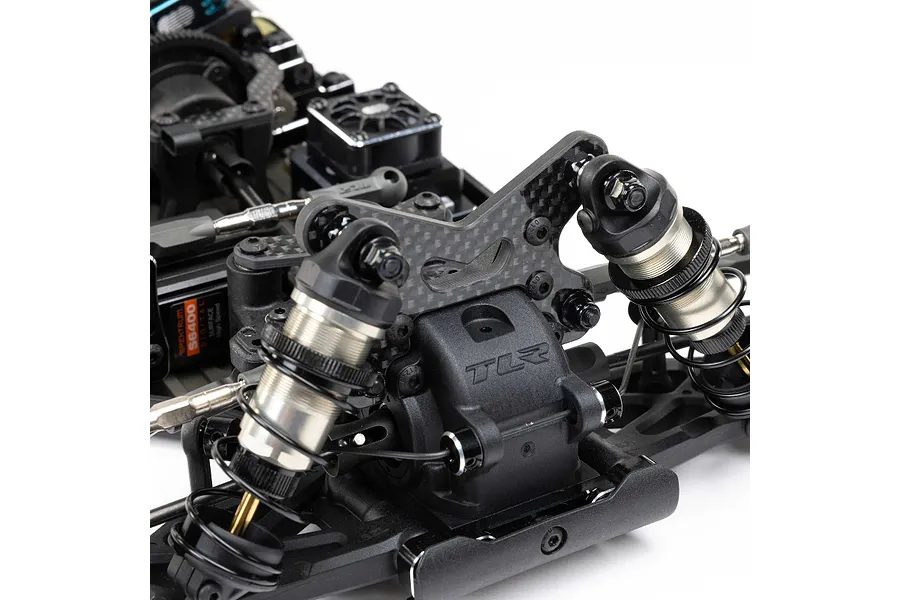

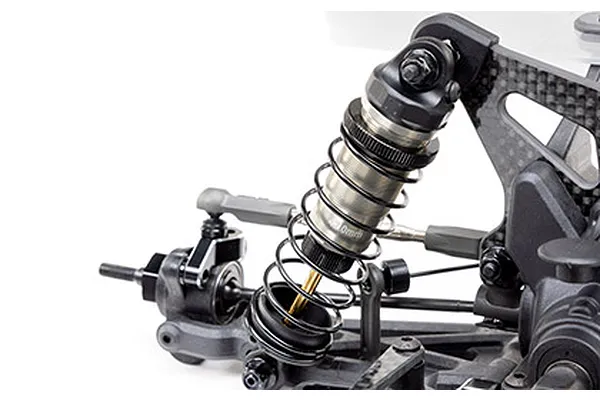

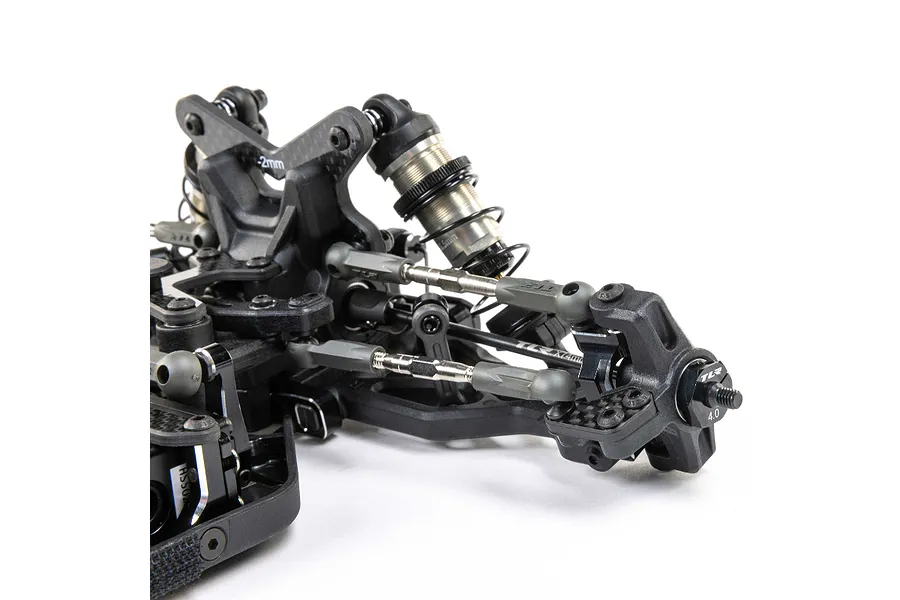

G3 13mm Big-Bore Shocks with Gullwing Front Arms

G3 13mm big-bore shocks paired with gullwing front arms lower the centre of gravity. The 4mm (0.16") carbon fibre towers position shocks 2mm (0.08") lower for optimum travel. These updates provide superior handling and support, ensuring your buggy remains stable through high-speed corners on modern dirt and clay tracks.

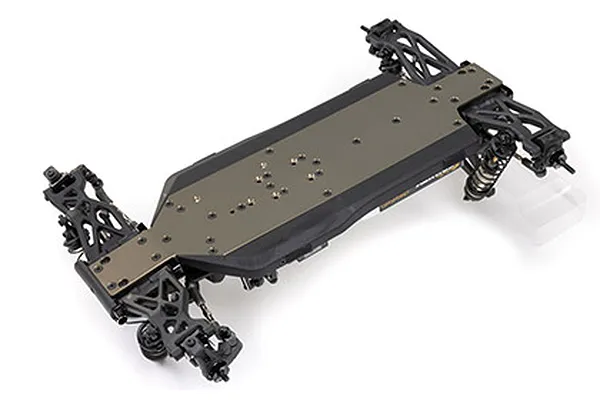

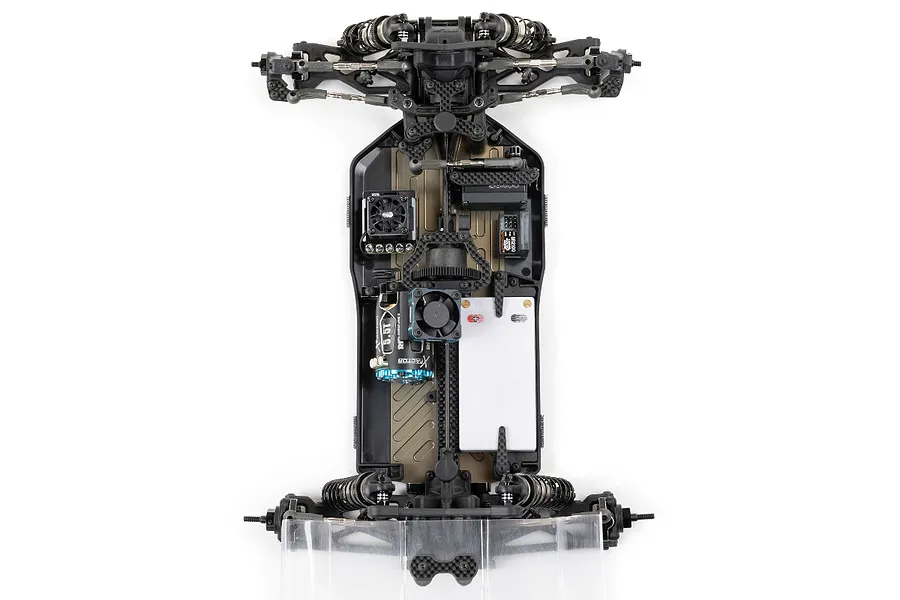

Milled 7075-T6 Aluminium Chassis and Sideguards

The hard-anodised 2mm (0.08") 7075-T6 aluminium chassis is precision milled for optimal flex and grip. New sideguards feature a rounded front design to prevent dragging at low ride heights. This combination increases consistency across various track types, allowing you to push harder without compromising the vehicle's balance or predictability during intense racing.

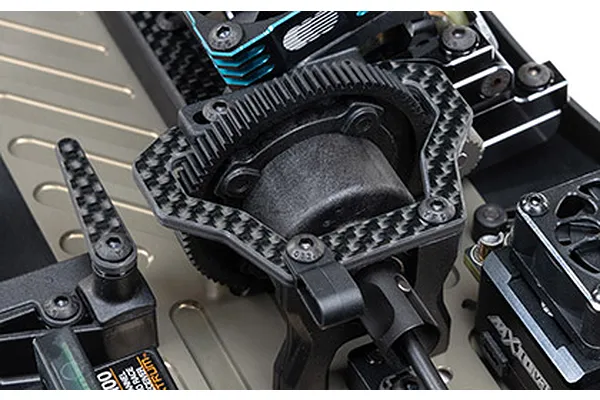

Adjustable High-Volume Gear and Centre Diffs

Large-volume bevel gear differentials offer 19.2% more capacity for enhanced durability. This kit includes adjustable differential heights and a factory-included centre diff, specifically tuned for dirt and clay surfaces. These features provide exceptional performance by allowing you to dial in traction and power delivery to match your specific racing conditions.

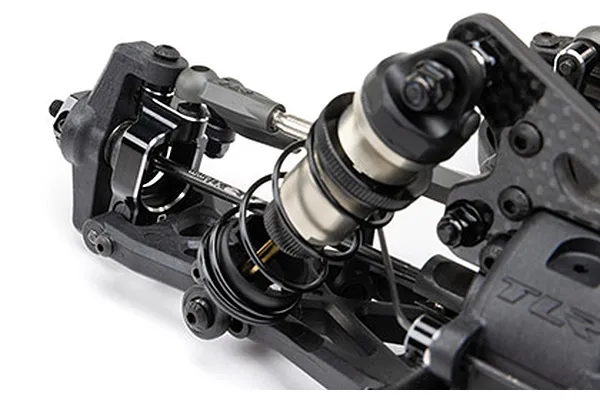

Adjustable Caster Inserts and 5.8mm Ball Studs

New 5.8mm (0.23") ball studs and rod ends reduce friction while providing a larger surface area for secure fitment. Easily adjust your caster from 6° to 12° using the included inserts. This interference-free movement and easy roll centre adjustment allow you to fine-tune your steering response and front-end grip with professional precision.

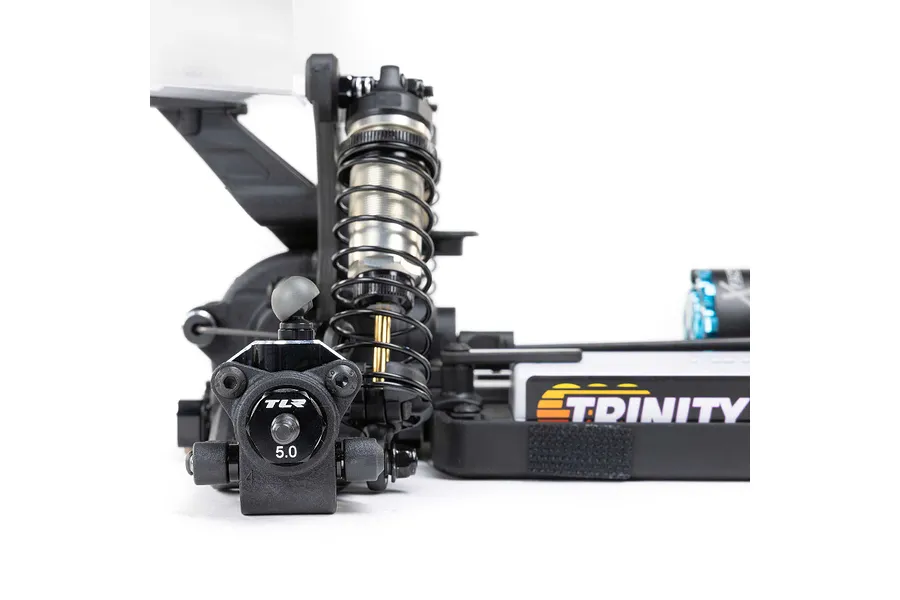

VHA Rear Hubs and Adjustable Inner Pivot Blocks

Variable Height Axle (VHA) rear hubs allow for precise roll centre and bone plunge adjustments. Combined with adjustable inner pivots, you can easily set anti-squat, toe, and pivot width. This system provides the options needed to optimise side bite and forward drive, ensuring your 4WD racer is perfectly balanced for any racing surface.

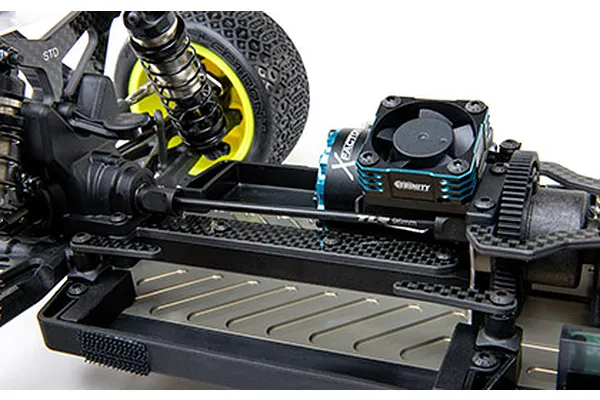

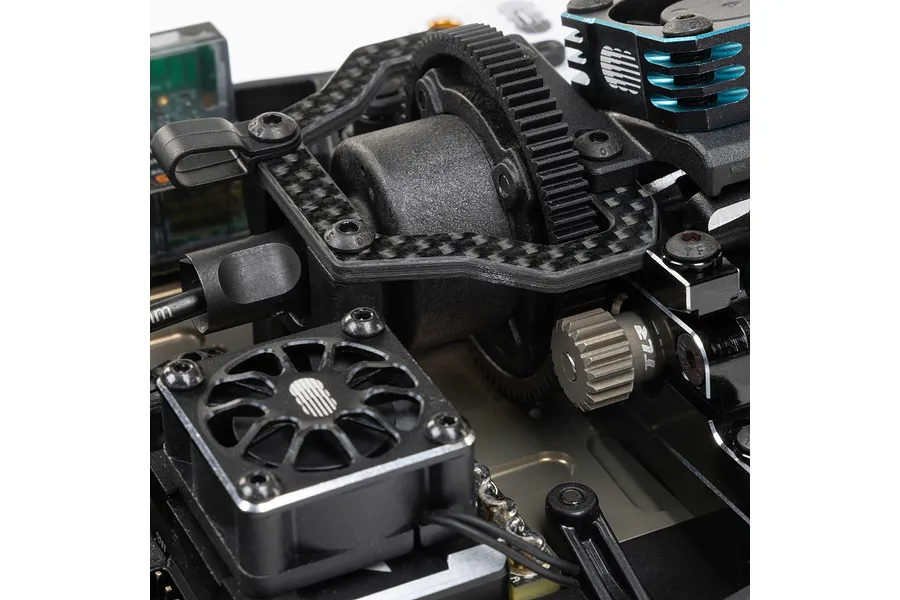

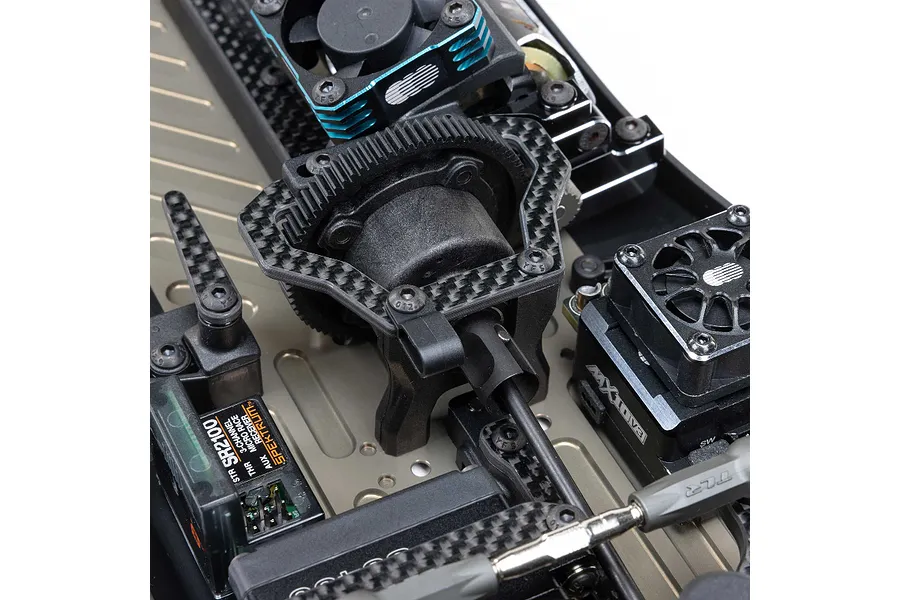

Dogbone Centre Driveline and Integrated Fan Mount

Centre driveline dogbones simplify the process of moving the centre differential for weight bias tuning. The built-in motor fan mount supports standard 30mm (1.18") x 30mm (1.18") fans in two different locations. These racing-focused features help manage electronics temperatures and allow for rapid maintenance in the pits between qualifying rounds and finals.

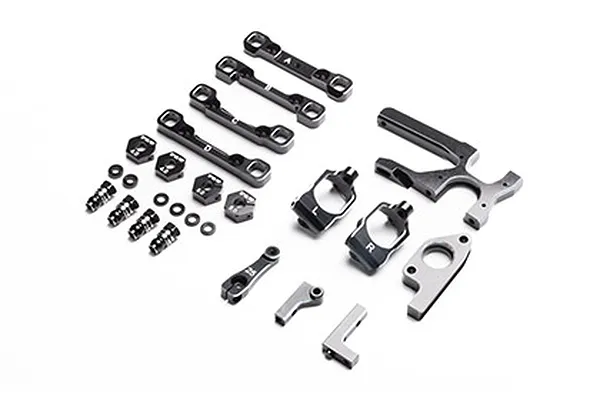

Lightweight Aluminium Parts and Stiff Composites

This race kit utilises lightweight aluminium components, including clamping hexes, ball stud washers, and shock stand-offs. Multiple stiffness options are available for the glass-filled composite parts, allowing you to tune the overall rigidity of the vehicle. These material choices ensure a high-performance balance that can be tailored to meet any driver's specific preferences.

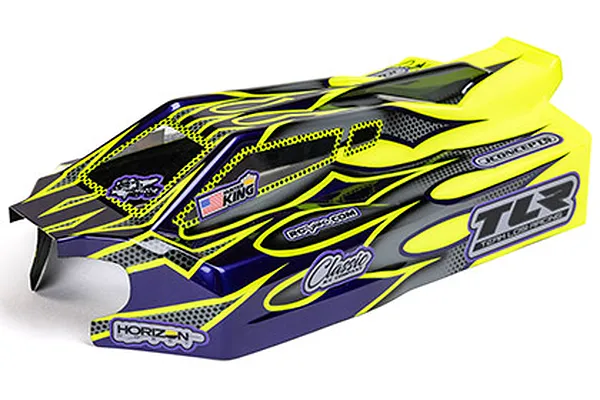

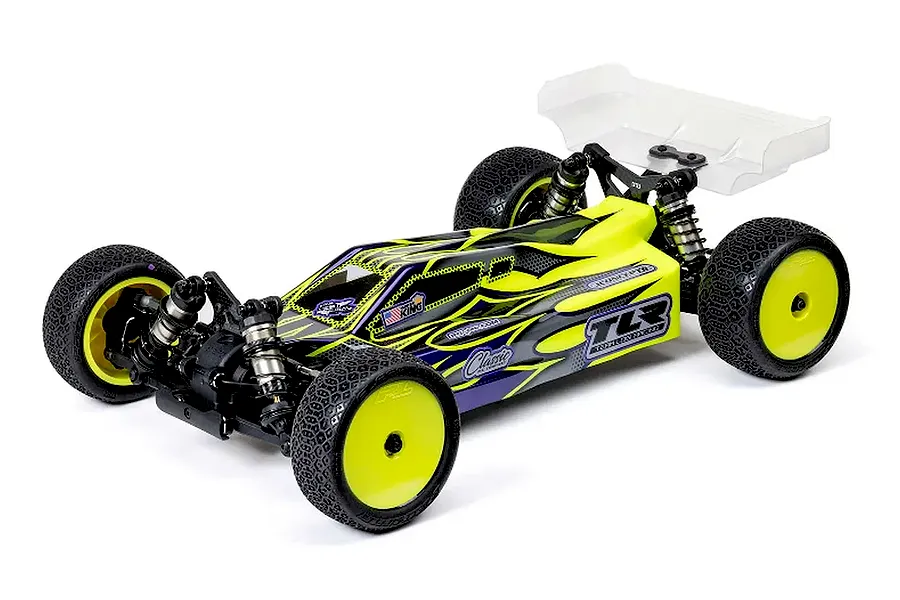

Pro-Line Sector Body and 177.8mm (7") Rear Wing

The lightweight Pro-Line Sector buggy body comes pre-cut and ready for your custom paint job. Paired with a 177.8mm (7") Air Force rear wing, this aerodynamic package improves stability and grip at high speeds. The sleek design not only looks great but also helps maintain the balance of the vehicle during jumps and technical sections.

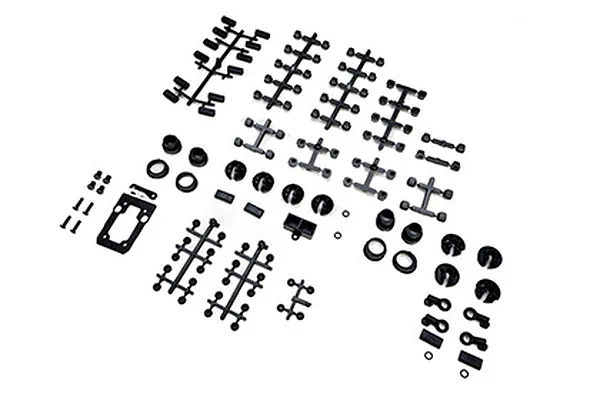

Out-Of-Box Tunability to Adapt to Every Track

Every part required for professional-level tuning is included in the box, removing the need for extra purchases. From adjustable pivots to multiple inserts, the 22X-4 2.0 DC is designed to adapt to any track environment immediately. This comprehensive out-of-box tunability ensures you have a competitive edge, no matter the dirt or clay track conditions.

Features
  • Unassembled 1/10 scale 4WD electric off-road competition buggy kit

  • Optimised specifically for high-grip Dirt and Clay track surfaces

  • Features a milled 2mm 7075-T6 Aluminium Chassis for flex control

  • Equipped with massive 13mm G3 Big Bore Shocks for superior damping

  • Adjustable Differential Heights allow for precise track tuning

  • Features Centre Drivetrain Dogbones for reduced friction and drag

  • Includes High Volume Bevel Gear Differentials for a consistent feel

  • Variable Height Axle (VHA) rear hubs offer roll centre adjustment

  • 4mm Carbon Fibre Shock Towers provide rigid suspension mounting

  • Includes lightweight Pro-Line Sector Body and Air Force 7" Wing

  • Floating Servo Mount eliminates chassis tweak for consistent handling

  • Genuine Team Losi Racing Product

Specifications
  • Length: 376mm (14.8")

  • Width: 250mm (9.8")

  • Height: 147mm (5.8")

  • Wheelbase: 287mm (11.3")

  • Weight: Adjustable

  • Chassis: 2mm 7075-T6 Aluminium

  • Drivetrain: 4WD Shaft Drive

  • Suspension: Independent 13mm Big Bore

  • Motor: N/A (Sold Separately)

  • ESC: N/A (Sold Separately)

Included Items
  • 1x TLR 22X-4 2.0 DC 4WD Buggy Kit

  • 1x Pro-Line Sector Body (Clear)

  • 1x Pro-Line Air Force 7" Wing

  • 1x Decal Sheet

  • 1x Tuning Parts Bag

  • 1x Instruction Manual

Required Items
  • 1x 2-Channel Surface Radio System (Transmitter & Receiver)

  • 1x 1/10 Scale 540 Electric Motor

  • 1x 1/10 Scale Electronic Speed Control (ESC)

  • 1x High-Speed Steering Servo

  • 1x 2S Shorty LiPo Battery

  • 1x Compatible Battery Charger

  • 1x 48dp/0.5Mod Pinion Gear

  • 4x 1/10 Buggy Wheels and Tyres (2.2")

  • 1x Polycarbonate Paint

  • 1x LiPo Safe Charging/Storage Bag

Note
  • Please refer to the instruction manual for specific safety precautions and operating instructions.

  • Kit Build: This product requires full assembly, painting, and installation of electronics (sold separately).

  • Battery Fitment: Designed for Shorty style LiPo batteries only.

Videos
Specifications
RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate, Expert
Power Source
Electric
Chassis Type
Buggy
On/Off Road
Off Road, On Road
Drivetrain
4WD
RC Kit
Suited Motor/ESC Type
Brushless
Factory Specs
Max LiPo Power
2S (7.4v)
Front Shock Oil
40wt
Rear Shock Oil
32.5wt
Front Differential Oil
7000cSt
Rear Differential Oil
5000cSt
Spur Gear
78T 48dp/0.5Mod
Wheel Hex Size
12mm
