TLR 22X DC RC Buggy Electric 2WD 1/10 Scale Kit
TLR 22X DC RC Buggy Electric 2WD 1/10 Scale Kit
- Premium 2WD buggy with 7075-T6 aluminium chassis and carbon fibre towers
- Offers extensive suspension and geometry tuning options for racers
- Features 13mm big-bore shocks, laydown gearbox, and SHDS slipper clutch
- Includes Pro-Line Sector 22X body and race-ready aerodynamic wings
- Designed for maximum tunability and performance right out of the box

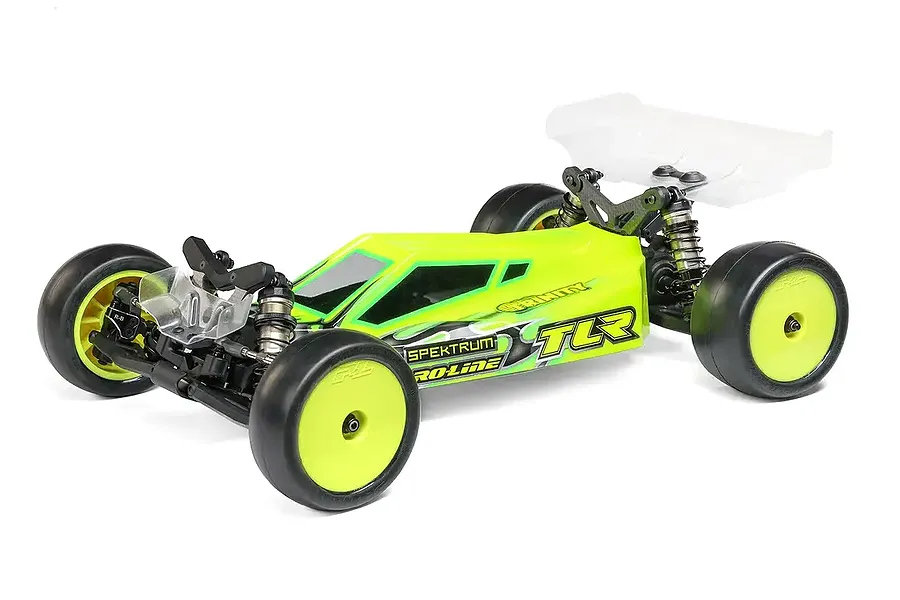

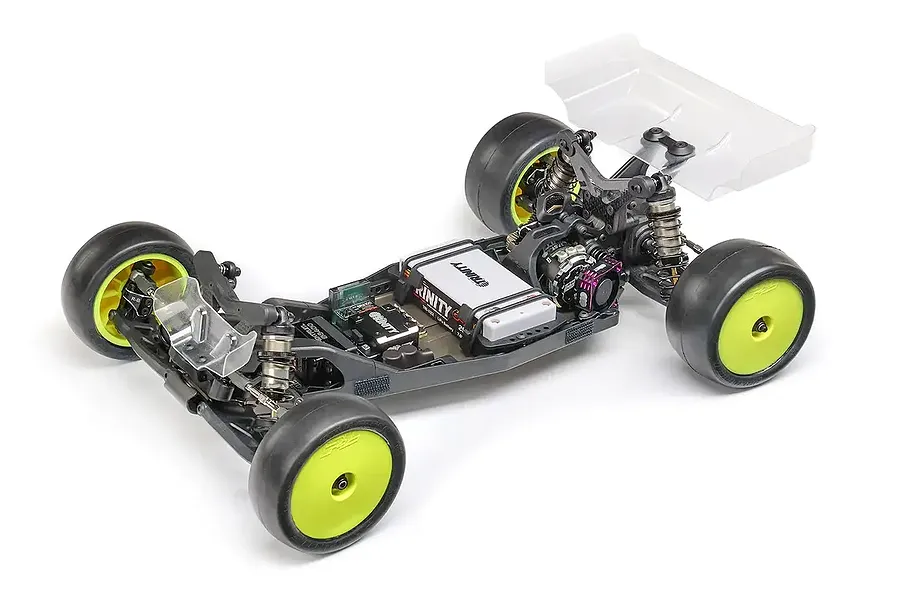

Building on the legacy of the championship-winning 22 platform, Team Losi Racing introduces the 22X DC 2WD race buggy kit, engineered for a new era of off-road domination. This buggy incorporates years of development and racer feedback, resulting in a design optimised for today's dirt and clay tracks, with enhanced adjustability for high-grip surfaces.
Key improvements include a lengthened, hard-anodised 2mm 7075-T6 aluminium chassis and larger 13mm big-bore shocks with matching springs, providing plush landings and sharp cornering. Racers can fine-tune steering feel with two front caster block and spindle options, offering wide or narrow kingpin locations to suit different track conditions. A significant update is the new laydown gearbox design, which allows quick access to the differential and idler gear without full disassembly – a major plus for trackside maintenance.
The TLR 22X DC kit comes packed with many option parts, offering extensive tunability right out of the box to adapt to any track surface, from traditional loose dirt to modern high-grip clay. Prepare for the podium with this advanced racing platform.

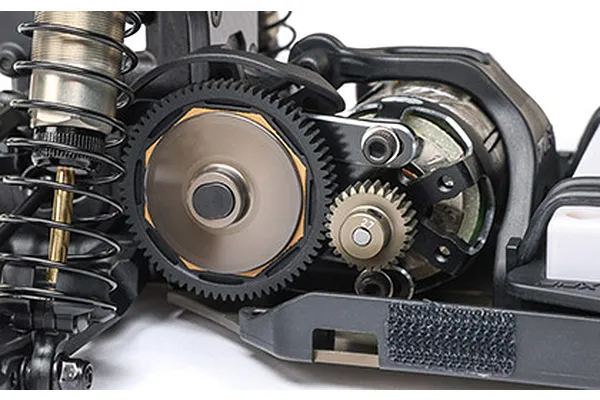

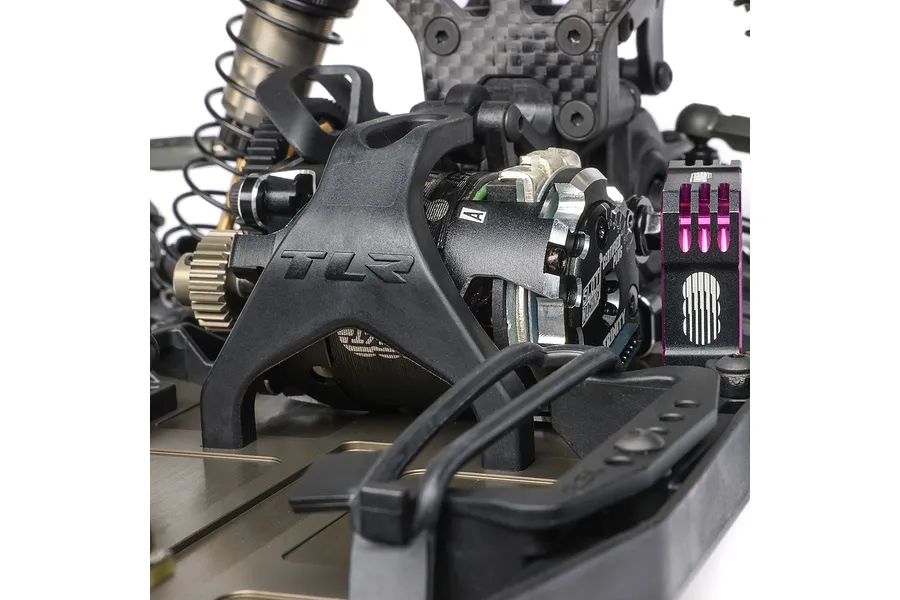

The innovative laydown gearbox lets you get to the diff and idler gear in a flash for quick maintenance. Moreover, adjustable differential heights allow you to optimise for the latest track designs.

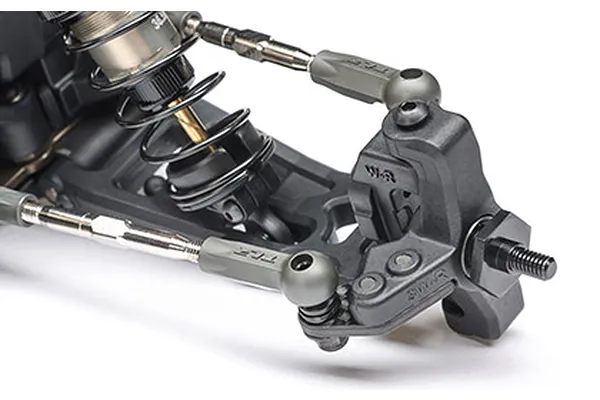

Dial in your steering for any surface. Choose between wide king pin for a stable feel or narrow for more aggressive cornering grip.

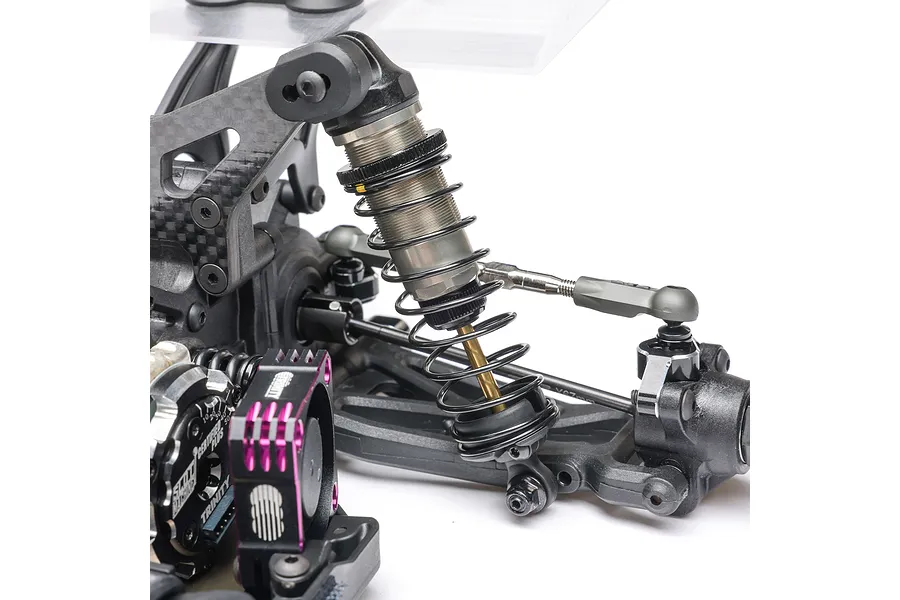

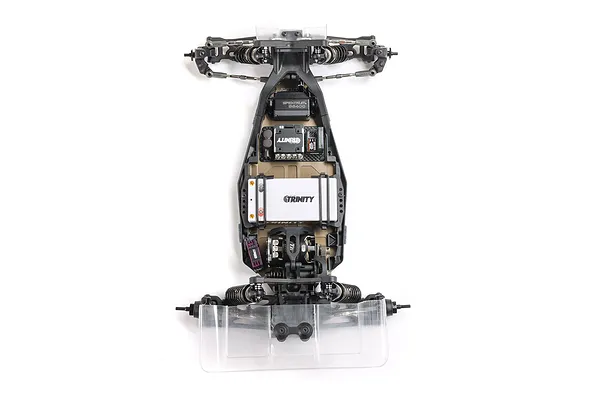

Bigger shocks mean better handling, especially on corners. These are mounted to a longer aluminium chassis, designed to flex just right for ultimate grip.

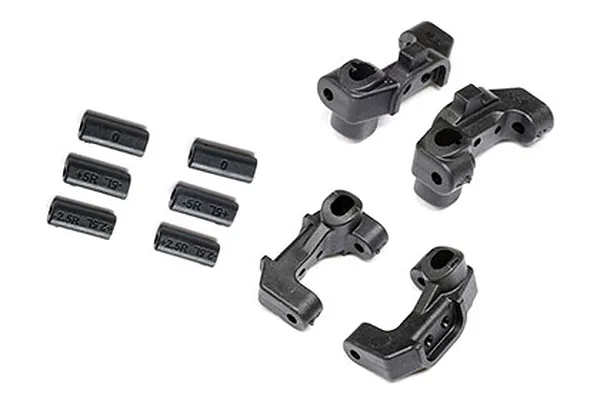

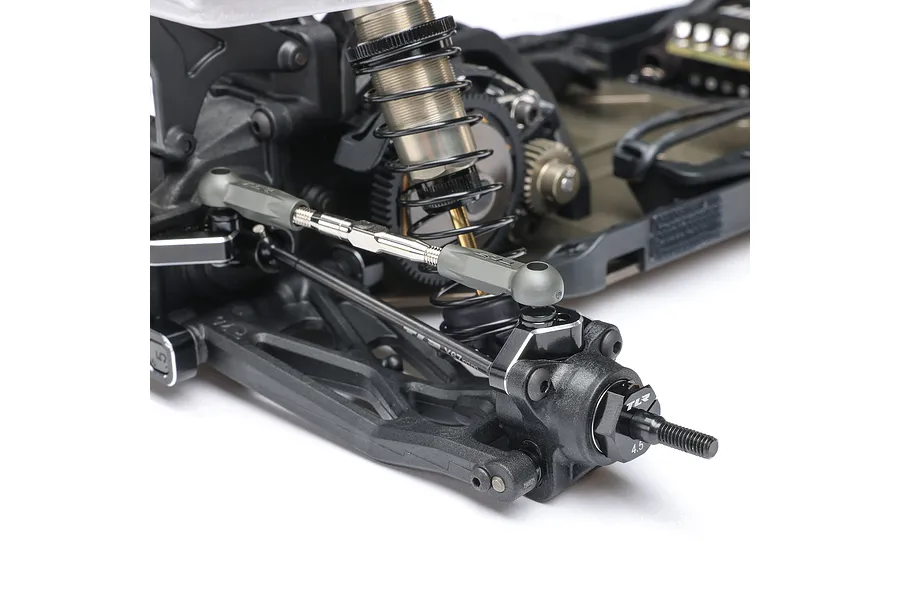

Get the precise front-end setup you need. With adjustable caster and kick up, you can fine-tune your buggy for optimal performance straight from the box.

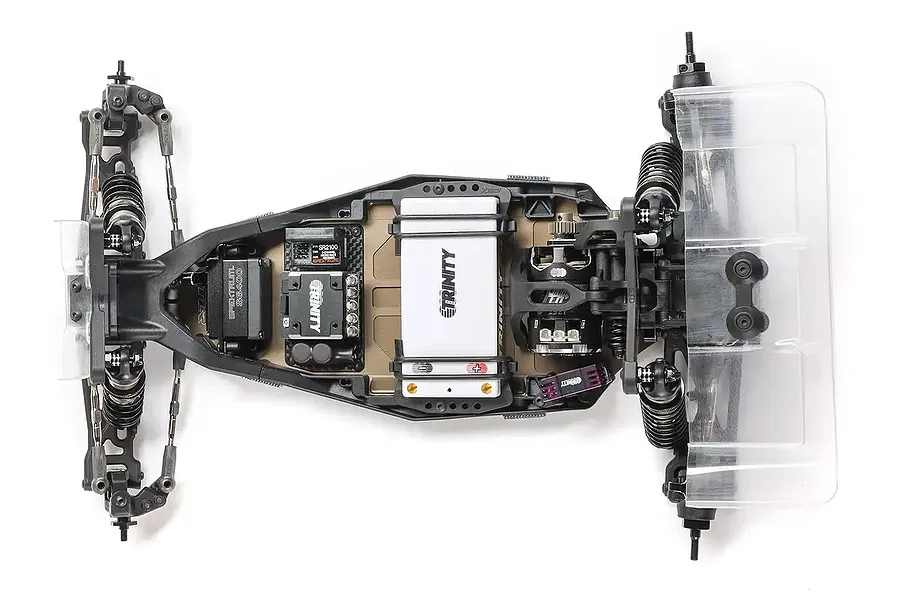

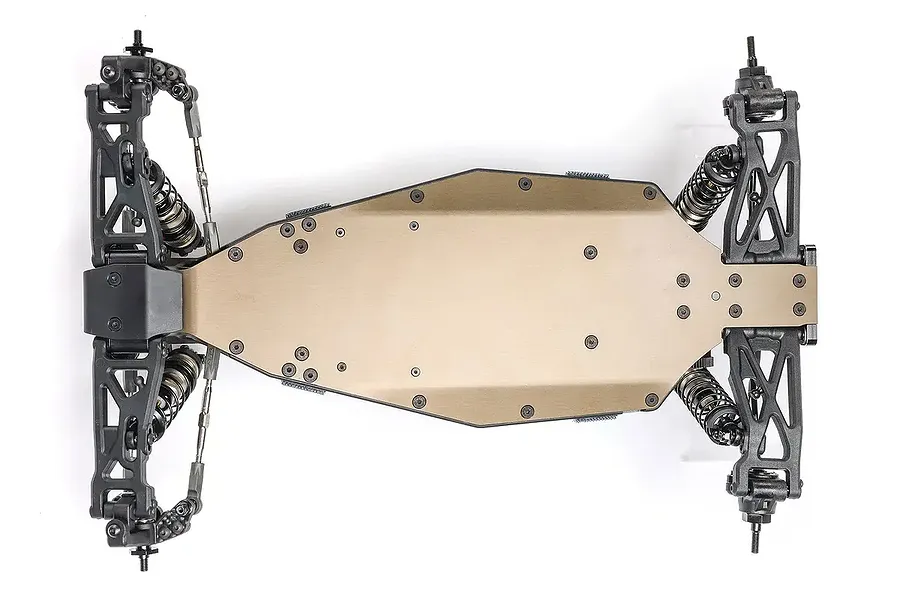

- Features a hard-anodised 2mm machined 7075-T6 aluminium chassis for ultimate rigidity
- Incorporates a new laydown gearbox design with easy differential and idler gear access
- Equipped with larger 13mm big-bore shocks and springs for optimal handling and support
- Offers wide-ranging adjustable caster from -5° to 5° and kick-up from 20° to 25°
- Provides multiple steering offsets allowing a tailored feel on any track surface
- Utilises industry standard offset front wheels ensuring broad compatibility

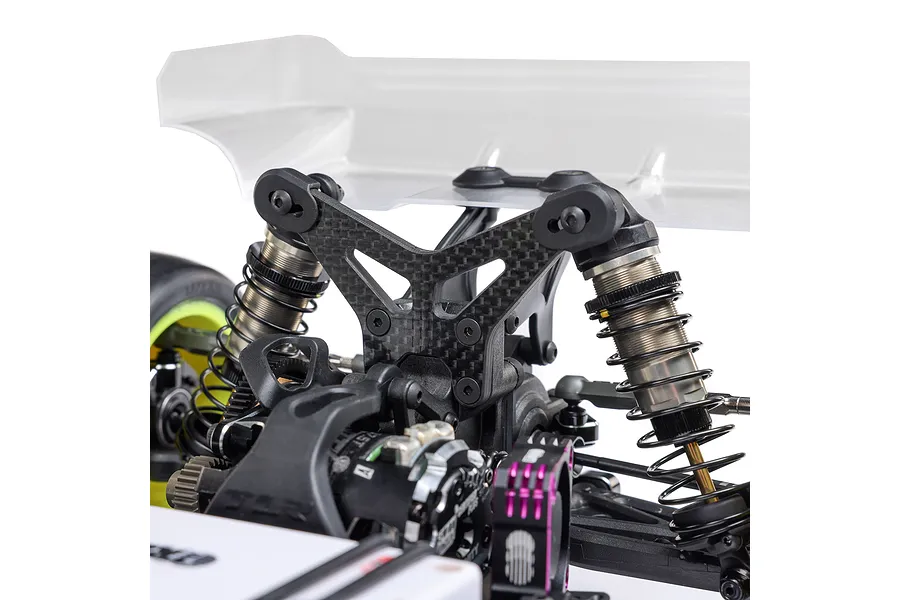

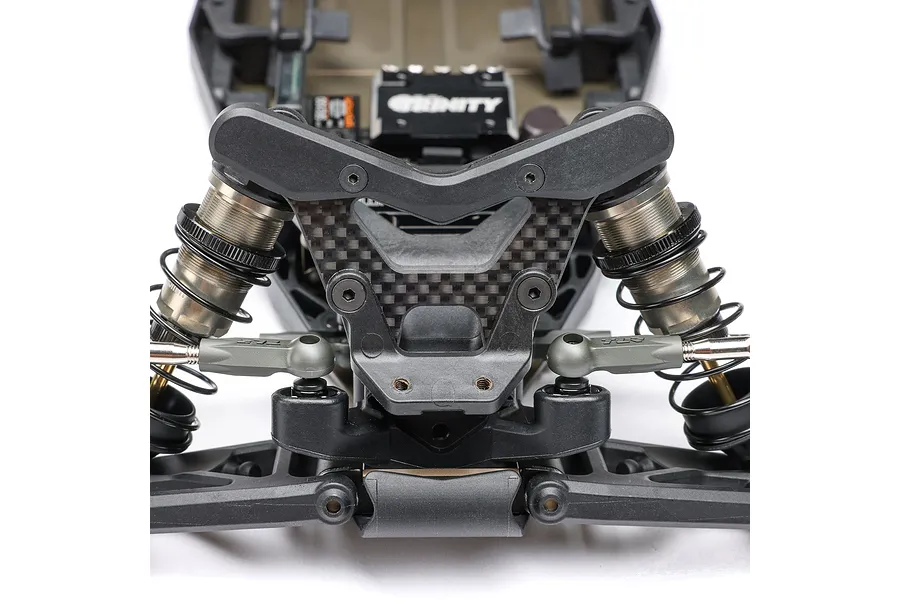

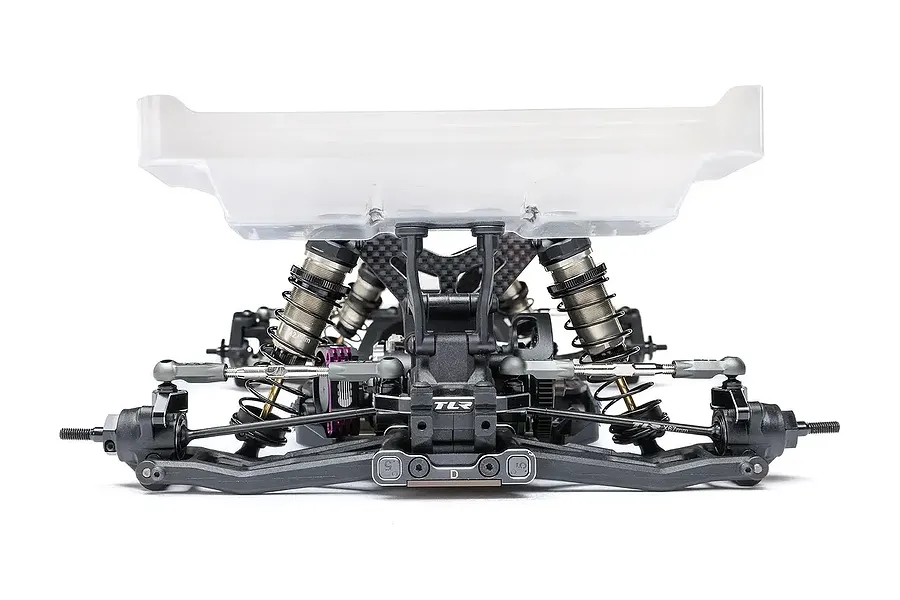

- Boasts rigid 4mm woven carbon fibre front and rear shock towers with optimised locations
- Features refined steering geometry delivering a consistent feel around the track
- Includes new ball studs and rod ends with 5.8mm balls ensuring interference-free suspension movement

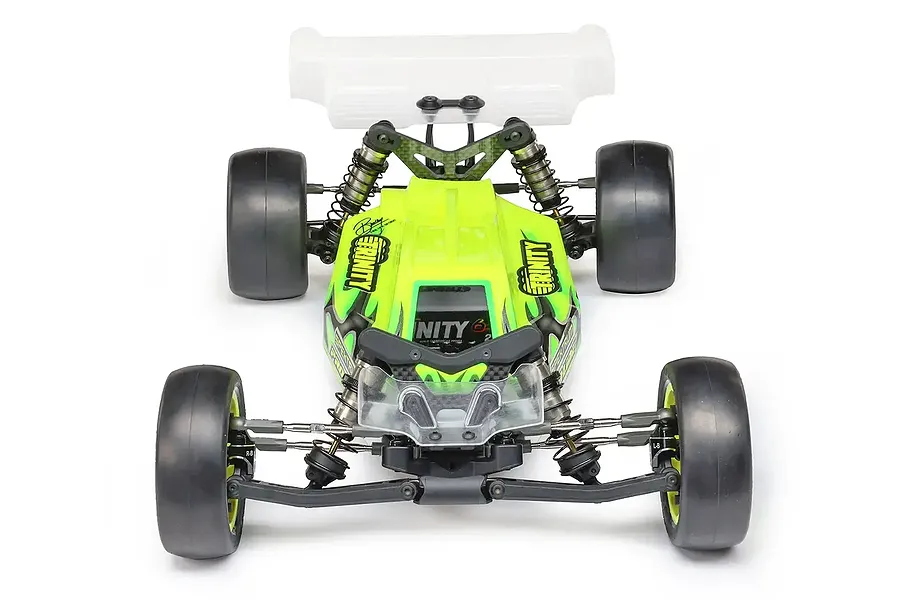

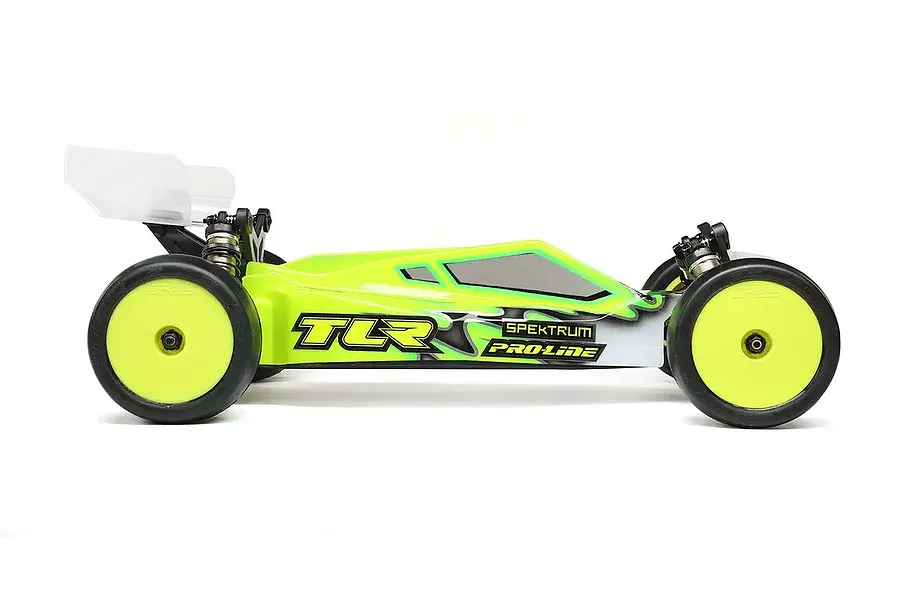

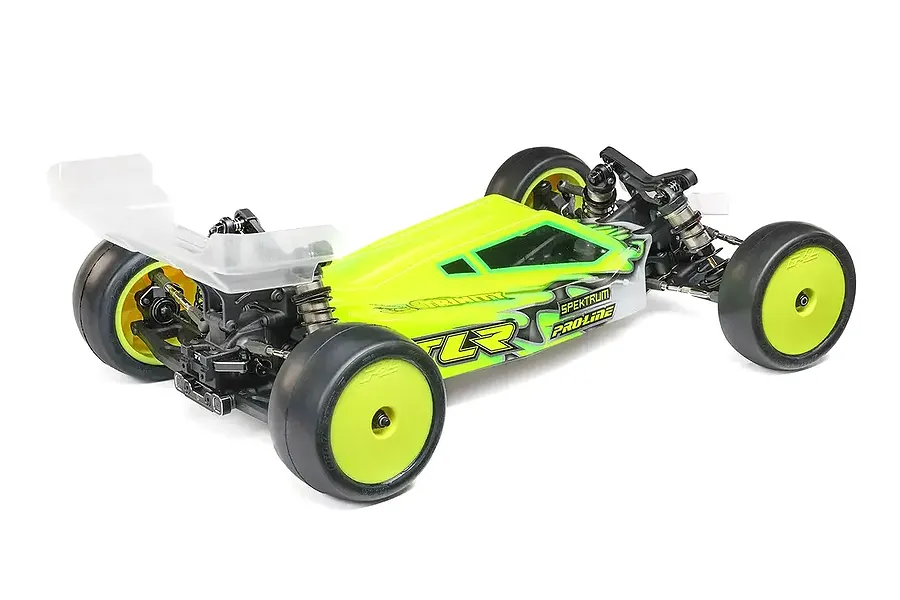

- Comes with a lightweight Pro-Line Sector 22X racing body for peak aerodynamic performance
- Includes an Air Force 7-inch clear rear wing and a low-mount front wing for aerodynamic tuning
- Allows chassis rigidity tuning via optional glass-filled composite parts of varying stiffnesses
- Enables rear grip tuning with multiple available rear arm lengths
- Features proven Variable Height Axle (VHA) rear hubs for easy bite and roll centre adjustments
- Includes adjustable rear pivots for precise anti-squat and rear toe tuning
- Incorporates a Super Heavy Duty Slipper (SHDS) with a new layout enhancing vehicle balance
- Provides a built-in motor fan mount accommodating 30mm fans for improved motor cooling
- Delivers maximum tunability straight out of the box without requiring immediate extra parts

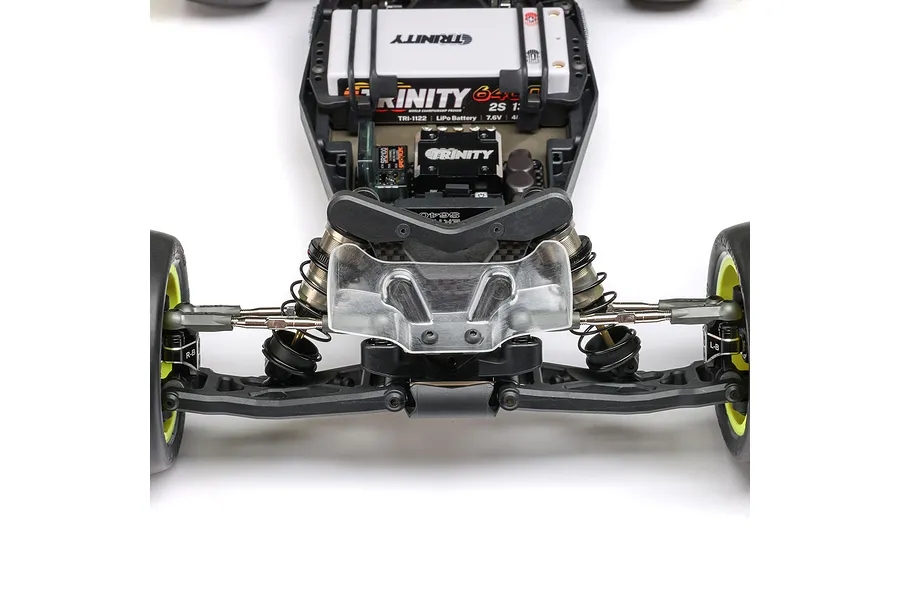

- Includes shock tower covers to protect track surfaces during rollovers

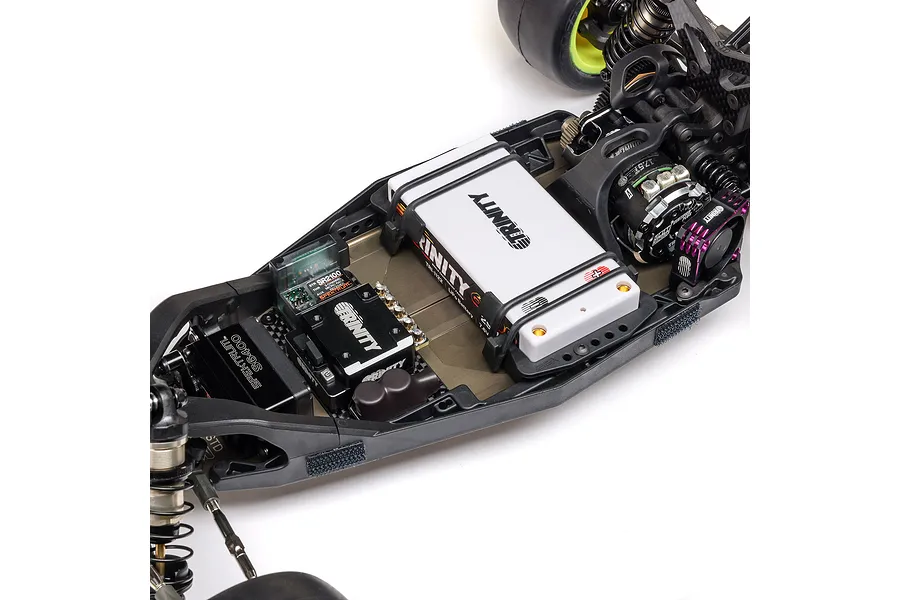

- Equipped with an adjustable battery mount for fine-tuning weight distribution
- Utilises many premium aluminium parts including motor plate, axles, pivots, and clamping servo horn for durability
- Genuine TLR product
- Length: 371mm (14.6")
- Width: 250mm (9.8")
- Height: 147mm (5.8")
- Wheelbase: 284mm (11.2")
- Weight: Varies
- Chassis: 7075-T6 Aluminum Milled Plate 2mm Thick (Buggy)
- Drivetrain: 2WD
- Suspension: 13mm Big-Bore Oil Filled Shock AbsorbersÂ
- Motor: Not IncludedÂ
- ESC: Not IncludedÂ
- 1x TLR 22X DC RC Buggy Electric 2WD 1/10 Scale Kit
- 1x Pro-Line Sector 22X Body
- 1x Pro-Line Air Force 7" Wing
- 1x Pro-Line Front Wing
- 1x Product Manual
- 1x ESC
- 1x Compatible 540 Size Motor
- 1x Compatible 7.4V LiPo Shorty Battery
- 1x Compatible LiPo Battery Charger
- 1x Compatible Receiver
- 1x Transmitter
- 1x Compatible Servo
- 1x 48-Pitch Pinion Gear
- 1x 30 x 30mm Motor Fan
- 4x 2.2" Buggy Wheels (2WD Fronts, Buggy Rears)
- 4x 2.2" Buggy Tyres (2WD Fronts, Buggy Rears)
- Polycarbonate Safe Paint
-
Max LiPo Power
- 2S (7.4v)
-
Wheel Hex Size
- 12mm
-
Spur Gear
- 72T 48dp/0.5Mod
-
Front Shock Oil
- 32wt
-
Rear Shock Oil
- 30wt
-
Battery Connector
- Not Included
-
Suited Motor/ESC Type
- Electric
-
Completion
- Kit
-
Drivetrain
- 2WD
-
Max LiPo Power
- 2S (7.4v)
-
On/Off Road
- Off Road
-
Chassis Type
- Buggy
-
Power Source
- Electric
-
Skill Level
- Expert
-
Scale
- 1/10
