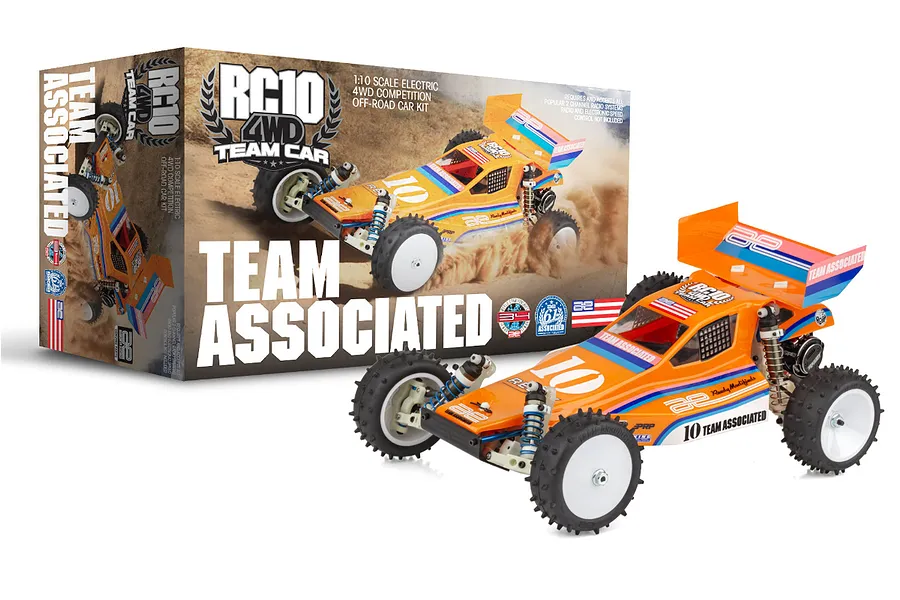

Team Associated RC10 RC Buggy Electric 4WD 1/10 Scale Kit - Team Car

Brand: Team Associated | SKU: 6046
3 in stock
$695.16

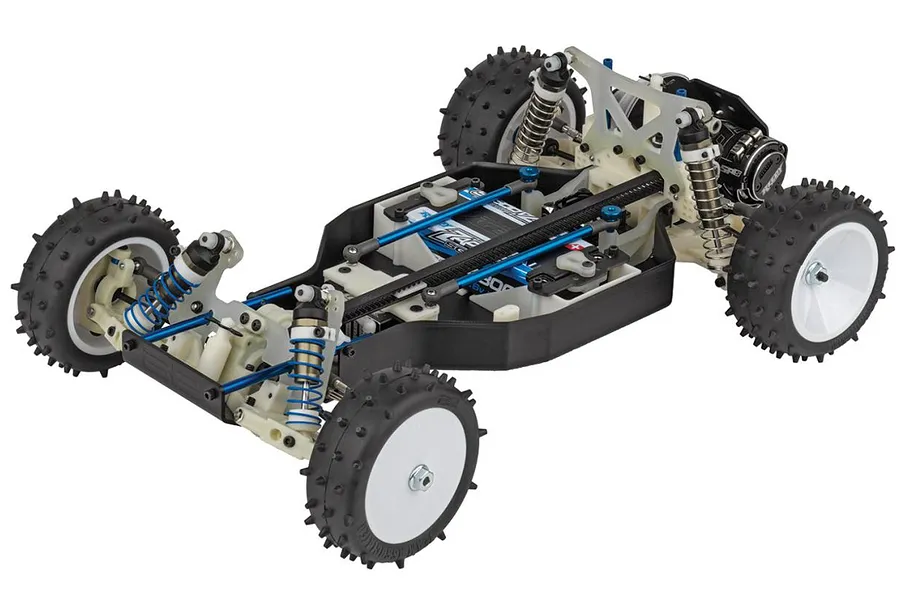

Team Associated RC10 4WD Kit: Build The Legendary "What If" Buggy That Fuses Classic Design With Modern Brushless Ready Race Tech

  • Get Modern Performance With The Smooth Belt-Drive System

  • Features The Sleek Black Aluminium Tub Chassis

  • Includes The Classic Viper Body And Spike Tyres

  • A Rewarding Build For Experienced Kit Builders

Add to Wishlist
Pay later with
Afterpay Zip Paypal
We'll send it today
When ordered within the next hms
Save Time & Add These Now
Complete your setup with these required items.
Transmitter and Receiver
Transmitter and Receiver
Battery
Battery
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Charger
Charger
Tyre Glue
Tyre Glue
Curved Scissors
Curved Scissors
Body Shell Reamers
Body Shell Reamers
Description
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting, painting and drilling.

Ever wonder what could have been? Back in 1985, at the first-ever IFMAR Off-Road World Championships, Team Associated's Jay Halsey drove a prototype 4WD version of the iconic RC10 to a stunning second-place finish. That car never went into production, becoming a legend of "what if" RC history. Now, that legend is a reality. The RC10 4WD Team Car kit is the buggy that never was, finally brought to life.

It all starts with the sleek black 6061-T6 aluminium monocoque tub chassis, providing a classic look and a strong foundation. Power is delivered through a smooth, low-friction centre belt drive system and adjustable ball differentials, while the long-arm suspension, threaded, oil-filled aluminium shocks, and durable CVA (Constant Velocity Axle) driveshafts deliver the handling required to compete at the world's best tracks.

Topped off with a clear Viper RC Buggy body, a driver figure, and vintage-style 4WD spike tyres, this kit is a nostalgic builder's dream. It's designed to be raced hard and can be fitted with modern brushless electronics, giving you the chance to finally experience the full potential of this legendary "what if" buggy.

The Elusive "What If" Kit

Now you can build the legendary "what if" RC10 as a complete 4WD race buggy with all parts included in one box. This kit simplifies the build process, giving you a high-performance car that is designed to race using your choice of modern-day electronics.

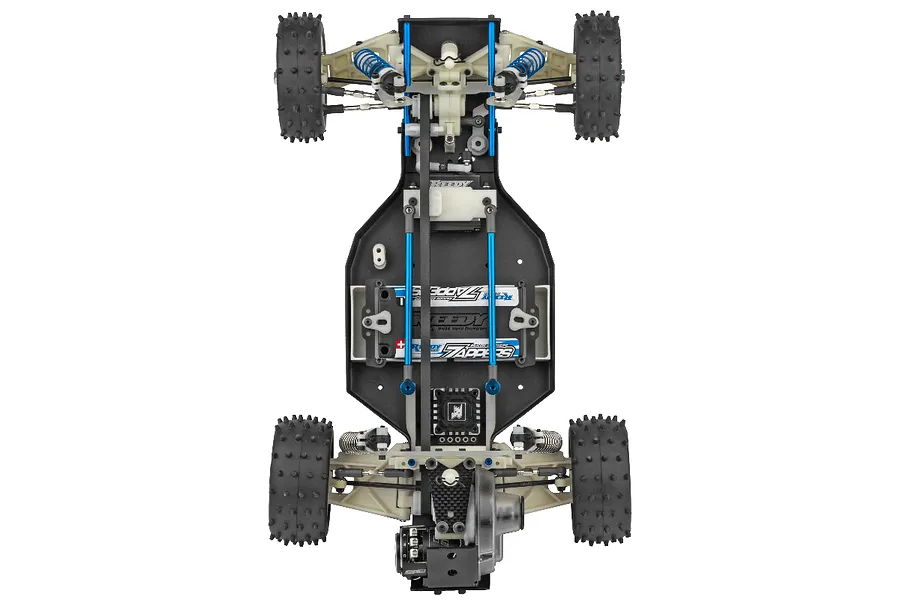

Updated Chassis With Easy Access

The black anodised 6061-T6 aluminium monocoque (single-shell) tub chassis is tough and lightweight. It features new thumb ball nuts that allow you to easily access and change your battery pack, making pit stops quicker. The updated chassis stiffener and belt guide systems also ensure maximum durability and reliable performance.

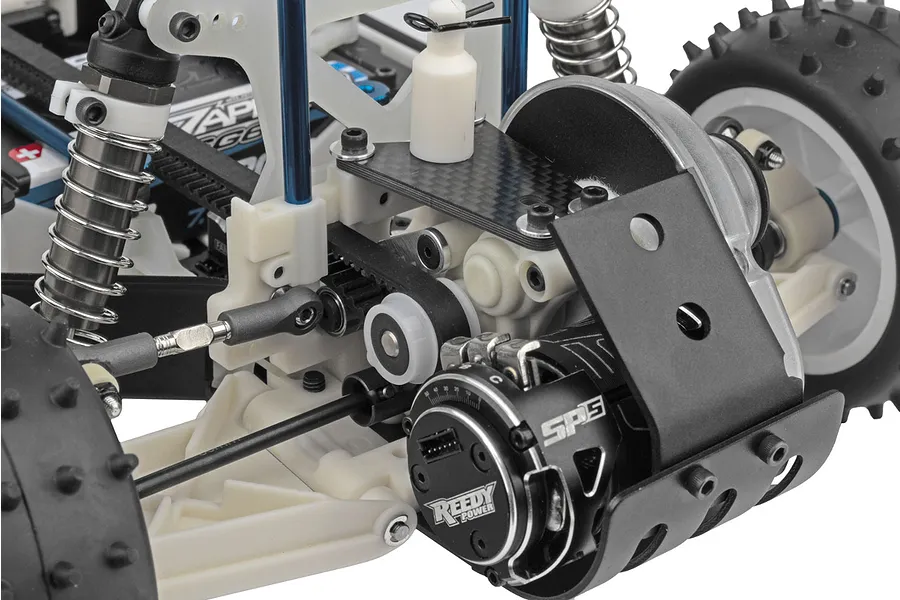

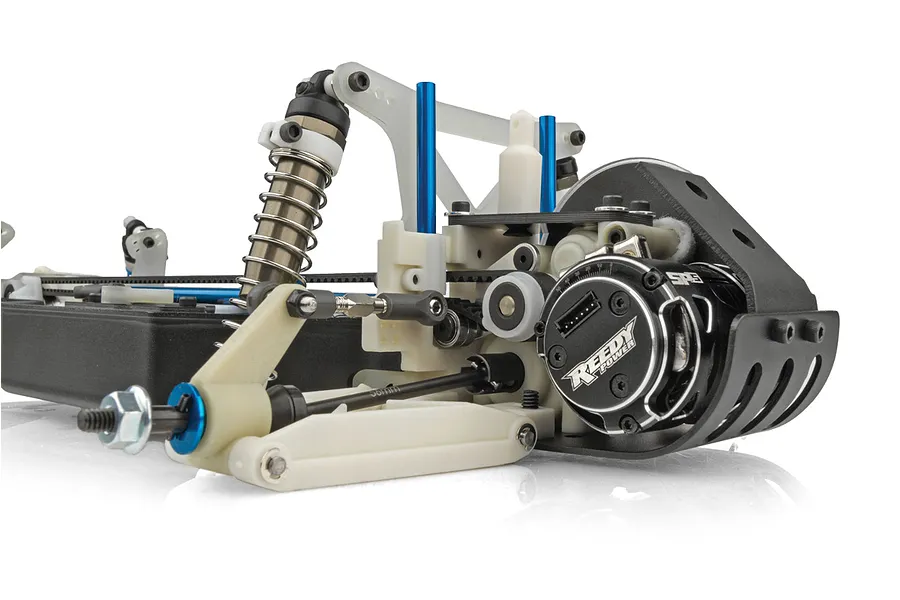

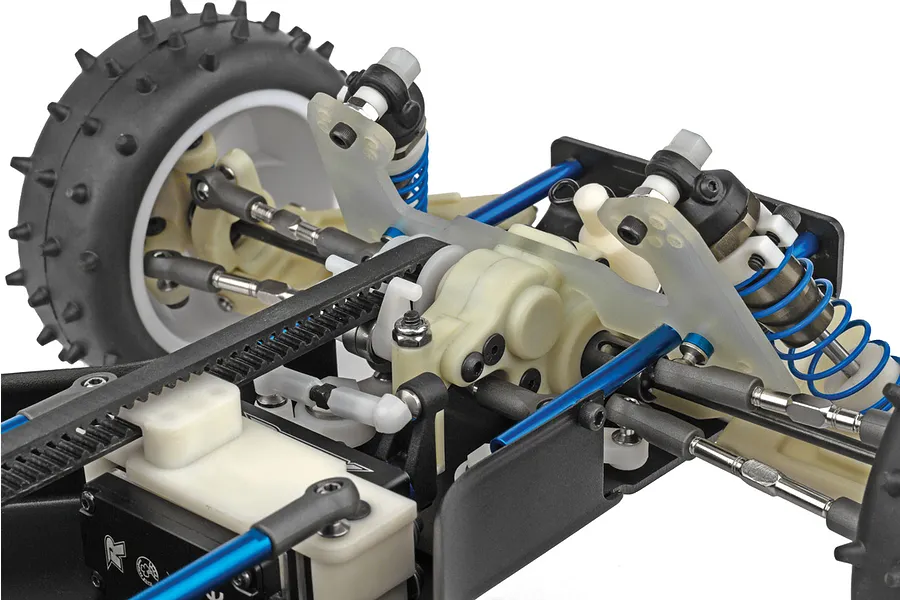

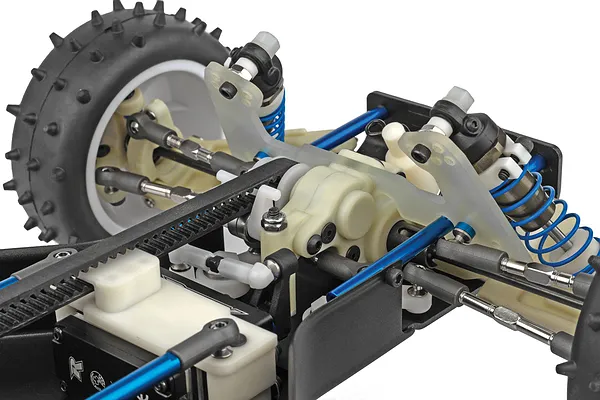

Race-Proven Drivetrain

The RC10 4WD features front and rear race-proven Stealth transmissions and a durable low-friction centre belt system for smooth power delivery. Adjustable ball differentials at both the front and rear allow you to fine-tune the power split, while precision bearings throughout ensure maximum efficiency and speed.

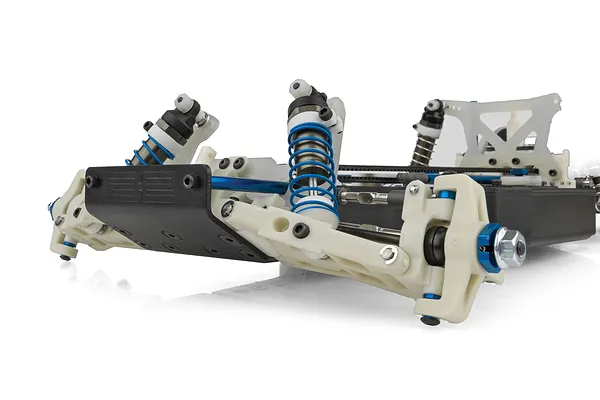

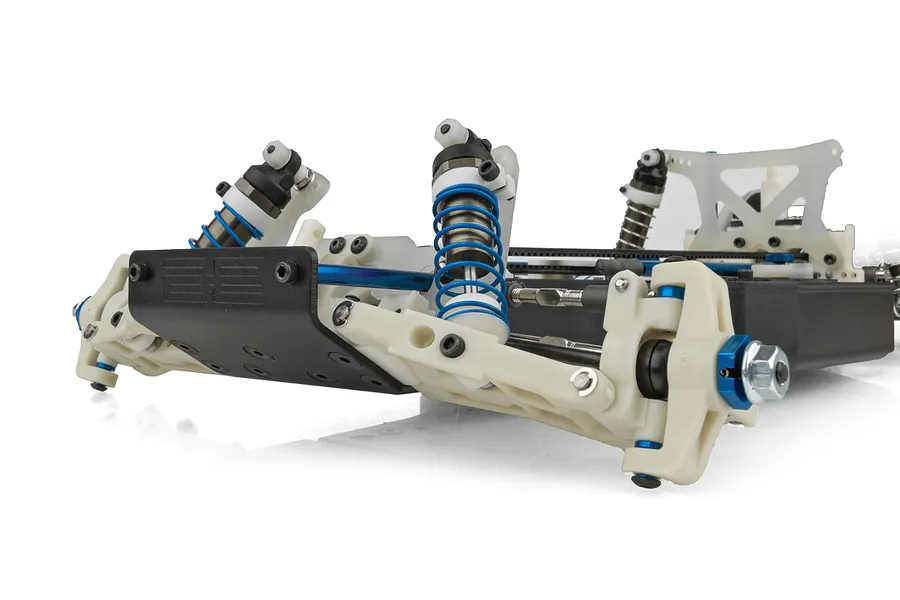

Fully Adjustable Race Suspension

The car features a fully adjustable four-wheel independent suspension system, allowing you to tune it precisely for any condition. It includes long-travel, fluid-filled, hard-anodised aluminium coil-over shocks for maximum damping. Adjustable 3.5mm turnbuckles all around give you complete control over your setup.

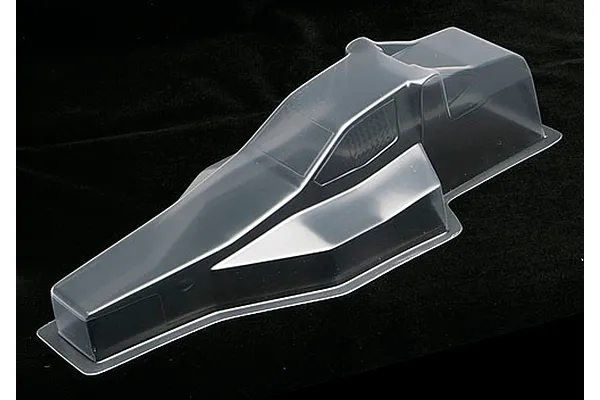

Classic Look With Modern Downforce

The kit includes a clear polycarbonate Viper body with a driver figure for that classic racing look. A 5.5 inch (140mm) high-downforce polycarbonate race wing provides the grip you need on the track. Vintage 4WD (Four-Wheel Drive) spike tyres are included for both the front and rear, ensuring great traction right out of the box.

Full Tuning Capability

Customise your car's performance with a wide range of tuning options. The kit includes adjustable 3.5mm turnbuckles, adjustable ball differentials, and a race-proven V2 slipper clutch system. The new front caster and spindle assembly also give you more precise steering adjustment options.

Features

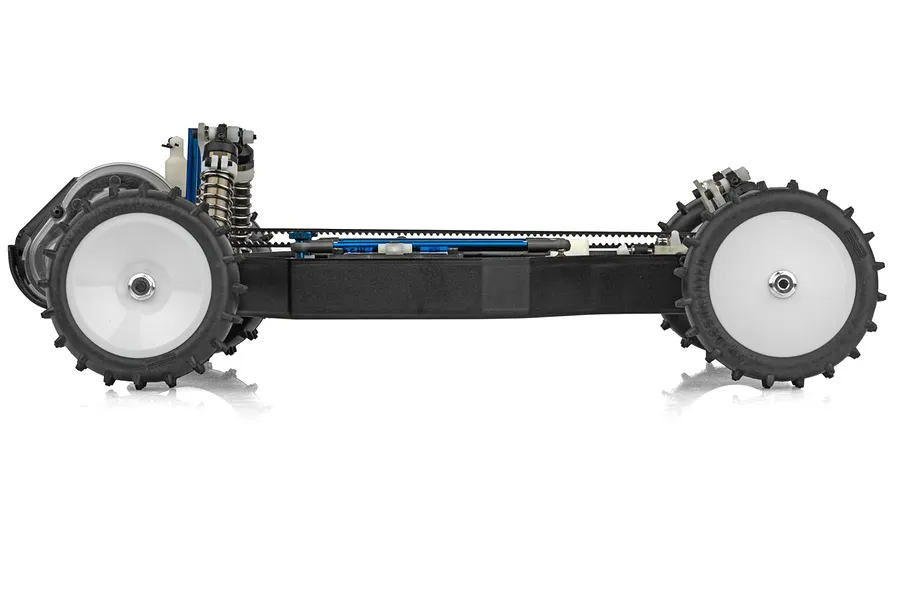

  • 4WD black anodised 6061-T6 aluminium monocoque tub chassis

  • Smooth and efficient centre belt drive system with tensioner

  • Fully adjustable four-wheel independent suspension

  • Long-travel, fluid-filled, hard-anodised aluminium coil-over shocks

  • Adjustable ball differentials in the front and rear

  • Includes front and rear CVA (Constant Velocity Axle) driveshafts

  • Race-proven V2 slipper clutch system for traction control

  • Includes the classic clear Viper body with driver figure and 5.5" wing

  • Comes with vintage-style front and rear 4WD spike tyres

  • Compatible with modern 2S "shorty" LiPo battery packs

  • Full set of precision ball bearings throughout

  • Genuine Team Associated Product

Specifications
  • Length: 381mm (15")

  • Width: 241mm (9.49")

  • Height: N/A

  • Wheelbase: 273mm (10.75")

  • Weight: Varies

  • Chassis: Monocoque Tub Chassis (Off Road Buggy)

  • Drivetrain: 4WD

  • Suspension: Oil Filled Adjustable Coil Over Shock Absorbers

  • Motor: Not Included

  • ESC: Not Included

Included Items
  • 1x Team Associated RC10 4WD Team Car Kit

  • 1x Clear Viper Body with Driver Figure

  • 4x Retro Spiked Tyres with Dish Rims (Assembly Required)

Videos
Specifications
Factory Specs
Max LiPo Power
2S (7.4v)
Wheel Hex Size
12mm
Spur Gear
81T 48dp/0.5Mod
Front Shock Oil
50wt
Rear Shock Oil
30wt
Battery Connector
Not Included
RC Kit
Suited Motor/ESC Type
Electric
RC Car
Completion
Kit
Drivetrain
4WD
Max LiPo Power
2S (7.4v)
On/Off Road
Off Road
Chassis Type
Buggy
Power Source
Electric
Skill Level
Expert
Scale
1/10
