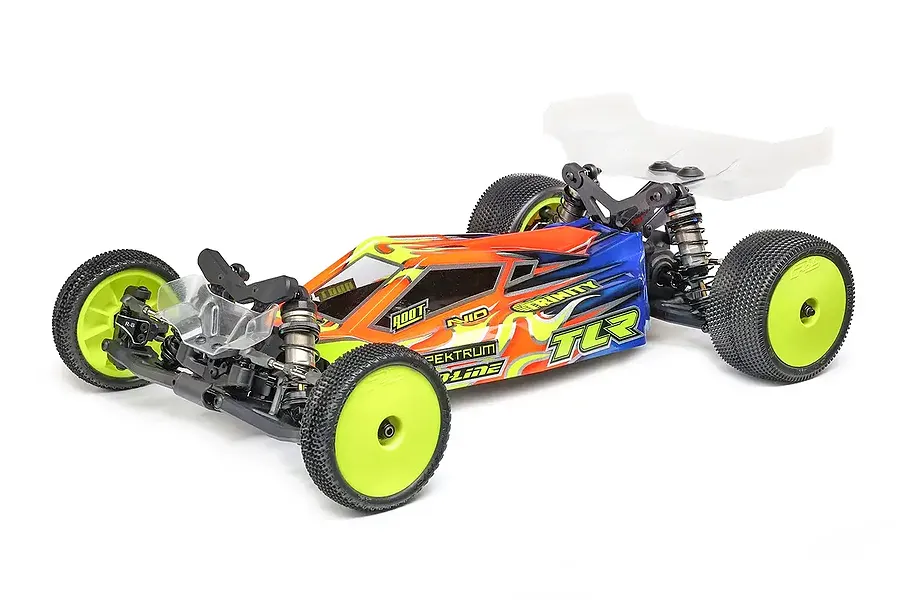

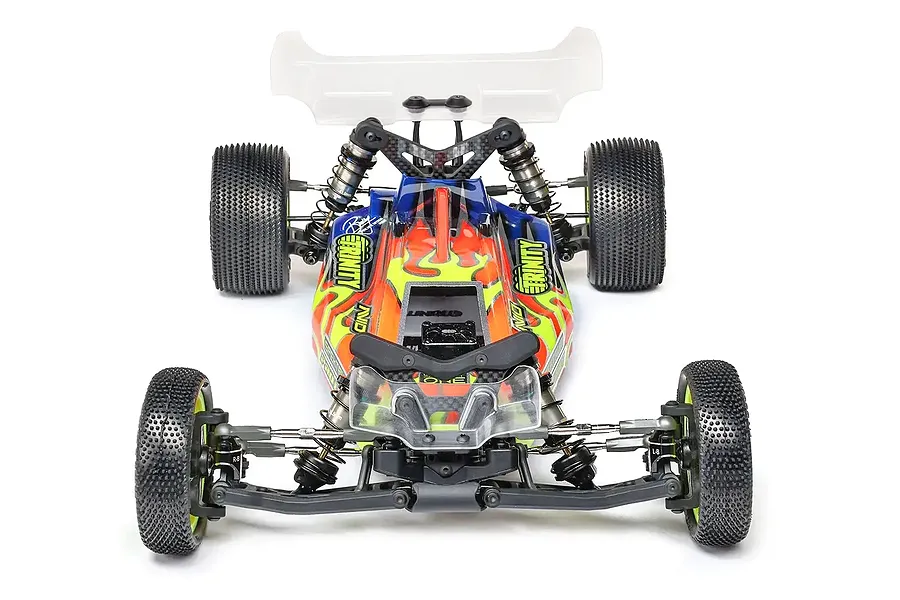

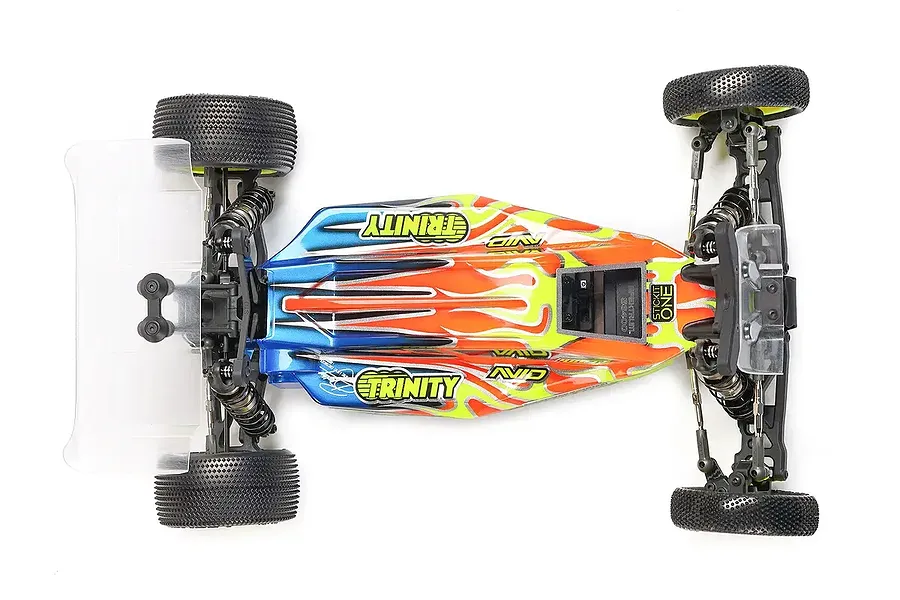

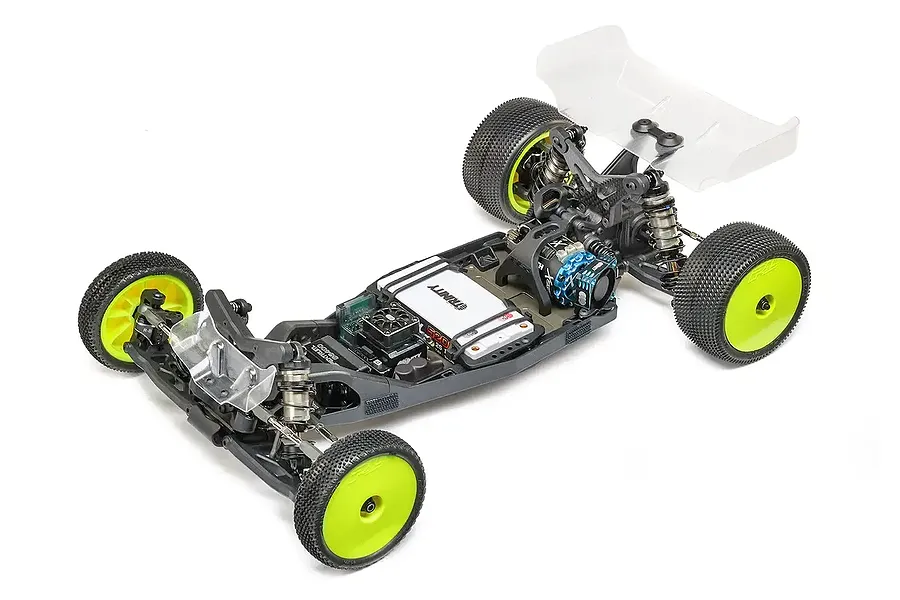

TLR 22X AC RC Buggy Electric 2WD 1/10 Scale Kit

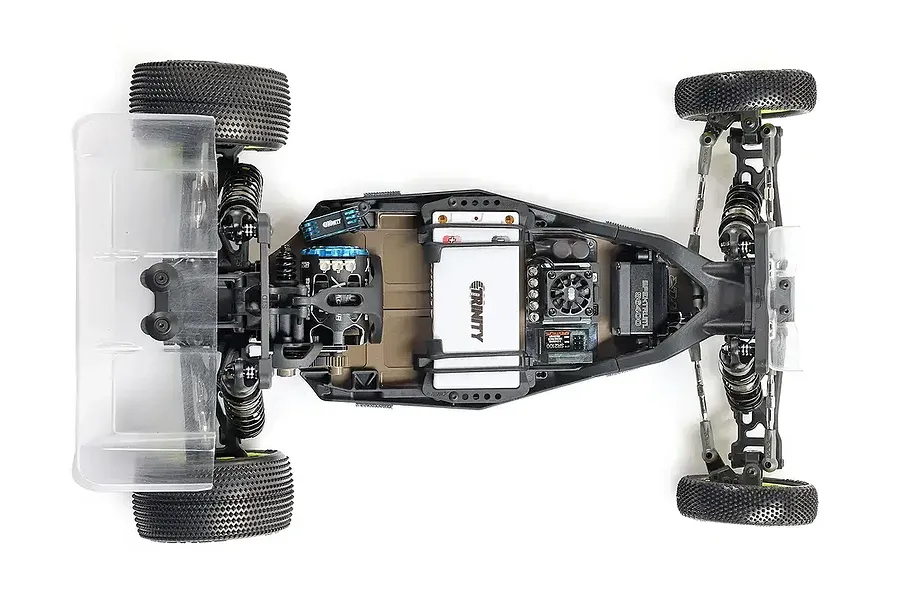

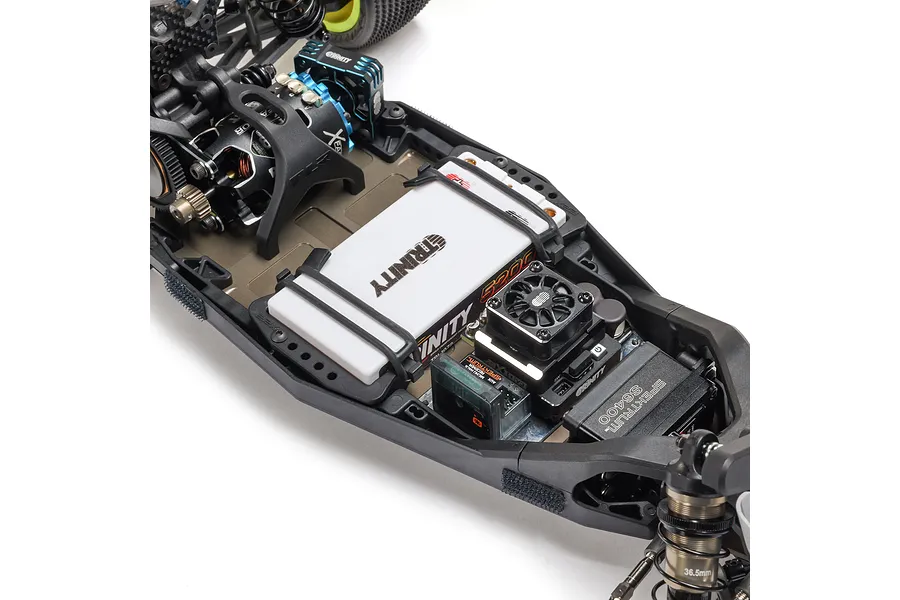

The 2mm machined 7075-T6 aluminium chassis is hard-anodised for exceptional wear characteristics. Lengthened for consistency on modern tracks, its precision milling ensures optimal flex, enhancing grip and stability on various surfaces.

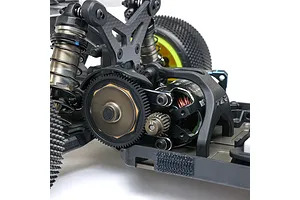

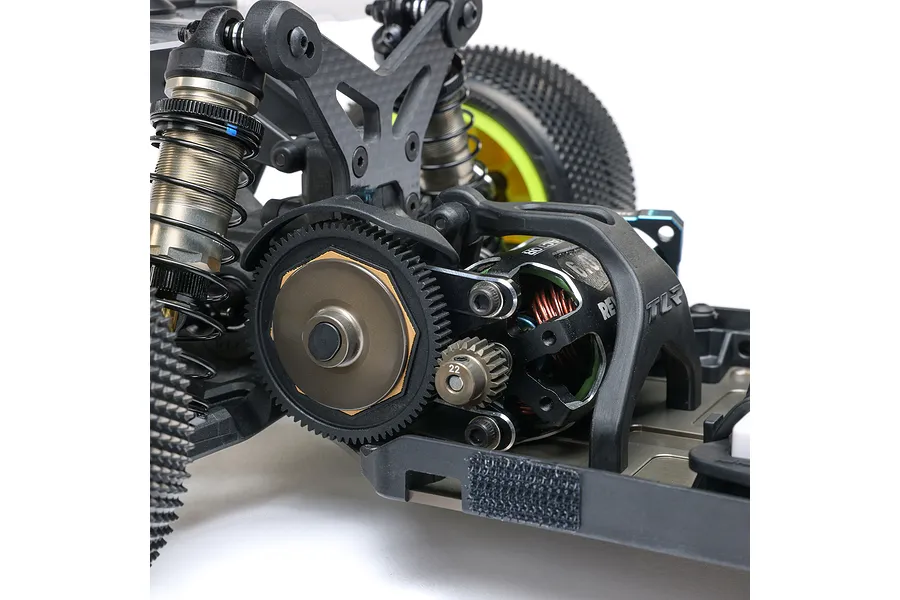

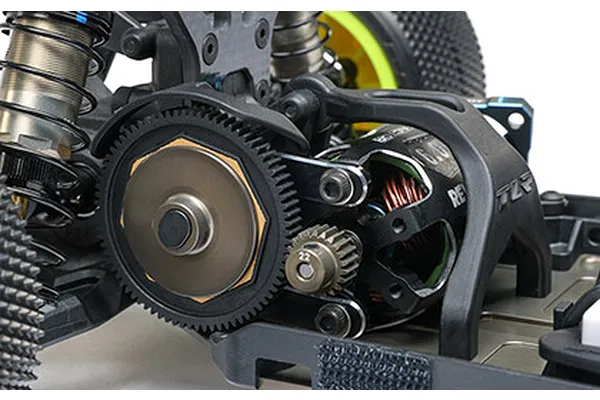

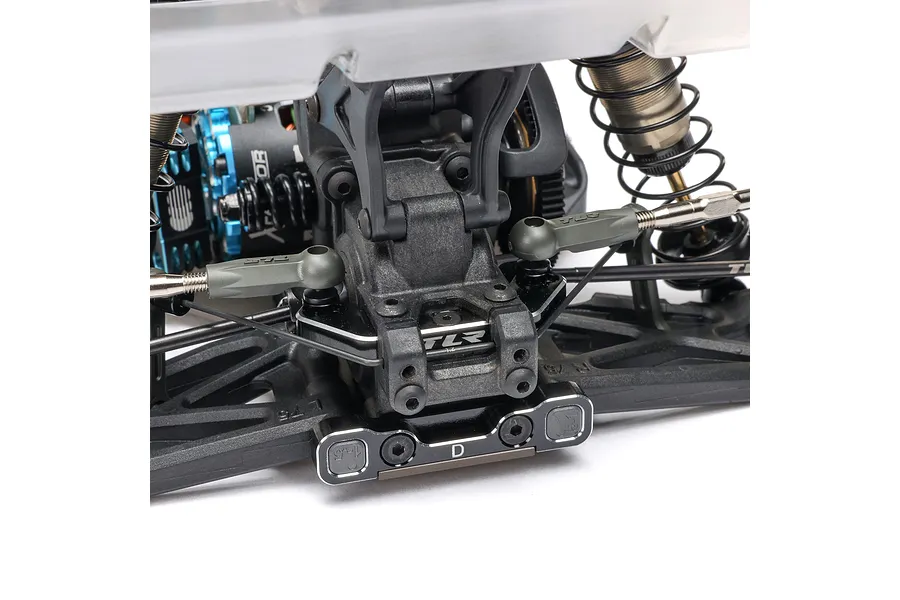

The new laydown gearbox offers quick access to the differential and idler gear for rapid maintenance, crucial as it mounts the suspension. Multiple diff heights are possible, providing higher initial settings than previous 22 vehicles for current track conditions.

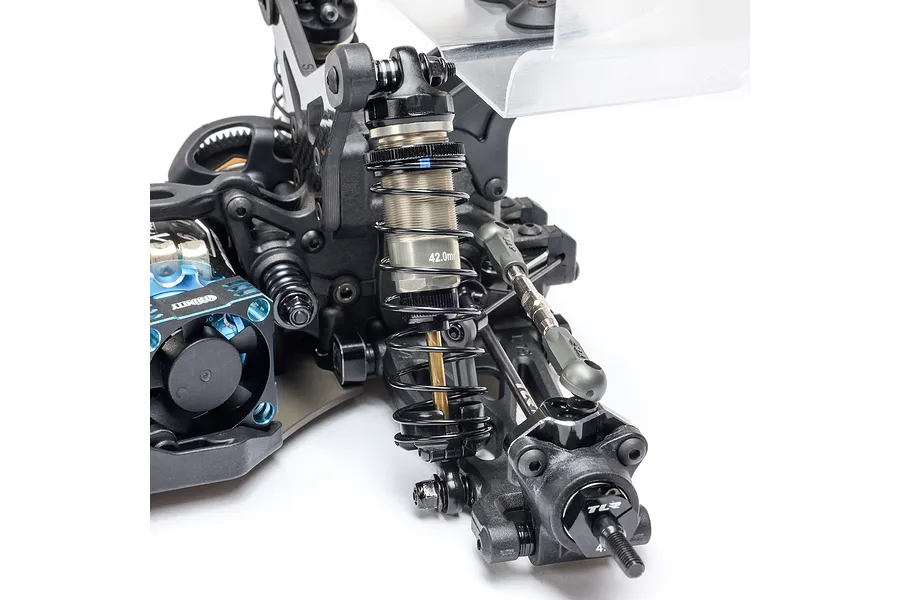

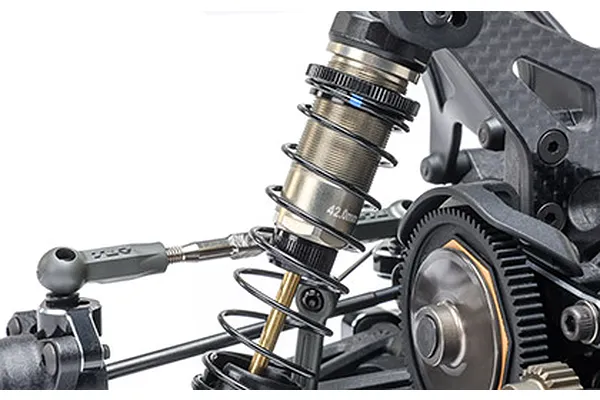

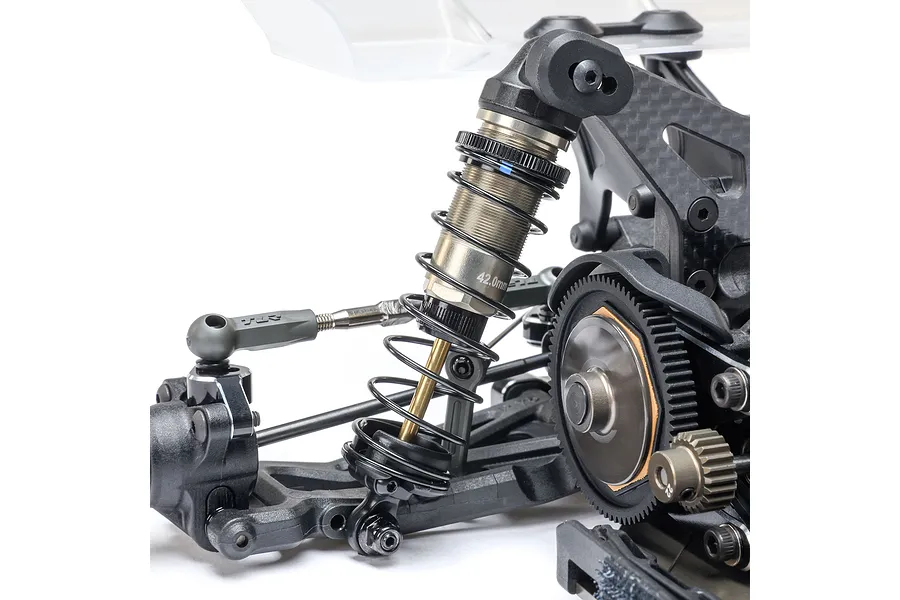

Experience superior handling and cornering with larger 13mm big-bore shocks, perfectly paired with new 13mm springs for optimal support. Utilising updated G3 3mm internals and trusted seals, these shocks ensure consistent performance.

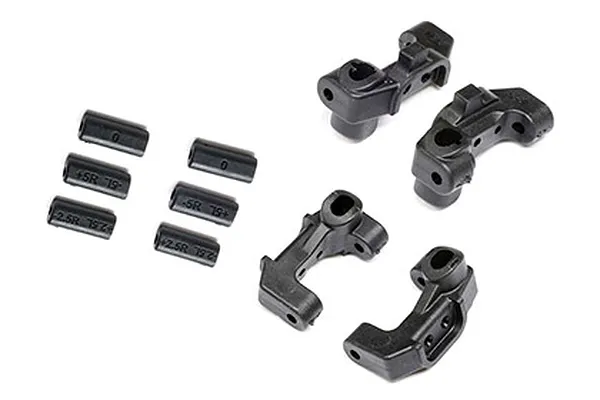

Fine-tune steering feel with two front king pin offset options for wide or aggressive grip. Adjustable caster from -5° to 5° (2.5° increments) combined with adjustable kick up (15° to 30° total) allows precise front-end setup.

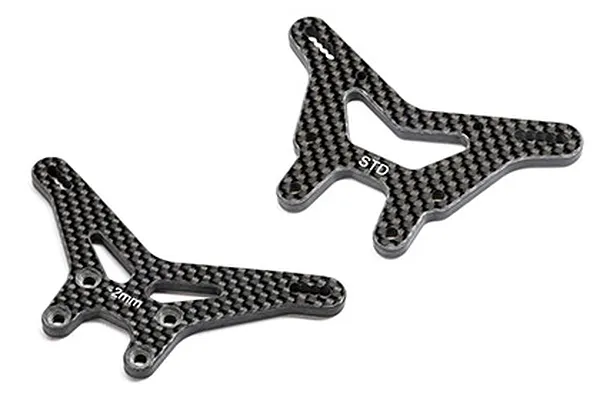

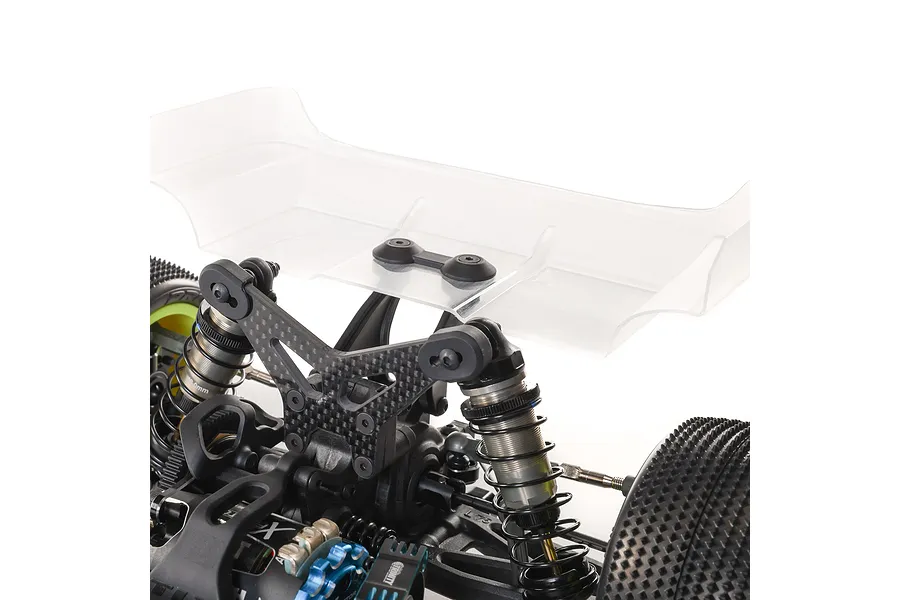

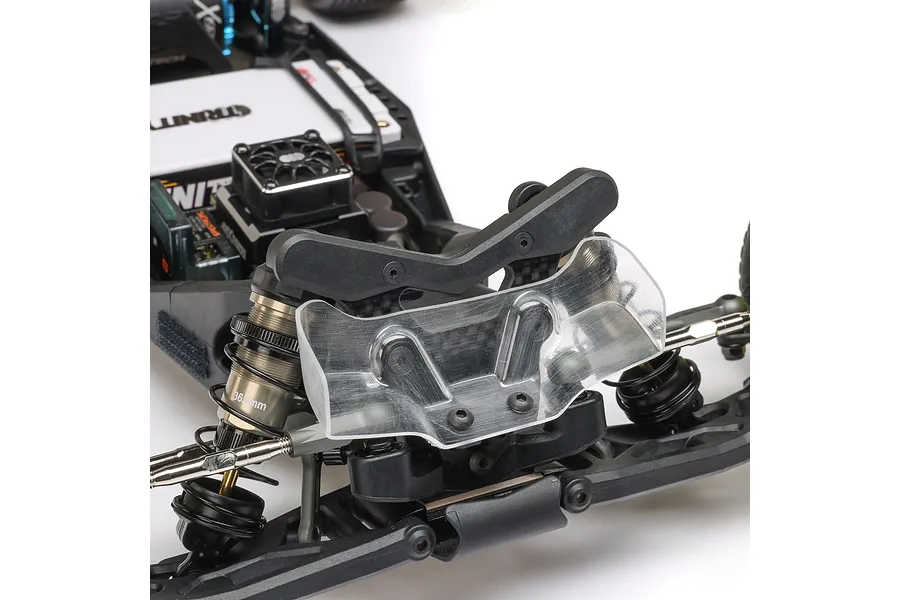

Manufactured from 4mm woven carbon fibre for rigidity and durability, the front tower anchors the bulkhead for strength. The rear design allows more wing adjustment and diff removal. Included covers protect the track surface during rollovers.

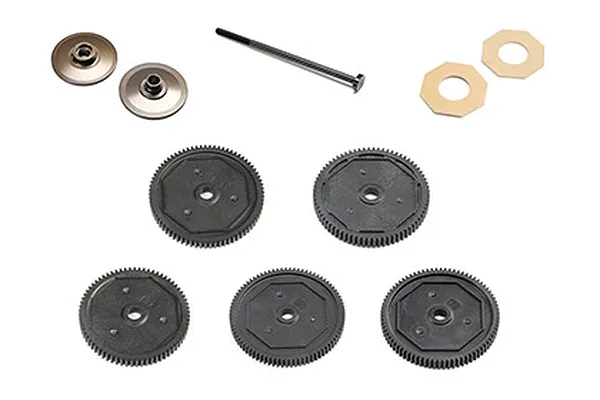

The proven Super Heavy Duty Slipper (SHDS) ensures consistent power delivery, now with an updated layout for improved vehicle balance. Durable, lightweight aluminium parts, including clamping hexes and shock stand-offs, are used throughout for reliability.

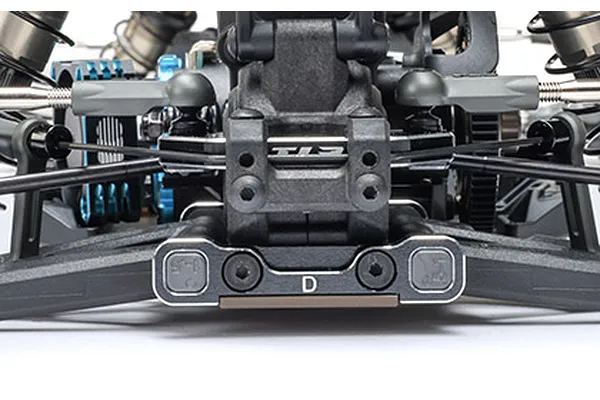

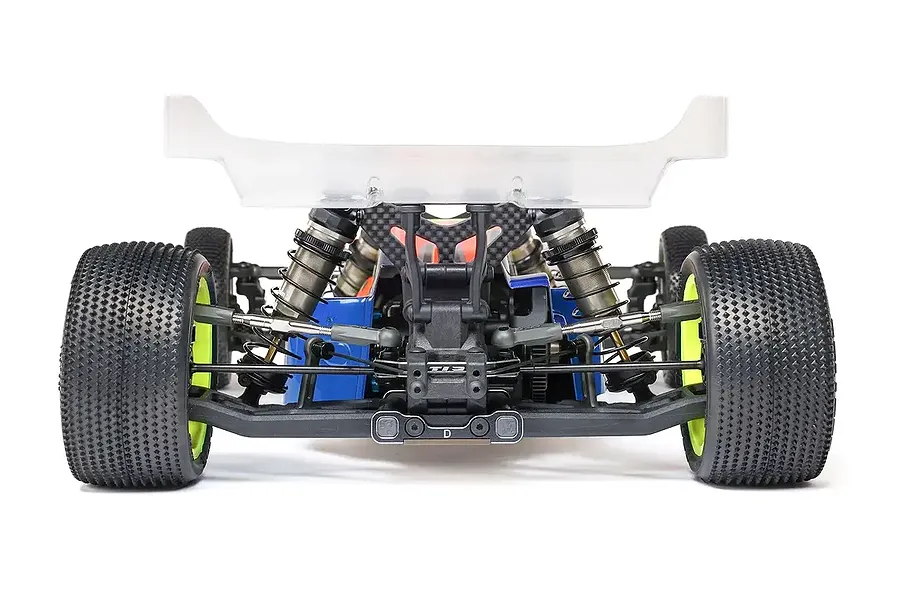

Adjust side bite, forward bite, and roll characteristics with Variable Height Axle (VHA) rear hubs. New adjustable rear pivots accept TLR 22 pill inserts, providing extensive fine-tuning for anti-squat and rear toe angles.

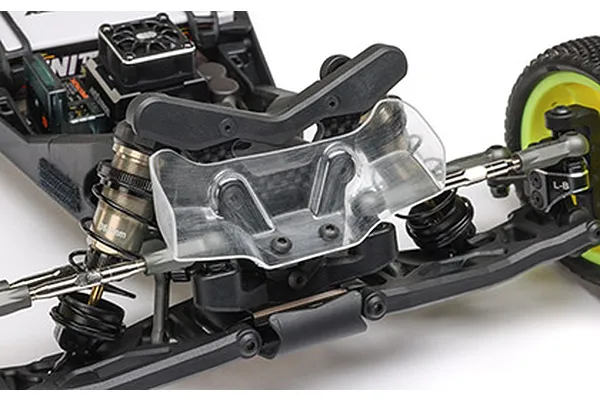

Experience smooth, consistent steering feel with refined geometry. New ball studs and rod ends feature 5.8mm balls for interference-free movement and quick roll centre changes without removal, minimising suspension friction for peak performance.

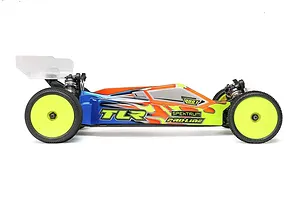

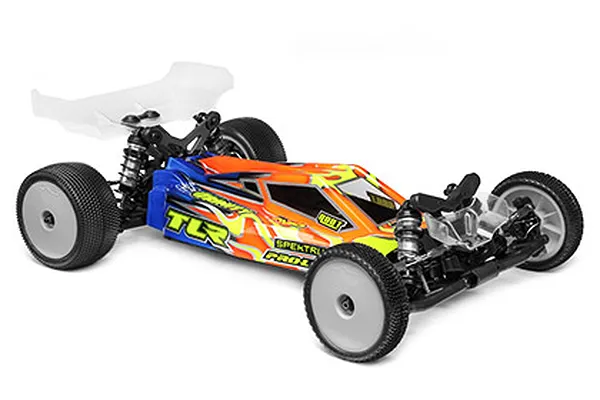

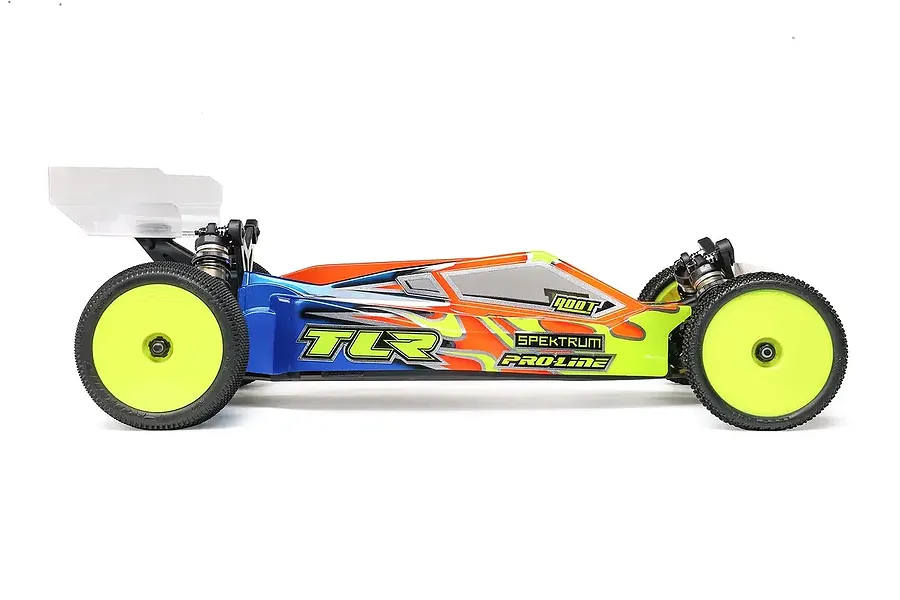

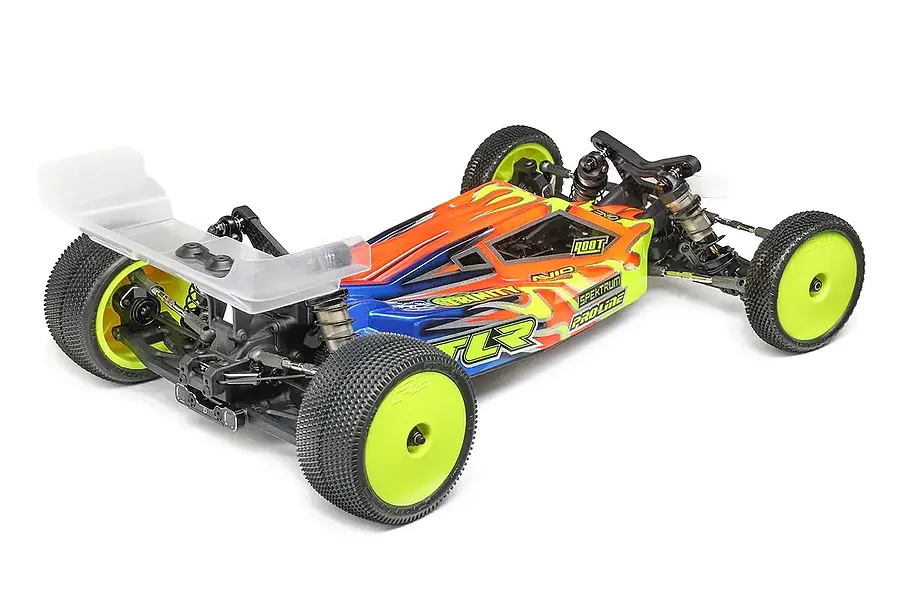

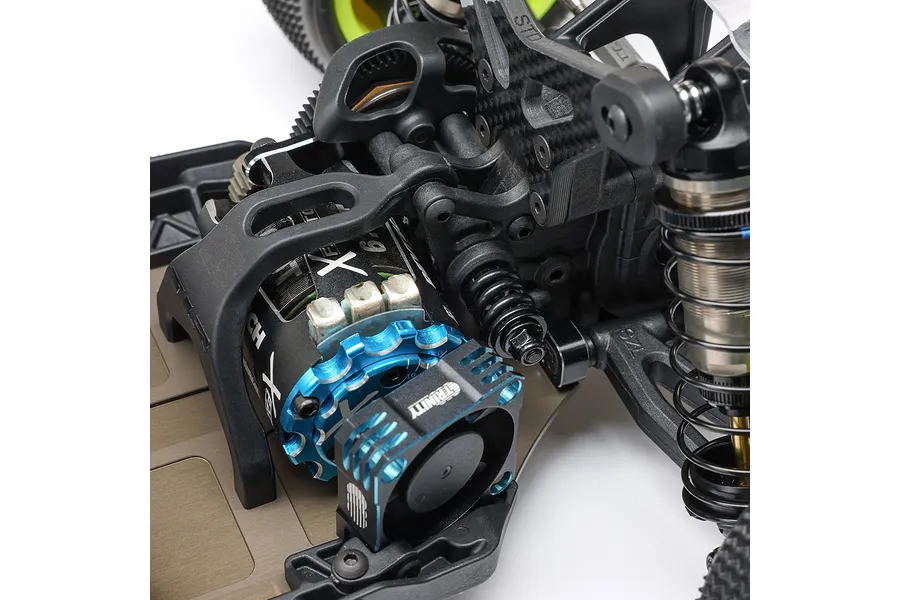

Comes with a pre-cut, durable Pro-Line Sector 22X body, low-mount front wing, and 7” rear wing for optimal balance and grip (requires painting). Includes a built-in motor fan mount and uses standard 2.2” front wheels for wider brand choice.
