Team Associated RC10 B7 Team Kit RC Buggy Electric 2WD 1/10 Scale Kit
Team Associated RC10 B7 Team Kit RC Buggy Electric 2WD 1/10 Scale Kit
Team Associated RC10B7 Team Kit — 2WD 1/10 scale buggy with long-arm suspension and KPI-adjustable steering, optimised for carpet and high-grip clay tracks.
- Long-arm suspension geometry for improved grip and corner speed on carpet, AstroTurf, and high-grip clay
- KPI adjustable steering and caster blocks for fine-tuned steering feel
- 5-gear laydown transmission with low-profile motor mount, shifting weight closer to centre
- All-new gear differential for smoother power delivery and improved traction
- 7075-T6 aluminium chassis with increased departure angle and optional weight plate pockets
This kit comes without an ESC, Servo, Battery, Charger, Motor, Wheels, Pinion Gear or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.

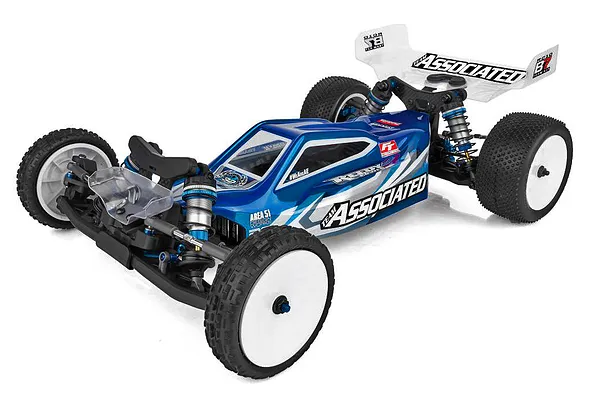

Introducing the RC10B7. Building upon a rich history of continuous development and innovation, the B7 marks a significant leap forward in performance, handling, and ease of use for both seasoned racers and budding enthusiasts.
At the heart of the B7 lies a completely redesigned long-arm suspension geometry. This translates to increased grip and corner speed, allowing you to carve tighter lines and push the limits of traction on carpet, AstroTurf, and high-grip clay tracks. For enhanced control and balance, the electronics layout has been carefully centralised, optimising weight distribution and responsiveness.
Further boosting its tuning potential, the B7 introduces KPI-adjustable steering blocks, allowing you to fine-tune steering characteristics for a wide range of track conditions and driving styles. The B7 arrives equipped with an all-new gear differential for smoother power delivery and improved traction, while front and rear anti-roll bars provide customisable roll stiffness for optimal cornering balance. For high-grip tracks, stiffer springs and higher pack shock pistons are included.
The RC10B7 shares full parts interchangeability with its dirt focused counterpart, the RC10B7D.
The car boasts a revolutionary 5-gear laydown transmission paired with a sleek low-profile motor mount, shifting the engine's weight closer to the centre. This masterful engineering translates to sharper handling, faster acceleration, and unmatched agility on the track.
Fine-tune your steering response with the innovative KPI adjustable steering and caster blocks. These meticulously crafted components allow for precise adjustments to kingpin inclination and caster angle, allowing a razor sharp turn in or a looser, more playful set up.

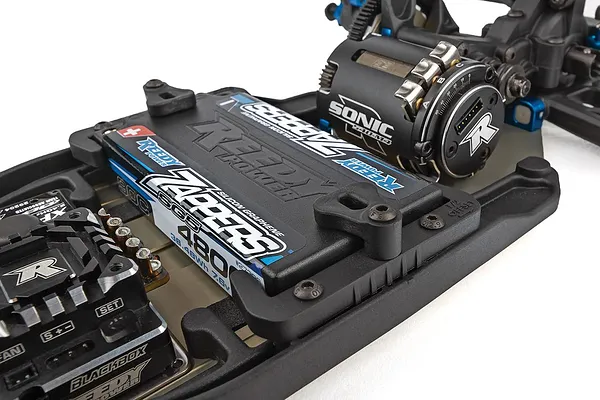

Tweak your weight distribution like a pro with the B7's highly adjustable battery holder. Slide the pack forward or back with ease, thanks to the convenient thumb tabs. Opening up a world of tuning possibilities, allowing you to find the perfect balance for optimal grip, handling, and ultimate lap times.
Forged from premium 7075-T6 aluminium, the B7's chassis is a lightweight powerhouse. The increased departure angle allows you to tackle even the steepest of jumps without the front end digging in, while integrated weight plate pockets provide a wealth of tuning options for customising weight distribution and achieving the perfect driving experience.
Dominate the corners with incredible downforce. The all-new wing combo, a 7-inch rear spoiler and a 2.5-inch front wing, generates aerodynamic magic, pinning your tyres to the track and allowing you to get power down quicker, leaving your opponents in the dust.
The RC10B7 features a height-adjustable aluminium front bulkhead, allowing for precise tuning of the vehicle's front roll centre. This adjustment modifies the distance between the chassis and the front suspension arms, influencing suspension behaviour and ultimately affecting handling characteristics.
- 5-gear laydown transmission with low profile motor mount moves the weight of the motor closer to the centre of the car
- Long-arm suspension geometry improves grip and predictability in all conditions
- Three different KPI adjustable steering and caster blocks options allow for fine tuning steering feel
- Vertical front outer ball stud allows for fine tuning of the roll centre, camber gain, and link length
- Height adjustable aluminium front bulkhead allows for further tuning of front roll centre
- Standard and HRC (High Roll Centre) rear hubs included, allowing you to tweak the car for different conditions
- Easy access anti-roll bars front and rear
- Low-profile buggy body
- 7075-T6 aluminium chassis with increased departure angle and optional weight plate pockets
- 6.5mm aluminium front axle
- HD 69mm CVA bones and differential out drives provide improved durability
- Lightweight moulded servo mount
- One-piece rear wing mount
- New 7-inch rear wing and 2.5-inch front wing
- Shock tower covers front and rear
- Super tough 3.5mm turnbuckles and ball cups
- Highly adjustable battery holder with thumb tabs allows for easy battery removal and fine tuning of weight bias
- Genuine Team Associated Product
- 1x Team Associated 1/10 RC10B7 Team Kit 2WD Electric Off Road RC Buggy Kit
- Compatible “Shorty” 7.4V Battery & Compatible Charger
- Compatible Standard or Low Profile 1/10 Servo
- Compatible Electronic Speed Controller (ESC) & Motor Combo
- 2Ch+ Transmitter & Receiver
- Tamiya PS Paint
- Compatible Buggy Tyres and Rims
- Compatible 48dp Pinion Gear
This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting and drilling.
-
Length
- 390mm (15.35in)
-
Chassis
- Off Road Buggy
-
Drivetrain
- 2WD
-
Gears
- 2.60:1
-
Suspension
- Oil Filled Shock Absorbers
-
Motor
- Not Included
-
ESC
- Not Included
-
Scale
- 1/10
-
Max LiPo Power
- 2S (7.4v)
-
Completion
- Kit
-
Skill Level
- Experienced
-
Power Source
- Electric
-
Chassis Type
- Buggy
-
On/Off Road
- Off Road
-
Drivetrain
- 2WD
-
Max LiPo Power
- 2S (7.4v)
-
Battery Connector
- Not Included
-
Front Shock Oil
- 35wt
-
Rear Shock Oil
- 30wt
-
Spur Gear
- 78T 48dp/0.5Mod
-
Wheel Hex Size
- 12mm
