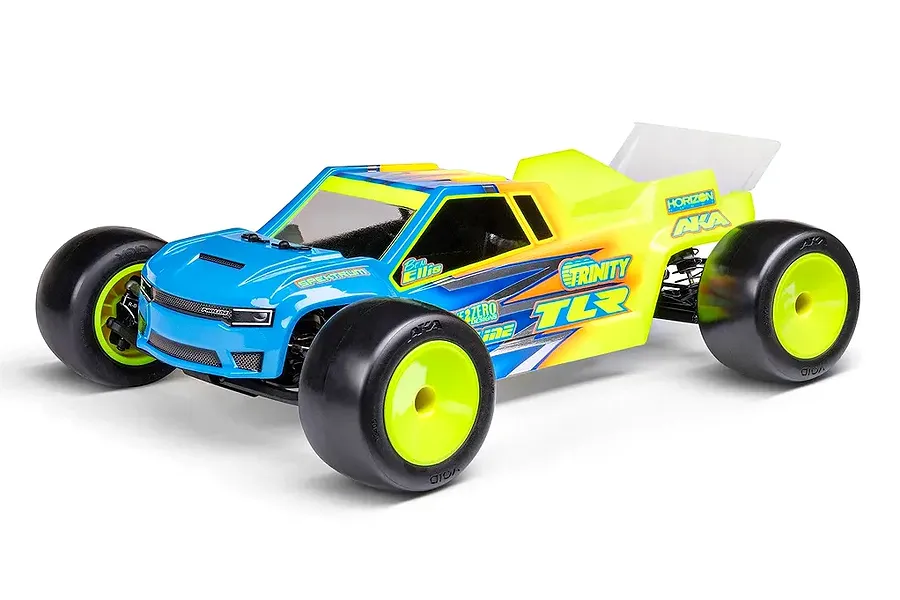

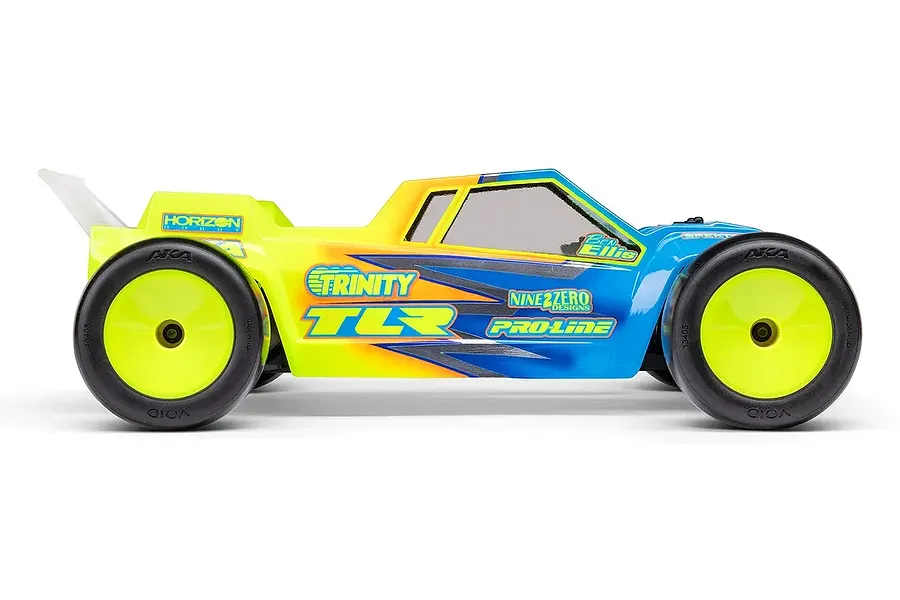

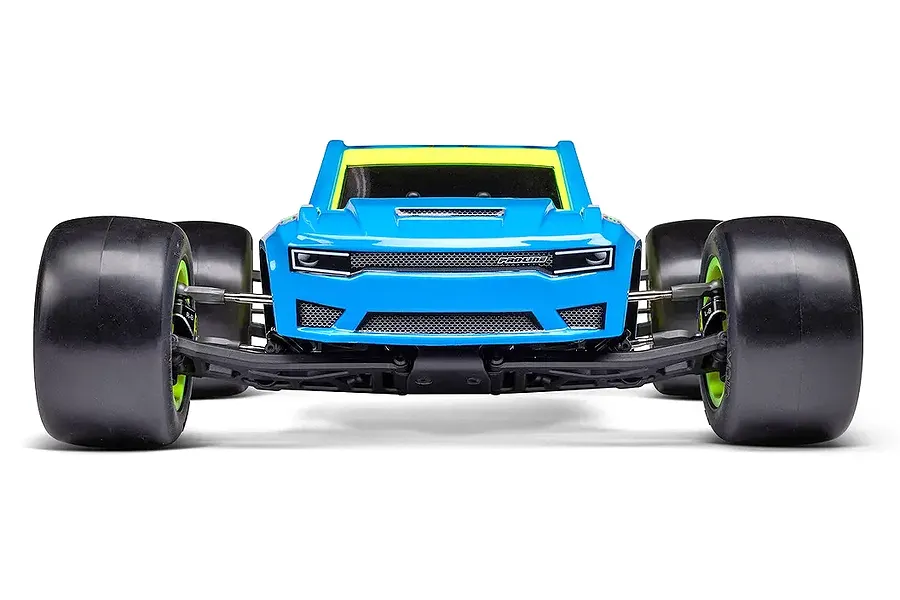

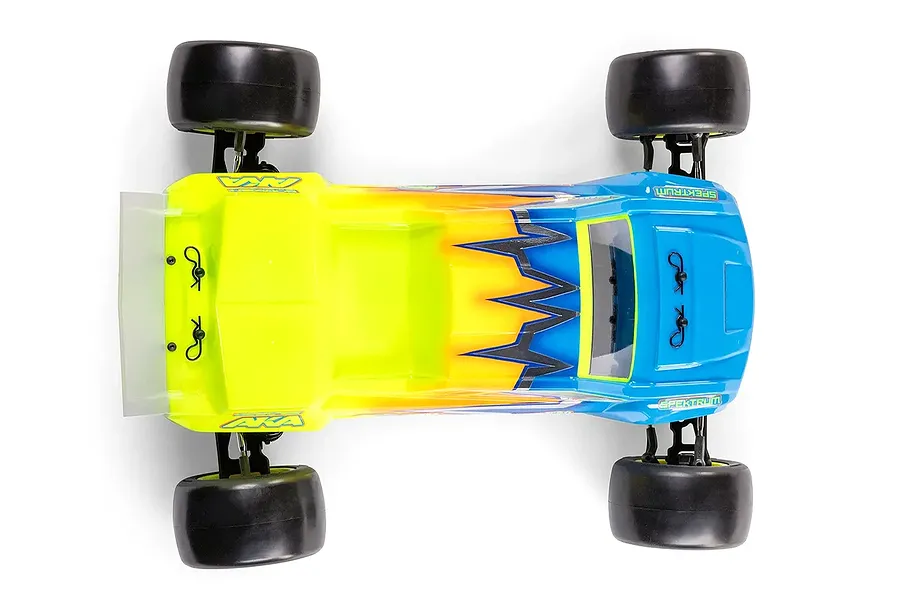

TLR 22X-T RC Stadium Truck Electric 2WD 1/10 Scale Kit

1/10
2WD
Kit
Brushless

Part no. TLR-1053

1 in stockNo reviews yet

1 / 17

$656.67

or 4 fortnightly payments of $164.17 with afterpay or PayPal, or zip

TLR 22X-T 1/10 2WD Stadium Truck Kit: Premium electric race kit engineered for podium performance and maximum track adaptability!

2WD Stadium Truck – Designed for High Grip & Performance
2S LiPo Compatible – Versatile Battery Selection
Optimised 7075-T6 Aluminium Chassis for Precision Control
13mm Big-Bore Shocks for Superior Handling
Perfect For Experienced Racers And Track Enthusiasts

Want more than 1? and we'll email you when they're here.

1 in stock · Ships Thursday · order by 1:00pm Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The TLR 22X-T 1/10 Scale 2WD Stadium Truck Race Kit sets a new benchmark for competitive RC stadium trucks, carrying over the podium-winning heritage of the iconic 22 platform. Meticulously engineered for today’s high-grip dirt, clay, carpet, and turf tracks, the 22X-T boasts an extended 7075-T6 aluminium chassis, advanced laydown gearbox for easy maintenance, and highly tunable suspension for outstanding consistency and agility. Whether you’re facing tight corners or long jump sections, this truck is optimised to help you push the limits and secure a spot on the podium.

TLR has packed the 22X-T with premium components, including large 13mm big-bore G3 shocks, carbon fibre shock towers, refined steering geometry, and numerous adjustment points for caster, kick-up, anti-squat, and rear toe. With industry-standard 2.2” wheel compatibility, adjustable battery mounts, and Super Heavy Duty Slipper system, racers can fine-tune every aspect for any track surface. The 22X-T is the go-to choice for serious racers determined to dominate every event with precision and reliability.

Note

Consult product manual for optimal setup, maintenance, and running guidance

Optional 30x30mm motor fan can be installed for additional cooling

Kit is designed for experienced users seeking premium performance

Features

Stretched 7075-T6 Aluminium Chassis For Stability And Grip
G3 13mm Big-Bore Shocks With 13mm Springs
New Laydown Gearbox With Easy-Access Ball Differential
Premium Carbon Fibre Front And Rear Shock Towers
Adjustable Caster And Kick-Up Settings
Multiple King Pin Offsets For Tunable Steering Response
Wide King Pin Spindles And Carriers For Consistent Handling
Super Heavy Duty Slipper (SHDS) With Improved Layout
Compatible With Standard Offset 2.2” Stadium Truck Wheels
Genuine Team Losi Racing Product

In the box

1x TLR 22X-T 1/10 2WD Stadium Truck Race Kit
1x Product Manual

You'll need

1x ESC
1x 540 Size Motor
1x 2S LiPo Shorty Battery
1x LiPo Battery Charger
1x Receiver
1x Transmitter
1x Servo
1x 48 Pitch Pinion Gear
1x Body
4x 2.2" Truck Wheels
4x 2.2" Truck Tyres

Highlights

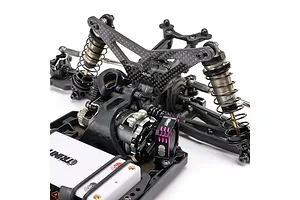

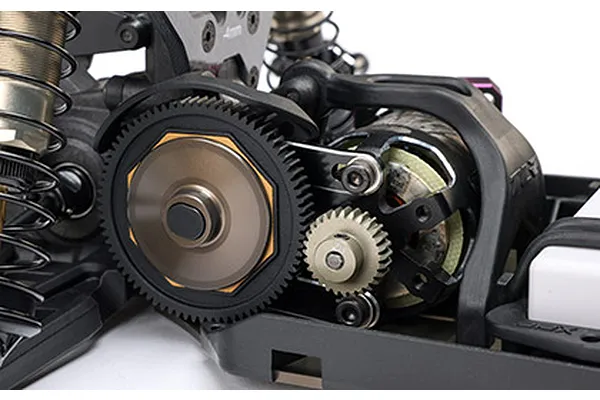

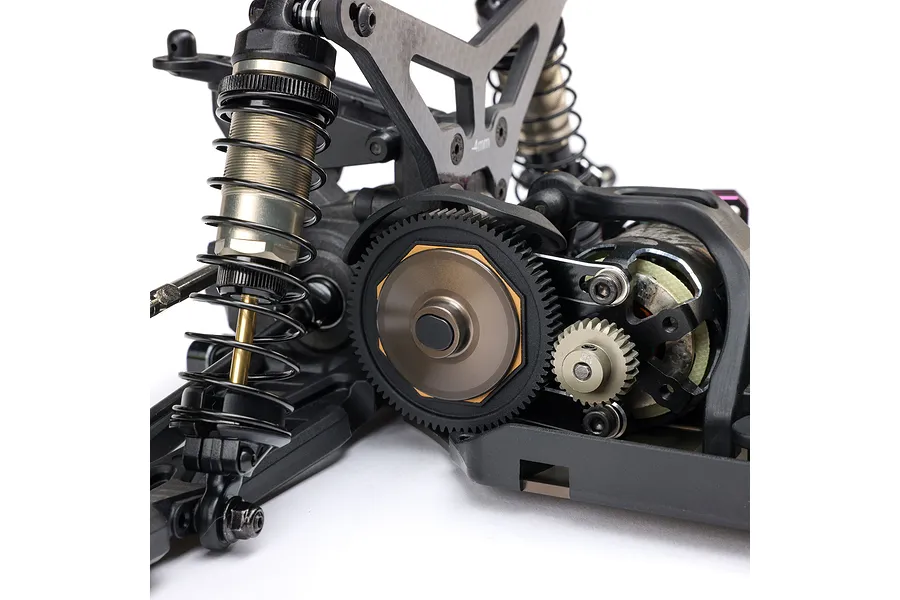

Quick-Access Laydown Gearbox

The innovative laydown gearbox design lets you reach the differential and idler gear fast, making maintenance a breeze. Multiple differential heights suit modern tracks, while all suspension mounts connect directly to the gearbox for added convenience.

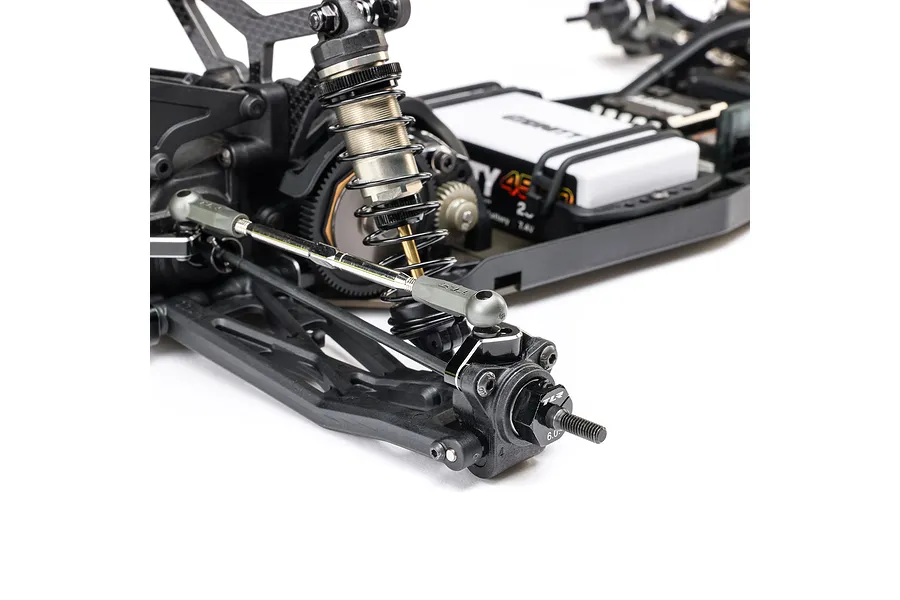

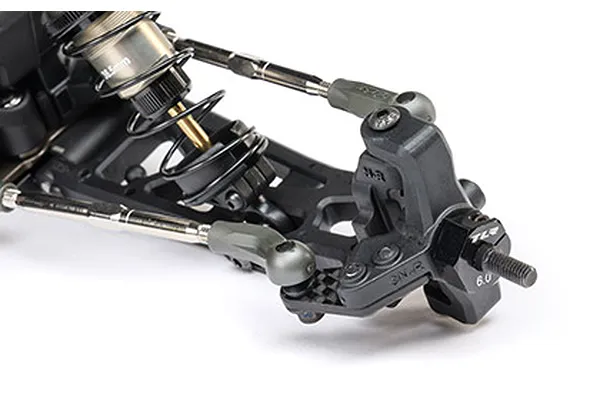

Versatile King Pin Offsets

Choose between wide and narrow king pin locations to match your steering feel to any track. The wide setting keeps the truck flatter through corners, while the narrow option offers more aggressive grip and response.

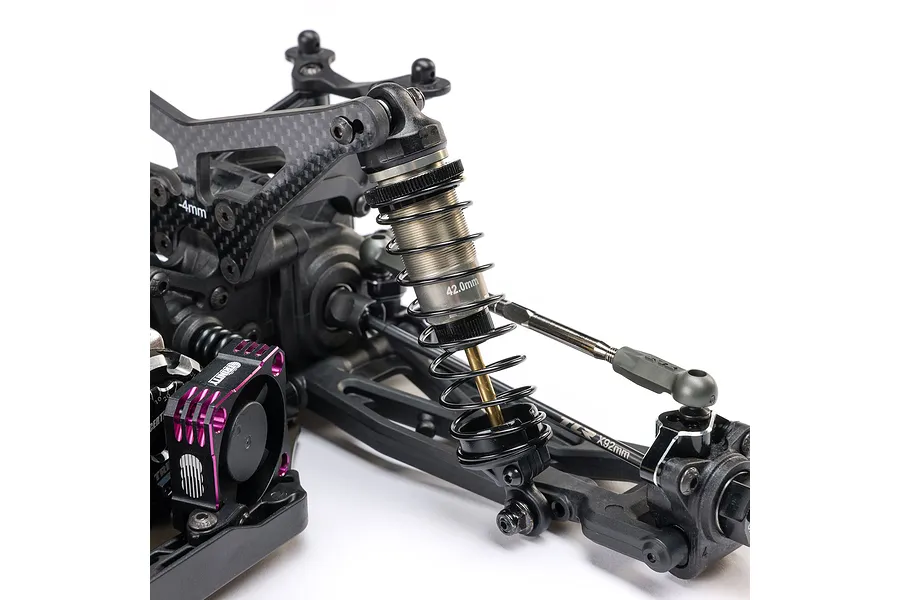

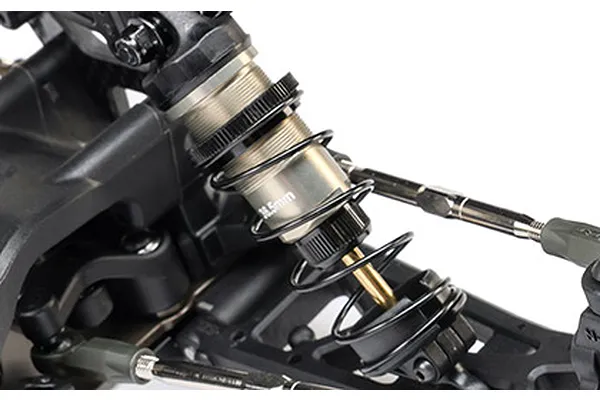

G3 13mm Big-Bore Shocks for Superior Handling

Upgraded 13mm big-bore shocks with new springs deliver smoother handling and better cornering. Enhanced internals and proven seals ensure consistent performance on every run.

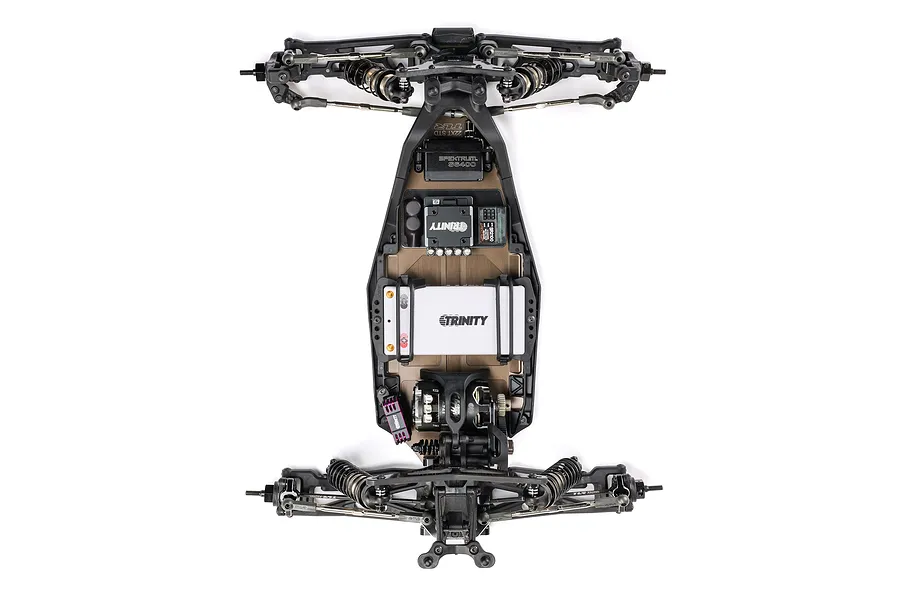

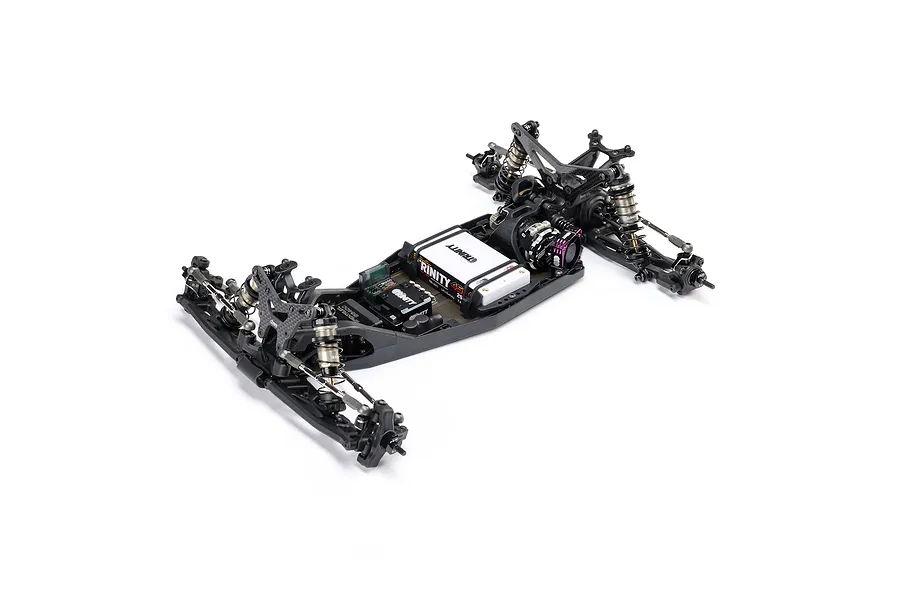

Precision 7075-T6 Aluminium Chassis

A 2mm machined 7075-T6 aluminium chassis provides the perfect balance of strength and flex. Hard-anodised for durability, it’s lengthened for today’s tracks and precision milled for optimal grip.

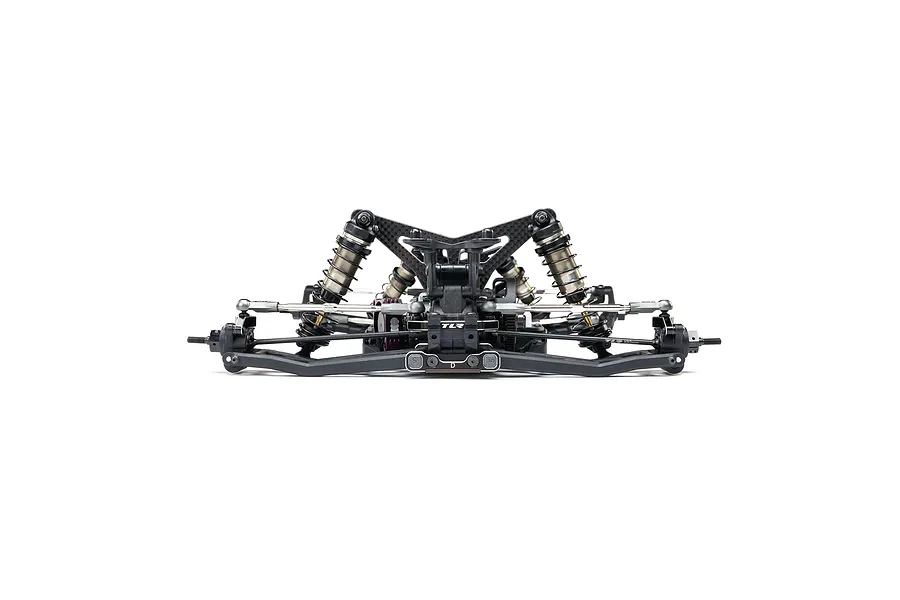

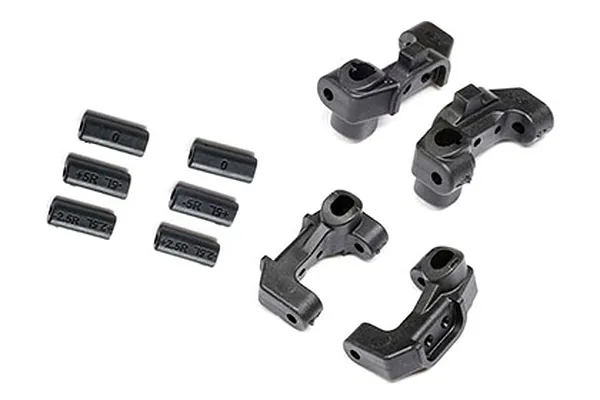

Fully Adjustable Suspension Geometry

Fine-tune your setup with adjustable caster, kick-up, and rear pivots. Easily change caster from 15° to 30° and kick-up from 20° to 25°, while TLR pill inserts offer a wide range of rear suspension tweaks.

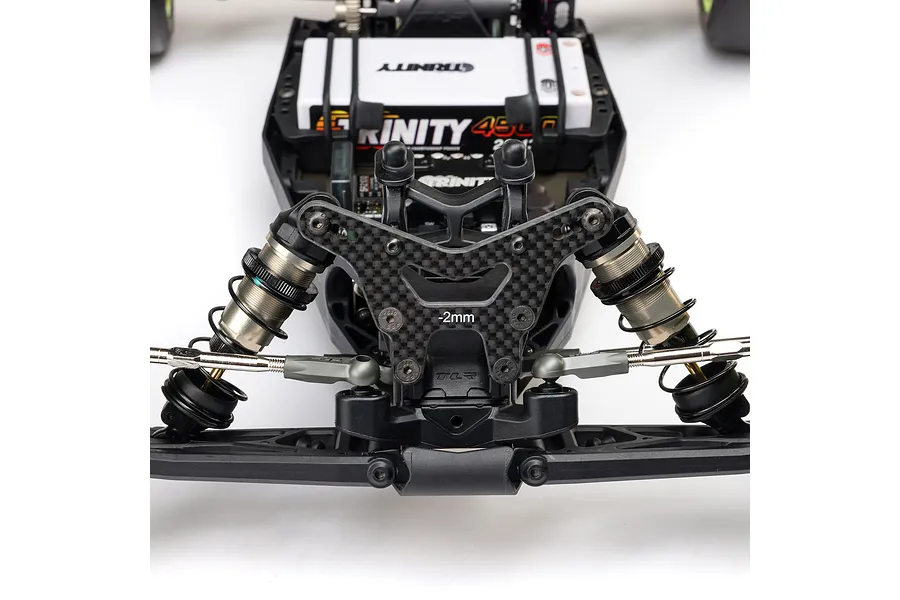

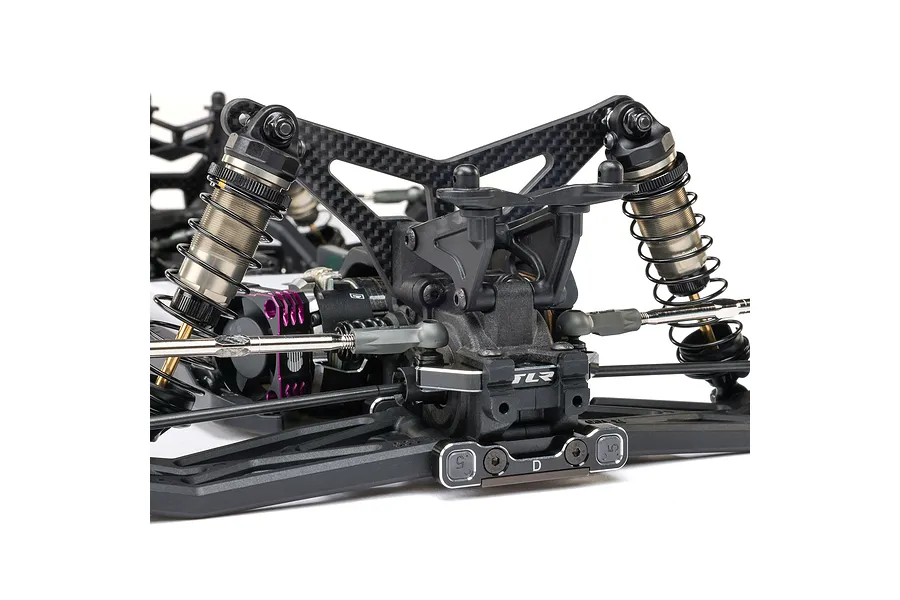

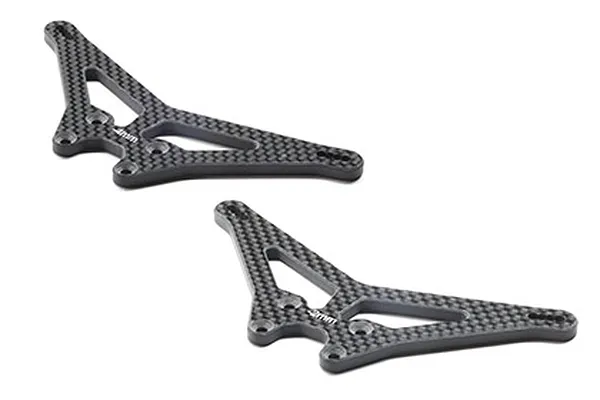

Carbon Fibre Shock Towers

Front and rear 4mm carbon fibre shock towers boost rigidity and durability. The front tower reduces flex and strengthens the bulkhead, while the rear tower allows easy wing and diff adjustments.

Variable Height Axle Rear Hubs

Quickly adjust rear hub height to fine-tune side bite, forward bite, and roll characteristics. Proven in the TLR 22 series, this feature helps you adapt to any surface.

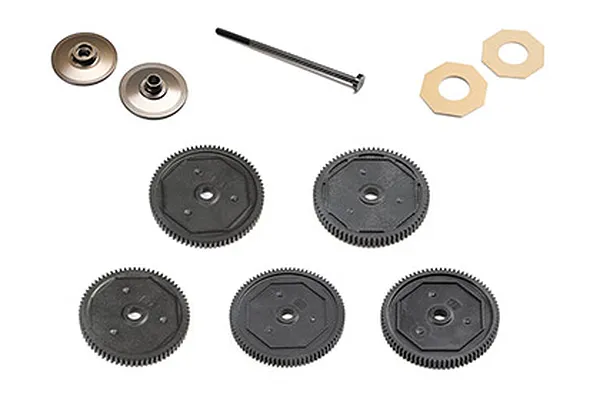

Heavy Duty Slipper for Consistent Power

The Super Heavy Duty Slipper (SHDS) ensures smooth, reliable power delivery. Its updated layout improves vehicle balance, helping you maintain traction in all conditions.

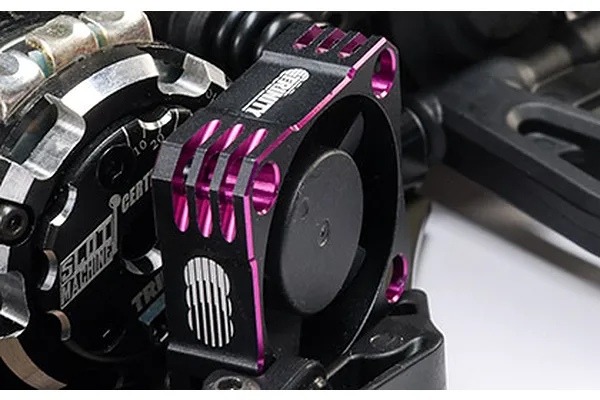

Built-In Motor Fan Mount

Keep your motor cool with a secure, moulded 30mm x 30mm fan mount built right into the mud guard. No need for extra hardware—just fit your preferred fan and race with confidence.

Specifications

Length	419mm (16.5")
Width	Front 326mm (12.8"), Rear 323mm (12.7")
Height	132mm (5.2")
Wheelbase	287mm (11.3")
Weight	N/A
Chassis	2mm 7075-T6 Aluminium Milled Plate
Suspension	13mm Big-Bore Shocks, Adjustable Geometry
Drivetrain	2WD
Motor	540 Size Required (Not Included)
ESC	Required (Not Included)
