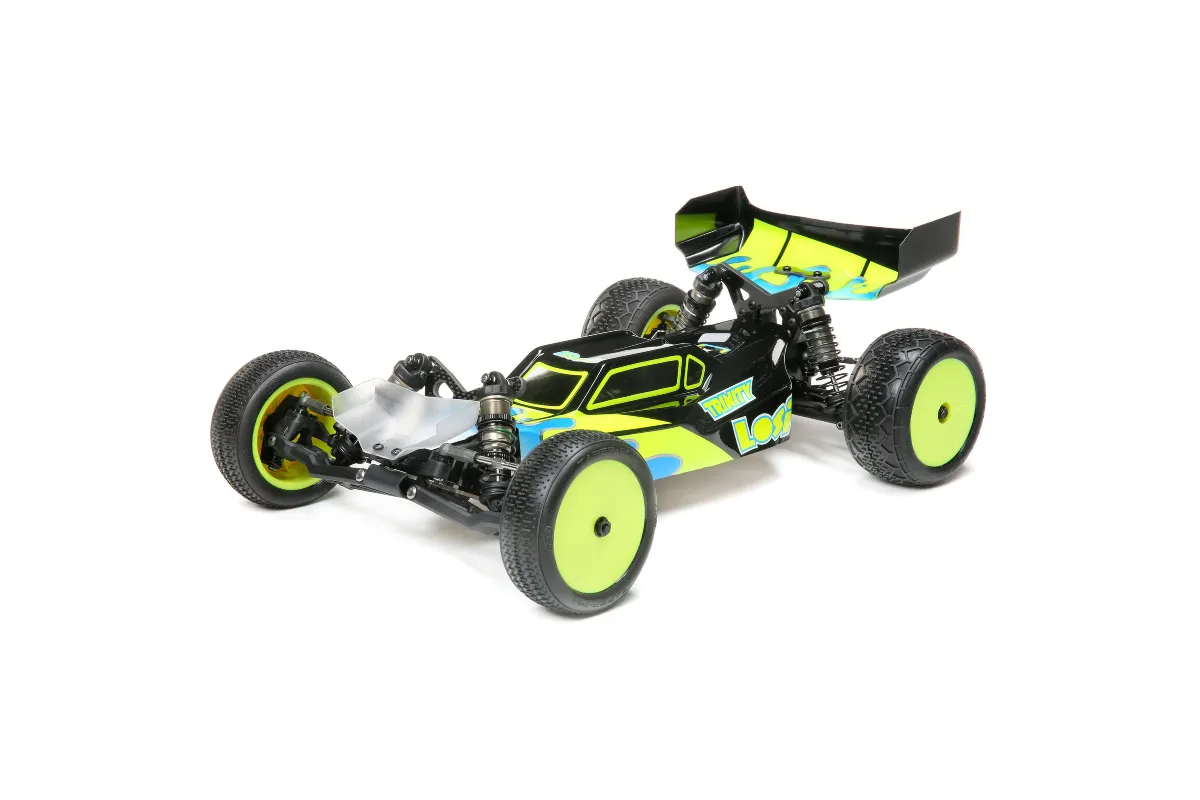

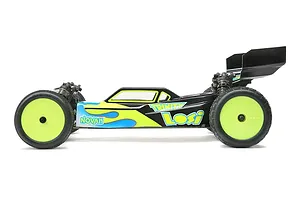

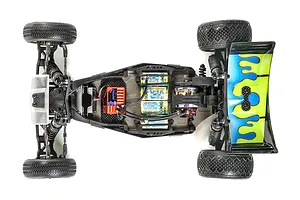

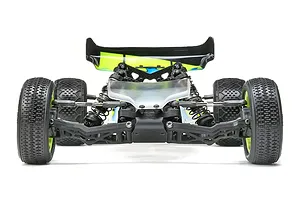

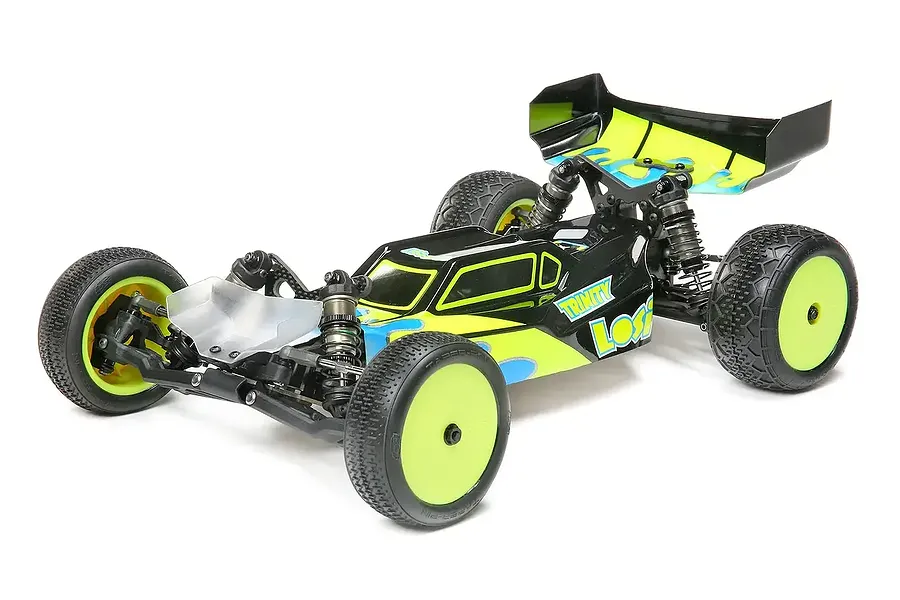

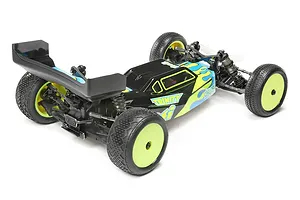

TLR 22 5.0 DC Elite Race RC Buggy Electric 2WD 1/10 Scale Kit
TLR 22 5.0 DC Elite Race RC Buggy Electric 2WD 1/10 Scale Kit
- Professional-grade race kit with carbon fibre and aluminium option parts included
- Fully adjustable rear pivots and variable height rear hubs for maximum tuning potential
- Titanium turnbuckles, black anodised aluminium parts, and hard anodised chassis
- Revamped steering geometry, G3 12mm big bore shocks, and a super heavy-duty slipper clutch
- Designed for experienced racers seeking the ultimate in performance and adjustability
This kit comes without an ESC, Servo, Battery, Charger, Motor, Wheels, Pinion Gear or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.

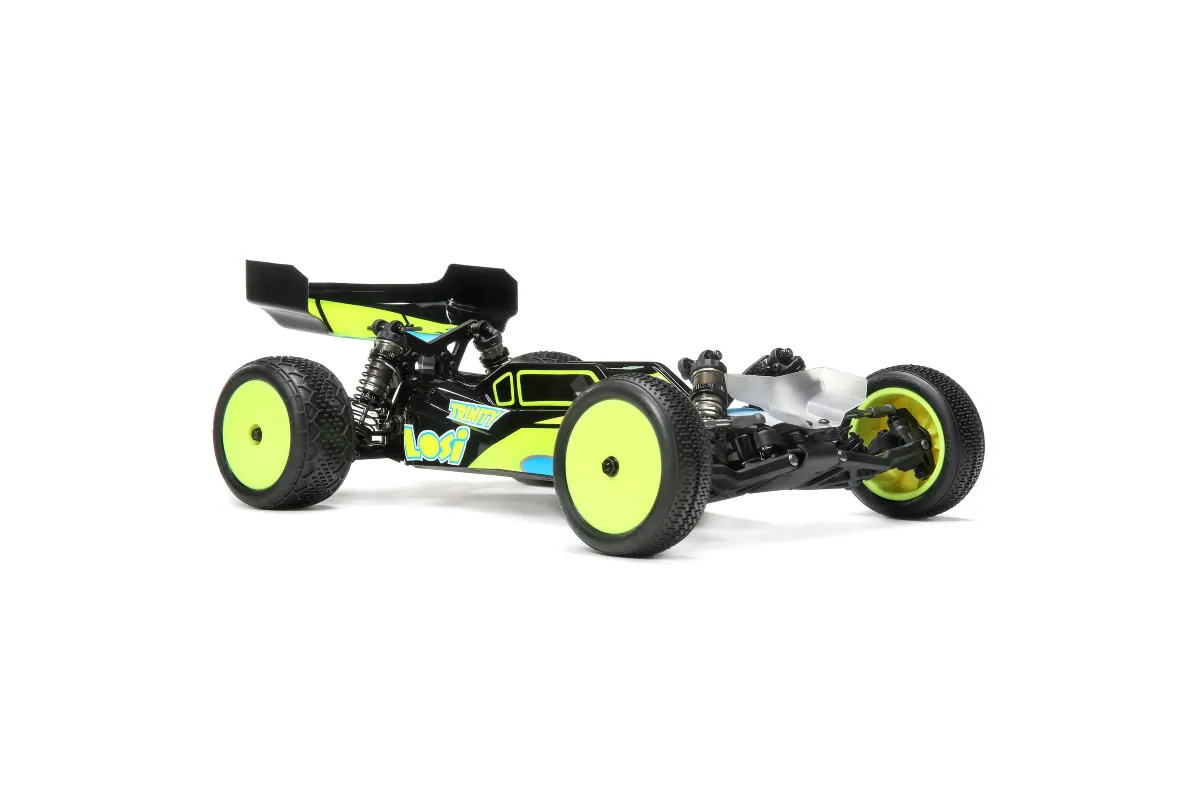

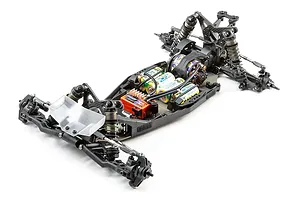

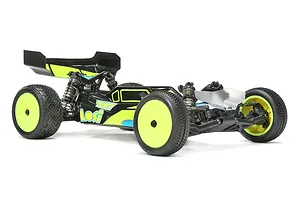

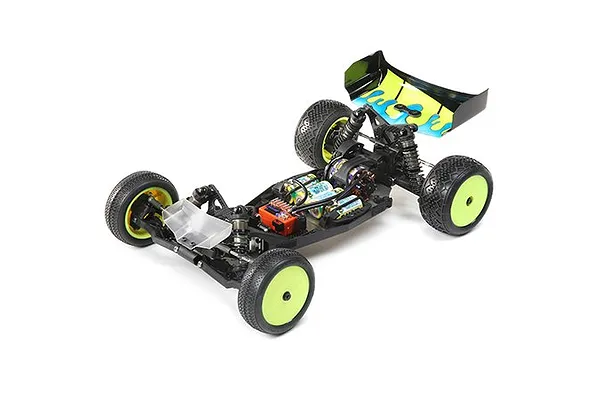

The TLR 22 5.0 DC Elite takes the already high-performance 22 5.0 platform to the next level. This elite-level race kit includes a comprehensive array of premium features and team-level upgrades, making it the most potent 2WD buggy kit TLR has ever offered. Optimised for dirt and clay tracks, the 22 5.0 DC Elite is packed with carbon fibre option parts, black anodised aluminium components, and titanium turnbuckles.
Building on the improvements of the standard 22 5.0, the Elite kit features fully adjustable rear pivots, adjustable height rear hubs, and a host of other refinements. The revised steering geometry, smoother G3 shocks, and optimised flex of the 2mm chassis plate contribute to a car that's easier to drive and more consistent. Designed to win straight out of the box, the 22 5.0 DC Elite is the ultimate expression of TLR's racing heritage.
Make the track your own with the 22 5.0 DC ELITE, the most competition-ready 2WD buggy kit ever offered. Packed with premium features and option parts used by our factory race team, including carbon fibre components, black anodised aluminium, and titanium turnbuckles, this elite kit is ready to take on any challenge.

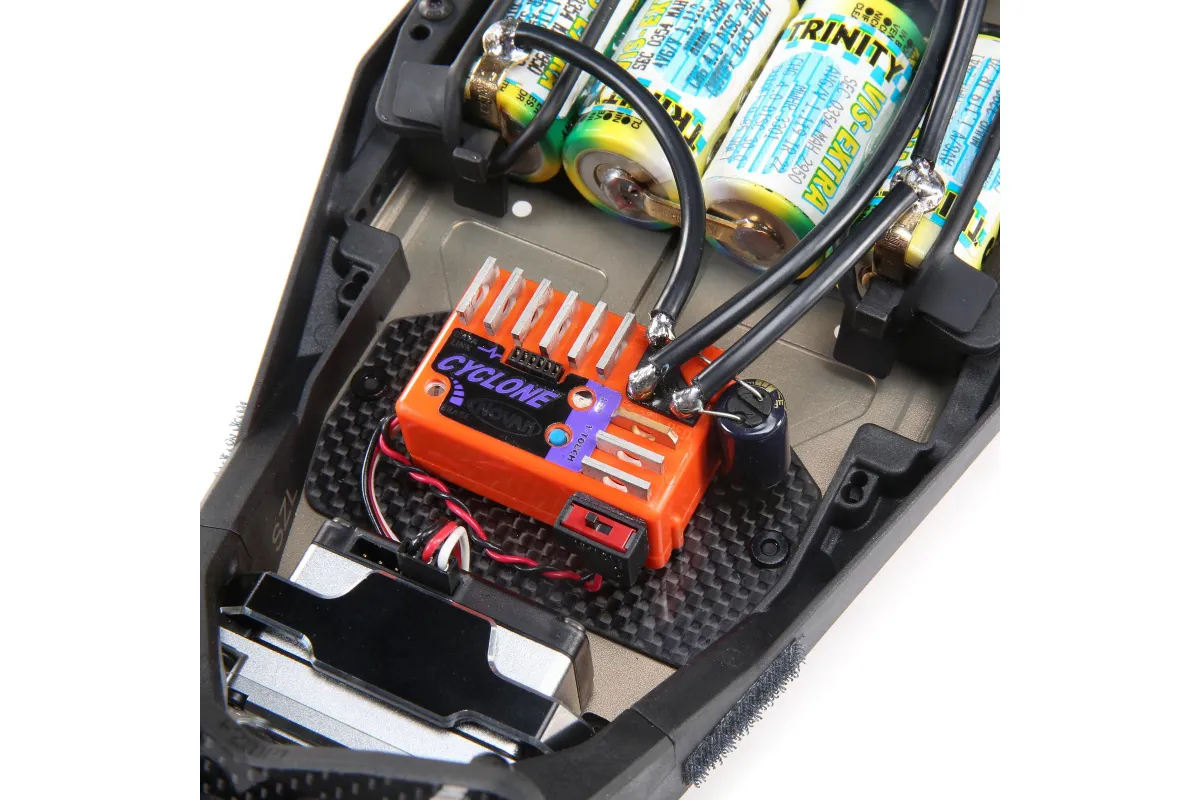

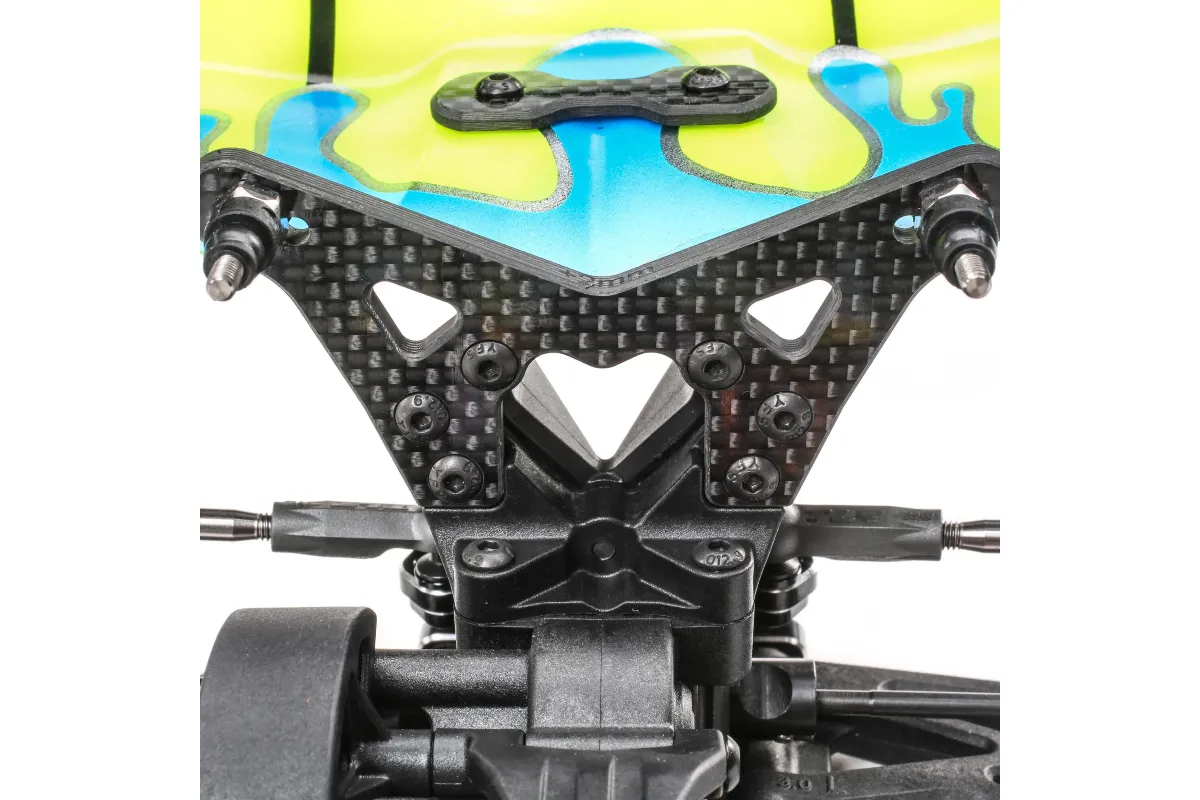

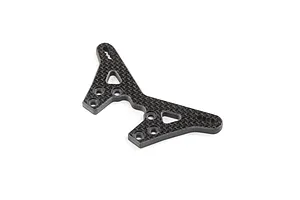

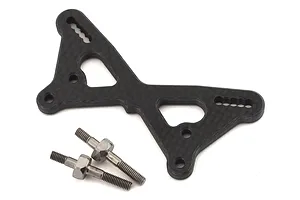

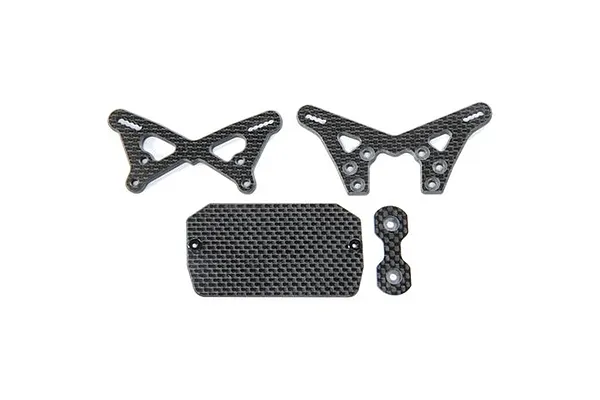

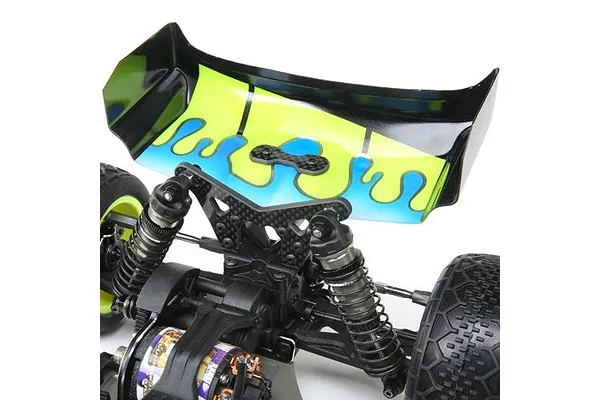

Elevate your performance with a suite of carbon fibre upgrades included in the 22 5.0 DC ELITE kit. These popular option parts, including +2mm front and rear shock towers, an electronics mounting plate, and a rear wing washer, enhance the buggy's strength, rigidity, and overall performance.
The 22 5.0 DC ELITE kit includes a range of aluminium option parts, enhancing both durability and performance. Benefit from upgraded bell cranks, drag link, servo mount, outer front bearing inserts, rear camber block, C and D pivots, and aluminium nuts throughout the buggy.

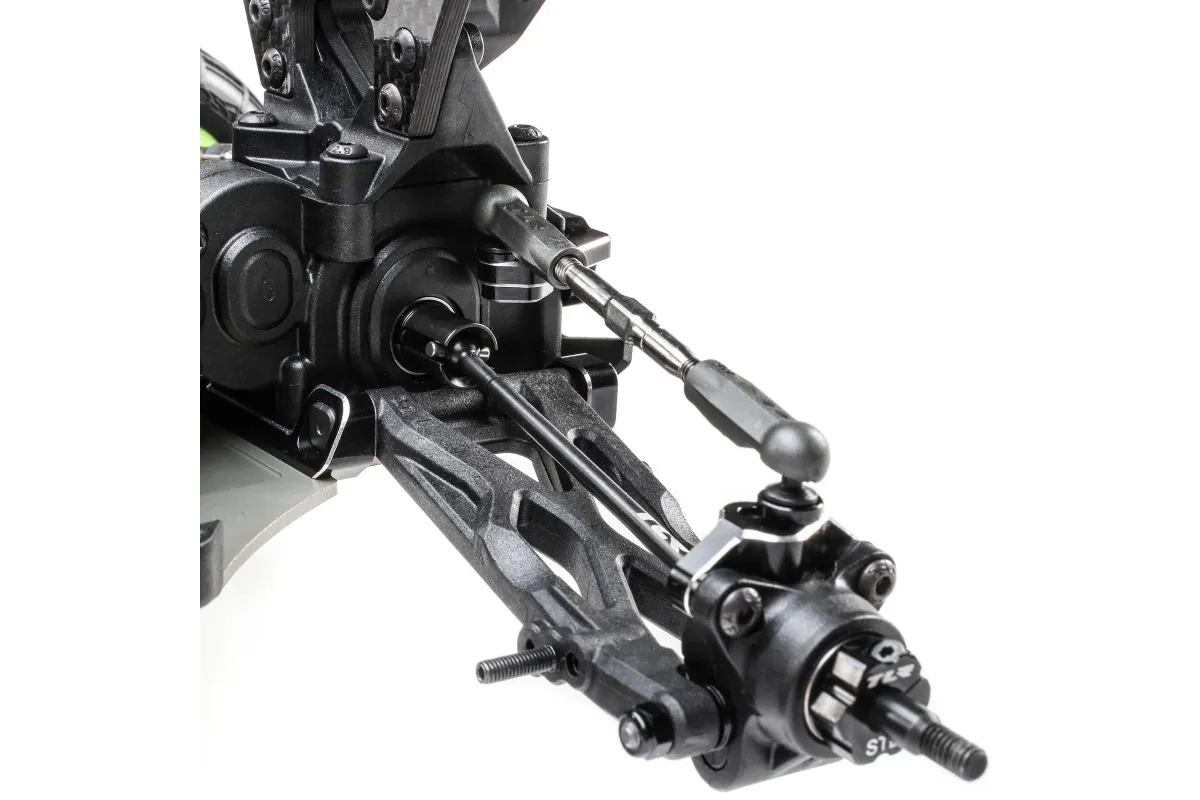

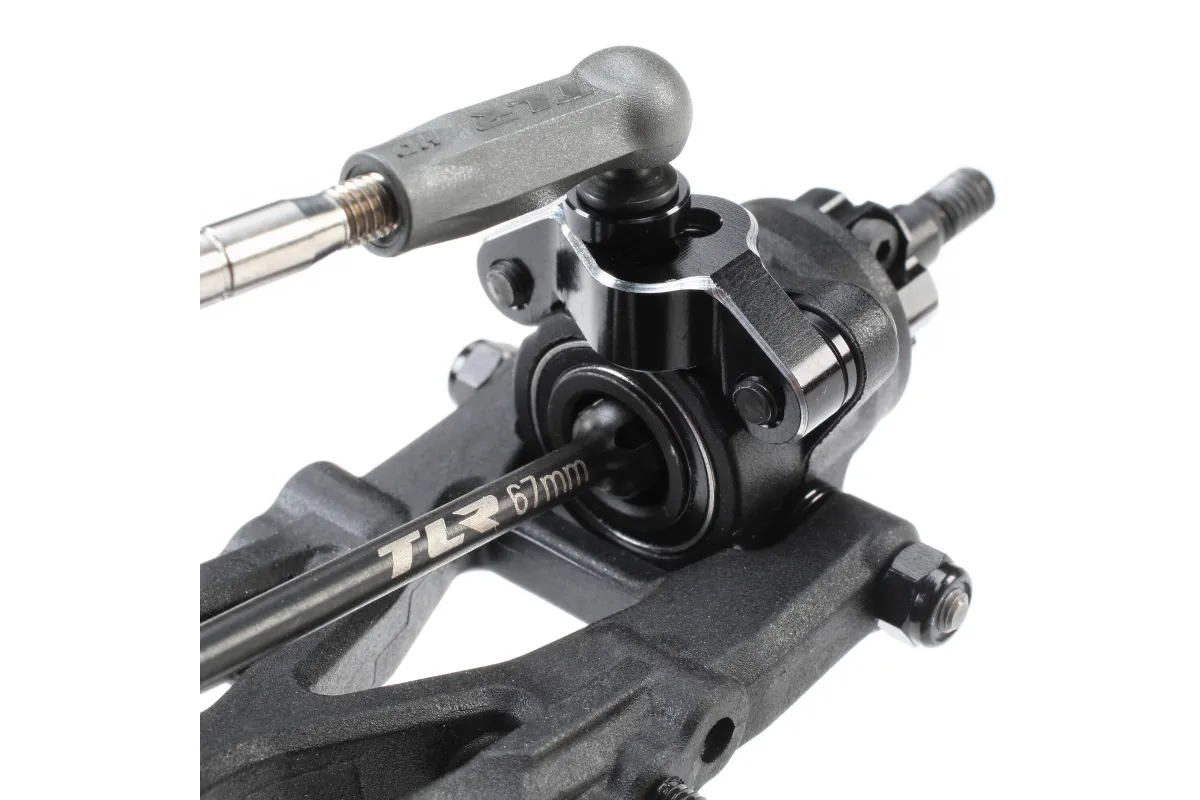

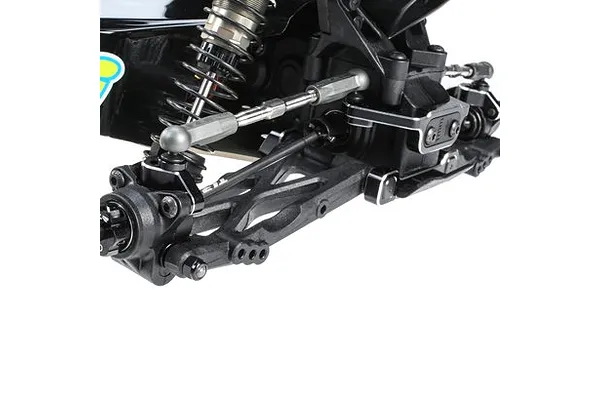

Fine-tune your setup with the most adjustable rear suspension ever offered by TLR. The 22 5.0 DC ELITE features VHA rear hubs and inner rear pivots, providing extensive tuning options for roll centre, track width, anti-squat, and toe.
Reduce weight and improve performance with the included titanium turnbuckles. These premium upgrades, standard in the 22 5.0 DC ELITE kit, offer a significant advantage on the track.

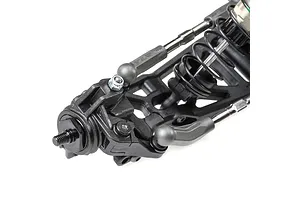

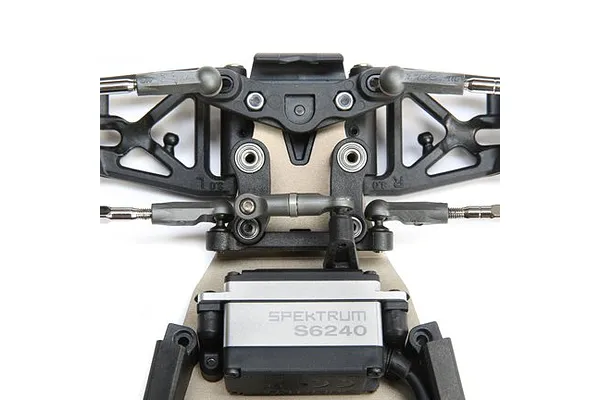

Experience smoother and more responsive steering with the 22 5.0 DC ELITE's revamped steering geometry. Longer steering bell cranks and spindle arms, combined with optimised Ackermann angles, provide a more consistent feel and enhanced control, especially at high speeds and in tight corners.

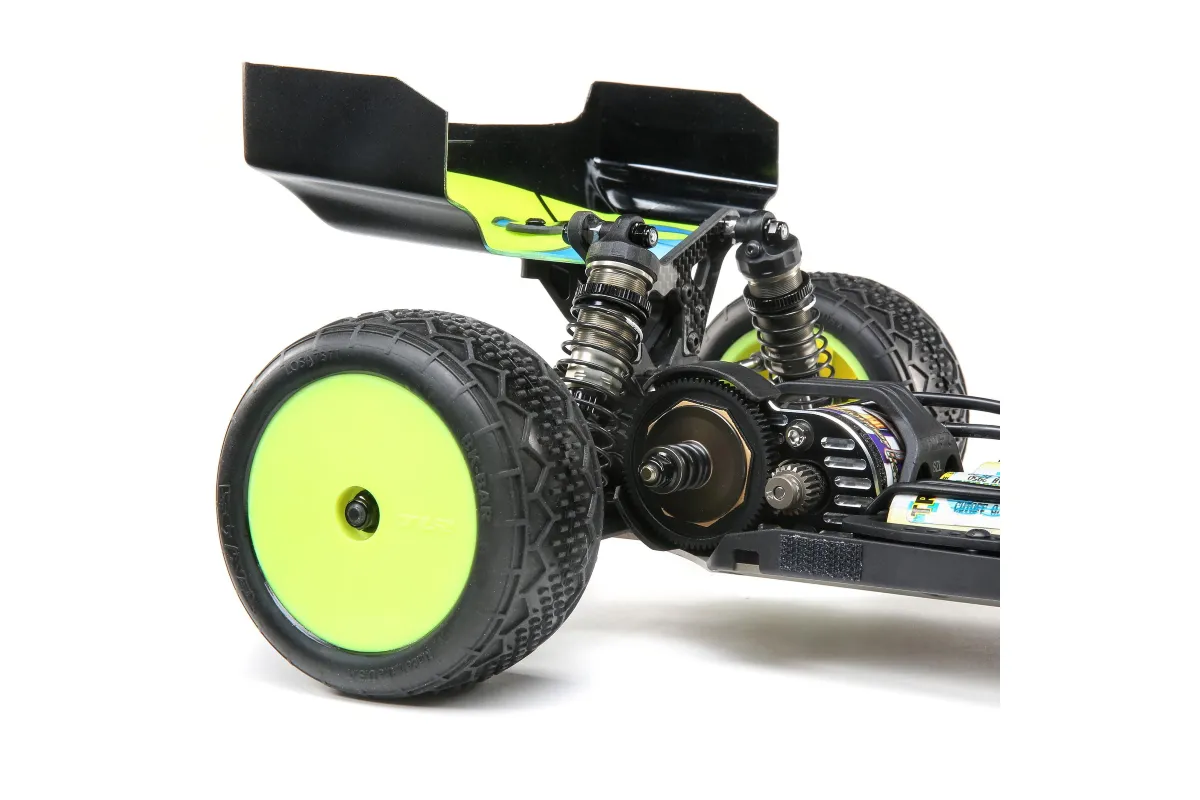

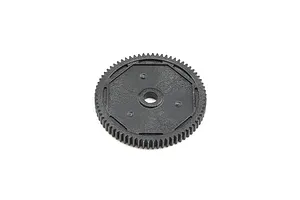

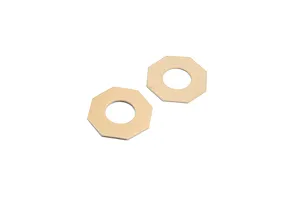

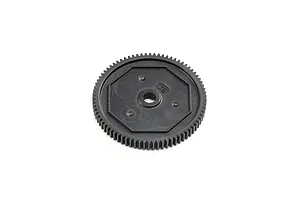

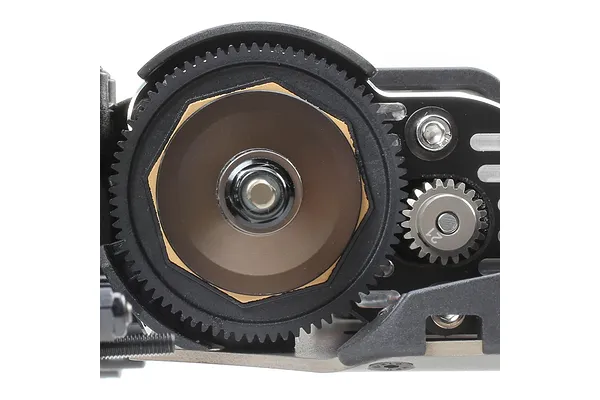

The 22 5.0 DC ELITE features a Super Heavy Duty Slipper (SHDS) with all-new components, including slipper plates, pads, spring, spur gears, and a top shaft with an M4 lock nut. This upgraded slipper system provides a more linear and consistent feel, even under heavy loads.
Enjoy plush handling and consistent performance with the G3 12mm big bore shocks. These shocks feature user-friendly improvements like screw-secured pistons, new shock caps and bodies, and revised eyelets and spring cups for easier maintenance and precise tuning.

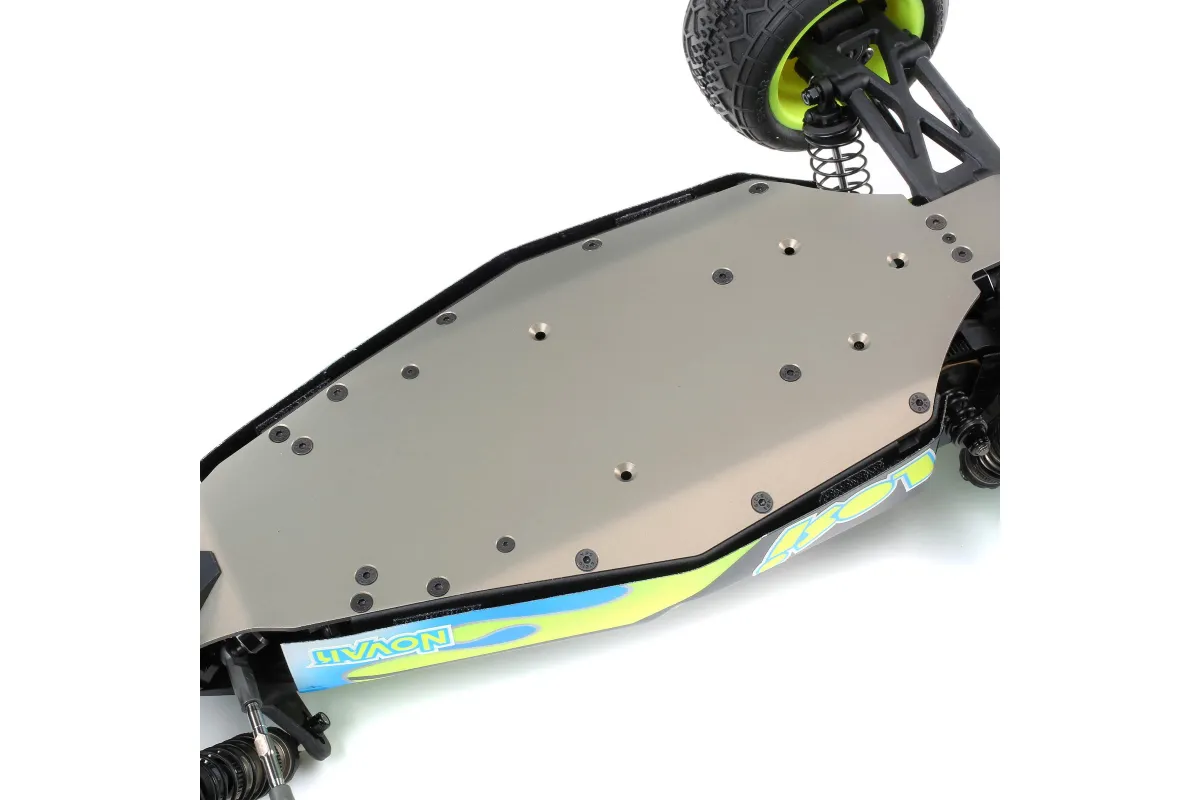

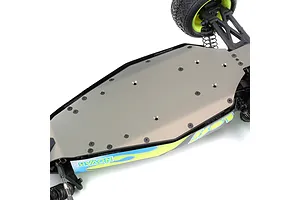

The 22 5.0 DC ELITE's milled 2.0mm aluminium chassis provides the perfect balance of flex and rigidity. This optimised chassis design ensures smooth cornering, balanced handling, and consistent performance on various surfaces.
The 22 5.0 DC ELITE features a fully updated ball differential with revised components for smoother and more durable performance. Tungsten carbide diff balls, a one-piece nut, and a self-centring diff gear enhance efficiency and longevity.

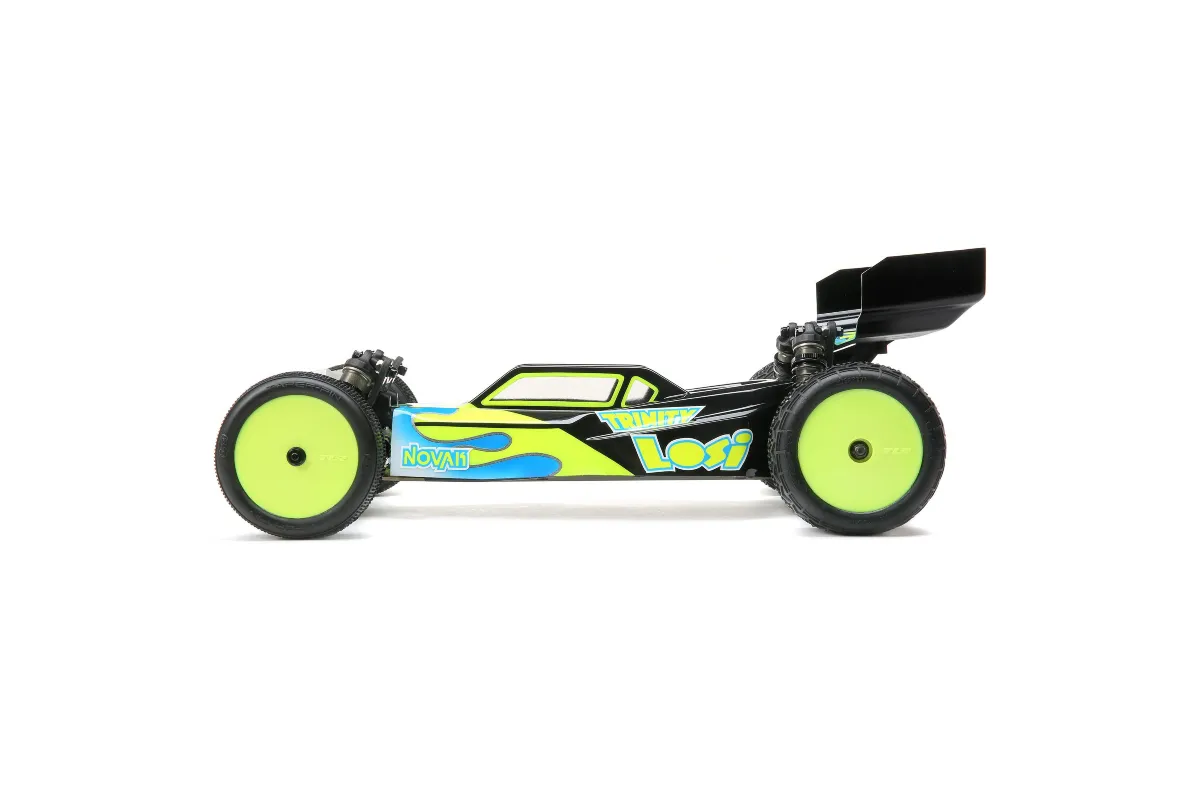

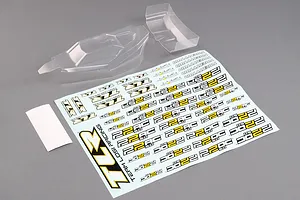

The 22 5.0 DC ELITE includes a lightweight and durable polycarbonate body, pre-cut for convenience. This body maintains the excellent balance, grip, and stability of the 22 4.0 body while offering a fresh new look.

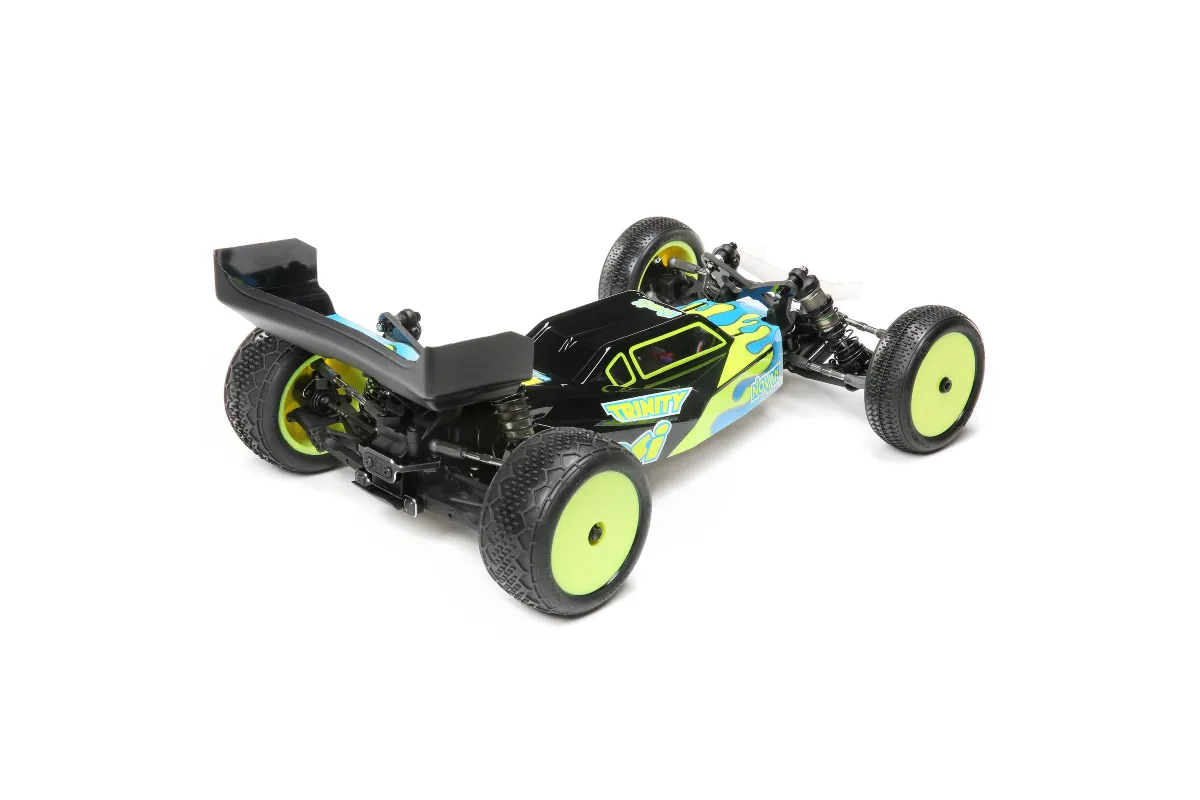

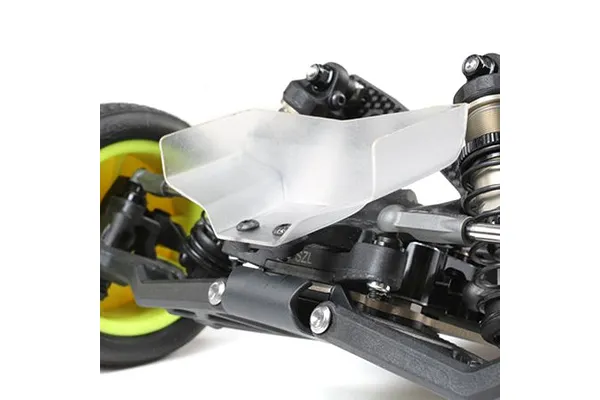

Increase steering precision and control with the included TLR low front wing. This wing enhances high-speed cornering and on-power steering while providing smoother turn-in for a more balanced driving experience.

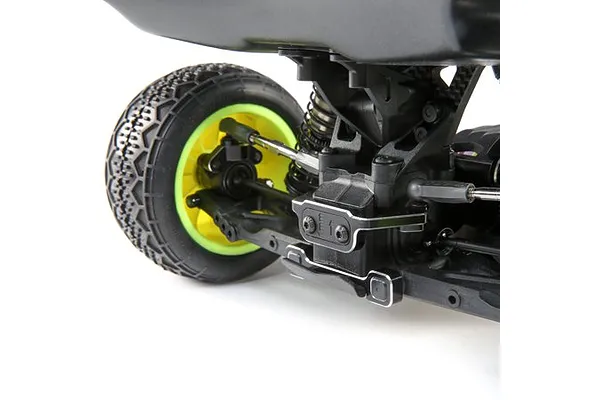

Simplify maintenance and repairs with all-metric hardware throughout the 22 5.0 DC ELITE. This standardization makes it easy to find replacement parts and reduces the number of tools needed for adjustments.

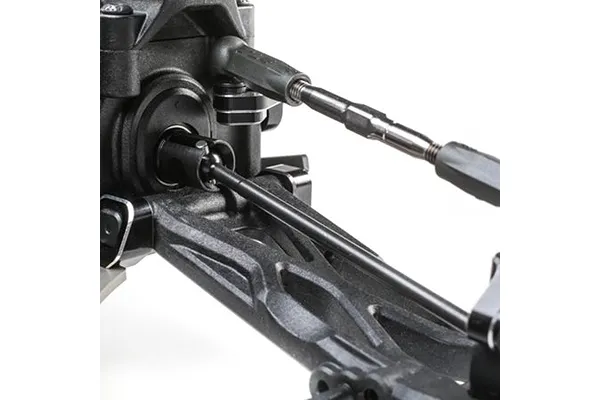

Fine-tune your setup with the 22 5.0 DC ELITE's diff height adjustment feature. Choose from five different diff heights to optimise bone plunge and adapt to various track conditions and driving styles.

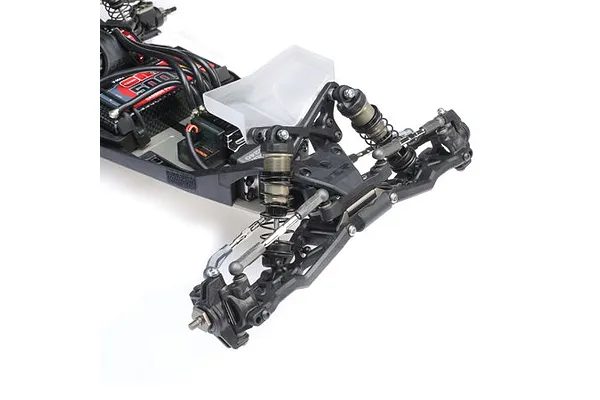

The 22 5.0 DC ELITE offers a wide range of front roll centre adjustments, allowing you to fine-tune the buggy's handling characteristics. Achieve the perfect balance of steering and stability with multiple roll centre options.

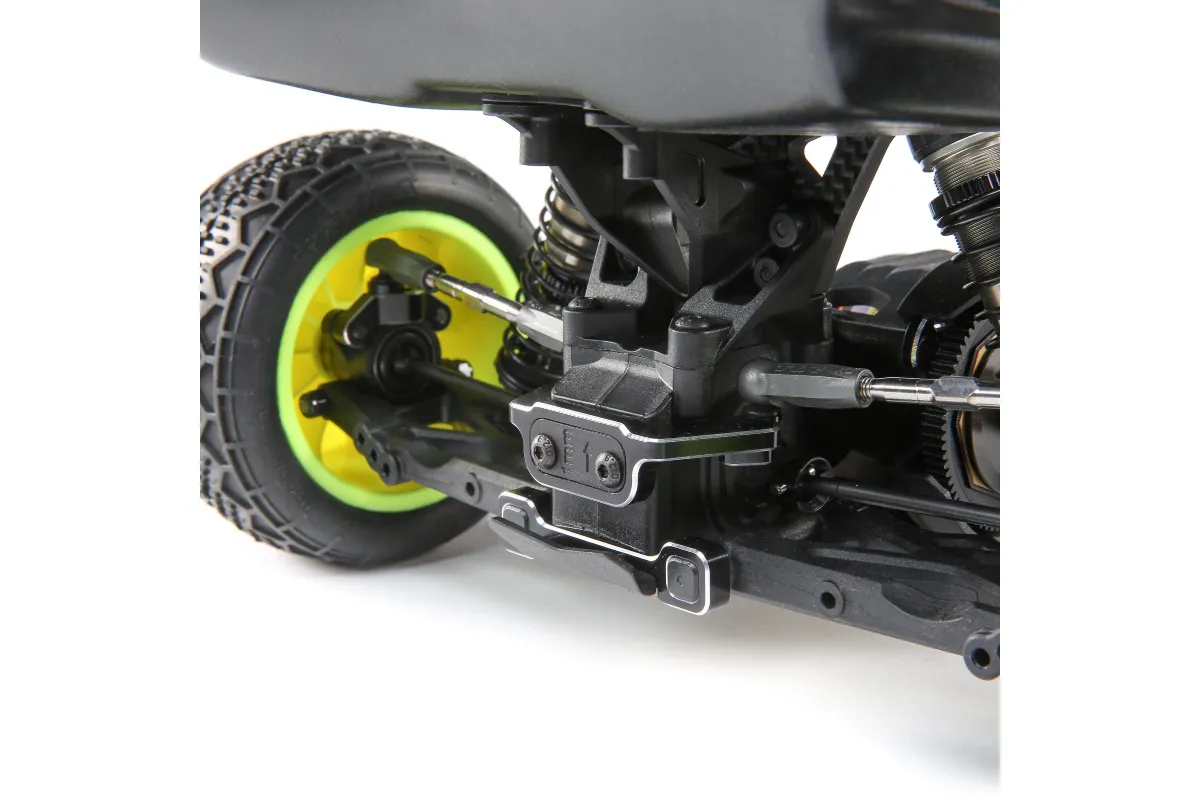

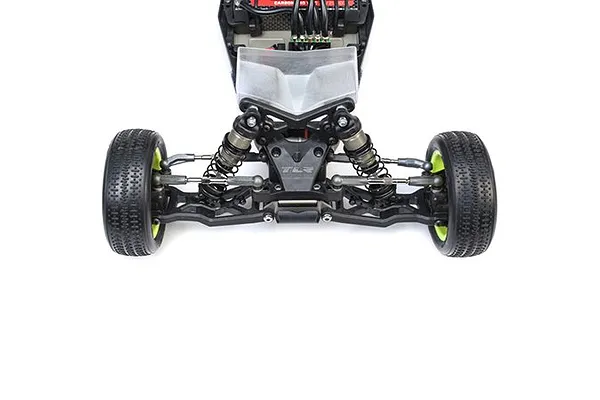

The new front camber block adds a third camber link position, providing greater tuning flexibility and allowing you to dial in the perfect setup for various grip levels.

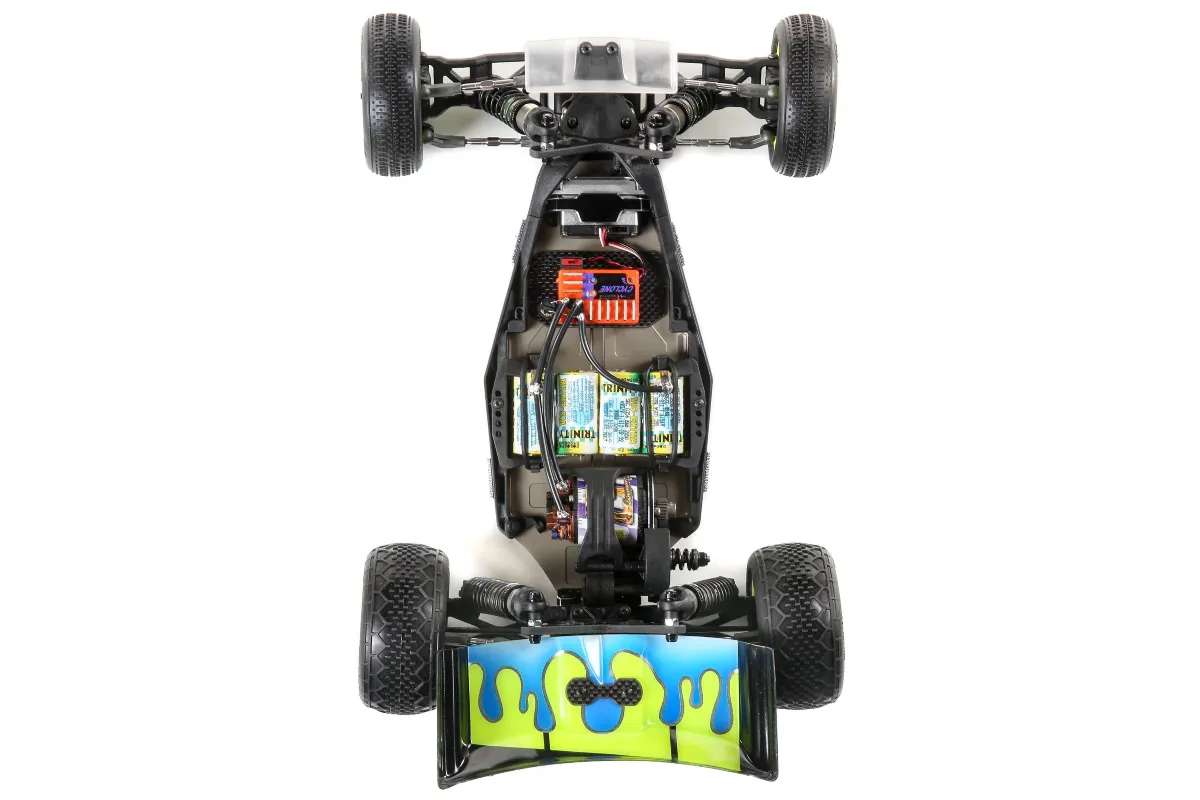

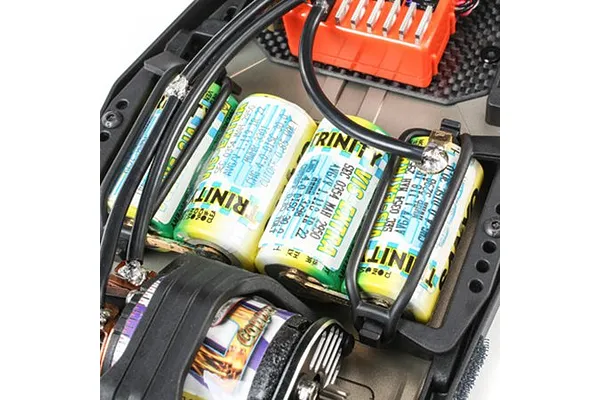

The 22 5.0 DC ELITE features a versatile and user-friendly battery hold down system. Securely mount your battery in one of five fixed positions and easily adjust the elastomer straps to accommodate different battery heights and weight plates.

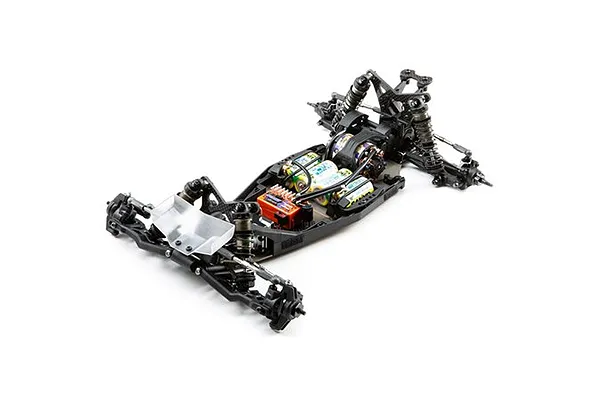

The 22 5.0 DC ELITE includes optimised composite parts in key areas for balanced performance and durability. Stiffezel front suspension arms, mud guards, and waterfall, along with soft rear suspension arms, provide the ideal combination of strength and flex.
Fine-tune the 22 5.0 DC ELITE's weight balance with optional brass ballast weights. Mount weights under the servo, battery, and laydown transmission idler to adjust static weight and weight bias for different track conditions.
Fine-tune the 22 5.0 DC ELITE's weight balance with optional brass ballast weights. Mount weights under the servo, battery, and laydown transmission idler to adjust static weight and weight bias for different track conditions.

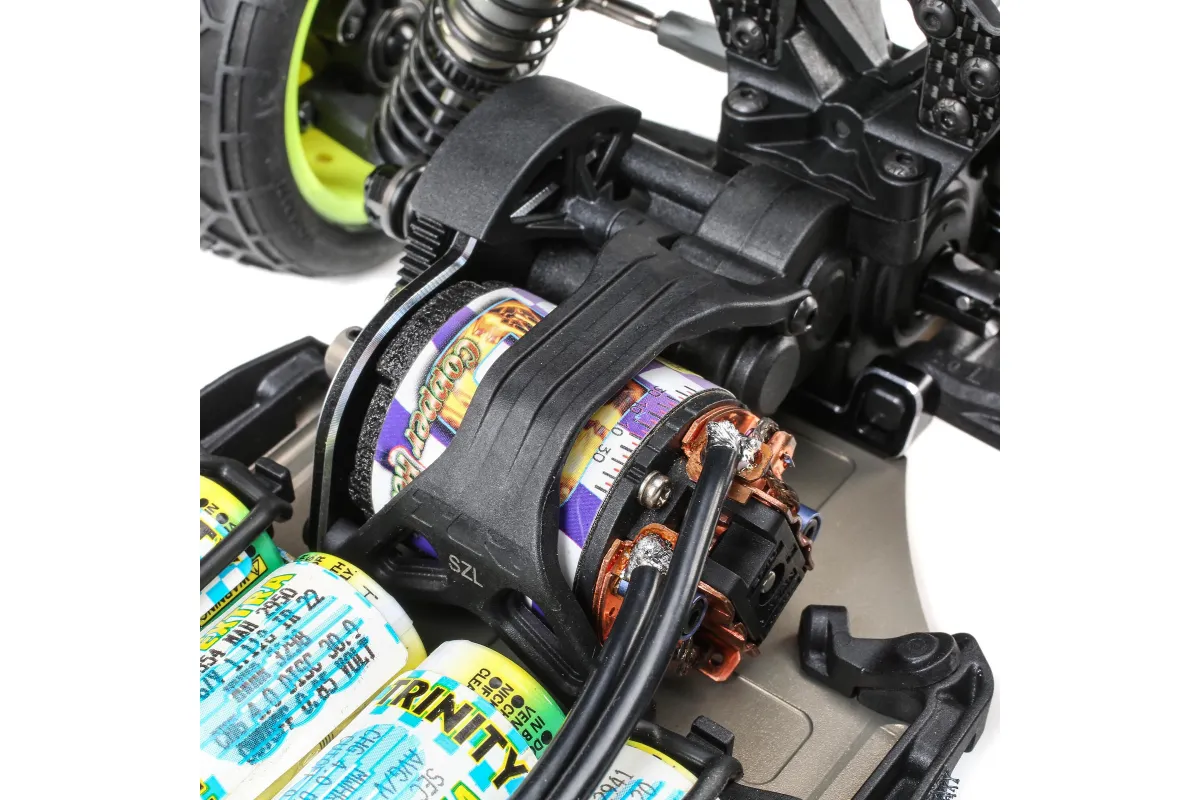

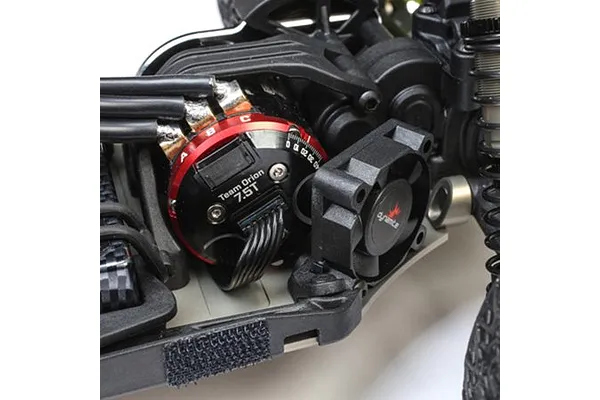

The 22 5.0 DC ELITE features a moulded-in motor fan mount for easy and secure installation of a cooling fan. This convenient feature helps to maintain optimal motor temperatures during intense racing, ensuring consistent performance and extending motor life.

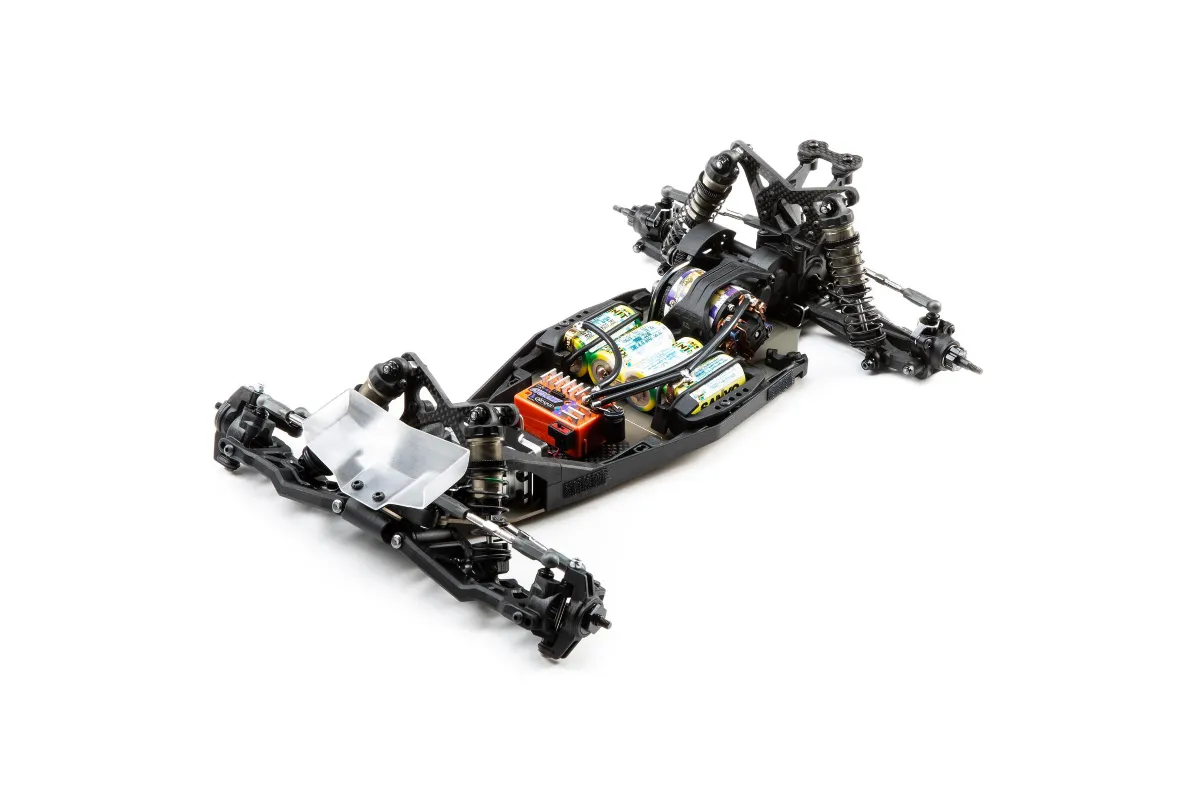

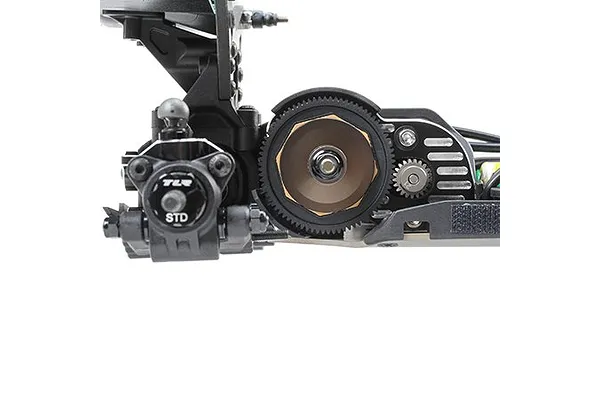

The laydown 3-gear transmission positions the motor forward for a more centralized weight distribution. This configuration results in a flatter driving chassis that carries more corner speed, enhancing overall performance and handling.
- 1/10 scale 2WD electric buggy race kit
- Pro-level ready with carbon fibre and aluminium option parts
- Fully adjustable rear pivots and variable height rear hubs
- Titanium turnbuckles included
- Black anodised aluminium parts
- Revamped steering geometry
- Super heavy-duty slipper clutch (SHDS)
- Laydown transmission configuration
- Stiffezel suspension components
- Fully updated differential
- Built-in motor fan mount
- Lightweight 0.8mm polycarbonate body
- 2.0mm milled aluminium chassis
- Gen3 12mm big bore shocks
- Front roll centre adjustment
- New front camber block and battery hold down
- Ballast tuning options (ballast sold separately)
- Genuine TLR Product
- Length: 382mm (15")
- Width: 250mm (9.8")
- Height: 148mm (5.8")
- Wheelbase: 280mm (11")
- Weight: Varies depending on electronics and equipment added
- Chassis: 2.0mm Milled 7075-T6 Aluminium
- Suspension: Stiffezel Front Suspension Arms, Soft Rear Suspension Arms
- Drivetrain: 2WD
- Motor: N/A
- ESC: N/A
- 1x TLR 22 5.0 DC Elite Race Kit
- 1x 22 5.0 Body
- 1x Product Manual
- 1x Transmitter and Receiver

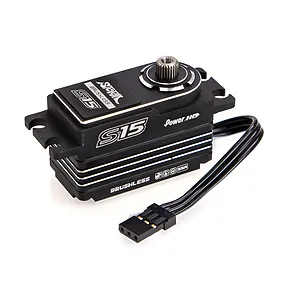

- 1x Steering Servo

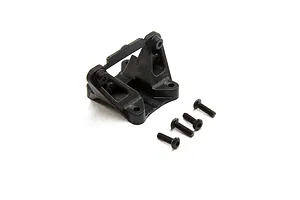

- 1x Steering Servo Mount (TLR331036 Recommended)
- 1x 2S "Shorty" LiPo Battery
- 1x LiPo Battery Charger
- 1x 48 Pitch Pinion Gear
- 1x Motor
- 1x ESC
- 1x Tyre Glue

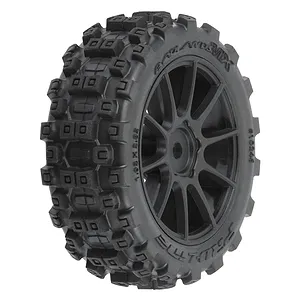

- 4x Wheels
- 4x Tyres
- Polycarbonate Paint
- Tools
- This is a kit and requires assembly. Additional components are required for operation.
-
Completion
- Kit
-
Drivetrain
- 2WD
-
On/Off Road
- Off Road
-
Chassis Type
- Buggy
-
Skill Level
- Expert
-
Scale
- 1/10
-
Max LiPo Power
- 3S (11.1v)
