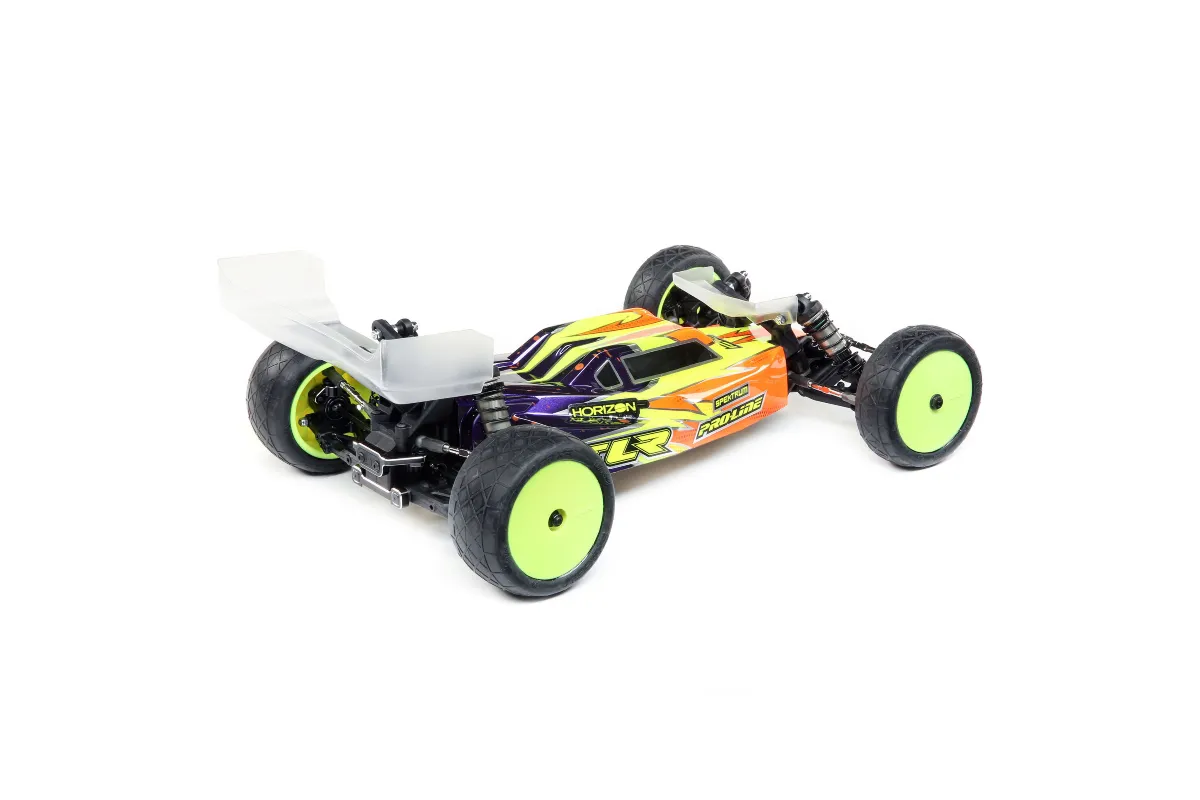

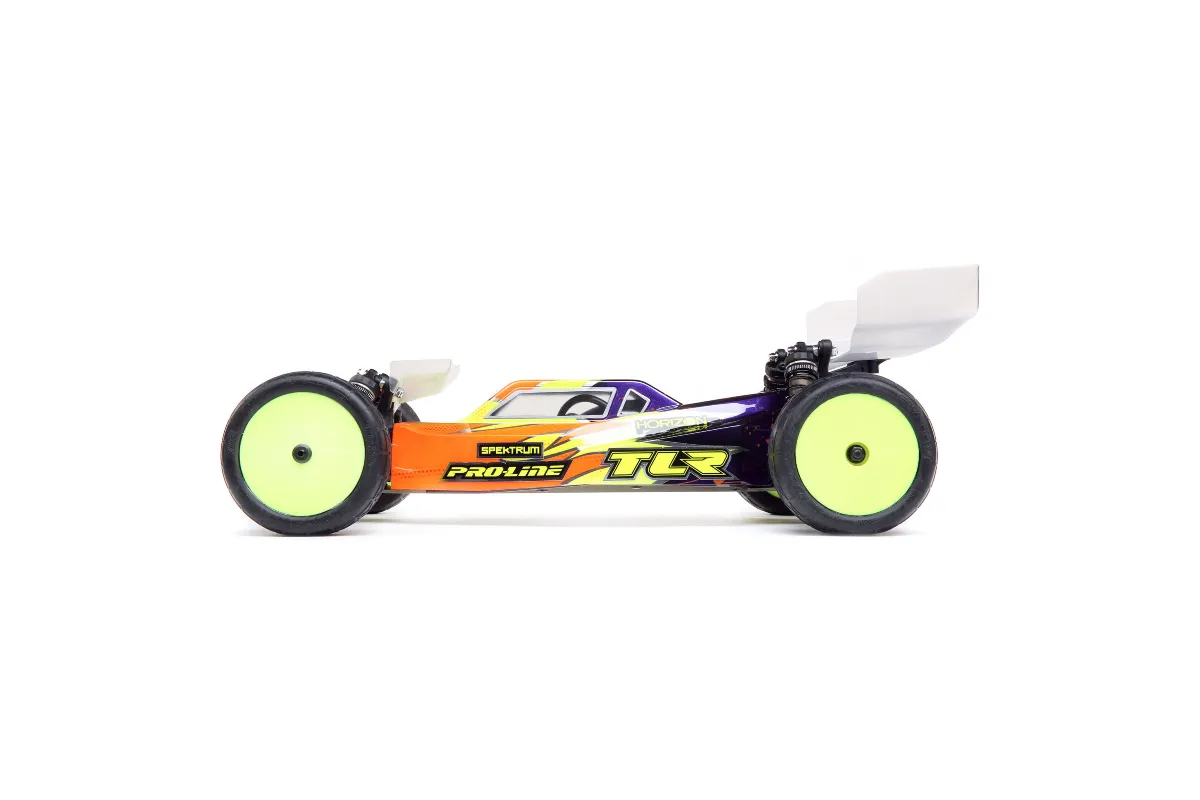

TLR 22 5.0 DC Race Roller RC Buggy Electric 2WD 1/10 Scale Roller Chassis
$537.06

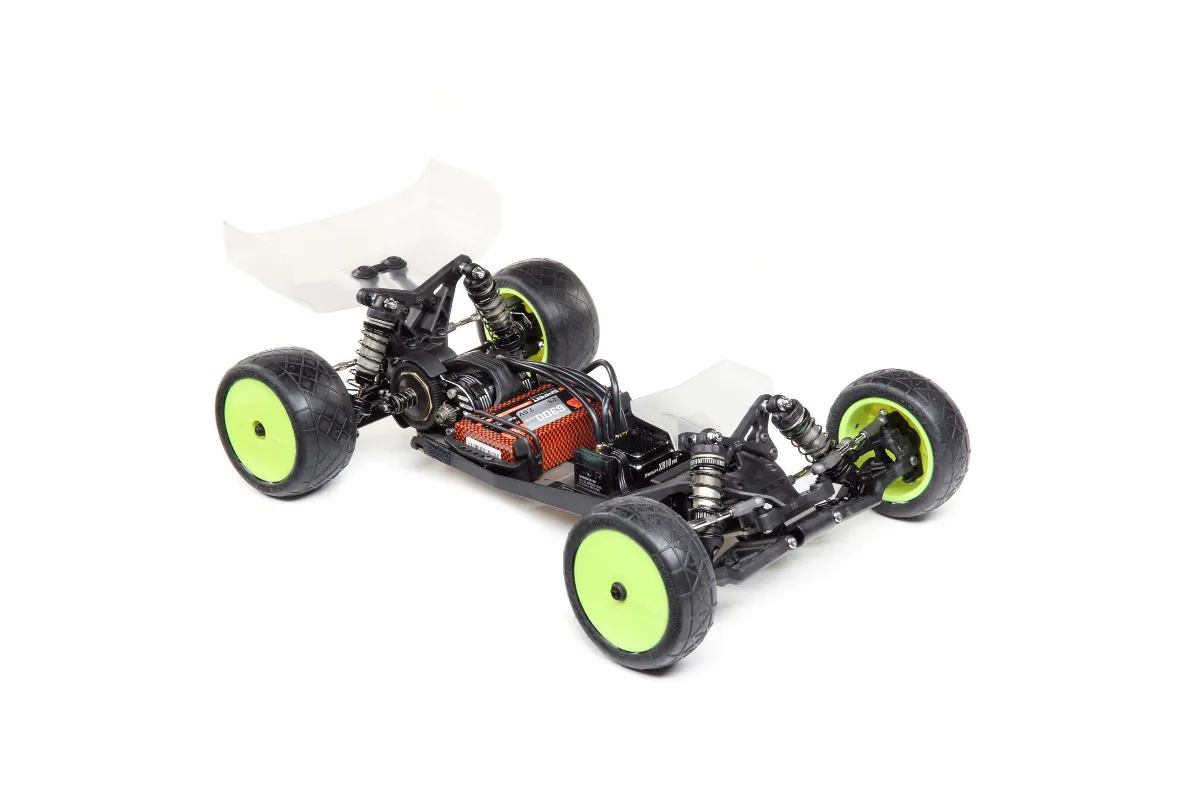

TLR 22 5.0 DC RC Race Roller: A 1/10 scale 2WD electric buggy race roller chassis, pre-assembled to TLR's factory specifications.
- TLR 22 5.0 DC Race Roller chassis comes pre-assembled to TLR Race Team's Factory Specifications
- Low maintenance gear differential, G3 12mm big bore shocks, revamped steering geometry
- Includes the 22 5.0 body, TLR front wing, and 6.5" rear wing
- Add your own electronics, tyres, and paint to create a unique race machine
- Perfect for new and experienced racers looking for a competitive edge
This kit comes without an ESC, Servo, Battery, Charger, Motor, Wheels, Pinion Gear or Transmitter and will come with an unpainted polycarbonate shell that may require cutting, painting, and drilling.
The Team Losi Racing® 22 5.0 DC Race Roller takes the guesswork out of building a competitive 1/10 scale 2WD electric buggy. This roller chassis comes pre-assembled to TLR's factory specifications, allowing you to hit the track and compete for podiums in no time. Simply install your preferred electronics, tyres, and paint to make this Race Roller truly your own.
The 22 5.0 DC Race Roller boasts a winning combination of features, including a low maintenance gear differential, G3 12mm big bore shocks, revamped steering geometry, a milled aluminium chassis, and much more. Whether you're racing on dirt or clay, the 22 5.0 DC Race Roller is at home on the racetrack and poised for victory.
- 1/10 scale 2WD electric buggy roller chassis
- Pre-assembled to TLR Race Team's Factory Specifications
- Low maintenance gear differential
- Adjustable rear hubs and inner rear pivots
- G3 12mm big bore shocks
- Revamped steering geometry

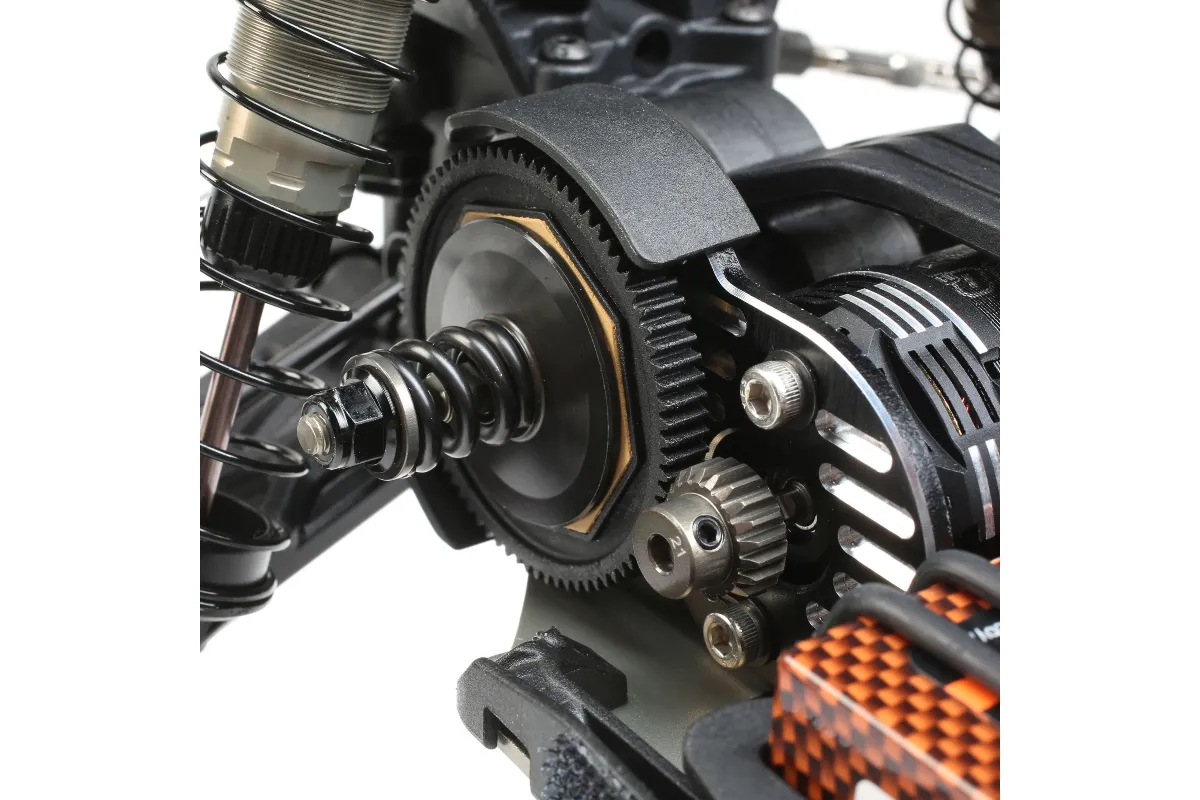

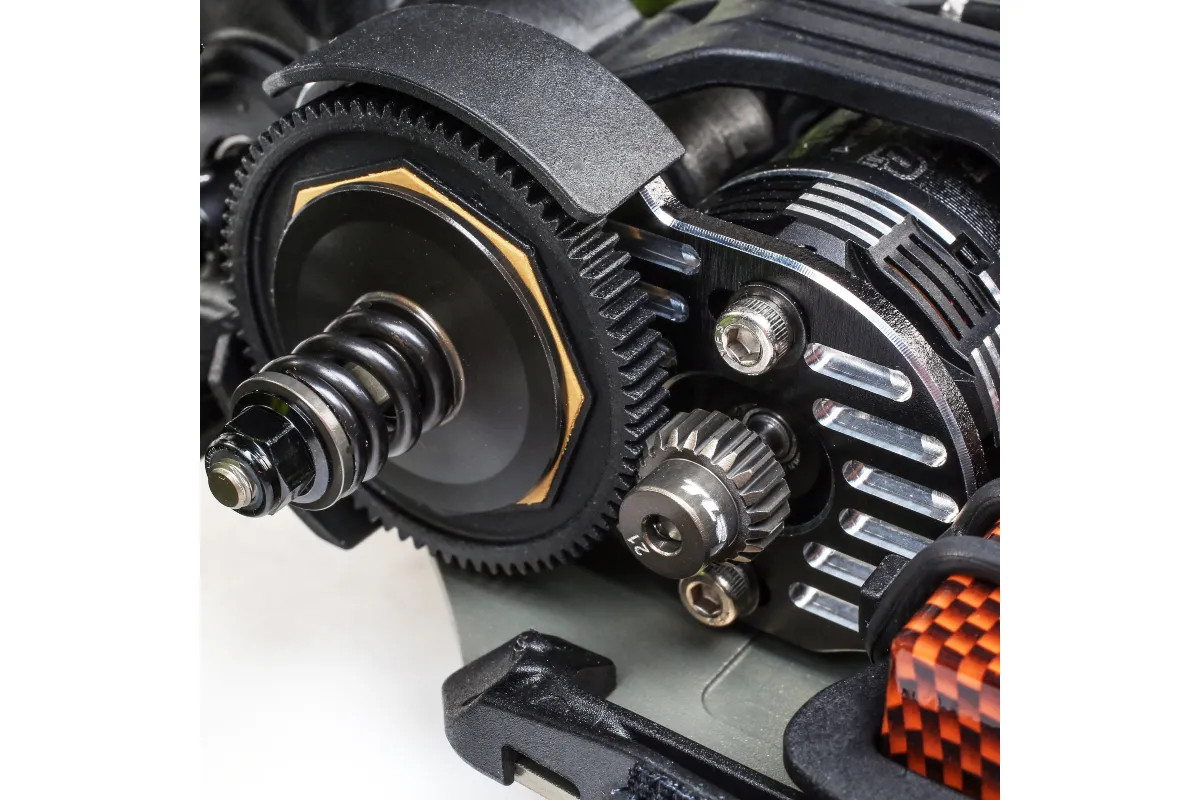

- Super Heavy Duty Slipper (SHDS)
- 2.0mm milled aluminium chassis
- 22 5.0 clear unpainted body shell with 6.5" rear wing
- TLR front wing included

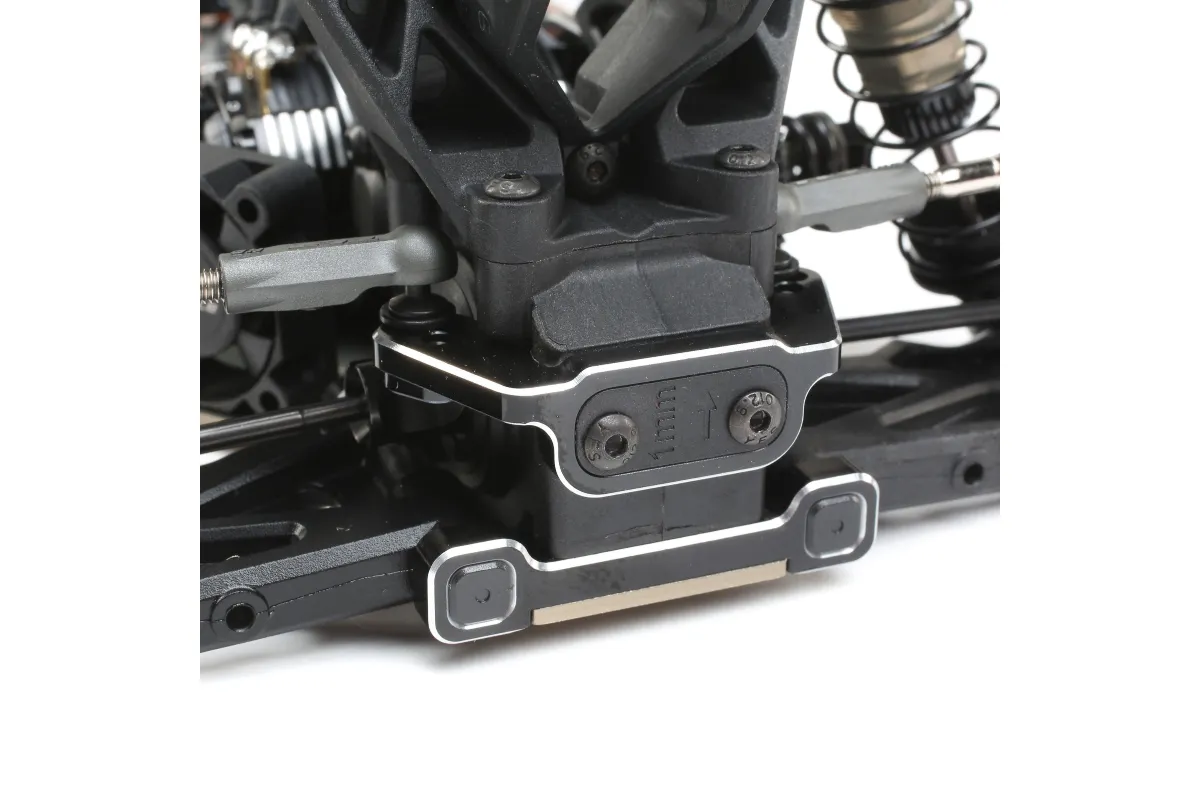

- Diff height adjustment

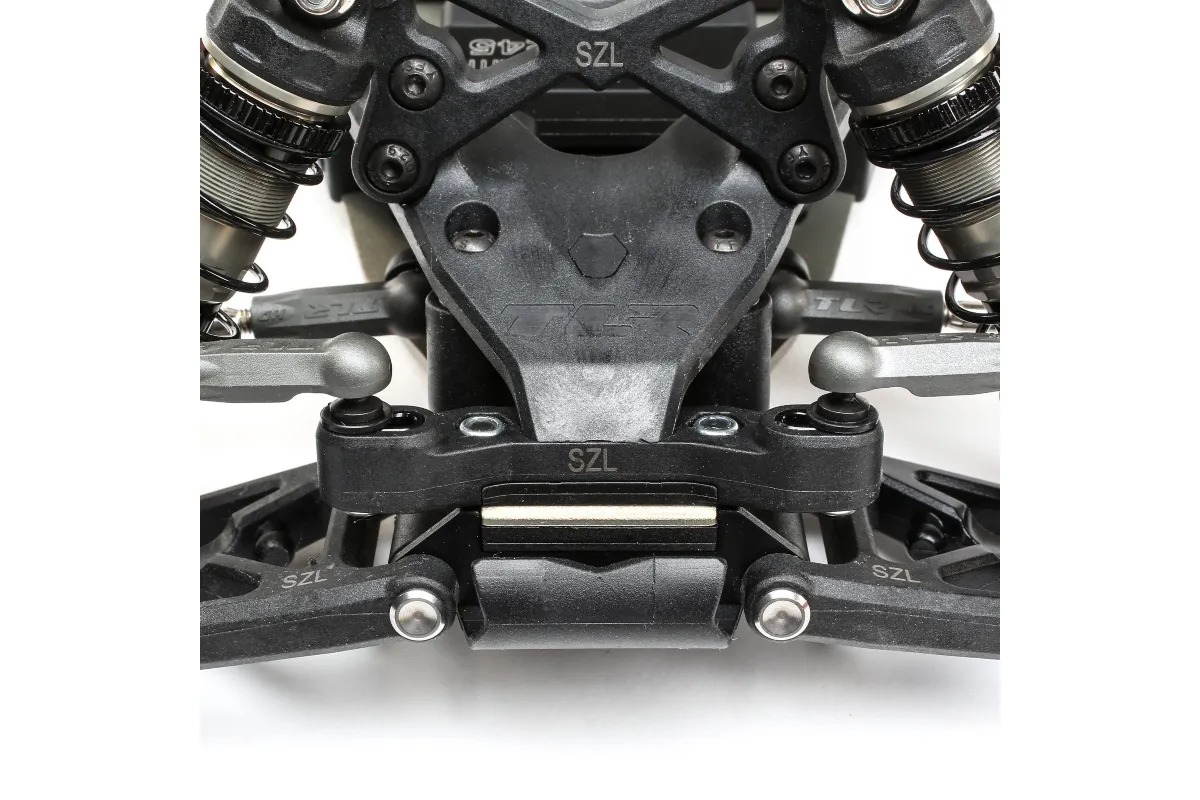

- Front roll centre adjustment
- 3-position front camber block

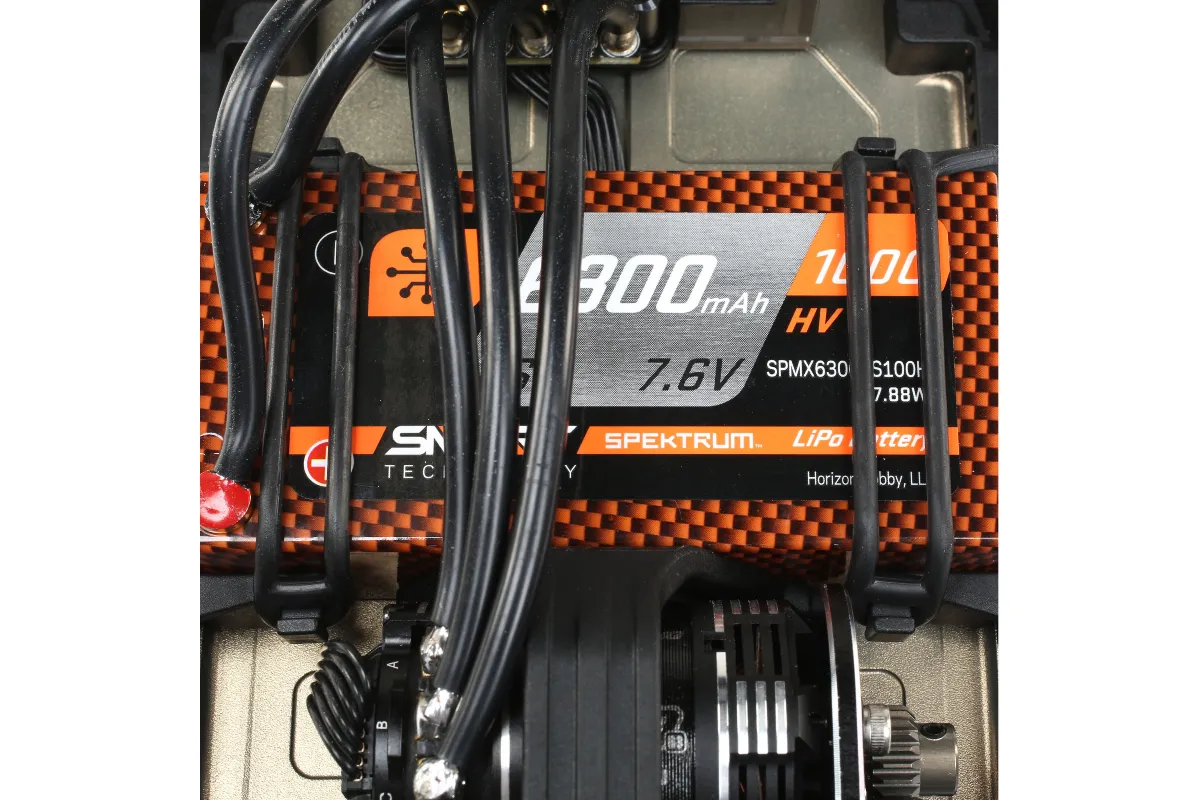

- New battery hold down
- Optimised composites

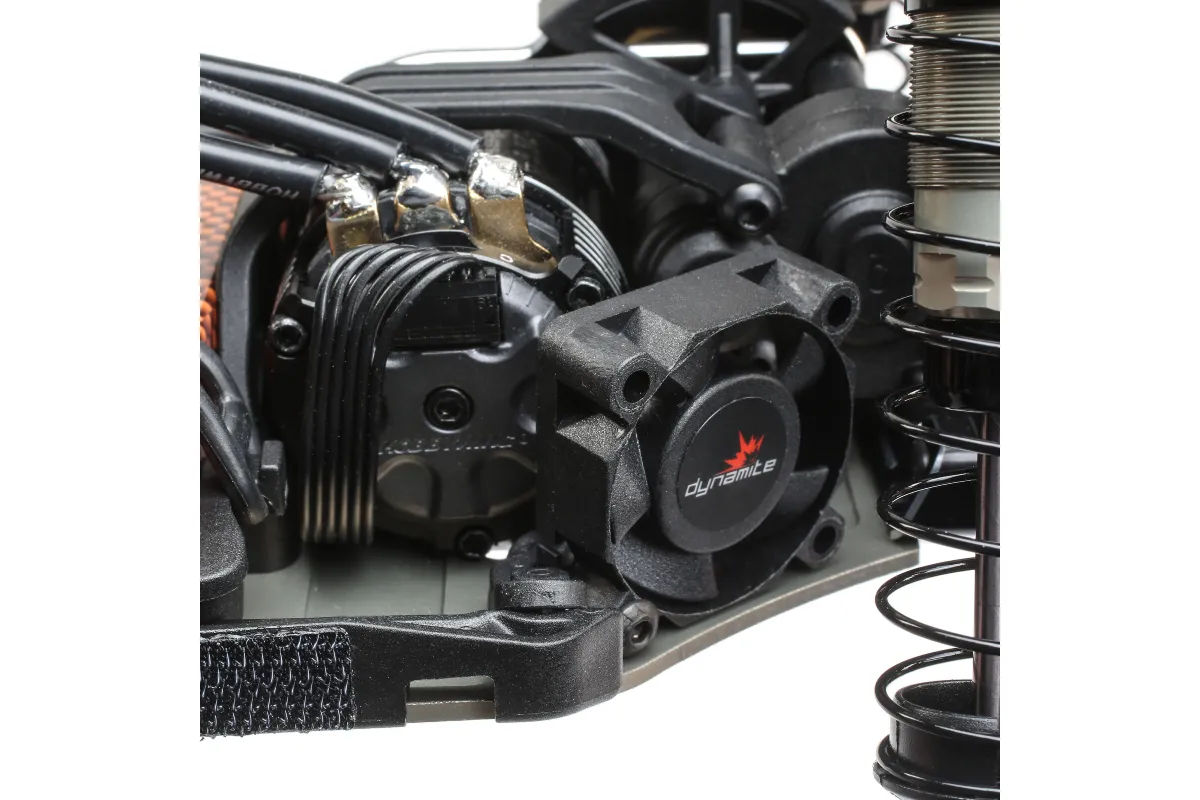

- Built-in motor fan mount
- Laydown transmission configuration
- All metric hardware
- Genuine TLR Product

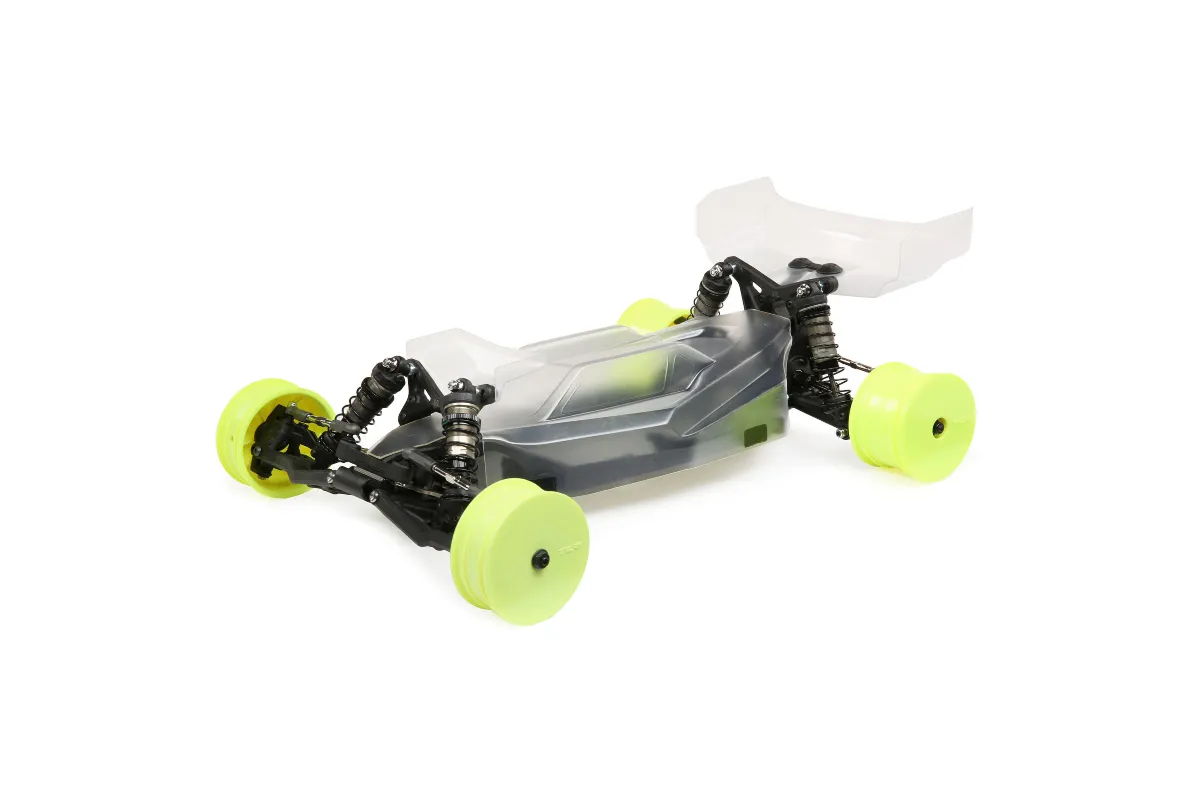

The 22 5.0 DC Race Roller arrives factory-built and ready for your custom setup. Simply install your preferred electronics, mount your favourite tyres, paint the body, and hit the track! This race-ready chassis is designed for competitive performance and offers a platform for customisation.

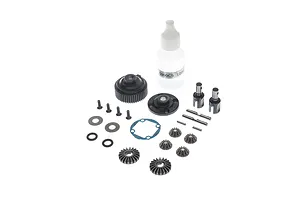

The 22 5.0 DC Race Roller features a low-maintenance metal gear differential for optimal reliability and performance. Adjust the differential's performance characteristics with silicone fluid, fine-tuning it to suit your driving style and track conditions.

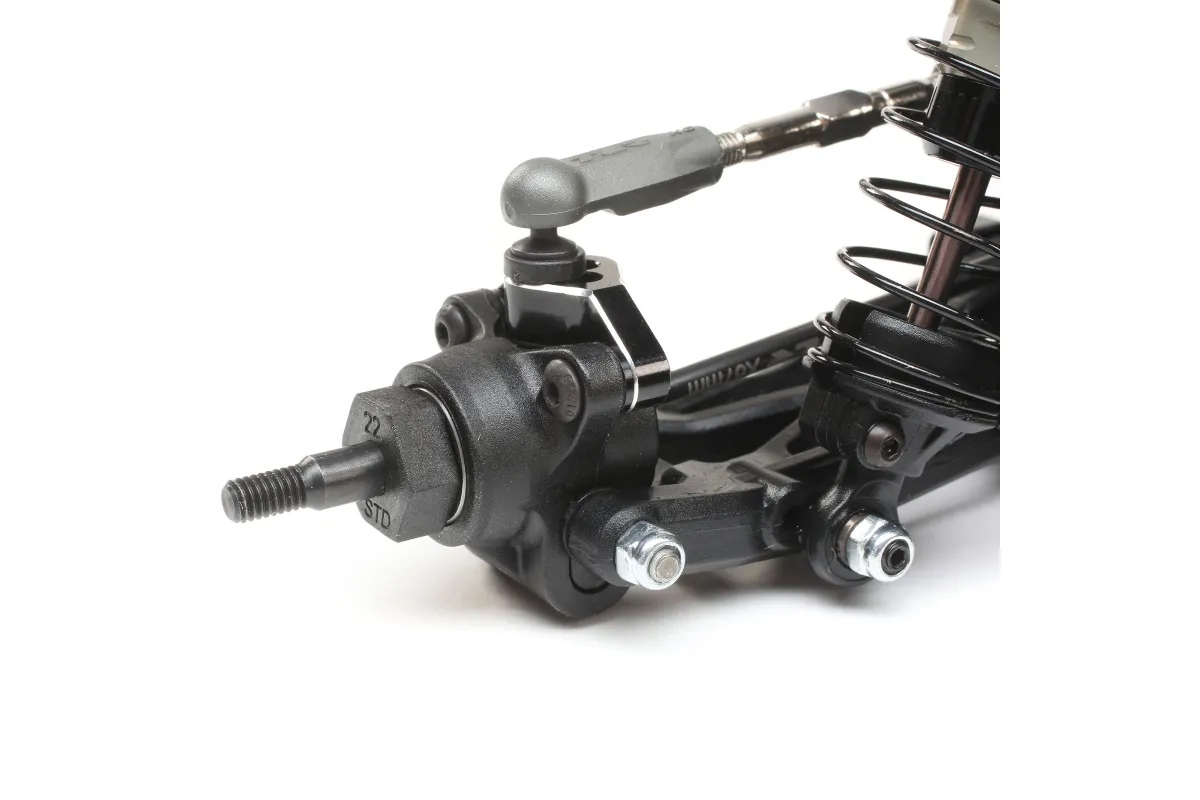

Experience unparalleled adjustability with the 22 5.0 DC Race Roller's rear suspension. Variable Height Axle (VHA) rear hubs offer roll centre and axle height adjustment, while the inner rear pivots provide further tuning options for roll centre, track width, anti-squat, and toe. This is the most adjustable rear suspension ever produced by TLR, allowing for precise customisation.

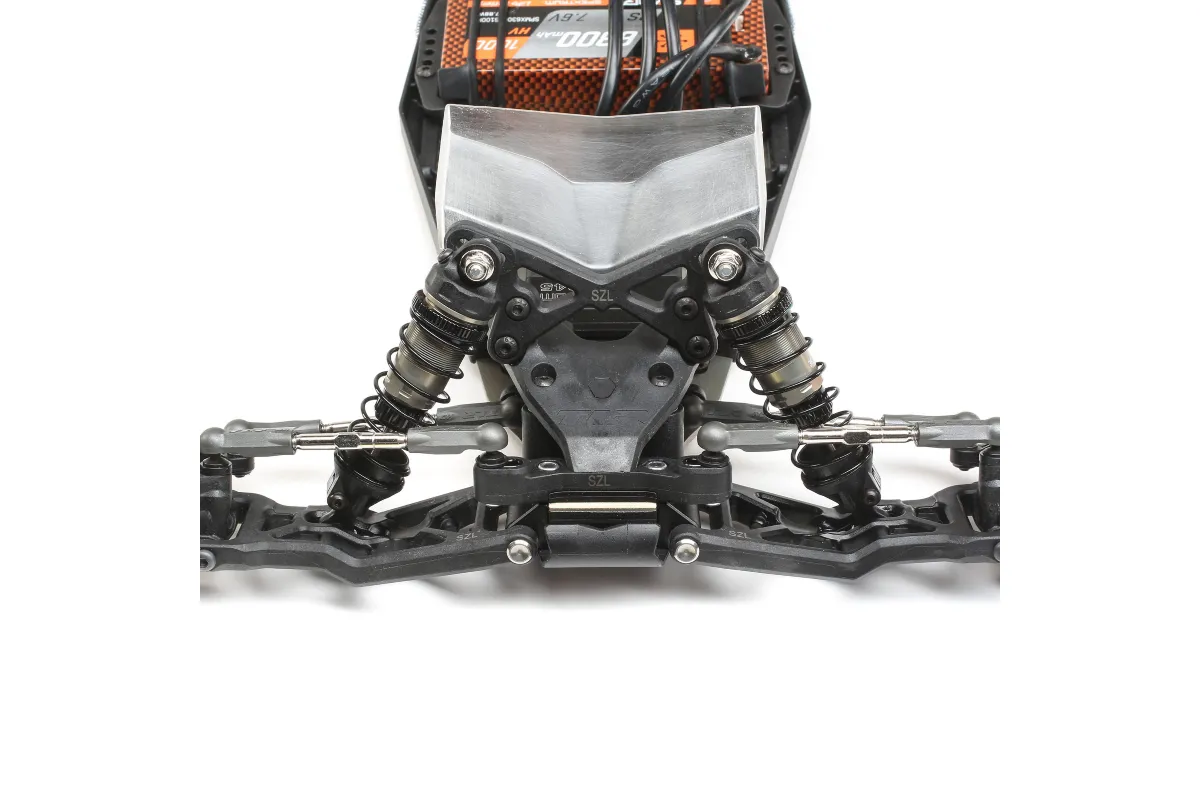

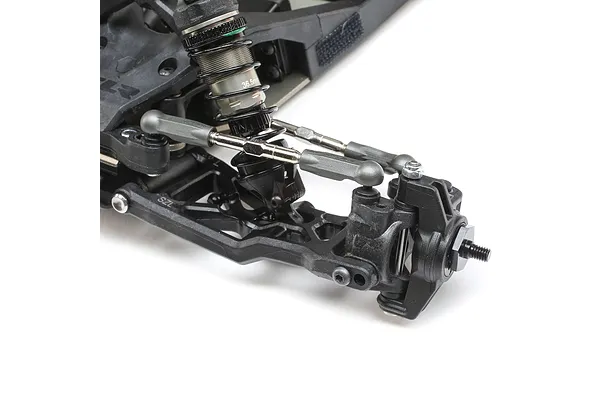

The 22 5.0 DC Race Roller boasts significant improvements in steering geometry, resulting in smoother and more responsive handling. Longer steering bell cranks and spindle arms, along with optimised Ackermann angles, provide a more consistent feel and enhanced control, especially at high speeds and in tight corners.

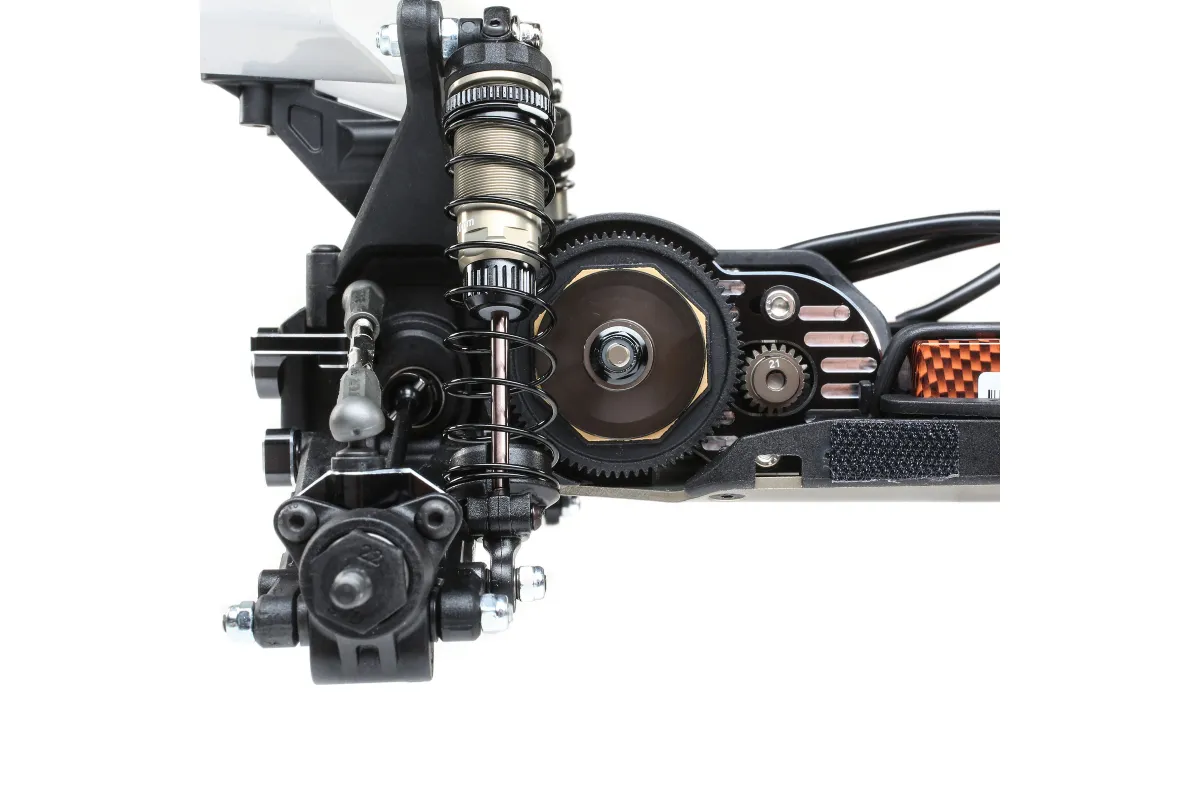

The laydown 3-gear transmission positions the motor forward for a more centralized weight distribution. This configuration results in a flatter driving chassis that carries more corner speed, enhancing overall performance and handling.

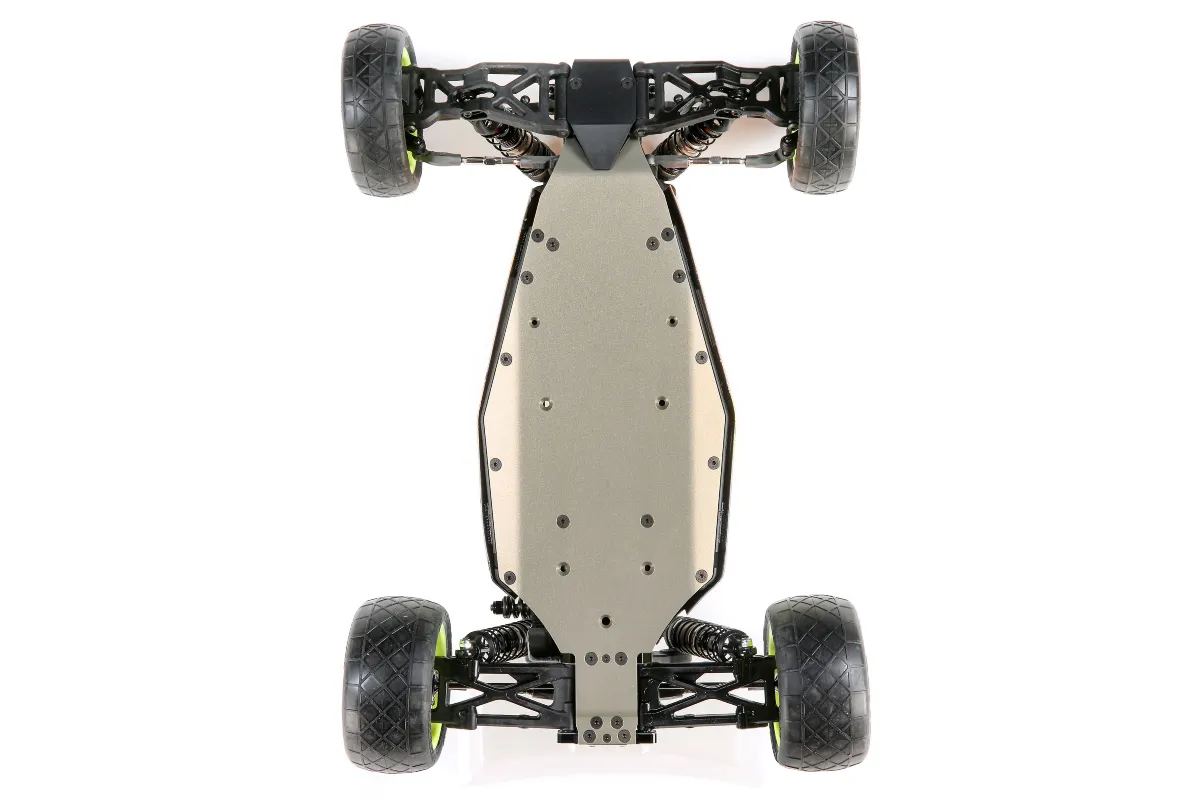

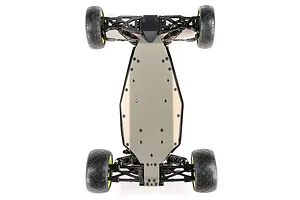

The 22 5.0 DC Race Roller features a milled 2.0mm aluminium chassis that provides the perfect balance of flex and rigidity. This optimised chassis design ensures smooth cornering, balanced handling, and bounce-free landings for a consistent and predictable driving experience.
- Length: 381mm (15")
- Width: 249mm (9.8")
- Height: 147mm (5.8")
- Wheelbase: 279mm (11")
- Weight: Varies depending on electronics and equipment added
- Chassis: 2.0mm Milled Aluminium
- Suspension: Lower A-Arm, Upper Adjustable Link
- Drivetrain: 2WD
- Motor: N/A
- ESC: N/A
- 1x TLR 22 5.0 DC Race Roller Chassis
- 1x 22 5.0 Body
- 1x TLR Front Wing
- 1x TLR 6.5" Rear Wing
- 1x Product Manual
- 1x Transmitter and Receiver
- 1x Steering Servo
- 1x 2S LiPo or LiHV Battery
- 1x Compatible Battery Charger
- 1x 48P Pinion Gear
- 1x Motor
- 1x ESC
- 1x Tyre Glue
- 4x Tyres
- Polycarbonate Paint
- Tools
- This is a roller chassis and does not include any electronics. Assembly and additional components are required for operation.
| RC Car | |
|---|---|
| Scale: | 1/10 |
| Max LiPo Power: | 3S (11.1v) |
| Completion: | Roller |
| Skill Level: | Expert |
| Power Source: | Electric |
| Chassis Type: | Buggy |
| On/Off Road: | Off Road |
| Drivetrain: | 2WD |
| Factory Specs | |
|---|---|
| Max LiPo Power: | 3S (11.1v) |
| Battery Connector: | |
| Front Shock Oil: | |
| Rear Shock Oil: | 32.5w |
| Rear Differential Oil: | 7000cSt |
| Spur Gear: | 72T 48dp/0.5Mod, 78T 48dp/0.5Mod |
| Wheel Hex Size: | 12mm |
