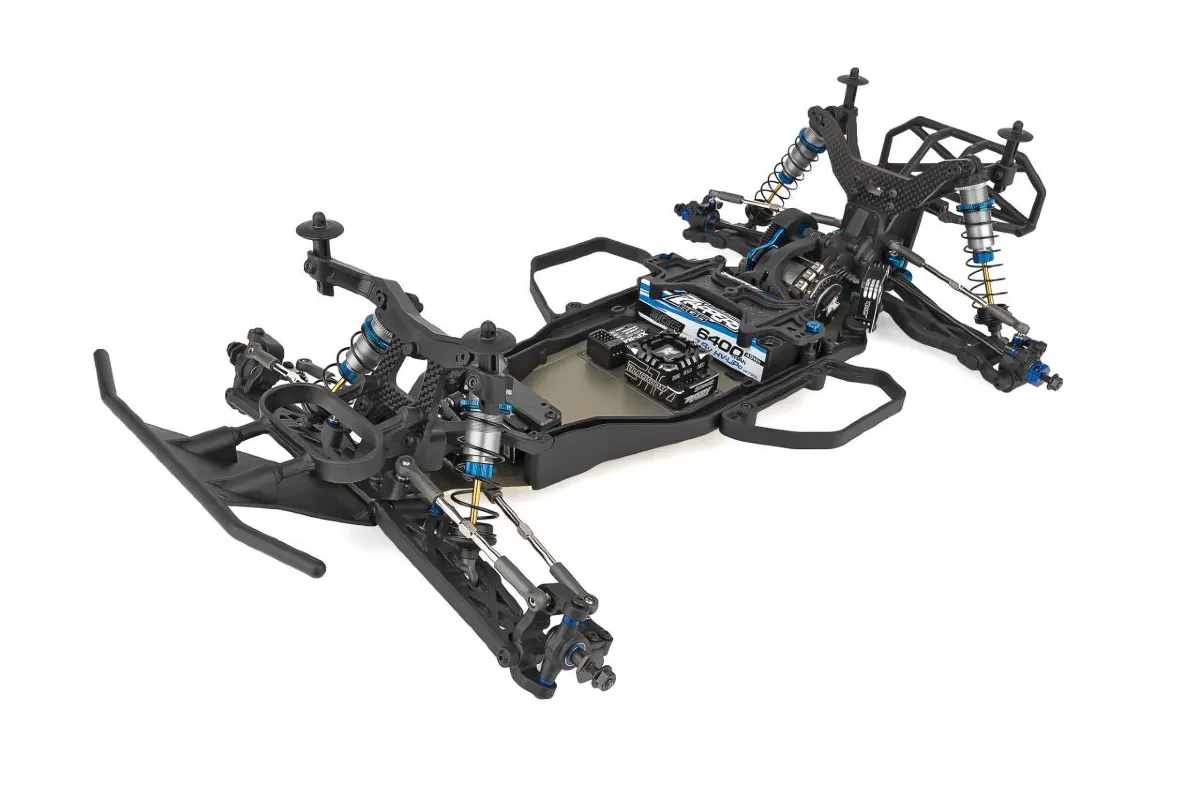

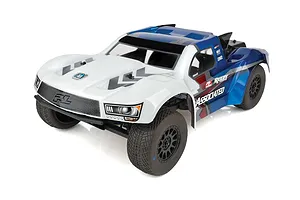

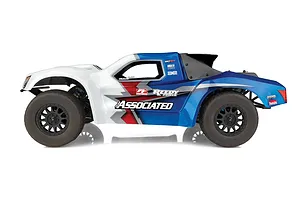

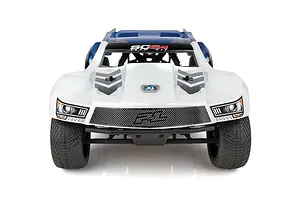

Team Associated RC10 SC6.4 Team Kit RC Short Course Truck Electric 2WD 1/10 Scale Kit

Brand: Team Associated | SKU: 70009
1 in stock

$579.21

Team Associated RC10SC6.4 Team Kit RC Short Course Truck: Dominate the track with championship-winning design and updated racing features.

Key Points
  • Updated suspension with 13mm big bore shocks and new truck springs for improved handling
  • Revised chassis design with angled steering system for enhanced consistency

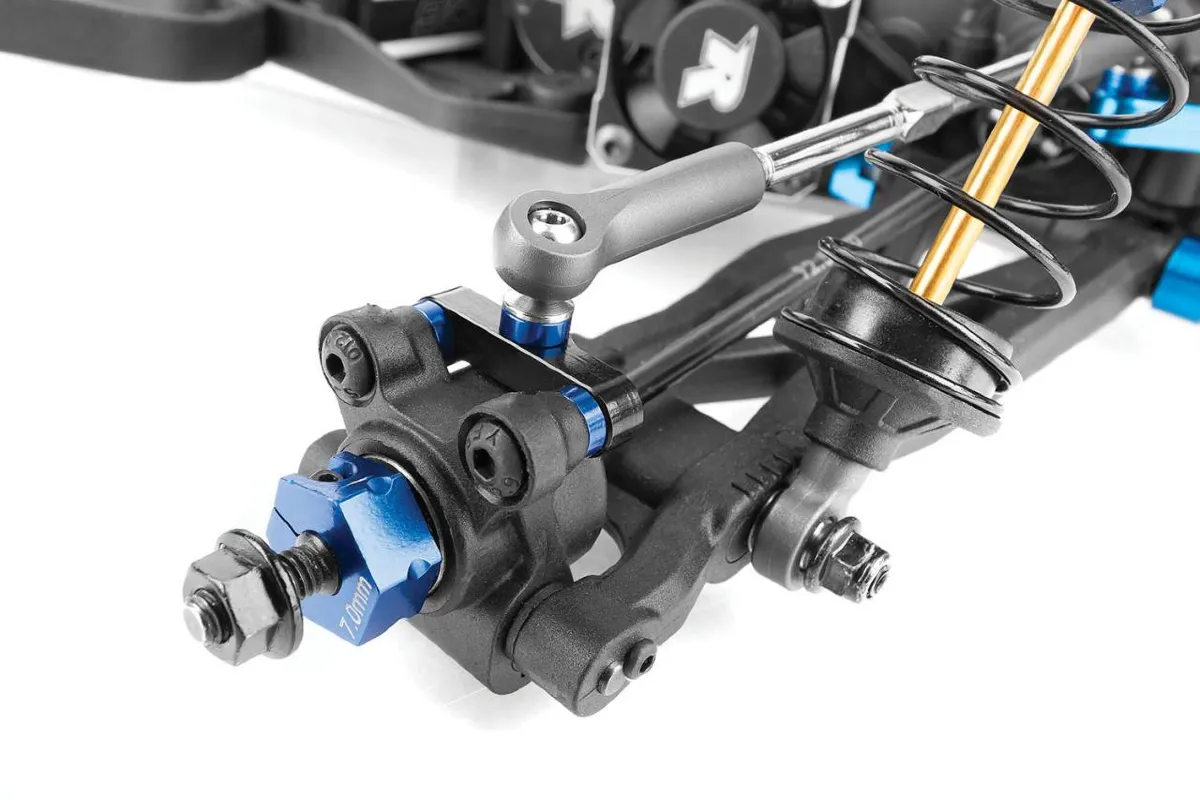

  • Tunable front-end geometry with adjustable steering height, axle trail, and caster

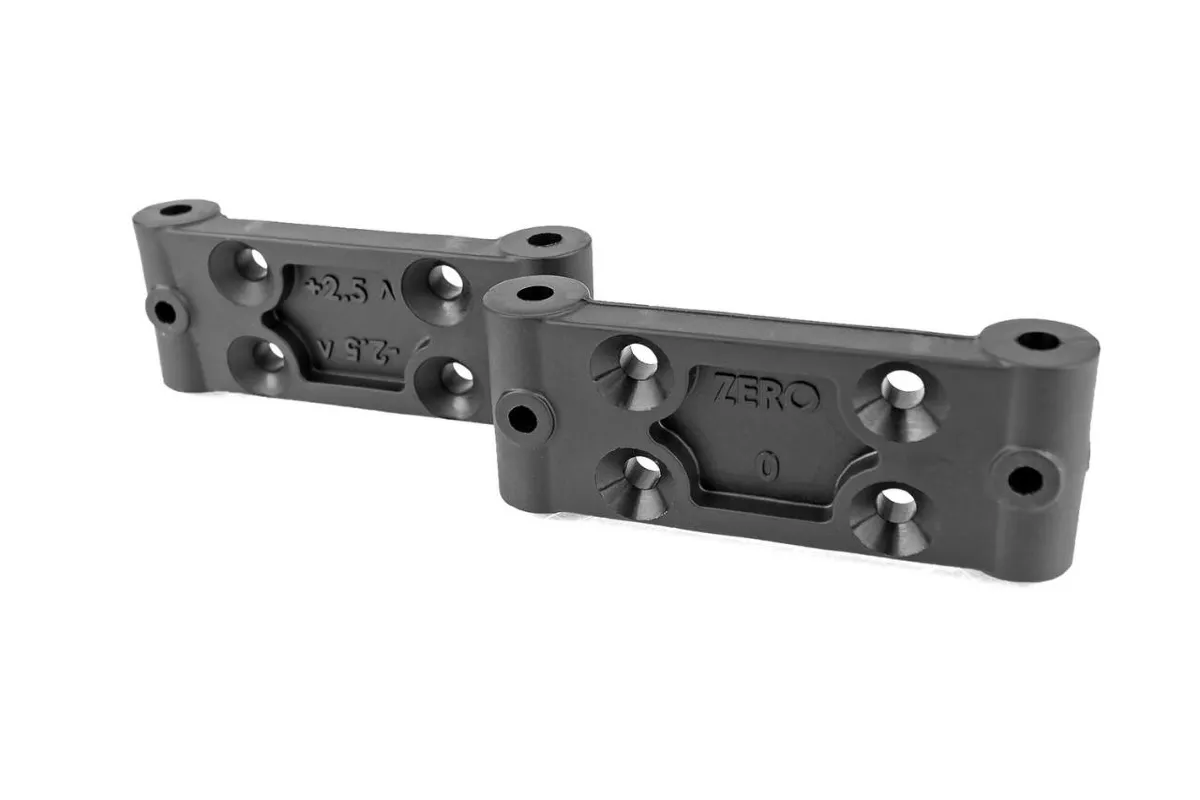

  • Improved rear-end grip with optional C and D mounts and 93.5mm CVA driveshafts
  • Ideal for experienced racers and those seeking a competitive edge

Want more than 1?
and we'll notify you when the stock is here.

Looking for spare parts or upgrades?
We can send this today.
If it's ordered within 10h 43m 28s
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Wheels, Pinion Gear, Body Shell and Radio System.

Description

The Team Associated RC10SC6.4 Team Kit builds upon the legacy of its predecessors with key updates to enhance its performance on the track. This 1/10 scale 2WD electric short course truck shares components with the RC10B6.4 buggy series, making it easier for racers to compete in multiple classes. The updated suspension features large-volume 13mm big bore shocks and new truck springs for improved bump and jump handling.

The chassis design has been revised with a new ballstud mount and top plate system, incorporating an angled steering system for improved consistency. Racers can further fine-tune the front-end feel with adjustable steering height, axle trail, and caster inserts. The rear end grip is enhanced with optional C and D mounts and longer 93.5mm CVA driveshafts. With its race-proven features and updated components, the RC10SC6.4 is ready to take on the competition.

Features
  • 1/10 scale 2WD electric short course truck kit
  • 13mm big bore threaded aluminium shocks with machined pistons

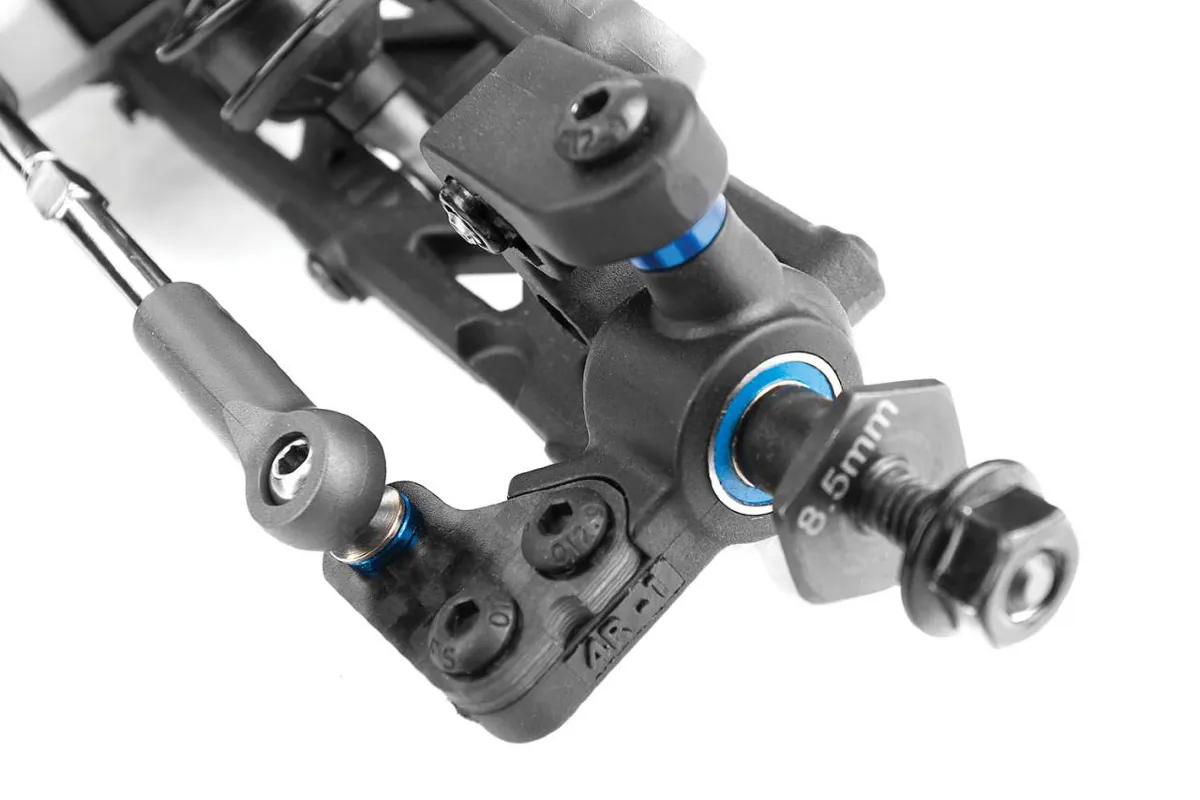

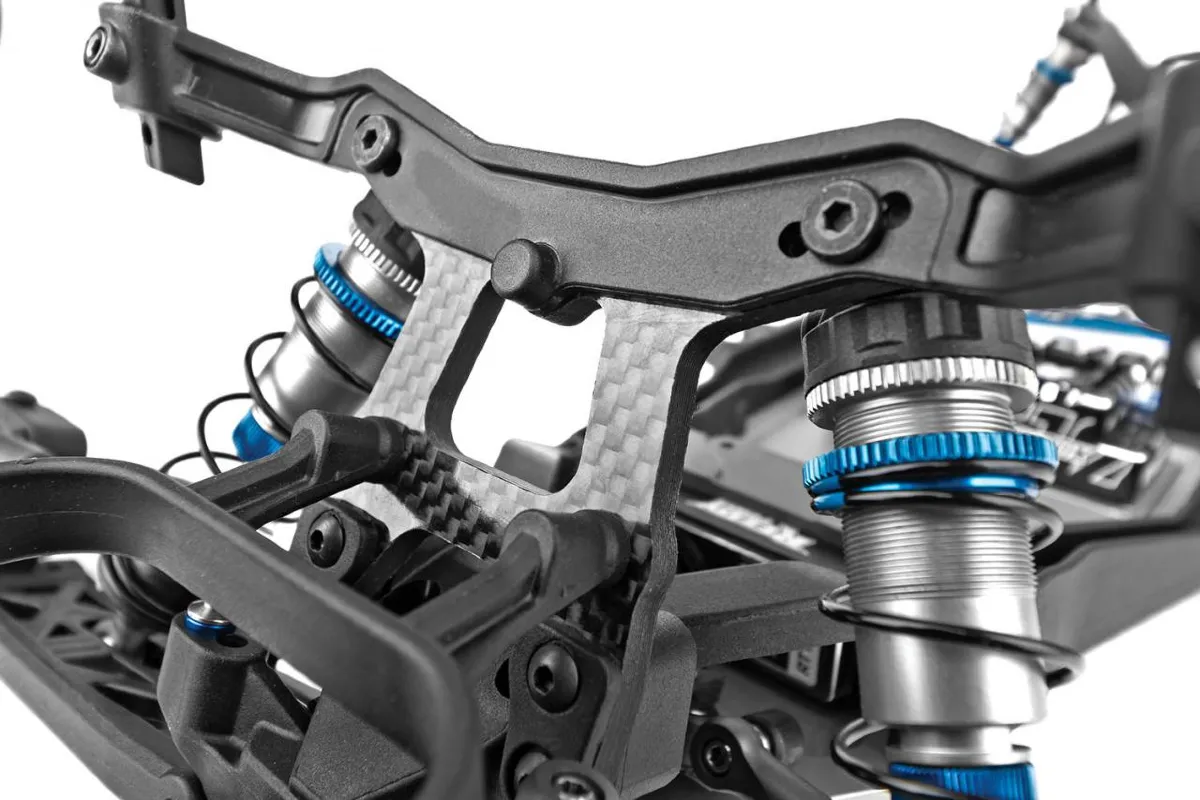

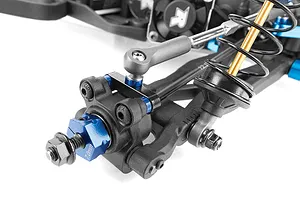

  • New front ballstud mount and top plate with angled steering system
  • 3.5mm heavy-duty ball cups and turnbuckles

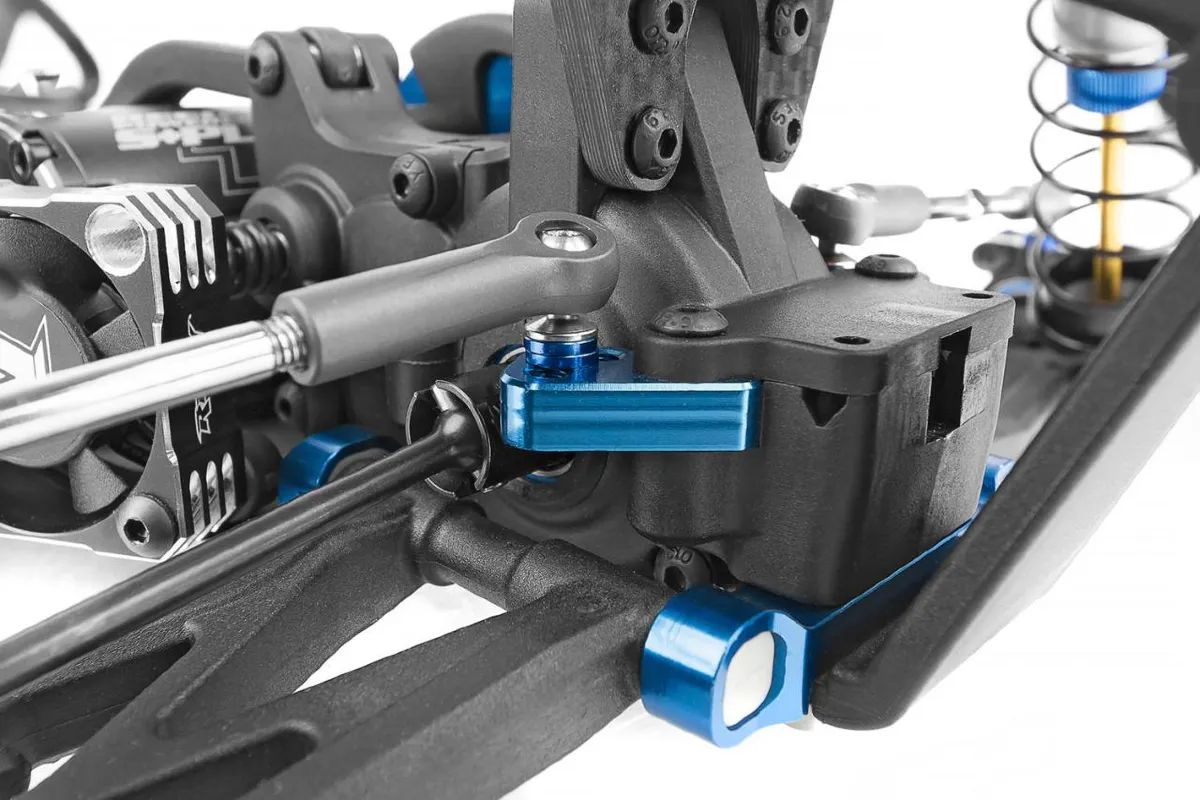

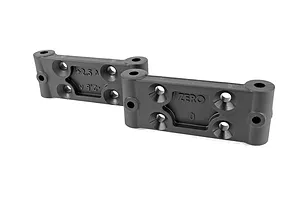

  • Updated rear suspension with wider C and D mounts
  • 92.5mm CVA driveshafts

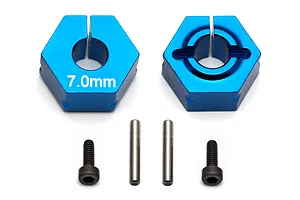

  • 7.0mm blue aluminium rear clamping hexes

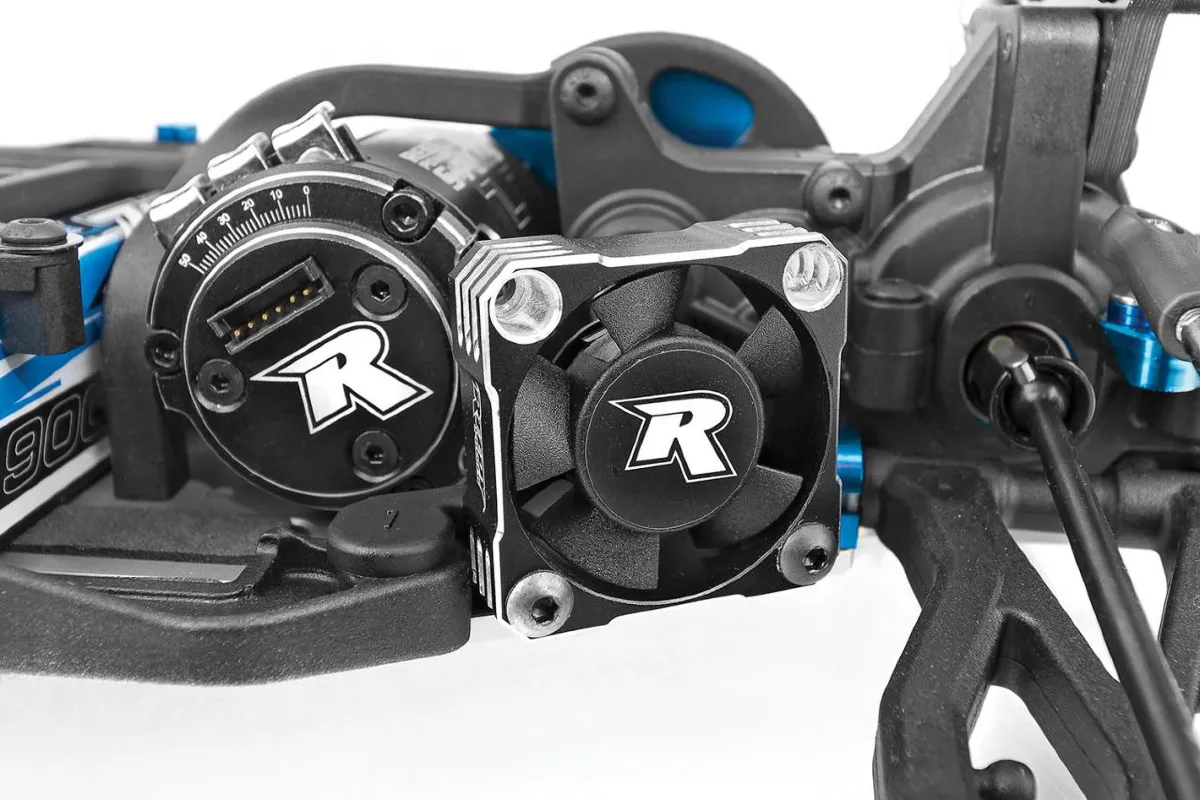

  • New chassis side rails with fan mount system

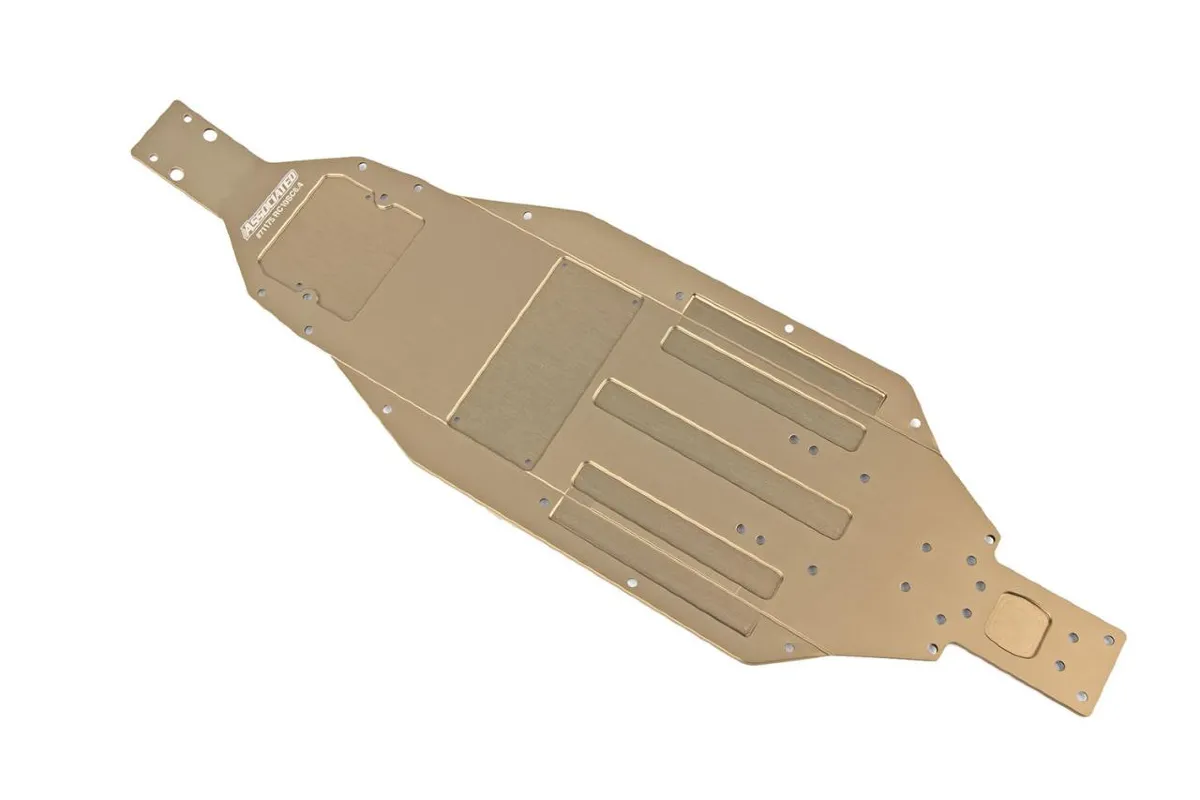

  • Aluminium chassis with 22.5° kick-up
  • Moulded bulkheads for caster and kickup adjustments

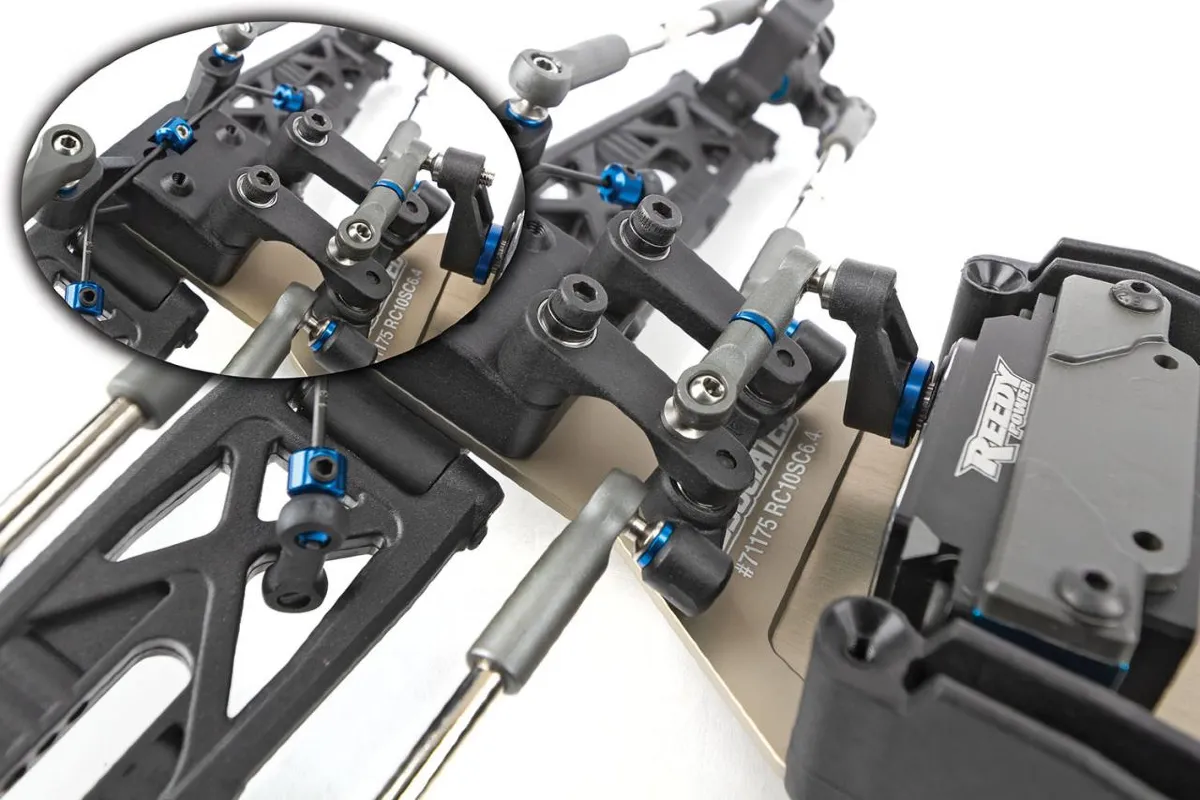

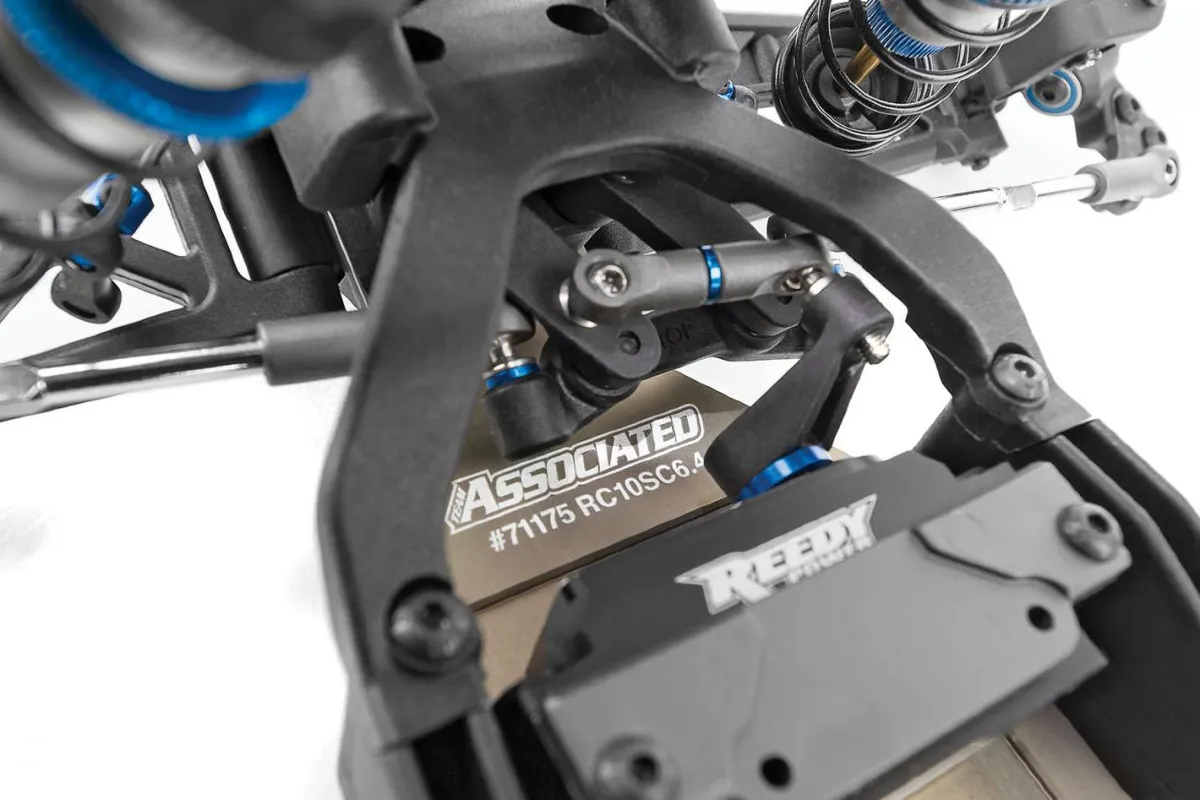

  • B6.4 adjustable height steering bellcrank and rack system
  • B6.4 -1mm kingpin offset steering and caster block set
  • Aluminium ESC mounting tray
  • Laydown Stealth transmission

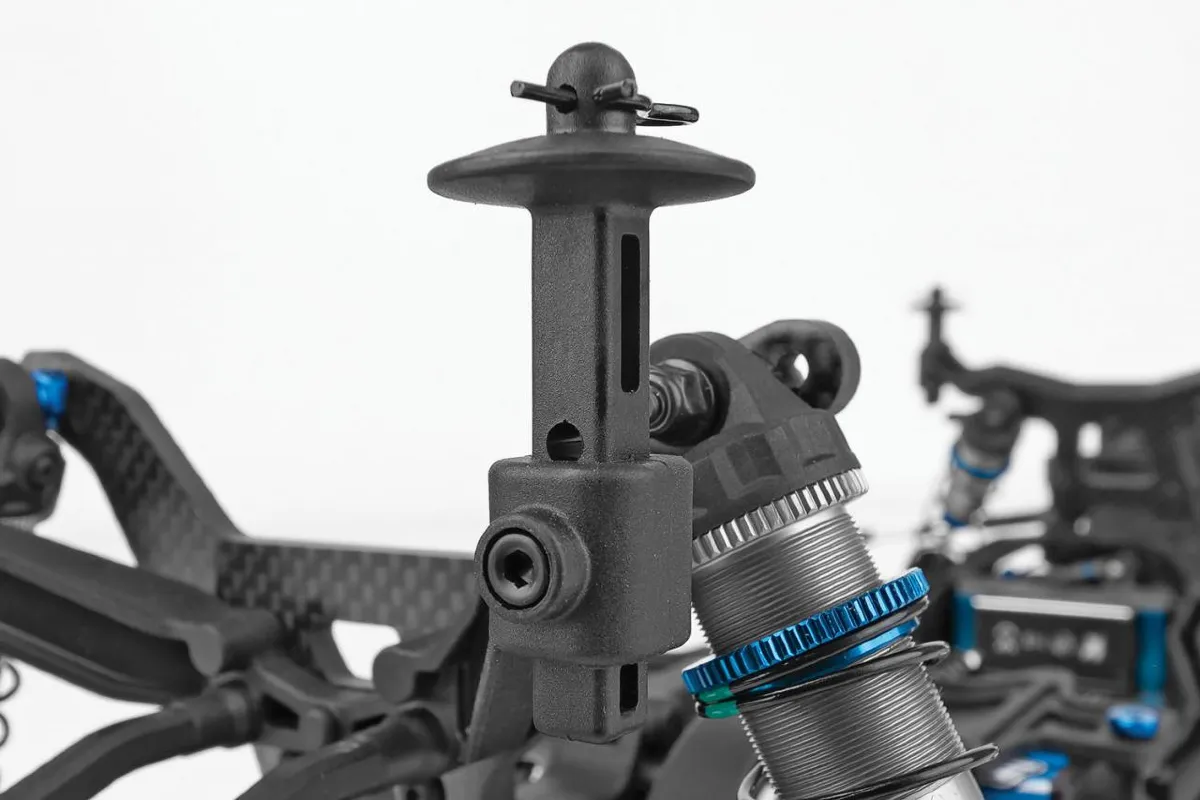

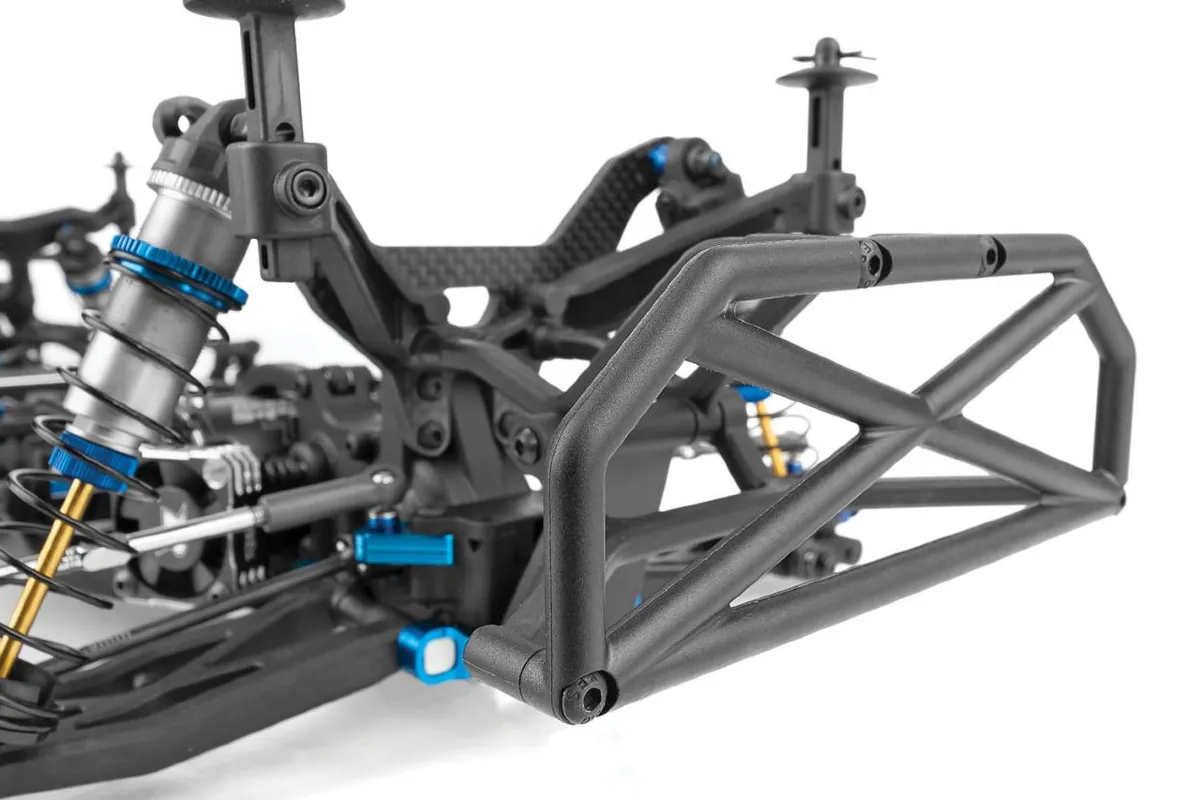

  • Updated front body mount
  • Genuine Team Associated Product
Race-Bred Design
Race-Bred Design
Based on the championship-winning RC10B6.4 buggy platform for proven performance and handling.

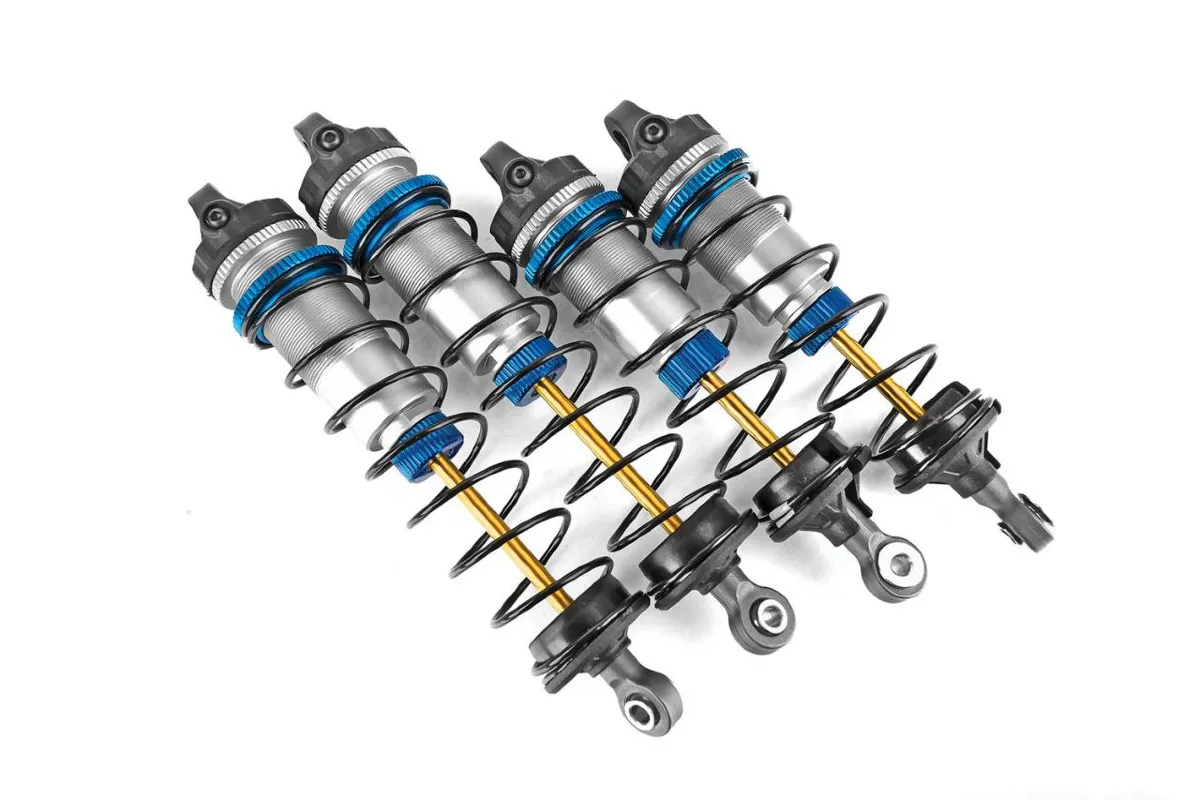

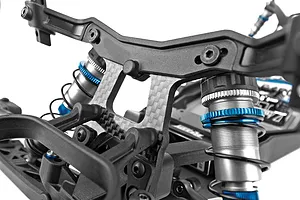

13mm Big Bore Shocks
13mm Big Bore Shocks
Large-volume shocks with truck-specific springs for smooth landings and consistent handling on any track.
Precision Tuning
Precision Tuning
Multiple shock mounting positions, adjustable suspension geometry, and a wide array of tuning options allow you to dial in the perfect setup for any track condition.
Lightweight Chassis
Lightweight Chassis

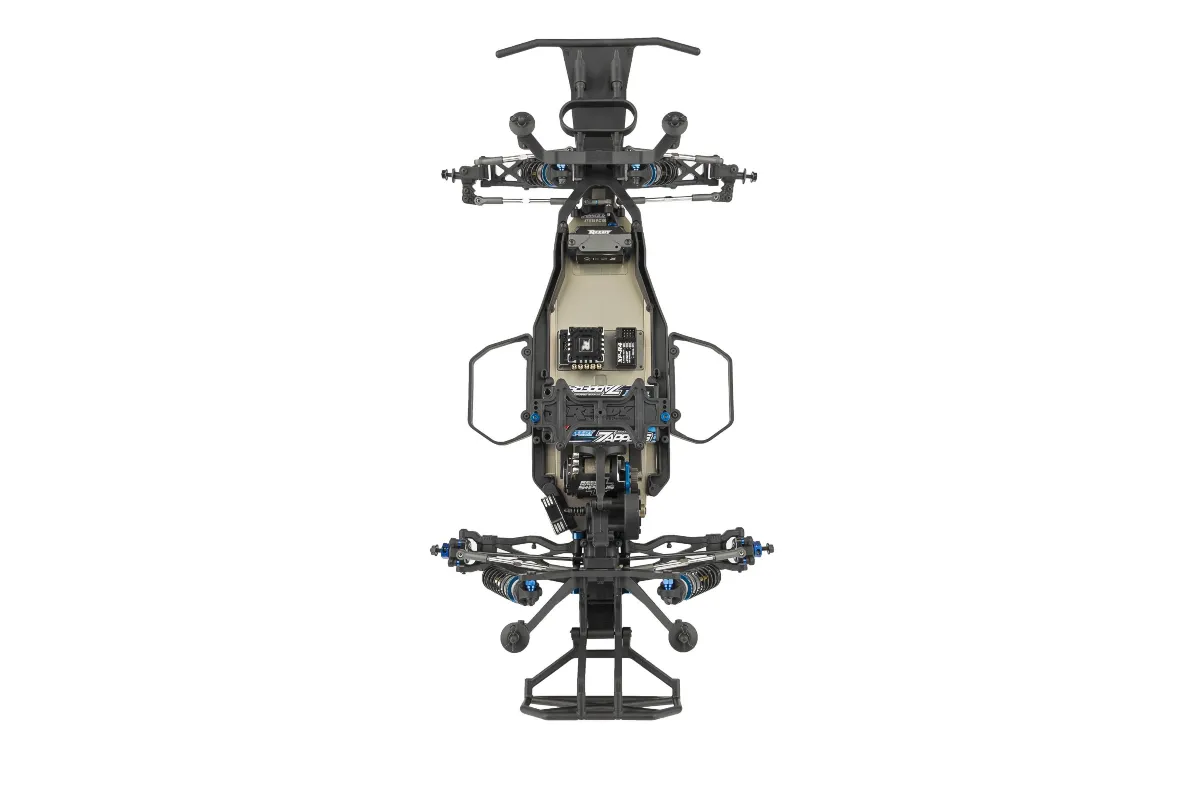

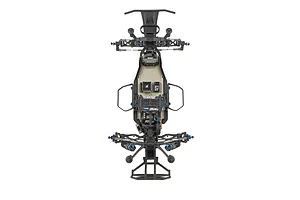

Hard-anodised aluminium chassis with centralised mass and three mid-motor positions that allows for fine tuning and leads to nimble handling and agile response.
Shared Components
Shared Components
Shares key components with other Team Associated kits, making it easier to maintain and upgrade multiple vehicles.
Unleash Your Creativity
Unleash Your Creativity
Customise your RC10SC6.4 with a wide range of available hop-ups and personalise it with your own unique paint scheme for a truly individual ride.
Specifications
  • Length: Varies
  • Width: Varies
  • Height: N/A
  • Wheelbase: 325mm (12.8")
  • Weight: Varies
  • Chassis: Aluminium
  • Suspension: Independent
  • Drivetrain: 2WD
  • Motor: N/A
  • ESC: N/A
Included Items
  • 1x Team Associated RC10SC6.4 Team Kit
  • 1x Instruction Manual
Required Items
  • 1x 1/10 Scale 540-Size Electric Motor
  • 1x 1/10 Scale Electronic Speed Control
  • 1x 2-Cell LiPo Battery Pack
  • 1x Radio Control Battery Charger
  • 1x 2-Channel Radio System
  • 1x Steering Servo
  • 1x Pinion Gear (48 Pitch)
  • 1x Polycarbonate Body
  • 1x Body Paint
  • 1x 1/10 Scale 12mm Hex Wheels
  • 1x 1/10 Scale Truck Tyres and Foam Inserts
Note
  • This is a kit and requires assembly and additional electronics. Consult the manual for detailed information about assembly and setup.
Specifications
RC Car
Scale: 1/10
Max LiPo Power: 3S (11.1v)
Completion: Kit
Skill Level: Expert
Power Source: Electric
Chassis Type: Short Course
On/Off Road: Off Road
Drivetrain: 2WD
RC Kit
Suited Motor/ESC Type: Electric
Factory Specs
Max LiPo Power: 3S (11.1v)
Battery Connector: Not Included
Front Shock Oil: 30w
Rear Shock Oil: 30w

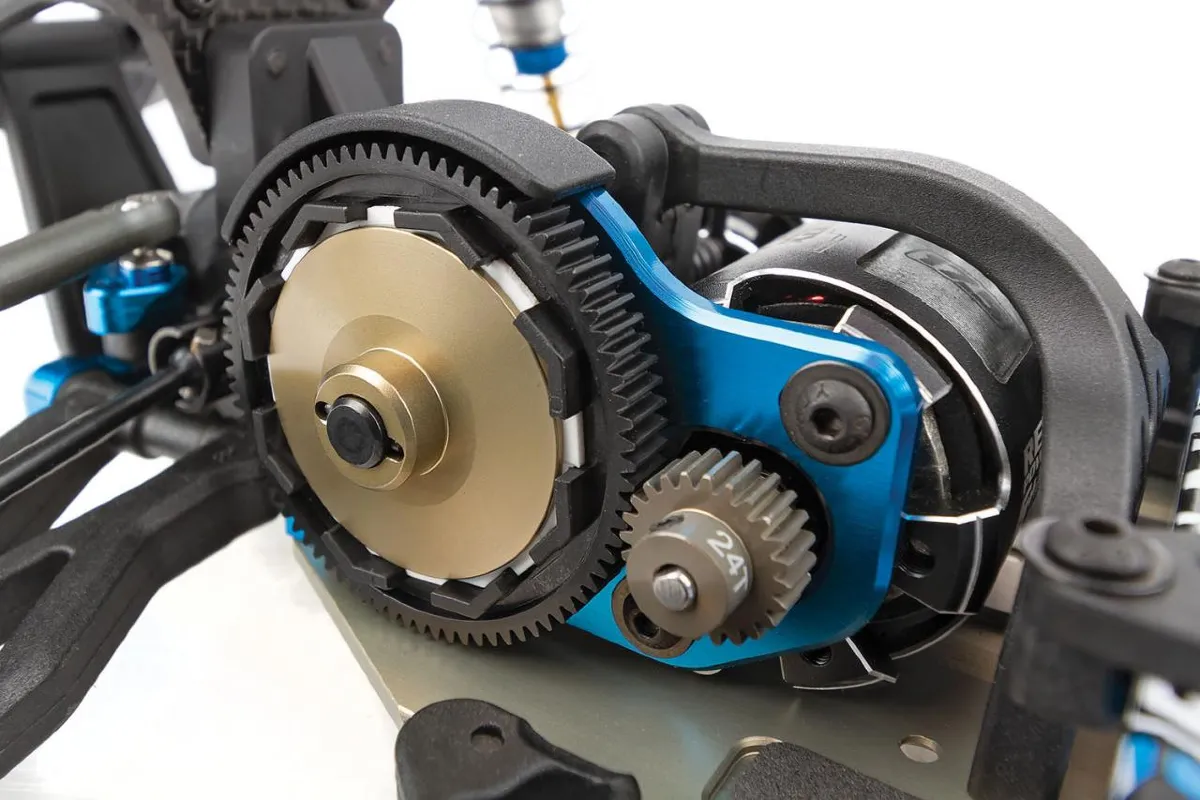

Spur Gear: 78T 48dp/0.5Mod
Wheel Hex Size: 12mm
